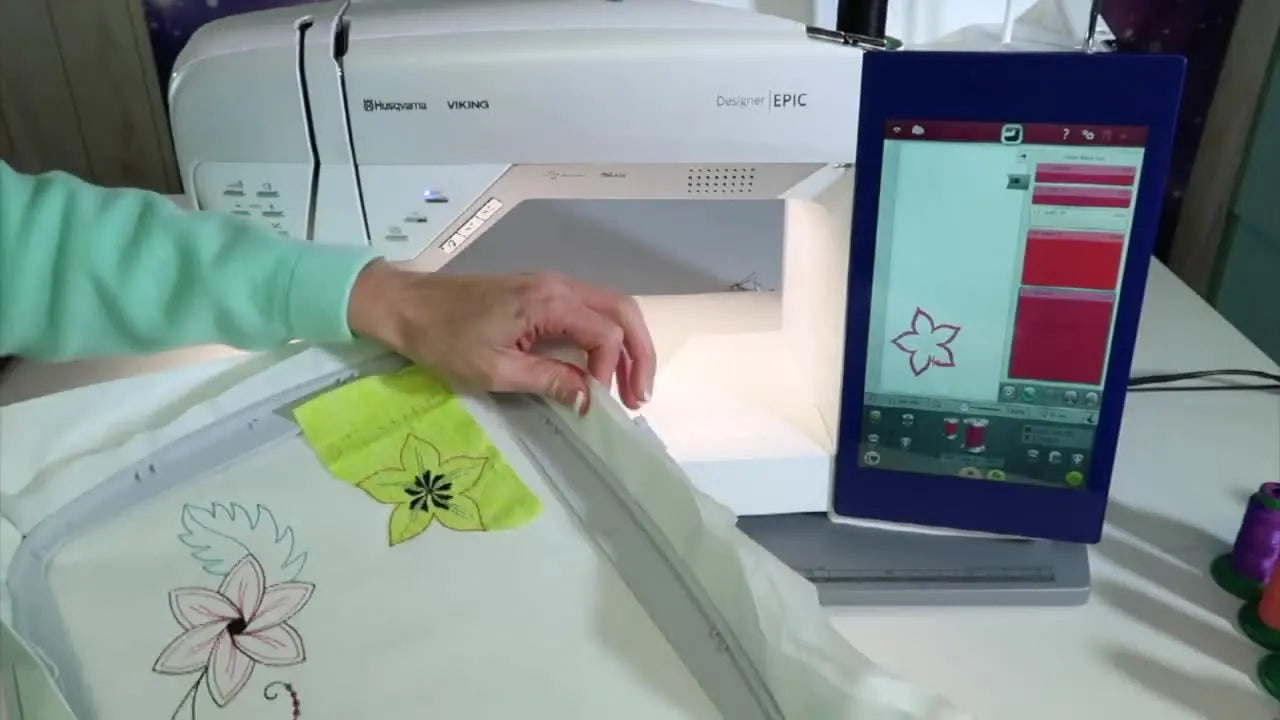

Designer EPIC Appliqué That Actually Looks Professional: Corner-Check Placement, Smarter Stitch Order, Cleaner Trimming

Appliqué embroidery is one of those deceptive techniques. It looks like a simple game of "sticker placement," but anyone who has spent an hour picking out a satin stitch because the fabric edge frayed or the coverage gaped knows the truth: it is a game of millimeters and physics.

When you are working on a high-end machine like the Husqvarna Viking Designer EPIC, you have the horsepower to do incredible work. But horsepower without control just means you make mistakes faster.

If you have ever trimmed your fabric, hit "Start," and watched in horror as the satin stitch completely missed the edge of your appliqué material using a small scrap, this guide is your correction manual. We are going to break down the exact workflow—rebuilt from the shop floor perspective—that turns unpredictable scrap appliqué into a boring, repeatable science.

Don’t Panic—Appliqué on the Husqvarna Viking Designer EPIC Is Predictable Once You Respect the Sequence

Appliqué triggers anxiety in new embroiderers because it interrupts the flow. Most embroidery is "press start and walk away." Appliqué demands your interaction at critical failure points.

The anxiety comes from the unknown. However, the EPIC’s built-in logic is rigid and predictable. It follows a universal "Three-Step Protocol":

1. Placement Line: The map. It tells you exactly where to put the fabric.
2. Tack Down: The anchor. It holds the fabric so you can trim it.
3. Satin Cover: The finish. It hides the raw edge.

When you treat these stops as safety checkpoints rather than interruptions, your heart rate goes down.

The Sensory Check: When the machine stops for appliqué steps, listen to the machine. It shouldn't just stop; the foot should lift slightly (hover mode) to invite you to interact. If it doesn't, you aren't in an appliqué sequence—you're just at a color change.

Find Built-In Appliqué Designs Fast with JoyOS Advisor “Applique Embroidery” (and Skip the Menu Maze)

The Designer EPIC is a computer first and a sewing machine second. Navigating the file system can feel like exploring a labyrinth. The quickest path to a guaranteed result is the JoyOS Advisor.

1. Tap the Screen: Open the JoyOS Advisor tab on your touchscreen (usually the lightbulb or graduation cap icon, depending on firmware).
2. Select Technique: In the technique row, tap “Applique Embroidery.”
3. Visual Confirmation: The screen will change layout. You’ll see step-by-step instructions on one side.
4. Auto-Load: The designs shown at the top of this menu are pre-validated. They are built with the "Stop limits" coded in.

Using this path protects you from "Fake Appliqué"—designs that look like appliqué but are actually just dense fill stitches that will destroy your fabric scrap if you try to trim them.

Use the Sampler Book Icons to Confirm You’re Opening an Appliqué File (Not Cutwork or Pop-Up)

Before you commit thread to fabric, you need to be a detective.

In the sampler book (or the digital file menu), Husqvarna Viking uses a specific visual language. You will see small symbols/icons next to the design numbers.

• Flower/Fabric Icon: Standard Appliqué.
• Scissors Icon: Often indicates Cutwork (where you cut holes before stitching).
• 3D Icon: Pop-up embroidery.

The video’s key point is vital: these icons are your file type label. If you select a Cutwork file thinking it is Appliqué, the machine will not stop for placement. It will stitch a heavy stabilizer line and keep going, potentially ruining your project.

Pro Tip: If you are unsure, scrub through the color blocks on the screen. If you don't see two very short, low-stitch-count blocks at the beginning (the placement and tack down), it’s not an appliqué file.

The “Hidden” Prep Before You Stitch: Hoop Choice, Thread Logic, and a Scrap-Saving Mindset

This is the phase experienced operators call "Pre-Flight." Mistakes made here cannot be fixed by the machine later.

The Setup Reality Check:

• Hoop: 200×200 Square Hoop.
• Fabric: White cotton background.
• Appliqué: Small green scrap (barely fitting the design).

Thread Logic (Crucial Detail): The host keeps hot pink thread in for the placement and tack down. Why hot pink? Because the final satin stitch is hot pink.

• Novice mistake: Using white thread for the tack down because "it's just a setup line."
• Result: White thread stitches often poke through ("grin through") the final satin, looking like lice in the embroidery. Always match your tack-down thread to your final satin color.

The Hooping Dilemma: Hooping white cotton in a standard hoop is risky. To get it tight enough ("drum tight"), you have to tighten the screw significantly. This creates "hoop burn"—a crushed ring of fabric fibers that effectively bruises the material. For delicate projects, or if you struggle with the hand strength required to tighten the outer ring, many users upgrade to a magnetic hoop for husqvarna viking. These use magnets to clamp the fabric without the friction-burn of plunging an inner ring into an outer ring.

Safety Warning: Needle Clearance.
When setting up, ensure your workspace is clear. If you are using scissors to trim loose threads near the needle bar, remove your foot from the pedal (or lock the machine screen). A startled twitch can drive a needle through a finger in milliseconds.

Prep Checklist (Pre-Flight Protocol):

• File Verification: Icon matches "Appliqué" in the menu.
• Hoop Sensor: The machine screen shows the same hoop size (e.g., 200x200) as the physical hoop you attached.
• Thread Match: Bobbin is sufficiently full (at least 1/3) and Top Thread matches the final satin color.
• Needle Condition: Run your fingernail down the needle tip. If you feel a "click" or catch, the needle is burred. Replace it (Size 75/11 Embroidery Needle recommended).
• Scrap Availability: Your appliqué fabric scrap is within arm's reach.


Design Positioning + Corner Check: The EPIC Feature That Saves Your Scrap (and Your Mood)

This is the technical heart of the process. You have a small scrap. You have a specific spot on the hoop. How do you guarantee they match? Design Positioning.

The Workflow:

1. Hoop the Base: Attach your background fabric/stabilizer to the machine.
2. Activate Mode: Select the Design Positioning tab.
3. Visual Alignment: The crosshair on the screen corresponds to the needle. Drag the design on screen until it looks roughly correct.
4. The "Corner Check" (Mandatory Step):
   • Locate the "Corner Check" or "Trace" icon (usually a box with corners).
   • Advance through each of the four corners of the design's bounding box.
   • Sensory Check: Watch the physical needle. Does it hover over your scrap area for all four corners?
   • If the needle moves off your scrap at any point, you will have a gap. Move the scrap or move the design.

Why this matters: Standard hoops are fine, but adjusting the fabric after hooping is impossible without re-hooping. This is another scenario where a magnetic hoop for husqvarna viking shines—if your placement is off by 5mm, you can simply lift the magnets, slide the fabric, and snap them back down. With a standard hoop, that adjustment takes two minutes and risks fabric distortion.

The Appliqué Stitching Sequence That Works: Placement Line → Lay Fabric → Double-Run Tack Down

Once positioning is locked, the machine takes over.

1. Placement Line (The Map): Press start. The machine stitches a single run of hot pink thread. This is your "landing pad."
2. The Pause: The machine stops. Cut the thread? No. Most modern machines have automatic cutters, but if yours doesn't, trim the tail now.
3. Placement: Lay your green scrap fabric completely covering the placement line.
   • Tip: Do you need spray adhesive? For a piece this small (under 4 inches), usually no. The friction of cotton-on-cotton is high. Just smooth it down. If you are using slippery satin or synthetic, a light mist of temporary spray adhesive (like 505) is necessary.
4. Tack Down (The Anchor): Press start. The machine stitches the Double-Run.
   • Observation: It stitches a circle, then goes back around again. This double pass is critical for stability.

Hoop Stability: During the tack down, watch the fabric. Does it ripple or "push" in front of the foot? If so, your hoop tension is too loose. In a production environment, inconsistent tension is the enemy. This is why many shops that do repeat appliqué runs move toward magnetic embroidery hoops, as they provide uniform clamping pressure around the entire perimeter, reducing the "flagging" (bouncing) of fabric that causes distortion.

Setup Checklist (The "Go/No-Go" Check):

• Needle Alignment: Verified via Corner Check that the design fits the scrap.
• Coverage: Appliqué scrap extends at least 5mm beyond the placement line on all sides.
• Flatness: Fabric is smoothed down; no wrinkles or bubbles under the foot.






The Pro Move: Stitch the Inner Details *Before* You Trim (So the Edge Doesn’t Pull In)

This section contains the "Secret Sauce" that separates amateurs from pros.

The Physics of Pull: Embroidery distorts fabric. Stitches pull the fabric in toward the center of the design.

• The Amateur Way: Tack down -> Trim immediately -> Stitch inside details.
  • Result: The trimming weakened the fabric hold. The inside details pull the fabric inward. By the time the satin border stitches, the fabric edge has pulled away, leaving a gap.
• The Pro (EPIC Video) Way: Tack down -> STOP (Do NOT Trim) -> Stitch Inside Details -> Trim.

The Process:

1. After the tack down, the machine stops. Do not remove the hoop.
2. Change thread to the detail color (Black).
3. Stitch the center of the flower.
4. Now the machine stops for the final border.

By keeping the excess scrap fabric attached while stitching the heavy center, you use the "waste" fabric as a stabilizer. It absorbs the tension and prevents the edge from shrinking.

Trim Position + Curved Scissors: How to Cut Cleanly Without Fighting the Hoop

Now, the center is stitched, and the machine is ready for the final edge. It is time to cut.

The Tool: You must use Double-Curved Embroidery Scissors (often called "Appliqué Scissors"). The curve allows the blades to sit flat against the stabilizers while the handle angles up, keeping your fingers away from the fabric.

The Method:

1. Option A: Trim Position (On-Machine)
   • Press the "Trim Position" or "Head Up" button on the EPIC.
   • The hoop moves forward toward you.
   • Trim the fabric as close to the tack-down line as possible (aim for 1-2mm). Do not cut the tack-down stitches.
2. Option B: Table Trim (Off-Machine)
   • Remove the hoop.
   • Place it on a flat table. Rotate the hoop as you cut to get the best angle.

The Workflow Bottleneck: If you choose Option B with a standard hoop, putting it back on the machine is easy. But if you have to un-hoop and re-hoop to fix a mistake, standard hoops are slow. If you are trimming dozens of pieces a day, the time you spend unclipping/reclipping adds up. A magnetic embroidery hoop can reduce hooping friction in repetitive work. You can pop the magnets off, adjust, and snap back in seconds.

Magnet Safety Warning:
If you decide to upgrade to magnetic hoops, be aware: these are industrial-strength neodymium magnets.
* Pinch Hazard: They can snap together with enough force to bruise skin or break a finger bone if caught between them.
* Medical Risk: Keep powerful magnets at least 6 inches away from pacemakers and ICDs.

Final Satin Stitch on the EPIC: What “Good Coverage” Looks Like (and What to Watch)

1. Re-Verify: If you took the hoop off, ensure it clicked firmly back into the embroidery arm. Give it a gentle tug.
2. Thread: Switch back to Hot Pink (Satin Color).
3. Action: Press Start.

The Sensory Finish: A good satin stitch should sound different—a rhythmic, low hum.

• Look for "Eyelashes": If you see little loops of the bobbin thread (usually white) showing on top, your top tension is too tight, or the thread path is clogged.
• Look for "Railroad Tracks": If the satin stitch is too wide and loose, your tension is too low.

The host notes the EPIC estimates 4 minutes for this step. Use the mySewMonitor app to get a ping on your phone when it's done, so you don't have to stare at it.

Troubleshooting the Three Most Common Appliqué Headaches (Pulled From Real Stitching Moments)

Even with the best machine, things go wrong. Here is a rapid-response guide based on physics, not luck.

Production Tip: If you are running a small shop, standardization is key. Many studios keep multiple embroidery hoops for husqvarna viking on hand. One is on the machine stitching, while the operator is prepping/hooping the next garment on a separate table.

A Simple Decision Tree: Scrap Size, Fabric Behavior, and How to Choose Stabilizer (So the Satin Edge Stays Flat)

The machine manual tells you how to thread; it rarely tells you what to use.

Use this decision logic to prevent "Wavy Edge Syndrome" (where the satin stitch creates a ruffle).

1. Is the Base Fabric Stretchy? (T-Shirt, Jersey, Pique)
   • YES: MUST use Cutaway Stabilizer.
     • Why: Tearaway will disintegrate under the heavy needle penetrations of a satin stitch, causing the knit fabric to stretch and wave.
   • NO: Go to Step 2.
2. Is the Appliqué Fabric Thick/Textured? (Terry cloth, Fleece)
   • YES: You need a Water Soluble Topping (Solvy).
     • Why: The stitches will sink into the pile and disappear. The topping keeps them floating on top.
   • NO: Go to Step 3.
3. Is Hooping Impossible? (Pockets, Collars, Thick Seams)
   • YES: Use a "Float" method (hoop the stabilizer, spray adhesive, stick the garment on top).
   • Better: Use a husqvarna magnetic hoop. The magnets can clamp over thick seams and zippers where a plastic inner ring would pop out or break.

The Upgrade Path That Actually Makes Sense: When Better Hooping Tools Beat “More Practice”

There comes a specific moment in every embroiderer’s journey where skill is no longer the bottleneck—equipment is.

How do you know if you have reached that point?

1. The "Hobbyist" Stage:
   • Pain Point: Scrap alignment.
   • Solution: Use Design Positioning and Corner Check. These are free, powerful, and built into your EPIC.
2. The "Side Hustle" Stage (10-50 items/week):
   • Pain Point: Hand fatigue, hoop burn on customer garments, slow re-hooping.
   • Solution: This is the trigger for Magnetic Frames. A magnetic hooping station allows you to align logos perfectly every time without measuring twice, and the magnets save your wrists.
3. The "Production" Stage (50+ items/week):
   • Pain Point: Changing thread colors takes longer than the stitching itself. You are declining orders because you can't stitch fast enough.
   • Solution: This is the trigger for Multi-Needle Machines. Moving to a 10 or 15-needle platform (like SEWTECH multi-needle machines) means no manual thread changes and higher speeds (1000+ SPM).

You do not need a factory to do professional appliqué, but you do need to remove the friction from your workflow. Start with the right sequence, use the right scissors, and when the volume hurts your hands, upgrade your hoops.

Operation Checklist (End-of-Run Quality Control):

• Coverage Check: Inspect the satin border. Is any raw fabric poking out?
• Density Check: Curl the fabric. Is the edge stiff (bulletproof) or flexible? (Too stiff = density too high).
• Backside Check: Turn it over. Is the bobbin thread showing about 1/3 width in the center of the satin column? (If yes, tension is perfect).
• Clean Up: Trim jump stitches and remove stabilizer residue.
• Safety: If using magnets, store them immediately to prevent pinching.

FAQ

• Q: How can Husqvarna Viking Designer EPIC users confirm an embroidery file is a true appliqué design (not cutwork or pop-up) before stitching?
  A: Use the appliqué icon cues and color-block sequence—true appliqué files show distinct placement and tack-down steps early.
  • Check the sampler book or on-screen design list for the flower/fabric appliqué icon; avoid scissors (cutwork) and 3D (pop-up) icons when the goal is appliqué.
  • Scrub through the Color Blocks on the EPIC screen and look for two very short, low-stitch-count blocks at the beginning (placement line + tack down).
  • Load built-in appliqué designs via JoyOS Advisor → “Applique Embroidery” to avoid “fake appliqué” files.
  • Success check: The machine stops and the foot lifts slightly (hover mode) at appliqué checkpoints, not just at a normal color change.
  • If it still fails, stop and reselect a verified appliqué design; a cutwork-style file may not pause for placement.
• Q: On a Husqvarna Viking Designer EPIC appliqué, what thread color should be used for the placement line and tack-down to prevent “grin through” under satin stitch?
  A: Match the placement/tack-down top thread to the final satin stitch color to prevent lighter threads from showing through.
  • Keep the same color in for placement line and tack-down if the final border satin will be that color.
  • Avoid using “temporary” white thread for tack-down on a colored satin border.
  • Verify the bobbin is not running low before starting (a safe minimum is about 1/3 full).
  • Success check: After the satin stitch, no stray lighter tack-down stitches are visible through the satin coverage.
  • If it still fails, rethread and clean the thread path if tension behavior looks inconsistent.
• Q: How do Husqvarna Viking Designer EPIC users prevent satin stitch from missing the edge of a small appliqué scrap using Design Positioning and Corner Check?
  A: Use Design Positioning plus a full 4-corner trace to prove the entire design stays inside the scrap before stitching.
  • Hoop the base fabric/stabilizer first, then open Design Positioning and drag the design into the intended area.
  • Run Corner Check/Trace through all four corners of the design bounding box and watch where the needle hovers.
  • Ensure the appliqué scrap will cover the placement line completely (a safe target is at least ~5 mm beyond the placement line on all sides).
  • Success check: The needle hover path stays over the appliqué scrap area at all four corners—no corner travels off the scrap.
  • If it still fails, reposition the design or fabric and repeat Corner Check before restarting.
• Q: In Husqvarna Viking Designer EPIC appliqué, should trimming happen immediately after tack-down or after stitching inner details to prevent “the gap”?
  A: Trim after stitching the inner details, not immediately after tack-down, to reduce fabric pull-in that creates gaps at the border.
  • Stitch the placement line, apply the scrap, then stitch the double-run tack-down.
  • Do not trim after tack-down; change to the detail color and stitch the inner elements first while the excess fabric is still supporting the pull.
  • Trim only when the machine stops for the final border step.
  • Success check: The satin border lands fully on the appliqué fabric with no open space between fabric edge and satin.
  • If it still fails, use a cutaway stabilizer on unstable base fabrics and recheck that the scrap coverage is generous.
• Q: What is the safest way to trim appliqué fabric on a Husqvarna Viking Designer EPIC, and which scissors prevent accidental cutting of stitches?
  A: Use double-curved appliqué scissors and trim close (about 1–2 mm) to the tack-down line without cutting the tack-down stitches.
  • Press the EPIC “Trim Position/Head Up” function to bring the hoop forward, or remove the hoop and trim on a flat table if that gives better control.
  • Cut slowly and rotate the hoop as needed; keep the scissor blades flat while the handle angles up.
  • Avoid cutting into the tack-down stitches—those stitches are the anchor for the satin coverage.
  • Success check: The trimmed edge is clean and even, and the tack-down line remains intact all the way around.
  • If it still fails, replace or sharpen scissors; dull blades commonly cause “poker chip” tufts.
• Q: What tension signs should Husqvarna Viking Designer EPIC users watch during the final satin stitch, including bobbin loops (“eyelashes”) and “railroad tracks”?
  A: Use the stitch appearance and sound to diagnose tension quickly: bobbin loops on top indicate a problem, and loose wide satin can indicate low tension.
  • Watch for “eyelashes” (bobbin thread loops showing on top); this often points to top tension too tight or a clogged thread path.
  • Watch for “railroad tracks” (satin columns that look loose/split); this often points to tension too low.
  • Listen for a steady rhythmic, low hum during good satin stitching.
  • Success check: On the backside, bobbin thread shows about 1/3 of the satin column width centered in the column.
  • If it still fails, rethread completely and check for thread path obstructions before changing advanced settings.
• Q: What needle and finger-safety steps should Husqvarna Viking Designer EPIC users follow during appliqué stops when trimming threads near the needle bar?
  A: Lock out accidental starts before hands go near the needle—remove the foot from the pedal or lock the machine screen during trimming.
  • Remove your foot from the pedal (or lock the screen) before trimming thread tails near the needle area.
  • Inspect the needle by running a fingernail down the tip; if it catches or “clicks,” replace the needle.
  • Use an embroidery needle as a safe starting point (the blog recommends size 75/11 for this workflow).
  • Success check: No unexpected needle movement occurs while hands are in the needle zone, and the needle tip feels smooth with no burr.
  • If it still fails, slow down and treat each appliqué stop as a safety checkpoint, not a rush point.
• Q: When should embroiderers upgrade from standard hoops to magnetic hoops or to a multi-needle machine for higher-volume appliqué work (side hustle vs production)?
  A: Upgrade based on the bottleneck: technique first, then hooping efficiency, then machine capacity when thread changes become the limiter.
  • Level 1 (Technique): Use EPIC Design Positioning + Corner Check and follow the sequence (details before trimming) to eliminate gaps and misalignment.
  • Level 2 (Tool): Consider magnetic hoops when hoop burn, hand fatigue, or slow re-hooping becomes a weekly pain (commonly in the 10–50 items/week range).
  • Level 3 (Capacity): Consider a multi-needle platform when manual thread changes slow output so much that orders are being declined (commonly 50+ items/week).
  • Success check: The workflow feels repeatable—less re-hooping, fewer placement misses, and fewer satin-edge defects across multiple runs.
  • If it still fails, standardize prep (needle condition, bobbin level, stabilizer choice) before investing, because inconsistency often mimics “equipment limits.”
