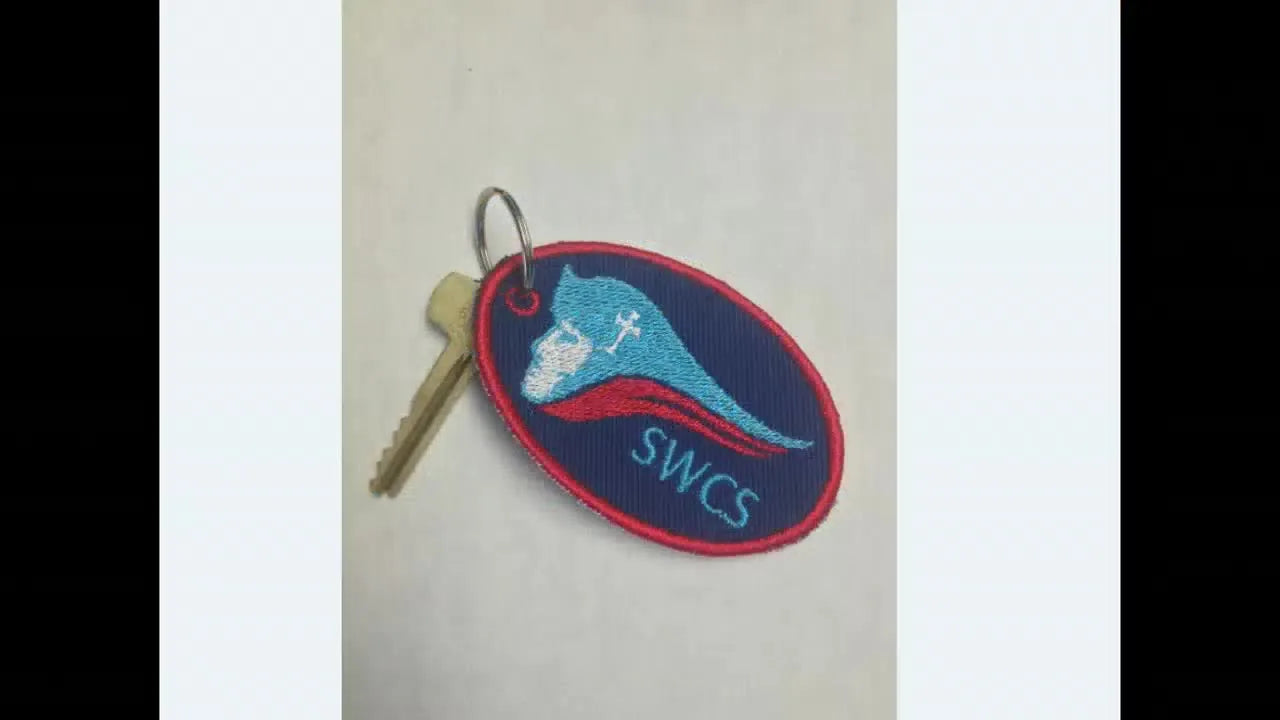

Digitize a Professional ITH Keychain in Bernina V6: Clean Jump Stitches, Covered Backs, and Eyelets That Actually Fit

Master the "In-The-Hoop" Keychain: The Ultimate Production Guide

If you have ever stitched an In-The-Hoop (ITH) keychain and asked, "Why does the back look messy?" or "Why am I manually trimming jump stitches between every letter?", you are experiencing the gap between hobbyist guessing and production logic.

In professional embroidery, we don't just "draw shapes." We engineer a stitch sequence that accounts for material thickness, tension physics, and efficiency. This guide transforms a standard Bernina Embroidery Software DesignerPlus (Version 6) workflow into a production-ready protocol. We will build a file that stitches cleanly, hides all knots, and produces a retail-ready edge.

The "Sandwich" Theory: 5 Layers for a Mess-Free Back

Beginners often panic when they see raw edges. The secret isn't magic; it's structure. You aren't just digitizing a visual design; you are programming a mechanical assembly line.

Christy’s stitch plan operates on five distinct functional layers. Understanding the Why behind each layer is crucial:

1. Placement Line (Single Run): An outline stitched on the stabilizer only. This shows you exactly where to place your fabric.
2. Base Tack-Down (Zigzag/Open Satin): Secures the top fabric to the stabilizer. We use a Zigzag here to avoid bulk—we don't want a hard ridge yet.
3. Content (The Design): Your text, logo, or disconnect.
4. Backing Tack-Down (The "Flip"): The critical moment where you flip the hoop, add backing fabric, and stitch again to trap the ugly bobbin threads inside.
5. Finishing Satin Border: The final high-density edge that seals the raw fabric sandwich.


The Hidden Win: Durability

A covered-back keychain isn't just aesthetic; it’s structural. By trapping the stabilizer and thread tails between two layers of fabric (Base + Backing), you protect the embroidery from friction. If you sell these, a covered back is the difference between a product that lasts 2 weeks and one that lasts 2 years.

Phase 1: Preparation & "Pre-Flight" Checks

Before you touch the software, you must define your materials. In embroidery, Physics > Software. If your materials aren't prepped, no amount of digitizing can fix the puckering.

The Sweet Spot Size: For keychains, aim for a 3" x 4" (75mm x 100mm) working area. Larger feels clumsy in a pocket; smaller renders text illegible.

The "Hidden" Consumables List

Beginners often miss these essentials. Ensure you have:

• Fabric: Marine Vinyl (for durability) or Cotton (requires interfacing).
• Stabilizer: Medium-weight Tearaway (for stiffer keychains) or Cutaway (for longevity).
• Adhesion: Temporary adhesive spray (like KK100) or painters tape (blue tape) to hold the back fabric.
• Hardware: Key rings and a hole punch (leather punch or eyelet tool).
• Needles: 75/11 Sharp (for cotton) or 80/12 Topstitch (for vinyl).

The Hooping Reality Check

If you plan to make 50 of these for a craft fair, your hands will fatigue quickly using standard screwing hoops. This is where professional tools like a hooping station for embroidery act as a force multiplier. They ensure your fabric tension is identical on every single hoop, reducing the chaotic variable of human error.

Warning: Physical Safety
When trimming fabric in the hoop (Appliqué style), keep your fingers away from the needle bar area. Serious injury occurs if you accidentally hit the "Start" button while your hands are inside the sewing field. Always engage the "Safety Lock" mode on your machine before trimming.

Prep Checklist (Do not skip)

• Hoop Check: Is your screw tightened? (Tap the stabilizer; it should sound like a tight drum skin, fitting specific fabric tension requirements).
• Bobbin Check: Is your bobbin at least 50% full? running out during the final satin stitch is catastrophic for ITH projects.
• Needle Check: Run your fingernail down the needle tip. If you feel any burr, change it immediately. A burred needle will shred your satin border.
• Layout Plan: Confirm you can fit the desired multiples within your machine's visible boundary.

Phase 2: Strategic Layout & The Single-Needle Bottleneck

Christy opens Bernina V6 with the hoop grid active. This acts as your visual safety fence.

When designing for production availability, maximize the hoop real estate. We will layout four keychains in a 2x2 grid.

The Production Bottleneck

If you are using a single-needle home machine, your biggest enemy is "Hooping Time." Every time you unclamp and reclamp, you lose 2–5 minutes. By fitting four items in one hoop, you slash your setup time by 75%.

Pro Tip: This is the logic that eventually drives hobbyists to upgrade. Heavy production runs often justify investing in hooping for embroidery machine efficiency tools or eventual upgrades to multi-needle machines (which handle thread colors automatically), turning a 4-hour job into a 1-hour job.

Phase 3: Digitizing the Foundation (Placement & Tack)

Step 1: The Placement Line

This guide is for you, not the machine.

1. Select Tool: Outline > Single Stitch.
2. Draw: Use the Circle/Oval tool. Click center, drag width, drag height.
3. Dimension: Aim for approx 2.49" x 3.78".
4. Confirm: Press Enter.


Why Single Stitch? A heavy run stitch here creates a "ridge" that will show through your final satin border. Keep it light.

Step 2: The Multiplier Effect

1. Select your oval.
2. Duplicate: Ctrl+C / Ctrl+V.
3. Arrange: Place 4 ovals in the boundary. Ensure they do not touch the red safety margin.


Business Context: When you start duplicating designs, alignment becomes critical. Standard plastic hoops can slip/distort. Many serious users switch to magnetic frames here. A magnetic embroidery hoop clamps fabric vertically without the "tug and screw" distortion, ensuring your four ovals stay perfectly aligned from start to finish.

Phase 4: The "Parking" Trick (Jump Stitch Management)

This is the most advanced tip in the tutorial. When stitching four separate islands (ovals), the machine must "jump" between them. If the machine travels across the middle of an oval, that thread might get trapped under your decorative text later.

The Fix:

1. Select "Reshape Object".
2. Locate the Green Cross (Start) and Red Cross (End).
3. Move both crosses to the center gap (dead space) between the four keychains.


Succes Metric: Your jump stitches should look like a "spider web" concentrated in the middle, away from the design area. This allows you to snip them all at once at the very end.

Phase 5: The Base Tack-Down (The Grip)

Now we secure the fabric.

1. Copy/Paste your placement ovals.
2. COLOR CHANGE: Force a color change in the software. This signals the machine to STOP, allowing you to lay down your material.
3. Properties: Change from "Single" to Satin.
4. Density (Crucial): Set Spacing to 2.00 mm (Auto spacing off).
5. Offset: Center.


Why 2.00 mm? Standard satin is ~0.40mm. That is too dense for a tack-down; it will perforate vinyl like a stamp. A 2.00 mm Zigzag holds the fabric firm without cutting it.

Productivity Note: In high-volume shops, consistent placement is key. Using a hoopmaster system ensures your fabric lands on the exact same coordinate every time, but for home users, simply using a distinct color stop is your trigger to pay attention.

Phase 6: Content & Personalization

Use the Lettering Tool. Type, Rotate, Place.

The Font Trap: Avoid thin, serif fonts for keychains. The material suffers heavy wear in pockets. Use a Bold Sans-Serif or a thick Script. Thin columns (under 1mm) will break and fray.

Sensory Check: If your machine sounds "crunchy" or loud while stitching small text, your hoop tension is loose. This is a common struggle with stiff hoop mechanisms. High-quality magnetic embroidery hoops are often favored here because they reduce the "drumming" vibration that distorts small letters.

Phase 7: The Flip (Backing) & Final Border

The Danger Zone: Use the "Base Tack-Down" layer again (Copy/Paste), but change the color. This stop tells you to:

1. Remove hoop (Do not un-hoop the stabilizer!).
2. Tape backing fabric to the underside.
3. Re-attach hoop.


Warning: Magnetic Hoop Safety
If you have upgraded to a magnetic embroidery hoop for easier backing placement, treat it with respect. The magnets are industrial-strength. Pinch Hazard: Keep fingers clear when snapping the top ring. Medical Safety: Keep magnets away from pacemakers.

Phase 8: The Satin Border (The Seal)

This is the money stitch. It hides the raw edges.

1. Copy the shape again.
2. Properties: Satin Stitch.
3. Width: 0.13 inches (approx 3.3mm). This is wide enough to cover the raw edge sandwich.
4. Density (Spacing): 0.40 mm.


Empirical Adjustment:

• Cotton/Canvas: 0.40 mm is perfect.
• Vinyl/Leather: 0.40 mm might be too tight and cause the vinyl to curl or cut. Relax spacing to 0.45mm – 0.50mm.

Phase 9: The Eyelet & Templates

Don't guess the hole size.

1. Draw Circle: Use Satin tool.
2. Measure (M Key): Ensure inner diameter is 0.10 inches minimum for standard hardware.




Optimization: Print a paper template at 100% scale. Use this to pre-cut your fabric squares. Don't waste expensive fabric by guessing sizes.

Decision Tree: Choosing the Right Workflow

When to Upgrade? If you are making these to sell, track your "Trim Time" vs. "Run Time." If you spend more time changing thread colors and trimming jumps than the machine spends stitching, search for multi hooping machine embroidery solutions or consider a multi-needle machine. The ROI kicks in when you save 3 minutes per unit on a 100-unit order.

Troubleshooting: The "Symptom > Cure" Matrix

1. Symptom: "The Satin Border missed the edge."

• Likely Cause: The fabric shifted during the heavy embroidery phase.
• Check: Is the stabilizer loose?
• Fix: Use a stronger adhesive spray. Consider embroidery hoops magnetic which grip the entire perimeter evenly, preventing the "pull-in" effect common with screw hoops.

2. Symptom: "The Backing Fabric is puckered/pleated."

• Likely Cause: You applied the backing while the hoop was floating in mid-air.
• Fix: Place the hoop face down on a flat table. Tape the backing fabric taut (like a drum).

3. Symptom: "Machine makes a 'thud-thud' sound on the border."

• Likely Cause: Needle is dull or struggling to penetrate 3 layers + stabilizer.
• Fix: Swap to a Titanium or Topstitch needle immediately. Increase stitch spacing to 0.45mm.

Final Operation Checklist

Run this mental loop before hitting 'Start'

• Design: Jump stitches parked in center?
• Colors: Are functional stops (Placement, Tack, Backing) set to different colors to force machine stops?
• Measurement: Is the Eyelet gap at least 0.10"?
• Material: Backing fabric pre-cut and tape is within reach?
• Safety: Fingers clear of the needle bar?

By treating your embroidery file as a structural blueprint rather than just a picture, you move from "hoping it works" to "knowing it will work." Happy stitching!

FAQ

• Q: In Bernina Embroidery Software DesignerPlus V6, why does an ITH keychain backing look messy with exposed bobbin threads?
  A: Use a 5-layer “sandwich” stitch sequence and trap the bobbin threads by adding a backing tack-down after flipping the hoop.
  • Stitch a Placement Line on stabilizer only, then run a light Base Tack-Down to hold the top fabric.
  • Stitch the Content, then stop and flip the hoop to tape backing fabric to the underside (do not un-hoop the stabilizer).
  • Stitch a Backing Tack-Down, then finish with a Satin Border to seal all raw edges.
  • Success check: The back side shows backing fabric with no loose bobbin tails or raw stabilizer edges exposed.
  • If it still fails: Increase backing adhesion (tape or temporary spray) and re-check that the flip step happens before the final satin border.
• Q: What is the correct stitch density for the Bernina V6 base tack-down zigzag on vinyl ITH keychains to prevent perforation?
  A: Set the Base Tack-Down to Satin with spacing at 2.00 mm (Auto spacing off) so the tack holds without “stamp-hole” cutting.
  • Copy/paste the placement oval, then force a color change so the machine stops for material placement.
  • Change Properties from Single to Satin, set Spacing to 2.00 mm, and keep Offset centered.
  • Use this tack-down before the decorative content and again as the backing tack-down (as a separate color stop).
  • Success check: The fabric is held firmly, but the tack-down line does not look like a tight, perforated tear line.
  • If it still fails: Reduce bulk (use less thick stack) and confirm the final dense satin border is not being used as a tack-down.
• Q: How do you “park” jump stitches in Bernina DesignerPlus V6 when stitching four ITH keychains in one hoop?
  A: Move the Start and End points so travel stitches concentrate in the empty center gap, not across any keychain area.
  • Select the oval object and choose Reshape Object.
  • Locate the green cross (Start) and red cross (End), then move both into the dead space between the four keychains.
  • Stitch so the machine forms a “spider web” of jumps only in the center, then trim once at the end.
  • Success check: No jump stitches run across any oval interior where lettering or satin borders will later trap them.
  • If it still fails: Re-check the start/end points for each duplicated oval (copy/paste can create separate travel paths).
• Q: What is the best way to judge correct hooping tension for ITH keychains before running the Bernina embroidery machine?
  A: Hoop stabilizer to a “tight drum” feel and verify the setup before stitching dense satin borders.
  • Tap the hooped stabilizer and listen/feel for a tight drum-skin response (not slack or spongy).
  • Confirm the hoop screw is tightened and the stabilizer is not shifting in the frame.
  • Check the bobbin is at least 50% full and replace any needle with even a tiny burr.
  • Success check: The hoop stays rigid during stitching and the satin border lands consistently on the edge without fabric drift.
  • If it still fails: Increase fabric hold-down (tape or temporary spray) and reduce variables by running fewer pieces per hoop until stable.
• Q: What needle types should be used for ITH keychains on cotton versus vinyl to reduce border shredding and “thud-thud” sounds?
  A: Use a 75/11 Sharp for cotton and an 80/12 Topstitch for vinyl, and change immediately if the needle is dull.
  • Match the needle to material: 75/11 Sharp (cotton) or 80/12 Topstitch (vinyl).
  • Replace the needle if a fingernail test finds any burr—border satin stitches amplify needle damage.
  • If the border sounds heavy, relax satin spacing to 0.45–0.50 mm on vinyl/leather to reduce punch load.
  • Success check: The border runs smoothly without loud “thud-thud” impacts and without shredded top thread on the satin edge.
  • If it still fails: Reduce border density further within the suggested range and confirm the material stack is not thicker than planned.
• Q: What is the safest way to trim fabric in the hoop for ITH keychains on an embroidery machine to avoid accidental needle injuries?
  A: Engage the machine Safety Lock before any in-hoop trimming and keep hands away from the needle bar area.
  • Stop the machine and enable Safety Lock mode before placing fingers or scissors inside the sewing field.
  • Trim slowly with the hoop stabilized on a table, not while holding it in the air.
  • Keep fingers out of the needle bar zone even when the machine is paused.
  • Success check: Trimming is completed with the machine locked out, and hands never enter a position where an accidental Start press could cause injury.
  • If it still fails: Change the workflow to pre-cut fabric shapes using a printed template so less trimming is needed in-hoop.
• Q: What safety precautions are required when using an industrial-strength magnetic embroidery hoop for ITH keychain production?
  A: Treat magnetic hoops as pinch-hazard tools and keep them away from pacemakers and sensitive medical devices.
  • Snap the top ring down with fingers clear of the closing gap to avoid pinches.
  • Place the hoop on a flat surface when attaching to control alignment and reduce sudden magnet pull.
  • Keep magnetic hoops away from pacemakers and similar medical implants.
  • Success check: The hoop closes without finger pinches and fabric remains evenly clamped around the full perimeter.
  • If it still fails: Slow down the closing motion and reposition hands to the outside edges before letting magnets engage.
• Q: For ITH keychains, when should a single-needle home embroidery setup upgrade technique versus upgrade to a magnetic hoop versus upgrade to a multi-needle machine?
  A: Follow a three-level fix: optimize layout and stops first, then improve hooping speed with magnetic clamping, then consider a multi-needle machine when trim/time dominates.
  • Level 1 (Technique): Fit four keychains per hoop, force functional color stops (placement/tack/backing), and park jump stitches in the center.
  • Level 2 (Tool): Choose a magnetic hoop when screw-hoop hand fatigue, slipping, or inconsistent alignment causes border misses and rework.
  • Level 3 (Capacity): Consider a multi-needle machine when thread changes and trimming take longer than actual stitch run time on batch orders.
  • Success check: Total labor time per keychain drops (less hooping time, fewer rehoops, fewer manual trims) without increasing rejects.
  • If it still fails: Track “trim time vs run time” for a full batch and address the biggest time sink first (hooping consistency, jump management, or color-change handling).
