Digitize a Star Trek Emblem in SophieSew (Free): Clean Nodes, True Holes, and a DST That Actually Stitches

Master SophieSew: From Free Software Frustration to Flawless Patches

If you’ve ever stared at a free digitizing interface at 2 a.m., eyes burning, thinking, "I just need one usable file without spending $500 on software," you are not alone. SophieSew is a powerful tool capable of producing professional-grade DST files, but it lacks the "guard rails" of paid software. It demands discipline.

This guide rebuilds the Star Trek emblem process from the ground up, but with a critical difference: we are adding the "Old Hand" safety protocols. We will bridge the gap between "clicking buttons" and the physical reality of needle, thread, and fabric tension.

1. The Mindset Shift: Treat Saving Like Breathing

SophieSew v1.13 is robust, but it is old code. It will not auto-save your work if it crashes.

The Golden Rule: Create a save file immediately. The "Undo" Strategy: SophieSew’s undo function is notoriously temperamental. Do not rely on it. Instead, save a new version (e.g., Emblem_v1.ss1, Emblem_v2_Outline.ss1) before every major operation. If a complex fill crashes the system, you simply load the previous version.

2. The "Hidden" Prep: Physics Before Pixels

Before you click Import, define your physical reality. The video targets a 1.5-inch tall emblem. In the embroidery world, 1.5 inches is small.

• Risk: Tiny details create "thread nests" (birdnesting) if nodes are too close.
• Solution: You need a high-contrast image and a stable hooping strategy.

The Hooping Variable: Clean nodes mean nothing if your fabric shifts. If you are struggling to keep small items straight or finding "hoop burn" (shiny rings) on your fabric from over-tightening standard hoops, this is a hardware issue, not a software one. Many advanced hobbyists standardize their workflow using a hooping station for machine embroidery to ensure every patch is aligned perfectly before it ever touches the machine.

pre-Flight Checklist

• Project File: Created and saved immediately.
• Image: High contrast (clear edges beat shading).
• Needle: Fresh 75/11 Sharp (for woven patches) or Ballpoint (for knits).
• Scissors: Curved appliqué scissors for trimming jump stitches.


3. Import Logic: The "Image Holder" Context Menu

In the video, importing isn't a simple "File > Open." That command expects a SophieSew design file.

The Correct Steps:

1. Select the Image/Picture Object Tool (looks like a paintbrush).
2. Draw a box on the grid.
3. Right-click the black border of that box.
4. Select Properties/Import to load your JPEG/BMP reference.

Sensory Check: If you don't see the image inside the box you drew, you likely clicked "File > Open" by mistake. The image is just a "ghost" background for you to trace over.

4. Outline Tracing: The Rhythm of the Nodes

Select the "Create an Object Outline" tool. This is where most beginners fail by creating "wobbly" lines. SophieSew uses a specific rhythm for node placement:

• Left Click: Places a point.
• The Logic: Every third click creates a Green Node (Anchor). The two points in between are "control handles" for the curve.

The Corner Rule: Sharp corners must land on a Green Node. If you try to make a sharp corner with a control handle, the software will curve it, creating a "melted" look.

Expert Insight: Use the fewest nodes possible.

• Too many nodes: The machine slows down, stutters (listen for a jagged chug-chug-chug sound), and stitches look lumpy.
• Just right: The machine runs smoothly (hummm), and curves flow naturally.


5. The Inner Star: Managing Density in Small Spaces

Create a second vector object for the star.

• Strategy: Place Green Nodes at the tips and the inner "armpits" of the star.
• Constraint: Because the design is only 1.5 inches, these nodes will be very close.

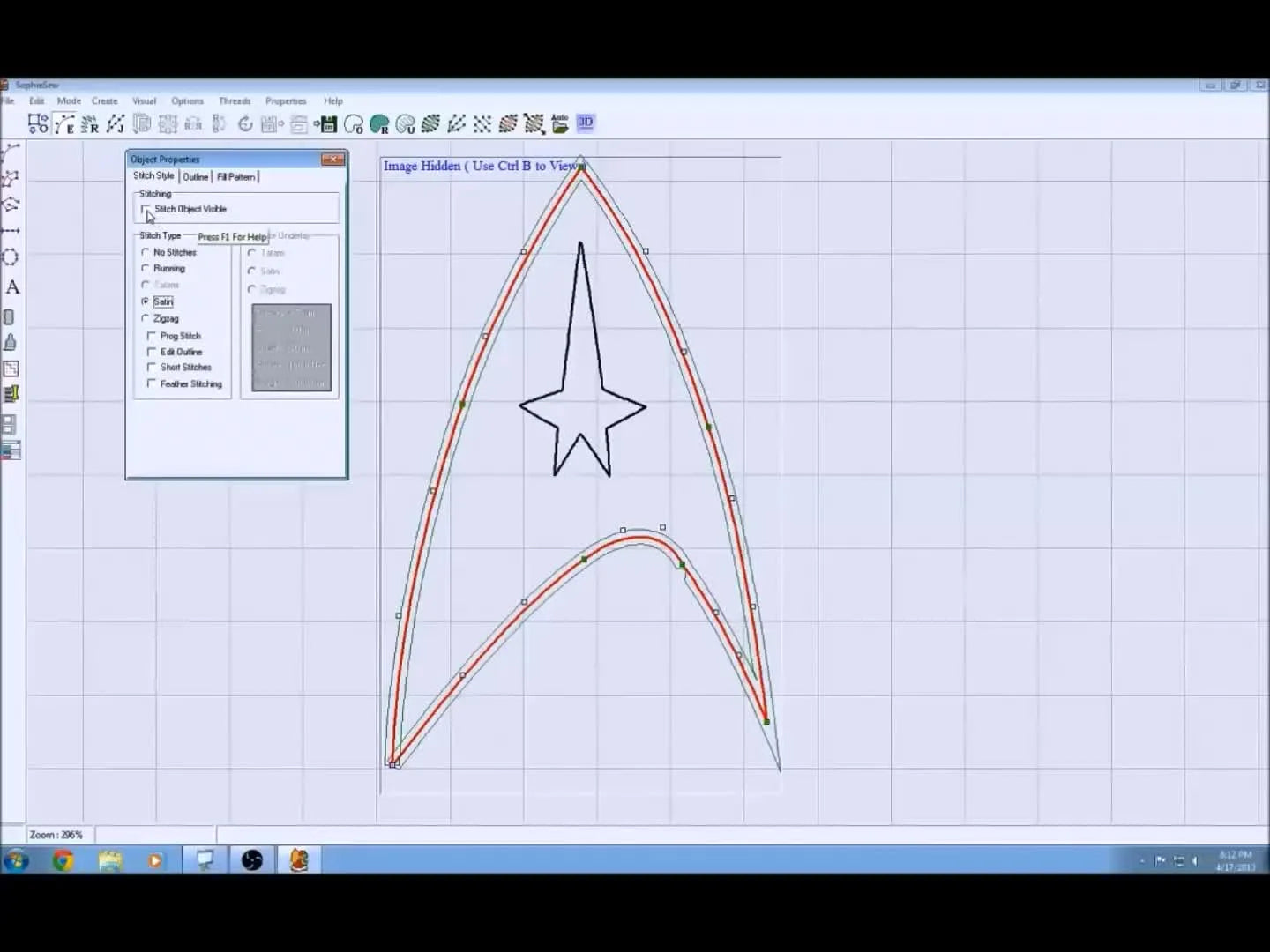

6. Visual Verification: Set Outline to Satin

Now, apply physics to your lines.

1. Right-click the outer border → Properties.
2. Set Outline Stitch Type to Satin.
3. Crucial Step: Enable "Stitch Object Visible".

Visual Check: Look at your screen. Does the satin stitch look like a consistent rope? If it looks twisted or has gaps, your nodes are too close or crossed. Fix it now, or it will break your needle later.

7. The "Gap" Fix: Force Stitch to Point

When framing the star with a Running Stitch, you may notice the thread doesn't hit the sharp corners perfectly, leaving gaps.

• The Fix: Right-click the specific Green Node at the corner and select Force Stitch to This Point.
• The Result: This forces the software to calculate a needle drop exactly at that coordinate, ensuring a crisp point.


8. Creating the Fill Region: The Sandwich Technique

You now have an outer ring and an inner star. You need to fill the space between them.

1. Select the Fill Tool.
2. Click the Outer Outline.
3. Click Inside the object.
4. Right-click to connect/close the shape.
5. Prompts: Accept "Make Jump" (Yes) and "End Fill Pattern" (Confirm).


9. Texture Selection: Tiles 1

In the Properties for the fill region, change the pattern to Tiles 1.

• Commercial Reality: Standard Tatami (flat fill) is safe but boring. Textured fills add value but increase stitch count.
• Density Warning: For a 1.5-inch design, keep density standard (approx 0.4mm - 0.45mm). If you pack stitches too tightly (0.3mm), you risk bulletproof stiffness and thread breaks.


10. The Critical "Donut" Setting: Allow Complex Holes

This is the most common failure point. If you do not change this setting, the gold fill will stitch right over your star, burying it.

The Fix:

1. Go to the Region tab of the Fill Properties.
2. Check Allow Complex Holes.

The Why: This tells the software, "The star in the middle is an island; do not stitch water over the island."

11. The Star Fill: Tatami and Taming the "Pucker"

Set the Star's fill type to Tatami.

• The Risk: Small, dense fills pull fabric inward, creating wrinkles (puckering) around the emblem.
• The Solution (Level 1): Use a sturdy Cutaway stabilizer (2.5oz), not Tearaway.
• The Solution (Level 2): Puckering is often exacerbated by "Hoop Burn" or inconsistent tension in standard hoops. If you struggle to get your fabric "drum tight" without distorting the weave, many users upgrade to a magnetic embroidery hoop. These allow the fabric to slide into place naturally without the torque of a screw, reducing the tension drag that causes puckers.

Warning: Magnetic hoops contain powerful neodymium magnets. Keep away from pacemakers, credit cards, and keep fingers clear of the pinch zone!

12. Edge Cleanup: Remove Region Outline

Set the fill region’s outline to No Stitches.

• Aesthetic Choice: We want the Gold Fill to butt up against the Black Satin Border. We do not want a third line of stitching adding bulk.


13. Group and Resize: The Final Scale

1. Group Objects: Select all > Group.
2. Resize: Scale to 1.5 inches (approx 38mm).

• Wait: Why resize now? Because it's easier to edit vector nodes at a larger size. Once you resize down, moving nodes 0.1mm is tedious.


14. Stitch Order: logic Flow

Open the Stitch Order window. Drag and drop to arrange:

1. Gold Fill (Base)
2. Satin Outline (Cover the edges of the fill)
3. Star (Top detail)

Safety Warning: Watch your "Jump Stitches." If the machine jumps from the left side to the right, ensure that thread tail is trimmed. Never put your hands near the needle while the machine is moving to trim a thread. Pause the machine first.

15. The "Virtual Sew-out": Simulation

Run the simulator at Speed 100.

• Visual Check: Watch for the star stitching before the background (wrong order) or the satin border connecting poorly.
• Auditory Check (Mental): Imagine the machine running. Are there 500 tiny stitches in one spot? That will sound like a jackhammer and likely break a needle.


16. The Export Confusion: Save vs. Export

Save: Creates a .ss1 file (Project file). Machine cannot read this. Export: Creates a .dst / .pes / .jef file. Machine reads this.

Go to File > Export, select DST (or your machine's format), and save the stitch file.

Stabilizer Strategy: The Hidden Variable

A perfect file will fail on the wrong backing. Use this decision tree for your emblem:

Hidden Consumable: Always keep a can of temporary adhesive spray (like 505) or use a magnetic embroidery hoops for brother system to hold stabilizer and fabric firmly together without slippage.

Troubleshooting: From Symptom to Cure

The Path to Production: When to Upgrade?

SophieSew allows you to start for free. But as your skills grow, your "bottlenecks" shift from software to hardware.

1. The "Hooping" Bottleneck: If you spend 5 minutes hooping a shirt and 5 minutes stitching it, you are losing money/time.
   • Solution: A magnetic hoop for brother pe800 (or your specific machine model) allows you to hoop in seconds, drastically cutting setup time.
2. The "Color Change" Bottleneck: Home machines require you to stop and manually change threads for every color.
   • Solution: If you plan to stitch 20+ of these emblems for a team, this is the trigger point to consider a SEWTECH Multi-Needle Machine. Setting up all 10 colors once and walking away while it stitches is the definition of scaling up.
3. The "Consistency" Bottleneck:
   • Solution: A hooping station for embroidery ensures the emblem is in the exact same spot on the left chest, every single time.

Start with discipline in SophieSew. Master the nodes. Then, let the tools upgrade your efficiency. Happy stitching!

FAQ

• Q: How do I prevent SophieSew v1.13 from losing hours of digitizing work when SophieSew crashes or undo fails?
  A: Save a new SophieSew project version before every major operation, because SophieSew v1.13 may crash and undo is unreliable.
  • Create a project file immediately (for example: Emblem_v1.ss1) before importing or tracing.
  • Save incremental versions before fills, pattern changes, and resizing (for example: Emblem_v2_Outline.ss1, Emblem_v3_Fill.ss1).
  • Avoid depending on Undo for complex edits; revert by reopening the last stable version instead.
  • Success check: A quick reopen shows the last completed step is preserved with no missing objects.
  • If it still fails: Split the design work into smaller steps and save between each step to isolate which operation triggers instability.
• Q: Why does SophieSew “File > Open” not import a JPEG/BMP reference image for digitizing, and how do I import an image correctly in SophieSew?
  A: Use the Image/Picture Object Tool and import via the object’s border menu, because “File > Open” is for SophieSew design files, not reference images.
  • Select the Image/Picture Object Tool (paintbrush icon) and draw a box on the grid.
  • Right-click the black border of the box and choose Properties/Import to load the JPEG/BMP.
  • Trace on top of the image; treat the image as a background “ghost,” not stitch data.
  • Success check: The reference image appears inside the box you drew (not as a separate opened design file).
  • If it still fails: Repeat the steps and confirm the right-click is on the black border of the image holder object, not on empty grid space.
• Q: In SophieSew outline tracing, why do curves look wobbly or corners look “melted,” and how do I place Green Nodes correctly?
  A: Put sharp corners on Green Nodes and reduce node count, because SophieSew anchors corners on Green Nodes and too many nodes can distort curves and stitch quality.
  • Place points with a steady rhythm; remember every third click creates a Green Node (anchor).
  • Land every sharp corner exactly on a Green Node (do not try to form corners with control-handle points).
  • Remove extra nodes so the path stays smooth and the machine doesn’t stutter during stitching.
  • Success check: The outline preview looks smooth, and the stitch path would run with a steady “hum” instead of a jagged, stuttering sound.
  • If it still fails: Rebuild the outline with fewer nodes and re-check that no corner is sitting on a non-Green control point.
• Q: In SophieSew, why does the gold fill stitch over the inner star (donut hole problem), and what setting prevents it?
  A: Enable “Allow Complex Holes” in the Fill Region settings so SophieSew treats the star as a hole and does not stitch over it.
  • Open the Fill Properties for the gold fill region.
  • Go to the Region tab and check “Allow Complex Holes.”
  • Re-run the simulation to confirm the star area stays open while the ring fills.
  • Success check: The simulator shows the fill stopping cleanly at the star boundary with no stitches crossing the star interior.
  • If it still fails: Recreate the fill region using the sandwich technique (outer outline + inner shape) and ensure the shape is properly closed/connected.
• Q: How do I fix gaps at sharp corners when SophieSew uses a running stitch around the star outline?
  A: Use “Force Stitch to This Point” on the corner Green Node to force an exact needle drop at the corner.
  • Identify the corner that shows a visible gap in the running stitch.
  • Right-click the Green Node at that corner and select “Force Stitch to This Point.”
  • Re-check the corner path in preview/simulation before exporting.
  • Success check: The running stitch lands precisely on the point of the corner with no visible “miss” or rounded shortcut.
  • If it still fails: Verify the corner is a Green Node (anchor); if not, adjust node placement so the true corner becomes a Green Node.
• Q: How do I reduce birdnesting (thread knots under fabric) when stitching small, dense SophieSew designs like a 1.5-inch patch?
  A: Rethread with the presser foot up and confirm bobbin setup, because birdnesting commonly comes from loose upper tension or the thread not seated in the tension discs.
  • Rethread the top thread with the presser foot UP so the thread seats in the tension discs correctly.
  • Check the bobbin is inserted correctly and the bobbin thread path is clean.
  • Stabilize the hooping so the fabric does not shift on tiny details.
  • Success check: The underside shows controlled stitches (no large loops or wad of thread), and the machine runs without forming a knot under the hoop.
  • If it still fails: Pause and inspect for missed guides or snag points; then reduce extreme density/nodes in tight areas that can trigger nesting in small designs.
• Q: What safety rules should I follow when trimming jump stitches and using magnetic embroidery hoops during patch production?
  A: Pause the machine before handling thread near the needle, and treat magnetic hoops as pinch-and-magnet hazards (especially around pacemakers and cards).
  • Stop/pause the embroidery machine completely before trimming jump stitches; never put hands near a moving needle.
  • Keep fingers clear of the magnetic hoop pinch zone when closing or repositioning magnets.
  • Keep magnetic hoops away from pacemakers and away from credit cards or magnetic-sensitive items.
  • Success check: Jump stitches are trimmed without any hand entering the needle area while the machine is moving, and magnetic hoop handling feels controlled with no sudden snap/pinch.
  • If it still fails: Use a process habit—pause first, trim second—and if magnets feel hard to control, reposition slowly and deliberately instead of letting magnets “slam” together.
• Q: When small SophieSew fills pucker fabric or hoop burn appears, how do I choose between technique fixes, magnetic hoops, and upgrading to a SEWTECH multi-needle machine?
  A: Start with stabilizer and density discipline, then use magnetic hoops for consistent tension/hooping speed, and consider a SEWTECH multi-needle machine when manual color changes and setup time become the real bottleneck.
  • Level 1 (Technique): Use the recommended stabilizer for the fabric (for knits, use medium 2.5oz cutaway + spray adhesive) and avoid overly tight density in small designs.
  • Level 2 (Tool): Switch from over-tightened standard hoops (a common hoop burn trigger) to magnetic hoops to reduce torque-related fabric distortion and speed up hooping.
  • Level 3 (Capacity): Upgrade to a SEWTECH multi-needle machine when repeated multi-color runs are slowed mainly by manual thread changes and repeatability needs.
  • Success check: Puckering decreases (fabric lays flatter around the emblem), hoop burn rings reduce, and total time per piece drops because hooping and color workflow is smoother.
  • If it still fails: Re-check stitch order and run a full simulation; if problems persist across fabrics, review hooping consistency and stabilizer choice before changing machine hardware.
