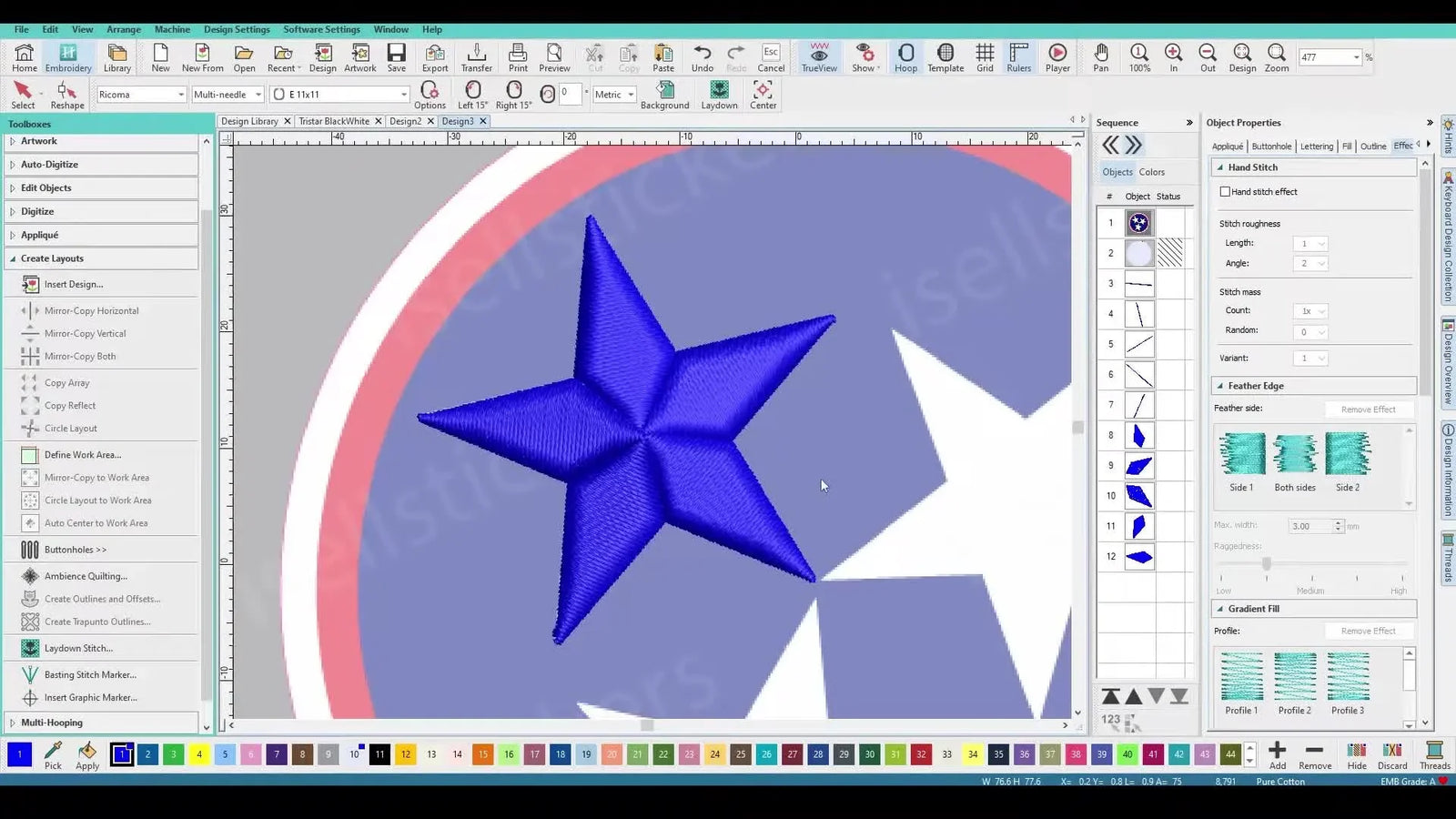

Digitize a Tennessee TriStar Patch in Wilcom Hatch Without the “Trim Confetti”: Clean Circle Layout Stars, Bulletproof Pathing, and a Patch-Ready Border

The Tennessee TriStar is deceptive. On your screen, it is a simple geometric exercise. On the machine, it is a "stress test" for tension, registration, and sequencing. If your pathing is wrong, you get birdnests. If your hooping is loose, you get gaps.

As an embroiderer, you must learn to ignore the "perfect" lie of the computer monitor and digitize for the physical reality of thread, needle, and fabric.

This guide rebuilds the TriStar workflow with a focus on industrial reliability. We will move from software precision to physical execution, ensuring that what you design is exactly what you stitch.

1. The Geometry Phase: Find the "True Center" First

The Trap: Most beginners eyeball the center. If you are off by even 0.5mm, your radial symmetry will fail later, creating a visible "hole" or a clump of thread in the middle of the star.

The Action Plan

1. Isolate: Zoom in on one star in your reference image.
2. Map: Choose Digitize Open Shape.
3. Intersect: Click point-to-edge guidelines (the blue lines in the video).
4. Confirm: Press Enter. Where these lines cross is your absolute "Bullseye."


The Expert Reality: "Digital vs. Physical" Center

On screen, a centered star looks fine. In physics, if your hooping is slightly off, the center creates a torque point.

• Visual Check: Does the intersection look clean at 600% zoom?
• Hidden Consumable: Use a Water Soluble Pen to mark this center on your actual fabric later. It is your physical truth.

Warning: Safety First. When test-stitching borders or trimming jump threads near the needle bar, keep your hands clear. Do not attempt to snip threads while the machine is in active motion. A 90/14 needle moving at 800 stitches per minute is invisible to the eye and dangerous to the finger.

Prep Checklist: The "Pre-Flight" Safety Check

• Scale Verification: Is the reference image the actual size of the patch (e.g., 3 inches)? Don't digitize small and resize later.
• Center Marked: Guideline lines intersect at a specific X/Y coordinate.
• Machine Limits: Know your max satin length. If your machine struggles with stitches longer than 7mm (common on home single-needle machines), you must plan for "Auto Split."
• File Versioning: Save this as TriStar_v1_Skeleton.EMB. Never overwrite your only copy.

2. The Satin Segment: Controlling Density and Length

Efficiency comes from laziness—smart laziness. We will digitize one-fifth of the star perfectly, then clone it.

The Action Plan

1. Tool: Switch to Digitize Closed Shape.
2. Type: ensure Fill object is set to Satin.
3. Trace: Digitize a single "kite" segment using this specific order:
   • Tip → Edge → Center → Edge → Tip
4. Parameter Check: Select the object → Object Properties.
   • Auto Split: The video turns this Off.
   • Safety Rule: Only turn Auto Split off if your distinct segment length is under 7mm-8mm. If the segment is 10mm+, a standard home machine foot may snag the loop.


Expert Parameter: The "Sweet Spot" Density

The default density in many software packages is 0.50mm (too loose) or 0.36mm (too tight).

• Beginner Sweet Spot: Set satin density to 0.38mm - 0.40mm.
• Tactile Check: When stitched, you should run your fingernail over the satin. If it catches the fabric underneath, it's too loose. If it feels like a hard rock, it's too tight.

3. Circle Layout: Automation with Insurance

Manual duplication leads to mathematical errors. Use the algorithm.

The Action Plan

1. Select your single satin segment.
2. Go to Create Layouts → Circle Layout.
3. Set Layout Repeats = 5.
4. Critical Move: Adjust the center point so the distinct segments overlap slightly (0.5mm) in the middle.
5. Merge? Select No. Keep objects separate for pathing control.




The "Overlap Insurance" Principle

Why overlap? When thread enters fabric, it pulls the fabric in (the "Pull" effect). If you digitize shapes that perfectly "kiss" on screen, the physical tension will pull them apart, leaving a gap.

• Rule of Thumb: Always overlap joining satin segments by at least 0.3mm to 0.5mm. This is your insurance policy against gaps.

4. Bulletproof Pathing: The "Continuous Flow" Technique

This is the difference between a pro digitizer and an amateur. Stops and Starts control the machine's movement. If you leave them at default, the machine jumps (trims). If you align them, the machine flows (sews).

The Action Plan

1. Duplicate the stars to create the TriStar formation.
2. Open Stitch Player and press T (view connectors). You will likely see dashed lines (Jump Stitches).
3. The Fix: Select an object and press H (Reshape).
   • Green Diamond: Start Point.
   • Red Cross: Stop Point.
4. Logic: Move the Stop (Red) of Object #1 to the exact coordinate of the Start (Green) of Object #2.
5. Verification: The dashed jump line disappears. The machine will now glide from one segment to the next without cutting the thread.






Why this saves you money

Every "Trim" command takes 7-15 seconds on a machine (slow down, cut, speed up). On a run of 50 patches with 20 unnecessary trims per patch, you are wasting hours of production time.

• Success Metric: A perfectly sequenced star should have Zero Trims internally.

5. Sequence Discipline: Production Consistency

Once one star is optimized, do not manually fix the others.

The Action Plan

• Group: Select the perfect star components → Group.
• Delete: Remove the imperfect stars.
• Clone: Duplicate the "Gold Standard" star.


This ensures that Star #1, Star #2, and Star #3 stitch with identical tension and behavior.

6. The Foundation: Tatami Background & Physics Compensation

A patch needs a floor. The video correctly builds a Tatami fill.

The Action Plan

1. Tool: Digitize Circle.
2. Sequence: Move to the Start of the design.
3. Type: Tatami Fill.
4. Compensation: Slightly distort the circle into an egg-shape (taller than it is wide if the stitch angle is horizontal).




The Physics of "Push/Pull"

Tatami stitches run back and forth, pushing the fabric open in the direction of the stitch.

• The Reality: A perfect geometric circle on screen will stitch out as a horizontal oval (it widens).
• The Fix: by digitizing a vertical oval (egg), the physical distortion pushes it back into a perfect circle.
• Visual Anchor: It should look "slightly wrong" on screen to look "exactly right" on the vest.

7. The Border: The "Container" of the Design

The border hides the raw edges. It must be robust.

The Action Plan

1. Duplicate the circle shape.
2. Convert to Satin Line.
3. Width: 4.00mm. (Thinner borders like 2mm often fail to cover raw edges).
4. Underlay (Critical):
   • Edge Run: Pins the fabric edges down.
   • Double Zigzag: Lofts the satin up.




Consumable Alert: Stabilizers

For patches, you must use rigid support.

• Recommendation: Use 2 layers of Cutaway Stabilizer or a specialized Patch Twill backing.
• Avoid: Tearaway stabilizer alone (it will punch out and the border will separate).

8. Final Checks: The "Wireframe" Audit

Before you export to machine format (.DST, .PES), audit your work.

The Action Plan

• Zoom in to 600%.
• Switch to Wireframe view.
• Verify that the Star points sink into the Tatami background, and the Border sits on top of everything.


Troubleshooting Guide: Symptom → Fix

9. Color & Variations

Use the Color Wheel to preview customer requests instantly without manual recoloring.

10. The Production Reality: Moving from Software to Hardware (Crucial)

You have a perfect file. Now, the biggest point of failure is Hooping.

If you are using a standard plastic hoop on a single-needle machine, you know the struggle: you tighten the screw, pull the fabric, and the inner ring pops out. Or worse, you get "Hoop Burn" (shiny ring marks) on delicate garments.

The "Pain Point" Trigger

If you are struggling with:

1. Wrist Pain from tightening screws repeatedly.
2. Crooked Patches because the fabric shifted while clamping.
3. Hoop Burn on performance wear or dark fabrics.

This is where beginners get stuck. The software is right, but the tool is wrong.

The Solution Hierarchy: Tools for Growth

Level 1: Stability (Consumables)

• Use a temporary Spray Adhesive (like 505) to adhere your patch fabric to the stabilizer. This prevents shifting.

Level 2: Efficiency (The Tool Upgrade)

• Many professionals abandon screw-hoops for a magnetic embroidery hoop.
• Why? They use magnets to self-align and clamp instantly. No screws, no wrist pain, and significantly less "hoop burn."
• If you are doing production runs, searching for compatible embroidery machine hoops that utilize magnetic clamping can double your hooping speed.

Warning: Magnetic Safety. High-quality magnetic hoops use industrial Neodymium magnets. They are powerful. Keep them away from pacemakers, implanted medical devices, and credit cards. Do not let your fingers get pinched between the magnets.

Level 3: Consistency (The Workflow)

• For bulk orders (50+ patches), relying on eyesight to align hoops is slow. A hooping station for embroidery allows you to place every logo in the exact same spot on every shirt, regardless of size.
• Pairing a hoopmaster station-style alignment system with magnetic fixtures is the industry standard for scalability.

Setup Checklist: Ready to Stitch?

• Needle: Brand new 75/11 or 90/14 Sharps (Ballpoint is for knits, use Sharps for patches).
• Bobbin: Check the bobbin case. Blow out lint. A clean case = clean tension.
• Speed: Slow Down. Start your first test at 600 SPM (Stitches Per Minute). Speed kills quality until you are sure of the pathing.
• Observation: Watch the first start. Hold the thread tail gently for the first 3 stitches to prevent a "starting nest."

Operation Checklist: The Sensory Audit

• Listen: A rhythmic thump-thump is good. A harsh clack-clack means a needle is hitting metal or the hoop.
• Look: Is the border tunneling (pulling fabric in)? If yes, stop. Your stabilizer is too weak so floating/hooping is loose.
• Feel: Where are the trims? If the machine stops and trims inside the star, your Pathing (Step 4) needs review.

By treating digitizing as a blueprint for a physical building, you move from "hoping it works" to "knowing it will work." Good luck with your TriStar!

FAQ

• Q: How can Wilcom Hatch digitizers find the true center for a Tennessee TriStar so the radial symmetry does not leave a hole or clump in the middle?
  A: Use a point-to-edge guideline intersection as the only “true center” instead of eyeballing the middle.
  • Zoom in on one star and use Digitize Open Shape to place point-to-edge guideline clicks until the lines intersect.
  • Press Enter to confirm the exact bullseye coordinate, then save a versioned file name (for example, TriStar_v1_Skeleton) so the center reference is never lost.
  • Mark that same center on the actual fabric using a water-soluble pen before hooping.
  • Success check: at 600% zoom, the intersection looks clean and the stitched center does not show a visible “hole” or a dense knot.
  • If it still fails: re-check hooping tightness and alignment, because slight hoop offset can turn the center into a torque point during stitching.
• Q: In Wilcom Hatch satin objects for a TriStar patch, what satin density and Auto Split rule prevents loose coverage or overly hard stitching?
  A: Set satin density to 0.38–0.40 mm as a safe starting point, and only turn Auto Split off when the satin length stays under about 7–8 mm.
  • Open Object Properties and set the satin density to 0.38–0.40 mm (avoid very loose 0.50 mm or overly tight 0.36 mm defaults).
  • Keep Auto Split on for long satin segments; only disable Auto Split if the distinct segment length is under 7–8 mm.
  • Digitize one “kite” segment in the order Tip → Edge → Center → Edge → Tip, then clone it for consistency.
  • Success check: the satin feels smooth; a fingernail does not catch fabric (too loose) and the satin does not feel like a hard rock (too tight).
  • If it still fails: reduce satin length per segment (allow splits) and confirm the machine can handle the stitch length without snagging.
• Q: When using Wilcom Hatch Circle Layout for a 5-repeat TriStar, how much overlap should each satin segment have to prevent gaps from pull compensation?
  A: Overlap joining satin segments by about 0.3–0.5 mm at the center to “insure” against pull-apart gaps.
  • Use Create Layouts → Circle Layout with Layout Repeats = 5 and keep objects separate (do not merge) for pathing control.
  • Move the layout center so the inner ends overlap slightly instead of only touching on-screen.
  • Start with about 0.5 mm overlap if gaps are common in the fabric/thread combination.
  • Success check: after stitching, the center join has no visible daylight between segments under normal viewing distance.
  • If it still fails: review tension and stabilizer support, because excessive pull can open gaps even with overlap.
• Q: How can Wilcom Hatch Reshape (H) eliminate internal jump stitches and constant trims in a TriStar so the embroidery machine runs in continuous flow?
  A: Align every Stop (red cross) to the next Start (green diamond) so connectors disappear and the machine does not trim inside the star.
  • Open Stitch Player and press T to show connectors; look for dashed jump lines between objects.
  • Select an object, press H (Reshape), then move the Stop point (red) onto the exact coordinate of the next object’s Start point (green).
  • Repeat through the star sequence until internal dashed jump lines are gone.
  • Success check: the stitch simulation shows no internal trims (target: zero trims inside a single optimized star).
  • If it still fails: avoid manually “fixing” multiple stars—optimize one star, group it, delete the others, and clone the gold-standard version.
• Q: What should an embroidery operator do first when a single-needle embroidery machine shows “birdnest” thread nests underneath a TriStar patch design?
  A: Rethread the top thread correctly with the presser foot UP so the thread seats in the tension disks.
  • Stop the machine, cut away the nest carefully, and remove any loose thread around the needle area.
  • Rethread the top path with the presser foot UP to ensure the tension disks engage the thread.
  • Run a slow test start (about 600 SPM) and hold the thread tail gently for the first 3 stitches to prevent a starting nest.
  • Success check: the underside shows clean, controlled stitches instead of a wad of thread immediately after a trim or at the start.
  • If it still fails: clean lint from the bobbin case area and confirm the thread path has no missed guides.
• Q: What is the safe way to trim jump threads near an embroidery machine needle bar during a TriStar test stitch to avoid finger injuries?
  A: Never snip threads while the needle is moving; stop the machine completely and keep hands clear of the needle bar area.
  • Pause/stop the machine before reaching into the needle area to trim any jump threads.
  • Keep fingers out of the needle travel zone; high-speed needles are hard to see and can injure quickly.
  • Resume at a controlled speed for test stitching so issues are easier to catch early.
  • Success check: thread trimming is done only when the needle is stationary and there are no near-miss pinches or pokes.
  • If it still fails: slow the machine further and re-check pathing to reduce jump threads that require trimming.
• Q: What magnetic hoop safety rules should embroidery operators follow when using neodymium magnetic embroidery hoops for patch or garment hooping?
  A: Treat magnetic hoops as industrial-strength magnets: protect fingers, and keep them away from pacemakers and magnetic-stripe cards.
  • Keep magnetic hoops away from pacemakers and implanted medical devices, and away from credit cards.
  • Clamp slowly and deliberately to avoid finger pinches between magnet blocks and the frame.
  • Store magnetic components so they cannot snap together unexpectedly.
  • Success check: hooping is fast and repeatable with no pinched fingers and no unintended magnet contact with sensitive items.
  • If it still fails: switch back to a standard hoop for that operator until safe handling is consistent, then reintroduce magnetic hooping with slower, controlled motions.
• Q: For recurring hooping problems on single-needle embroidery machines (wrist pain from screws, crooked patches, and hoop burn), what is a practical upgrade path from consumables to magnetic hoops to production workflow?
  A: Start by stabilizing the material, then upgrade the hooping tool, then add repeatable alignment for bulk runs.
  • Level 1 (Consumables): use temporary spray adhesive (such as 505) to bond patch fabric to stabilizer to prevent shifting during clamping.
  • Level 2 (Tool): switch from screw hoops to a magnetic embroidery hoop to reduce screw tightening, speed hooping, and often reduce hoop burn.
  • Level 3 (Workflow): for 50+ piece runs, add a hooping station-style alignment system so every logo lands in the same position without eyeballing.
  • Success check: patches load faster, align consistently, and show fewer hoop marks and fewer rejected pieces.
  • If it still fails: re-check stabilizer choice (rigid support like two layers of cutaway is recommended for patches) and slow the first test run to observe shifting early.
