Mastering the ITH Door Hanger: A Zero-Friction Guide to Perfect Seams & Crisp Text

If you’ve ever watched an in-the-hoop (ITH) banner stitch-out and thought, “That looks amazing… but I’m one bad hooping job away from a wrinkled mess,” you’re not alone. ITH projects stack multiple layers—stabilizer, batting, fabric, and backing. That stack is exactly where small physical variables turn into big, visible problems.

In this master class, we will digitize a patriotic “Land of the Free / Home of the Brave” door hanger and stitch it on a single-needle machine using flip-and-stitch piecing. But we aren't just following a tutorial; we are building a production-grade workflow. We will cover the "why" behind node editing, the sensory cues of proper tension, and the tools that stop your fabric from shifting.

Calm the Panic: Why This 6x10 ITH Door Hanger Works

This banner is a smart “intermediate” build because the machine manages the geometry for you. The workflow is predictable: placement lines first, then quilting, then decoration, then the final backing seam.

However, two specific failure points usually trip up beginners:

1. Digitizing boundaries that aren’t mathematically straight (confusing the machine).
2. Layer drift (the fabric moving microscopically under the presser foot).

If you are currently running an embroidery machine 6x10 hoop, this project is the perfect size to practice “production habits”—repeatable placement and layer management—without committing to a giant field size.

The “Hidden Prep” Pros Do Before They Touch the Screen

Before software even matters, we must manage friction and stabilization. You are stitching through a thick sandwich:

• Stabilizer: The floor (provides rigidity).
• Batting: The cushion (adds drag).
• Cotton Fabric: The skin (shows distortions).

The Physics of the Sandwich

Your goal is Zero Shift. When the needle penetrates batting, it creates a "thump" of resistance. If your hoop tension is uneven, that resistance pulls the fabric inward, causing the dreaded "funnel effect" or puckering around text.

The Sweet Spot for Beginners:

• Machine Speed: Cap it at 600 SPM (Stitches Per Minute). High speed on thick layers increases friction heat and thread breaks.
• Needle: Use a Topstitch 80/12 or 75/11 Sharp. Avoid Ballpoint needles for this; they struggle to pierce the batting cleanly.

Hooping Control: The "Drum Skin" Myth

Beginners often overtighten the inner ring, warping the fabric grain. You want the stabilizer "taut," not "stretched." When you tap it, it should sound like a dull thud, not a high-pitched ping.

The Level 2 Upgrade: If you routinely fight hoop burn (the ring marks left on fabric) or wrist fatigue from tightening screws, this is the moment to consider a magnetic embroidery hoop. Unlike screw-based hoops that pinch unevenly, magnetic systems clamp the entire perimeter with equal force.

• Scenario: You are making 20 banners for a craft fair.
• The Fix: Magnetic hoops allow you to float layers and adjust thickness instantly without re-screwing, saving your hands and your fabric grain.

Warning (Mechanical Safety): Keep fingers, loose hair, and hoodie drawstrings away from the needle bar. Never "hold" fabric near the needle with your fingers while the machine is running—use a specific tool (like a stiletto or bamboo skewer).

Prep Checklist: The "No-Fail" Protocol

• Consumables: Fresh needle installed (brand new, not "slightly used").
• Cut: Batting and Fabric cut 1 inch larger than placement lines on all sides.
• Adhesion: Painters tape or embroidery tape staged within reach.
• Thread: Bobbin filled (check that the white thread usually shows 1/3 in the center for proper tension).
• Tools: Appliqué scissors (duckbill), point turner, and mini iron plugged in.


Wizard Setup in Perfect Embroidery Professional (PEP)

We start clean in the software to ensure no "digital junk" ruins the stitch path.

1. Launch Wizard: Click Template > Wizard.
2. Select Template: Choose Hanging 6x10 > Click OK > OK.
3. Sanitize: Delete the default design/lettering. You want a blank slate.
4. Create Seam Part:
   • Return to Wizard > Open.
   • Select Design Your Own Parts.
   • Choose the 0.25" seam allowance piece.
   • Copy/Paste this onto your main page.
5. Position: Rotate and drag to create your top (blue) and bottom (white) layout.


Node Editing: The Secret to Laser-Straight Seams

Here is a concept most tutorials skip: Digital Noise. If your quilting boundary looks straight to the eye but contains an extra "node" (a tiny plotted point), the machine reads it as a curve. It will slow down and stitch a wobble.

Action Steps:

1. Select: Click the quilting shape with the Shape Tool.
2. Audit: Look for tiny squares (nodes) along the straight edges.
3. Purge: If you see an extra node in the middle of a straight line, Delete it.
4. Straighten: Right-click the segment line and select Line. This forces the software to calculate the shortest path between two points—a perfect straight line.
5. Verify: The boundary should look crisp with no bowing.


Advanced Stippling: Controlling the Texture

We use stippling to flatten the batting in the blue section, making the stars pop.

1. Select: Click the top quilting object.
2. Apply Pattern: Go to properties > Advanced Stippling > Select Small Star.
3. Set Density: Set Pattern Length to 15mm.
   • Expert Note: Any smaller than 10mm on batting can cause bullet-proof stiffness. 15mm is the sweet spot for softness.
4. Direct the Flow: Use the Edit tool to grab the yellow control line. Rotate it 90 degrees.
   • Why? We want the stars to stand upright, but also, changing direction can reduce the "push" of the fabric against the hoop.


Circular Text & Alignment: The "Center Origin" Method

Nothing looks more amateur than off-center text. Don't eyeball it. Use the grid.

Step-by-Step:

1. Import Star: Catalog > Holidays > Patriotic > Select Star. Resize to 2.75" height.
2. Create Text: Text Tool > Font: Behas > Type "Land of the Free/Home of the Brave".
3. Shape: Set Type to Circle. Height: 0.70.
4. Adjust: Use the yellow control handles (bottom center) to widen or tighten the arc until it frames the star perfectly.

The Pro Move: Right-click the top ruler bar > Select Center Origin.

• This moves the (0,0) coordinate to the exact center of the hoop.
• Select Text + Star > Center Align.
• Now, move the entire group to the visual center of the blue panel.


Sequence Discipline: Saving Your Future Self

The #1 reason ITH projects fail is wrong stitch order. The machine does exactly what you tell it—even if you tell it to stitch the detail before the quilting (which buries the detail).

Correct Order of Operations:

1. Placement: Outline on stabilizer.
2. Tack Down/Quilting: The "Small Star" fill (Blue section).
3. Decoration: The large Star, Text, and small accent stars.
4. Construction: The final satin borders or seam lines.

The "C2S" Rule: Always save two files.

1. Master File (.C2S/PAF): Keeps text editable.
2. Stitch File (.PES/.DST): For the machine.

• Why? If you stitch it out and the text is 1mm too high, you can't fix it in a .DST file. You need the Master File.


The Stitch-Out: Building the Sandwich

Move to the machine. This is where physical intuition takes over.

Phase 1: The Foundation

1. Hoop your stabilizer (Mesh or Tear-away depending on preference, but generally Medium Tear-away offers better rigidity for door hangers).
2. Load the hoop and run Color 1 (Placement Line) directly on the stabilizer.

Setup Checklist:

• Hoop is locked into the pantograph arm (audible "click").
• Needle path is clear of obstructions.
• Bobbin area is free of lint (lint + batting dust = skipped stitches).


Flip-and-Stitch & In-Hoop Pressing

This technique gives you pieced-quilt quality without a sewing machine.

1. Align: Place the Blue Fabric Face Down (Right Sides Together) along the placement line.
2. Stitch: Run the seam line.
3. Flip: Fold the fabric up so the Right Side is facing you.
4. Press: Use your mini-iron. Do not skip this.
   • Sensory Check: The fabric must feel flat and smooth. If it bubbles now, it will pleat later.
5. Repeat: Do the same for the white bottom fabric.

The Workflow Bottleneck: If you are doing this commercially, the constant unclamping to press fabric can become tedious. This is another area where a magnetic hooping station or a magnetic frame shines—the open design often allows easier access for the mini-iron without battling bulky plastic distinct clamps.

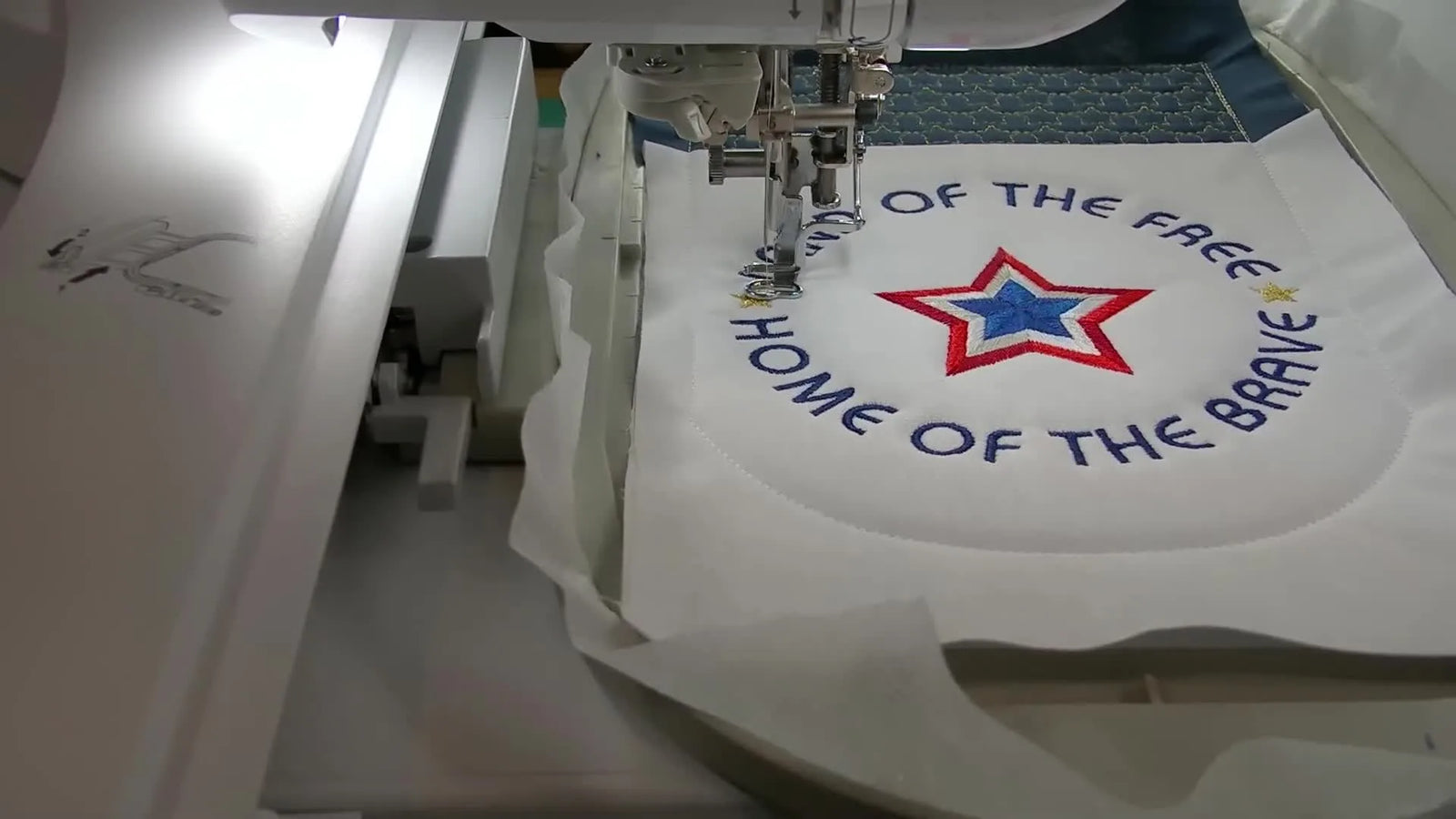

Decoration: Text, Stars, and Ribbon

Speed kills ITH quality. Slow your machine down to 500-600 SPM for the satin stitches and text. The batting creates drag; slowing down gives the thread tension system time to recover between stitches.

The Ribbon: Tape your hanging ribbon securely in the center top. Ensure the loop is taped down towards the center of the project so it doesn't get caught in the border stitch.

Warning (Magnet Safety): If you upgrade to a magnetic frame system, handle them with care. The magnets are industrial strength—keep them away from pacemakers, key fobs, and children. They can pinch fingers severely if snapped together carelessly.

Operation Checklist:

• Tape Check: Is the ribbon taped securely?
• Clearance: Is the ribbon tail clear of the text area?
• Sound Check: Listen for the rhythmic thump-thump. A sharp snap usually means a shredding thread. Run the machine slowly.


The Grand Finale: Enclosed Seams

1. Cap it: Place your Backing Fabric Face Down over the entire project. This hides the messy underside of the embroidery.
2. Seal it: Stitch the final perimeter seam.
3. Unhoop & Trim: Remove from the hoop.
   • Tool Tip: Use Pinking Shears to trim constraints the seam allowance. This reduces bulk in the corners when you turn it right-side out.
4. Turn & Poke: Turn right side out. Use a point turner to gently poke the corners square.
5. Final Press: Iron flat (avoiding the thread if using polyester thread, or use a pressing cloth).


Structured Troubleshooting: When Good Plans Go Bad

Decision Tree: Fabric vs. Stabilizer

Choose your path based on your materials.

• Scenario A: Heavy Canvas / Duck Cloth
  • Stabilizer: Medium Tear-away.
  • Batting: Optional (Canvas is already stiff).
• Scenario B: Quilting Cotton + Batting (This Project)
  • Stabilizer: Heavy Tear-away OR No-Show Mesh (for softer feel).
  • Note: Mesh requires careful taping as it is more flexible.
• Scenario C: Knits / Stretchy Fabrics
  • Stabilizer: Cut-away implies absolute stability. Do not use tear-away; the stitches will pop the paper and the knit will distort.

The Commercial Upgrade Path: From Hobby to Production

If you are making one door hanger for yourself, standard hoops and patience are fine. But if you begin to feel the frustration of:

• "Hoop Burn" rejecting your high-end fabrics.
• Wrist pain from tightening screws 50 times a day.
• The inefficiency of changing thread colors manually on a single-needle machine.

It is time to look at the solution hierarchy:

1. Level 1 (Tooling): dime magnetic hoop or generic magnetic frames. These hold thick ITH sandwiches securely without crushing the fiber, reducing rejection rates.
2. Level 2 (Workflow): SEWTECH Magnetic Hoops. Designed for reliability, they snap on/off quickly, allowing you to prep the next hoop while one is stitching.
3. Level 3 (Capacity): SEWTECH Multi-Needle Machines. When you are tired of babysitting thread changes. A multi-needle machine automates the color swaps, allowing you to walk away and do other tasks (like hooping the next batch). This is where hobby embroidery transitions into a profitable business.


The "Old Hand" Advice

The comments on tutorials are always full of "I can't wait to try!"—but few return to say they succeeded. Be the one who succeeds.

Run one ugly test. Use scrap fabric. Test your tension, test the "Small Star" density, and test your text centering. Once you dial in that first ugly run, your next ten will be masterpieces.

FAQ

• Q: How do I keep a 6x10 ITH door hanger seam from turning wavy on a single-needle embroidery machine 6x10 hoop stitch-out?
  A: Wavy seams usually come from layer drift, so lock the fabric stack in place before stitching the seam lines.
  • Secure: Run the placement line on stabilizer first, then tape or lightly adhere the fabric so it cannot “creep” during flip-and-stitch.
  • Slow: Cap the machine around 600 SPM on thick ITH stacks to reduce drag and shifting.
  • Upgrade: If hoop drift keeps happening, consider a hooping station workflow or a magnetic hoop system to clamp more evenly.
  • Success check: The seam line stitches back onto itself cleanly with no side-to-side “snake” along straight edges.
  • If it still fails: Re-check hooping tension (taut, not stretched) and confirm the fabric pieces were cut at least 1 inch larger than the placement line.
• Q: What is the correct hooping tightness for stabilizer on an ITH batting “sandwich” to avoid hoop burn and puckering?
  A: Aim for stabilizer that is taut but not stretched—overtight hooping can warp grain and increase puckering.
  • Hoop: Tighten only until the stabilizer feels firm and flat; avoid cranking the screw down.
  • Tap-test: Use the “drum skin myth” check—seek a dull thud, not a high-pitched ping.
  • Manage friction: Keep speed moderate (generally 500–600 SPM on dense/text areas) to reduce heat and drag.
  • Success check: The hooped area lies flat without ring dents, and the fabric does not look pulled inward around text.
  • If it still fails: Float an extra piece of stabilizer under the text area to reduce the funnel effect.
• Q: How can I verify bobbin tension on an ITH door hanger so the text and satin stitches don’t look unstable?
  A: Use the bobbin showing ratio as a quick diagnostic before blaming the file or the needle.
  • Check: Inspect a satin/text area and look for the “about 1/3 bobbin thread in the center” appearance as a practical starting point.
  • Clean: Remove lint from the bobbin area (batting dust + lint can cause skipped stitches and messy tension).
  • Slow: Run text and satin stitches at 500–600 SPM so the tension system has time to recover between stitches.
  • Success check: Satin edges look smooth and filled, with no heavy bobbin pull to the top and no top thread dragged to the underside.
  • If it still fails: Replace with a brand-new needle and confirm the needle type is appropriate for piercing batting cleanly.
• Q: What needle should be used for an ITH door hanger with batting to reduce needle deflection and broken needles?
  A: Use a needle that penetrates batting cleanly, and slow the machine to reduce deflection on thick stacks.
  • Install: Start with a Topstitch 80/12 or a 75/11 Sharp; avoid ballpoint for batting-heavy work.
  • Reduce speed: Keep stitching around 600 SPM, and stay closer to 500–600 SPM for satin stitches and text.
  • Escalate: If needles keep breaking on thick batting, switch to a Titanium needle (stronger) and inspect for hoop strikes.
  • Success check: The stitch-out sounds like a steady “thump-thump” without sudden snaps, and the needle runs without visibly flexing.
  • If it still fails: Check calibration/clearance to ensure the needle is not hitting the hoop or frame during perimeter seams.
• Q: How do I prevent puckering around circular text on an ITH door hanger caused by the “funnel effect” on batting?
  A: Reduce the inward pull by adding targeted stabilization and lowering stitch stress in the text zone.
  • Add support: Float an extra piece of stabilizer under the text area before stitching the lettering.
  • Control speed: Slow the machine down for text (generally 500–600 SPM) to reduce drag on the fabric.
  • Press early: After each flip-and-stitch seam, press with a mini-iron so bubbles don’t become permanent pleats later.
  • Success check: The fabric around the stitched letters stays flat with no ripples radiating inward toward the center.
  • If it still fails: Re-check hooping for “taut, not stretched,” and confirm batting and fabric were cut oversized so the hoop isn’t tugging edges inward.
• Q: What is the safest way to manage fingers and tools near the needle bar during ITH flip-and-stitch on a single-needle embroidery machine?
  A: Never hold fabric near the moving needle—use a tool and keep anything loose away from the needle bar.
  • Keep clear: Move fingers, loose hair, hoodie drawstrings, and dangling items away from the needle path.
  • Use tools: Guide small edges with a stiletto or bamboo skewer instead of fingertips.
  • Pause intentionally: Stop the machine before adjusting ribbon or fabric placement if hands must enter the stitching area.
  • Success check: Hands never cross into the needle travel zone while the machine is running, and fabric positioning is controlled with a tool.
  • If it still fails: Slow the machine and build a habit of pausing at key transitions (ribbon tack-down, border start) before touching anything.
• Q: What magnetic hoop safety rules should be followed when using a magnetic embroidery hoop or magnetic frame for ITH projects?
  A: Treat magnetic hoops as industrial-strength clamps—handle slowly and keep them away from sensitive items and people.
  • Handle: Keep fingertips out of pinch points and lower magnets together carefully to avoid sudden snap-together injuries.
  • Separate: Keep magnets away from pacemakers, key fobs, and children.
  • Stage smart: Set magnets on a stable surface so they cannot jump together unexpectedly during hooping.
  • Success check: The hoop closes without pinching fingers, and the fabric stack is clamped evenly around the full perimeter.
  • If it still fails: Switch to a slower, two-handed clamping routine and reduce stack thickness changes without forcing magnets together.
• Q: When should an ITH door hanger workflow upgrade from standard screw hoops to magnetic hoops or a SEWTECH multi-needle machine for small-batch production?
  A: Upgrade when rejection rate or physical fatigue becomes the bottleneck, not just because the design is difficult.
  • Level 1 (technique): First cap speed (600 SPM; 500–600 SPM for text), press every flip, and stabilize high-stress text zones.
  • Level 2 (tool): If hoop burn, hoop drift, or wrist pain from tightening screws is frequent—move to magnetic hoops to clamp evenly and adjust thickness faster.
  • Level 3 (capacity): If manual color changes on a single-needle machine are stopping throughput, consider a SEWTECH multi-needle machine to automate color swaps.
  • Success check: Fewer restarts for shifting/puckers, faster hoop-to-hoop turnaround, and consistent seams/text across a batch (for example, 20 banners).
  • If it still fails: Run one scrap “ugly test” to verify tension, stippling density, and centering before committing to full production runs.
