Digitizing King Bowser in Wilcom: The Pro Workflow for Clean Fills, Crisp Satins, and a Simulation That Doesn’t Lie

Mastering complex character digitization—like the King Bowser example shown here—is less about software proficiency and more about understanding structural engineering. You aren't just placing colors; you are managing the physical displacement of fabric (push/pull), the reflection of light (stitch angles), and the structural integrity of 70,000+ needle penetrations.

As a digitizer with two decades on the floor, I approach this not as "drawing," but as "building." Below is the professional protocol for handling high-density character designs, calibrated for safety and production quality.

Phase 1: The "Pre-Flight" Inspection (Reading the Worksheet)

Before you place a single node, you must audit the Production Worksheet. In the example shown, the stats are a screaming siren for potential issues: 178mm height and 73,082 stitches.

Why these numbers scare patterns (and how to fix them)

• 73k Stitches: This is a "bulletproof vest" level of density. If you sew this on a lightweight t-shirt without massive stabilization, the shirt will pucker and distort.
  • The Fix: This file requires a heavy-weight garment (hoodie, jacket, denim) or a "structural" stabilizer setup (2 layers of Cutaway).
• 10 Colors: This means 9 color changes. On a single-needle machine, that’s 45 minutes of manual labor. On a multi-needle, it's automatic.
• 180mm Size: This pushes the limits of many standard hoops.

The "Drum Skin" Rule: Before you start digitizing, imagine the hooping. If you can't hoop the fabric tight enough to sound like a drum when tapped, this design will fail.

Phase 2: Structural Prep & The "Hidden" Protocol

Amateurs jump straight to drawing outlines. Pros start with under-structure.

The Setup Checklist (Do this first)

1. Artwork Cleanup: Import your image. If the lines are fuzzy, don't guess. Redraw the key outlines in a vector program or use the software's sharpen tools.
2. Fabric Definition: Tell Wilcom/Hatch what fabric you are using.
   • Why? The software creates "Pull Compensation" (automatic thickening of shapes). For a design this dense, you need 0.4mm minimum pull compensation to prevent gaps.
3. Hooping Strategy:
   • If you are using standard friction hoops, ensure the screw is tight enough that you can't pull the fabric.
   • Pro Tip: High-stitch-count designs create "Hoop Burn" (permanent ring marks). Many professionals switch to magnetic embroidery hoops for these jobs because the magnetic force holds thick garments (like jackets needed for this Bowser design) without crushing the fibers or requiring superhuman hand strength.

Phase 3: Building the Body (Tatami Fills & Geometry)

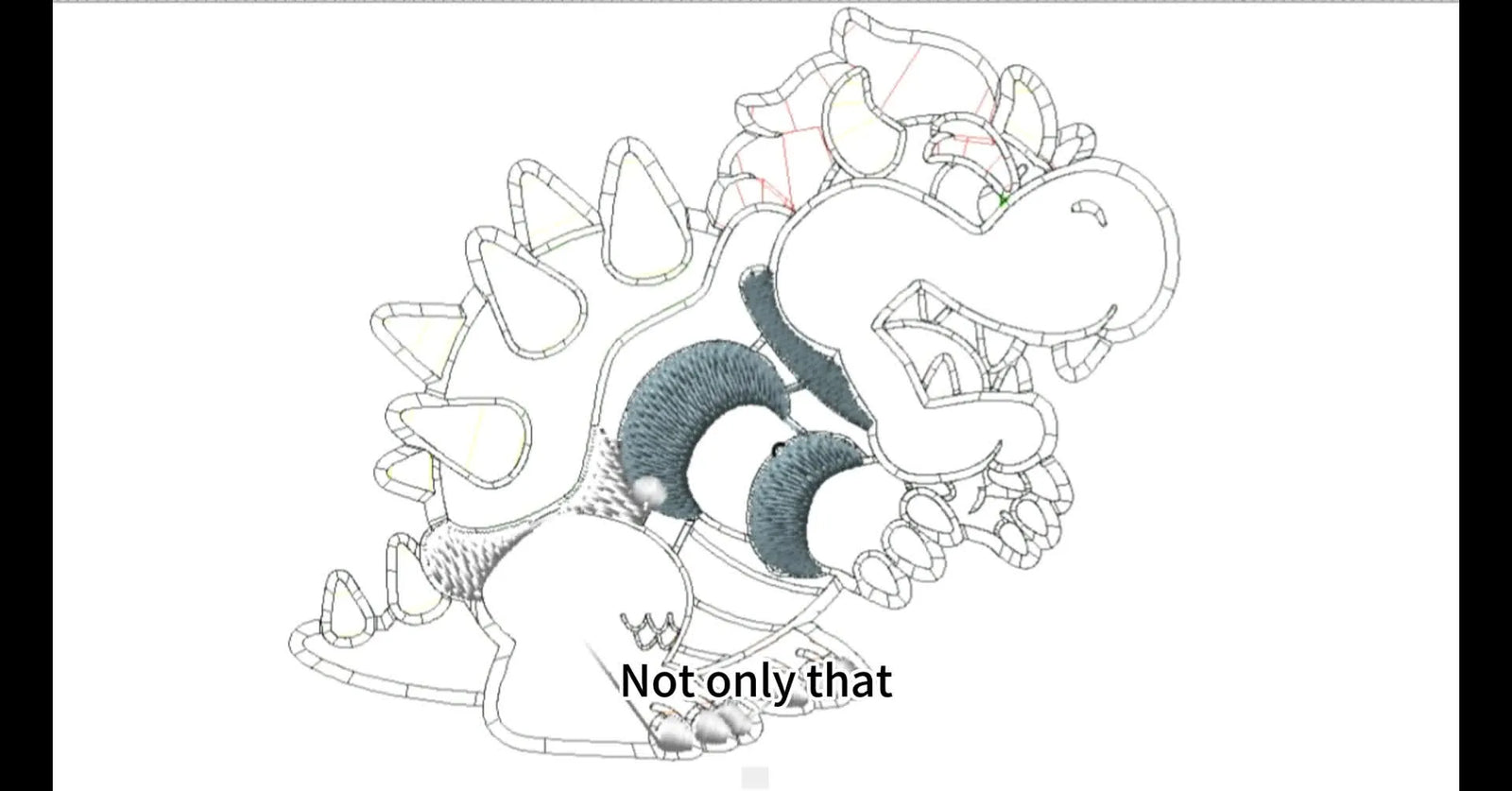

The video demonstrates tracing the large body areas (arms, legs, head) first. This is correct—always work from the background to the foreground.

The "20-Year" Rule for Nodes

When tracing shapes:

• Less is More: Use the fewest nodes possible. Every extra node is a potential hesitation mark in the machine's movement.
• Placement: Put nodes only at the high point and low point of a curve. Let the software do the math for the arc in between.

Why Tatami?

For areas larger than 1cm wide, you must use Tatami (Fill) stitches. Satin stitches wider than 7mm-10mm (depending on machine) are prone to snagging and becoming loose loops. Tatami creates a stable, woven texture that anchors the fabric.

Phase 4: Light Sculpture (Stitch Angles)

This is the secret sauce. Thread is shiny; it reflects light. By changing the Stitch Angle, you create 3D volume without adding density.

• The Limb Logic: notice how the angles flow down the arm? This mimics muscle striation.
• The Shell Logic: The angles curve around the shell.

Critical Safety: Density Management

For a 73k design, you must ensure your machine can breathe.

• Standard Density: Usually 0.40mm spacing.
• Safe Zone: Do not go tighter than 0.35mm. If you pack stitches too tight, you risk needle deflection (hitting the throat plate) or thread shredding.

Warning (Safety Check): If you hear a rhythmic "thump-thump" or a sharp "slap" sound while sewing fill areas, your density is too high or your needle is dull. Stop immediately. A bent needle can shatter and fly toward your eyes. Always wear eyewear when testing high-density files.

Phase 5: The Shell (Segmentation & Overlap)

The shell is made of separate segments. In the physical world, fabric shrinks when stitched. If you digitize these segments simply touching each other, you will get gaps (visible fabric between colors).

The Overlap Formula

• Overlap: You must overlap adjacent solid fills by at least 2-3 rows of stitching (approx 1.0mm).
• Order: Sew the background segments first, then the foreground.
• Hidden Consumable: Use a fresh 75/11 Sharp Needle. Ballpoint needles can struggle to penetrate dense layers of Tatami overlap.

Phase 6: Accessories & Texture (The Satin Contrast)

The video shifts to Satin stitches for the spikes, cuffs, and claws. This creates a visual "pop" against the matte Tatami body.

Satin Stitch Safety

• Minimum Width: 1.5mm. Anything thinner will sink into the fabric or texture of the Tatami.
• Maximum Width: Check your machine manual (usually 7mm to 10mm). If the spike is wider, use "Split Satin" or "Auto Split" to prevent snagging.

Phase 7: Facial Engineering (The "Money" Detail)

The face is where the viewer looks first. It must be crisp.

1. Voiding: You must cut "holes" in the yellow head fill where the eyes and mouth go. Do not stitch white eyes on top of yellow head fill—that creates a "bulletproof" thick spot that breaks needles.
2. Expansion: Make the white eye object slightly larger than the hole (about 0.3mm overlap) to preventing gaps.

Phase 8: The Simulation (VirtualQC)

Never skip the TrueView / Slow Redraw simulation. This isn't just a pretty animation; it's your virtual crash test.

The Final Pre-Production Checklist

• Gap Check: Watch the simulation for white flashes between borders and fills.
• Travel Lines: Are there long threads jumping across the design? (Trim them provided your machine has auto-trim).
• Sewing Order: Does the design sew from the center out (to push wrinkles away)?
• Color Changes: Are they logically grouped to minimize stops?

Phase 9: Real World Execution (Stabilizer Decision Tree)

You have the file, now you need to sew it. This is where 90% of beginners fail.

Decision Tree: Stabilizer Choice for 70k+ Stitch Designs

• Is the fabric stretchy (T-shirt, Polar Fleece)?
  • YES: You MUST use 2 layers of Cutaway Stabilizer. Do not use Tearaway.
  • Glue: Use temporary spray adhesive (e.g., 505 Spray) to bond the fabric to the stabilizer. Floating is risky here.
• Is the fabric stable (Denim, Canvas, Twill)?
  • YES: 1 Layer of Heavy Cutaway or 2 Layers of Heavy Tearaway.
• Is the fabric fluffy (Towel, Velvet)?
  • YES: Add a Water Soluble Topper (Solvy) component on top to stop stitches from sinking.

Warning (Magnet Safety): If you upgrade to magnetic hoops, be aware they use powerful Neodymium magnets. Keep them away from pacemakers. Watch your fingers—they can pinch severely.

Troubleshooting: When Good Files Go Bad

Even a perfect file can fail if the machine environment is off.

Commercial Reality: Tools vs. Talent

If you are a hobbyist doing one Bowser jacket, simple hoops and patience work fine. However, if you are running a small shop and need to produce 50 of these:

1. The Fatigue Factor: Standard hoops require wrist strength. Doing 50 repeated hoopings causes fatigue, which leads to crooked embroidery. This is why pros search for a reliable machine embroidery hooping station—it mechanizes the alignment process.
2. The Hoop Burn Issue: Manufacturers hate "hoop burn" (shiny rings on fabric). If you are fighting this, upgrading to a magnetic embroidery hoop isn't just a luxury; it's a quality control necessity that allows you to hoop thick seams (like the pockets on the Hoodie this design belongs on) without struggle.
3. The Consistency Need: For consistent placement on Left Chest or Jacket Backs, a hooping station for embroidery ensures every single unit looks identical.
4. The Hardware Ceiling: If you find yourself spending more time changing thread colors than sewing, or if your single-needle machine struggles with the drag of heavy garments, looking into SEWTECH multi-needle solutions is the natural step to reclaim your profitability.

Final Thought: Character digitizing is a game of millimeters. Trust your numbers (density/overlap), listen to your machine (sound/rhythm), and never skimp on stabilization.

FAQ

• Q: How can a Wilcom or Hatch digitizer prevent fabric puckering when stitching a 73,000-stitch, 178mm-tall character design on a lightweight T-shirt?
  A: Use heavy stabilization or switch to a heavier garment, because a 70k+ dense file will distort light knits.
  • Choose: Use 2 layers of cutaway stabilizer for stretchy fabrics; avoid tearaway for this job.
  • Bond: Use temporary spray adhesive to attach fabric to stabilizer (floating is risky on high-density files).
  • Slow down: Reduce sewing speed if the garment starts shifting under needle penetration.
  • Success check: The finished fill areas should lay flat with no ripples around the design edge after unhooping.
  • If it still fails: Re-evaluate hooping tightness and density settings (do not over-pack stitches).
• Q: What is the “drum skin” hooping success standard for standard friction embroidery hoops on high-stitch-count jacket-back designs?
  A: Hoop tension must be tight enough that the hooped fabric feels and sounds like a drum when tapped, or the design will shift and misregister.
  • Tighten: Adjust the hoop screw until the fabric cannot be pulled or slid by hand.
  • Stabilize: Pair with a structural stabilizer setup (often cutaway for demanding designs).
  • Avoid damage: If hoop burn is a concern on delicate fibers, consider switching hooping method rather than over-tightening.
  • Success check: Tap the hooped area—there should be a firm “drum-like” response with no soft spots.
  • If it still fails: Increase stabilization first; if shifting continues, upgrade the clamping method (magnetic hooping is often used for thick garments).
• Q: How much pull compensation should a Wilcom or Hatch digitizer use to prevent gaps on very dense character designs?
  A: Use at least 0.4 mm pull compensation as a baseline for dense designs to reduce exposed fabric gaps.
  • Set: Define the correct fabric type in the software so compensation behavior matches the material.
  • Verify: Check narrow columns and edge areas where pull shows first.
  • Combine: Use overlap between adjacent fills so compensation is not doing all the work alone.
  • Success check: In TrueView/Slow Redraw, edges should not show “white flashes” or fabric slivers between objects.
  • If it still fails: Increase overlap between neighboring segments and confirm hooping/stabilizer are preventing fabric drift.
• Q: What stitch density is a safe range for Tatami fills on a 70,000+ stitch character design to reduce needle deflection and thread shredding?
  A: Keep Tatami spacing around 0.40 mm and do not go tighter than 0.35 mm to avoid dangerous over-density.
  • Set: Start near standard 0.40 mm spacing, then test-sew on the same fabric + stabilizer stack.
  • Listen: Stop immediately if a rhythmic “thump-thump” or sharp “slap” appears during fill sewing.
  • Maintain: Replace dull needles before testing dense fills; consider slowing the machine from high speeds to reduce heat/deflection.
  • Success check: The machine sound should stay smooth and even through large fill areas, with no pounding or slapping.
  • If it still fails: Re-digitize to reduce density or segment large fills; do not force a too-tight file to run.
• Q: Why do adjacent Tatami fill segments leave gaps on segmented shells, and what overlap should a digitizer add to prevent registration gaps?
  A: Fabric shrinks when stitched, so segments must overlap by about 2–3 rows of stitching (around 1.0 mm) instead of “touching.”
  • Add: Overlap neighboring solid fills by the recommended amount before borders are placed.
  • Order: Sew background segments first, then foreground segments to cover shrink and push/pull.
  • Refresh: Use a fresh 75/11 sharp needle when stitching dense overlap areas; ballpoint needles may struggle in heavy stacks.
  • Success check: After sewing, no base fabric should be visible between shell segments at normal viewing distance.
  • If it still fails: Increase stabilization and confirm the fabric is not shifting in the hoop during long fill runs.
• Q: How do I troubleshoot white bobbin thread showing on top and loops on top during high-density embroidery on a multi-needle embroidery machine?
  A: Treat the symptom separately: bobbin thread on top usually means top tension is too tight, while loops on top often mean the top thread is not properly tensioned or threaded.
  • Adjust: If white bobbin shows on top, lower top tension by 1 number and test again.
  • Re-thread: If loops appear on top, re-thread and “floss” the thread into the tension discs to ensure it is seated.
  • Test: Sew a small fill section at the same density and speed used for production.
  • Success check: The top surface should show clean top thread coverage with no bobbin “sparkles” and no loose loops.
  • If it still fails: Confirm needle condition and re-check the stabilizer/hooping, because fabric movement can mimic tension problems.
• Q: What safety steps should operators follow when test-sewing high-density embroidery files to prevent needle injury, and what are the warning sounds to stop for?
  A: Stop immediately if the machine makes a repeating “thump-thump” or sharp “slap” during fills, because that can indicate over-density or a dull/bent needle.
  • Wear: Use eye protection when test-running dense files.
  • Replace: Change to a fresh needle before the test; reduce speed if heat/deflection is suspected.
  • Inspect: If a needle bends, discard it—do not keep running the job.
  • Success check: The run should sound steady and smooth, with no striking noises and no repeated thread shredding.
  • If it still fails: Reduce density (do not go tighter than 0.35 mm) and re-test on the correct stabilizer stack.
• Q: When should a small embroidery shop upgrade from standard hoops to magnetic hoops, and when does it make sense to move to a SEWTECH multi-needle embroidery machine for 10-color, high-stitch designs?
  A: Upgrade in levels: optimize technique first, use magnetic hoops when hoop burn/fatigue/hooping inconsistency becomes the bottleneck, and consider a multi-needle machine when color-change time and throughput limit profitability.
  • Level 1 (technique): Tighten hooping to the drum-skin standard and match stabilizer to fabric (2x cutaway for stretch).
  • Level 2 (tooling): Use magnetic hoops when hoop burn marks, thick seams, or repeated hooping fatigue cause crooked placement or quality rejects.
  • Level 3 (capacity): Move to a SEWTECH multi-needle machine when 10-color designs create excessive manual thread-change labor on single-needle workflows.
  • Success check: Production becomes repeatable—consistent placement, fewer hoop marks, and fewer stops for thread changes.
  • If it still fails: Add a hooping station for alignment consistency and re-check digitizing choices (overlap, density, sew order) before scaling volume.
