Don’t Brick Your Brother PR1055X: The Calm, Correct Firmware Update to Version 2.02 (Plus the USB Mistakes That Waste Hours)

Firmware updates shouldn’t feel like defusing a bomb—but I know they do. When a multi-needle machine is part of your income (or your sanity), the fear is real: one wrong USB, one renamed file, one impatient power-off… and you’re staring at a machine that won’t cooperate.

In my 20 years managing embroidery floors, I’ve seen seasoned operators freeze up at the sight of a progress bar. It’s not about technical incompetence; it’s about the fear of "bricking" an asset that costs as much as a used car.

This post rebuilds Jeanette’s update process into a shop-floor checklist you can trust, with the exact "gotchas" that cause most failed updates on the Brother PR1055X. We are moving beyond "fingers crossed" to "protocol verified."

The “Don’t Panic” Primer for the Brother PR1055X Firmware Update (Version 2.02)

Jeanette’s video is updating the Brother PR1055X to firmware version 2.02, released late July 2025, using a USB flash drive and a simple button-hold boot method. The machine shown starts on an older version (she demonstrates 1.70) and confirms success by checking the settings screen after reboot.

Two truths from 20 years around embroidery equipment:

1) Most “failed updates” aren’t mysterious—they’re USB hygiene problems (format, extra files, or filename changes). 2) The update itself is usually straightforward if you treat it like a controlled procedure, not a casual file transfer.

If you’re running a brother pr1055x in a home studio or small production room, this is one of those maintenance tasks that protects your uptime. Think of this like an oil change: necessary, precise, but routine if you follow the rules.

Warning: Electrical Safety Critical. During the update, do not remove the USB drive and do not turn the main power off while the progress bar is moving or the Start/Stop button is flashing multiple colors—interrupting power mid-flash can corrupt the installation. Expert Tip: Ensure your machine is plugged into a high-quality surge protector or UPS (Uninterruptible Power Supply) during this process.

The “Hidden” Prep That Prevents 90% of Brother PR1055X USB Update Failures

Before you touch the machine, you’re going to win or lose this update at your computer. The machine is dumb; it only looks for one specific thing. If you don't give it exactly that, it will ignore you.

What the video shows you must prepare

• Download the correct update file from Brother’s support site for the PR1055X.
• Select your OS family (Jeanette demonstrates Mac selection).
• Agree to the user agreement/EULA to start the download.
• Confirm the update file is a .upf file.
• Confirm the filename is exactly: PR3_V202_BP.upf.
• Use a USB drive formatted to FAT32 (MS-DOS).
• The USB must contain no other files—wipe it clean.


Why the filename and “empty USB” rule matters (the practical reason)

Embroidery machines typically look for a very specific update package name at the root of the drive. If your computer adds a duplicate suffix like "(1)" (e.g., PR3_V202_BP(1).upf) because you downloaded it twice, the machine acts as if the file doesn't exist. It will not "guess" which file you meant.

Likewise, extra folders, hidden system files, and old DST designs can confuse the machine’s simple file scan. Jeanette is blunt about it because she’s seen the same mistake repeatedly: people toss the update file onto a "random USB" that already has dense folders of PDFs and old backups.

Prep Checklist (do this before you walk to the machine)

• Consumable Check: Have a strictly dedicated USB drive (2GB - 16GB preferred) ready.
• On the Brother support page, confirm you’re on the PR1055X model page (not the PR1050X—they are different brains).
• Download Update software v2.02 (released late July 2025).
• File extension is visible and is .upf.
• File name scans as PR3_V202_BP.upf (Right-click > Properties to confirm no hidden characters).
• USB flash drive is freshly formatted to FAT32 (MS-DOS).
• USB contains only the update file (Open the drive folder: Is it white space with one file? Good.).
• Environment Check: You have stable power (no thunderstorms, no loose plugs).


Downloading Brother PR1055X Update Software v2.02 Without Grabbing the Wrong File

Jeanette’s workflow is simple but rigid:

1. Go to Brother’s support site.
2. Navigate to the PR1055X downloads area.
3. Choose your OS family (Mac or Windows) and then your specific operating system.
4. Select the update software entry (v2.02).
5. Accept the user agreement so the download begins.

A comment question that comes up a lot is: “How did you even know there was an update?” Jeanette’s answer is practical—she checks Brother’s site every two months rather than waiting for an email.

If you’re running production, build that habit into your calendar. Put a recurring "Tech Tuesday" reminder in your phone. A firmware update is not something you want to discover the night before a deadline when the machine starts acting glitchy.

The USB Drive Rules for Brother PR1055X: FAT32 (MS-DOS), Clean Root, No Exceptions

Jeanette highlights two non-negotiables. To an IT person, these are obvious. To an embroiderer, they can be obscure. Let's clarify.

1) Format must be FAT32 (MS-DOS)

She points directly to the requirement: FAT32 [MS-DOS(FAT)].

• Why? The machine's internal computer is industrial and simple. It cannot read the modern file systems (NTFS, exFAT) used by high-capacity drives. If you stick a 64GB drive formatted for Windows 11 in there, the machine sees... nothing.

2) The USB must be “fresh” (empty except the update)

Her recommendation is to wipe the USB clean and keep only the update file on it.

• Expert Move: Don't just delete files. Reformat the drive. This wipes hidden trash files and repairs the file allocation table.

A viewer asked how big the flash drive needs to be. Jeanette replied that the file is small and she uses a 16 (a 16 GB flash drive). The video also shows the update file size as 85.6 MB, so you don’t need a large drive—what you need is a compatible, properly formatted one. Sweet Spot: Any USB 2.0 drive between 4GB and 16GB is usually the safest bet for these machines.

One more shop-floor tip: dedicate one USB as your “maintenance USB” and don’t use it for designs. Label it with a Sharpie. That single habit prevents a lot of wasted time.

The Version Check Ritual on the Brother PR1055X (So You Know You Actually Need the Update)

Before updating, Jeanette verifies the current firmware:

1. Power on normally (Standard boot).
2. Tap the settings icon (she describes it as the paper/settings area).
3. Navigate backward to page 10.
4. Look for the “Latest Version” field—her machine shows 1.70 before the update.

This matters for two reasons:

• Efficiency: It confirms you’re not doing unnecessary work.
• Safety: It gives you a clean “before” reference. If the update fails, you know exactly what stable version you were on.


The Needle Threader Button Trick: Entering Brother PR1055X Boot/Update Mode Safely

This is the mechanical step that makes people nervous because it requires dexterity. It’s like entering the BIOS on a computer—a secret handshake.

What Jeanette does (The Sensory Sequence)

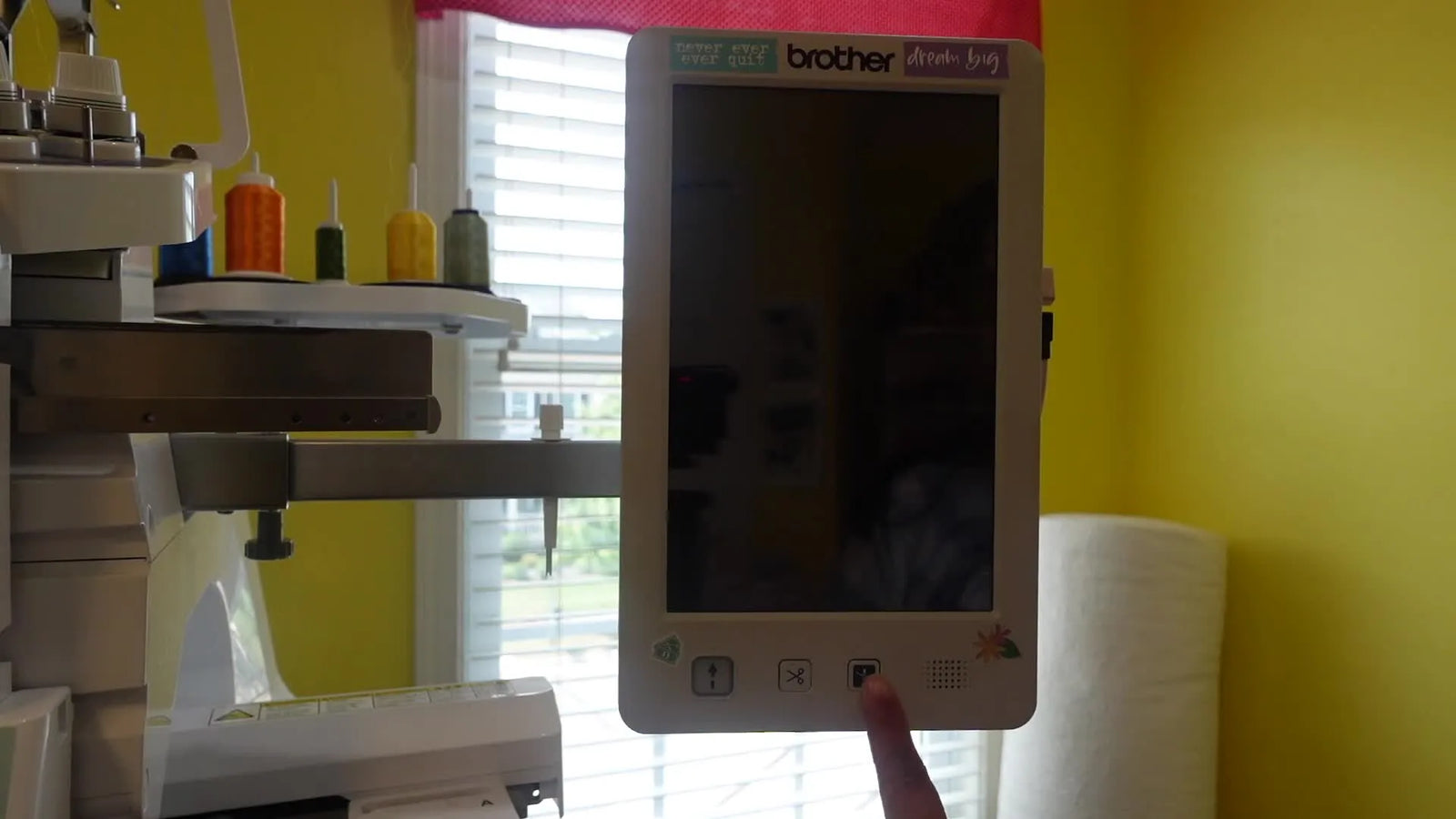

1. Turn the machine OFF.
2. Tactile Step: Press and hold the automatic needle threader button (bottom button in the group of three). Use your left hand so your right hand is free for the power switch. You need to press it firmly—feel the click.
3. While keeping that button depressed, turn the main power ON with your right hand.
4. Visual Anchor: Keep holding. Do not let go. Watch the button light. It will cycle or delay, then turn a solid orange.
5. Release the button only once you see the orange light and the screen changes to the special "Update Mode" (usually features load icons/arrows).


Warning: Pinch Hazard. Keep fingers, tools, and loose thread away from the needle area and moving parts while powering on. Even in update mode, the machine may initialize motors. Do not lean your face close to the needle headers while toggling the switch.

Installing the PR1055X Firmware from USB: The “Hands Off” Phase You Must Respect

Once you’re in update mode:

1. Insert the prepared USB drive into the side port. Feel/Sound: Ensure it seats fully without forcing it.
2. Tap the USB icon on the screen.
3. Press the large Load button.
4. Wait while the progress bar moves to 100%.

Jeanette points out a moment that scares first-timers: the Start/Stop button may flash different colors (green/orange/red/multi-color). Her advice is exactly right—don’t touch anything.

The Psychology of the Wait: This process can take several minutes. The bar might hang at 80% for a scary amount of time. This is normal. The machine is writing to internal memory. Do not panic. Do not toggle the switch.

Your expected on-screen message during the update includes a warning like “Saving the update file… Do not turn main power to OFF.”

Setup Checklist (right before you press “Load”)

• Machine screen is different than usual (bootloader/update mode).
• Needle threader button light is glowing orange.
• USB is physically secure in the side port.
• You selected the USB icon (not the PC/Link icon).
• No-Touch Zone: You are mentally prepared to leave the machine alone until you see text confirming completion.


The Clean Reboot: “Update Complete,” Remove USB, Power Down, Wait 10 Seconds

When the screen text changes to “Update complete”:

1. Remove the USB drive immediately.
2. Turn the machine OFF.
3. The Capacitor Rule: Wait 10 seconds (Jeanette literally counts to 10). Why? The motherboard capacitors need to fully discharge to clear the RAM. A "fast toggle" might retain old temporary data.
4. Turn the machine back on normally.
5. Return to settings page 10 and confirm the firmware now shows 2.02.

That 10-second pause is a small detail with big value. In electronics repair, we call this a "power cycle," and it solves glitches before they start.

Operation Checklist (your “done means done” confirmation)

• Screen explicitly displayed “Update complete.”
• USB removed.
• Machine powered off fully.
• Counted strictly to 10 seconds.
• Machine boots to standard home screen.
• Settings page 10 verifies Latest Version 2.02.


“Why Did My PR1055X Refuse the File?” The Two Real-World Causes Jeanette Calls Out

When people say “my machine won’t read the update,” it’s usually one of these hardware/software conflicts.

Diagnostic Table: Why Won't It Update?

Jeanette demonstrates the duplicate-download issue clearly—if you downloaded the file multiple times, your computer may append extra characters. Remove them so the name matches exactly.

Comment-Driven Pro Tips: Changelog Questions, Tutorial Video Updates, and “Database Transfer” Anxiety

Jeanette’s comments reveal three common worries that don’t always get answered in official documentation.

Pro tip: “What did Brother improve? Where’s the changelog?”

Multiple viewers asked what the upgrades are. Jeanette noted Brother provides this on their site.

• Expert Context: Version 2.02 is primarily a stability and compatibility update. Practical advice: if you’re updating for stability (not a specific feature), treat it like preventative maintenance. If you’re updating because you need a particular fix, read the release notes carefully before scheduling downtime.

Watch out: “Do I also have to update the built-in tutorial videos?”

Several viewers asked about a separate “videos update.” Jeanette correctly identifies that firmware (the OS) and Content (videos/designs) are often different packages.

• Action: If Brother offers a separate "media update," it usually installs via the same method but is a much larger file. Don't assume the firmware update includes the video library.

Watch out: “Design database transfer stopped working after firmware”

One commenter reported that after the firmware update, design database transfer wouldn’t send files. Jeanette hadn't seen this issue.

• Technician's Insight: When wireless transfer breaks after an update, it's usually a "handshake" issue. The machine's IP address might have refreshed, or the PC security authorization reset. Fix: Delete the machine from your PC software and re-register it as a new connection.

The “Why” Behind These Steps: Firmware Updates Are About Controlled Variables, Not Speed

Jeanette’s method works because it reduces variables:

• One file.
• One known filename.
• One known USB format.
• One controlled boot mode.
• One uninterrupted write process.

That’s the exact same mindset I use in production embroidery when diagnosing thread breaks or registration issues: change one thing at a time, confirm the checkpoint, then proceed.

If you’re the type who likes to keep a machine running hard, this is also a good moment to do a quick “machine health” scan. While you wait for that update bar, check your bobbin case for lint and your needles for burrs.

The Upgrade Path After Maintenance: Turn “Machine Care” Into Faster, Cleaner Production

A firmware update doesn’t directly make you stitch faster—but it’s part of the bigger picture: stable machines let you focus on output.

However, once the software is running smooth, I see many PR1055X owners hit their next bottleneck: physical fatigue from hooping. You just spent 20 minutes ensuring your machine is smart; now let's ensure your workflow is efficient.

If your daily pain is slow, inconsistent hooping, or those dreaded "hoop burns" (white marks) on delicate polos, consider a workflow upgrade using magnetic hoops for brother pr1055x. The decision isn’t about hype, it’s about repeatability and saving your wrists from repetitive strain injury.

Warning: Magnetic Safety. Newer magnetic hoops use N52 industrial magnets. They are incredibly strong. Keep them away from pacemakers and medical implants (minimum 6 inches). Store them carefully—if two magnets snap together with your finger in between, it will cause a severe blood blister or pinch injury.

Decision Tree: Is It Time to Upgrade Your Hoops?

1. Are you stitching 1-3 items a week?
   • Yes: Stick with the standard Brother hoops. Focus on mastering your stabilizer tension.
2. Do you stitch daily, or struggle with thick items (Carhartt jackets, bags)?
   • Yes: Standard hoops are fighting you. This leads to broken hoops or popped inner rings.
   • Solution: Level 1 Upgrade. Switch to magnetic embroidery hoops. They hold thick fabric without forcing a plastic ring inside, eliminating hoop burn and reducing wrist strain.
3. Are you running production batches (50+ left-chest logos)?
   • Yes: Your bottleneck is hooping speed.
   • Solution: Level 2 Upgrade. Pair magnetic hoops with a hoop station. This ensures every logo is in the exact same spot without measuring every shirt.

In those batch scenarios, pairing magnetic embroidery hoops with a consistent placement routine can be the difference between “I can do 10 today” and “I can do 30 without burning out.”

Hooping Efficiency (Because Firmware Isn’t Your Only Bottleneck)

Even though this video is about software, the audience is clearly equipment-focused—many PR1055X owners are either commercial embroiderers or serious hobbyists. If that’s you, don’t stop at maintenance.

If you’re still doing manual alignment for every garment, a hooping station for machine embroidery can help standardize placement. This is critical when you have a helper or employee—you can teach them the "station" method in 5 minutes, whereas teaching them to "eyeball it" takes months.

And if you’re evaluating hoop options for your machine, remember that brother pr1055x hoops aren’t just about size—they’re about how reliably you can load fabric without distortion. A clean firmware update ensures the machine stitches perfectly; a good hoop ensures the fabric sits perfectly. You need both.

One Last Reality Check: Multi-Needle Productivity Is a System, Not a Single Purchase

People often ask whether they should “upgrade the machine” or “upgrade the workflow.” In practice, it’s usually both—just in the right order.

If you’re already running a brother 10 needle embroidery machine pr1055x, you’ve invested in serious production capacity. The next gains typically don't come from a faster motor, but from reducing handling time (hooping, trimming, staging garments).

That’s why I treat hooping as a production skill—hooping for embroidery machine is where many shops quietly lose profit, because it’s repetitive, hard on the body, and easy to do inconsistently.

If you ever outgrow single-machine throughput (even a 10-needle), that’s when a multi-needle productivity upgrade (like adding a second SEWTECH networked machine or a specialized high-speed head) becomes the next logical step—but only after your hooping and staging process is already tight.

If you follow Jeanette’s exact sequence—clean FAT32 USB, exact filename, needle-threader-button boot mode, hands-off update, 10-second reboot—you’ll update to 2.02 calmly and reliably. Treat your machine with this level of respect, and it will pay you back in beautiful stitches.

FAQ

• Q: What USB format and file placement does the Brother PR1055X require to detect the firmware update file PR3_V202_BP.upf?
  A: Use a freshly formatted FAT32 (MS-DOS) USB drive with the update file placed in the root directory and nothing else on the drive.
  • Format the USB to FAT32 (MS-DOS/FAT) (avoid NTFS/exFAT).
  • Copy only PR3_V202_BP.upf to the USB root (not inside any folder).
  • Reformat (not just delete files) to remove hidden/system trash files.
  • Success check: the Brother PR1055X update mode screen shows the USB option and can “see” the file when you tap USB.
  • If it still fails… try a smaller/older USB (often 4–16GB works best) and re-download the update file.
• Q: Why does the Brother PR1055X firmware update fail when the .upf filename is PR3_V202_BP(1).upf or slightly different?
  A: The Brother PR1055X bootloader typically looks for the exact update filename, so any extra characters (like “(1)”) make the machine ignore the file.
  • Check the filename on the computer and confirm it is exactly PR3_V202_BP.upf (no spaces, no suffixes).
  • Remove duplicate downloads and copy a single clean file to the USB.
  • Confirm the file extension is .upf and not altered by the OS.
  • Success check: after tapping USB, the machine allows you to proceed with Load using the update package it recognizes.
  • If it still fails… re-download the update from Brother’s PR1055X page to rule out a corrupt file.
• Q: How do you enter Brother PR1055X firmware update mode using the automatic needle threader button without messing up the timing?
  A: Power OFF, press-and-hold the automatic needle threader button, then power ON while still holding until the button light turns solid orange and the update screen appears.
  • Turn the machine OFF first.
  • Press and hold the automatic needle threader button (bottom button in the group of three), then switch main power ON.
  • Keep holding until the light becomes solid orange, then release.
  • Success check: the screen is different from normal boot and shows the special update/bootloader interface with update icons.
  • If it still fails… repeat more slowly and make sure the button is fully “clicked” before turning power on.
• Q: Is it safe to turn off power or remove the USB drive during a Brother PR1055X firmware update progress bar?
  A: No—do not remove the USB or turn off main power while the progress bar is moving or the Start/Stop button is flashing multiple colors.
  • Plug the machine into a quality surge protector or UPS before starting (a safe precaution).
  • Start the update and treat it as a hands-off phase until completion.
  • Wait even if the bar appears stuck (it can pause at high percentages and still be normal).
  • Success check: the screen explicitly displays “Update complete” before you touch anything.
  • If it still fails… re-download the file and switch to a different USB drive to rule out corruption or a low-quality stick.
• Q: What is the correct reboot procedure after “Update complete” on a Brother PR1055X firmware install?
  A: Remove the USB, power the Brother PR1055X OFF, wait a full 10 seconds, then power ON normally and confirm the new firmware version in settings.
  • Remove the USB immediately after “Update complete.”
  • Turn main power OFF and wait 10 seconds (do not fast-toggle).
  • Power on normally and check Settings > page 10 for the “Latest Version” value.
  • Success check: Settings page 10 shows firmware 2.02 after reboot.
  • If it still fails… repeat the update using a freshly formatted FAT32 USB and confirm the exact filename again.
• Q: What are the most common Brother PR1055X firmware update troubleshooting causes when the machine does not see the USB or fails right after pressing “Load”?
  A: The two most common causes are wrong USB format (not FAT32) and an incorrect update filename; a third common issue is a corrupt download or unreliable USB stick.
  • Reformat the USB to FAT32 (MS-DOS/FAT) and keep it empty except the update file.
  • Verify the filename is exactly PR3_V202_BP.upf (remove “(1)” and any extra characters).
  • Re-download the update file from Brother and try a different USB drive if the update hangs or errors.
  • Success check: the update progresses to 100% and ends with “Update complete.”
  • If it still fails… try an older, smaller-capacity USB (often more compatible) and confirm you are on the PR1055X download page (not PR1050X).
• Q: How can Brother PR1055X owners reduce hoop burn and wrist strain after maintenance when standard hoops struggle on thick garments?
  A: Start with technique and stabilizer control, then consider magnetic hoops if daily hooping or thick items are causing inconsistent clamping or hoop marks.
  • Level 1 (technique): Adjust hooping tension and fabric handling to avoid over-stretching and ring pressure marks.
  • Level 2 (tool): Switch to magnetic embroidery hoops to clamp thick items without forcing an inner ring (often reduces hoop burn and fatigue).
  • Level 3 (process): For batches, pair magnetic hoops with a hooping station to standardize placement and speed loading.
  • Success check: fabric loads flatter with fewer white “burn” marks and repeat placement is consistent across multiple garments.
  • If it still fails… reassess stabilizer choice/tension first, and only then evaluate workflow upgrades based on volume and consistency needs.
• Q: What magnetic hoop safety rules should Brother PR1055X users follow when using strong N52 magnetic embroidery hoops?
  A: Treat N52 magnetic hoops as a pinch and medical-device hazard—keep them away from pacemakers/implants and handle them so magnets cannot snap together on fingers.
  • Keep magnetic hoops at least 6 inches away from pacemakers and medical implants.
  • Store magnets separated and controlled; do not let two frames/clamps slam together.
  • Keep fingers clear when closing magnets to avoid severe pinch/blister injuries.
  • Success check: magnets close smoothly without sudden snapping, and hands stay outside the pinch zone during clamping.
  • If it still fails… stop and reposition the fabric/hoop so magnets align gradually instead of forcing closure.
