Don’t Rotate Yourself Into a Mess: Combine mySewnet Daily Freebies Into a Clean 200×200 Square Block (Without Distortion)

If you’ve ever tried to “just rotate it a little” in your embroidery software and ended up with gaps that don’t match, curves that look jagged, and a file that suddenly stitches like it’s angry—take a breath. We have all been there.

The machine sounds different—louder, harsher—and the thread shreds. This isn't just bad luck; it is a symptom of digital degradation.

This mySewnet session is a perfect real-world laboratory to examine what happens when we push stitch files too far, and how to get the same creative result with zero risk. You are going to combine three separate "daily freebie" elements (files #4, #5, and #6) into one cohesive 200×200 mm square block, then finish it properly: color sort, frame it with satin, swap thread brands, and surgically remove a rogue connector.

But more importantly, we are going to teach you the "Sensory Safe Protocol" ensure your digital edits don't destroy your physical fabric.

Lock In the mySewnet 200×200 mm Hoop First—So Every Move Has a Real Boundary

Before you import a single pixel, start in mySewnet Stitch Editor and select the 200×200 mm hoop. This isn’t just administrative busywork—it is your physical "guardrail."

When you are building a four-quadrant layout (a "quilt block" style design), the hoop boundary is the only thing keeping your spacing honest. A lot of intermediate users skip this and only check the size at the end. That is how you end up with a beautiful square that is exactly 203mm wide—just 3mm too big for your mechanical limit—turning a fun project into a "hoop-bashing" nightmare where the needle carriage hits the frame.

The Rule of Thumb: If you see the design touching the virtual hoop line, you are already in the danger zone. Leave a safety margin of at least 2-3mm.

The “Hidden” Prep Pros Do: Thread/Hoop Reality Checks Before You Touch the Mouse

Even though this tutorial focuses on software, the file you create has to survive the physical world. I want you to think like a production embroiderer while you edit.

• Editing goal: Clean stitch flow, minimal thread changes, predictable trims.
• Stitching goal: Stable fabric, repeatable hooping, and no surprise "jump line" scars.

If you plan to stitch this as a test block—or worse, stitch 20 of them for a quilt—this is where your tools define your success rate. Standard plastic hoops rely on friction and thumbscrews. If you tighten them unevenly, a square design will stitch out as a trapezoid (a rhombus).

This is why professionals often upgrade to a hooping station for embroidery. It’s not just a fancy table; it’s a jig that ensures your fabric and stabilizer are perfectly square every single time. If you can't justify a station yet, at least tape your stabilizer down to a cutting mat to ensure your grainline is straight before you hoop.

Prep Checklist (Do this *before* importing designs)

• Module Check: Confirm you are in Stitch Editor (not the Embroidery module yet) for precise node control.
• Scale Check: Select 200×200 mm hoop so the grid scale matches your physical reality.
• Quadrant Rule: Visualize the center. Does one combined corner fit comfortably in a single quadrant (100x100mm space)?
• Consumables Stock: Check your inventory. Do you have enough of the same lot number thread for 4 quadrants? Do you have temporary spray adhesive (like 505) and a fresh needle (Size 75/11 is the sweet spot for standard cotton)?
• Hooping Strategy: If stitching multiples, mark your hoop's center with water-soluble pen or use a hooping station to guarantee placement consistency.


Import Daily Freebies #4, #5, #6 the Same Way Hazel Does—One at a Time

A common question in the comments was whether you can import multiple files at once. The answer is yes, but the advice is no.

In this workflow, each design file is opened individually, then copied and pasted onto the blank working file. Why? Because when you dump three files in at once, they stack on top of each other in the center (the "0,0" coordinate). You lose track of which layer is which, and selecting the wrong detailed element is frustrating.

The "Control Freak" Method (Do exactly as shown):

1. Open a new blank file in Stitch Editor.
2. Open freebie #4, Copy, then Paste onto the blank canvas.
3. Open freebie #5, Copy/Paste onto the same blank canvas.
4. Open freebie #6, Copy/Paste onto the same blank canvas.
5. Move the elements toward the corner immediately so they don't pile up.

This "one-by-one" method feels slower, but it prevents the messy layering and accidental offsets. It’s the digital equivalent of mise en place in cooking—everything in its bowl before you cook.

Delete Two Stars Without Creating Jump-Stitch Landmines

Hazel flips and slightly rotates the first element, then zooms in to remove the top two stars using Box Select → Delete.

Here is the part that separates clean files from "headache files."

When you delete stitches in Stitch Editor, the software sometimes leaves behind tiny leftover stitches (think of them like microscopic "anchors" or "dust"). On screen, they look like single pixels. On the machine, they are disasters. The machine will travel to that invisible pixel, drop a needle, tie a knot, and then jump to the next part. This creates Jump Stitch Landmines—unnecessary trims and messy tails.

The Pro Fix: After deleting, zoom in to 400%. If you see stray points, delete them. If you see the entry/exit points (little green/red circles) hanging in empty space, manually move them back into the main design.

Warning: Mechanical Safety
When you delete stitches and nudge tiny points, you are altering the machine's pathing. If you create a "long jump" across the design without a trim command, the machine will drag a thread across your finished work.
Safety Rule: Always watch your first stitch-out with your hand near the Stop button. If the machine makes a grinding noise or the needle flexes, stop immediately. Needles can shatter, and flying metal shards are a genuine hazard. Wear glasses if you are close to the machine.

Use the View Tab Like a Pro: Toggle the "Is it Pretty? / Is it Mathematical?" Modes

Once the first corner is taking shape, Hazel toggles Grid and Commands OFF.

Why turn off the tools that help you align? Because grids lie to your eyes about "flow."

• Grid/Commands OFF: This is the Art Mode. Judge the negative space. Does the curve of the leaves flow naturally into the starburst? Does it look cramped?
• Grid/Commands ON: This is the Engineering Mode. Now you check alignment, quadrant fit, and consistent gaps (e.g., ensuring every gap is exactly 3 grid boxes wide).

She rotates and positions the scroll element so it continues the curve of the stars.

Pro Data Point: Hazel mentions she uses a 5 mm grid. This is industry standard because it relates well to physical reality (approx 1/5th of an inch). If you are new, stick to 5mm or 10mm grids; 1mm grids are too busy and cause eye fatigue.

The Manual Rotation Trap: Why “Copy, Paste, Rotate, Nudge” Feels Precise—but Bites You Later

Hazel demonstrates the "hard way" next: she copies the combined corner, pastes it, rotates it to fill the other quadrants, and uses keyboard arrow keys to nudge it into alignment.

This method is tempting because it looks controllable. You feel like a craftsman placing tiles.

But two things make it fragile:

1. Human Error (The Drift): You might nudge the top-right corner 5 clicks up, but the bottom-right corner only 4 clicks down. The result is a block that looks square but isn't. When you sew 12 of these together for a quilt, nothing lines up.
2. Stitch Degradation: Rotating stitch files (unlike vector files) forces the software to recalculate needle drops. Do this too many times, and clean curves turn into stepped, jagged lines.

If you are building blocks like this for production—say, 50 patches for a club—your bottleneck isn't software; it's physics. Even a perfect file fails if the hoop isn't square. This is where an embroidery hooping system becomes a practical efficiency upgrade. It eliminates "human drift" during the hooping process, ensuring that what you see on screen is exactly where it lands on the shirt.

Setup Checklist (Before duplicating into quadrants)

• "The Master Corner": Confirm your first corner is 100% approved. Any error here will be multiplied by 4 later.
• Grid ON: Reactivate the grid for engineering work.
• Reference Choice: Pick a specific stitch point (e.g., the tip of the lowest leaf) and note its grid coordinate (e.g., X: 15, Y: 15).
• Constraint Check: Ensure no part of the design crosses the center lines (X=0 or Y=0), or your quadrants will overlap.


The Distortion Close-Up: What Over-Editing Stitch Files Looks Like

Hazel zooms in and shows the ugly truth: after too much manual rotation and "playing," the stitches on a curve become distorted, jagged, and uneven.

This is a key principle: Stitch files are not fluid. They are fixed coordinates.

• Original Digitizing (Wait/Wilcom): Vectors. Infinitely scalable. Smooth.
• Machine Files (.vp3/.dst): Fixed dots.

When you rotate a stitch file 13 degrees, the software has to "snap" those dots to the nearest grid manufacturing unit. It effectively "pixels" your curve.

Sensory Check: How do you know if a file is distorted without zooming in? Listen to your machine. A native, clean design sounds like a hum (zzzzzz). A distorted, over-edited file sounds disjointed (thump-thump... ka-chunk... zzzz). If your machine sounds angry, you have over-edited.

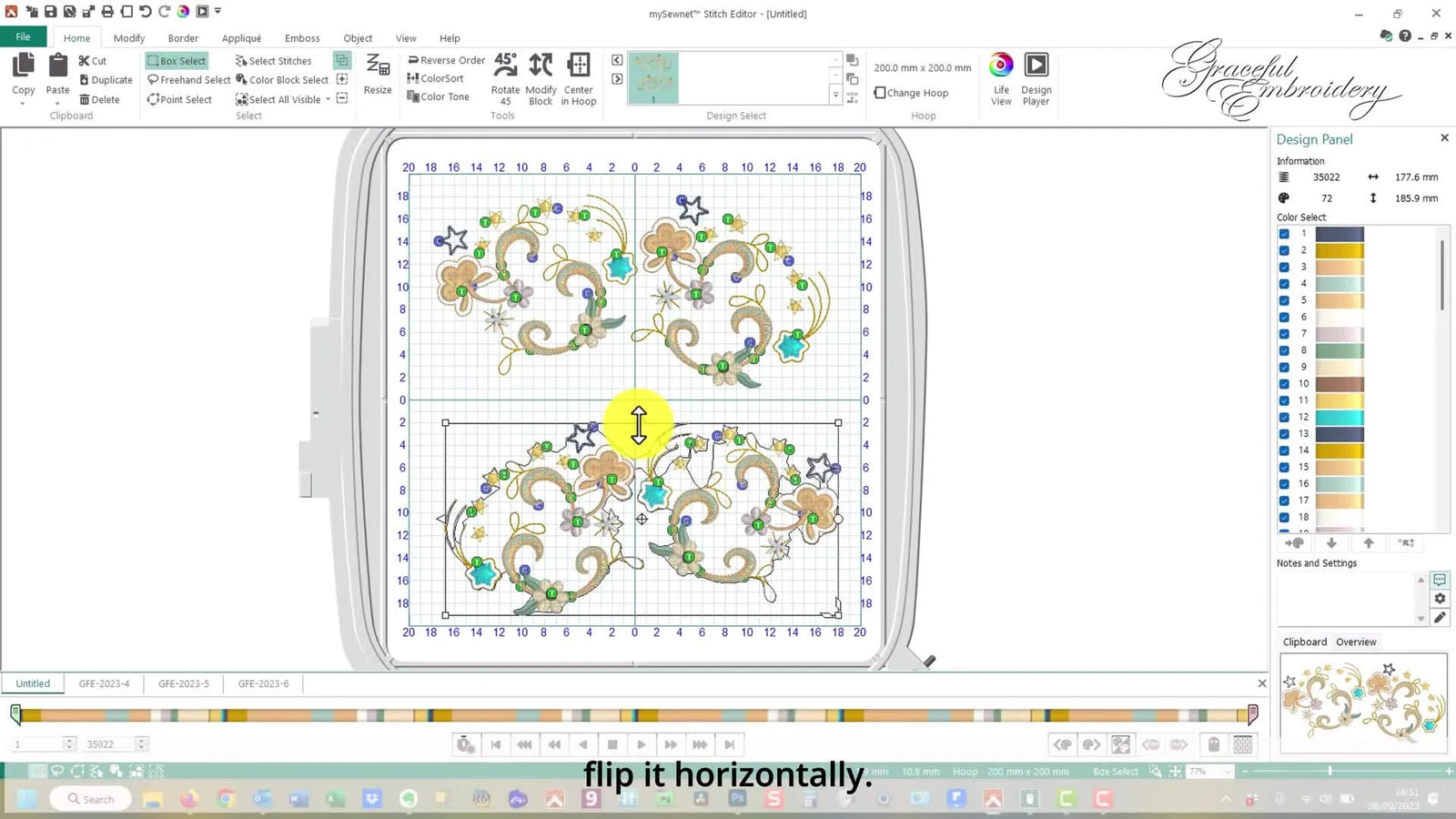

The Flip Method That Saves Your Sanity: Mirror, Don't Rotate

Here is the solution to both the alignment drift and the distortion.

Hazel keeps the top two quadrants she is happy with, then:

1. Box Select the top half (two quadrants).
2. Copy → Paste.
3. Move the pasted copy down.
4. Use Flip Vertical and Flip Horizontal.

Why this is superior: Flipping is a simple mathematical calculation that preserves stitch integrity better than arbitrary rotation. It also guarantees perfect symmetry. If the top right is 5mm from the center, the bottom right will be exactly 5mm from the center.

Production Note: Symmetrical blocks are the bread and butter of quilting and home decor. If you are doing this repeatedly, you are likely hooping delicate cottons or linens. Traditional hoops can leave "hoop burn" (shiny crushed rings) that are hard to iron out. Many embroiderers switch to a magnetic embroidery hoop for these projects. Magnets hold the fabric flat without the "crushing" action of a thumbscrew frame, making it easier to adjust your fabric for that perfect center alignment.

Color Sort Like Hazel: Watch the Stitch Blocks Drop

Hazel color sorts twice in the workflow:

• Single element: 21 color blocks reduced to 12.
• Combined design: 72 color blocks reduced to 28.

This reduction is not just about being tidy. In embroidery, Stops = Time. Every time your machine stops for a color change (even if it's the same color), the machine slows down, trims (maybe), stops, waits for you to hit start, accelerates, and ties on.

• 72 stops might take 45 minutes to stitch.
• 28 stops might take 25 minutes.

If you are running a business on a single-needle machine, this efficiency is critical. If you are on a multi-needle machine (like the SEWTECH models), color sorting is still vital because specific needles are assigned to specific colors. You don't want Needle 1 to fire, then Needle 3, then back to Needle 1 unnecessarily.

Move to mySewnet Embroidery Module: Add a Satin Frame

Once the composite design is centered and color sorted, Hazel switches to the Embroidery Module:

1. Opens a blank canvas with the same hoop size.
2. Pastes the design in.
3. Uses the Frame tool -> Satin Stitch.
4. Changes thread palette from Robison-Anton to Sulky Rayon 40, selecting Mid Gold (Tan).

Crucial "Sweet Spot" Data: For a 200mm block, do not make your satin border too thin or too thick.

• Too Thin (< 2mm): It won't cover the raw edges of your appliqué or gaps.
• Too Thick (> 5mm): It will bullet-proof the fabric, causing puckering nearby.
• Sweet Spot: 3.0mm to 4.0mm width is usually safe for quilting cotton with medium-weight stabilizer.

This frame acts as a visual anchor. It turns a "group of designs" into a "finished patch."

The Fresh-Page Cleanup Trick

Hazel copies the framed design back into a fresh page in Stitch Editor.

Her reason is practical: A fresh move can scrub the file memory. It helps remove some of those little "ghost" data points.

She spots one rogue thread (a connector line) that spans across the design. She fixes it by:

1. Going to Modify.
2. Inserting a Trim Command.

Why rely on commands? Modern machines can auto-trim jump stitches, but often only if the jump is longer than 5mm or 7mm (depending on settings). If you have a 4mm jump, the machine might drag the thread. By manually inserting a Trim Command, you force the machine to cut, guaranteeing a clean result.

Decision Tree: Fabric, Stabilizer, and Tooling

The video shows the digital side. Here is the physical logic used by experts to successfully stitch a dense 200x200mm block.

Step 1: Analyze Fabric

• Woven (Quilting Cotton, Canvas, Denim): Stable.
  • Stabilizer: Tearaway (2 layers) or Cutaway (1 medium layer).
  • Hooping: Standard hoop is fine. Tighten until "drum tight."
• Unstable (T-shirt knits, Jersey): Stretchy.
  • Stabilizer: Must use Cutaway (No-Show Mesh or 2.5oz). Tearaway will cause the square to distort into a circle.
  • Hooping: Do not pull the fabric! Use a hooping stations setup or magnetic frame to float the fabric so you don't stretch it while clamping.

Step 2: Analyze Volume (How many are you making?)

• Hobby (1-5 units):
  • Rely on visual alignment. Double-check manually.
• Small Batch (20+ units):
  • Time is money. Use a hoop master embroidery hooping station style fixture. Consistency is key.
• Production (50+ units):
  • Fatigue is the enemy. Standard hoops strain wrists. Switch to Magnetic Hoops (Sewtech offers strong options here). They snap on instantly, reducing wrist strain and increasing throughput by 30%.

Warning: Magnetic Hoop Safety
Magnetic frames use industrial-strength neodymium magnets. They are incredibly powerful.
1. Pinch Hazard: They can snap together with enough force to bruise skin or crack fingernails. Keep fingers clear of the mating surface.
2. Medical Safety: Keep magnets at least 6 inches away from pacemakers or insulin pumps.
3. Electronics: Do not place them directly on laptops or verify cards.

Troubleshooting the Three "Quit-Moments"

When things go wrong, don't panic. Check this table.

The Upgrade Path: When Software Skills Start Making You Money

Once you master this workflow—clean combining, color sorting, and framing—you have moved from "playing" to "manufacturing." You are now making product.

Here is the logical progression of tools for the growing embroiderer:

1. Level 1 (Software): Master the "Flip" and "Color Sort" as shown today. Cost: $0.
2. Level 2 (Stability): Upgrade your stabilization. Buy premium cutaway and temporary spray adhesive. Cost: Low.
3. Level 3 (Consistency): If you struggle to hoop straight, a station is the answer. If you hate hoop burn, a magnetic frame is the answer.
4. Level 4 (Scale): If you are color-sorting 72 colors down to 28, you are essentially trying to make a single-needle machine act like a multi-needle. Eventually, if the orders come in, a dedicated multi-needle machine (like a SEWTECH 15-needle) is the only way to truly automate that efficiency.

Final Operation Checklist (Before you hit "Export")

• Visual Scan: Turn off grid/commands. Does the negative space describe a nice shape?
• Zoom Audit: Zoom in on the curves. Are they smooth or jagged? (If jagged, redo the flip).
• Thread Logic: Open the Color Worksheet. Are there 28 blocks or 72? Did the sort work?
• Trim Logic: Scan for long connector lines. Insert Trim Commands if needed.
• Save As: Save as editable .vp3 (or your native format) before exporting to .dst or .pes for the machine. Once you go to machine format, you can't easily undo.


If you take only one lesson from Hazel’s demo, make it this: Symmetry is your friend, and "Flip" is safer than "Rotate." It keeps your quadrants aligned, protects stitch quality, and gets you to a safe, stitchable file faster. Now, go hoop it square (listen for that drum-tight sound!) and watch it sew perfectly.

FAQ

• Q: In mySewnet Stitch Editor, why should the 200×200 mm hoop be selected before importing any .vp3 elements for a 4-quadrant block?
  A: Select the 200×200 mm hoop first so every move is constrained by the real mechanical boundary and you avoid creating an “almost fits” design that hits the frame.
  • Activate: Choose 200×200 mm hoop before you paste anything so the grid scale matches reality.
  • Leave: Keep a 2–3 mm safety margin; if stitches touch the virtual hoop line, treat it as danger zone.
  • Verify: Check that one corner comfortably fits within a 100×100 mm quadrant before duplicating.
  • Success check: The full design sits clearly inside the hoop outline with visible clearance on all sides.
  • If it still fails… Reduce the layout slightly or re-space elements before adding borders or frames.
• Q: In mySewnet Stitch Editor, how do I delete parts of a design (like two stars) without creating jump-stitch “landmines” from leftover pixels?
  A: Delete the stitches, then immediately zoom in and remove any microscopic leftovers and relocate entry/exit points back into the design.
  • Delete: Use Box Select → Delete on the target stitches.
  • Inspect: Zoom to 400% and hunt for single-point “dust” stitches or stray nodes.
  • Correct: Move entry/exit points (green/red circles) back onto the main stitch body if they’re hanging in empty space.
  • Success check: In preview, the needle path does not travel to isolated single stitches or empty-space points.
  • If it still fails… Undo and repeat the delete more tightly, then re-check at 400% before saving.
• Q: In mySewnet Stitch Editor, why do rotated stitch files create jagged curves, loud “thump-thump” sounds, and thread shredding during stitching?
  A: Excessive manual rotation forces recalculation of fixed needle-drop coordinates, which can distort curves and make the machine stitch harshly.
  • Roll back: Use Undo to return to the cleanest version of the corner before heavy rotation.
  • Replace: Use Mirror/Flip methods for symmetry instead of repeated “copy/paste/rotate/nudge.”
  • Audit: Zoom in on curved areas and look for stepped, uneven stitch points.
  • Success check: The machine sound returns to a steadier hum and curves look smooth rather than “pixel-stepped.”
  • If it still fails… Rebuild from the original unedited element and limit edits to positioning plus flipping only.
• Q: In mySewnet Stitch Editor, what is the safest way to build perfect four-quadrant symmetry without misaligned gaps from keyboard nudging?
  A: Build and approve one clean half, then copy and use Flip Vertical and Flip Horizontal to guarantee symmetry and alignment.
  • Approve: Finish “the master corner” first—any defect will be multiplied.
  • Copy: Box-select the top half (two quadrants), then Copy → Paste and move it down.
  • Flip: Apply Flip Vertical and Flip Horizontal to the pasted half to match spacing exactly.
  • Success check: Gaps between quadrants are identical and distances from center lines match without “eyeballing.”
  • If it still fails… Delete the bad quadrant(s) and regenerate them from the approved half rather than nudging individual corners.
• Q: In mySewnet, how does Color Sort reduce stitch time when combining daily freebie designs into a 200×200 mm block on single-needle or multi-needle machines?
  A: Color Sort reduces unnecessary stops by grouping same-color blocks, which directly cuts downtime from repeated color changes.
  • Run: Apply Color Sort on a single element and again after the full composite is built.
  • Compare: Check the Color Worksheet to confirm large reductions (example shown: 72 blocks → 28 blocks).
  • Plan: Keep thread assignments logical so the machine isn’t bouncing between the same color repeatedly.
  • Success check: The stitch sequence shows longer continuous runs per color with fewer stops/trims.
  • If it still fails… Re-check for duplicate colors from different palettes and re-sort after any edits.
• Q: In mySewnet Embroidery Module, what satin frame width is a safe starting point for a 200 mm block to avoid puckering or poor coverage?
  A: For a 200 mm block, a 3.0–4.0 mm satin border is a safe starting point; too thin won’t cover and too thick can cause puckering.
  • Set: Choose Frame → Satin Stitch after the design is centered in the same hoop size.
  • Avoid: Don’t go too thin (< 2 mm) or too thick (> 5 mm) on quilting cotton with medium stabilizer.
  • Test: Stitch one sample before committing to multiples, because fabric/stabilizer combos may vary.
  • Success check: The border covers edges cleanly without rippling or drawing the fabric inward.
  • If it still fails… Reduce border width and reassess stabilizer choice (often switching to a more supportive cutaway helps).
• Q: When editing stitch paths in mySewnet Stitch Editor, what mechanical safety steps prevent needle breakage when long jumps or distorted paths are created?
  A: Treat stitch-path edits as machine-path changes and run the first stitch-out under supervision with immediate stop readiness.
  • Monitor: Keep a hand near the Stop button during the first stitch-out after deletions, nudges, flips, or trims.
  • Listen: Stop immediately if the machine makes grinding/harsh noises or the needle visibly flexes.
  • Protect: Wear glasses when close to the machine during test-outs—needle fragments can be hazardous.
  • Success check: The machine runs smoothly without carriage collisions, harsh impacts, or thread being dragged across finished areas.
  • If it still fails… Return to the last known-good file, reduce edits, and add trim commands where connector lines would otherwise drag thread.
• Q: What safety precautions are required when using magnetic embroidery hoops/frames to reduce hoop burn on quilting cotton blocks?
  A: Magnetic hoops reduce crushing/hoop burn, but the magnets can pinch hard and must be kept away from medical implants and sensitive electronics.
  • Handle: Keep fingers clear of the mating surfaces to avoid pinch/bruising when magnets snap together.
  • Separate: Keep magnets at least 6 inches from pacemakers or insulin pumps.
  • Store: Do not place magnetic hoops directly on laptops or cards that can be affected by magnets.
  • Success check: Fabric is held flat without a shiny crushed ring, and hooping feels fast and repeatable without fabric distortion.
  • If it still fails… Re-check stabilizer strategy (cutaway for knits) and consider a hooping station for consistent, square placement.
