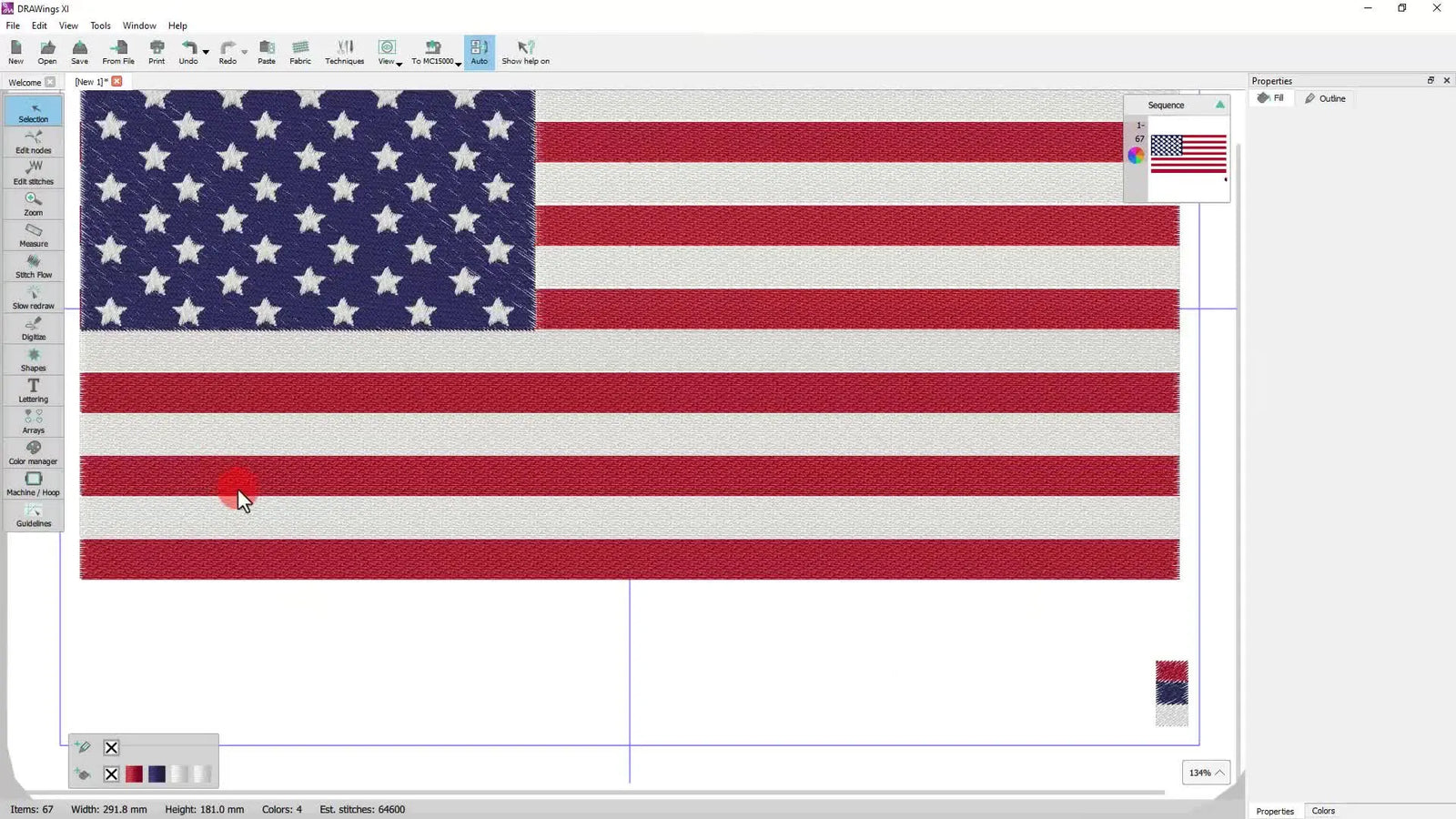

DRAWings PRO US Flag + Trimmed Text That Actually Stitches Clean: Stripes, Offset Stars, and a Satin Outline Finish

Mastering US Flag Digitizing in DRAWings PRO: A Production-Ready Workflow

If you have ever digitized a “simple” flag design only to watch it stitch out wavy, crowded, or oddly spaced, you have encountered the harsh reality of embroidery physics: flags are geometry tests.

A flag design is unforgiving. It consists of straight lines and repeated shapes. In the world of embroidery, where thread pulls and fabric pushes, any tiny spacing error becomes glaringly obvious. However, with DRAWings PRO, this process becomes chemically repeatable—if you build the architecture in the correct order.

In this white-paper-style tutorial, we will move beyond basic buttons. We will construct a United States flag from scratch (13 stripes, a union, and the offset star layout), and then elevate the technique by using that flag as a fill pattern inside trimmed lettering (“Happy 4th of July”). Finally, we will lock the edges with a satin serial outline to ensure a commercial-grade finish.

The Calm-Down Primer: Why Linear Designs Fail (and How to Fix It)

Before we click a single tool, you must understand the physics. A flag looks flat on your screen, but embroidery is a push–pull process. Stitches pull the fabric in the direction of the stitch penetration, and the fabric pushes back.

• The Failure Mode: If you manually duplicate stars or "eyeball" the stripes, the natural distortion of the fabric will multiply your errors. The stripes will bow, and the stars will look chaotic.
• The Fix: We use Arrays and Calculated Alignment. By forcing the software to mathematically space the objects, we create a "buffer" against physical distortion.

This workflow reduces the usual failure points:

1. Stripes via Array: Spacing is mathematically locked.
2. Master Star: You design one perfect star; the rest are clones.
3. Double Trim Strategy: We utilize the "Trim" function twice to keep the flag pattern clean inside the text.
4. Satin Locking: We apply a satin serial outline to hide the raw edges where the fabric pulls away.

If you are scaling up production and searching for a reliable hooping station for embroidery, remember this axiom: Software precision cannot fix hardware instability. A perfect digital file will still fail if the fabric is not stabilized and hooped with consistent tension.

Phase 1: The "Hidden" Prep (Pre-Flight Checks)

Amateurs start drawing immediately. Pros start by planning the "Architecture of the Stitch."

Before opening the software, determine your end product. Are you stitching this on a stable canvas tote or a stretchy 4th of July t-shirt?

• For Canvas: You can run standard density.
• For T-Shirts (Knits): You must reduce density and use a cutaway stabilizer to prevent the flag from turning the shirt into a bulletproof vest.

Hidden Consumables Required

Don't start without these physical items near your machine:

• 75/11 Ballpoint Needles: Essential if stitching on knits to avoid cutting fabric fibers.
• Water-Soluble Topping (Solvy): Prevents the stars from sinking into the fabric pile.
• Temporary Spray Adhesive: To float the backing if you aren't using sticky stabilizer.

Prep Checklist: The Mechanics

• Software Ready: Confirm you have DRAWings PRO open with access to Rectangle, Array, Star Shape, Lettering, and Shaping > Trim.
• Bobbin Check (Visual): Look at your bobbin. Is it at least 50% full? Flag fills eat thread voraciously. Running out mid-stripe creates ugly tie-offs.
• Hooping Strategy: If you are stitching multiples, manual hooping causes fatigue and alignment drift. A magnetic hooping station can reduce setup time by ensuring every shirt is hooped at the exact same vertical position.


Phase 2: Constructing the Stripes (The Foundation)

We begin with the stripes. They define the rhythm and height of the entire flag.

Step-by-Step Execution

1. Activate Rectangle Tool: Draw a long, thin horizontal rectangle.
2. Input Precise Dimensions: In the tool options bar, set:
   • Width: 290 mm (approx. 11.4 in)
   • Height: 11.0 mm (approx. 0.43 in)
3. Deploy the Array Tool: Instead of copy-pasting, use the Array to clone the stripe.
   • Horizontal copies: 1
   • Vertical copies: 13
   • Vertical spacing: 0.0 mm (Critical: We want them touching, not overlapping yet).
4. Apply Array: Click to confirm.
5. Colorize: Select the top stripe. Hold Ctrl and select every other stripe (7 total). Change color to Red. The remaining 6 stripes stay White.

Quality Check (Sensory Logic)

• Visual: Do you see exactly 13 creates?
• Logic: Is the TOP stripe Red? Is the BOTTOM stripe Red? (US Flag rule: Start Red, End Red).
• Structure: There should be zero gaps between rectangles.


Phase 3: The Union (The Anchor Point)

Many digitizers fail here by estimating the size of the blue field (The Union). We will use relative alignment, which is more visually pleasing than absolute math.

Step-by-Step Execution

1. Rectangle Tool: Draw a new rectangle over the top-left corner.
2. Color: Set fill to Blue.
3. Disable Proportional Scaling: Click the lock icon to unlock width/height.
4. Set Dimensions:
   • Width: Approx 120 mm (4.7 in).
   • Height: Drag the bottom edge until it perfectly aligns with the bottom edge of the 4th Red Stripe (counting from the top). Note: The Union covers 7 stripes total—Red, White, Red, White, Red, White, Red.

Expert Insight: Visual vs. Mathematical

In embroidery, the eye detects alignment breaks instantly. If the blue union ends halfway through a white stripe, the flag looks "homemade." Ensure the bottom of the blue box snaps to the line between stripes.

Setup Checklist

• Union is top-left.
• Union covers exactly 7 stripes vertically.
• Critical: Select all objects (Stripes + Union) and set Outline to None.
  • Why? We want pure color fields. Outlines inside a flag create unnecessary stitch buildup and "ghost lines" that ruin the crisp look.


Phase 4: The Star Field (The Geometry Test)

Stars are the most complex part of this design. Do not draw 50 stars. Draw one master star, perfect it, and replicate it.

Step-by-Step Execution

1. Star Shape Tool Setup:
   • Rays: 5
   • Ray Size: 60.0% (This controls sharpness; 60% is standard).
   • Start Angle: 90 degrees (Points the top ray straight up).
2. Draw Master Star: Hold Ctrl while dragging to keep it proportional.
3. Resize: Scale to approx Width 8.7 mm / Height 8.2 mm.
   • Warning: Do not go smaller than 5mm width for stars on knit fabric, or they will disappear into the texture.




The 6x9 Grid Strategy

1. Select the Master Star.
2. Array Tool:
   • Horizontal: 6
   • Vertical: 9
   • Spacing: Adjustable (Start with 0 and tweak visually).
3. Visual Fit: Adjust horizontal/vertical spacing until the block of stars fits comfortably inside the Blue Union with a margin on all sides.


Creating the Offset (The "Nudge")

The US flag uses a staggered pattern (alternating rows of 6 and 5 stars). The software creates a square grid, so we must manually offset it.

1. Identify Even Rows: Rows 2, 4, 6, 8.
2. Delete the Excess: Select the last star in each of these even rows and delete it. You now have rows of 5 stars.
3. The Nudge: Select the remaining 5 stars in Row 2.
   • Hold Shift (for faster movement) or just use the Right Arrow Key.
   • Nudge them right until they are centered between the stars of Row 1.
4. Repeat: Do this for rows 4, 6, and 8.




Warning: Be precise with the arrow keys. If you drag with a mouse without holding Ctrl or Shift, you might drift the stars up or down. Vertical misalignment is very visible to the human eye.

Step: Grouping (Data Safety)

• Action: Select ALL flag parts (Stripes + Union + Stars). Right-click > Group.
• Why? We are about to use this flag as a "cookie dough" to cut shapes from. If it isn't grouped, the trim tool might cut the stripes but leave the stars behind.


Phase 5: The "Trim Trick" for Text (Production Logic)

We will not simply "paste" the flag inside the text. We will use a boolean subtract operation (Trim) to carve the text shape out of a mask, and then carve the flag.

Step-by-Step Execution

1. The Mask: Draw a large Rectangle that completely covers the flag group. (Color doesn't matter).
2. The Lettering: Use the Lettering Tool. Type "Happy 4th of July". Choose a bold, thick font (thin fonts don't hold fill patterns well).
3. Center: Place the text on top of the mask rectangle.
4. Trim 1 (The Stencil):
   • Select Text, then hold Shift and select Mask Rectangle.
   • Go to Shaping > Trim.
   • Delete the original Text object.
   • Result: You now have a rectangle with "Happy 4th of July" holes in it.




5. Trim 2 (The Fill):
   • Select the Flag Group, then hold Shift and select the Mask Rectangle (with holes).
   • Go to Shaping > Trim.
   • Delete (or move aside) the Mask Rectangle.
6. Ungroup: You now have independent letters filled with the flag pattern.


Operation Checklist

• Inspection: Zoom in on letters like 'A' or 'O'. Did the trim operation preserve the stars inside the letters?
• Clean Up: Delete any scraps of the flag that are outside the lettering area.

Phase 6: The Satin Serial Outline (The Professional Finish)

A raw fill edge on lettering looks unfinished and will fray. We need a Satin stitch to "cap" the edges.

Step-by-Step Execution

1. Recover the Outline: Go back to your Mask Reference (or re-type the text).
2. Convert: Right-click > Convert outline to object.
3. Clean: Delete the Fill, keep the Outline.
4. Break Apart: We only want the outlines of the letters, not the box around them. Delete the outer box frame.
5. Alignment: Select your Flag-Filled Letters and your new Satin Outlines. Use the align tool to center them perfectly.
6. Parameter Check:
   • Width: Set satin width to 1.5mm - 2.0mm. (Thinner than 1mm causes thread breaks; thicker than 3mm looks chunky).




Quick Decision Tree: Stabilizer & Hooping

Your file is ready. Now, how do you stitch it without ruining the shirt?

Start Here → What fabric are you stitching?

A) Stretchy Knit (T-Shirt / Performance Wear)

• Risk: Distortion, puckering, "bulletproof" feel.
• Stabilizer: 2.5oz Cutaway (Must use cutaway).
• Hooping: Do not stretch the fabric in the hoop! Float it or use a magnetic frame.
• Topping: Use Solvy to keep stitches sitting high.

B) Stable Woven (Denim / Canvas Tote)

• Risk: Needle deflection on thick seams.
• Stabilizer: Tearaway is acceptable here.
• Hooping: Tight like a drum skin.

C) The "Production Run" (50+ Items)

• Risk: Operator fatigue and crooked logos.
• Upgrade Path: If you are fighting with traditional screw-hoops, this is the trigger point to consider magnetic embroidery hoops. They allow you to clamp thick fabrics without "hoop burn" (the shiny ring mark left by plastic hoops) and drastically speed up the reloading process.

Warning: Magnetic frames generate strong pinch forces. Keep fingers clear of the snapping zone. Never use near pacemakers or sensitive electronics.

Troubleshooting: Structured Diagnostics

Does your stitchout look bad? Use this logic table to fix it. Always fix Physical issues before changing Digital settings.

Commercial Upgrade Path: Scaling Up

You have mastered the software workflow. But as your volume grows, your bottlenecks will shift from "Designing" to "Manufacturing."

1. Level 1: Stability. If you struggle with alignment or hoop marks on delicate items, switching to magnetic hoops is the industry standard fix. It eliminates the "unscrew-rescrew" wrist fatigue.
2. Level 2: Speed. If you are doing team orders (e.g., beautiful flag-filled numbers for a baseball team), a single-needle machine will slow you down due to thread changes (Red, White, Blue, Outline).
3. Level 3: Scale. For true commercial output, look into multi-needle platforms like the SEWTECH multi-needle embroidery machines. These allow you to set the Red/White/Blue colors once and let the machine run the entire flag interruption-free, while you hoop the next shirt on a hoopmaster station.

The "Happy 4th of July" design is a classic moneymaker. By combining the precision of DRAWings PRO arrays with the stability of proper stabilization and hooping, you transform a frustration-prone design into a repeatable, profitable product.

FAQ

• Q: For digitizing a US flag in DRAWings PRO, how do I prevent wavy stripes caused by manual copy-paste spacing?
  A: Build the 13 stripes using the DRAWings PRO Array tool with zero vertical spacing so the spacing is mathematically locked.
  • Activate Rectangle Tool and set one stripe to 290 mm (W) × 11.0 mm (H), then run Array with Vertical copies: 13 and Vertical spacing: 0.0 mm.
  • Colorize by selecting every other stripe (7 total) as Red, leaving 6 as White.
  • Confirm the US rule: the TOP stripe is Red and the BOTTOM stripe is Red.
  • Success check: Zoom in and verify there are no gaps between stripe rectangles and the stripe edges look perfectly parallel.
  • If it still fails: Re-hoop to prevent fabric slippage and consider heavier cutaway stabilizer for knits (physical stability must be fixed before changing the file).
• Q: In DRAWings PRO US flag digitizing, what is the correct success standard for sizing the Blue Union so the flag does not look “homemade”?
  A: Size the Blue Union so the bottom edge aligns exactly with the bottom edge of the 4th Red stripe from the top (the Union covers 7 stripes).
  • Draw a rectangle in the top-left corner, set fill to Blue, and unlock proportional scaling (unlock width/height).
  • Drag the Union height until it snaps visually to the stripe boundary at the bottom of the 4th Red stripe.
  • Select Stripes + Union and set Outline to None to avoid internal “ghost lines” and stitch buildup.
  • Success check: The Union ends cleanly on a stripe boundary (not halfway through a stripe), and there are no outline lines inside color fields.
  • If it still fails: Recount stripes from the top and re-align the Union edge to the stripe boundary line, not to the stripe center.
• Q: In DRAWings PRO, how do I create the 50-star US flag field correctly without drawing 50 stars one-by-one?
  A: Create one master star, array it into a 6×9 grid, then delete and nudge to form the staggered 6/5-star rows.
  • Set Star Shape Tool to Rays: 5, Ray Size: 60.0%, Start Angle: 90°, then draw one master star and resize to about 8.7 mm (W) × 8.2 mm (H).
  • Use Array with Horizontal: 6 and Vertical: 9, then adjust spacing until the grid fits inside the Union with margin.
  • For rows 2/4/6/8, delete the last star in each row, then nudge the remaining 5 stars to the right using arrow keys (avoid freehand mouse dragging).
  • Success check: Even rows are centered between odd rows with no visible vertical drift when you zoom in.
  • If it still fails: Undo the nudges and re-do using arrow keys only to avoid tiny up/down misalignment that the eye catches immediately.
• Q: In DRAWings PRO, how do I use Shaping > Trim twice to fill “Happy 4th of July” lettering with a US flag pattern without scraps and missing star details?
  A: Use a rectangle mask to create a text stencil (Trim 1), then trim the grouped flag through that stencil (Trim 2).
  • Group all flag parts first (Stripes + Union + Stars) so Trim does not separate elements.
  • Trim 1: Place text on a large rectangle mask, select Text then Mask, run Shaping > Trim, and delete the original Text.
  • Trim 2: Select the Flag Group then the mask-with-holes, run Shaping > Trim, then delete or move aside the mask.
  • Success check: Zoom into letters like “A” and “O” and confirm the internal cutouts are clean and stars/stripes remain inside the letter shapes.
  • If it still fails: Re-check selection order (object first, then target) and confirm the flag was grouped before trimming.
• Q: When satin serial outlining flag-filled lettering in DRAWings PRO, what satin width prevents thread breaks while still hiding raw fill edges?
  A: Use a satin serial outline width of 1.5–2.0 mm as the production-safe range for clean coverage.
  • Recreate or recover the text outline, convert outline to object, delete the fill, and keep only letter outlines (remove any outer box frame).
  • Align the satin outlines precisely over the flag-filled letters using the align tool.
  • Run the machine slower if needed for satin (a safe starting point is 600–700 SPM, depending on the machine and thread).
  • Success check: The satin edge fully caps the fill boundary with no visible gaps and the machine runs without repeated snapping on the border.
  • If it still fails: Reduce satin density in DRAWings PRO and/or change needle size (75/11 or 80/12 as noted) after confirming correct threading.
• Q: On a stretchy knit T-shirt, what hooping and stabilizer setup prevents puckering and the “bulletproof vest” feel when stitching a dense US flag fill?
  A: Use 2.5 oz cutaway stabilizer, avoid stretching the knit in the hoop, and add water-soluble topping to keep details from sinking.
  • Switch to a 75/11 ballpoint needle for knits to reduce fiber damage.
  • Hoop without stretching (or float) and use temporary spray adhesive if not using sticky stabilizer.
  • Add Solvy/water-soluble topping to prevent stars and small details from sinking into the fabric texture.
  • Success check: After stitching, the shirt lays flat without ripples around the design and the fabric still feels flexible, not overly stiff.
  • If it still fails: Reduce density in the design (especially on knits) and verify fabric is not slipping in the hoop during stitching.
• Q: What is the safest way to handle magnetic embroidery hoops/frames during production to avoid pinch injuries and other hazards?
  A: Treat magnetic embroidery hoops/frames as high pinch-force tools and keep fingers completely out of the snapping zone.
  • Separate and close the magnetic frame slowly and deliberately—never “let it snap” near fingertips.
  • Keep magnetic hoops away from pacemakers and sensitive electronics as a strict safety rule.
  • Train operators to load fabric with hands positioned on the outside edges, not between magnets.
  • Success check: The hoop closes without finger contact, and the fabric is clamped evenly without shifting when lightly tugged.
  • If it still fails: Stop and reposition—do not force closure; ensure fabric thickness is seated evenly before letting magnets engage.
