Echo Quilting on the Brother Luminaire (XP1/XP2): 3 Reliable Ways to Add Background Fills Without Ruining Your Quilt Block

The Definitive Guide to Echo Quilting on the Brother Luminaire: Precision, Safety, and Workflow

By the Chief Embroidery Education Officer

If you have ever finished an intricate embroidery motif on a quilt block, sat back to admire it, and then felt that sinking sensation in your stomach thinking, "Now I need to add echo quilting and a background fill... but if I shift this hoop even one millimeter, I ruin everything," you are not alone.

In my 20 years on the production floor and in the classroom, I have seen more projects abandoned at this specific stage than any other. It is the "Fear of the Final Step."

The Brother Luminaire is a powerhouse, but it is also a complex beast. Many owners get overwhelmed—not because the machine lacks capability, but because the Order of Operations is unforgiving. To succeed, we must move beyond just pushing buttons; we must understand the physics of the hoop, the logic of the scanner, and the rhythm of the stitch.

This guide creates a safe, structured path through the three workflows Terry demonstrates. We will calibrate your machine settings, engage your senses to detect errors before they happen, and discuss when it is time to upgrade your tools to match your ambition.

The "Reality Gap": Why the Screen Lies and the Hoop Tells the Truth

On the Brother Luminaire, the digital workspace is infinite. You can drag a design anywhere. However, the physical workspace is rigid. A common point of failure for beginners is designing a layout on-screen that physically cannot be stitched because it violates the "No-Sew Zone" of the hoop.

Terry demonstrates this critical friction point by comparing the 9-1/2" x 9-1/2" hoop with the 10-5/8" x 16" hoop.

The "Hoop Burn" Risk Factor

When you force a large design into a barely-there hoop margin, you risk more than just an error message. You risk Hoop Burn—the permanent crushing of fabric fibers caused by trying to secure a thick quilt sandwich in a traditional friction hoop.

Sensory Check: Run your thumb over the fabric near the inner ring. If it feels hard or shines unnaturally, you have clamped too tightly.

Pro Insight: If you are bringing in an external design (USB or digitized file), the machine's built-in safety buffers might not auto-correct for you. You must discipline your placement. Use the on-screen grid as a guide, but trust the physical hoop indicators as your law.

Phase 1: The "Hidden" Prep (The Pre-Flight Protocol)

Before you touch "Echo," "Stamp," or "My Design Center," we must stabilize the environment. In embroidery, preparation is 90% of the work; stitching is just the final 10%.

The Logic of the Scan

Terry recommends opening the original design first. Why? Because we need a digital anchor. By using the background scan function, you are not guessing where the embroidery is; you are seeing the physical reality of your fabric on the screen.

Critical Safety: The Finger Zone

Echo quilting often pushes the needle bar to the extreme edges of the hoop.

Warning: Crush Hazard. Keep fingers clear of the needle area and never reach under the presser foot while the machine is stitching echoes. The carriage moves specifically to the perimeter, where clearance is tightest. A moment of distraction can lead to a needle strike or a pinched finger.

Prep Checklist: The "Go / No-Go" Criteria

Do not proceed until you check every box.

• Physical Anchor: Is the quilt block hooped squarely? (Visually check the grainline against the hoop grid).
• Digital Anchor: Have you scanned the background to confirm alignment between the screen and the actual fabric?
• Visibility: Change the editing outline color to Red or Black (high contrast). If you can't see the line, you can't judge the corner accuracy.
• Hoop Strategy: Have you selected the hoop size that leaves at least 1 inch of buffer around your desired fill?
• Needle Status: Are you using a fresh needle? (Rule of thumb: New project = New needle. A dull needle pushes fabric rather than piercing it, causing alignment drift).

If you find that the physical act of hooping thick quilt layers is causing wrist pain or resulting in "hoop burn" marks that won't steam out, this is a hardware limitation, not a skill failure. Many professionals switch to magnetic hoops for brother luminaire specifically for quilting applications. By using magnetic force rather than friction, you minimize fabric distortion and eliminate the physical struggle of closing the ring.

Method 1: The "Express" Workflow (Embroidery Edit Echo)

This is your "Production Mode." It is built into the standard embroidery interface and generates immediate, continuous rings.

The Workflow

1. Load design in Embroidery.
2. Navigate to Edit.
3. Select the Stippling/Echo icon.
4. Input parameters.

The "Sweet Spot" Parameters (Empirical Data)

Terry suggests specific numbers. Let's analyze them against industry standards for quilt blocks:

• Distance (Gap to design): 0.25 inch (approx 6.4mm). Why? This allows the original motif to "breathe." Anything tighter than 3mm tends to flatten the loft of the batting.
• Spacing (Gap between rings): 0.24 inch. Why? This mimics the aesthetic of traditional walking-foot quilting.

Sensory Check: Listen to the machine. Stippling/Echoing involves constant direction changes. A rhythmic "purring" is good. A harsh "clacking" means your speed is too high or your stabilizer is too loose. For echo quilting, cap your speed at 600-700 SPM (Stitches Per Minute) for the best corner quality.

When to use this:

• Pros: Fast, consistent, zero digitization skills required.
• Cons: Can be rigid. If your design has sharp spikes (like a star), the auto-echo might create messy, thread-heavy knots at the points.

If you struggle to get the block centered perfectly every time, causing your echoes to look lopsided, consider your workspace. A hooping station for embroidery creates a standardized dock for your hoop, ensuring that every quilt block is placed in the exact same coordinate system, reducing the need for endless specialized adjustments.

Method 2: The "Master Class" Workflow (Stamp + My Design Center)

This method separates the novice from the artist. It yields an "Intentional" look, giving you control over how the machine handles tricky geometry.

Part A: The Physics of "The Stamp"

Terry uses the Stamp tool to create a trace of the design.

• Crucial Setting: Stamp Distance = 0.060 inch.
• The "Why": A raw outline of a complex shape (like a butterfly) has micro-jitters and sharp crevices. By adding a 0.060" buffer, you are effectively "sanding down" the sharp edges. This allows the sewing foot to glide around corners rather than hammering into them.


Part B: My Design Center (MDC) Visibility

In My Design Center, blindly trusting the default settings is dangerous.

1. Set Line Property to Double Running Stitch. (Single run is too thin to see on a quilt; triple run is too stiff).
2. Color: Red (for visibility).
3. Hoop: Select 9-1/2" x 9-1/2".
4. Recall the stamp.


The "Eyeball" Technique: Cognitive Adjustments

Here is where Terry uses intuition over math. She duplicates the outline and resizes it.

• The Problem: Mathematically perfect scaling often looks "wrong" to the human eye because of optical illusions created by curves vs. points.

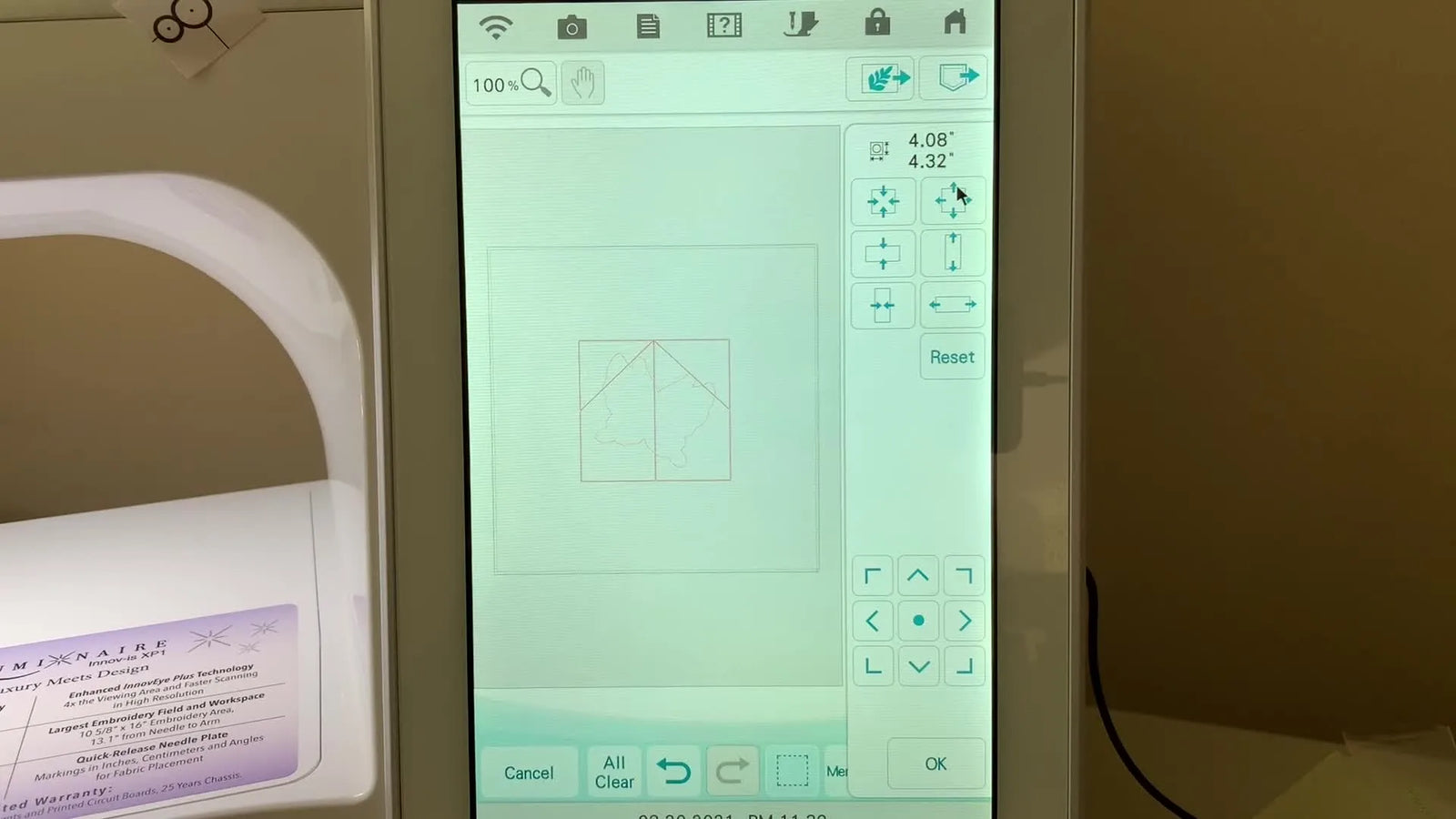

• The Fix: Use Non-Proportional Scaling. Nudge the width or height independently until the gap looks even.

Visual Anchor: Look at the tightest curves. Ensure there is enough gap for the needle to penetrate without hitting the previous sitch line.

When working with these precise alignments, fabric movement is your enemy. If your fabric creates a "bubble" in the center, your alignment will fail. A brother luminaire magnetic hoop is often superior here because it holds the "sandwich" (top, batting, backing) flat across the entire surface area, whereas friction hoops can sometimes create a trampoline effect—tight edges, loose center.

Phase 3: The Background Fill (Stippling Logistics)

Once the boundaries are set, we fill the negative space.

• Setting: Stippling (Green for visibility).
• Density: 12 mm.
• Analysis: 12mm is a "Looped" stipple. It is loose enough to keep the quilt soft (drapeable) but dense enough to secure the batting. Standard/Tight stippling is usually 3-5mm—avoid this for quilt blocks unless you want a stiff, placemat-like texture.






Operaion Checklist (The "Green Light" Protocol)

• Exclusion Check: Confirm the stippling is only on the outside of your barrier line. If stippling bleeds into the butterfly, you missed a connection in your outline.
• Density Check: Is 12mm selected? (Default is often tighter).
• Boundary Check: Is your outer hoop boundary set to "No Sew" (unless you want a baste line)?
• Speed Check: Lower machine speed to 600 SPM for the first minute to verify tension distribution.

Method 3: The Decorative Textural Fill (Upgrade Kit 2)

This method (Luminaire 2 / Upgrade Kit 2) introduces complex patterns behind the subject.

• Size: 150%. Enlarging the fill pattern prevents it from competing visually with the main embroidery.
• Distance: Create a "Halo" of negative space around the motif.






The Sequence Trap: Why Stitch Order Matters

This is the most common failure point in decorative fills. By default, the machine may stitch the butterfly first, and then try to stitch the background around it. This leads to:

1. Thread nests where the fill meets the embroidery.
2. The presser foot getting caught on the satin stitches of the butterfly.

The Fix: Use the Reorder Tool (Layer Icon). Rule: Background always stitches FIRST. Motif stitches SECOND.

Decision Matrix: Choosing Your Path

Use this logic tree to select the right method for your specific project constraints.

1. The Speed VS. Quality Audit

• Scenario A: "I need to finish 20 blocks by tomorrow."
  • Selection: Method 1 (Built-in Echo). Fast, good enough for geometric shapes.
• Scenario B: "This is an heirloom show-quilt."
  • Selection: Method 2 (MDC + Stamp). High control, smooth corners, custom visual spacing.
• Scenario C: "I want texture (leaves/swirls) behind the motif."
  • Selection: Method 3 (Decorative Fill). Requires careful specific stitch re-ordering.

2. The Physics of the Fabric

• Scenario: Stretchy or Puffy Fabric (High Loft Batting).
  • Risk: Puffy fabrics shift under the pressure of a friction hoop.
  • Solution: Use a how to use magnetic embroidery hoop strategy. The magnets provide vertical clamping pressure without the horizontal "pull" that distorts the grain of the fabric.

Troubleshooting: The "Why is this happening?" Guide

Don't panic. Consult this table when things go wrong.

Hidden Consumables for Success:
* Curved Tip Tweezers: Essential for snipping jump threads inside a hoop.
* Air Duster / Brush: Stippling creates massive amounts of lint in the bobbin case. Clean every 3 bobbin changes.
* Temporary Spray Adhesive (505): Vital for floating batting if not hooping all layers.

The Professional Upgrade Path: From Hobby to Production

As your skills mature, you will hit a ceiling. It won't be a skill ceiling; it will be a tool ceiling.

Level 1 Upgrade: Solving Physical Pain & Fabric Damage

If you find yourself dreading the physical act of hooping, or if your wrists ache after a session, this is your body telling you the tool is wrong.

• The Switch: magnetic embroidery hoops for brother.
• The Gain: Zero hand strain, zero hoop burn, and 50% faster changeovers between blocks.
• Safety Note: > Warning: Magnetic Field Hazard. Powerful magnets can pinch skin severely. Keep away from pacemakers, credit cards, and children. Handle with respect.

Level 2 Upgrade: Solving the "Time is Money" Equation

If you are moving from "one quilt a month" to "production runs for clients," the single-needle Luminaire, while brilliant, becomes a bottleneck due to thread changes and bobbin capacity.

• The Switch: Multi-Needle Machines (like SEWTECH models).
• The Gain: Often 6-10x productivity on background fills due to larger industrial hoops and fewer thread interruptions.

When the conversation changes from "How do I do this?" to "How do I do this faster and pain-free?", looking into terms like hooping for embroidery machine efficiency and exploring magnetic framing systems is the natural evolution of your craft.

Final Thought: The machine is a robot; it does exactly what you tell it to do, even if that instruction is self-destructive. Your job is to be the Pilot. Preview the path, secure the cargo (hoop), and verify the flight plan (stitch order). Do this, and the results will be indistinguishable from free-motion mastery.

FAQ

• Q: How do I prevent hoop burn on the Brother Luminaire when hooping a thick quilt sandwich for echo quilting?
  A: Reduce clamping stress and increase hoop margin; hoop burn is usually caused by forcing thick layers into a tight friction hoop.
  • Choose a hoop that leaves about 1 inch of buffer around the planned echo/fill area.
  • Re-hoop with less pressure; avoid “barely-there” margins that make you over-tighten the rings.
  • Consider switching to a magnetic hoop system for quilting-style thickness to reduce fabric distortion and wrist strain.
  • Success check: Run a thumb near the inner ring—fabric should not feel hard or look unnaturally shiny.
  • If it still fails: Stop and reassess design placement versus the hoop’s true sewable area (not just the on-screen workspace).
• Q: What is the correct Brother Luminaire echo quilting prep checklist before using Echo, Stamp, or My Design Center?
  A: Do a “Go/No-Go” check first; most echo alignment failures come from skipping the physical + digital anchors.
  • Hoop the quilt block squarely and visually confirm the grainline against the hoop grid.
  • Open the original embroidery design first, then scan the background to confirm on-screen alignment matches the real fabric.
  • Change the editing outline color to Red or Black so corners and boundaries are easy to judge.
  • Install a fresh needle at the start of the project to reduce fabric push and alignment drift.
  • Success check: The scanned background and the design outline visually “lock” together with no surprise offset at corners.
  • If it still fails: Re-hoop and re-scan before stitching—don’t try to “fix it in stitching.”
• Q: What are the best starting settings for Brother Luminaire built-in Stippling/Echo on quilt blocks, and how do I know the speed is too high?
  A: Use a moderate gap and cap speed; echo quilting needs control more than maximum SPM.
  • Set Distance (gap to design) = 0.25 inch (≈6.4 mm).
  • Set Spacing (gap between rings) = 0.24 inch.
  • Limit stitching speed to about 600–700 SPM for cleaner corners during constant direction changes.
  • Success check: Listen for a smooth “purring” rhythm; harsh “clacking” usually means speed is too high or stabilization is too loose.
  • If it still fails: Slow to 600 SPM, then re-check hooping stability before changing design settings.
• Q: How do I fix ugly or jagged corners on Brother Luminaire echo quilting when using Stamp + My Design Center?
  A: Increase the Stamp buffer; jagged corners often come from the outline being too “raw” for the foot to glide smoothly.
  • Set Stamp Distance = 0.060 inch to smooth micro-jitters and sharp crevices.
  • In My Design Center, set Line Property = Double Running Stitch and Color = Red for visibility while editing.
  • Use non-proportional scaling and small nudges until the gap looks even to the eye, especially around tight curves.
  • Success check: The previewed outline looks evenly spaced around the tightest curves without sharp “kinks.”
  • If it still fails: Re-stamp with the same buffer and verify the hoop selection and visibility settings before stitching.
• Q: Why does Brother Luminaire stippling or decorative fill stitch over the motif, and how do I correct the stitch order?
  A: Reorder the layers so the background stitches first; incorrect sequencing commonly causes overlap, nesting, and foot snags.
  • Open Edit > Reorder (layer icon) and move the background fill to position #1.
  • Place the motif (butterfly/subject) after the background in the stitch list.
  • Re-preview the stitch path before starting to confirm the background will sew first.
  • Success check: The stitch simulator/preview shows the background completing before the motif begins.
  • If it still fails: Stop and re-check that the background boundary is correctly defined so fill stays outside the barrier line.
• Q: What should I do when the Brother Luminaire shows “Design is outside hoop area” after placing an external design file?
  A: Refit the design to the hoop’s true sewable area; external files may not respect the machine’s safety buffers automatically.
  • Use the screen indicators and hoop indicators to verify the design bounding box stays inside the sewable area.
  • Reposition or resize the design with discipline; don’t rely on the infinite on-screen workspace.
  • Switch to the 10-5/8" x 16" hoop if available and appropriate for the layout.
  • Success check: The warning clears and the design stays inside the hoop boundary without touching the “No-Sew Zone.”
  • If it still fails: Re-scan the background (for placement reality-check) and confirm the correct hoop is selected in the machine settings.
• Q: What are the key safety rules for Brother Luminaire echo quilting near hoop edges, and what is the safety risk of magnetic embroidery hoops?
  A: Keep hands out of the needle zone during edge work, and handle magnets as pinch hazards.
  • Keep fingers clear and never reach under the presser foot while the Luminaire is stitching echoes near the hoop perimeter (tight clearance).
  • Pause the machine before adjusting fabric, trimming threads, or checking alignment.
  • Treat magnetic hoops as powerful tools: keep magnets away from pacemakers, credit cards, and children, and avoid placing skin between magnet and metal.
  • Success check: Hands stay outside the moving carriage/needle area for the entire stitch cycle, especially during perimeter passes.
  • If it still fails: Stop immediately, re-evaluate the workspace for safe access, and slow down the process rather than “working around” the motion.
