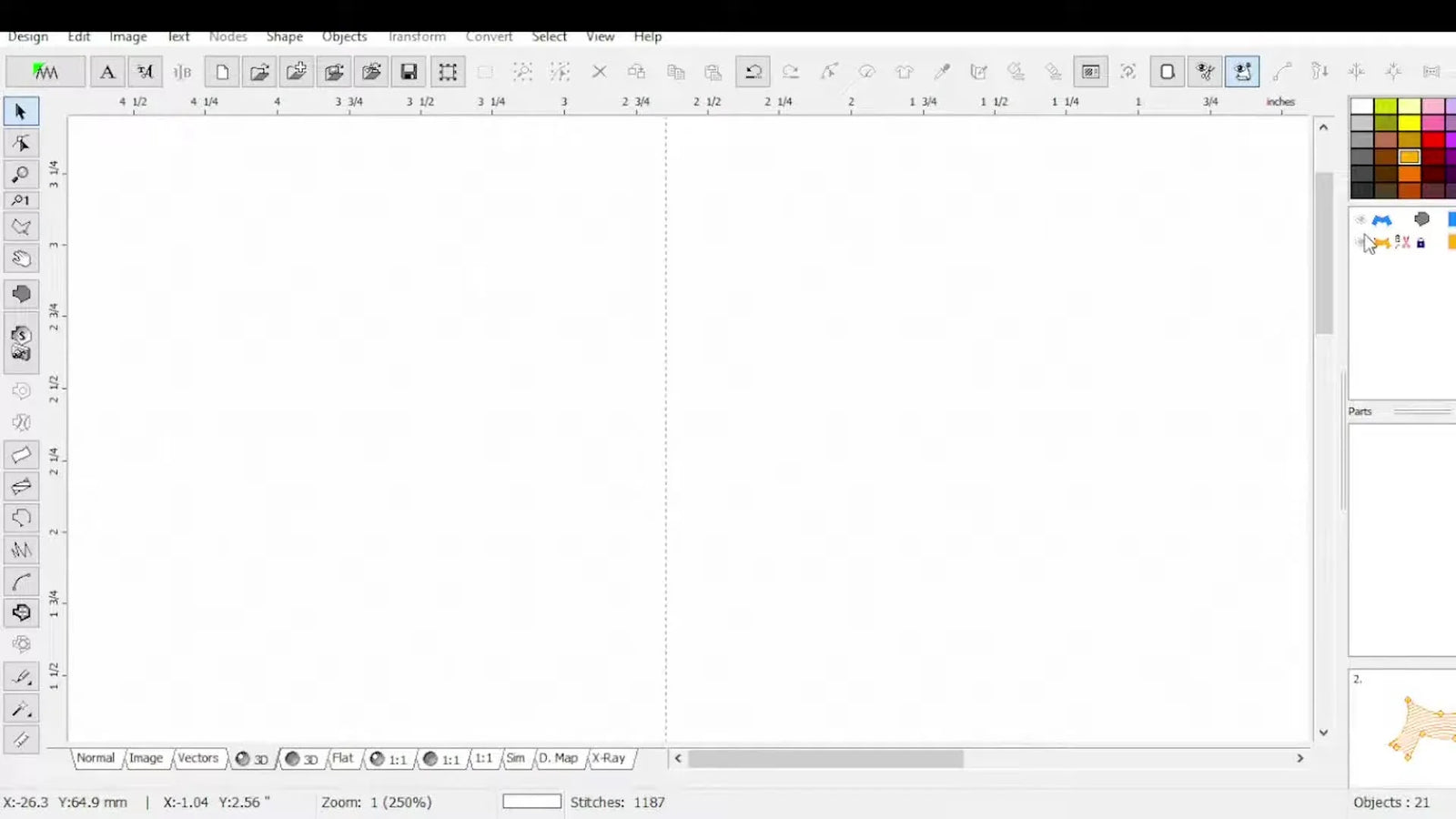

Embird Studio Workaround That Actually Kills Jump Stitches in Complex Fills (Without Ugly Connectors)

Embird Studio Masterclass: How to Convert Messy Fills into Continuous Runs (Without the Headache)

You know the feeling. You are digitizing a complex shape in Embird Studio—perhaps a logo with islands or a filigree pattern—and you hit a wall. You want a continuous run, but the software forces a choice: unchecked "Use Jumps" gives you ugly drag-lines through your negative space, while checked "Use Jumps" creates a forest of trim commands that will slow your machine to a crawl.

In the tutorial video, the instructor walks through a "secret menu" workaround that seasoned professionals use to bypass this limitation. It involves manually converting fills into editable lines, fixing path directions, and forcing a "Branch" command to weld it all together.

But here is the reality from the shop floor: This technique is fragile. If you miss one "backward path" or choose the wrong stitch length, your machine will likely shred the thread or nest the bobbin.

This guide rebuilds that tutorial with 20 years of production experience added. We will walk through the exact clicks, but also the sensory checks, the safety parameters, and the physical hooping strategies that ensure this digital trick works in the real world.

The "Use Jumps" Trap: Why Embird Forces You to Choose Between Ugly or Slow

Before we fix it, you need to understand the mechanics of the engine. Embird sees a "Fill" as a calculated area. It needs to move the needle from Section A to Section B across a gap.

• Option A (Use Jumps OFF): The "Pen Plotter" method. The machine drags the thread across the gap.
  • Visual Check: You see stark lines cutting across open fabric.
  • Why it succeeds: It’s fast. No trims.
  • Why it fails: It looks amateurish unless you manually snip every connector (high labor cost).
• Option B (Use Jumps ON): The "Typewriter" method. The machine trims, moves, and ties in.
  • Visual Check: Clean screen.
  • Why it succeeds: Looks pro.
  • Why it fails: Physical friction. Every trim takes 6–10 seconds. On a design with 50 islands, you just added 8 minutes to your run time.

The workaround below creates Option C: A Continuous Double-Run. It tricks the machine into treating the fill as a single, unbreakable line of thread.

The "Hidden" Prep: Before You Click Convert, Secure Your Workflow

Conversions in Embird are destructive. Once you smash a fill into lines, you cannot easily turn it back into a parametric fill object.

The Pro Mindset: Does this design need to be continuous? If you are stitching on a stable twill patch, trims are fine. But if you are stitching on delicate knits, performance wear, or caps, trims create tension release that leads to registration errors (gaps between outlines and fills).

Critical Hidden Consumable: Before starting, ensure you have a water-soluble pen or air-erase marker handy. Why? If you get lost in the sea of lines later, drawing the path on paper helps you visualize the flow.

Prep Checklist: The "Save Your Skin" Protocol

1. Duplicate the Object: Never work on the original. Ctrl+D (Duplicate) and lock the original.
2. Audit the Void: Zoom in on the empty spaces. Are they wider than 2mm? If yes, connectors will be visible. This confirms you need this workaround.
3. Check Physical Stability: If you are forcing a continuous run, the thread tension will be constant. If your stabilizer is weak, the fabric will pucker.
   • Rule of Thumb: For this technique, upgrade your stabilizer one level (e.g., use two sheets of tear-away or switch to cut-away).
4. Plan the Comparison: You will need to compare the "Old" vs "New" file at the end. Keep them both in the workspace.


The "Safety Net" Trick: Creating the Boundary Rail

At 01:36, the instructor performs a step that looks decorative but is actually structural. They create an outline object from the fill before destroying the fill.

Why this is non-negotiable: Think of the "Branching" algorithm like water flowing through pipes. It needs a main seal to contain it. The outline acts as that main pipe. Without it, the branch command often leaves "dangling" ends that fail to close the shape.

Action Step:

1. Select your Fill Object.
2. Go to Convert > Create Outline from Fill.
3. Visual Anchor: Turn this new outline Green. This high-contrast color is your visual anchor so you don't confuse it with the internal lines later.


The Conversion Chain: Turning Logic into Lines

This is the "Destructive" phase. We are stripping the brain out of the object and leaving just the raw data. You must follow this exact order.

The Sequence:

1. Convert to Editable Stitches: The object is no longer a "Shape"; it is now thousands of needle points.
2. Convert Manual Stitches to Connection: This tells Embird "these are lines, not just dots."
3. Convert Connection to Outline: This is the final state. The object is now a vector line that can be manipulated.

Sensory Check:

• Visual: The smooth color of the fill will shatter. It will look like a spiderweb or a cracked mirror on your screen. This is normal.


The "Backward Path" Roadblock: The #1 Cause of Failure

This is where 90% of beginners fail. Embird's Branching algorithm has a strict rule: Traffic must flow one way.

In the video, you will see segments turn RED. These are "Backward Paths"—lines where the start and end points oppose the flow of the rest of the group.

The Fix Protocol:

1. Identify: Look for the Red lines.
2. Action: Select the red segment.
3. Command: Edit Mode > Reverse Nodes Order.
4. Verify: The line should change color (usually to the default blue/black), indicating it is now correctly oriented.

Expert Insight: If you skip a single red line, the Branch command will either gray out (refuse to work) or create a jump stitch right over that segment. Do not proceed until the screen is free of red.

The "Touching Rule": The Magnet Analogy

At 02:55, the instructor drops a crucial constraint: "They have to all be touching."

If Line A stops 0.5mm short of Line B, Embird cannot bridge them without adding a stitch. The Branch algorithm requires a physical overlap or connection point.

Action Steps:

1. Select ALL the converted internal lines.
2. Hold Shift and select your Green Outline.
3. Zoom In: Check the intersections between the distinct islands and the outline. Do they touch?
4. Edit: If there is a gap, grab the node of the internal line and snap it to the outline. You should feel it "snap" if you have snap-to-nodes enabled.


The Branch Command: Welding the Web

Now comes the magic. You have a collection of loose wires (lines) and a frame (outline).

The Action: With everything selected (Internal lines + Green Outline), execute Branch.

What happens underneath: Embird calculates a "Double Run." It figures out how to trace every single line, go out to the tip, and come back to the start, without lifting the pen. This creates a double-layer of thread, which is significantly more durable than a single run stitch.

Pro Tip: Because you selected the Outline after the internal lines (or created it separately), Branch often uses the Outline as the primary travel path. This is desirable—it frames the design cleanly.

Parameter Reality Check: The Data That Saves Your Threads

The video suggests a Single Stitch (Run) at 2.0 mm. Let's validate this against industry safety standards.

The Golden Ratio for Branching:

• Stitch Type: Single Run (Because the branching creates a double pass, this results in two thread layers).
• Length: 1.8mm to 2.2mm.
  • Too Short (<1.5mm): Hard feeling. The needle penetrates too often in the same spot, risking "cookie-cutting" the fabric.
  • Too Long (>3.0mm): Sloppy corners. The thread won't hug tight curves.

Warning on Decorative Stitches: The video shows experimenting with "Sketch" or "Chain" stitches. Avoid this for production. Branching already creates high density at intersections. Adding a thick stitch type will cause needle deflection (breaking needles) or hard lumps in the embroidery. Stick to the simple Run stitch.

Sew Simulator: The Virtual Test Drive

Do not trust the static screen. You must watch the movie.

The Verification Loop:

1. Open Sew Simulator.
2. Auditory Check: Turn the speed up. Listen/Watch for the "Trim" sound or symbol.
3. Visual Check: Watch the crosshair. It should flow like water—continuous movement. If the crosshair vanishes and reappears elsewhere, you still have a jump.

Commercial Context: If you are running a high-volume shop, minimizing trims is how you make money. A trim cycle takes 10 seconds. On a 12-head machine, avoiding 5 trims per design saves 60 seconds of machine time per run. Over a year, that is days of free production.

The Final Sanity Check: Blue vs. Green

Open Embird Editor. Place your Original Blue Object (with jumps) next to your New Green Object (Branched).

What to look for:

• Definition: Does the Green object look "crisp"?
• Bulk: Does it look significantly thicker? (It shouldn't).
• Pathing: Can you trace the line with your eye from start to finish?

Warning: Mechanical Safety: When running this for the first time on your machine, lower your speed to 600 SPM. Continuous branching can create sharp, unexpected directional changes. At 1000+ SPM, a sudden 180-degree turn on a long stitch can whip the thread out of the needle eye or snap it.

Setup Checklist: The "Go/No-Go" Flight Check

Do not export the file until you tick these boxes.

Setup Checklist (Post-Branching)

• Red Line Check: Confirmed zero "Backward Paths" were visible before branching.
• Contact Check: Confirmed internal lines physically touch the outline rail.
• Parameter Check: Stitch length is set between 1.8mm and 2.2mm.
• Density Check: Stitch type is "Single Run" (not Triple/Bean stitch).
• Simulator Test: Watched the playback; zero trims detected inside the object.
• Start/End Points: Verified the start and end points are logically placed (usually at the bottom or closest to the next object).


Troubleshooting: When Embird Fights Back

Even with the best instructions, things break. Here is your rescue table.

Decision Tree: Is Software the Real Problem?

Sometimes we obsess over removing jumps in software because our machine is struggling. If your machine trims reliably, Use Jumps ON might actually be better than a complex workaround.

Use this flow to decide:

1. Is the fabric unstable (Spandex, Pique Knit)?
   • Yes: Use the Continuous Branching method (this guide). Trims cause fabric to "relax" and snap back, ruining registration.
   • No (Denim/Twill): Trims are acceptable.
2. Is the hooping difficult (Caps, Bags, Thick seams)?
   • Yes: Use Continuous Branching. Constant tension holds the item in place better.
   • No (Flat sheets): Trims are acceptable.
3. Are you fighting "Hoop Burn" or slippage?
   • Diagnosis: If the fabric moves between jumps, the issue isn't the file—it's the hoop.
   • Solution: Consider upgrading your tooling. Professionals use magnetic embroidery hoops to secure difficult items without the crushing force of traditional thumb-screw hoops.
4. Are you doing high-volume production?
   • Yes: Invest in magnetic embroidery frames. The speed of loading (2 seconds vs. 15 seconds) saves more money than editing files for hours.

Warning: Magnetic Safety: If you upgrade to magnetic hooping station systems or high-strength hoops, handle them with extreme care. The magnets are industrial strength. They can pinch fingers severely and must be kept away from pacemakers and sensitive electronics.

The Commercial Reality: When to Stop Editing and Start Upgrading

This tutorial solves a specific software problem: aesthetic purity. But if you find yourself spending 3 hours digitizing a file to save 30 seconds of sewing time, you have hit the point of diminishing returns.

The "Tooling vs. Technique" Balance:

1. Level 1: The Software Fix: Use this Embird guide for one-off custom jobs where quality is paramount and you cannot afford a single loose thread.
2. Level 2: The Tooling Fix: If your main struggle is registration loss (gaps) during jumps, the issue is likely physical. A magnetic hoop eliminates the "bouncing" of fabric that happens during trims. Many users search for how to use magnetic embroidery hoop videos specifically because they are tired of readjusting fabric mid-sew.
3. Level 3: The Productivity Fix: If you are running 50+ shirts and the machine's slow trimming speed is killing your profit, you have outgrown your single-needle setup. A multi-needle machine (like the SEWTECH series) handles trims instantly and maintains multiple colors without the "stop-start" fatigue.

The Bottom Line: Master the software so you have control. But upgrade your hardware so you have speed.

Operation Checklist: The First Sew-Out

You have the file. You have the machine. Here is how to watch the first run without crashing.

Operation Checklist (At the Machine)

• Needle Check: Use a fresh needle (75/11 Ballpoint for knits, Sharp for woven). A dull needle deflects and ruins the clean lines of a branched run.
• Speed Limit: Set max speed to 600-700 SPM.
• Auditory Monitor: Listen for the rhythmic thump-thump of the needle. A "slapping" sound indicates the long 2.0mm stitches are loose—tighten your upper tension knob slightly.
• Tactile Check: Pause halfway. Touch the back of the hoop. Is the bobbin nesting? (Branched files create more bobbin pressure).
• Visual Check: Look at the entry/exit points. Are they clean, or is there a "bird's nest" of thread?


Final Thoughts: The "Quiet" Skill

The instructor in the video demonstrates a technique that separates "Clickers" from "Digitizers." Anyone can click "Auto-Digitize." But only a pro understands how to deconstruct a shape into lines, reverse the nodes, and weld it back together for a perfect sew-out.

Follow the order: Outline > Convert > Reverse Red Lines > Touch > Branch.

Do it in this order, every time, and you will turn a frustrating mess of jumps into a fluid, profitable run. And remember—clean digitizing deserves a clean hold. Whether you stick with standard hoops or upgrade to a hooping station for machine embroidery to speed up your workflow, your output is only as stable as your prep.

FAQ

• Q: In Embird Studio, why does turning OFF “Use Jumps” in a Fill Object create visible drag-lines across negative space, and what is the fastest fix?
  A: Turn “Use Jumps” ON or convert the fill to a continuous branched run when connectors would be visible.
  • Zoom in and audit the voids; if gaps are wider than about 2 mm, connectors will show and the workaround is justified.
  • Duplicate the object (Ctrl+D) and lock the original before any destructive conversions.
  • Run Sew Simulator to confirm the travel path is continuous (for Branch) or that trims are acceptable (for Use Jumps ON).
  • Success check: In the simulator, the crosshair should not draw long lines across open fabric when “Use Jumps” is OFF.
  • If it still fails… switch to the Branch workflow only after creating an outline rail and confirming all internal lines touch it.
• Q: In Embird Studio, why is “Convert > Create Outline from Fill” required before Branch, and how should the outline be used?
  A: Create the outline first and treat it as a boundary rail, otherwise Branch often leaves dangling ends or won’t close the shape.
  • Select the Fill Object, then run Convert > Create Outline from Fill.
  • Change the outline color to a high-contrast color (the guide uses green) so it stays visually distinct from the internal lines.
  • Select internal lines first, then select the outline rail before running Branch to encourage a clean primary travel path.
  • Success check: After Branch, the path looks welded into one continuous flow instead of separate ends.
  • If it still fails… go back and verify there are zero backward (red) segments and that every intersection physically touches.
• Q: In Embird Studio, what does a RED segment mean in Branching (Backward Path), and how do you fix Branch being grayed out?
  A: Red segments are backward paths; reverse their node order until no red remains, or Branch may gray out or insert a jump.
  • Enter Edit Mode and scan the converted lines for red segments.
  • Select each red segment and run Edit Mode > Reverse Nodes Order.
  • Repeat until the screen is free of red before attempting Branch again.
  • Success check: Branch becomes available and the lines revert from red to the normal line color.
  • If it still fails… re-check that all lines are connected (touching) and that you are selecting the full set (internal lines + outline rail).
• Q: In Embird Studio Branching, how do you fix a jump stitch or “gap” appearing in the middle after Branch?
  A: Undo Branch and physically overlap the nodes—Branch requires lines to be touching, not “almost” touching.
  • Undo the Branch result.
  • Zoom in very high (the guide suggests around 800%) and inspect every island-to-outline intersection.
  • Drag the internal line node to snap onto the outline; slightly crossing/overlapping is safer than stopping short.
  • Run Branch again with internal lines + outline selected.
  • Success check: In Sew Simulator, the crosshair flows continuously without vanishing and reappearing elsewhere.
  • If it still fails… look again for a single missed red (backward) segment that can force an unexpected jump.
• Q: In Embird Studio, what stitch length is safest for a Branch-generated continuous double-run, and what symptoms indicate the length is wrong?
  A: Use Single Run with a stitch length around 1.8–2.2 mm; too short can shred at intersections, too long makes corners sloppy.
  • Set stitch type to Single Run (avoid heavy decorative stitches for production because intersections get dense).
  • Keep length in the 1.8–2.2 mm range used in the guide; adjust within that window if the fabric response demands it.
  • If thread shredding happens at intersections, increase length from very short settings (the guide flags <1.5 mm as risky).
  • Success check: Intersections sew cleanly without thread break and the line still hugs curves without “boxy” corners.
  • If it still fails… slow the machine for the first sew-out and inspect for density buildup caused by overlapping nodes.
• Q: For the first sew-out of a continuous branched file, what machine safety settings prevent needle/thread failures at sharp direction changes?
  A: Run the first test slower (the guide recommends about 600 SPM) and monitor sound, tension, and bobbin nesting mid-run.
  • Install a fresh needle appropriate to fabric (ballpoint for knits, sharp for woven, per the guide’s examples).
  • Limit speed to about 600–700 SPM for the first run to reduce whip on sudden 180° turns.
  • Pause halfway and feel/inspect the back of the hoop for bobbin nesting (branched paths can increase bobbin pressure).
  • Success check: You hear a steady needle rhythm (not a “slapping” sound) and see clean entry/exit points without bird’s nests.
  • If it still fails… slightly adjust upper tension as needed and re-check simulator for any hidden trims or jumps.
• Q: When Embird digitizing time is high, how do you decide between Level 1 software branching, Level 2 magnetic hoops, and Level 3 upgrading to a multi-needle machine?
  A: Use a simple decision ladder: fix the file for unstable fabrics, fix hooping when registration moves during trims, and upgrade machines when trim time kills production.
  • Level 1 (Technique): Choose continuous Branching when trims cause registration loss on delicate knits/performance wear/caps.
  • Level 2 (Tooling): If fabric “bounces” or slips specifically during trim/jump moments, address hoop hold—magnetic hoops often reduce movement without over-crushing.
  • Level 3 (Capacity): If you are doing high-volume runs and trim cycles are the bottleneck, a multi-needle machine reduces stop-start fatigue and trim downtime.
  • Success check: After the change, either trims stop causing gaps (tooling) or total cycle time drops measurably (capacity).
  • If it still fails… reassess whether “Use Jumps ON” is acceptable for stable materials where trims do not harm quality.
• Q: What magnetic hoop safety rules should be followed when using high-strength magnetic embroidery hoops or a magnetic hooping station?
  A: Treat magnetic systems as industrial pinch hazards and keep them away from pacemakers and sensitive electronics.
  • Keep fingers clear when closing magnets; control the closing motion instead of letting magnets snap together.
  • Keep the magnets away from pacemakers and sensitive electronics as warned in the guide.
  • Store magnets so they cannot jump together unexpectedly during handling.
  • Success check: No pinched fingers, no sudden snap closures, and safe clearance around medical devices/electronics.
  • If it still fails… stop and change handling setup (more space, slower placement) before continuing production.
