The Definitive Guide to Customizing Appliqué: From Software Logic to Flawless Production

You are not alone if you have ever opened a high-quality appliqué file—like a Kimberbell Cuties project—and felt a wave of "Appliqué Anxiety." The design is beautiful, but the thought of managing fiddly ribbon steps, mismatched cut pieces, or fabric slipping in the hoop paralyzes your creativity.

Machine embroidery is an experience science. It requires balancing digital precision with physical variables: tension, fabric drag, and stabilization. When you try to customize a design—move a flower, resize a bow—you aren't just moving a picture; you are manipulating a complex stack of physical instructions.

In this white paper, we will deconstruct a professional workflow using Embrilliance Essentials. We will move beyond basic buttons to understand the physics of your stitch file. We will optimize your cutting via SVGs, and finally, we will secure your physical production with industrial-grade hooping strategies.

Whether you are a hobbyist tired of "hoop burn" or a small business scaling up, this guide is your blueprint for consistency.

The Mental Shift: Respecting the "Stitch Stack"

Most beginners make a critical error: they view an appliqué design as a flat image. To a machine, an appliqué flower is not an image; it is a chronological stack of three distinct physical events:

1. Placement Line: A single run stitch that tells you where to lay the fabric.
2. Tack Down: A low-density stitch that secures the fabric so you can trim it.
3. Satin Column: The high-density final cover that hides raw edges.

In Embrilliance Essentials, these layers are visible in the Objects Panel. This panel is your control center. If you Copy/Paste without expanding this panel, you might accidentally copy only the satin stitch—leaving you with a flower that falls off the shirt because it has no anchor.

If you are operating a high-speed machine like a brother pr1055x, file hygiene is non-negotiable. Multi-needle machines run fast (often 600–1000 stitches per minute). At that speed, a missing tack-down line isn't just a mistake; it's a bird's nest waiting to happen.

Phase 1: The "Clean" Duplicate Workflow

Before you touch the "Copy" button, we must perform a pre-flight check on your object layers.

In our case study (a Kimberbell May corner), we are isolating a specific flower to move it.

Step 1: Object Identification

Expand your design tree. Locate the specific appliqué group containing the Placement, Tack Down, and Satin.

• Visual Check: Click the object name. Watch the design canvas. Is the highlight surrounding only the flower?
• Exclusion: Ensure you have not selected the "Alignment Line" (often used for positioning quilt blocks) unless you specifically intend to create a new reference point.

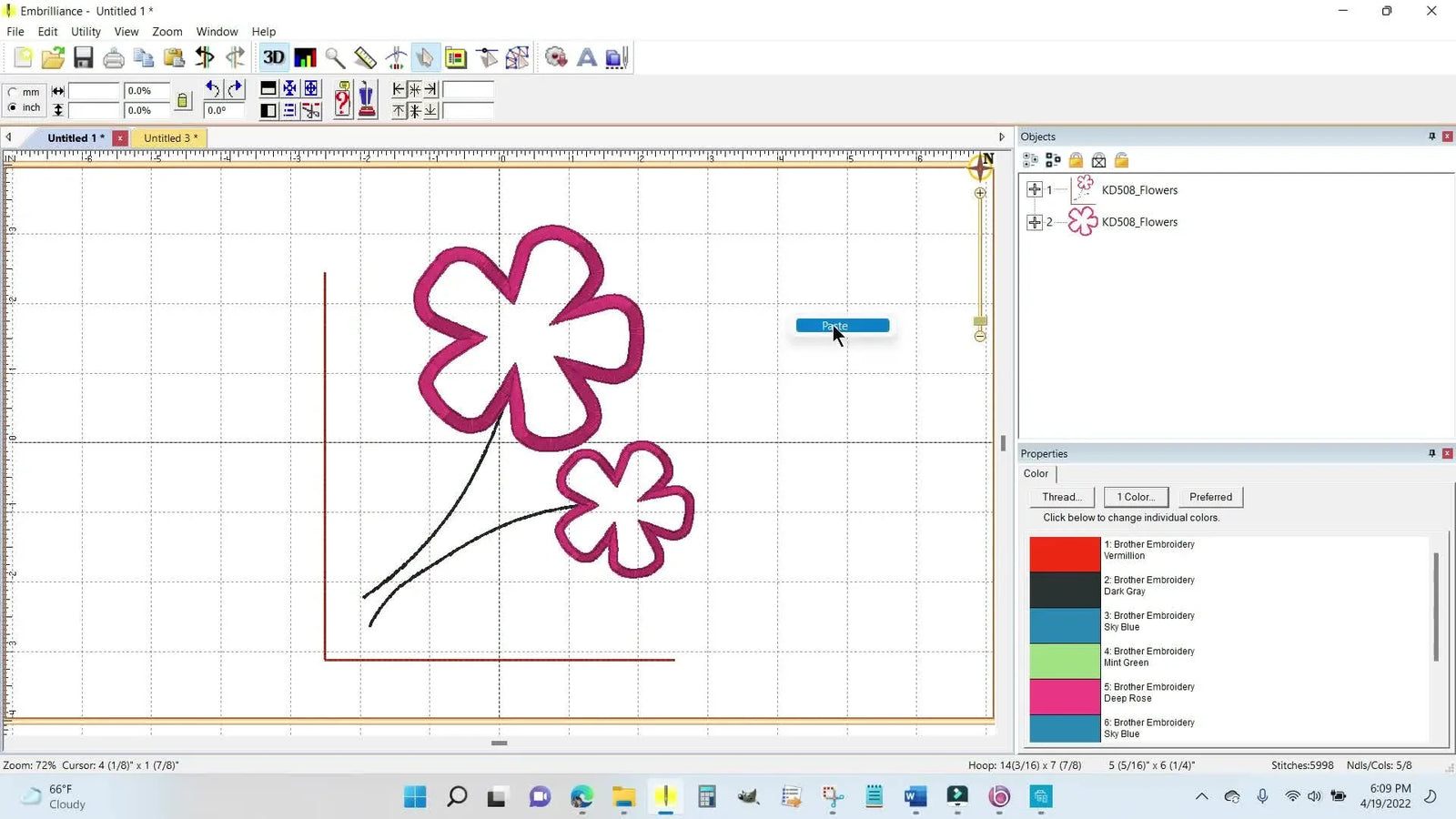

Step 2: The "Blind" Copy/Paste

1. Select: In the main workspace, right-click the target flower.
2. Copy: Select Copy.
3. Deselect: Click into the whitespace to clear focus.
4. Paste: Right-click and Paste.

Note the sensory detail: When you paste, it will look like nothing happened. The duplicate lands at exact coordinates $(0,0)$ relative to the original. Visual Anchor: Look for the stitch lines becoming "bold" or darker. This indicates two layers of thread are visually stacking on screen.

Pre-Edit Checklist

• Expand the Objects Panel to view the hierarchy: Placement > Tack > Satin.
• Verify selection: Click the object and confirm the highlight on the canvas matches your intent.
• Paste & Move: Immediately drag the pasted object away from the original to prevent accidental double-stitching.
• Save As: Save a "Working Copy" (e.g., Project_V2_Edited.BE) before applying changes.


Phase 2: Proportional Resizing & The Density Limit

Once you have your duplicate, you may need to fit it into a new space. However, resizing embroidery is not like resizing a photo. When you shrink a satin stitch, the software must recalculate the density to prevent the needle strikes from bunching up and shredding your fabric.

The Mathematics of Resizing

• The 20% Rule: Generally, scaling a design up or down by more than 20% requires careful density adjustments. Embrilliance Essentials handles this recalculation automatically (called "stitch processing"), but it has limits.
• The Minimum Limit: If you drag the corner handle inward continuously, the object will stop shrinking. This is a safety feature. The software prevents you from creating a satin column narrower than roughly 1mm-1.5mm, which would cause thread breaks or sink into the fabric completely.


Sensory Check: If you shrink a design too much, the final embroidery will feel stiff and "bulletproof" rather than flexible. On delicate fabrics, this high density causes puckering that no amount of ironing can fix.

Phase 3: The Cross-File Merge

To add a bow from a different project (e.g., a Mug Rug file), you need to merge distinct files.

1. Open Tab B: Open the source file (Mug Rug).
2. Multi-Select: Hold CTRL (Win) or CMD (Mac). Click the Placement, Tack Down, and Satin objects for the bow. You must grab all three.
3. Copy: Right-click > Copy.
4. Switch Tab: Go back to your main project.
5. Paste: Right-click > Paste.




Placement Physics

When placing the bow over the stem:

• Avoid "Satin on Satin": Do not place the thick satin knot of the bow directly on top of the thick satin stem of the flower.
• Why? Stacked satins create a distinct "thump-thump" sound on your machine. This accumulation of thread can deflect the needle, causing it to hit the throat plate and break. Nudge the bow so its density lands on the open fabric or the fill stitch, not the ridge.




Phase 4: The SVG Secret (Solving Mismatched Cuts)

This is the "Secret Sauce" of professional appliqué using machines like the brother pr1055x or the Brother SE1900.

If you use the pre-cut SVG files that came on the CD, they might not match your newly resized flower. You must generate new cut files based on your edited stitch data.

The "Inflate" Protocol

If your fabric cut is the exact same size as the placement line, you risk the fabric fraying or shifting 1mm and showing a raw edge. We need a safety margin.

1. Isolate: Select ONLY the Placement Line object in the panel.
2. Properties: Click the color chip > Applique Tab.
3. Style: Set to Applique Position.
4. The Secret Value: Set Inflate to 1.5 mm.
5. Export: Click Save and choose .svg (or .fcm for Brother ScanNCut).

Why 1.5 mm? This 1.5 mm margin ensures the fabric extends past the placement line, allowing the Tack Down stitch to bite firmly into the fabric, while still being narrow enough to be completely covered by the final Satin stitch.

Critical Warning: The "Frozen" State

Warning: Once you export your SVG cut files, you must NEVER resize the embroidery design again. If you shrink the flower by even 5% after exporting the SVG, your fabric will be too big, and the satin stitch will not cover the raw edges.

Phase 5: Transition to Physical Production

You have saved your file (e.g., to .PES format[FIG-14][FIG-15]). Now you must transfer it.

Wireless Transfer Reality Check

If you are using a modern machine and see a "Failed to Send" error on your PC, do not panic.

• The Glitch: Wireless protocols often time out the confirmation signal, even if the data sent successfully.
• The Fix: Walk to your machine. Check the download pocket. 9 times out of 10, the file is there waiting.
• Connection: Owners using the brother luminaire magnetic hoop ecosystem often rely on this features; always trust the machine's screen over the PC's error message.


Operation Checklist: The "Go/No-Go" Decisions

• Format Check: Is the machine format correct (PES/DST/JEF)?
• Cut File Check: Did you export the SVG with 1.5 mm inflation?
• Stabilizer Selection: Running a heavy satin appliqué? Use Cutaway (Mesh) stabilizer, not Tearaway. Tearaway will pulverize under the needle impact, causing alignment gaps.
• Needle Check: Are you using a fresh 75/11 Sharp or Embroidery needle? A dull needle pushes fabric rather than piercing it, moving your appliqué out of alignment.

Phase 6: The "Hooping" Bottleneck (Business & Quality Logic)

Your software file is perfect. Your SVG is precise. Yet, your final result has "puckers," or the square block is distorted into a rhombus. Why?

The problem is physical hooping.

Standard friction hoops rely on you manually tightening a screw while pulling fabric. This is inconsistent. If you pull too tight, you stretch the fabric fibers. When you un-hoop, the fabric relaxes (snaps back), and your perfect appliqué becomes a wrinkled mess. This is often called "Hoop Burn."

The "Hooping" Decision Matrix

Use this logic to decide when to upgrade your tools.

Scenario A: The Single-Needle Struggle (e.g., Brother SE1900)

• Symptom: You tighten the screw, but the inner ring pops out or slides on thick appliqué layers. You see a "shine" or crease on the fabric (Hoop Burn) after removal.
• The Fix: A magnetic hoop for brother se1900.
• Why: Magnetic frames clamp straight down. There is no "tug and screw" friction. The fabric is held flat by vertical force, eliminating hoop burn and reducing the chance of distortion.

Scenario B: The Production Run (Multi-Needle Machines)

• Symptom: You are stitching 50 matching table toppers. Your wrists ache from re-hooping. Hooping takes 2 minutes; stitching takes 5 minutes.
• The Fix: magnetic hoops for embroidery machines combined with a hooping station for embroidery.
• Why:
  1. Speed: Snap on, snap off. You save 45-60 seconds per cycle.
  2. Consistency: The magnets apply identical pressure every time.
  3. Ergonomics: No wrist twisting.
• Search Intent: Many high-volume shops specifically search for magnetic embroidery hoops for brother or magnetic embroidery hoops for babylock to find compatible frames (like the MaggieFrame system) that fit their specific arm width.

Warning: Magnetic Safety
Industrial-grade magnetic hoops use Neodymium magnets. They snap together with substantial force (often 20kg+).
* Pinch Hazard: Keep fingers clear of the mating surfaces.
* Medical Safety: Keep magnets away from pacemakers and sensitive electronics.

Conclusion: Process over Luck

Great embroidery is not luck; it is a repeatable process.

1. Software: Respect the object stack and layers.
2. Cutting: Synchronize your SVGs with a safety margin (1.5 mm).
3. Hardware: Stabilize correctly and hoop without distortion.

By mastering the "Copy/Paste" logic in Embrilliance and securing your fabric with the right physical tools, you transform appliqué from a "fiddly" chore into a scalable, enjoyable art form.

FAQ

• Q: In Embrilliance Essentials, why does a copied appliqué flower lose its placement line or tack-down after Copy/Paste?
  A: Copy/Paste usually failed because the appliqué group was not fully selected in the Objects Panel, so only the satin layer got copied.
  • Expand the Objects Panel and locate the flower’s full stack: Placement Line > Tack Down > Satin.
  • Click each object name and confirm the highlight on the canvas surrounds only that flower (not an alignment/reference line).
  • Copy from the correctly selected object/group, then Paste and immediately drag the duplicate away from the original.
  • Success check: After pasting, the design lines look darker/bolder at the original spot (stacked preview), and the duplicate contains all three steps when you step through colors/objects.
  • If it still fails: Re-copy by multi-selecting all three objects (Placement, Tack Down, Satin) instead of copying from the canvas alone.
• Q: In Embrilliance Essentials, why does an appliqué piece stop shrinking when resizing, and what should be done?
  A: This is a built-in safety limit to prevent creating satin columns that are too narrow (about 1–1.5 mm), which can cause thread breaks or sinking.
  • Resize proportionally and avoid pushing past the point where the object refuses to shrink further.
  • Keep major scaling within the “about 20%” range as a safer zone, then test-stitch if the fabric is delicate.
  • Choose a different layout solution (move elements, swap to a smaller motif) instead of forcing extreme shrink.
  • Success check: The stitched result stays flexible (not stiff or “bulletproof”) and the fabric does not pucker around the satin edge.
  • If it still fails: Reduce satin-heavy overlap areas (avoid “satin on satin”) or choose a design element with lighter density.
• Q: When merging a bow from a Mug Rug file into another project in Embrilliance Essentials, how can the bow be copied without missing appliqué steps?
  A: Copy the bow as a complete appliqué stack by multi-selecting Placement, Tack Down, and Satin before copying.
  • Open the source file in a separate tab and CTRL/CMD-click the bow’s Placement, Tack Down, and Satin objects.
  • Copy, switch back to the main project tab, then Paste and position the bow.
  • Avoid placing thick satin bow sections directly on top of thick satin stem sections.
  • Success check: During stitching, the machine does not make repeated “thump-thump” impacts over a raised ridge, and the needle runs smoothly without deflection.
  • If it still fails: Nudge the bow so the densest satin lands on open fabric or lighter fill, not on another satin ridge.
• Q: After resizing an appliqué flower in Embrilliance Essentials, how can an SVG cut file be generated so the fabric covers the placement line correctly?
  A: Export a new SVG from the Placement Line only and set Inflate to 1.5 mm so the fabric extends past the placement line.
  • Select ONLY the Placement Line object in the Objects Panel.
  • Open the color chip properties, go to the Applique tab, and set the style to Applique Position.
  • Set Inflate to 1.5 mm and export/save as .svg (or .fcm for Brother ScanNCut).
  • Success check: After trimming and satin stitching, no raw fabric edge peeks out and the satin fully covers the edge.
  • If it still fails: Confirm the SVG was generated after the final resize and that the correct object (Placement Line only) was used for export.
• Q: Why must an Embrilliance Essentials appliqué design never be resized again after exporting the SVG cut file?
  A: Resizing after SVG export breaks the match between the stitch placement line and the fabric cut size, causing coverage gaps or exposed edges.
  • Lock the design size before exporting the cut file.
  • If a size change is needed, undo and re-export a new SVG after the final resize.
  • Keep a separate “working copy” file version before the SVG export so changes are reversible.
  • Success check: The cut fabric aligns with the placement line and the satin stitch cleanly covers the edge all the way around.
  • If it still fails: Re-export the SVG from the current final-size Placement Line using Inflate 1.5 mm.
• Q: On Brother wireless file transfer, why does the PC show “Failed to Send” even though the embroidery file may still arrive on the machine?
  A: This is commonly a confirmation-timeout glitch—check the Brother machine’s download pocket because the file often transferred successfully.
  • Walk to the machine and verify the file is present on the machine screen before re-sending.
  • If the file is present, proceed normally and ignore the PC-side message for that transfer.
  • If the file is not present, resend once and watch the machine screen for the actual receive status.
  • Success check: The design appears in the machine’s saved/download list and opens normally in the correct format.
  • If it still fails: Re-check that the exported machine format is correct (PES/DST/JEF) before troubleshooting the network.
• Q: For Brother SE1900 appliqué hoop burn and hoop slipping on thick layers, when should a magnetic hoop be used instead of a standard screw hoop?
  A: Use a magnetic hoop when a Brother SE1900 friction hoop creates shine/creases (hoop burn) or the inner ring pops/slides on thick appliqué stacks.
  • Level 1 (technique): Reduce over-tightening and avoid stretching fabric while tightening the screw.
  • Level 2 (tool): Switch to a magnetic frame that clamps straight down to hold fabric flat without “tug and screw” distortion.
  • Level 3 (production): If re-hooping time and inconsistency are limiting output, consider a multi-needle workflow for repeat jobs.
  • Success check: After un-hooping, the fabric shows minimal shine/crease, and the appliqué block stays square (not distorted into a rhombus).
  • If it still fails: Revisit stabilization choice (heavy satin appliqué often needs cutaway/mesh rather than tearaway) and confirm a fresh 75/11 sharp or embroidery needle is installed.
• Q: What magnetic hoop safety rules should be followed when using industrial-grade neodymium magnetic embroidery hoops?
  A: Treat magnetic hoops as pinch-hazard tools and keep them away from pacemakers and sensitive electronics.
  • Keep fingers clear of the mating surfaces before the magnets snap together.
  • Separate and assemble the frame slowly and deliberately on a stable surface.
  • Keep magnetic hoops away from medical implants (such as pacemakers) and electronics that can be affected by strong magnets.
  • Success check: The frame closes without finger pinches, and the fabric remains evenly clamped with no sudden snap near your hands.
  • If it still fails: Stop and change handling method (use two-hand placement and a controlled approach) rather than forcing the magnets together.
