The "Zero-Headache" Workflow: Master Embrilliance Essentials on Mac for Flawless Embroidery

Author: Chief Embroidery Education Officer Reading Time: 12 Minutes Goal: Transform digital designs into physical perfection without the "trial and error" tax.

If you are a Mac user, you are likely used to the "creative tax"—the extra steps required to get embroidery software to behave. But here is the truth: Embrilliance Essentials runs natively on macOS. There are no virtual machines, no emulators, and no drama.

However, software is only half the battle. As someone who has overseen thousands of production runs, I see beginners make the same two mistakes repeatedly:

1. The Formatting Fallacy: designing in a hoop size that doesn't match the physical machine limits.
2. The "Ghost" Save: saving working files (.BE) instead of machine files (.PES/.DST), leading to a machine that refuses to read the design.

The guide below is not just a software tutorial. It is a Shop-Floor Standard Operating Procedure (SOP). We have rebuilt the workflow to include the "sensory checks" and safety margins that professionals use to guarantee a clean stitch-out every time.

1. The Setup: Native Stability Meets Production Logic

The host’s opening point is critical: fewer moving parts means fewer points of failure. When your software talks directly to your OS, you eliminate a layer of "mystery errors."

But before we click a single button, we need to establish the "Golden Rule of Embroidery": The machine doesn't care about your screen; it cares about coordinate limits.

2. Lock in Your Hoop Reality (Preferences)

Everything starts with the boundary. If you tell the software you have a 5x7 field but you load a brother 4x4 embroidery hoop, you will hit the hard limit switch on your machine. This causes that terrifying grinding noise that every embroiderer dreads.

The Action Plan:

1. Navigate to the top menu bar: Embrilliance → Preferences.
2. Select Hoops from the list.
3. Crucial Step: Choose the file format that matches your machine brand (e.g., Brother/BabyLock corresponds to .PES).
4. Select the specific hoop size you are physically holding in your hands.
5. Click Apply.

Sensory Check: Look at the white canvas. You should see a thin line representing the hoop. Safety Margin Rule: Professional digitizers never stitch to the exact edge. Leave a 5mm buffer between your design and the hoop line to account for fabric shifting.

Prep Checklist (Pre-Flight):

• [ ] Hardware Validated: Does the on-screen hoop match the physical hoop snapped onto your machine?
• [ ] Format Check: Is the file format (e.g., PES, DST) compatible with your specific machine model?
• [ ] Clean Slate: Have you closed heavy background apps (Chrome, Photoshop)? Embroidery software relies on real-time rendering; lag causes mistakes.


3. Library Management: Pulling "Frame 4" (The Balloon)

We aren't just drawing shapes; we are merging pre-digitized assets.

1. Click the "Merge Design from Library" icon (it looks like a gear with a heart).
2. Navigate the dropdown tree to Frames.
3. Scroll until you find Frame 4 (Balloon).
4. Click OK.

Expected Outcome: A balloon outline appears. The "Why": These library designs are object-based, meaning they calculate stitches dynamically when you resize them. This is safer than resizing a raw stitch file (DST), which can ruin the density.

The "Cognitive Chunking" Tactic: Rename Immediately

In the Objects pane (usually on the right), you will see "Frame 4." Change this immediately. Click the name and type "Balloon."

Why? When you are tired at 11:00 PM and dealing with 15 layers—Balloon, Text, Logo, Underlay—generic names like "Frame 4" and "Text 1" lead to layering errors. Labeling your layers is the cheapest insurance policy you can buy.

4. Physics Check: Resizing and Absolute Centering

Resizing isn't just about making it fit; it's about density preservation.

1. Resize: Click a corner handle and drag inward. (Never drag a side handle unless you intentionally want to distort the aspect ratio).
2. The Center Command: Go to the menu Utility → Center in Hoop.


The Professional Reality Check (Hardware Gap)

Software centering is mathematically perfect. Physical centering is often flawed. The software assumes you have hooped the fabric with laser precision. In reality, humans struggle with this.

The "Hoop Burn" Scenario: Standard plastic hoops require you to shove an inner ring into an outer ring. This often stretches the fabric or leaves "hoop burn" (crushed fibers). More importantly, the force often knocks your center mark off by 2-3mm.

• Trigger: If you find yourself re-hooping a garment 3 or 4 times to get it straight, or if your wrists hurt from tightening screws.
• The Upgrade Path: This is where professionals switch to magnetic embroidery hoops.
  • Why? They snap together flat. There is no "shoving," so the fabric doesn't distort, and your software center matches the physical center.
  • Compatibility: Whether you need magnetic embroidery hoops for brother single-needle machines or robust frames for multi-needle setups, magnets bridge the gap between software accuracy and physical reality.


5. Thread Fidelity: Mapping the Madeira Palette

Your screen colors must match your drawer inventory.

1. Click the Color Swatch on the active object.
2. Select Madeira Poly Neon (or your specific thread brand) from the catalog.
3. Pick the "Pink" that matches the spool in your hand.

Business Insight: If you plan to scale, stop buying random thread racks. Standardize on one or two brands. This allows you to save "Color Palettes" in Embrilliance, ensuring that what you sell on your website mockups matches what comes off the machine.

6. Typography: multi-line Lettering & The "SET" Button

Beginners often type text and panic when nothing happens. You operate in a "Parameter" mode until you commit.

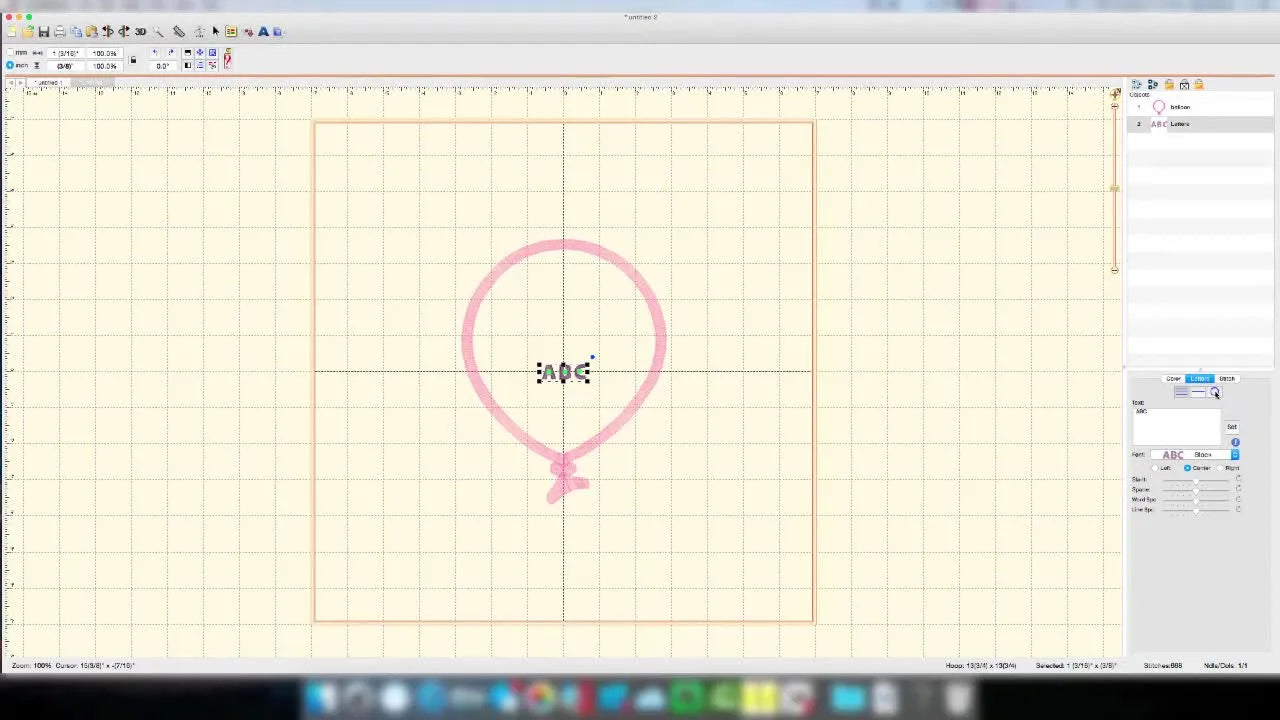

1. Click the "A" (Create Lettering Design) icon.
2. In the text box, select Multi-Line.
3. Type Happy, press Enter, type Birthday.
4. CRITICAL STEP: Click the SET button.


Sensory Anchor: You know it worked when the wireframe text fills with simulated 3D stitches. No stitches visible? You didn't click SET.

7. Kerning and Spacing: The Visual Breath Test

Default spacing is rarely perfect. The host demonstrates using the Line Spacing slider in the Lettering Properties tab.

1. Highlight the text object.
2. Move the Line Spacing slider/wheel to bring "Birthday" closer to "Happy."


The Visual Rule: Look for the "breathing room." The distance between the lines should roughly match the height of a lowercase letter. Too tight, and the actual threads might overlap and break needles.

The "Click the Stitch" Habit

Embrilliance uses a specific selection logic. You cannot click the empty space inside the "O" to select the text. You must click the actual stitches (the colored parts).

• Action: Hover your mouse until the cursor changes, then click ON the pink/blue pixels.


8. The "Two-File" Protocol: Saving for Safety

This is the non-negotiable step for any shop, from hobbyist to factory.

Go to File → Save Stitch and Working.

1. The Working File (.BE): This is your source code. You can still edit the text, change the font, and resize the balloon. Save this to your computer.
2. The Stitch File (.PES / .DST): This is a compiled coordinate map for the machine. It is "dumb" data—it doesn't know "Happy" is a word; it just knows X/Y coordinates. Save this to your USB drive.


Warning: Never try to open the .PES/Stitch file back into the software to make edits if you have the .BE file. Opening a stitch file "bakes" the stitches, stripping away your ability to change fonts cleanly. Always edit the .BE, then re-save the .PES.

9. Merging External Designs (DST/PES)

The workflow changes when you import a pre-made logo (like the shield in the video).

1. File → Merge Stitch File.
2. Select the crest/shield from your desktop.


Limitation Check: You cannot drastically resize this file. A 10% change is safe. A 50% change creates a bulletproof vest (too dense) or a screen door (too loose).

10. The Selection Trap: Avoiding Accidental Distortion

Here is a scenario that causes mismatched designs: You try to center the shield, but you miss selecting the inner details. The border moves to the center, but the lion inside stays put.

The Fix:

1. Undo (Command + Z) immediately.
2. Draw a Bounding Box around the entire merged design to select all elements.
3. Then click Utility → Center in Hoop.


Troubleshooting Matrix:

Safety Warning (Red Outline): If you ignore the software's red outline and force the machine to stitch, the needle bar may strike the hoop frame. This can shatter the needle found at high velocity. Always respect the red line.

11. The Physical Gap: Stabilizer Decision Tree

Software is clean; fabric is messy. You must stabilize the fabric to handle the tension of the thread. Use this decision tree before you hoop.

Decision Tree: Stabilizer Selection

1. Is your fabric stretchy (T-shirt, Hoodie, Knit)?
   • YES: Use Cutaway Stabilizer. Period.
   • Why? Knits stretch. If you use tearaway, the stitches will perforate the paper, the fabric will relax, and your design will warp.
   • Tool: Consider a hooping station for embroidery to keep layers aligned while hooping.
2. Is your fabric stable (Denim, Canvas, Towel)?
   • YES: Tearaway Stabilizer is usually sufficient.
3. Does the fabric have "fluff" or pile (Towel, Velvet)?
   • YES: Add a Water Soluble Topper on top to stop stitches from sinking into the fluff.

12. From Software to Steel: The Upgrade Path

At a certain point, your software skills will outpace your hardware's production capacity.

• The Bottleneck: If you spend more time hooping and changing thread colors than actually stitching.
• The Intermediate Solution: Upgrade to magnetic embroidery hoops. They reduce "hoop burn" rejects and speed up the physical prep time by 30-40%.
• The Professional Solution: If you are running batches of 20+ items, the single-needle machine becomes the liability. This is when shifting to a multi-needle platform (like the SEWTECH ecosystem) allows you to utilize the full speed of your .DST files without manual thread changes.

Magnet Safety Warning: embroidery magnetic hoops utilize powerful industrial magnets.
* Pinch Hazard: They snap together with significant force. Keep fingers clear of the contact zone.
* Electronics: Keep at least 6 inches away from computerized machine screens and pacemakers.

Final Operation Checklist (The "Go/No-Go" Sequence)

Perform this 60-second check before exporting to your USB drive:

• [ ] Visual: Is the entire design centered and inside the hoop boundary? (No red lines).
• [ ] Structure: Did you use Utility → Center on all layers?
• [ ] Thread: Do the screen colors roughly match the thread cones you just lined up?
• [ ] File Integrity: Did you save the .BE (Working) file for yourself?
• [ ] Machine Data: Did you save the .PES/.DST (Stitch) file for the machine?
• [ ] Safe Speed: For your first test run, set your machine speed to the "Beginner Sweet Spot" (600 SPM). High speed (1000 SPM) increases the risk of thread breaks until you are confident in your tension settings.

By following this flowchart—Preference, Merge, Center, Save, Stabilize—you turn the chaotic variable of "luck" into the consistent science of production.

FAQ

• Q: In Embrilliance Essentials on macOS, why does a Brother/BabyLock machine show a design that will not fit a Brother 4x4 hoop even though it looks fine on screen?
  A: Set the correct hoop and machine format in Embrilliance Preferences before resizing or centering the design.
  • Open Embrilliance → Preferences → Hoops, then select Brother/BabyLock (.PES) and the exact physical 4x4 hoop size.
  • Re-check the design boundary and leave a 5 mm buffer from the hoop line before exporting.
  • Close heavy background apps to avoid lag-related mistakes while adjusting objects.
  • Success check: The hoop boundary line on the white canvas matches the hoop you are holding, and the design sits inside the line with clear space (no edge kissing).
  • If it still fails: Resize slightly or rotate to fit, and do not ignore any red outline warning.
• Q: In Embrilliance Essentials, why does a Brother or Tajima embroidery machine refuse to read a file when only a .BE file was saved?
  A: A .BE file is a working file, not a machine stitch file—export a .PES (Brother/BabyLock) or .DST (many commercial machines) to the USB drive.
  • Use File → Save Stitch and Working to generate both files in one step.
  • Save .BE to the computer for future edits, and save the .PES/.DST stitch file to the USB for the machine.
  • Avoid editing by reopening the stitch file if the .BE exists; edit the .BE and re-save the stitch file instead.
  • Success check: The USB drive contains a .PES or .DST file (not only .BE), and the machine preview/selection screen can open it normally.
  • If it still fails: Confirm the chosen file format matches the machine brand/model requirements in Embrilliance hoop/format settings.
• Q: In Embrilliance Essentials, why does clicking “Create Lettering Design” show no stitched text until the SET button is pressed?
  A: Embrilliance keeps lettering in parameter mode until SET is clicked, so the stitches are not generated yet.
  • Click the A (Create Lettering Design) icon, choose Multi-Line, type the text, then click SET.
  • After SET, adjust Line Spacing only after selecting the text object.
  • When selecting, click directly on the colored stitch area—not empty space inside letters.
  • Success check: The lettering changes from wireframe/outline to a filled stitch simulation (visible “3D stitches” look).
  • If it still fails: Re-select the lettering by clicking on actual stitches/pixels, then press SET again.
• Q: In Embrilliance Essentials, why does “Utility → Center in Hoop” move only part of a merged crest/logo (border moves but inner details stay behind)?
  A: The crest/logo was only partially selected—select the entire merged design before centering.
  • Press Undo (Command + Z) immediately after the mistake.
  • Drag a bounding box around the entire design to capture all elements, then run Utility → Center in Hoop.
  • Use the Objects pane naming habit (rename items) to reduce selection errors when files get complex.
  • Success check: All parts of the crest (outer border and inner details) move together as one unit when dragged or centered.
  • If it still fails: Use a wider selection box or a “select all” approach, then retry centering.
• Q: In Embrilliance Essentials, what does a red outline warning mean, and why is it unsafe to stitch a design that exceeds the hoop boundary?
  A: A red outline indicates the design exceeds the hoop limits—stitching anyway risks the needle bar striking the hoop and shattering a needle.
  • Stop and resize slightly or rotate the design to fit within the hoop boundary.
  • Reconfirm the correct hoop is selected in Preferences → Hoops for the intended format and physical hoop.
  • Keep a safety margin and do not stitch right up to the boundary.
  • Success check: The red outline disappears and the full design sits inside the hoop line with visible clearance.
  • If it still fails: Switch to a larger hoop setting that matches a larger physical hoop, or reduce the design size.
• Q: For knit garments like T-shirts and hoodies, which stabilizer should be used to prevent warping during embroidery, and when should a water-soluble topper be added?
  A: Use cutaway stabilizer for stretchy knits, and add a water-soluble topper when the fabric has pile/fluff like towels or velvet.
  • Choose Cutaway for knits to keep the design stable after stitching tension is applied.
  • Use Tearaway mainly for stable fabrics like denim/canvas when appropriate.
  • Add Water Soluble Topper on top for towels/velvet to prevent stitches from sinking.
  • Success check: The stitched design stays square/true after unhooping, and stitches sit on top of the surface (not buried in pile).
  • If it still fails: Re-check hooping alignment and consider a hooping station to keep layers from shifting while hooping.
• Q: If hoop burn and repeated re-hooping keep happening on a Brother single-needle machine, when should embroidery workflow upgrade from standard hoops to magnetic embroidery hoops, and when does a multi-needle machine make sense?
  A: Start by optimizing hooping and margins, then move to magnetic hoops to reduce fabric distortion, and consider a multi-needle machine when batch work makes thread changes the bottleneck.
  • Level 1 (Technique): Leave a 5 mm buffer, center in software, and focus on consistent hooping to reduce re-hoops.
  • Level 2 (Tool): Switch to magnetic hoops when re-hooping happens 3–4 times per garment, center marks drift 2–3 mm, or wrists hurt from tightening standard hoops.
  • Level 3 (Capacity): Move to a multi-needle platform when running batches (often 20+ items) and spending more time changing thread colors than stitching.
  • Success check: The physical center matches the software center more consistently, rejects from hoop burn drop, and prep time noticeably decreases.
  • If it still fails: Verify magnet hoop handling is correct and reassess stabilizer choice for the fabric type.
• Q: What magnet safety rules should be followed when using embroidery magnetic hoops on home or commercial embroidery machines?
  A: Treat magnetic hoops as industrial magnets—keep fingers clear during closure and keep magnets away from sensitive electronics and pacemakers.
  • Keep fingers out of the contact zone because the hoop halves can snap together with strong force.
  • Keep magnetic hoops at least 6 inches away from computerized machine screens and pacemakers.
  • Handle the hoop slowly and deliberately when aligning fabric to avoid sudden pinch points.
  • Success check: The hoop closes flat without pinching, and the machine area remains free of magnet contact near screens/electronics.
  • If it still fails: Pause and reposition with a controlled grip—do not force the magnets to “catch” while fingers are near the edge.
