Embrilliance on Mac, Explained Like a Shop Owner: Buy the Right Modules, Type BX Fonts Fast, and Stop Wasting Hoop-Time

If you are new to machine embroidery, software often feels like the "necessary evil"—the boring friction you must survive to get to the satisfying hum of the needle and the gloss of the finished thread.

But after 20 years of running embroidery floors—and hearing the distinct, heartbreaking crunch of a needle hitting a hoop because of a bad file—I can tell you the truth. Software is not just a design tool; it is your first line of defense.

The fastest way to burn through expensive stabilizers, ruin customer blanks, and shatter needles is to treat software as an afterthought.

This field guide rebuilds the lesson into a Chief Operations Officer workflow. We will move beyond "how to click buttons" and focus on "how to set up for profit and safety." We will cover:

• Financial Efficiency: Buying only the specific Embrilliance modules you need.
• Visual Management: Eliminating "mystery files" with proper thumbnailing.
• Production Speed: Using BX fonts to type names in seconds rather than minutes.
• The Physical Link: How software decisions prevent the "hoop burn" and alignment issues that plague beginners.


Embrilliance embroidery software: the calm, beginner-friendly “control room” before you ever hoop

Think of Embrilliance not as an art studio, but as your Control Room. It is the software interface where you modify, combine, and—crucially—verify embroidery designs before they travel to your machine.

In the industry, we have a saying: "Garbage In, Garbage Out." If the digital file has poor density or incorrect sizing, no amount of stabilizer or machine tuning will save the shirt. Jeanette’s approach in the video is ideal for beginners because it focuses on the essentials: getting a safe, clean file ready for the hoop.

The "Pre-Flight" Mindset

Adopt this mindset immediately: Software is where you solve 80% of your hooping headaches.

• The Symptom: Text looks crooked on the final shirt.
• The Cause: Often, the file wasn't centered or aligned relative to the hoop constraints in the software.
• The Fix: Aligning digitally allows you to focus on physical stabilization.

If you are running a side hustle, every minute you spend fighting file formats is a minute your machine sits silent. Silent machines do not make money.

The “house” analogy that saves you money: Embrilliance Platform + Essentials + add-on modules

Embroidery software is often sold in confusing bundles. Jeanette uses a brilliant "House Analogy" to clarify the cost structure:

• The Platform: This is the House Frame. It is the free engine that runs everything.
• The Modules: These are the Rooms (Essentials, Enthusiast, StitchArtist). You only buy the rooms you plan to live in.

The Strategic Purchase Path

Do not buy everything on Day 1. Use this logic to protect your budget:

1. Starters (The Foundation): Embrilliance Essentials. This allows you to resize, merge designs, and add text. For 90% of hobbyists, this is all you need for the first year.
2. Organizers (The Time-Saver): Thumbnailer. If you download hundreds of designs, this lets you see them as images in your folder system.
3. Creators (The Deep Dive): StitchArtist (Level 1-3). Only buy this if you intend to create designs from scratch (digitizing).

The "Shop-Floor" Rule

Buy based on the bottleneck you are facing this week.

• If you are wasting time creating names letter-by-letter, buy Essentials for the BX font engine.
• If you cannot find your files, buy Thumbnailer.
• If you are frustrated by physical hooping marks on delicate fabrics, no software module will fix that. That is when you stop buying software and invest in physical tools like a hooping for embroidery machine aid or magnetic frames.


Mac vs Windows vs Chromebook: the compatibility check that prevents an expensive mistake

This is a critical hardware checkpoint. Embrilliance is unique because it runs natively on macOS and Windows without needing emulators.

However, Jeanette highlights a massive pitfall: Chromebooks.

• The Reality: Most embroidery software, including the full desktop version of Embrilliance, does not run on Chrome OS.
• The Risk: Buying a budget Chromebook for your embroidery business often results in having to buy a second laptop.

The "Consistency" Factor

For Windows users, while many options exist, stick to industry standards. If you eventually plan to scale up to a multi-needle machine (like a SEWTECH or similar commercial unit), you want software that handles standard formats (.dst, .pes) reliably.

Embrilliance Essentials: the everyday editing moves beginners actually use (resize, merge, copy parts)

Jeanette demonstrates the core functions of Essentials: resizing, cutting/pasting, and merging elements.

The Science of Resizing: A Safety Warning

Beginners often think resizing a design is like resizing a photo. It is not. When you shrink a design by 20%, you are compressing the same number of stitches into a smaller area unless the software "re-calculates" the density.

• The Tactile Check: If you shrink a design too much without stitch processing, the result will feel like cardboard. It will be stiff and bulletproof.
• The Auditory Check: Your machine will make a heavy thud-thud-thud sound as the needle struggles to penetrate the dense thread pack.

Rule of Thumb:

• Safe Zone: Resizing ±10% is usually safe.
• Danger Zone: Beyond 20%, you must ensure the software is recalculating the stitch count (Process Stitches feature). If not, you risk breaking needles or jamming the bobbin case.


Thumbnailer: the tiny add-on that stops “file-name roulette” when you’re hunting PES/DST designs

Without software like Thumbnailer, your computer folders look like a list of cryptic codes: Design_01.pes, Flower_v2.dst.

Thumbnailer turns those icons into actual pictures of the embroidery.

Why this is a Production Vital

In a professional shop, "search time" is dead time.

• Visual Verification: Prevents you from loading the "4x4" version of a design into a "5x7" hoop.
• Error Prevention: Prevents mixing up "Left Chest" files with "Hat" files (which often have different stitch sequences (center-out vs bottom-up)).

When your digital workflow becomes instant, your physical workflow becomes the new bottleneck. This is usually when professionals begin searching for machine embroidery hoops that allow for faster fabric swapping, such as magnetic systems, to keep up with how fast they can select files.

The BX font moment: type a name once, press Enter, and watch Embrilliance build the stitches

This is the "Magic Moment" in the video. Jeanette selects the Text Tool, types "Jeanette," and the software generates the stitches instantly.

The "Pain" of the Old Way (PES Files)

Without BX fonts, you are stuck with "Alphabet Designs." You must:

1. Import "A.pes".
2. Import "B.pes".
3. Drag them manually to line them up.

The Sensory Anchor: If you are doing this manually, you are basically "guessing" the spacing.

• Visual Check: Does the name look like "J e a n e tte"? (Uneven kerning).
• Efficiency Check: Typing a name takes 5 seconds with BX fonts. Building it manually takes 5 minutes.

If you are doing team jerseys or customized gifts, that 5 minutes per shirt destroys your profit margin. Efficiency in software demands efficiency in hardware; if you can type a name in seconds, but it takes 10 minutes to hoop the shirt, you might need magnetic embroidery hoops to balance your production line.

The “hidden” prep before you click Buy: what to check so your fonts and designs don’t turn into clutter

Jeanette wisely suggests downloading the Demo Version first. I will add a layer of "Shop Prep" to this advice.

Prep Checklist (The "Before You Spend" List)

Before buying modules or designs, perform this audit:

• OS Verification: Confirm you are on Mac or Windows (not Chrome/iPad).
• Hardware Check: Do you have a USB drive formatted to FAT32 (required for many machines to read files)?
• Consumables Stock: Do you have the "hidden" essentials?
  • Temporary Adhesive Spray: (e.g., Odif 505) for floating fabric.
  • Stabilizer: Cutaway for knits, Tearaway for wovens.
  • Topstitch Needles: Sizes 75/11 and 90/14.
• Workspace: Is your table sturdy? Vibration ruins embroidery. If you plan to scale, do you have space for a hooping station for embroidery to ensure your placement is consistent?


Bringing PES designs into Embrilliance: the simplest import workflow (from the comments)

The workflow is simple: Drag and Drop. Take the .pes or .dst file from your download folder and drop it onto the Embrilliance canvas.

The Hidden Trap: "It Fits on Screen" vs "It Fits the Hoop"

Just because a design opens does not mean it is safe.

1. Check the Hoop Display: Ensure the software is displaying your specific hoop size (e.g., 4x4 or 5x7).
2. The "Safety Margin": Manufacturers recommend leaving a buffer. If your hoop is 100mm x 100mm, do not size your design to 99mm. Keep it under 95mm.
   • Why? Fabric shifts. A design that hits the plastic frame of the hoop will shatter a needle instantly.


Installing BX fonts into Embrilliance: buy the right format, then drag-and-drop like a pro

The Rule: When buying fonts from sites like Etsy or Designs by Juju, look exclusively for the BX Format.

Jeanette’s straightforward drag-and-drop installation is correct. But remember, a font is a tool, not a decoration.

The Physical Reality of Fonts

Small text is the hardest thing to embroider.

• The Physics: A needle is a physical object. It needs space to enter and exit.
• The Failure: If you shrink a font too small, the needle creates a hole, and the next stitch pulls the thread into that same hole. The result is a "bird's nest" or a hole in the fabric.

When you start producing volume—names on bags, cuffs on sleeves—you will find that traditional screw-tightened hoops are slow and can cause hand strain. Transitioning to a magnetic embroidery frame not only speeds up the process but reduces the physical strain of hooping thick items.

Warning (Magnet Safety): If you upgrade to magnetic hoops, be aware that these use industrial-strength magnets (Neodymium).
1. Pinch Hazard: They snap together with enough force to bruise fingers or break skin. handle with care.
2. Medical Safety: Keep them at least 6 inches away from pacemakers or other implanted medical devices.

The setup that keeps text straight: using the Text tool + properties panel without “crooked name syndrome”

Using the Properties Panel to type names ensures the software aligns the bottom of the letters perfectly. However, software alignment means nothing if the fabric is hooped crookedly.

The "Crooked Name" Diagnostic

If your text is straight on screen but slanted on the shirt, the error is Physical, not Digital.

• The Cause: Uneven tension when tightening the hoop screw. You pulled the fabric more on the left than the right.
• The Sensation: The fabric should sound like a drum when tapped gently. It should be taut, but not stretched/distorted.
• The Fix: Use the grid on your hoop cutting mat, or upgrade to embroidery hoops magnetic which snap down vertically, preventing the "pull and drag" distortion common with screw hoops.

Setup Checklist (The "Pre-Stitch" Verification)

Before you press the Green Button:

• Bobbin Check: Do you have enough bobbin thread for the whole design? (Don't guess).
• Needle Check: Is the needle straight and sharp? (Run your fingernail down the tip; if it catches, replace it).
• Path Check: Use the machine's "Trace" function to ensure the needle won't hit the hoop frame.
• Stability Check: Is the hoop locked firmly into the machine arm? (Give it a gentle wiggle).


StitchArtist Levels 1–3: when “I want to do logos” becomes a real digitizing commitment

Jeanette is honest: Digitizing (creating designs from scratch) is a separate skill from editing.

The "Logo" Reality Check

Digitizing is engineering. You must account for Push and Pull.

• The Concept: Thread pulls fabric in. Stitches push fabric out.
• The Result: A perfect circle on screen will stitch out as an oval on a t-shirt unless you add "Pull Compensation."

My Advice: Start with buying professional designs. Use Essentials to edit them. Only move to StitchArtist when you understand how density, underlay, and stitch angles interact with physical fabric.

The decision tree I use in studios: upgrade software first, or upgrade hooping hardware first?

Beginners often ask: "What should I buy next?" Use this decision logic to invest wisely.

Decision Tree: What is your bottleneck?

Scenario A: "I spend 30 minutes just building the file."

• Diagnosis: Software Friction.
• Action: Upgrade to Essentials for BX fonts or Thumbnailer to find files faster.

Scenario B: "I spend 10 minutes struggling to hoop a thick towel/sweatshirt."

• Diagnosis: Physical Friction.
• Action: Your standard hoop is failing. Consider a hoop master embroidery hooping station for alignment or a magnetic hoop for thick materials.

Scenario C: "I have 50 shirts to do and my single-needle machine takes forever."

• Diagnosis: Capacity Friction.
• Action: Software won't help here. You have outgrown your hardware. This is the trigger point to look at SEWTECH multi-needle machines, which allow you to set up multiple colors at once and embroider much faster.

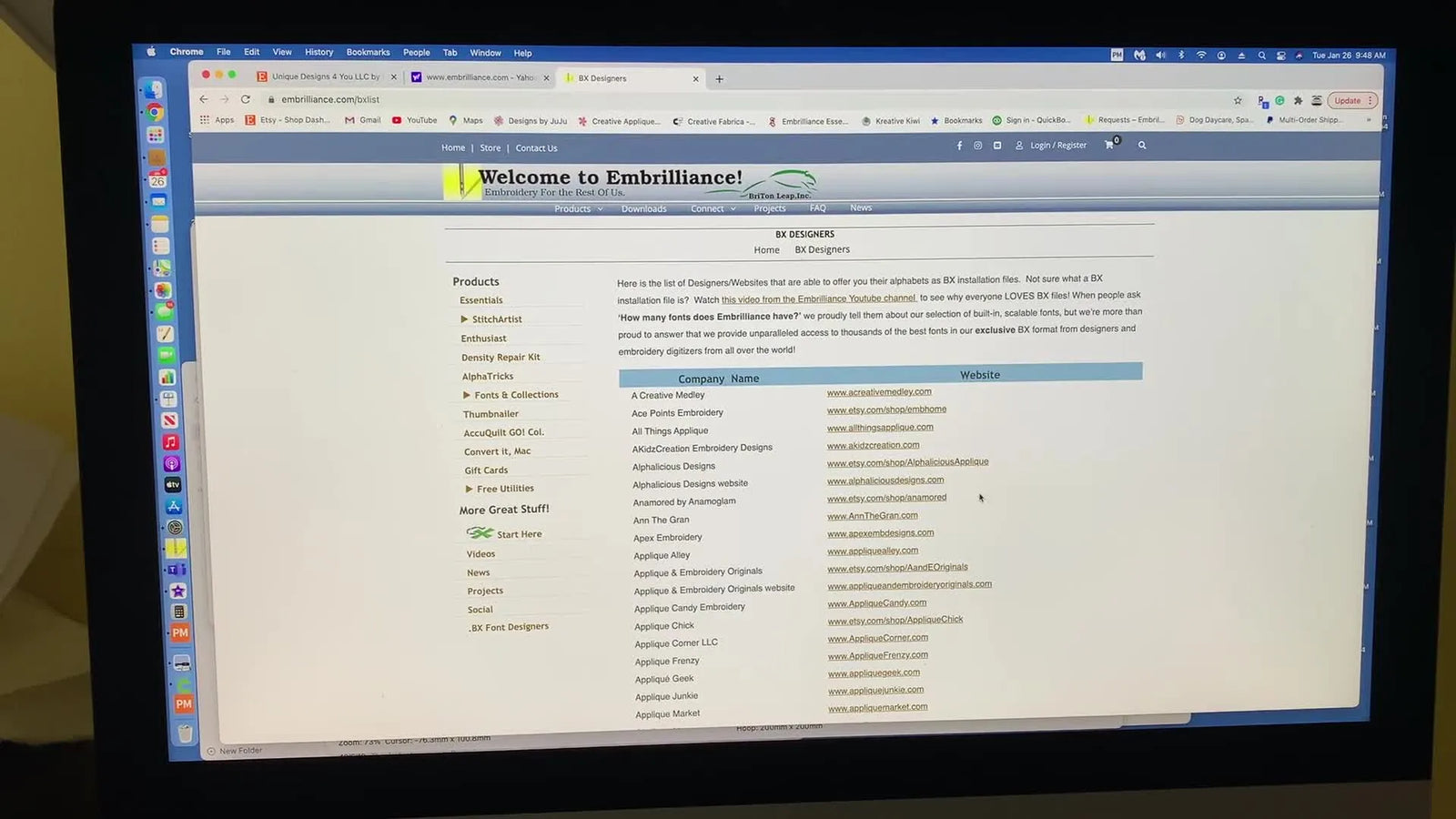

Where to buy BX fonts and designs safely: use the official BX Font Designers list

Jeanette points to the official list (Designs By JuJu, Itch to Stitch, etc.). This is vital for File Hygiene.

Commercial Quality vs. Free Quality

Free designs often lack proper underlay (the foundation stitches that stabilize the fabric before the top stitches).

• The Risk: Without underlay, the design sinks into the fabric (especially fleece/towels).
• The Solution: Buy from reputable digitizers. Their files are "engineered" to sit on top of the fabric.

Pro Tip: When downloading, organize your files immediately. Create a folder structure: Category > Designer > Design Name.

Updates, refunds, and the boring stuff that saves your weekend: handling Embrilliance updates without panic

Software updates are necessary, but they can reset preferences.

Operation Checklist (The "Disaster Prevention" Protocol)

• Update Timing: Never update your software (or your machine firmware) on a Friday afternoon or right before a big order.
• File Backup: Keep your .be (working files) and .exp/.pes (stitch files) on an external drive or cloud storage.
• Test Stitch: After any major update or machine repair, run a simple "H" test (a capital H) to check tension and alignment.

Warning (Physical Safety): Never put your hands near the needle bar while the machine is operating. A machine running at 600-1000 stitches per minute can puncture bone instantly. Always stop the machine completely before re-threading or adjusting the hoop.

The upgrade result: faster files + faster hooping is how beginners become “reliable” (and start earning)

Jeanette’s exploration of Embrilliance outlines the digital path to success: Edit -> Preview -> Font.

But remember, the embroidery process is a chain.

1. Software: Creates the map (Embrilliance).
2. Stabilizer: Provides the foundation (Cutaway/Tearaway).
3. Hoop: Secures the canvas (Magnetic/Standard).
4. Machine: Executes the plan (SEWTECH/Brother/etc.).

If you master the software but struggle with the embroidery machine for beginners physical setup, your results will suffer. Look for tools that simplify the physical struggle—better stabilizers, magnetic hoops, and reliable thread—to match your new digital speed.

Quick FAQ pulled from the comment section

• Q: How do I load BX fonts?
  • A: Drag and drop the .bx file onto the open program window. It installs instantly.
• Q: Can I use this on a Chromebook?
  • A: Generally, no. You need a Windows or Mac operating system.
• Q: My font looks too thin/small?
  • A: Check the designer's recommended minimum size. If you shrink it below that, the satin stitches become too narrow for the needle to form correctly.

FAQ

• Q: How do I install Embrilliance BX fonts correctly so the Text Tool generates stitches (not separate PES alphabet letters)?
  A: Buy the BX format and drag-and-drop the .bx file onto the open Embrilliance window to install it.
  • Confirm the font file extension is .bx before installing (not a folder of individual letters).
  • Open Embrilliance, then drag the .bx file directly onto the program window.
  • Type a name with the Text Tool to verify the font is available.
  • Success check: the name builds instantly as one text object (not “A.pes, B.pes” imported one-by-one).
  • If it still fails: install the Embrilliance demo first to confirm the computer OS supports the desktop program (Mac/Windows, not Chromebook).
• Q: Can Embrilliance embroidery software run on a Chromebook (Chrome OS) for PES/DST editing?
  A: Generally no—plan on a Windows or macOS computer to avoid buying a second laptop later.
  • Verify the device operating system is Windows or macOS before purchasing modules.
  • Download and test the demo version on the intended computer.
  • Success check: the demo launches and you can open a design file without workarounds.
  • If it still fails: switch to a supported computer rather than troubleshooting Chrome OS limitations.
• Q: How much can I resize an embroidery design in Embrilliance Essentials without causing dense, stiff stitching and needle breaks?
  A: Stay within about ±10% as a safe zone; beyond ~20% you must ensure stitches are being recalculated (Process Stitches) or risk excessive density.
  • Resize conservatively first, then preview the result before stitching.
  • Use stitch processing when making larger changes so density is adjusted (not just “squeezed”).
  • Success check: the stitched area does not feel like cardboard and the machine does not sound like heavy “thud-thud-thud” punching.
  • If it still fails: return closer to original size and test-stitch a small sample before running the full item.
• Q: How do I prevent an embroidery needle from hitting the hoop when importing PES/DST files into Embrilliance (Trace + hoop margin)?
  A: Match the on-screen hoop to your real hoop and leave a safety margin (for a 100 mm hoop, keep the design under about 95 mm), then use the machine’s Trace before stitching.
  • Set the correct hoop size in software—“fits on screen” is not the same as “fits the hoop.”
  • Keep a buffer instead of sizing right to the frame edge.
  • Run the machine’s Trace function to confirm the needle path clears the hoop hardware.
  • Success check: the traced needle path stays comfortably inside the hoop boundary with no near-misses.
  • If it still fails: reduce design size slightly and re-check alignment/centering in software before re-hooping.
• Q: What prep items should be on the table before buying Embrilliance modules and starting a job (USB format, stabilizer, spray, needles)?
  A: Do a quick “before you spend / before you stitch” audit so software speed doesn’t get blocked by missing basics.
  • Verify you have a USB drive formatted to FAT32 if your machine requires it for reading files.
  • Stock stabilizer appropriate to fabric (cutaway for knits, tearaway for wovens) and temporary adhesive spray for floating when needed.
  • Keep fresh topstitch needles in common sizes (75/11 and 90/14) ready to swap.
  • Success check: you can load the stitch file, hoop, and start without stopping to buy supplies mid-job.
  • If it still fails: run a small test stitch on scrap to confirm the stabilizer/needle choice before committing to customer blanks.
• Q: Why does Embrilliance text look straight on-screen but stitch out crooked on a shirt (crooked name syndrome)?
  A: When text is straight in software but slants on the garment, the problem is usually physical hooping tension—not the Embrilliance alignment.
  • Re-hoop without pulling harder on one side; avoid “dragging” the fabric while tightening a screw hoop.
  • Use hoop grids/cutting-mat alignment so the garment grain is square to the hoop.
  • Consider a magnetic hoop style that presses straight down to reduce distortion from side-pulling (if compatible with your machine).
  • Success check: the hooped fabric is taut like a drum when tapped, but not stretched/distorted, and the stitched baseline looks level.
  • If it still fails: use the machine Trace to confirm placement, then re-check hoop lock-in on the machine arm (a loose hoop can shift).
• Q: What safety rules should beginners follow when using industrial-strength magnetic embroidery hoops and running 600–1000 SPM machines?
  A: Treat magnets and moving needle bars as real hazards—slow down and keep hands clear to prevent pinch injuries and needle punctures.
  • Handle magnetic hoops carefully; let magnets meet in a controlled way to avoid finger pinches.
  • Keep magnetic hoops at least 6 inches away from pacemakers or implanted medical devices.
  • Stop the machine completely before re-threading, adjusting the hoop, or reaching near the needle bar.
  • Success check: hands never enter the needle/hoop area while the machine is moving, and magnets are joined without snapping onto skin.
  • If it still fails: pause production and reset the workspace so tools, hoops, and garments can be handled without rushing.
