Embroidering Thick Non-Slip Woven Vinyl Placemats on a Brother PR1055X: The Magnetic Hoop Method That Won’t Crack, Pucker, or Punch Holes

Master Class: Embroidering on Woven Vinyl Placemats (The "Un-Hoopable" Substrate)

Embroidery is often described as art, but at its core, it is an engineering challenge. You are attempting to stabilize a flexible material, subject it to thousands of needle penetrations per minute, and expect it to remain flat.

When that material is a thick, non-slip woven vinyl placemat, the engineering challenge spikes. This material behaves less like fabric and more like a flexible plastic grid. It resists traditional hooping methods, it shows every perforation, and it creates friction that can heat up needles instantly.

If you have ever picked up one of these placemats and thought, "If I force this into a standard hoop, I’m going to break the hoop or ruin the mat," your instincts are correct.

This guide is designed to take you from apprehension to production. We will deconstruct the physics of the material, optimize your machine settings for safety, and utilize the right tools—specifically magnetic hooping systems—to turn this difficult substrate into a profitable, gift-worthy product.

1. Material Physics: Why Woven Vinyl is a "One-Shot" Game

To conquer woven vinyl, you must understand its structure. These mats are composed of coated polyester or vinyl strands woven into a grid. Unlike cotton, these strands do not "heal" or close up around a needle hole. Once you punch a hole, it is permanent.

The Density Trap

The most common mistake beginners make is treating vinyl like denim. If you use a design with high stitch density (like a standard satin stitch block or complex fill):

1. The Perforation Effect: The needle hits the same small area repeatedly, slicing through the vinyl strands.
2. Structural Failure: The design effectively cuts a hole in the mat, leaving the embroidery attached to nothing but a shredded hole.
3. Heat Friction: The rubbery coating grips the needle, creating friction heat that can snap thread or gum up the needle eye.

The Solution: "Airy" Digitizing

You must choose designs that "breathe."

• Avoid: Heavy tatami fills, dense satin columns, and intricate shading.
• Choose: Bean stitch sketches, open-style monograms, and "light" vintage motifs.

As shown in the reference project, a 4x4 holiday letter works because it relies on line work rather than fill work. When searching for assets, look for keywords like "sketch style," "redwork," or "light stitch."

2. Pre-Flight Preparation: The "Hidden" Consumables

Before we touch the machine, we need to gather the correct components. Professionals know that 90% of failures happen in the prep phase.

The Needle: Sharpness Over Size

Standard ballpoint needles (often used for knits) will struggle here. You need a needle that can pierce the vinyl coating cleanly.

• The Choice: 75/11 Sharp or 75/11 Universal.
• The Why: A size 75 is thin enough to avoid leaving crater-sized holes, but a "Sharp" point reduces the friction of entry.
• The Check: Run your fingernail down the shaft of the needle. If you feel even a microscopic burr, throw it away. Vinyl will catch that burr and tear; a fresh needle is the cheapest insurance you can buy.

The Thread: Visual Pop

Because the mat has a texture, matte thread often disappears.

• Recommendation: Use a high-sheen 40wt Polyester or Rayon (like the Floriani used in the example). Polyester is generally preferred for placemats as it withstands the inevitable food stains and scrubbing better than Rayon.

The "No-Iron" Rule

Critical: You cannot press this material. If you make a mistake or create "hoop burn" (creases from the frame), you cannot steam it out like a cotton shirt. Vinyl melts. This means your hooping technique must be flawless on the first try.

Checklist 1: Pre-Flight Prep

• Material Check: Hold the placemat up to the light. Can you see through the weave? If yes, proceed with "light" designs.
• Needle Install: Insert a fresh 75/11 Sharp. Ensure the flat side faces the correct way (back for home machines, usually right/back for industrial).
• Bobbin Check: Ensure you have a full bobbin. Running out mid-letter on vinyl often leaves a visible "tie-off" knot that is hard to hide.
• Design Preview: Print a paper template of your design to visualize the scale against the mat's massive texture.


3. The Hooping Protocol: Conquering the "Pop-Out"

This is the failure point for most people. Thick vinyl fights back against the inner ring of a traditional hoop. If you tighten the screw enough to hold it, you risk "hoop burn" (permanent crushing of the vinyl). If you leave it loose, the mat pops out mid-stitch, ruining the project.

The Upgrade Path: Magnetic Hooping

The industry standard solution for thick, un-hoopable items involves Magnetic Hoops. Unlike traditional hoops that use friction (inner ring against outer ring), magnetic hoops use vertical clamping force.

• For Home Users: If you are struggling with a single-needle machine, consider add-on magnetic frames or SEWTECH magnetic hoops compatible with your hoop bracket.
• For Prosumers/Pros: The setup uses a Mighty Hoop 5.5" combined with a HoopMaster Station.

The Hooping Station Logic

In production, "eyeballing" leads to crooked inventory. A hooping station allows you to use the physical edges of the placemat for alignment.

1. Dock: The bottom magnetic ring locks into the station.
2. Align: You slide the placemat until its edges hit the station's ruler guides (e.g., "Edge at line 12, Top at line 4").
3. Snap: You drop the top ring.

This is where hoopmaster station earns its keep: It guarantees that placemat #1 and placemat #12 look identical without you measuring every single time.

Warning: Magnetic Force Hazard
Commercial magnetic hoops (like Mighty Hoops) carry significant clamping force.
* Pinch Hazard: Keep fingers clear of the "snap zone." The magnets can pinch skin severely.
* Medical Devices: These produce strong magnetic fields. Do not operate if you have a pacemaker, and keep the hoops at least 12 inches away from sensitive electronics.

Alternatives for Home Users (Standard Hoops)

If you do not have a magnetic system yet:

1. Float Method: Hoop a piece of sticky stabilizer (tear-away) in your standard hoop. Score the paper to reveal the adhesive. Stick the placemat down.
2. Perimeter Basting: Add a basting stitch box around your design in the software to tack the mat down before the design starts. This is riskier than magnetic clamping but is the only safe way to use standard hoops without crushing the vinyl.

4. Stabilizer Strategy: The Decision Tree

One of the most controversial aspects of the reference project is the lack of stabilizer. The operator relied on the stiffness of the placemat itself. However, for a "Master Class" approach, we need a more nuanced rule set.

Vinyl has holes. If you put a white tear-away stabilizer behind it, you will see unsightly white fuzz poking through the mesh forever.

Decision Tree: Stabilizing Woven Vinyl

1. Is the Weave Very Open (See-Through)?
   • YES: Do NOT use standard Tear-Away. It will be visible.
     • Option A: No Stabilizer (if mat is very stiff and design is light).
     • Option B: Heavy Water Soluble Stabilizer (Badgemaster/Fibrous). This creates stiffness during stitching but washes away completely, leaving a clean back.
   • NO: You can use a standard medium-weight Tear-Away.
2. Is the Design Dense?
   • YES: You must use stabilizer to prevent the vinyl from distorting. Use the Water Soluble option from above.
   • NO: You can try "naked" stitching (No stabilizer), but slow your speed down.

Note regarding floating embroidery hoop techniques: If you choose to float these placemats, ensure you use a "basting box" stitch to lock the mat to the stabilizer before the main design begins.

5. Machine Setup & The "Crash" Prevention Trace

We are using a Brother PR1055X multi-needle machine in this scenario. However, the logic applies to any machine, from a single-needle Brother SE1900 to a 15-needle commercial unit.

Orientation and Rotation

Because of the magnetic hoop's attachment point, the placemat is often loaded "upside down" relative to the screen.

• Step: Rotate your design 180 degrees.
• Visual Check: Look at the screen. Is the letter right-side up relative to YOU standing in front of the machine?


The Mandatory Trace (The "Halo" Check)

This is the most critical safety step. Magnetic hoops have thick walls. If your needle bar descends and hits the plastic wall of the hoop, you will break the needle, potentially shatter the hoop, and knock your machine's timing out (a $300+ repair).

You must run a Trace (Trial). Watch the presser foot move around the perimeter of the design.

• The Safety Gap: Ensure there is at least a finger-width of clearance between the needle and the hoop wall at all times.
• The Depth: Remember, these hoops are taller than standard hoops. Ensure your presser foot height is adjusted so it doesn't drag on the hoop as it moves.

If you’re shopping for compatibility, this is where ensuring you have a verified magnetic hoop for brother matters more than brand hype. You need a hoop that has the correct brackets for your specific machine arm to ensure the sew field is centered.

Warning: Eye Protection
When working with thick substrates and heavy hoops, needle breakage is a real risk. If a needle strikes the magnetic frame or deflects off a thick vinyl knot, shards can fly. Always trace before stitching, and wear glasses/safety protection.

6. The Stitch-Out: Sensory Monitoring

You are now ready to stitch. Do not press "Start" and walk away to get coffee. You need to monitor the machine with your senses.

Speed Control: Find the Sweet Spot

The machine default might be 1000 SPM (Stitches Per Minute). This is reckless for woven vinyl. High speed increases "needle deflection"—where the needle hits a hard vinyl strand and bends slightly before penetrating. This causes skipped stitches or broken needles.

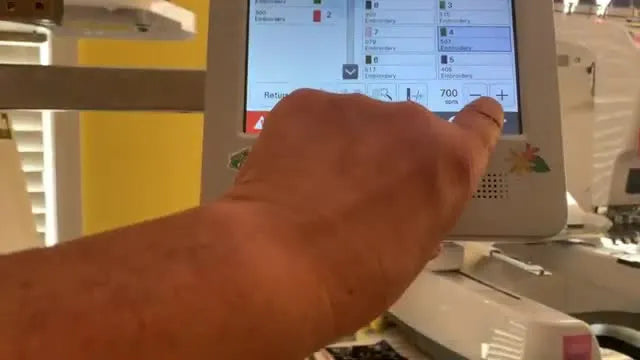

• Action: Lower speed to 600 - 700 SPM.
• The Trade-off: You lose 2 minutes of time, but you gain reliability.




Audio-Visual Monitoring

• Listen: You want a rhythmic "hiss-thump." If you hear a loud "SLAP" or a "GRINDING" noise, stop immediately. It means the needle is struggling to penetrate.
• Watch: Look at the thread path. If you see slack pooling near the tension disks or the needle bar, a "bird's nest" is forming.

Troubleshooting Scenario: The "Bird's Nest"

In the example project, Needle #4 creates a nest (a tangle of thread under the throat plate) immediately.

• Visual Cue: The thread shreds, or the machine sounds like it's eating gravel.
• The Fix:
  1. STOP. Do not let it run.
  2. Cut the thread at the spool and at the needle.
  3. Pull the thread completely out of the path.
  4. Rethread from scratch. Ensure the thread "clicks" into the tension disks.
  5. Check the bobbin: A nest often jams the bobbin case. remove the hoop, checking under the plate for stray threads.


Checklist 2: Final Setup & Operation

• Hoop Check: Is the magnetic hoop snapped firmly? Is the placemat taut (drum-like)?
• Trace: Did the needle clear the hoop walls by at least 15mm?
• Speed: Is the machine slowed to 700 SPM?
• Presser Foot: Is the foot height raised slightly (if your machine allows) to clear the thick mat?
• Observation: Watch the first 100 stitches like a hawk.

7. Post-Production: Dealing with "Hoop Burn"

Once the design is finished, you remove the hoop. You will likely see a square indentation where the magnet clamped the vinyl.

Do NOT grab the iron. As discussed, heat melts vinyl.

• The Solution: Time. Woven vinyl has a "memory." Lay the placemat flat on a warm surface (like a table in a sunny room) and let it rest for 24 hours. The fibers will usually relax back into shape.
• The "Hack": Some users suggest a hair dryer on a low setting from 12 inches away to encourage relaxation. Proceed with extreme caution.
• Prevention: If hoop burn is severe, try placing a layer of scrap fabric between the magnetic ring and the vinyl next time to cushion the clamp.


This is also where magnetic hoop embroidery becomes a real productivity tool. Because you are clamping vertically rather than stretching the fiber, the distortion is usually temporary compression, not permanent stretching.

8. Scaling Up: The Commercial Reality

If you successfully stitch one placemat, you have a nice gift. If you stitch a set of 8, or 50 for a wedding, you have a product line.

However, scaling up reveals the limitations of toolsets quickly.

• Pain Point: Wrist fatigue from snapping traditional hoops.
• Pain Point: Inconsistent placement (Placemat #3 is 1 inch lower than Placemat #4).
• Pain Point: Constant thread changes on a single-needle machine.

The Upgrade Logic: When these friction points become unbearable, that is your signal to upgrade your infrastructure:

1. Consistency Upgrade: The HoopMaster Station combined with a size like the mighty hoop 5.5 ensures every item is identical.
2. Productivity Upgrade: Moving to a multi-needle machine (like the Brother PR series or high-efficiency SEWTECH Multi-Needle Machines) allows you to set up 6-10 colors at once, eliminating the manual thread-change bottleneck.
3. Safety Upgrade: SEWTECH Magnetic Hoops allow for safer, faster hooping on a wider variety of machines, reducing the physical strain on the operator.

Summary

Embroidering on woven vinyl is about respecting the material. By slowing down, choosing open designs, using Sharp needles, and leveraging the physics of magnetic hooping, you can turn a dollar-store placemat into high-end decor. The key is to stop fighting the material and start engineering your process around it.

FAQ

• Q: What needle should a Brother PR1055X use for embroidering on thick woven vinyl placemats to avoid tearing and oversized holes?
  A: Use a fresh 75/11 Sharp (or 75/11 Universal) needle to pierce cleanly with minimal hole size.
  • Install: Replace the needle before starting the placemat (vinyl is unforgiving to dull points).
  • Inspect: Run a fingernail down the needle; discard any needle with even a tiny burr.
  • Stitch: Keep designs “light” so the needle does not repeatedly strike the same spot.
  • Success check: The needle penetrates with a clean sound and the vinyl strands are not visibly sliced or shredded around the stitches.
  • If it still fails: Slow the machine speed and switch to an even lighter, more open design style.
• Q: How can a Brother PR1055X operator prevent permanent hoop burn on woven vinyl placemats when hooping with a magnetic hoop?
  A: Clamp firmly but avoid over-compression, and plan for recovery time—vinyl cannot be pressed with an iron.
  • Cushion: Place a thin scrap fabric layer between the magnetic ring and the placemat if hoop burn is severe.
  • Rest: Lay the placemat flat on a warm surface and allow 24 hours for the indentation to relax.
  • Avoid: Do not iron or steam vinyl; heat can melt and permanently deform the surface.
  • Success check: The square clamp mark fades significantly after resting, and the placemat lies flat without a permanent crushed grid.
  • If it still fails: Reduce clamping pressure by re-hooping carefully and confirm the mat is not being stretched—only clamped.
• Q: What is the safest way to embroider woven vinyl placemats on a home single-needle machine using a standard hoop without crushing the placemat?
  A: Float the placemat on hooped sticky stabilizer and secure it with a perimeter basting box instead of forcing the placemat into the hoop.
  • Hoop: Hoop sticky tear-away stabilizer, then score and peel the paper to expose adhesive.
  • Stick: Press the placemat onto the adhesive in the correct position.
  • Add: Use a basting stitch box around the design to tack the placemat down before the main stitches begin.
  • Success check: The placemat does not shift during the first 100 stitches and no permanent hoop creases appear on the vinyl.
  • If it still fails: Upgrade to a magnetic hooping system for vertical clamping force rather than friction-based hoop pressure.
• Q: Which stabilizer should be used for embroidered woven vinyl placemats when the weave is open and tear-away stabilizer would show through?
  A: Use heavy water-soluble stabilizer (or no stabilizer only for very stiff mats with very light designs) to avoid visible fuzz in the holes.
  • Decide: If the placemat is see-through, avoid standard tear-away because it can remain visible through the weave.
  • Choose: Use heavy water-soluble stabilizer when the design is dense or when extra support is needed.
  • Test: For stiff mats and airy line-work designs, you may stitch without stabilizer, but slow the machine down.
  • Success check: The back looks clean (no white fibers poking through the mesh) and the design stays flat without distortion.
  • If it still fails: Reduce stitch density by switching to sketch/redwork/bean-stitch style designs.
• Q: Why must a Brother PR1055X run a Trace (Trial) before stitching when using a tall magnetic hoop on woven vinyl placemats?
  A: Trace is mandatory to prevent the needle bar or presser foot from striking the magnetic hoop wall and breaking needles or causing timing damage.
  • Run: Use the machine’s Trace/Trial function and watch the full perimeter travel of the design.
  • Verify: Maintain at least a finger-width clearance between the needle path and the hoop wall at all points.
  • Adjust: Raise presser-foot height slightly (if the machine allows) so the foot does not drag on the taller hoop.
  • Success check: The trace completes with no contact, no rubbing sounds, and clear clearance around the entire design boundary.
  • If it still fails: Reposition or rotate the design (often 180°) and re-center within the sew field before tracing again.
• Q: How do you fix immediate bird’s nesting on a Brother PR1055X multi-needle machine during woven vinyl placemat embroidery (thread shredding or “eating gravel” sound)?
  A: Stop immediately and fully rethread that needle path, then check for bobbin-area thread jams before restarting.
  • Stop: Hit stop as soon as shredding, nesting, or harsh grinding sounds appear.
  • Cut: Cut thread at the spool and at the needle, then pull the thread completely out of the path.
  • Rethread: Rethread from the start and make sure the thread seats (“clicks”) into the tension discs.
  • Check: Remove the hoop and inspect under the throat plate/bobbin area for jammed threads that can lock the bobbin case.
  • Success check: The restarted stitch-out sounds rhythmic and smooth, and the underside shows normal bobbin pickup without a growing knot.
  • If it still fails: Replace the needle and re-check the bobbin is full to avoid a visible mid-design tie-off on vinyl.
• Q: When embroidering multiple woven vinyl placemats for a set, when should a home embroiderer upgrade from standard hooping to magnetic hoops or a multi-needle machine for consistency and efficiency?
  A: Upgrade when placement inconsistency, wrist fatigue, or constant thread changes become the bottleneck—fix technique first, then upgrade tools, then upgrade capacity.
  • Level 1 (Technique): Slow speed to 600–700 SPM, use airy designs, and always trace for clearance.
  • Level 2 (Tool): Move to magnetic hooping to prevent pop-outs and reduce hoop pressure marks compared to friction hooping.
  • Level 3 (Capacity): Consider a multi-needle platform when repeated color changes on single-needle workflow dominate production time.
  • Success check: Placemat #1 and placemat #12 place identically and stitch without pop-outs, re-hooping retries, or frequent stops.
  • If it still fails: Add a hooping station-style alignment method so the placemat edges become hard physical alignment references instead of “eyeballing.”
