Embroidery Studio Software Essentials That Prevent Costly Placement Mistakes: Hoops, Center Bottom, Thread Palettes, and Operator Printouts

When an embroidery job fails, it rarely happens because the stitches were “mysterious” or the machine was moody. It fails because the digital setup was vague. Most disasters—broken needles, shifted designs, or the dreaded "hoop burn"—are baked into the cake before you even press the start button.

As someone who has spent two decades listening to the rhythm of embroidery machines, I can tell you that successful embroidery is 80% preparation and 20% execution. Deep down, you aren't just afraid of ruining a shirt; you're afraid of the frustration that comes from not knowing why it happened.

This guide is your stabilizing anchor. It transforms the "guesswork" of software setup into a calm, repeatable workflow. We will walk through the exact digital protocols I use to keep designs predictable from the computer screen to the needle bar—especially on high-stakes items like caps and pocket placements where a few millimeters is the difference between profit and a rag.

The Calm-Down Check: What Embroidery Studio “View” Settings Actually Protect You From

The View menu isn’t cosmetic—it is your first quality-control gate. Beginners often skip this to "save time," only to lose hours later unpicking stitches.

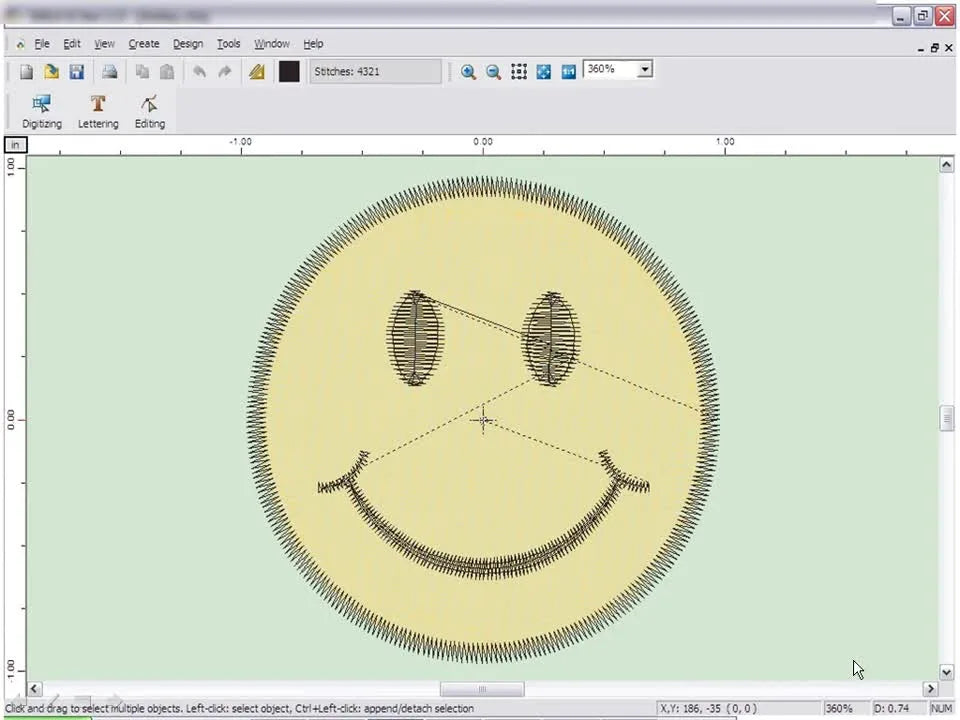

Start by using View options to force your screen to tell you the truth before you touch size, rotation, or colors:

• Change the background screen color: If your design has white text and the default background is light grey, your eyes will miss edge details. Set it to a high-contrast color (like a dark fabric tone) to see the perimeter clearly.
• Use Realistic View (TrueView): This is non-negotiable. It displays stitches with the texture and thickness of real thread.
  • Why this matters: A flat line on a screen looks fine, but in Realistic View, you might see that the satin column is too thick or the letters are closing up. If it looks "muddy" or congested here, it will be a bulletproof patch on the machine.
• Turn on a grid: Activate the background grid for a quick visual reference of symmetry. It acts as your digital ruler.
• Use Show/Hide Hoop: Never guess if a design fits. Toggle this on so you aren't "hoping" it fits the sewing field—you know it does.




Pro tip (sensory check): If you are a beginner, slow visuals beat fast shortcuts. When you look at the screen in Realistic View, does the design look "breathable" and clean, or does it look like a dense, heavy sticker? If your gut says it looks heavy, your machine will sound heavy—expect loud thump-thump sounds and potential thread breaks. Trust your eyes so you don't have to trust your luck.

The Hoop Overlay That Saves You: Selecting a 125mm/150mm Hoop (or Building a Custom Hoop)

If you only do one thing before production, do this: put the correct virtual hoop on the screen. This is the "contract" between your software and your machine's physical limits.

In Embroidery Studio:

1. Go to View.
2. Choose Show/Hide Hoop.
3. The first time you do this, a separate window opens titled “Read/create HOOP frames.”
4. Scroll the list and select the hoop you need (the video shows options like 125mm and a 150mm Round Hoop).
5. Click OK and the hoop boundary displays on your workspace.




When the list doesn’t match your hardware: create a custom hoop

If your physical frame isn’t represented accurately in the predefined list, do not "make do" with a close match. Click New Hoop and go through the Hoop Creation Wizard.

The Reality Check: A hoop overlay is not just a boundary line; it is a safety zone. If the software hoop doesn't match the real hoop, you can center the design perfectly on screen and still shatter a needle on the plastic frame of the physical hoop.

Industry Insight: If you are moving toward faster, cleaner hooping—especially for repeat corporate orders—this is where professionals upgrade. Old-fashioned plastic hoops often require Herculean strength to close on thick fabrics and can leave "hoop burn" (permanent ring marks). This is why many shops switch to magnetic embroidery frames. These tools use strong magnets to hold fabric without forcing it into a ring, preventing burn marks and relieving wrist strain. But remember: if you upgrade your physical tool, you must update your software hoop definition to match it.

The Placement Switch That Stops Cap and Pocket Disasters: “Center Bottom” Origin in Center Design

Most placement mistakes on caps and pockets come from a cognitive error: assuming the "middle" is the most important point. It isn't. On a cap, the brim is your hard stop. On a pocket, the top seam is your hard stop.

Go to:

• Design > Center Design

A dialog opens with options for where the design origin (the X,Y start/end reference point) will be placed.

Use “Center Design” for most flat placements

For standard items like tote bags or jacket backs, select Center Design. This centers the origin (0,0) right in the middle of the design. This corresponds to the crosshairs you marked on the fabric.

Use “Center Bottom” for caps and pocket shirts

For caps and above-pocket placements, select Center Bottom. This keeps the design centered left-to-right, but anchors the origin at the absolute bottom of the design.

Why this works: When you load the file at the machine, the design’s reference point behaves the way your hands and eyes naturally align a cap front. You line up the bottom of the design with the brim (leaving a safety gap). The design grows up from that point, ensuring it never crashes downwards into the bill.

If you routinely stitch on headwear, pairing this "Center Bottom" software habit with a dedicated cap hoop for embroidery machine is the secret to consistent production. It reduces the "floating" feeling of trying to center a logo on a curved surface.

Warning: Don’t treat “Center Bottom” as a universal setting. On many flat garments (like a towel), it can shift your mental reference and cause you to place the design too low. Use it specifically when the garment’s real-world alignment is bottom-referenced (caps, pockets), and always trace the design on the machine before stitching.

The Resize-and-Rotate Routine That Prevents Distortion: Padlock, Percentages, and Degrees

Once your hoop and origin are correct, then you touch size and rotation. Doing this in reverse order often leads to centering errors.

Go to:

• Design > Change Size

The Transform Design window opens.

Resize without distortion (the padlock rule)

• Enter a new size for X (Width) or Y (Height).
• By default, specific embroidery software changes the other dimension proportionately.
• The Trap: If you see your logo get "squashed" or "stretched" (e.g., a circle becomes an oval), check the Padlock icon. If it is unlocked, you are destroying the design aspect ratio.
• The Fix: Click the Padlock so X and Y scale together.

The Safety Limit (The +/- 20% Rule)

Beginner Sweet Spot: Try not to resize a design by more than 10-20% up or down without re-digitizing (processing the stitches again).

• Too Small: If you shrink a design by 50%, the stitch density becomes too high. You will create a "bulletproof" patch that breaks needles and puckers fabric.
• Too Big: If you expand by 50%, the stitches become long and loose (snag hazards), and gaps will appear between fills.

Resize by percentage when you’re dialing in fit

If you prefer scaling by ratio:

• Check the Percentage box.
• X and Y values change to 100%.
• Decrease to 90% or 95% to make subtle adjustments.


Rotate with intention (degrees + direction)

In the same window:

• Type the rotation in degrees.
• Choose clockwise or counterclockwise.


Checkpoint: After resizing/rotating, look back at the hoop overlay. If the design is now “technically inside” the hoop but sitting within 5mm of the plastic edge, you are in the danger zone. Real fabric moves; machine arms vibrate. Give yourself a safety margin. From a production standpoint, precise software alignment pairs perfectly with physical tools like hooping stations, which ensure that the garment is loaded straight every single time.

Thread Color Mapping That Keeps the Shop Honest: Using Stitch Colors Palette with Madeira/Isacord

Screen colors are just light; thread is physical matter. The Stitch Colors Palette is how you translate "looks right on monitor" into "operator pulls the right cones."

Go to:

• Tools > Stitch Colors Palette

A floating Stitch Colors window appears showing each color block in the design.

Map colors using a thread brand palette

1. Click the color bar you want to change (left side of the palette/design list).
2. Choose a thread brand from the dropdown. The video demonstrates Madeira Cotona, but you will also see industry standards like Madeira Polyneon and Isacord 40.
3. Click the desired shade from the spectrum.

The software will match the closest physical thread color code to your screen color.

Why this prevents real-world disasters:

• Theory: "I want it blue."
• Reality: "Did you mean Navy 1842 or Royal 1934?"
• Mapping colors forces you to make that decision before production. It turns your worksheet into a precise recipe, not a suggestion. Consistency is cheaper than constantly substituting threads.

The Ruler Tool That Catches Pocket-Edge and Cap-Brim Collisions Before You Stitch

If you have ever stitched a design that fit the hoop but slammed into a denim seam or a cap bracket, you know the sound of a breaking machine. It is a loud, sickening crunch.

Prevent that sound with the Ruler tool:

1. Click the Ruler icon (or press 'M' in many programs).
2. Click once at the bottom of your design.
3. Drag straight down to the "Center Bottom" origin or the hoop edge.
4. Read the Distance displayed at the bottom status bar.
5. Click to exit.


Expected Outcome: You verify critical clearances. For example, if you are using a pocket hoop for embroidery machine, you usually have a very tight vertical limit. Measuring ensures your design doesn't stray into the metal clamping mechanism.

The Print Workflow Operators Actually Use: Company Logo + Color Block Analysis Worksheets

A professional shop doesn’t rely on memory. Memory fails when the phone rings. We rely on documentation.

Click the Print icon to open Print Preview.

In Print Preview, configure the "Traveler Sheet":

• Company Logo: Check this to look professional.
• Color Block Analysis: THIS IS CRITICAL. Check this box to generate a separate page that breaks down each color step individually, showing the stitch count and thread code for each stop.


Click the Printer icon to print.

The "Why" for Production: The Color Block Analysis is the script for the machine operator. When you are running a single-needle machine with frequent yarn changes, or setting up a multi-needle machine, this sheet prevents the classic mistake of swapping Color 3 and Color 4.

The “Hidden” Prep Pros Do Before They Touch the Machine: File, Hoop, and Operator Readiness

This phase is the "Pre-Flight Check." It is the difference between a hobbyist and a professional.

Before you export the file to USB or send it to the machine:

• Consumables Check: Do you have the right needle? (Standard is 75/11, but use 90/14 for denim/caps). Do you have the right backing? (Tearaway for stable fabrics, Cutaway for knits/polos).
• Stabilization: Are you using temporary spray adhesive? It helps keep backing prevents fabric shifting.
• Efficiency Check: If you are using magnetic embroidery hoops, confirm that your software hoop choice allows for the magnet's thickness. These frames are incredible for speed, but you must respect their boundaries in the software.

Prep Checklist (Do not proceed until all are checked)

• View: Realistic View enabled (design doesn't look too dense).
• View: Grid enabled for visual symmetry check.
• Hoop: The on-screen hoop matches the exact physical hoop you will grab.
• Origin: Center Design for flats; Center Bottom for caps/pockets.
• Size: Padlock was locked during resizing; scale is within +/- 20%.
• Rotation: Orientation (portrait/landscape) aligns with the garment.
• Threads: Colors are mapped to specific brand codes/numbers.
• Clearance: Measured critical distance from edge/seams using Ruler.
• Paperwork: Color Block Analysis is printed.

The “Why It Works” Layer: Hooping Physics, Repeatability, and Where Software Choices Meet Fabric Reality

The software handles the math, but your hands handle the physics.

Hooping physics (What the screen can't feel)

Fabric is fluid. It stretches, ripples, and bounces. When you define "Center Bottom" for a pocket, you are anchoring the design to the most stable part of that area.

In production, repeatability is everything. If you embroider 50 shirts, they must look identical. A consistent hooping method—checking the same grid lines, using the same origin—reduces variation. This is where physical tools meet digital settings. Using a magnetic hooping station allows you to place the hoop in the exact same spot on the garment every time, while the software settings ensure the design lands in the exact same spot within that hoop.

Commercial scalability (Where time disappears)

If you are doing one item, you can "eyeball" it. If you are doing 50, you cannot. Documentation (the printout) allows you to scale.

If you find yourself spending 5 minutes hooping a single shirt, your bottleneck is physical. This is when upgrading to a hooping station for embroidery or magnetic frames becomes a business decision, not just a luxury. They pay for themselves by recovering lost time.

When Something Looks Wrong, Don’t Panic—Diagnose It Like a Tech

Troubleshooting is just logic in disguise. Here are the common failures and their specific fixes.

Symptom: Design is distorted (Squashed/Stretched)

• Likely Cause: Proportional scaling was disabled during resize.
• Quick Fix: In Transform Design, click the Padlock icon.
• Prevention: Always check the aspect ratio before saving.

Symptom: Design hits the cap brim or pocket seam

• Likely Cause: Used "Center Design" instead of "Center Bottom," or didn't measure clearance.
• Quick Fix: Change origin to Center Bottom; physically measure the available space on the garment and verify with the Ruler tool.
• Prevention: Always trace/box the design on the machine before stitching.

Symptom: Thread colors are wrong on the finished product

• Likely Cause: Operator guessed colors based on screen appearance.
• Quick Fix: Re-thread based on the Color Block Analysis sheet.
• Prevention: Map specific thread brands (Madeira/Isacord) in the software.

Warning: Mechanical Safety
Never place your hands near the needle bar or hoop while the machine is moving. Even during a slow "trace" or frame travel, the machine moves with enough torque to injure fingers. Always keep loose hair, jewelry, and drawstrings tied back.

The Upgrade Path That Feels Natural: Faster Hooping, Fewer Re-runs, Cleaner Hand-offs

Once you master the software workflow, your next bottleneck will be physical handling and volume.

Here is a logical path for upgrading your toolkit:

1. Level 1 (Process): Fix your software Setup. Use the checklists above. Cost: $0.
2. Level 2 (Efficiency): Fix your Hooping. If you struggle with thick garments, wrist pain, or hoop burn, magnetic frames are the industry solution. They hold strong without the "fight."
3. Level 3 (Throughput): Fix your Volume. If single-needle thread changes are killing your profit margins, multi-needle machines paired with hoopmaster hooping station systems are the standard for scalable production.

Decision Tree: Select Your Approach

Use this logic to choose your setup for each job.

1. What is the Item?

• Structured (Cap/Backpack): Use Center Bottom Origin. MUST Measure vertical clearance. Stabilizer: Tearaway (usually).
• Stretchy (Polo/T-Shirt): Use Center Design. Stabilizer: Cutaway (Mesh or Heavy). Tip: Don't pull fabric too tight!
• Flat/Stable (Towel/Canvas): Use Center Design. Stabilizer: Tearaway or Water Soluble (for pile).

2. What is the Volume?

• One-off (1 unit): Manual marking is fine. Print worksheet for reference.
• Production (20+ units): Use a hooping station fixture. Use Magnetic Hoops to reduce operator fatigue.

3. What is the Risk?

• High Risk (Expensive Jacket): Run a sew-out sample on scrap fabric first. Check density in Realistic View.

Warning: Magnetic Safety
magnetic embroidery hoops use powerful industrial magnets. They can pinch fingers severely if handled carelessly. Keep them away from pacemakers, ICDs, and other implanted medical devices. Do not place them near credit cards, hard drives, or smartphones.

Setup Checklist (Before Exporting File)

• Hoop: Software overlay matches physical frame (Custom created if needed).
• Origin: Correctly set for item type (Bottom vs Center).
• Scale: Design is within safe stitch-density limits (+/- 20%).
• Colors: Thread brand assigned.

Operation Checklist (At the Machine)

• Consumables: Correct backing and needle (75/11 or 90/14) installed.
• Documentation: Color Block Analysis matches machine thread order.
• Trace: Run a contour trace on the machine to visually confirm placement.
• Clearance: Physical hoop has full range of motion without hitting machine arms.

By following this "Code of Conduct," you stop being a person who hopes the embroidery works, and start being a professional who knows it will.

FAQ

• Q: In Wilcom EmbroideryStudio, what “View > Realistic View (TrueView)” settings should be turned on to prevent overly dense, muddy embroidery results?
  A: Turn on Realistic View (TrueView) and use it as a density warning system before you change size, rotation, or colors.
  • Enable Realistic View (TrueView) so stitches display with real thread thickness.
  • Change the background to a high-contrast color so white/light details and edges are visible.
  • Turn on the grid for fast symmetry and sizing reference.
  • Toggle Show/Hide Hoop so the design is evaluated inside the sewing field, not “floating” on screen.
  • Success check: The design looks “breathable” and clean in TrueView (not like a heavy sticker), and you do not expect loud “thump-thump” punching sounds during sew-out.
  • If it still fails… reduce the design size change to within the +/-20% safety limit or reprocess/re-digitize rather than forcing a dense file to stitch.
• Q: In Wilcom EmbroideryStudio, how do I select the correct 125mm/150mm hoop overlay using “View > Show/Hide Hoop” to stop needle hits on the physical hoop?
  A: Select the exact hoop frame in the hoop list (or create it) so the on-screen boundary matches the real hoop you will use.
  • Go to View > Show/Hide Hoop to open the “Read/create HOOP frames” window.
  • Select the correct hoop (for example 125mm or 150mm Round Hoop) and click OK to display the boundary.
  • Create a custom hoop with New Hoop + the Hoop Creation Wizard if the predefined list does not match the physical frame.
  • Success check: The design sits comfortably inside the hoop boundary with a safety margin (not riding within a few millimeters of the edge).
  • If it still fails… stop and re-verify the physical hoop size/type in hand matches the software selection; a “close enough” hoop definition can still cause a real hoop collision.
• Q: In Wilcom EmbroideryStudio, when should “Design > Center Design > Center Bottom” be used for cap embroidery and pocket embroidery to prevent brim or seam collisions?
  A: Use “Center Bottom” when the real-world placement is bottom-referenced (caps and above-pocket placements) so the design grows upward away from the hard stop.
  • Open Design > Center Design and choose Center Bottom for caps and pocket-area placements.
  • Align the bottom of the design with the brim/top seam area while leaving a safety gap, then trace/box the design on the machine before stitching.
  • Use Center Design (true center origin) for most flat placements where the crosshair is the true reference.
  • Success check: During machine trace/outline, the design path clears the cap brim/pocket seam and does not drift downward into hardware or stitching lines.
  • If it still fails… measure the available vertical clearance with the software ruler tool and reduce/adjust the design placement rather than “eyeballing” it.
• Q: In Wilcom EmbroideryStudio, how do I resize an embroidery design without distortion using “Design > Change Size” and the padlock, and what is the safe +/-20% resizing limit?
  A: Lock the padlock so X and Y scale together, and keep resizing within about 10–20% unless the design is re-digitized/reprocessed.
  • Go to Design > Change Size (Transform Design) and confirm the Padlock icon is locked before changing X or Y.
  • Scale by Percentage for small adjustments (e.g., 95% or 90%) when dialing in hoop fit.
  • Re-check the hoop overlay after resizing/rotating to ensure the design is not sitting within the edge danger zone.
  • Success check: Circles stay circular (no squashing/stretching), and the design still has a clear margin inside the hoop boundary.
  • If it still fails… do not push extreme resizing (like 50%); re-digitize/reprocess the file to correct density and stitch behavior.
• Q: In Wilcom EmbroideryStudio, how do I map thread colors using “Tools > Stitch Colors Palette” with Madeira or Isacord so operators stop guessing thread cones?
  A: Assign a real thread brand palette and code to every color block so the worksheet becomes a repeatable recipe.
  • Open Tools > Stitch Colors Palette and click the specific color bar you want to change.
  • Choose a thread brand palette (e.g., Madeira or Isacord) and select the closest shade/code from the palette.
  • Print the Color Block Analysis so the machine operator follows the exact stop-by-stop thread order.
  • Success check: The operator can pull thread by brand code/number (not by screen appearance), and finished colors match the intended shades consistently.
  • If it still fails… re-check that the correct brand palette was selected for every block and that the printed Color Block Analysis matches the machine’s needle/thread order.
• Q: In Wilcom EmbroideryStudio, how do I use the Ruler tool to measure pocket-edge clearance or cap-brim clearance before stitching to avoid a hoop/bracket crash?
  A: Measure the critical distance in software before production so the design cannot drift into seams, brackets, or hard stops.
  • Click the Ruler icon (often ‘M’), click at the bottom of the design, and drag to the Center Bottom origin or to the hoop edge reference.
  • Read the distance in the status bar and compare it to the garment’s real available space (especially tight pocket fixtures).
  • Adjust origin/placement (Center Bottom vs Center Design) and/or scale to restore safe clearance.
  • Success check: The measured clearance confirms a safe buffer, and the machine trace shows no path approaching seams, pocket hardware, or cap fixtures.
  • If it still fails… stop the run and re-hoop/remark placement; “fits the hoop” is not the same as “clears the garment hardware.”
• Q: What mechanical safety rules should be followed when running an embroidery machine trace/outline so hands do not get injured by the needle bar or moving hoop?
  A: Keep hands, hair, jewelry, and drawstrings away from all moving parts—even during slow trace—because the machine has enough torque to injure fingers.
  • Keep both hands out of the hoop travel area during trace, frame travel, and stitching.
  • Tie back loose hair and secure jewelry/drawstrings before pressing start.
  • Use the machine’s trace/box function as a visual check, not as a moment to “hold fabric in place.”
  • Success check: The hoop completes its full travel path without any hand needing to stabilize the garment, and the operator can observe safely from outside the motion envelope.
  • If it still fails… pause/stop immediately and re-hoop or correct clearance—never attempt to “guide” the fabric by hand while the machine is moving.
• Q: What magnetic embroidery hoop safety precautions should be followed to prevent finger pinches and pacemaker/ICD risks when using industrial magnetic frames?
  A: Handle magnetic embroidery hoops as high-force tools: they can pinch fingers severely and must be kept away from pacemakers/ICDs and sensitive items.
  • Separate and re-seat magnets with controlled hand placement to avoid pinch points.
  • Keep magnetic hoops away from pacemakers, ICDs, and other implanted medical devices.
  • Do not place magnetic hoops near credit cards, hard drives, or smartphones.
  • Success check: The hoop closes without sudden snapping on fingertips, and the operator maintains a deliberate, repeatable loading motion without strain.
  • If it still fails… slow down the loading routine and re-check that the software hoop definition accounts for the frame’s usable boundary so the design is not forced into risky edge conditions.
