End-to-End Quilting on a Brother Luminaire: Projector Alignment + Magnetic Sash Frame Hooping That Won’t Fight You

If you’ve ever reached the last stretch of a big quilt and felt your stomach drop—because one wrong alignment can leave a visible “step” in the quilting line—you’re not alone. In my 20 years of embroidery education, I have seen more tears shed over end-to-end quilting alignment than almost any other technique. The good news: on a Brother Luminaire, the built-in projector can turn that stressful moment into a calm, repeatable routine.

In this walkthrough, we’re recreating Mel’s exact workflow for end-to-end quilting: find the microscopic endpoint, use the projector’s red box to target the connection point, align projected lines to the previous stitching, then hoop with a magnetic sash frame in a way that keeps the quilt loft happy.

Why the Magnetic Sash Frame on a Brother Luminaire Feels Like Cheating (In a Good Way)

A thick quilt sandwich (top fabric + lofty batting + backing) is the perfect storm for traditional hoops: bulk, drag, and that constant fear of "hoop burn" or distortion. Mel’s reaction is the one I hear from experienced stitchers all the time—magnetic frames can feel like a luxury investment until you use one on a real quilt and realize how much wrestling they remove.

From a physics perspective, a traditional hoop relies on friction and compression—literally crushing the fibers between two plastic rings to hold them still. This is fine for thin cotton, but for a quilt, it compresses the batting, creating a "valley" that may not pop back up, leaving permanent marks.

If you’re currently fighting with a standard hoop, a magnetic frame for embroidery machine is often the cleanest “tool upgrade path” because it reduces two hidden costs at once: (1) the time spent re-hooping (which can take 10+ minutes per block with standard hoops) and (2) quality loss from over-tensioning a lofty sandwich.

Here’s the key mindset shift for quilting versus dense embroidery:

• Standard Embroidery wants stable, firm tension (like a drum skin) to support high stitch counts (20,000+ stitches).
• Quilting wants controlled support without crushing the batting loft.

That’s why Mel hoops “secure but airy,” using only enough magnets to hold each side. You want the fabric to float securely, not scream under pressure.

The “Upside-Down” Trap: Rotate the Brother Luminaire Design 180° Before You Stitch a Single Line

Mel is finishing the last section of her quilt after starting at one end, reaching the middle, and then flipping the quilt to work from the opposite direction. That’s a smart way to manage the bulk of a large project—but it creates a classic failure point that software can't automatically detect.

• Physical Reality: The quilt orientation changes when you physically flip the excess fabric to the front.
• Digital Reality: Your design in the machine must match that new orientation.

Mel’s fix is simple and absolutely worth copying: she sets the design orientation to 180 degrees (upside down) so the digital design matches the quilt’s current position.

Warning: The "No Undo" Danger Zone. If you quilt a full run and then realize the design orientation was wrong, there’s no “undo” that truly disappears on a quilt sandwich. Unpicking leaves visible needle holes in delicate backing and can shred batting. Always double-check orientation before you align the connection point.

The “Hidden” Prep Mel Doesn’t Show Much: Quilt Sandwich Setup That Prevents Shifting at the Connection Point

A viewer asked, “How did you prep your quilt?”—and that question matters because end-to-end quilting is unforgiving: if the layers creep (shift relative to each other), your connection point can drift by millimeters, creating a visible gap.

Mel’s video shows the quilt already assembled (top, batting, backing). From a production standpoint, your goal is to make sure the sandwich behaves like one unit in the hooping zone.

Practical Prep Principles (The "Pre-Flight" Check):

• Support the Weight: Gravity is your enemy. If your heavy quilt is dragging off the table, it pulls against the hoop. Keep the working area flat and supported.
• Prevent "Bias Stretch": Avoid over-handling the connection point area—finger pressing and repeated repositioning can subtly stretch bias seams, making squares look like diamonds.
• Mark the "Flip": If you know you’ll quilt from both ends, mark your orientation with a removable sticker so you don’t second-guess yourself later when fatigue sets in.
• Consumable Check: Ensure you are using a fresh needle appropriate for quilting (e.g., Quilting 75/11 or Topstitch 90/14). A dull needle will push the batting down rather than piercing it, causing skipped stitches.

Prep Checklist (do this before you touch the projector)

• Needle Inspection: Is the needle fresh? (Replace every 8 hours of stitching).
• Orientation Check: Confirm the quilt is positioned the way you intend to stitch (Mel’s is upside down).
• Software Match: Confirm the design in the machine matches that orientation (Mel uses 180° rotation).
• Endpoint ID: Identify the previous run’s endpoint marker (Mel uses a tiny dot on the fabric).
• Drag Prevention: Make sure the quilt is supported on the table/bed so it isn’t dragging while you align.
• Tool Readiness: Keep magnets nearby but don’t clamp yet—you need the quilt movable for alignment.


Finding the Microscopic End-to-End Dot: The One Reference Point That Makes or Breaks Continuous Quilting

End-to-end quilting designs (Mel uses Designs by Juju “end to end”) rely on a single connection point—basically, where the last stitched segment ends and the next one must begin.

Mel’s first move is not on the screen. It’s on the fabric:

1. She locates the tiny dot marking where the previous pattern ended.
2. She treats that dot as the alignment anchor.

Expert Insight: This is the part that trips up even intermediate users: the endpoint can be hard to see on patterned or busy fabric. If you rush here, you’ll spend ten times longer trying to “fix” alignment later.

Sensory Tip: If you can't see the thread end clearly, run your finger over the end of the stitching. You will feel a slight "knot" or stop point. Use a water-soluble marker to place a fresh, visible dot right next to it if needed.

A seasoned habit: once you find that endpoint, pause and visually memorize nearby fabric landmarks (e.g., "The dot is 2mm from the blue flower petal"). That way, if you bump the quilt while reaching for the touchscreen, you can quickly return to the same area without remeasuring.

Turn On the Brother Luminaire Projector and Use the Red Projection Box Like a Laser Pointer

Now we go to the Luminaire screen. This is where modern tech solves the "guesswork" of old-school placement.

Mel’s exact sequence:

1. Tap the Projector button on the touchscreen.
2. Wait for the red box to appear—this is the projection interface.
3. Remember the rule Mel calls out: you won’t see the whole design projected, only what’s inside that red box.
4. Drag the red box to the design’s connecting point (the end-to-end join area).

This is the “tell the projector what to show” moment. If the red box is centered somewhere random, you’ll be projecting the wrong part of the design and you’ll feel like alignment is impossible.

If you’re shopping for accessories, this is where a brother luminaire magnetic hoop setup shines: the projector gives you visual precision, and the magnetic frame provides the mechanical stability to lock that precision in place without distorting the quilt layers.

Align the Projected Lines to the Previous Stitching—Before You Clamp Anything

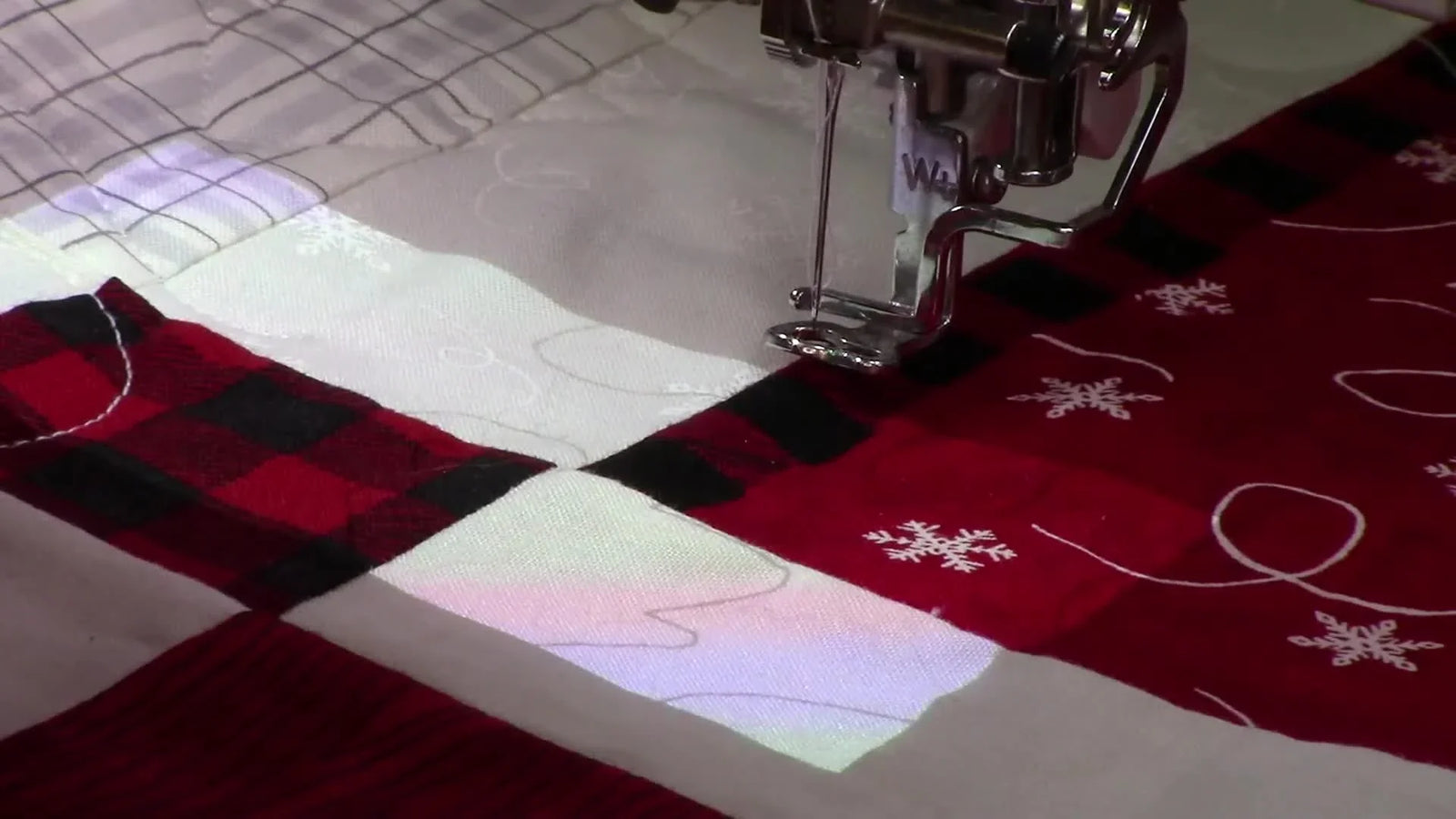

With the projector active, Mel moves back to the quilt and uses the projected light lines as a visual overlay.

Her goal is straightforward: Match the projected “start” to the stitched “end” already on the quilt.

She also notes something that often confuses viewers: camera recording can show weird flickering or interference lines in the projected light. Don't panic. That is a "stroboscopic effect" caused by the camera's shutter speed clashing with the projector's refresh rate. To your naked eye, the lines will look steady.

Here’s the technique nuance that matters:

• The quilt is still loose and adjustable at this stage.
• You shift the fabric physically until the projected green/red tail overlaps the stitched tail.

This is where magnetic frames are uniquely helpful. With a traditional screw-tightened hoop, you often have to hoop the fabric first, then try to align the design in software. If you hooped crookedly, you have to un-hoop and start over. With a magnetic sash frame, you align the fabric first, then simply drop the magnets. It allows for "Slide and Lock" adjustments rather than "Hoop and Pray."

Hooping “Secure but Airy” on a Brother Magnetic Sash Frame (Don’t Pull It Drum-Tight)

Now Mel clamps the quilt using the long magnetic bars on the sash frame.

Her method:

1. Smooth the quilt on the frame.
2. Use the projector’s lit block edge as a squaring reference.
3. Place the first magnetic bar.
4. Place the second magnetic bar on the opposite side.
5. Adjust if it shifts—because you still can.

Then she drops the most important quilting-specific advice in the whole video:

• She does not use all the magnets.
• She uses enough to do each side.
• She does not pull the quilt tight like a drum.
• She describes the hold as “airy”—supportive, not crushed.

The Physics of Loft: A quilt sandwich has thickness (loft). If you over-tension it (pulling it tight like a canvas), two things happen:

1. Compression: You crush the batting unevenly.
2. Spring-Back: After you un-hoop, the fabric relaxes and shrinks back, causing your beautiful straight stitches to pucker.

If you’re currently using standard hoops and seeing puckers or “flattened lanes,” a brother magnetic sash frame (or a compatible third-party magnetic sash-style frame from brands like SEWTECH) is often the simplest way to get consistent hold without over-stretching.

Warning: Magnetic Safety. Powerful magnetic bars (especially stronger aftermarket ones) can pinch fingers severely. Always keep fingers clear of the "snap zone" when seating the clamps. Keep these magnets away from children, pacemakers/implanted medical devices, and sensitive electronics. Store magnetic clamps separated by foam so they can’t snap together unexpectedly.

Setup Checklist (right before you press Start)

• Visual Lock: Confirm the projected lines still match the previously stitched endpoint perfectly.
• Squareness: Confirm the quilt is square to your reference (Mel uses the lit block edge and quilt edges).
• Magnet Check: Confirm magnets are secure on left and right (Mel uses only what she needs, but ensures no slippage).
• Weight Check: Confirm the quilt surface is supported so the machine isn’t dragging the full quilt weight (use a table extension if needed).
• File Ready: Confirm you’re ready to stitch the selected end-to-end file (Mel uses Designs by Juju end-to-end quilting designs).


Stitch the Sequence on the Brother Luminaire: Let the Machine Do the Work, But Watch the First Moments

Mel’s stitching step is refreshingly simple: she presses Go/Start.

However, for beginners, I recommend a specific "Sweet Spot" for machine speed settings here.

Recommended Settings:

• Beginner Speed: 400 - 600 SPM (Stitches Per Minute).
• Expert Speed: 800+ SPM.

Why slow down? When the needle penetrates thick batting, it can deflect slightly (flag-poling). slowing down ensures better stitch quality and reduces the risk of needle breakage.

Even though the video fast-forwards, the professional habit is to watch the first 10 seconds closely:

• Listen: Do you hear a rhythmic "thump-thump"? That's good. A sharp "clack" usually means the needle is hitting something.
• Look: Is the fabric flowing smoothly, or does it look like it's being tugged?

Quilting patterns “meander,” as Mel says, which is exactly why you don’t need drum-tight tension. But you still need consistent support so the stitch path doesn’t drift. If you’re building a small quilting side business, this is also where workflow matters: magnetic frames reduce the time you spend muscling a quilt into position. Over a batch of quilts, that time adds up—and it’s one reason many shops standardize on magnetic embroidery hoops for thick or awkward projects.

The Make-or-Break Moment: Verify the End-to-End Connection with a Close Zoom

After stitching, Mel does what every experienced operator should do: she inspects the join.

Her quality check:

1. Zoom in close (physically look closely at the fabric).
2. Look at the exact point where the new stitching meets the old.
3. Confirm it connected perfectly—a seamless continuous line.

Pro Tip: If you notice a gap of 1mm or less, do not stress. Once the quilt is washed and the batting puffs up ("blooms"), that tiny gap will likely vanish into the texture. However, if the gap is 2-3mm+, you may need to adjust your alignment for the next row.

When Alignment Still Goes Sideways: Symptoms → Likely Cause → Fix

Even with a projector, factors like fabric stretch can cause issues. Here are the most common failure patterns I see in real studios.

Decision Tree: Choose Stabilizer/Backing Strategy for Quilt Sandwich Quilting

Mel’s video focuses on hooping, but stabilizer choices can make the difference between a smooth stitch-out and a shifting mess.

Start Here:

1. Is your Quilt Top Stable (Cotton)?
   • YES: You might not need extra stabilizer if the batting provides enough friction.
   • NO (T-Shirt/Jersey/Stretchy): MUST use stabilizer.
2. If High Loft (Thick Batting):
   • Strategy: Use a Water Soluble Topping only if the foot is getting caught in the seams. Otherwise, rely on the magnetic frame's grip.
3. If Bias-Heavy Piecing (Lots of diagonal seams):
   • Strategy: Consider floating a layer of Tearaway Stabilizer under the hoop to prevent the bias from stretching out of shape during stitching.

In our shop, we treat stabilizer like a “material insurance policy.” When the project is expensive, having the right backing is a small cost compared to rework.

Operation Checklist (after the stitch-out, before you move to the next repeat)

• Quality Audit: Inspect the connection point up close. Is the line continuous?
• Tactile Check: Run your hand over the stitched area. Does it feel flat? (No ridges or crushed lanes).
• Next Point: Confirm the next endpoint is identifiable for the following alignment.
• Support: Keep the quilt supported as you reposition for the next section.
• Orientation Re-Check: If you are flipping the quilt again for another section, re-confirm 180° vs 0° orientation.

The Upgrade Path I Recommend After You Nail This Once (Faster Hooping, Less Fatigue, Cleaner Results)

Once you’ve done one clean end-to-end connection, you’ll feel the difference immediately: the process becomes repeatable. The fear disappears, replaced by rhythm.

However, as you grow from "hobbyist" to "enthusiast" or "small business," you will hit new bottlenecks. Here is how to diagnose when it is time to upgrade your toolkit:

1. Pain Point: Sore Hands & Wrist Fatigue.
   • Diagnosis: Constantly tightening screws on standard hoops is physically demanding.
   • Solution: Moving to magnetic embroidery frames significantly reduces ergonomic strain. They leverage magnetic force rather than muscle power.
2. Pain Point: Alignment takes longer than stitching.
   • Diagnosis: You are wasting time fighting the hoop.
   • Solution: A hooping station for machine embroidery can help standardize loose items, while the projector + magnetic hoop combo is the gold standard for continuous quilting.
3. Pain Point: "I have too many orders."
   • Diagnosis: Your single-needle machine is a bottleneck because it requires frequent thread changes and lacks multi-needle efficiency.
   • Solution: If you are scaling to 50+ items or commercial batches, consider a multi-needle platform (like the SEWTECH series). However, for quilting specifically, the magnetic sash frame on your Luminaire remains a top-tier solution.

And one last note from the comments that matters: viewers praised Mel’s teaching because it makes the process feel doable. That’s the real win here. End-to-end quilting looks intimidating until you break it into: find the dot → aim the red box → align the light → clamp airy → stitch → verify.

If you keep those checkpoints, you’ll get the same “connected perfectly” moment Mel shows—without the panic.

FAQ

• Q: How do I rotate an end-to-end quilting design 180° on a Brother Luminaire after flipping a large quilt?
  A: Rotate the design to 180° before aligning anything so the digital orientation matches the physically flipped quilt.
  • Confirm the quilt bulk is flipped to the front exactly as it will sit during stitching.
  • Set the design orientation to 180° (upside down) on the Brother Luminaire screen.
  • Re-check orientation before you target the connection point with the projector.
  • Success check: The projected start/connection area visually matches the direction of the previously stitched row (not mirrored/backwards).
  • If it still fails: Stop and compare a small distinctive motif/line direction in the design to the last stitched segment before stitching a full run.
• Q: How do I use the Brother Luminaire projector red projection box to align an end-to-end quilting connection point?
  A: Move the red projection box directly onto the design’s connection point so the projector shows the exact area you need to match.
  • Tap Projector on the Brother Luminaire touchscreen and wait for the red box to appear.
  • Drag the red box to the design’s end-to-end join/connection point (not the middle of the pattern).
  • Physically shift the quilt until the projected lines overlap the previous stitching before clamping.
  • Success check: The projected “start” tail sits directly on top of the stitched “end” tail with no visible offset.
  • If it still fails: Re-find the stitched endpoint dot first, then re-aim the red box to that same connection region.
• Q: How do I find the tiny end-to-end quilting endpoint dot on busy fabric before aligning on a Brother Luminaire?
  A: Treat the previous run’s endpoint as the single anchor and make it visible before you touch the screen.
  • Locate the thread stop point by sight first; if it’s hard to see, feel for the slight knot/stop with a fingertip.
  • Mark a fresh, visible dot next to the endpoint using a water-soluble marker if needed.
  • Memorize nearby fabric landmarks (for example, distance to a print element) so you can recover the spot if the quilt shifts.
  • Success check: The endpoint marker stays easy to identify while you move between fabric and touchscreen.
  • If it still fails: Mark the endpoint before un-hooping the previous run so the reference doesn’t disappear.
• Q: How tight should a Brother magnetic sash frame hold a thick quilt sandwich to prevent puckers and “flattened lanes”?
  A: Clamp the quilt “secure but airy”—enough to prevent shifting, not drum-tight tension that crushes batting.
  • Smooth the quilt on the frame without pulling hard; avoid stretching the sandwich like canvas.
  • Place magnetic bars to hold each side, using only the magnets needed for a stable grip.
  • Re-check alignment after the first bar, because the quilt can still shift during clamping.
  • Success check: The quilt feels supported but not compressed, and the stitched area stays flat without puckering at the join after un-hooping.
  • If it still fails: Reduce clamping force (use fewer magnets) and confirm the quilt weight is supported so gravity is not tugging during stitching.
• Q: What should I check on a Brother Luminaire if end-to-end quilting shows a gap at the connection point even with the projector?
  A: Treat a connection gap as a drag/support problem first—support the quilt weight and confirm the magnetic hold is not slipping.
  • Support the quilt fully on the table/bed so it is not hanging and pulling against the frame.
  • Confirm the projected alignment is still perfect after clamping (re-check before pressing Start).
  • Verify magnets are secure on both sides and the quilt did not creep during the first moments of stitching.
  • Success check: The new stitching meets the old line seamlessly; a ~1 mm gap often disappears after washing/batting bloom, but 2–3 mm usually indicates alignment/drag issues.
  • If it still fails: Slow down and watch the first 10 seconds closely to see if the fabric is being tugged as the needle penetrates thick batting.
• Q: How do I prevent thread nesting at the start of end-to-end quilting on a Brother Luminaire?
  A: Re-thread top and bobbin carefully, confirm the presser foot is down, and clear lint—thread nesting is common and usually resolves fast.
  • Re-thread the upper thread path and the bobbin path from scratch (don’t “half-fix”).
  • Confirm the presser foot is down before stitching.
  • Check and remove lint in the bobbin case area.
  • Success check: The first stitches form cleanly with no bird’s nest underneath and the fabric feeds smoothly.
  • If it still fails: Stop immediately, cut the nest, then re-check threading again before restarting.
• Q: What safety rules should I follow when using a magnetic sash frame on a Brother Luminaire for quilting?
  A: Keep fingers out of the snap zone and manage magnets like pinch hazards—magnetic clamps can slam shut with enough force to injure.
  • Seat magnetic bars with fingertips clear of the closing edge; lower the bar in a controlled way.
  • Keep magnetic clamps away from children, implanted medical devices (such as pacemakers), and sensitive electronics.
  • Store magnetic clamps separated (for example with foam) so they cannot snap together unexpectedly.
  • Success check: Magnets seat without finger pinches, and the clamp remains stable without needing extra force.
  • If it still fails: Use fewer magnets per side and reposition calmly—forcing magnets into place increases pinch risk and can shift alignment.
• Q: When should a quilting workflow upgrade from standard hoops to magnetic hoops, and when does a multi-needle machine like SEWTECH make sense?
  A: Upgrade in layers: optimize technique first, then switch to magnetic hoops for faster, gentler hooping, and consider a multi-needle platform only when order volume becomes the bottleneck.
  • Level 1 (Technique): Support quilt weight, rotate 180° when flipping, align with the projector before clamping, and hoop “airy.”
  • Level 2 (Tool): Move to magnetic hoops/frames if screw-tight hoops cause hoop burn, puckers, re-hooping delays, or hand/wrist fatigue.
  • Level 3 (Production): Consider a multi-needle machine (such as SEWTECH) when frequent thread changes and throughput limits are preventing you from fulfilling batches reliably.
  • Success check: Alignment time becomes predictable and shorter than stitch time, with consistent joins and less physical strain.
  • If it still fails: Track where time is lost (alignment vs hooping vs thread changes) and upgrade the specific bottleneck rather than changing everything at once.
