Precision Under Pressure: The Definitive Guide to Embroidering Collar Logos Without Fear

Collar logos are the sniper shots of the embroidery world. They are small, high-stakes, and completely unforgiving.

If you have ever watched a PGA tour, you have seen them: crisp branding sitting perfectly on the collar wing or side. Clients love this placement because it screams "premium." However, most operators—from garage startups to mid-sized shops—secretly dread them. Why? Because collars are thick, awkward to hoop, and prone to shifting. One slip at 800 RPM, and you haven't just ruined a stitch; you’ve ruined an expensive finished garment.

This comprehensive guide deconstructs the workflow of a pro-level collar run. We will rebuild the process using a hoopless "Fast Frames" style setup (as seen in common tutorials), but we will add the safety protocols, sensory checks, and industrial safeguards that YouTube videos often skip.

Whether you are fighting a single custom shirt or a 50-piece corporate order, this is your blueprint for repeatability.

Collar Logos Pay Well—But Only If Your Setup Time Doesn’t Eat the Profit (Button-Down Shirt Collar Embroidery)

Let’s talk embroidery economics. A collar logo is deceptively dangerous to your bottom line.

The stitch count is usually low (often under 3,000 stitches), which suggests a quick job. But in embroidery, profit = Run Time ÷ Setup Time. If you spend 15 minutes wrestling a stiff collar into a standard hoop, struggling to close the screw without leaving "hoop burn" (those ugly shiny rings that don't wash out), you have already lost money.

The video source for this guide highlights a critical truth: Hoopless framing is the industry standard for collars. By using a specialized frame system that allows the shirt body to hang freely, rather than stuffing it inside a plastic ring, you eliminate the bulk that causes distortion.

However, speed cannot come at the cost of precision. If you are building a menu of premium add-ons for your clients, collar branding is a goldmine—but only if you can execute it without rejecting 1 in 10 shirts.

The Fast Frames “Hoopless” Setup: Clamp Placement That Stops Collar Creep at 700+ RPM (Fast Frames System + Spring Clamps)

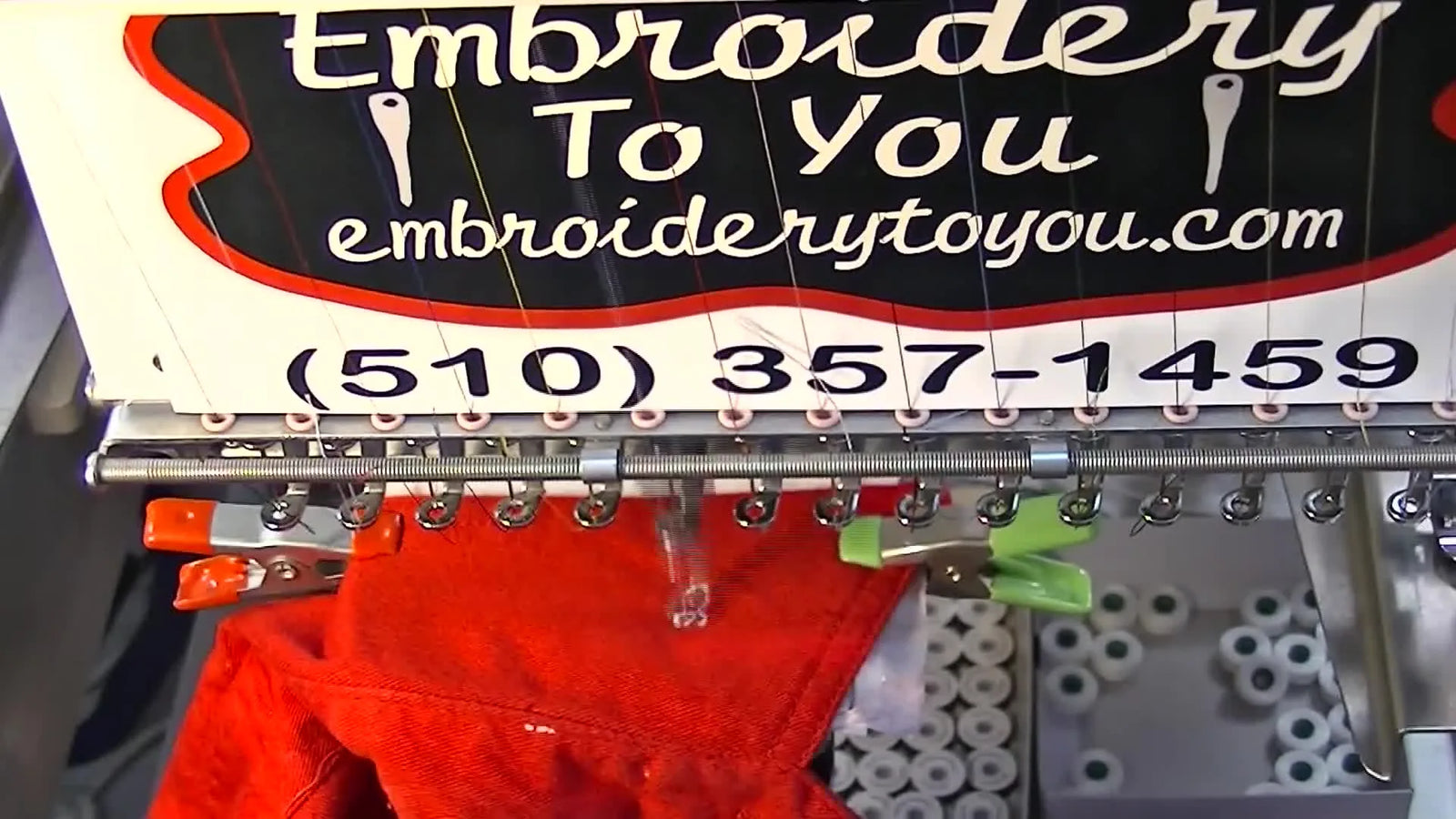

The setup analyzed here uses a "Fast Frame" (a metal arm with an open window) paired with spring clamps. This is a common entry-point for commercial embroidery because it is versatile. However, physics is your enemy here.

In a standard hoop, friction holds the fabric on all sides. In a hoopless clamp setup, you rely on two things: Adhesion (sticky backing) and Point Pressure (the clamps).

The Mechanics of "Collar Creep"

When your machine accelerates to 700 RPM, the needle bar creates a rapid vertical force. If the collar isn't anchored, the vibration causes the fabric to "walk" or "creep" microscopically.

• Visual Check: If your straight lettering starts to look wavy or "drunk" halfway through, your fabric is creeping.
• Auditory Check: Listen for a rhythmic slap-slap-slap sound. That is the sound of loose fabric flagging against the needle plate. It should be silent.

If you are using a system like durkee fast frames, you must treat the clamps not as accessories, but as vital anchors.

Correct Clamp Placement Strategy

1. The Anchor Points: Place clamps as close to the embroidery field as safety allows, but never so close that the presser foot strikes them.
2. The Balance: You must clamp both the left and right sides of the collar wing. If you only clamp one side, the drag from the shirt's weight will torque the fabric, resulting in slanted text.
3. The Grip: Ensure the clamp bites both the collar fabric and the metal frame bar underneath. Clamping fabric to backing only is not secure.


The “Hidden” Prep Pros Don’t Skip: Stabilizer, Thread, and Collar Handling Before You Stitch (Sticky Tear-Away + Cut-Away)

This is the secret sauce. Amateurs rely on one layer of backing. Professionals use a "Stabilizer Sandwich."

Collars are unique because they are often thick (interfaced) yet slippery. They have a "memory" and want to spring back to their curved shape. The video demonstrates a hybrid approach that provides both grip and foundation.

The Hybrid Sandwich Method

• Layer 1: Adhesive Tear-Away. This is hooped or stuck to the frame. Its primary job is Fixturing—holding the collar in place so you don't have to hold it with your hands.
• Layer 2: Floated Cut-Away. A small square of cut-away stabilizer is slid under the collar but on top of the sticky layer.

Why this combination?

1. Adhesion: The sticky layer grabs the collar fabric, preventing horizontal slide.
2. Longevity: Tear-away dissolves or weakens over time. The Cut-Away remains permanently behind the stitches. For dense satin lettering on a collar that gets scrubbed in the wash, cut-away prevents the letters from becoming distorted or "pokey" after three wash cycles.

Hidden Consumables List

Before you start, ensure you have:

• 75/11 Sharp Needles: Do not use ballpoints on crisp dress shirts; they can deflect.
• Adhesive Spray (Optional): If your sticky backing has lost tackiness, a light mist is a valid emergency fix.
• Water Soluble Topping: If the collar has a textured weave (like Oxford cloth), a layer of Solvy on top prevents stitches from sinking.

If you are researching a sticky hoop for embroidery machine technique, understand that "sticky" gets the job onto the machine, but "cut-away" keeps it looking good for years.

Install the Shirt on the Fast Frame Without Distorting the Collar (Press Flat, Then Clamp)

This step requires “sensory intelligence.” You cannot just jam the shirt on.

The "Roll and Press" Technique

1. Clear the Deck: Ensure the machine arm is clear.
2. The Smooth-Out: Place the collar onto the adhesive window. Do not stretch it! If you stretch a collar while sticking it down, it will pucker the moment you unstuck it (this is called "snap-back").
3. Tactile Check: Run your fingertips over the collar surface. You are feeling for hidden buttons, collar stays, or thick seams.
   • Warning: Collar Stays are Needle Killers. Always remove the plastic stiffeners (collar stays) from the collar points before embroidery. If the needle hits one, it can shatter and send metal shrapnel flying.
4. The Clamp Down: Apply the clamps.
5. The Hang Test: Look underneath the machine. Is the rest of the shirt hanging freely? If the back of the shirt is bunched up against the machine arm, the friction will drag the collar and distort your design.


Run the Logo Like a Production Job: 2,200 Stitches at ~720 RPM on a Multi-Needle Head (Single-Color Satin Lettering)

The video shows a run of about 2,200 stitches at 720 RPM.

• Stitch Count: ~2,200 (Low)
• Speed: ~720 RPM (Medium-High)
• Type: Satin Lettering (High Density)

The "Beginner Sweet Spot"

While a commercial machine can run at 1,000 SPM (Stitches Per Minute), running a collar at top speed is risky. High speed increases vibration.

• Expert Recommendation: Cap your speed at 600-700 SPM for collars. You only lose about 20 seconds of production time, but you gain a massive safety margin against shifting.

The "10-Second" Rule

Do not walk away. The first 10 seconds are critical. Watch the needle penetrate the fabric.

• Visual: Look for "flagging" (the fabric lifting up with the needle). If the collar is bouncing up and down, your adhesive bond is too weak. Stop immediately.
• Sound: A clean satin stitch sounds like a hum. A sharp tick-tick-tick usually means the needle is deflecting off a heavy seam or internal interfacing.

Users searching for fast frames for tajima or similar commercial setups must remember: The machine has the power to destroy the garment if the hold is weak. Respect the physics.

The “Why It Works” Behind the Stabilizer Sandwich (Collar Physics, Not Magic)

Why go through the trouble of two stabilizers?

A collar is a laminate structure—fabric, glue, and stiffener fused together. When you punch thousands of holes into it with satin stitches, you are breaking that structural integrity. The thread tension pulls the fabric tight (the "push-pull" effect).

Without the Cut-Away stabilizer, the tension of the thread would curl the collar edge upwards, making it look cheap. The cut-away acts as a new, artificial skeleton for the collar, absorbing the stress of the thread tension so the fabric doesn't have to.

Decision Tree: Pick Tear-Away vs. Cut-Away for Collar Logos (And When to Use Both)

Don't guess. Use this logic flow to determine your stabilizer setup.

START: Evaluate Fabric & Design

1. Is the design dense (Satin stitches, block text)?
   • YES: You MUST use Cut-Away support. Go to Step 2.
   • NO (Open running stitch, sketch style): Tear-away might suffice.
2. Is the collar "fused" (Stiff, formal dress shirt)?
   • YES: Use Sticky Tear-Away (for hold) + Lightweight Cut-Away (for support).
   • NO (Soft polo collar, floppy): Use Sticky Tear-Away + Heavy Cut-Away (Mesh type is best to avoid bulk).
3. Are you using a Hoopless/Clamp System?
   • YES: You must use an adhesive (Sticky) layer. Clamps alone are risky.
   • NO (Standard Hoop): Standard backing is fine, but beware of hoop burn.


Clean Removal and Trimming: Make the Backing Invisible Under the Collar (Tear Away, Then Cut Close)

The job isn't done when the machine stops. Post-processing is where you separate the pros from the amateurs.

1. Remove the Clamps: Gently.
2. Peel: Lift the collar off the sticky backing. Do not rip it like a band-aid; peel the backing away from the fabric to avoid distorting the weave.
3. The Surgical Trim:
   • Tear away the sticky layer.
   • Lift the Cut-Away flap (which is still sewn to the logo).
   • Using curved embroidery scissors, trim the cut-away as close to the stitches as possible (1-2mm) without cutting the thread. A little island of cut-away will remain, but it should be invisible when the collar is worn.

Warning: Mechanical Hazard
Never, ever put your hands near the needle bar while the machine is running or just paused "for a second." A multi-needle machine can actuate unexpectedly. Keep fingers at least 4 inches away from the active needle case at all times.

The Two Clamp Mistakes That Trigger Re-Dos (And How to Fix Them Fast)

In my 20 years of experience, clamp errors cause 90% of collar disasters.

Mistake 1: The "Lazy" Clamp

• Symptom: The logo is straight on the screen but stitches out crooked (rotated).
• Cause: You clamped the fabric, but didn't push the collar flush against the frame's alignment edge.
• Fix: Use the frame's metal edge as a ruler. The collar edge must be parallel to it.

Mistake 2: The "Flying" Clamp

• Symptom: A loud bang, a broken needle, and a clamp on the floor.
• Cause: The clamp was placed within the travel path of the needle head/presser foot.
• Fix: Before stitching, do a "Trace" or "Contour Check" on your machine's screen. Watch closely to ensure the presser foot does not collide with your clamps.

If you use fast frames embroidery hoops, inspect your clamps monthly. The springs weaken. If a clamp feels easy to open, throw it away. It cannot hold a shirt at 700 RPM.

When a Magnetic Frame Beats Clamps: Faster Loading, Less Wrist Strain, and Fewer Collar Marks (Upgrade Path)

Hoopless clamping works, but it is manual labor. If you are doing 50 shirts, your thumbs will ache, and your consistency will drift.

The Upgrade: Magnetic Frame Systems (like MaggieFrame or Mighty Hoop).

Why Upgrade?

1. Zero Drift: Magnets apply continuous, even pressure across the entire gripping surface, unlike clamps that only hold at two points.
2. Speed: You just drop the top ring on. Click. Done. No fiddling with springs.
3. No Burn: Magnetic frames practically eliminate hoop burn because they don't crush the fabric fibers against a plastic ridge.

Scenario: You start getting complaints about "shiny marks" on collars (hoop burn) or your operators are slowing down due to hand fatigue. Solution: Investigate magnetic embroidery hoops. They allow you to "float" the collar with massive holding power but zero abrasion.

Warning: Magnet Safety
Commercial magnetic hoops use Neodymium magnets. They possess crushing force. They can pinch skin severely and erase credit cards.
* Pacemaker Warning: Keep these magnets at least 6-12 inches away from anyone with a pacemaker.
* Pinch Hazard: Never place your finger between the two magnetic rings. Handle with extreme care.

For commercial scale, magnetic embroidery frame systems are the standard for high-volume efficiency.

Scale This Collar Job Like a Shop Owner: Two Frames, Two Machines, One Smooth Workflow

The video mentions rotating frames. This is a key production concept: Externalize the Setup.

The Loop:

• Machine A is stitching Shirt 1.
• Operator is loading Shirt 2 on Frame B while Machine A runs.
• When Machine A stops, swap frames instantly.

The Equipment Gap: If you are running a single-needle home machine, you cannot do this efficiently. You are the bottleneck. If you find yourself with orders of 20+ shirts, this is the trigger point to consider a SEWTECH Multi-Needle Machine. A multi-needle allows you to leave your setup intact, reduces thread change time, and supports professional frames that make collar work effortless.

Setup Checklist (Right Before You Hit Start on the Machine)

Don't guess. Check.

• Needle Check: Is a fresh 75/11 Sharp installed?
• Collar Stays: REMOVED? (Critical).
• Orientation: Is the design rotated correctly? (Collar logos often need to be rotated 180 degrees depending on how you loaded the shirt).
• Clearance: Is the shirt body hanging free?
• Trace: Did you run a trace to ensure the foot won't hit the clamps?
• Bobbin: Do you have enough bobbin thread to finish the run?


Operation Checklist (While It’s Stitching at Speed)

• Sound Check: Listen for the smooth hum. No clicking/slapping.
• Visual - Lift: Is the collar staying flat against the backing?
• Visual - Slide: Watch the distance between the needle and the clamp. Is it changing? (It shouldn't).
• Thread Path: Is the thread feeding smoothly off the cone?


The Results Standard: What “Sellable Collar Embroidery” Looks Like (And What to Rework)

How do you know if it's good enough to sell?

1. Text Alignment: The baseline of the text matches the edge of the collar perfectly.
2. No Puckering: The fabric around the letters is smooth, not gathered.
3. Clean Edges: No hairy stabilizer sticking out.
4. No Indentations: No shiny clamp marks or hoop burn on the surrounding fabric.

If you see puckering, your stabilizer sandwich was too weak. If you see slanted text, your clamping was uneven.

The Upgrade That Actually Matters: Reduce Setup Time, Not Just Stitch Time (Hooping Station + Repeatability)

If you take one thing from this guide: Consistency is King.

To move from "hobbyist" to "shop owner," you need to standardize placement.

• Level 1: Use a ruler and marking chalk for every collar.
• Level 2: Use a hooping station for embroidery machine or a custom jig.
• Level 3: Integrate a hoop master embroidery hooping station system if you are doing bulk runs.

The method shown primarily uses Fast Frames and clamps, which is excellent for agility. But as you grow, looking into magnetic frames and dedicated hooping stations will save your hands and your sanity. Start with the "Sandwich Method" described here, master the manual clamp, and then upgrade your tools when the volume demands it.

FAQ

• Q: How do I stop collar logo text from looking wavy halfway through when using a Fast Frames hoopless clamp system at 700+ RPM?
  A: Reduce fabric creep by improving hold (adhesion + balanced clamping) before changing the design.
  • Add adhesive support: Use sticky tear-away as the base layer so the collar cannot slide.
  • Clamp for balance: Clamp both left and right collar wings, and ensure each clamp bites the collar fabric and the metal frame bar (not fabric-to-backing only).
  • Slow the machine: Cap speed around 600–700 SPM for collars to reduce vibration.
  • Success check: Straight lettering stays straight and the needle area stays quiet (no rhythmic “slap-slap” fabric sound).
  • If it still fails: Stop and re-install the shirt using the “press flat, don’t stretch” approach—stretching causes snap-back and drift.
• Q: What stabilizer combination should be used for dense satin collar lettering to avoid puckering and long-term distortion after washing?
  A: Use a stabilizer “sandwich”: sticky tear-away for grip plus floated cut-away for permanent support.
  • Stick for control: Place adhesive tear-away on the frame to hold the collar in position.
  • Float for strength: Slide a small piece of cut-away under the collar but on top of the sticky layer before stitching.
  • Add topping when needed: Use water-soluble topping on textured weaves (like Oxford cloth) to prevent stitch sink.
  • Success check: The collar stays flat with smooth fabric around the letters and the edge does not curl upward after stitching.
  • If it still fails: Upgrade the cut-away (often heavier or mesh-type for softer collars) and re-check that the collar was not stretched during placement.
• Q: How can I avoid needle breakage from hidden collar stays when embroidering dress shirt collars on a multi-needle embroidery machine?
  A: Remove collar stays before loading the shirt—collar stays are a direct needle-shatter risk.
  • Remove stiffeners: Pull out plastic collar stays from both collar points before any framing.
  • Feel before you stitch: Run fingertips across the collar to detect stays, thick seams, or hard edges.
  • Monitor the first seconds: Watch the first 10 seconds closely for abnormal needle behavior.
  • Success check: The needle penetrates smoothly with a steady “hum,” not sharp ticking or impact sounds.
  • If it still fails: Stop immediately and re-check for a hidden hard edge (stay, seam, or thick interfacing area) in the needle path.
• Q: How do I prevent a spring clamp from being hit by the presser foot during collar embroidery on a Fast Frames hoopless setup?
  A: Always run a machine trace/contour check to confirm clamp clearance before pressing start.
  • Reposition clamps: Place clamps close to the embroidery field for holding power, but never inside the presser foot travel path.
  • Trace every time: Use the machine’s “Trace/Contour” function and watch the presser foot path carefully.
  • Replace weak clamps: Retire clamps with weak springs (easy-to-open clamps can slip or fly).
  • Success check: The trace completes with clear space between presser foot movement and every clamp—no near-misses.
  • If it still fails: Reduce clamp size/height or change clamp positions and trace again before stitching.
• Q: What is the fastest way to load a button-down shirt collar onto a Fast Frames hoopless system without distorting the collar shape?
  A: Press the collar flat onto the adhesive window without stretching, then clamp and confirm the shirt body hangs free.
  • Smooth, don’t pull: Lay the collar onto the sticky area and smooth it into place—avoid stretching to prevent snap-back puckers.
  • Clamp after alignment: Push the collar flush to the frame alignment edge, then clamp both sides.
  • Do the hang test: Make sure the rest of the shirt hangs freely and is not bunched against the machine arm (drag causes distortion).
  • Success check: The collar lies flat with no ripples, and the shirt body hangs without rubbing or pulling.
  • If it still fails: Re-load the shirt and remove friction points underneath—drag from the garment weight commonly rotates or slants text.
• Q: What should be checked in the first 10 seconds when running a 2,200-stitch satin collar logo at ~720 RPM on a multi-needle head?
  A: Stay at the machine and stop immediately if flagging, slapping, or ticking starts—early seconds decide the outcome.
  • Watch for lift: Look for flagging (collar lifting with the needle); that indicates weak adhesion/hold.
  • Listen for sound cues: A clean run sounds like a smooth hum; slapping means loose fabric, ticking may indicate needle deflection on thick areas.
  • Adjust speed down: Drop to 600–700 SPM to increase stability on collars.
  • Success check: The collar stays flat and quiet with consistent stitch formation from the first satin column.
  • If it still fails: Rebuild the hold (fresh sticky layer or a light adhesive spray if the sticky backing has lost tack) and re-clamp for balanced anchoring.
• Q: What safety rules should be followed when using commercial magnetic embroidery hoops and when operating near a multi-needle needle bar?
  A: Treat magnets and needle bars as pinch-and-strike hazards—use strict hand placement and clearance habits every time.
  • Handle magnets safely: Keep fingers out of the gap when closing magnetic rings to prevent severe pinches.
  • Protect medical devices: Keep magnetic hoops 6–12 inches away from anyone with a pacemaker and away from items like credit cards.
  • Keep hands away from motion: Never put hands near the needle bar while running or “just paused”; keep fingers at least 4 inches away from the active needle area.
  • Success check: Loading/unloading is done without pinches, and operation is hands-off near the needle zone during run/stop transitions.
  • If it still fails: Slow down the loading routine and add a repeatable habit (place garment, clear hands, then start/trace) before every run.
