Fit Text to Path vs Transform Text in Brother PE-Design Layout & Editing: Get Clean Bottom-Arc Lettering Without the “Upside-Down” Surprise

Master Class: Perfect Curved Lettering in Brother PE-Design (And Why It Fails Physically)

Curved lettering looks simple on screen—until you try to put text on the bottom of a badge, and your software happily flips it upside down, mirrors it, or smashes the kerning.

In Machine Embroidery Art Lesson 19, Kathleen McKee demonstrates two practical ways to arc text in Brother PE-Design Layout & Editing:

• Method 1: Fit Text to Path (High control, allows sliding along the curve).
• Method 2: Transform Text (High speed, fixed center alignment).

However, as any seasoned digitizer knows, software is only half the battle. A perfect arc on screen can turn into a puckered mess on fabric if you don't account for the "Push and Pull" physics of embroidery.

This guide will walk you through the software steps with zero ambiguity, and then provide the production-grade safeguards you need to stitch it out without ruining the garment.

Don’t Panic: The "Upside Down" Default is Normal

When you force text onto the bottom of a circle or oval, it almost always lands upside down or mirrored. This triggers an immediate panic response in beginners.

Take a deep breath. That isn’t you being careless—it is the software mathematically adhering to the "path direction." The calm workflow is:

1. Placement First: Get the text onto the curve.
2. Orientation Second: Correct readability with flips.
3. Refinement Third: Only after it reads correctly do you adjust spacing (kerning) and detailed placement.

If you chase perfection before the orientation is correct, you are wasting valuable mental energy.

Phase 1: The "Hidden" Prep (Physical & Digital)

Before you touch a single vector node, you must stabilize your environment. Curved text is unforgiving. Unlike block text, the stitch angle changes continuously around the arc. This creates multi-directional stress on the fabric.

The "Hooping" Reality Check: If you are planning to stitch these designs on garments or caps, your mechanical hooping method becomes part of your "digitizing quality." If the fabric is not drum-tight, the arc will distort into an oval during stitching.

Many shops treat hooping for embroidery machine mastery as a separate skill, but in reality, it is the foundation of crisp lettering. If you physically stretch the fabric while hooping (common with standard hoops), the text will distort when you unhoop it.

Prep Checklist: The "Pre-Flight" Safety Protocol

• Object Type: Confirm your text is still a true text object (blue outline nodes), not converted to stitches.
• Curve Logic: Decide right now—do you need to slide the text left/right to avoid a zipper or logo? (If yes, use Method 1).
• Fabric/Stabilizer Pairing:
  • T-Shirt/Knit: Must use Cutaway stabilizer. Tearaway will result in "wavy" text.
  • Caps: Heavy cap backing (3oz+).
• Needle Check: Use a 75/11 Sharp for woven badges, or a 75/11 Ballpoint for knits. A burred needle will shred small lettering.
• Consumable Check: Do you have temporary spray adhesive (like KK100) or a magnetic hoop to prevent fabric shifting?


Method 1 (Precision): Fit Text to Path

This is the "classic" engineering approach. You use a guide line (outline shape) and force the text to adhere to it.

Step-by-Step Execution

1. Select the text you typed.
2. Hold the Control key and click the oval/circle outline (both must be highlighted).
3. Navigate to Arrange → ABC Fit to Text.
4. Select Fit the text to the outline.

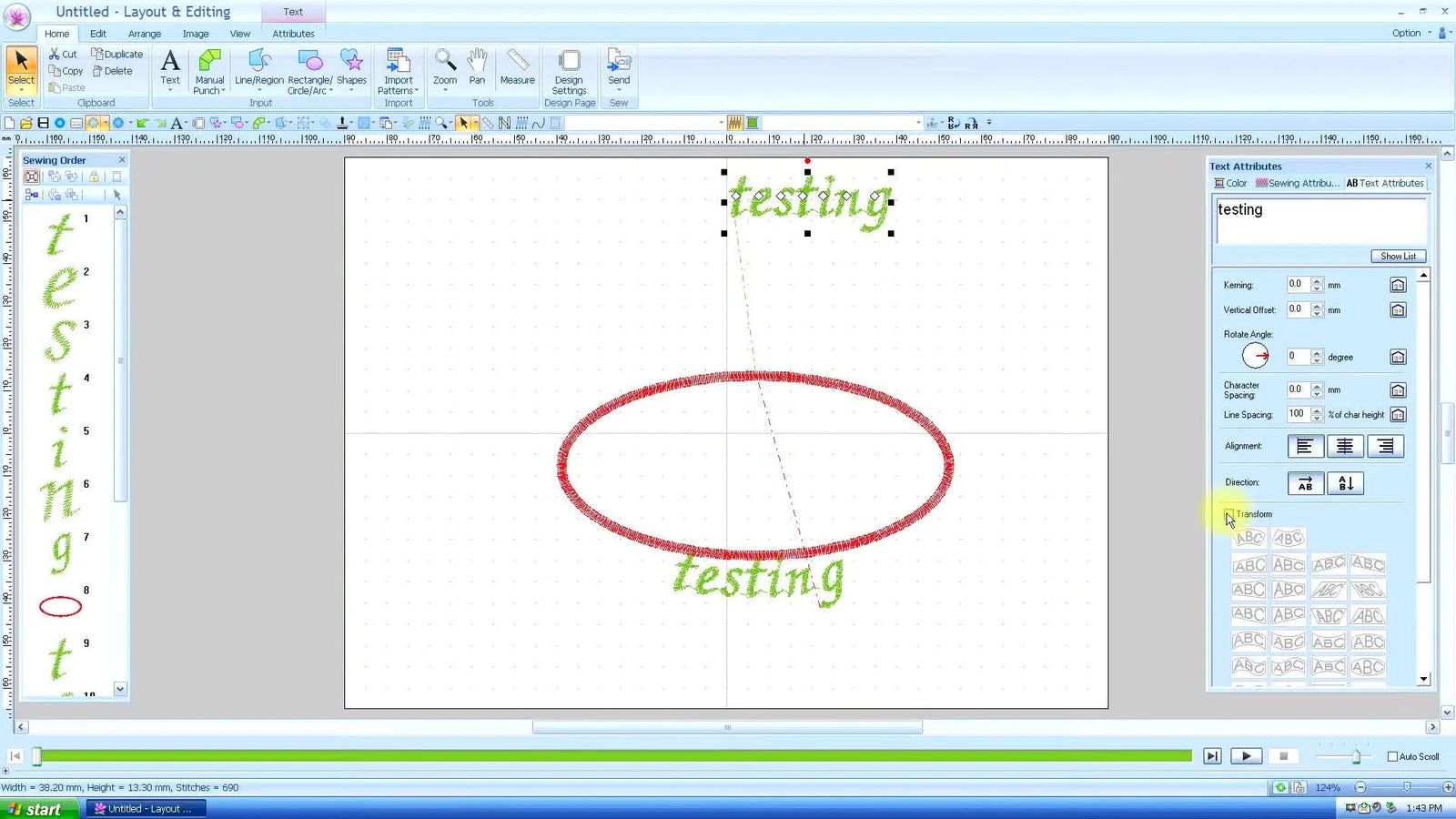

By default, the software will dump the text on the top of the oval.

The "Bottom Arc" Setup

To move it to the bottom, Kathleen reopens the options:

1. Set alignment to Bottom.
2. Crucial Step: Check the box labeled Other Side. Without this, the text stays inside the circle rather than following the perimeter.


Troubleshooting the "Mirror Effect"

After clicking OK, the text will often look upside down and backwards. This is the standard intermediate state.

The Fix Sequence: Do not manually rotate the text. Use the software's logic:

1. Click Flip Vertically.
2. Click Flip Horizontally.

• Symptom: Text is upside down.
• Likely Cause: Path direction defaults.
• The Fix: The "Flip-Flip" combo.

Warning: Visual Check Required. Don't just glance at the shape. Zoom in to 200%. Does the text read Left-to-Right? A mirrored word can look deceptively correct at a distance (e.g., "MOM" looks like "WOW").

The Secret Weapon: The "A" Handle

The primary reason to use Method 1 is the specific control handle—a small "A" icon or diamond cursor on the path line.

• Action: Click and drag this "A" handle.
• Result: You can slide the text asymmetrically along the curve. This is vital if you need to create a gap for a logo element that isn't perfectly centered.

Method 2 (Speed): Transform Text Attribute

If you are doing volume work (e.g., 50 different names on the same team logo) and don't need irregular placement, use Transform.

Step-by-Step Execution

1. Select the text object.
2. Open the Text Attributes panel on the right.
3. Check the Transform box.


4. Select the icon that shows a downward arc.


The text curves instantly, floating in space with no guide path.

Adjusting the Arc (The Yellow Diamond)

Find the small yellow diamond handle at the bottom center of the bounding box.

• Drag Down: Makes the arc tighter (deeper curve).
• Drag Up: Flattens the arc.


This method leverages your visual judgment rather than geometric snapping. It is vastly faster for quick jobs.

Comparative Analysis: Precision vs. Speed

Kathleen shows both side-by-side. Visually, they can look identical.

Editability

Crucially, Transform does not "break" the text. You can still select a single letter (green handle) and change its color or font.

The Hard Limitation

Here is where beginners get stuck.

• Fit Text to Path: Has the "A" handle. You can slide the text to the 4 o'clock position if needed.




• Transform Text: Has NO "A" handle. The text is permanently locked to the center of the arc. To move it, you must rotate the entire object, which tilts the letters.


Technical Decision Tree: Which Method?

Don't guess. Use this logic flow to choose the right tool before you start.

1. Does the text need to wrap around a specific, complex shape (like a shield)?

• YES: Use Fit to Path.
• NO: Proceed to 2.

2. Does the text need to slide (e.g., start at 8 o'clock and end at 2 o'clock)?

• YES: Use Fit to Path (The "A" Slider is required).
• NO: Proceed to 3.

3. Are you doing a batch of 20+ names?

• YES: Use Transform. It is 3x faster to duplicate and edit specific names.

Production Reality: Transitioning from Screen to Machine

You have designed the perfect curve. Now you must stitch it. This is where 80% of failures happen.

1. Speed Kills Quality On a standard machine, users often run everything at 800-1000 SPM (Stitches Per Minute).

• Expert Advice: For curved lettering under 10mm tall, slow your machine down to 600-700 SPM.
• Sensory Anchor: The machine sound should change from a high-pitched whine to a rhythmic "thump-thump." This reduces thread breakage and improves satin column definition.

2. The Hoop Burn Issue Curved text usually goes on finished garments (polos, caps, jackets). To get the fabric tight enough for crisp text, you have to crank a traditional inner hoop very tight. This causes "hoop burn" (permanent friction rings) on delicate fabrics.

• Commercial Insight: People searching for an embroidery machine for beginners often don't realize that standard hoops are the enemy of production efficiency.

3. The Upgrade Path: Tools vs. Skill If you find yourself constantly re-hooping because the text isn't straight, or struggling to clamp thick jackets, this is a hardware bottleneck, not a software one.

• Scenario A: You are fighting with alignment and hoop marks on tedious orders.
  • Solution Level 1: Use "floating" techniques (adhesive stabilizer + basting box).
  • Solution Level 2: Upgrade to Magnetic Hoops. By clamping the fabric without friction, you eliminate hoop burn. Terms like magnetic embroidery hoop are not just buzzwords; they represent a fundamental shift in how you hold fabric—allowing for faster, safer adjustments.
• Scenario B: You are doing production runs (50+ items).
  • Solution: A dedicated machine embroidery hooping station ensures every logo lands in the exact same spot on every shirt, removing human error.

Setup Checklist: The "Last Mile" Protocol

• Visual Check: Text reads correct direction?
• Underlay: For letters taller than 8mm, ensure Center Run + Zigzag underlay is active to prevent sinking.
• Hooping: Fabric sounds like a drum when tapped? (If using minimal tension loops like a magnetic frame, ensure the stabilizer is rigid).
• Needle Clearance: Manually trace alignment one last time.

Warning: Magnetic Safety
If you upgrade to magnetic hoops (like Sewtech sets), be aware: these magnets are industrial strength.
* Pinch Hazard: They can snap together with enough force to bruise fingers.
* Electronics: Keep them 6 inches away from machine screens, pacemakers, and credit cards.

Advanced Transformations (Proceed with Caution)

Kathleen notes you can use green handles to manually distort text in Transform mode.

Expert Advice: Avoid this for corporate logos. Manually stretching letters distorts the aspect ratio of the font, making it look amateurish. If the text doesn't fit, choose a condensed font family rather than squashing a standard font.

The path to professional embroidery is consistency. Whether you are using a single-needle home unit or high-end brother embroidery machines, the physics remain the same. Master the software setup, respect the speed limits of your fabric, and when the friction of hooping becomes your biggest pain point, consider that the signal to upgrade your physical tools.

Operation Checklist: Final Pass

• Design: Method chosen correctly (Fit vs. Transform).
• Orientation: Text is NOT mirrored (Checked at 200% Zoom).
• Material: Stabilizer matches fabric elasticity (Cutaway for knits).
• Machine: Speed reduced to 600-700 SPM for text columns.
• Safety: Clearance check complete—no hoops hitting the presser foot.

Now, press start. Listen for that smooth rhythm. You’re stitching with intent.

FAQ

• Q: Why does Brother PE-Design “Fit Text to Path” place bottom curved lettering upside down or mirrored on a badge design?
  A: This is common—Brother PE-Design is following the outline/path direction, so the first result often looks reversed.
  • Place the text onto the curve first (Arrange → ABC Fit to Text → Fit the text to the outline), then set Alignment to Bottom and enable Other Side.
  • Correct readability using the software logic: click Flip Vertically, then click Flip Horizontally (avoid manually rotating the text).
  • Success check: zoom to 200% and confirm the lettering reads left-to-right (watch for words that look “okay” at a distance).
  • If it still fails: re-check that the correct outline (oval/circle) was selected with the text before applying Fit to Path.
• Q: How do I keep Brother PE-Design curved text editable while using “Transform Text Attribute” for team name batches?
  A: Use Transform for speed—Brother PE-Design keeps the object as text so names remain easy to edit.
  • Select the text object, open Text Attributes, and check Transform.
  • Choose the downward arc icon, then adjust the curve using the yellow diamond handle.
  • Success check: click a single letter and confirm you can still adjust attributes (for example, change color/font without converting to stitches).
  • If it still fails: verify the object is still a true text object (not converted), which is typically indicated by editable text handles rather than stitch-only outlines.
• Q: When should Brother PE-Design users choose “Fit Text to Path” instead of “Transform” for curved lettering placement on a badge?
  A: Choose Fit Text to Path when placement must slide along the curve; choose Transform when center-locked speed matters.
  • Use Fit Text to Path if the lettering must wrap a specific outline shape or must slide off-center (the “A” handle/slider is the key).
  • Use Transform if you are doing high-volume names and the text can stay centered on the arc.
  • Success check: confirm the method provides the needed control—Fit to Path shows the draggable “A” handle; Transform does not.
  • If it still fails: restart with the decision rule “Needs sliding = Fit to Path; No sliding + batches = Transform” before fine kerning adjustments.
• Q: What stabilizer should I use to prevent wavy curved lettering when stitching Brother PE-Design text on T-shirts/knits?
  A: For knit T-shirts, use cutaway stabilizer—tearing stabilizer away often leads to wavy, unstable curved text.
  • Match fabric to stabilizer: choose cutaway for knits; avoid relying on tearaway for curved lettering on stretchy garments.
  • Secure the fabric to prevent shifting (temporary spray adhesive is commonly used; follow product directions).
  • Success check: after stitching, the arc stays smooth and does not ripple when the garment relaxes off the hoop.
  • If it still fails: review hooping tightness and shifting control (fabric movement during stitching will exaggerate distortion on arcs).
• Q: What is the fastest way to reduce puckering and thread breaks when stitching small curved lettering under 10 mm from Brother PE-Design?
  A: Slow the embroidery machine down—small curved lettering typically stitches cleaner around 600–700 SPM.
  • Reduce speed before starting the text portion, especially for lettering under 10 mm tall.
  • Enable appropriate underlay for taller letters (for letters taller than 8 mm, use Center Run + Zigzag underlay).
  • Success check: listen for a steadier, rhythmic “thump-thump” instead of a high-pitched whine, and confirm satin columns look more defined.
  • If it still fails: inspect needle condition/type and confirm the fabric is stabilized and held firmly to prevent push-pull distortion.
• Q: How do I prevent hoop burn rings on polos and jackets when stitching curved lettering, and when should I switch to magnetic embroidery hoops?
  A: If traditional hoops must be over-tightened to hold the fabric, use floating techniques first, then consider magnetic hoops to reduce friction marks.
  • Level 1 (technique): float the garment using adhesive stabilizer and add a basting box to control shifting.
  • Level 2 (tool): use magnetic hoops to clamp fabric with less friction, reducing the chance of permanent hoop burn on delicate surfaces.
  • Success check: after unhooping, there is no visible friction ring and the curved text remains aligned without re-hooping.
  • If it still fails: treat repeated re-hooping and persistent marks as a hardware bottleneck and standardize placement methods for consistency.
• Q: What safety precautions should I follow when using industrial-strength magnetic embroidery hoops near an embroidery machine?
  A: Treat magnetic hoops as pinch hazards and keep them away from sensitive electronics—these magnets can snap together forcefully.
  • Keep fingers clear when bringing hoop parts together; let the magnets close under control.
  • Keep magnetic hoops at least 6 inches away from machine screens, pacemakers, and credit cards.
  • Success check: the hoop closes without finger pinches, and the machine area remains clear with no accidental magnet-to-metal snaps.
  • If it still fails: stop and reposition the hoop parts with a safer grip and more working clearance before attempting closure again.
