Fit Text to Path vs Transform Text in PE-Design Style Software: The Fast Arc, the Pro Slide, and the Mistakes That Waste Hours

Here is the comprehensive guide, re-engineered by your Chief Embroidery Education Officer. It blends software precision with the gritty reality of the shop floor, ensuring you navigate from digital design to physical stitch-out without breaking needles or your spirit.

When curved lettering goes wrong in digitizing software, it doesn’t just look “a little off”—it can turn into a full stitch-out disaster: upside-down names, awkward spacing on badges, and that one word that refuses to sit where you need it.

In 20 years of embroidery, I’ve seen more shirts ruined by bad arcing than by thread breaks. In this "White Paper" level guide, we are comparing two tools that look similar on screen but behave very differently once you start positioning: Fit Text to Outline (text-on-path) versus Transform Text (attribute arc). I’ll walk you through the exact software workflow, but more importantly, I will add the “shop-floor” physics: how these digital choices affect needle deflection, fabric pull, and your profit margins.

The Calm-Down Moment: Curved Text Isn’t Hard—But the Wrong Tool Makes It Feel Impossible

If you’ve ever watched your text snap to the top of an oval when you needed it on the bottom, you’re not doing anything “wrong.” The software is defaulting to mathematical logic, not artistic logic.

The real skill is choosing the method that matches your end goal:

• The Engineer's Choice: If you need precise placement and the ability to slide the text around the curve, you want Fit Text to Outline.
• The Artist's Choice: If you just need a quick, clean arc and you’re not picky about sliding along a path, Transform Text is faster.

Experience Note: A common panic point for beginners is not seeing the "Transform" box. In both PED10 and PED 9 (Next), these features exist. If the option is greyed out, it is almost always a selection-state issue (you haven't clicked the object correctly), not a missing feature.

The “Hidden” Prep Pros Do First: Set Yourself Up So Text Tools Behave

Before you touch Arrange menus or Text Attributes, do two small prep moves. In the industry, we call this "Pre-Flight," and it prevents 80% of the “why won’t it work?” frustration.

1) Confirm you’re selecting the right object type

• Fit-to-Outline: Requires selecting two objects: the text object AND the vector path/shape (e.g., the circle).
• Transform: Requires selecting only the text object.

2) Decide your endgame before you start editing

• Deep edits (like removing the dot on an “i”) require converting text to stitches. This interprets the font as shapes, closing the door on spell-checking or font swapping. Do this last.

3) Think like a stitcher: The Physics of the Curve

• Density Danger: When text curves, the stitches on the inside of the curve bunch together. If you stitch a standard 0.40mm density font on a tight arc, those inner points can become bulletproof.
• The Sound of Failure: If your machine makes a rhythmic "thump-thump" on the inside curves, your density is too high.
• The Fix: For tight curves (under 3-inch radius), increase your text spacing (kerning) by 10-15% or lighten the density slightly to 0.45mm.

Prep Checklist (Do this BEFORE software editing)

• Consumables Check: Do you have Water Soluble Pens to mark the physical arc center on the fabric?
• Stabilizer Choice: If arching text on knit/stretchy fabric, use Cutaway stabilizer. Tearaway will distort the arc into a "V" shape during stitching.
• Needle Check: For text under 10mm high, use a 75/11 needle. A standard 90/14 needle is too dull for crisp text definition on curves.
• Selection Strategy: Confirm if you need sliding placement (Fit-to-Outline) or a static arc (Transform).


Fit Text to Outline (Arrange Menu): The “Pro” Method When Placement Must Be Perfect

This is the method required for production runs—patches, badge borders, or corporate logos. It locks the text to a specific geometry.

What you’re doing

You are mathematically binding the text baseline to a vector line.

Step-by-step (Digital Protocol)

1) Select the text and the path together

• Click the text.
• Hold Control (or Command) and click the oval/path so both highlights appear.

2) Open the mapping tool

• Navigate to the Arrange menu.

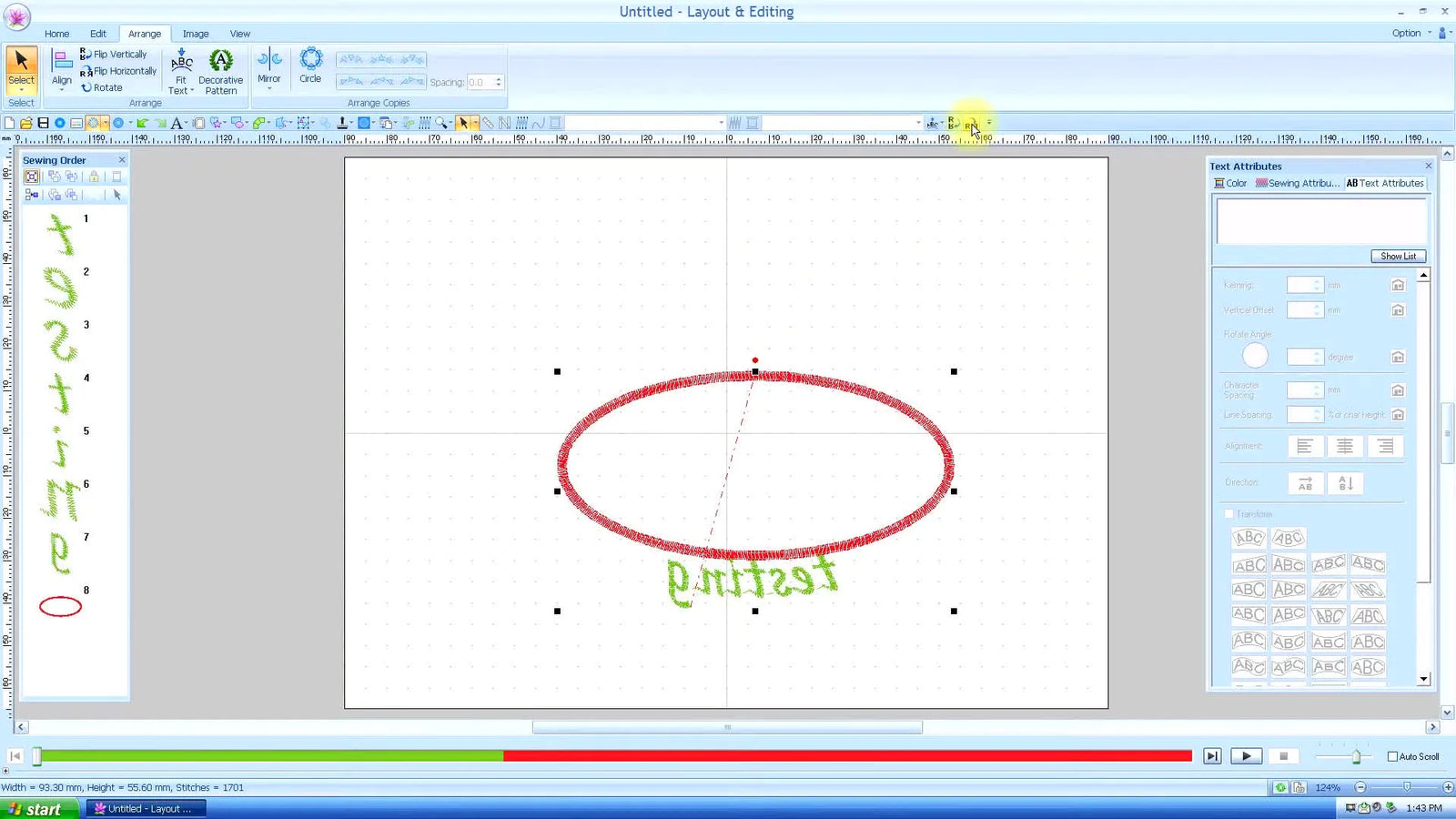

• Select ABC Fit to Text, then Fit the text to the outline.

3) The "Default" Verification

• The text will likely snap to the top (12 o'clock position). This is normal.

4) The Bottom Arc Maneuver

• Reopen the dialog options.
• Set alignment to Bottom Alignment.
• Check On the other side. Note: This puts the text inside the circle.

5) The Orientation Fix

• If the text is upside down or reading backward, apply this specific combo:
• Flip vertically (Corrects up/down).
• Mirror / Flip horizontally (Corrects left/right reading).

Warning: Needle Deflection Risk. Dense curved lettering can cause the needle to graze the bobbin case if the fabric flags (bounces). When test-stitching tight curves, reduce your machine speed to 600 SPM (Stitches Per Minute). Do not run at 1000 SPM until you confirm the path is clear.

Setup Checklist (Fit Text to Outline)

• Two Objects Selected: Did you hold Control?
• Visually Verified: Did the text snap to the line?
• Alignment Set: Bottom Alignment + "On the other side" engaged.
• Readability Check: Does it read Left-to-Right?
• Clearance: Is the text sitting on the line or offset? (Adjust offset if needed to prevent stitching on the border).


The “Why It Flips” Reality: Orientation Settings Aren’t Random—They’re Geometry

Beginners feel like they are guessing with the "Flip" buttons. Here is the logic so you stop guessing.

A vector line has a "gravity" to it.

• "On the other side" flips the gravity. It decides if the letter feet touch the line or the letter heads touch the line.
• "Flip Vertical" rotates the letter on its own axis.
• "Mirror" reverses the sequence order.

Empirical Data on Pull Compensation: When text is fitted to an outline, the "push" of the satin stitches will drive the text outward from the center of the arc.

• Horizontal Column Stitch: Will push the letter wider.
• Vertical Column Stitch: Will pull the letter shorter.

Pro Tip: If your curved text looks perfect on screen but stitches out "skinny," increase your Pull Compensation to 0.2mm or 0.3mm. The curve puts extra tension on the thread, naturally thinning the look of the satin column.

Transform Text (Text Attributes Panel): The Fast Arc When You Don’t Want to Draw Shapes

This method equates to "eyeballing it." It is faster, lighter on computing power, and perfect for one-off names on the back of caps.

Step-by-step (Efficiency Workflow)

1) Select the text. 2) Open Text Attributes panel. 3) Check the Transform box. 4) Choose Concave Arc (Upward). 5) The Sensory Adjustment: Use the colored control handle.

• Pull Down: Tightens the arc.
• Pull Up: Flattens the arc.
• Look for the visual feedback—the ghost outline moves before the stitches regenerate.

When to avoid this: Do not use Transform if you are trying to match a pre-existing circular patch. Getting the radius exactly right by "pulling" a handle is nearly impossible. Use Fit-to-Outline for matching physical objects.

The Make-or-Break Difference: The “A” Anchor That Lets You Slide Text on a Path

This is the "Secret Weapon" feature. In the video comparison, you see a small “A” anchor icon on the Fit-to-Outline method.

Why this matters for your sanity: Imagine you stitch a sample. The client says, "Can you rotate the text 5 degrees clockwise so it centers better under the logo?"

• With Transform: You have to delete, re-type, or guess the rotation angle.
• With Fit-to-Outline: You click the "A" Anchor and slide the text along the rail. It maintains perfect arch geometry while moving position.

The Lesson: If the client is picky, or the job is high-value, always use Fit-to-Outline to buy yourself editability.

Operation Reality Check: Choosing the Method That Matches Your Job (Not Your Mood)

Do not choose a method based on what button you find first. Choose based on the Risk Profile of the job.

White Paper Decision Tree: Fit vs. Transform

Q1: Is the text going inside a pre-defined shape (like a patch border)?

• Yes: Use Fit Text to Outline. (Mathematical precision required).
• No: Go to Q2.

Q2: Is this a single custom item (e.g., "Grandma's Garden" on a tote bag)?

• Yes: Use Transform Text. (Speed is priority).
• No: Go to Q3.

Q3: Are you producing 20+ items where placement consistency is critical?

• Yes: Use Fit Text to Outline. (You need the "A" anchor for fine-tuning).

Operation Checklist (Pre-Stitch)

• Gap Check: Zoom to 600%. Are the letters touching on the inside curve? If yes, increase kerning (spacing).
• Underlay: Ensure Center Run or Edge Run underlay is active to stabilize the fabric before the heavy satin stitches hit.
• Start/Stop Points: For caps, ensure the text starts from the center out (Center-Run) if possible, to push distortions to the edges.
• Save As: Save the editable working file (EMB/BE) before saving the machine file (DST/PES).


Individual Letter Coloring: Yes, You Can Still Style Characters After Curving

A crucial note for commercial operators: Just because you can change every letter's color, doesn't mean you should.

The Commercial Cost:

• On a single-needle machine, every color change is a manual stop, re-thread, and start. That’s ~2 minutes of downtime per change.
• On a SEWTECH Multi-Needle Machine, this is automated.
• Advice: If you design multi-colored curved text (like a rainbow name), ensure you are pricing for the machine time, or upgrading to a multi-needle platform to handle the sequence automatically.


The Comment-Section Fix That Saves You: Removing the Dot on an “i” (and Replacing It Later)

The viewer query regarding replacing an "i" dot with a heart brings us to the most dangerous tool in embroidery: Convert to Stitches.

1) The Action: You convert the text object into raw stitch data. 2) The Edit: You block-select the dot stitches and hit Delete. 3) The Trap: Once converted, the text is no longer "text." It is just blocks of thread. You cannot fix a typo. You cannot change the font.

The Golden Rule: Never convert to stitches until the client has signed off on the spelling and the curve. Treat "Convert to Stitches" like pouring concrete—once it sets, you need a jackhammer to fix it.

Troubleshooting the Two Most Common Curved-Text Headaches (Symptoms → Cause → Fix)

The Upgrade Path: When Digitizing Choices Start Affecting Hooping Speed and Profit

Even with perfect digitizing, the curve on the screen often fails to match the curve on the shirt. Why? Hoop distortion.

Traditional screw hoops force you to pull the fabric to create tension. This often warps the grain of the fabric. When you un-hoop, your perfect digital arc relaxes into a crooked smile.

Level 1: The Stabilization Fix

If you struggle with distortion, ensure you are using a temporary spray adhesive to bond the fabric to the stabilizer before hooping. This creates a unified "sandwich" that resists warping.

Level 2: The Tooling Upgrade (Magnetic Hoops)

If you are doing production runs of 10+ shirts, screwing tight hoops is a recipe for Carpal Tunnel and "hoop burn" (shiny marks on the fabric). This is where professionals switch to a magnetic embroidery hoop.

• The Logic: Magnets clamp straight down. They do not "pull" or distort the fabric grain. Your curved text stays purely curved.
• The Workflow: Search for how to use magnetic embroidery hoop videos to see how fast the docking process is compared to screws.
• Compatibility: Whether you use a home machine or a commercial rig, embroidery hoops magnetic act as a universal tension upgrade.

Level 3: The Productivity Upgrade (Hooping Stations & Multi-Needles)

If you find yourself perfectly digitizing a name, but placing it crookedly on the garment, the issue is not software—it's gravity.

• The Fix: A hooping station for embroidery allows you to use a laser or grid template to align that curved text exactly with the neck seam every single time.
• The Standard: Systems like the hoop master embroidery hooping station are industry standards because they guarantee that the "Chest Left" location is identical on Small shirts and 3XL shirts.
• The Scale: High-volume shops use hooping stations combined with machine embroidery hooping station attachments to reduce hooping time from 2 minutes to 15 seconds.

Warning: Magnetic Safety. Powerful magnetic embroidery hoop systems use industrial-grade neodymium magnets. They can pinch fingers severely and interfere with pacemakers. Always slide them apart—never pry—and keep them away from computerized machine screens and medical devices.

Final Thought: Digitizing the curve is only Step 1. Your success relies on the Physical Trinity: Correct Density (Software) + Distortion-Free Holding (Magnetic Hoops) + Consistent Alignment (Hooping Station). Master these, and your curved text will look as professional as the brands you admire.
