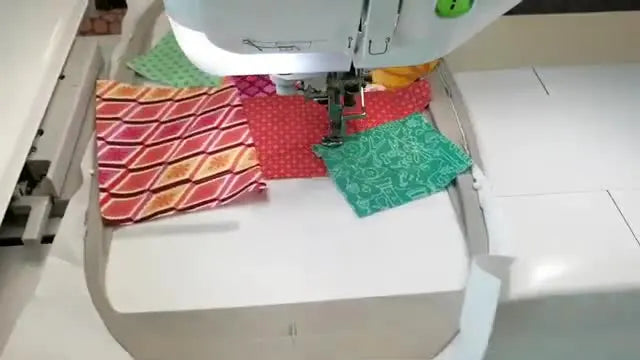

Flip & Fold ITH Patchwork That Actually Lies Flat: The Sweet Pea Star Placemat Method (Without Bulky Seams or Surprise Tucks)

Master Guide: The "Flip & Fold" ITH Patchwork System

From Fabric Explosion to Precision Engineering

If you have ever pulled an in-the-hoop (ITH) patchwork block out of the frame only to find it puffy, twisted, or missing coverage in a critical corner, take a breath. You are not alone. This is not a failure of talent; it is a failure of physics constraint.

The "Flip & Fold" method is reliable, but only when you treat it like controlled construction, not casual scrap play. It requires a shift in mindset: you are no longer just sewing; you are engineering layers within a fixed space.

In this guide, we are rebuilding the Sweet Pea ITH workflow into a shop-ready standard operating procedure (SOP). We will move beyond basic instructions to the tactile reality of the machine—the sounds, the resistance, and the checkpoints that prevent the two classic quilting disasters: (1) precision-killing pleats, and (2) trimming away the seam allowance you desperately need for the next join.

The Core Concept: Why "Flip & Fold" Breaks Brains (And How to Fix It)

Flip & Fold is essentially "fabric paper piecing," but executed blindly inside the hoop. You build a patchwork surface by stitching one edge, trimming the bulk, and utilizing the machine's precision to create straight lines.

The Cognitive Trap: The reason beginners panic is simple: you cannot see the final geometry until after you flip the fabric. To master this, you must develop two specific habits:

1. Coverage Visualization: Asking "Will this scrap cover the target area after it travels 180 degrees?"
2. Seam Allowance Discipline: Identifying which edge is "active" (being sewn) and which edges are "dormant reserves" (needed for joining later).

Whether you are running a commercial multi-needle beast or a standard single-needle brother embroidery machine, the physics remain identical. However, smaller single-needle machines often have tighter clearances under the foot, making bulk management even more critical.

Part 1: The "Hidden Prep" — Stabilizer, Batting, and Tools

Before you hoop, you must control the environment. A successful block is determined 80% by preparation and only 20% by stitching.

1. The Setup Logic

• Needle Choice: Use a 75/11 Sharp (or Microtex) needle. Unlike ballpoint needles (for knits), a sharp needle pierces the multiple layers of woven cotton and batting cleanly without pushing the fabric down into the needle plate hole.
• Thread: Use a 60wt bobbin thread in the bobbin and a neutral 40wt embroidery thread (usually white or grey) on top. This keeps the seams flat.
• Stabilizer: Use Poly Mesh (No-Show Mesh) if you want a soft pliable placemat, or Medium Tearaway if you want a stiff, wall-hanging structure.
• The Glue Stick: A hidden consumable pro tip—keep a water-soluble glue stick handy to tack down batting corners if they lift.

A practical note from production floors: Flip & Fold is repetitive. If you are making a set of six placemats, your fatigue will manifest as sloppy trimming.

2. The Speed Limit (Beginner Sweet Spot)

Resist the urge to run your machine at 1000 stitches per minute (SPM).

• Recommended Speed: 500 – 700 SPM.
• Why? Rapid acceleration shifts loose fabric scraps before the foot can trap them. Slowing down gives you reaction time to smooth out a wrinkle before it becomes a permanent pleat.

Checklist: Pre-Flight Safety (Do NOT Skip)

• Tension Check: Pull your top thread. It should feel like flossing teeth—firm resistance, but smooth. If it jerks, clean your tension discs.
• Hoop Tension: Material should sound like a drum skin when tapped (thump-thump), but not be stretched so tight that the weave distorts.
• Tool Station: Place Double-Curved Applique Scissors at the machine right hand side.
• Flatness Protocol: Have a small stack of scraps already ironed. Wrinkled scraps behave like elastic and will distort your geometry.
• Safety Zone: Ensure your rotary cutter is closed when not in use.

Warning (Mechanical Safety): When working with ITH patchwork, your hands are often inside the hoop area placing fabric. Always keep fingers at least 2 inches away from the active needle path. If you need to hold fabric close to the foot, use a stylus or the eraser end of a pencil—never your finger.

Part 2: The Foundation — Batting and Trimming

The process begins by stitching the batting to the stabilizer. This anchor step defines the rigidity of the entire block.

The 1-2mm Rule: Sweet Pea’s video demonstrates trimming the batting back 1–2 mm away from the stitching line. This is non-negotiable.

• If you leave too much: You get a bulky ridge at the seam.
• If you cut the stitch: The batting shifts and lumps.


Success Metric (Visual & Tactile)

• Visual: You see a clean stitched outline with batting reduced inside.
• Tactile: Run your finger over the edge. It should feel like a gentle step down, not a cliff.
• Critical: Ensure you did not cut the stabilizer underneath. If you slice the stabilizer, start over.

Part 3: The Cycle — Stitch, Trim, Flip, Press

This is the rhythm of production. We will break down exactly what your hands should be doing.

Step A: The Anchor Piece

Place the first fabric flat covering the center zone.

• The "Insurance" Policy: Ensure you have at least 0.5 inches of fabric extending past the internal lines. Many intermediate users get too "efficient" and cut scraps tight to save money. Don't. Fabric is cheaper than the time required to rip out stitches and restart.


Step B: The "Right Sides Together" Alignment

1. Take your next scrap.
2. Place it Right Side Down (facing the first piece).
3. Align the raw edges. The new piece should overlap the stitch line by 1/4 inch.

Step C: The Stitch & Trim

Run the seam stitch.

• The Sound of Quality: Listen to your machine. It should produce a rhythmic, consistent purr. A sharp slap-slap-slap sound usually means the fabric is flagging (bouncing) because the hoop is loose.
• The Trim: Fold back the raw edge you just sewed. Trim the excess seam allowance down to 2–3 mm. This bulk reduction is the secret to flat blocks.


Step D: The "Fingernail Press" (The Secret Sauce)

Flip the fabric open. Before you run the tack-down stitch, you must create a memory in the fibers.

• Action: Use the side of your thumbnail or a specialized seam creaser tool. Press firmly along the stitch line.
• Sensory Check: The fabric should lie flat on its own, without springing back up.


Why this works (The Physics)

Fabric creep happens because the fabric isn't stabilized the moment the needle penetrates. When you pull the fabric taut and crease it sharply, you maximize friction between the layers, preventing the presser foot from pushing a "wave" of fabric ahead of it.

If you are doing high-volume work where hooping efficiency is key, consistency here is everything. This is where users of dedicated hooping for embroidery machine often see better results—because the fabric starts under optimized tension.

Part 4: The Danger Zone — Seam Allowances & Angles

This is where 90% of mistakes happen: cutting off the fabric you need for the next step.

The Mental Model

Every piece has two jobs:

1. Cover the Now: Hide the batting in the current section.
2. Bridge the Future: Provide a 1/4 inch margin for joining to the next block.


Decision Tree: Handling Odd Angles

Use this logic flow when dealing with triangles or weird geometry.

• Scenario: You are about to place a corner piece.
• Question 1: Is the stitching edge straight?
  • Yes: Align straight edge to straight edge.
  • No: Stop. You need a template.
• Question 2: Will it cover?
  • Test: Place the fabric, hold the seam line with your finger, and manually flip it. Does it cover the entire target area + 0.5 inches?
  • No: Re-angle or get a bigger scrap.
  • Yes: Proceed to stitch.
• Question 3: Is this an outer edge?
  • Yes: DO NOT TRIM FLUSH. Leave 0.5 inches overhang beyond the final block outline.


Part 5: Preventing "The Pucker" (Troubleshooting)

Nothing destroys a block like a pucker (pleat) sewn permanently into a seam.

Symptom: Starts/Ends bunching up

• Cause: The presser foot is pushing a wave of loose fabric.
• The "Taut Pull" Fix: As the machine stitches, keep your hands on the fabric (safely away from the needle). Apply gentle tension away from the needle and towards yourself.
• Sensory Feedback: You should feel the fabric "settle" and become rigid like a drum skin under your fingers.






Checklist: Operation Quality Control (Run this mental loop every seam)

• Alignment: Are raw edges matched perfectly?
• Overlap: Is there at least 1/4 inch overlap past the stitch line?
• Trim: Did I trim the seam allowance to reduces bulk?
• Crease: Did I finger-press the fold flat?
• Future-Proof: Did I leave margin on the outer edges for the final join?

Part 6: Finishing & Squaring Up

Once the quilting is done, remove the project from the hoop.

• The Backside Trick: Sweet Pea notes that trimming from the back is often easier because the perimeter basting stitches are more visible against the stabilizer.
• Tool: Use a clear acrylic quilting ruler and a fresh rotary cutter.
• Check: Ensure you are cutting at the seam allowance line, not the finished block line. Usually, you want to leave 1/4 inch past the final visible stitching.








Part 7: The Commercial Upgrade Path (When Skills Aren't Enough)

Flip & Fold is a fantastic technique, but it is labor-intensive. The bottleneck is rarely the stitching time—it is the handling time.

If you are a hobbyist making one pillow, stick with standard tools. But if you are scaling up (e.g., making 50 coaster sets for a craft fair), you will hit physical barriers. Here is how to diagnose when you need to upgrade your infrastructure:

1. The Hoop Burn & Wrist Pain Barrier

• The Pain: Traditional screw hoops require force to close and open. Doing this 20 times a day causes wrist fatigue. Furthermore, creating "hoop burn" (permanent crush marks) on delicate velvet or linen is a constant risk.
• The Fix: This is the primary trigger for adopting magnetic embroidery hoops.
  • Why? They clamp automatically. Zero screw twisting. They hold thick quilt sandwiches firmly without crushing the fibers.
  • Efficiency: You can re-hoop in 5 seconds vs 45 seconds.

Warning (Magnet Safety): High-end magnetic hoops use industrial neodymium magnets. They are incredibly strong. Keep them away from pacemakers and watch your fingers—they can snap together with enough force to cause blood blisters or pinch injuries.

2. The Alignment Barrier

• The Pain: "My blocks are slightly crooked when I join them."
• The Fix: Inconsistent hooping tension. A hooping station ensures every layer of stabilizer and batting is tensioned identically, block after block.

3. The Capacity Barrier

• The Pain: "I spend more time changing thread colors than sewing."
• The Fix: If you are running complex ITH blocks with 5+ color changes on a single-needle machine, you are losing money on time. This is where moving to a multi-needle platform (like SEWTECH supported machines) changes the game. You load all 6-10 colors once, and the machine handles the Flip & Fold hold-down stitches without you stopping to re-thread.

Flip & Fold is not just a technique; it is a discipline. Respect the 1/4 inch, fear the bulk, and keep your edges square.

FAQ

• Q: What needle, bobbin thread, top thread, and stabilizer setup should I use for Sweet Pea “Flip & Fold” ITH patchwork on a Brother embroidery machine?
  A: Use a 75/11 Sharp (Microtex), 60wt bobbin thread, neutral 40wt top thread, and choose Poly Mesh vs Medium Tearaway based on the final stiffness you want.
  • Install: 75/11 Sharp (Microtex) needle to pierce woven cotton + batting cleanly.
  • Thread: Load 60wt bobbin thread in the bobbin and a neutral 40wt embroidery thread on top to keep seams flatter.
  • Stabilize: Pick Poly Mesh (No-Show Mesh) for a softer, pliable result, or Medium Tearaway for a stiffer structure.
  • Add: Use a water-soluble glue stick to tack batting corners if they want to lift.
  • Success check: Seams look flatter (less ridge) and the block stays stable without corners popping up.
  • If it still fails… Slow the machine to 500–700 SPM and re-check hoop tension (drum-skin “thump-thump,” not distorted weave).
• Q: How do I set hoop tension correctly for Sweet Pea “Flip & Fold” ITH blocks to prevent fabric flagging and the “slap-slap-slap” sound?
  A: Hoop so the material taps like a drum skin without stretching the weave, because a loose hoop lets fabric bounce and pleat.
  • Tap-test: Tap the hooped surface and aim for a clear “thump-thump” sound.
  • Avoid: Do not over-tighten until the fabric weave distorts—tight is not the same as stretched.
  • Listen: If the machine makes a sharp “slap-slap-slap,” stop and re-hoop; that sound often signals flagging from looseness.
  • Success check: The machine sound becomes a steady, rhythmic purr and seams stitch without sudden bunching.
  • If it still fails… Reduce speed to 500–700 SPM and keep fabric controlled with safe, gentle tension during starts/ends.
• Q: How far should I trim batting after the first outline stitch in Sweet Pea “Flip & Fold” ITH patchwork to avoid bulky ridges or shifting?
  A: Trim batting back 1–2 mm away from the stitching line—this clearance is the difference between flat seams and lumpy seams.
  • Trim: Cut batting so it sits 1–2 mm inside the stitched outline (do not cut on the stitch line).
  • Feel-test: Run a finger along the edge and aim for a gentle step-down, not a bulky “cliff.”
  • Protect: Do not cut the stabilizer underneath; slicing stabilizer compromises the whole block.
  • Success check: The batting edge looks clean inside the outline and feels smooth without a ridge.
  • If it still fails… Restart that foundation step if the stabilizer was cut or the stitch line was nicked.
• Q: How do I stop permanent puckers at seam starts and ends in Sweet Pea “Flip & Fold” ITH patchwork on a single-needle embroidery machine?
  A: Keep the fabric gently taut away from the needle while stitching, and slow down to give the presser foot time to trap the layers.
  • Slow: Run 500–700 SPM to reduce scrap shifting during acceleration.
  • Taut-pull: Apply gentle tension away from the needle and toward yourself while staying safely clear of the needle path.
  • Crease: Finger-press (thumbnail press) the fold along the stitch line before the tack-down to “lock” the fabric flat.
  • Success check: The fabric feels rigid like a drum skin under your fingers and the seam stitches without a pleat forming.
  • If it still fails… Re-check hoop tightness and confirm scraps are ironed flat; wrinkled scraps behave like elastic and distort.
• Q: What is the safest way to place fabric scraps close to the needle during Sweet Pea “Flip & Fold” ITH patchwork to prevent finger injuries?
  A: Keep fingers at least 2 inches from the active needle path and use a stylus (or pencil eraser) instead of fingertips when working near the presser foot.
  • Stop: Pause the machine when repositioning pieces if your hands would enter the hoop area.
  • Use: Push and hold fabric with a stylus or the eraser end of a pencil, not your finger.
  • Set: Keep tools staged on the right side (e.g., double-curved appliqué scissors) so you are not reaching across the needle area.
  • Success check: Fabric placement stays controlled without hands drifting into the stitch path.
  • If it still fails… Slow the machine and practice placement with the needle stopped; speed reduces reaction time.
• Q: When should Sweet Pea “Flip & Fold” ITH patchwork users upgrade from screw hoops to magnetic embroidery hoops to reduce hoop burn and wrist fatigue?
  A: Upgrade to magnetic embroidery hoops when repeated hooping causes hoop burn on delicate fabrics or wrist pain from screw tightening, especially during batch production.
  • Diagnose: Count re-hoops per day—if frequent hooping is causing soreness or crush marks, the hooping method is the bottleneck.
  • Upgrade: Use magnetic hoops to clamp quickly without twisting screws and to hold thicker quilt sandwiches more consistently.
  • Standardize: Pair consistent hooping habits (or a hooping station) with the upgrade for repeatable block alignment.
  • Success check: Re-hooping becomes faster and fabrics show fewer clamp marks while layers stay firmly held.
  • If it still fails… Review trimming/creasing discipline (2–3 mm seam allowance trim and firm finger-press) because bulk, not hoop type alone, can drive shifting.
• Q: What magnet safety rules should I follow when using industrial neodymium magnetic embroidery hoops for Sweet Pea “Flip & Fold” ITH quilting?
  A: Treat magnetic embroidery hoops as pinch-hazard tools and keep them away from pacemakers because neodymium magnets can snap together with injuring force.
  • Keep away: Do not use near pacemakers or similar medical devices.
  • Control: Separate and join magnet parts deliberately—do not let them “jump” together.
  • Protect: Keep fingertips out of the closing path to avoid blood blisters or pinch injuries.
  • Success check: Hoops close without sudden snapping and hands stay clear during clamping.
  • If it still fails… Slow down your hooping workflow and reposition your grip points so hands are never between magnet faces.
