Floating Hoop Embroidery on Foam Backpack Straps: Clamp It, Trace It, Skip the Underlay (and Keep Your Machine Safe)

The Backpack Strap Reality Check: Why Foam Padding Makes “Normal Hooping” Fail

Some embroidery jobs don’t fight you because the design is complex—they fight you because the physics of the object is working against you.

Foam-padded backpack straps are the ultimate adversary. They are thick (often EVA foam), curved, and attached to a heavy bag that acts like a gravity anchor, constantly trying to drag the strap out of alignment. If you have ever tried to hoop a strap using a standard friction hoop, you know the panic: you either cannot close the hoop screw, or you tighten it so much that you leave permanent "hoop burn" (crushed foam) that ruins the merchandise.

This guide upgrades the workflow demonstrated on a Baby Lock multi-needle machine. We will break down the "floating-hoop" method, but we will add the critical safety margins, sensory checks, and commercial scalability logic that turn a risky gamble into a profitable, repeatable service.

The Backpack Strap Reality Check: Why Foam Padding Makes “Normal Hooping” Fail

Foam-filled straps behave like a loaded spring. When you compress them into a standard hoop, they push back against the inner ring. This kinetic energy manifests in two business-killing ways:

1. Micro-shifting: The slick nylon surface slides under the presser foot vibration, ruining the registration of outlines.
2. The "Gravity Drag": The heavy bag hanging off the machine arm creates a constant "hidden tension." If the bag shifts one inch, the needle path is successfully pulled off target by millimeters—enough to ruin text.

That is why this technique utilizes a floating method secured by clamps (or magnets) rather than friction. We are not forcing the strap into the hoop; we are securing it onto the frame.

If you are searching for a repeatable method like a floating embroidery hoop, understand that this is not just a hack—it is the industry standard for "un-hoopable" 3D objects.

The “Hidden” Prep Pros Do Before Touching the Trace Button (Clamps, Needle, and Risk Control)

Before you load your design, you must commit to a "High-Risk Setup." Thick foam requires a different mechanical approach than a flat t-shirt. The margin for error here is zero because you cannot simply "replace" a customer's backpack if you ruin the strap.

1. The Needle Strategy (Crucial Upgrade)

The video demonstrates a standard setup, but let's optimize it. Do not use a Ballpoint needle; it will struggle to pierce high-density ballistic nylon or 600D polyester.

• The Pro Choice: Titanium Sharp, Size 90/14.
• The Why: A "Sharp" point penetrates the tight weave without deflecting. The Titanium coating resists heat buildup (friction from foam is high), which prevents the needle from bending. A bent needle on a strap = a shattered needle.

2. Hidden Consumables

• Basting Spray (Temporary Adhesive): A light mist on your stabilizer can prevent the strap from "walking" before the clamps lock it down.
• Painters Tape: Useful for taping back the loose webbing/buckles so they don't get caught in the pantograph arm.

Prep Checklist (Do this BEFORE the strap touches the machine)

• Needle Check: Install a fresh 90/14 Sharp Titanium needle. Ensure no burrs on the tip.
• Bobbin Check: Inspect the bobbin level. Standard: Do not start a strap with less than 50% bobbin thread. You do not want to change a bobbin in the middle of a clamped foam project.
• Hardware Selection: Locate your older-style metal floating hoop or a dedicated clamping frame.
• Holding Tools: Gather high-tension spring clamps (e.g., Craftsman or strong generic clips).
• Visual Mark: confirm the placement mark is visible on the strap (white chalk or water-soluble pen).

Warning (Mechanical Safety): Thick foam traps heat and increases needle drag. If your needle deflects off the internal foam density, it can shatter. Always wear safety glasses when embroidering thick gear. Keep your hands clear of the needle bar—if a strap snags, it can pull your fingers into the danger zone instantly.

The Trace Test on a Baby Lock Multi-Needle Embroidery Machine: Don’t Trust the “Center” on a Floating Hoop

On floating setups, the machine’s digital "Center" is insufficient. You must verify the physical Z-axis clearance. Electronic tracing tells you X and Y (left/right, up/down), but it does not tell you if the presser foot will slam into your spring clamps.

The "Sensory Trace" Protocol

Do not just watch the screen. Watch the Presser Foot:

1. Lower the needle bar manually (with machine off) or use the "Trial" function to see the lowest point.
2. Listen: As the trace moves near the clamps, listen for any metal-on-metal scraping.
3. The "Safety Gap": Ensure there is at least a finger-width (approx 10mm) clearance between the needle bar and your clamps/frame edge.

The demo highlights a design height of less than 4 inches. This is the safe zone. Do not push the boundaries on a strap; keep the design small and centered to avoid hitting the hard edges of the floating hoop.

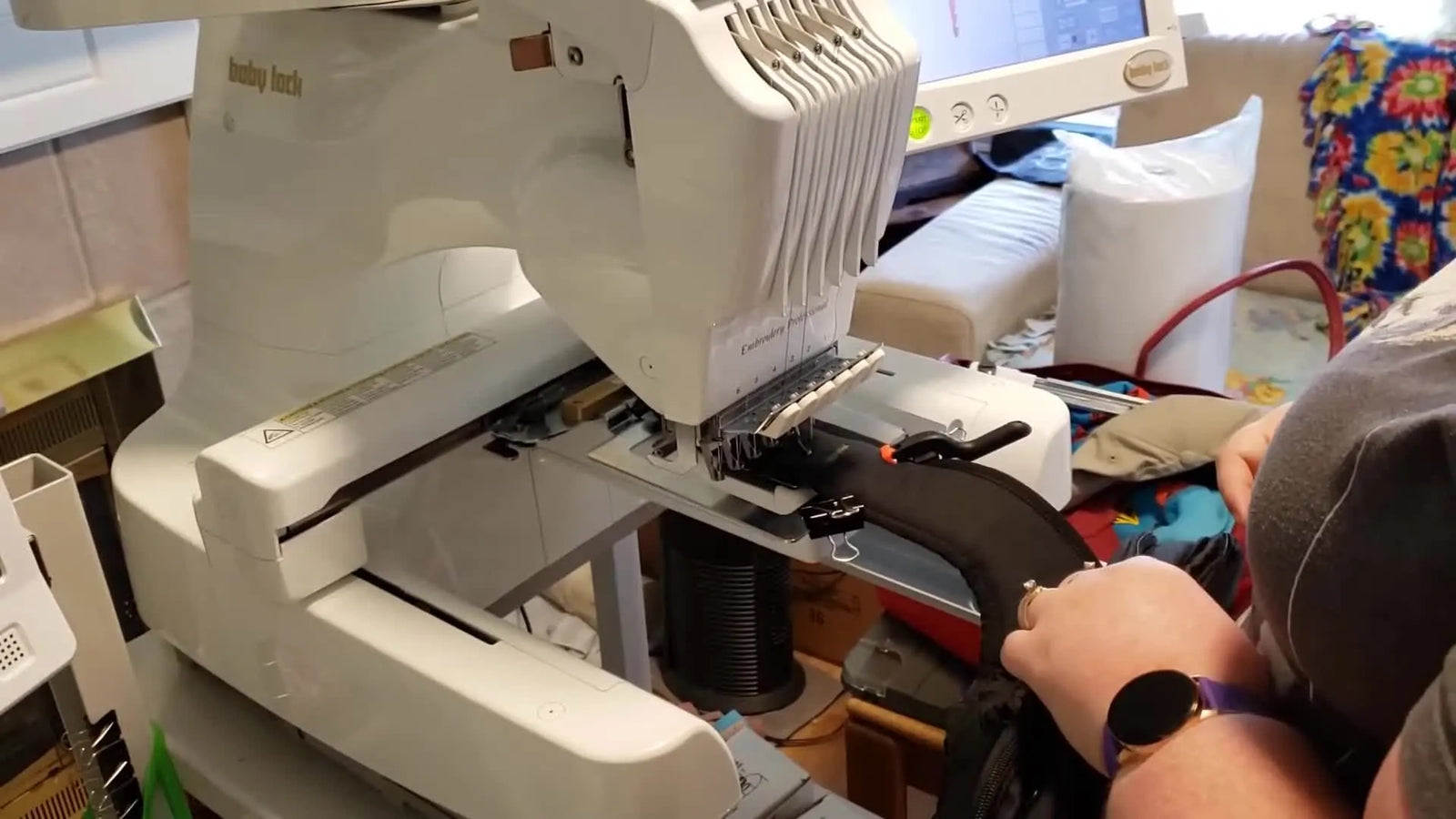

Clamp the Strap to the Floating Hoop Frame: The Only Way to Hold Foam Without Crushing It

This is the most physical part of the process. The strap is secured by identifying the metal side arms of the floating hoop frame and biting down with spring clamps.

The "Symmetric Tension" Technique

Copying the video is not enough; you must feel the tension.

1. Clamp Order: Clamp the top-left, then pull the strap taut (like flossing teeth) and clamp the top-right. Repeat for the bottom.
2. The Tactile Test: Tap the center of the strap. It should not feel "mushy." It should feel integrated with the metal frame.

The Commercial Reality: If you are doing one backpack, spring clamps are fine. However, they are tedious and prone to flying off if the machine vibrates heavily. This represents a "production bottleneck." If you’re doing this kind of work weekly, many shops move from improvised clamps to magnetic embroidery hoops. The magnetic force provides a continuous perimeter grip that "sandwiches" the foam without crushing it, eliminating the risk of clamps popping off mid-stitch.

Backing or No Backing? When Foam Acts Like Stabilizer (and When It Doesn’t)

In the demo, no backing/stabilizer is used. The operator relies on the strap’s dense EVA foam core to act as the stabilizer.

Is this safe? Yes, BUT only under specific conditions. If you get this wrong, your stitches will sink and vanish.

Use this decision tree to determine your stabilizer needs:

Decision Tree: Strap Material → Stabilizer Choice

• Scenario A: High-Density Foam (Firm/Hard)
  • Action: No backing required (as seen in demo).
  • Caveat: Ensure the stitch density is not too high, or you will perforate the foam (cutting it like a stamp).
• Scenario B: Squishy/Pillowy Foam or Loose Mesh Top
  • Action: Must use Stabilizer.
  • Recommendation: Use a layer of Water Soluble Topping (Solvy) to keep stitches on top, and a sheet of Tearaway underneath to prevent the foam from distorting.
• Scenario C: Using an Adhesive Frame System
  • Action: If using a system like durkee fast frames, apply sticky backing (Self-Adhesive Tearaway) to the frame bottom to prevent the strap from sliding during the first 100 stitches.


The Slack “Lump” Trick: Stop the Backpack’s Weight From Pulling Your Stitch Path

New operators often let the backpack hang straight down. This is a fatal error. Gravity is stronger than your clamps.

The Physics of "The Loop"

The demo shows a visible lump of slack positioned near the machine arm.

• Why: You are decoupling the weight of the bag from the embroidery area.
• The Check: Lift the backpack body and rest it on a nearby table or stand if possible. If it must hang, create a large "U" shape with the strap so the sewing area is isolated from the downward pull.

Pro Tip: If the backpack is slippery, use a magnetic clip or tape to secure the slack loop to the machine table (far away from the moving arm) to ensure the loop doesn't slide off mid-print.

Skip Underlay on Thick Foam Straps: The On-Screen Stitch-Advance Move That Prevents Shifting

The demo’s "Secret Sauce" is skipping the underlay. Underlay stitches (the foundational lattice) are usually crucial, but on thick foam, they can be destructive. They chew up the foam and create friction that pushes the strap out of the clamps before the "real" stitching begins.

How to Execute the "Stitch Advance"

1. Load the design.
2. Identify the first color block (usually the text).
3. Use the +/- Stitch key to fast-forward.
4. Target: Skip the zig-zag walk or center-run underlay. Jump straight to where the heavy satin column begins (in the demo, approx. 60 stitches in).

Expert Nuance: If you cannot skip underlay because the design is too wide (wider satin stitches need support), change the type of underlay in your digitizing software. Switch from "Edge Run" (which perforates edges) to a centered "Zig Zag" with long stitch lengths to reduce perforation.

Setup Checklist (Right Before You Press Start)

• Clearance: Hand-turn the wheel or do a box trace ONE last time to ensure clamps are clear.
• Slack: Is the "Lump" loop present? Is the bag weight supported?
• Speed: LOWER YOUR SPEED. Do not run straps at 1000 SPM. Set machine to 400-600 SPM. The momentum of a heavy bag at high speed causes registration loss.
• Start Point: Have you advanced past the aggressive underlay?

If you run a baby lock multi needle embroidery machine, these on-screen adjustments are the difference between a ruined $50 bag and a perfect $15 profit.

Stitch the Numbers While Watching the Clamps Like a Hawk (Because They *Will* Vibrate)

This is an "Active Supervision" run. You are the second stabilizer.

The Sound of Success vs. Failure

• Good Sound: A rhythmic, dull thump-thump. This means the needle is penetrating the foam cleanly.
• Bad Sound: A sharp slap or high-pitched whine. This indicates the strap is flagging (bouncing) or the needle is dragging against the guard.

The "Hover Hand" Method: Keep your hand near the Stop button. Watch the clamps. The video shows the operator pausing to re-seat a clamp. This is normal. Vibration loosens spring tension. If you see a clamp migrate more than 2mm, STOP immediately. Re-clamp. Do not hope it gets better; it won't.

When the Auto Thread Cutter Fails on Thick Straps: Manual Trim Without Making a Mess

Thick foam changes the geometry of the needle plate. Often, the automatic trimmers cannot engage properly, or the foam puts too much tension on the thread for the knife to slice cleanly.

In the demo, the machine fails to cut. This is expected behavior.

The Manual Protocol

1. Full Stop: Ensure the green light is off and the needle is up.
2. Pull Loop: Pull the hoop/frame gently toward you to create thread slack.
3. The Flush Cut: Use curved embroidery scissors (like Kai or Snip-Eze). Press the curve against the foam to get close, but be careful not to snip the nylon strap itself.


Troubleshooting the Three Fail Points: Shifting, Vibrating Clips, and “Why Won’t It Cut?”

Here is your quick-reference diagnostic table for "Strap Disasters."

If you are scaling this job, the labor cost of "babysitting" clamps kills your margin. This is why high-volume shops invest in fixtures like a hoop master embroidery hooping station, which standardizes the placement so you aren't guessing on every single bag.

The “Why” Behind This Method: Physics of Holding Force, Not Just a Clever Hack

Understanding the physics upgrades your skill. Floating works here because we are changing the Anchor Point.

• Standard Hooping: Relies on friction on the inner ring (Impossible on 1-inch thick foam).
• Clamping/Floating: Relies on downward pressure on the outer frame.

By skipping the underlay, we are respecting the material's fragility. We avoid "chewing" the anchor point (the foam) before the satin stitch (the beauty) is applied.

The Upgrade Path When You’re Doing These for Profit: Faster Holding, Less Rework, Safer Runs

If you are embroidering one bag for a nephew, use clamps. If you are landing a contract for the local football team (50 bags), the "Clamp and Pray" method will injure your wrists and your bottom line.

Here is the commercial upgrade logic:

Level 1: The Hobbyist

• Tools: Standard Metal Frame + Spring Clamps.
• Bottleneck: High risk of shifting, requires constant supervision, finger fatigue.

Level 2: The Prosumer (Tool Upgrade)

• Scene Trigger: You are rejecting 1 out of 10 bags due to "hoop burn" or shifting.
• Solution: babylock magnetic embroidery hoops (or generic equivalents like SEWTECH).
• Benefit: The magnets snap shut instantly. No screwing, no forcing. They hold thick foam without the "wedge effect" that pops spring clamps off.
• Safety Note: These magnets are industrial strength. Keep fingers clear of the snap zone.

Warning (Magnetic Safety): Powerful magnetic hoops can pinch fingers severely (blood blister risk) and may interfere with pacemakers. Handle with respect and keep them away from sensitive electronics.

Level 3: The Production House (Workflow Upgrade)

• Scene Trigger: Placement is inconsistent across 50 bags.
• Solution: A dedicated magnetic hooping station combined with durkee ez frames.
• Benefit: You set the jig once, and every strap loads in exactly the same spot. Zero measuring on the machine.

Operation Checklist (End-of-Job Quality Control)

• Unload Safely: Remove clamps/magnets before pulling the bag to avoid tearing the last stitch.
• Heat Clean: If you used a heat-sensitive pen for marking, hit it with a hair dryer (not a heat gun—too hot for nylon) to remove marks.
• Thread Tail Check: Trim all jump stitches flush. Nylon straps show every loose thread.
• Stress Test: Flex the strap. Ensure the satin stitches don't separate and reveal the foam underneath (if they do, increase density next time).






FAQ

• Q: What needle should a Baby Lock multi-needle embroidery machine use for foam-padded backpack straps made of 600D polyester or ballistic nylon?
  A: Use a fresh Titanium Sharp needle in size 90/14 to pierce dense nylon cleanly and reduce deflection.
  • Install: Replace the needle before the job and check the tip for burrs.
  • Avoid: Do not use a Ballpoint needle on tight-weave strap fabric.
  • Slow down: Run the design at 400–600 SPM to reduce heat and drag.
  • Success check: The stitch sound stays a dull, rhythmic “thump-thump,” not a sharp slap or high-pitched whine.
  • If it still fails… Stop and re-check for needle deflection and top/bobbin tension imbalance (white bobbin showing can be a clue).
• Q: How can a Baby Lock multi-needle embroidery machine operator prevent hoop burn (crushed foam) when embroidering thick EVA-foam backpack straps?
  A: Do not compress the strap into a standard friction hoop—float the strap and secure it to a frame with clamps (or a magnetic hoop) instead.
  • Switch method: Use a metal floating frame or clamping frame rather than tightening a hoop screw onto foam.
  • Secure: Clamp in a symmetric order (top-left, top-right, bottom-left, bottom-right) while pulling the strap taut.
  • Protect: Use painters tape to keep loose webbing/buckles away from the pantograph area.
  • Success check: The strap feels “integrated” with the frame (not mushy) when you tap the center, and the foam surface is not visibly crushed.
  • If it still fails… Reduce clamp vibration risk by upgrading to a magnetic hoop system that grips continuously around the perimeter.
• Q: How do you trace-test a Baby Lock multi-needle embroidery machine on a floating/clamped backpack strap without the presser foot hitting spring clamps?
  A: Do a “sensory trace” and confirm real-world clearance—screen center/trace is not enough on floating setups.
  • Lower-test: Manually lower the needle bar (machine off) or use Trial to find the lowest point.
  • Listen: Move through the trace path and listen for any metal-on-metal scrape near clamps.
  • Measure: Keep about a finger-width (~10 mm) clearance between needle bar/presser foot travel and clamps/frame edges.
  • Success check: The full trace completes with no contact sounds and the clamps stay outside the moving footprint.
  • If it still fails… Reposition clamps farther out and keep strap designs small and centered (the demonstrated safe zone was under ~4 inches tall).
• Q: When can a Baby Lock multi-needle embroidery machine skip stabilizer on foam-padded backpack straps, and when is stabilizer required?
  A: Skip backing only when the strap foam is firm/high-density; add stabilizer when the foam is squishy or the top layer is loose/mesh-like.
  • No-backing case: Use no backing when the EVA foam core is dense and stable, and avoid overly high stitch density that can perforate foam.
  • Add topping: Place water-soluble topping on squishy/pillowy straps so stitches do not sink.
  • Add backing: Use tearaway underneath when the strap distorts or shifts during stitching.
  • Success check: Satin stitches sit on top of the strap surface clearly (not “vanishing” into foam), and outlines register without creeping.
  • If it still fails… Reduce density/underlay aggression and improve holding (clamps or magnetic hoop) to stop micro-shifting.
• Q: How can a Baby Lock multi-needle embroidery machine stop backpack strap designs from stitching crooked due to the hanging bag weight (“gravity drag”)?
  A: Isolate the sewing area from the bag’s weight by creating a large slack “U-loop” and supporting the bag body whenever possible.
  • Support: Rest the backpack body on a table/stand instead of letting it hang freely.
  • Loop: Form a visible slack lump/loop near the machine arm so the strap section being stitched is decoupled from downward pull.
  • Secure: If the strap is slippery, tape or clip the slack loop to the table far from moving parts.
  • Success check: You can lift and move the bag body slightly without the hoop area tugging or shifting.
  • If it still fails… Stop and re-clamp/re-align, then reduce speed to 400–600 SPM to minimize momentum-induced drift.
• Q: How do you prevent spring clamps from popping off a floating embroidery frame while a Baby Lock multi-needle embroidery machine stitches thick foam straps?
  A: Expect clamp vibration and manage it actively—watch clamps during the run and stop immediately if any clamp migrates.
  • Clamp smart: Use symmetric tension and pull the strap taut before setting the opposing clamp.
  • Monitor: Keep a “hover hand” near Stop and visually track clamp position throughout stitching.
  • Pause-reset: If a clamp shifts more than ~2 mm, stop and re-seat it (do not “hope it settles”).
  • Success check: Clamps stay stable and the strap does not bounce/flag; the stitch sound remains consistent.
  • If it still fails… Consider upgrading to magnetic hoops for continuous grip that reduces the wedge/vibration pop-off behavior.
• Q: Why does the Baby Lock multi-needle embroidery machine auto thread cutter fail on thick foam backpack straps, and what is the correct manual trim method?
  A: Thick foam can block the trimmer geometry, so manual trimming is normal on straps—stop fully and do a controlled flush cut.
  • Stop safe: Ensure the green light is off and the needle is fully up before reaching in.
  • Create slack: Pull the frame gently toward you to form a thread loop you can cut cleanly.
  • Cut flush: Use curved embroidery scissors and press the curve against the foam—avoid snipping the nylon strap fibers.
  • Success check: The cut is close and clean with no long tails visible on the strap surface.
  • If it still fails… Disable auto-trim for that job and plan manual trims as part of the strap workflow.
• Q: What safety steps should a Baby Lock multi-needle embroidery machine operator follow when embroidering thick foam backpack straps with clamps or magnetic hoops?
  A: Treat foam straps as a high-risk setup: protect eyes from needle shatter and protect fingers from clamp/magnet pinch points.
  • Wear: Use safety glasses because thick foam increases needle drag and deflection risk.
  • Clear hands: Keep fingers out of the needle bar danger zone—snags can pull material fast.
  • Handle magnets: Keep fingers out of the snap zone on magnetic hoops; the pinch force can cause blood blisters, and magnets may affect pacemakers.
  • Success check: You can complete a trace and first stitches without any contact, scraping, or “snap-close” near your fingers.
  • If it still fails… Slow the machine, re-check clearance, and switch to a safer holding setup that keeps clamps/magnets farther from the needle path.
