Floriani Backdrop Digitizing That Actually Stitches Clean: Export at 300 DPI, Sequence Fill→Border, and Fix That One Ugly Corner

From Pixel to Production: The Ultimate Guide to Digitizing and Stitching with Floriani

When you’re digitizing from a picture, your goal isn’t just “making stitches”—it is architectural engineering. You are building a stitch plan that must survive the chaotic physics of a real embroidery machine: fabric pull (contraction), stitch push (expansion), and the physical tension of thread moving at 800 stitches per minute.

If you treat digitizing like graphic design, your results will pucker and gap. If you treat it like structural engineering, your results will look professional. In this guide, based on a proven Floriani workflow, we will move from a raw JPEG to a production-ready file. We will manually digitize a star-and-letter logo, fix a common geometry "glitch" that ruins borders, and explore the physical tools—from SEWTECH machines to stabilizers—that ensure your digital plan works in the real world.

Calm the Panic: “Load Backdrop” in Floriani Embroidery Suite Is Reference-Only (and That’s the Point)

Novice digitizers often feel a spike of anxiety—the "Panic of the Blank Screen"—when they import an image and nothing appears in the Sequence View. Step back and breathe. This is not a software bug; it is a safety feature.

In Floriani, a Backdrop is strictly a tracing layer. It is the digital equivalent of placing a photo under a sheet of translucent tracing paper.

• The Reality: The backdrop contains zero stitch data. It cannot be sewn.
• The Benefit: Because it is not an embroidery object, you cannot accidentally select it, distort it, or ruin its aspect ratio while you are working on the stitches above it.

If you are coming from auto-digitizing habits (the "Magic Wand" approach), you must shift your mental model. Auto-digitizing often creates messy, fragmented stitch paths. "Backdrop mode" forces you to take control, ensuring your pathing is logical and clean.

The “Crisp Reference” Habit: Exporting a 300 DPI JPEG from CorelDRAW (So You’re Not Tracing a Blurry Mess)

Garbage in, garbage out. If you trace a blurry, pixelated image, your node placement will be sloppy, leading to jagged curves in the final embroidery.

Here is the "High-Fidelity" workflow shown in the tutorial:

1. Select your vector objects (the star and the “G”) in CorelDRAW.
2. Export as a JPEG.
3. Critical Step: Change the resolution from the default 72/100 DPI to 300 DPI.
4. Save to your desktop.

Why 300 DPI? At lower resolutions, a sharp 90-degree corner looks like a rounded blob of grey pixels. You will guess where the corner is, place your node incorrectly, and the machine will stitch a rounded corner instead of a sharp one. High resolution gives you the confidence to place nodes with surgical precision.

Warning: Embroidery is a physical industrial process. When testing new files, there is a risk of needle deflection or breakage if densities are too high or paths overlap incorrectly. Always wear safety glasses when watching a test sew-out, and keep hands at least 6 inches away from the active needle bar.

The One Menu Click That Saves Hours: File → Load Backdrop (Not Open, Not Import Artwork)

Inside Floriani, specific vocabulary matters. The instructor performs File → Load Backdrop.

Do not confuse this with "Open" (which looks for stitch files like .PES or .DST) or "Import Artwork" (which tries to turn vectors into stitch objects).

• Load Backdrop = "Put this picture in the background so I can trace it."
• The Sensory Check: When you load the backdrop, the image should appear on the screen, but your "Sequence View" on the right sidebar should remain empty. If you see an object in the sidebar, you used the wrong command.


Prep Checklist (Do This Before You Place a Single Stitch Node)

• File Hygiene: Confirm your reference JPEG is 300 DPI. If the edges look fuzzy when zoomed in to 200%, stop and re-export.
• Material Strategy: Decide now what you are stitching on. A design digitized for denim (thick, stable) will pucker badly on performance pique (stretchy, thin) unless you plan for it.
• Consumable Check: Do you have the right needle? (Standard 75/11 sharp for wovens, ballpoint for knits). Do you have temporary spray adhesive?
• Backdrop Status: Verify the image is visible on screen but invisible in the Sequence View property list.

The Registration Rule That Separates Hobby Files from Production Files: Digitize Fill → Border → Details

The instructor pauses to explain the hierarchy of embroidery physics. This is the difference between a amateur design and a professional one.

The Golden Sequence:

1. Center/Bottom: Digitize the large Fill (the star body) first.
2. Frame: Digitize the Border immediately after.
3. Top Details: Digitize the topmost elements (the “G”) last.

The "Why" (Physics): When a machine lays down a fill stitch, it pushes the fabric. This is called the "Push Effect." If you stitch the "G" (center detail) before the border, the fabric distortion from the "G" will move the fabric. By the time the machine tries to stitch the border, the fabric has shifted, and your border will not line up with the star. Stitching from the "Inside Out" or "Bottom Up" minimizes this accumulation of error.

Build the Star Body Fast (and Clean): Complex Fill Tool with a Simple Right-Click Close

The star body is digitized using the Complex Fill tool.

1. Select Complex Fill.
2. Left Click for straight lines (corners of the star).
3. Right Click to close the shape.
4. Visual Check: Turn on "3D View." Does it look like solid thread or a wireframe? Use 3D view to verify coverage.
5. Set color to Red.

The Density variable: For standard thread (40wt), a standard density is 0.40mm. If you are stitching on dark fabric with light thread, you may need to tighten this to 0.38mm, but be careful—too dense, and the design becomes "bulletproof" and stiff.

Expert Note: The "Fabric Push" Reality

In the software, the perimeter of the star is a perfect mathematical line. On the machine, the fill stitches will push the edges out slightly (about 0.5mm - 1mm depending on the fabric). This is why the border is critical—it acts as a cover to hide the uneven edge of the fill.

The Visibility Trick Pros Use: Hide the Fill in Sequence View Before Tracing the Steel Stitch Border

If you try to trace the border while the red fill is visible, your eyes will trick you. You will likely trace the edge of the stitches rather than the edge of the artwork.

The Fix: Go to the Sequence View, find your Red Complex Fill, and click the Eye Icon (Visibility).

• Result: The red fill disappears. You can now see the crisp, 300 DPI JPEG lines of the star clearly. This ensures your border path is mathematically identical to your fill path.


A Clean Border Without Guesswork: Steel Stitch Tool, Then Adjust Width to 2.5 mm

The border is digitized using the Steel Stitch (often called a Satin Border or Column Stitch).

1. Select Steel Stitch.
2. Trace the star points again.
3. Right-click to generate the stitches.

Standardization: The instructor changes the width to 2.5 mm. For a border this narrow, the machine needs help stabilizing the fabric. In the properties tab, ensure Center Run Underlay is checked. This puts a straight line of stitching down the center of the column path before the zig-zag satin stitch, anchoring the fabric and preventing the border from becoming too narrow.

Color Hygiene: Change this border to Color 2 (Black). This forces a machine stop (on single-needle machines) or a needle change (on multi-needle machines), allowing you to trim any jump threads before the border covers them.

The “One Corner Looks Wrong” Problem: Why Start/Stop Nodes Can Turn a Flat Corner into a Spike

You generate your border, and suddenly: four corners look perfect, but the top corner has a weird, elongated "spike" sticking out of it.

The Diagnosis:

• You started tracing at the top point.
• You ended tracing at the top point.
• This placed two nodes (Start and Stop) directly on top of each other.
• Floriani’s geometry engine struggles with overlapping nodes on a sharp angle, forcing the stain stitch to capped awkwardly.

This is a classic "Ghost in the Machine" moment where math conflicts with aesthetics.

The Shape Tool Fix That Makes You Look Like a Wizard: Delete the Extra Node, Redraw, and the Corner Flattens

Do not delete the object and start over. Fix the geometry.

The Surgical Procedure:

1. Select the black border object.
2. Activate the Shape Tool (Node Editing Mode).
3. Zoom in to 400% on the spiked corner.
4. You will see two nodes stacked or very close together.
5. Right-click on the unnecessary node (usually the stop node) and select Delete Point.
6. Right-click again to refresh/redraw.

The Result: The "spike" retracts instantly. The software now calculates a clean turn around a single node, matching the other four corners.

Pro Tip: Move your Start/Stop points to a "flat" long edge rather than a sharp corner. Corners are already high-stress areas for thread tension; adding a tie-in/tie-off knot there increases the risk of thread nests.

The Letter “G” That Doesn’t Gap: Classic Satin in Two Overlapping Segments (Not One Overcomplicated Path)

Now, the "G". Novices try to trace the entire letter in one continuous path. Don't do this. Satin stitches hate complicated turns. If you force a satin stitch to turn 180 degrees in a tight curve, the stitches on the inside of the turn will bunch up, and the outside will gap.

The Production Method:

1. Use Classic Satin.
2. Digitize the vertical spine of the G as Object A.
3. Digitize the crossbar/curve as Object B.
4. Crucial: Make them overlap slightly where they join.
5. Sequence them so the bottom layer stitches first.

This overlap acts as a bridge. If the fabric pulls apart slightly, the overlap ensures there is no gap (white fabric showing through) between the two parts of the letter.

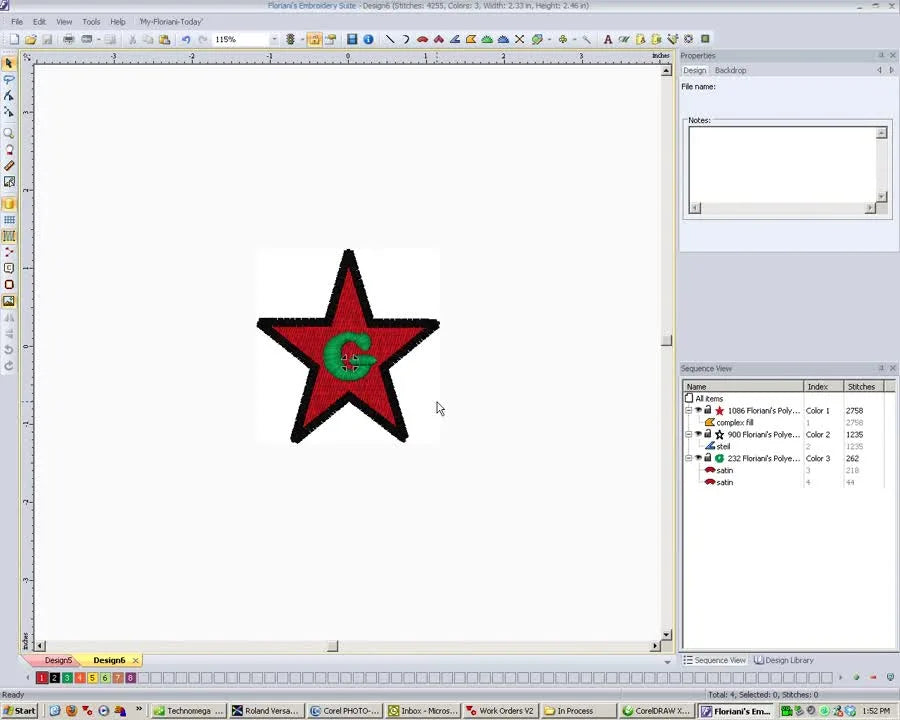

The Final Sanity Check: Turn Layers Back On and Confirm Size (~2.5 Inches) Before You Export

Zoom out. Turn the eye icon for the Red Fill back on.

The Visual Audit:

• Does the black border sit on top of the red edge? (It should cover the edge by 50%).
• Is the Green G visible on top of everything?
• Size Check: The instructor confirms the design is ~2.5 inches.
  • Why this matters: If this design were resized to 1 inch, the 2.5mm border would become bulky and messy. If resized to 10 inches, the satin stitches would be too long to be durable. Digitizing is scale-dependent.


Setup Checklist (Before You Stitch This File on a Real Machine)

• Machine Threading: Thread your machine with the sequence Red -> Black -> Green.
• Bobbin Check: Open the bobbin case. Is it lint-free? Is the bobbin nearly full? Running out of bobbin thread on a complex satin border is a nightmare repair.
• Needle Freshness: If you can't remember when you changed your needle, change it now. A dull needle causes 50% of "digitizing" problems.
• Format Export: Save as the specific format for your machine (e.g., .PES for Brother/Babylock, .DST for Tajima/Commercial).
• Mock-up: Do not stitch on the final garment yet. Stitch on a scrap of similar fabric.

Troubleshooting Like a Shop Owner: Symptom → Cause → Fix (So You Don’t Re-Digitize Everything)

When things go wrong, do not panic. Use this logic flow before changing the software.

The “Why It Works” Layer: Pull, Push, and Why Sequencing Is Your Cheapest Quality Upgrade

Embroidery is a battle against tension.

• Pull: Stitches run in the direction of the grain, pulling the fabric in and making the object narrower.
• Push: As the needle creates space for thread, the fabric is pushed out perpendicular to the stitch direction.

The instructor’s sequence (Fill > Border > Detail) allows the fabric to "settle" at each stage. By the time the final Green "G" is stitched, the red star and black border have already stabilized the fabric area, creating a secure foundation—much like pouring a concrete slab before framing the walls.

A Practical Stabilizer Decision Tree (Because Digitizing Quality Still Depends on Hooping and Support)

Your digital file is only half the equation. The other half is stabilization. Use this decision tree to prevent fear-based guessing.

• Scenario A: Stretchy Fabric (T-Shirt, Pique Polo)
  • Physics: Fabric stretches. Stitches pull it in.
  • Solution: Cutaway Stabilizer (2.5oz).
  • Why: Cutaway provides permanent structural support that doesn't disappear after washing.
• Scenario B: Stable Fabric (Denim, Canvas, Twill)
  • Physics: Fabric holds its shape.
  • Solution: Tearaway Stabilizer.
  • Why: The fabric supports the stitches; the stabilizer just keeps it crisp during the process.
• Scenario C: High Nap Fabric (Towel, Fleece)
  • Physics: Stitches sink into the fluff and disappear.
  • Solution: Water Soluble Topping (Solvy) on top + Tearaway/Cutaway on back.
  • Why: The topping creates a "glass floor" for stitches to sit on top of the loops.

When “Tool Upgrades” Actually Make Sense: Faster Hooping, Less Distortion, and More Repeatable Results

If you are a hobbyist doing one shirt a month, standard hoops are fine. But if you are trying to turn a profit, or if you struggle with arthritis or "Hoop Burn" (the shiny ring left on fabric by tight plastic hoops), you hit a pain point that "better digitizing" cannot solve.

The Bottleneck: Traditional hooping is slow and physically demanding. It involves wrestling with screws and forcing inner rings into outer rings. This is where registration errors often happen—the fabric shifts while you complicate the hoop.

The Solution: This is why professionals search specifically for magnetic embroidery hoops.

• How they work: Instead of friction and screws, powerful magnets clamp the fabric instantly against the frame.
• The Benefit: There is zero "drag" on the fabric. You lay it flat, snap the magnets down, and the fabric stays perfectly relaxed yet secure. This significantly reduces puckering (pull distortion).

If you are looking to scale production, you might research terms like a hooping station for embroidery or the hoop master embroidery hooping station. These are jigs that hold the hoop in the exact same spot for every shirt. By combining a hoopmaster style station with magnetic frames, you ensure the logo lands on the exact same spot on the Left Chest for all 50 shirts in an order.

For those confused by the options, simply searching embroidery hoops magnetic will reveal two main types: those for home flat-bed machines (Snap Hoop style) and those for tubular industrial machines (Mighty Hoop style).

Warning: Magnetic Hazard. Industrial magnetic hoops contain Neodymium magnets. They snap together with crushing force. Never place your fingers between the rings. Do not place them near pacemakers. They are wonderful tools, but they demand respect.

The Ultimate Upgrade: The Multi-Needle Leap

Finally, if this star logo (Red, Black, Green) takes you 20 minutes to stitch on a single-needle machine because you have to stop and change threads manually three times... you have outgrown your equipment. A multi-needle machine (like the SEWTECH line) holds all colors simultaneously. It stitches Red, trims, switches to Black, trims, and switches to Green automatically. It turns a "hobby" (babysitting the machine) into "production" (press start and walk away).

The Production Mindset: Your File Isn’t Done Until It’s Easy to Stitch Twice

A digital file on a screen is a hypothesis. An embroidered patch on a shirt is a fact.

The workflow taught here—Clean High-Res JPEGs, "Inside-Out" Sequencing, and Geometry Cleanup—is designed to create files that are resilient. They stitch well not just on the first try, but on the 100th different shirt.

Operation Checklist (The "Go/No-Go" Final Launch)

• Hooping: Touch the fabric in the hoop. Does it feel like a drum skin? (Acceptable). Does it feel soft? (Fail - Re-hoop).
• Trace: Run the "Trace" or "Design Check" function on your machine. Does the presser foot hit the plastic hoop edge?
• Auditory Check: Start the machine. Listen. A rhythmic "thump-thump-thump" is good. A harsh "clack-clack-clack" usually means the needle is hitting the needle plate or the bobbin case is jumping. Stop immediately.
• Watch the First Layer: Watch the Red Fill. If you see white fabric poking through the red threads before the border is even stitched, your density is too low or your thread tension is too high.

Expertise is not about avoiding mistakes; it is about catching them early. Now, go load that backdrop and build something solid.

FAQ

• Q: Why does Floriani Embroidery Suite show a blank Sequence View after using File → Load Backdrop with a JPEG logo?
  A: This is normal—Floriani Backdrop is reference-only and intentionally creates no stitch objects.
  • Use File → Load Backdrop (not Open and not Import Artwork) to place the picture for tracing.
  • Confirm the image is visible on the workspace while the Sequence View stays empty.
  • Start digitizing by selecting a stitch tool (Complex Fill/Steel Stitch/Classic Satin) and clicking nodes on top of the backdrop.
  • Success check: The backdrop can’t be selected as an embroidery object, and only your stitched objects appear in Sequence View.
  • If it still fails: Re-load the JPEG and verify the file you opened is not a stitch file (such as .PES/.DST) by mistake.
• Q: How do I export a 300 DPI JPEG in CorelDRAW so digitizing in Floriani does not look blurry and jagged?
  A: Export the artwork as a 300 DPI JPEG so corners and edges stay crisp for accurate node placement.
  • Select the vector objects (for example, the star and letter).
  • Export as JPEG and change resolution from the default (72/100 DPI) to 300 DPI.
  • Zoom in around 200% before digitizing and stop if edges look fuzzy.
  • Success check: A sharp 90° corner looks like a clean corner (not a gray rounded blob) when zoomed in.
  • If it still fails: Re-export from the original vector art (not a screenshot) and re-load the new JPEG as the Floriani backdrop.
• Q: What stitch order should be used in Floriani digitizing to prevent border misregistration on a star-and-letter logo (Fill → Border → Details)?
  A: Use the production sequence Fill first, Border second, Details last to reduce push/pull distortion buildup.
  • Digitize the large Complex Fill area first (the “base” layer).
  • Digitize the Steel Stitch/Satin Border immediately after to cover the fill edge.
  • Digitize top details (like a letter) last so they sit on a stabilized foundation.
  • Success check: The border lands consistently on top of the fill edge instead of drifting away on one side.
  • If it still fails: Re-hoop tighter and add/adjust pull compensation rather than re-digitizing the artwork from scratch.
• Q: How do I fix a spiked satin/steel-stitch corner in Floriani when one corner looks wrong after generating the border?
  A: Delete the extra overlapping start/stop node with the Shape Tool instead of redoing the whole border.
  • Select the border object and enter Shape Tool (node edit mode).
  • Zoom to about 400% on the spiked corner and locate two nodes stacked close together.
  • Right-click the unnecessary point (often the stop node) and choose Delete Point, then refresh/redraw.
  • Success check: The spike retracts immediately and the corner matches the other corners.
  • If it still fails: Move the start/stop point to a flat long edge (not a sharp corner) and regenerate the border.
• Q: What is a safe starting point for Floriani Complex Fill density with 40wt thread, and how do I avoid a stiff “bulletproof” fill?
  A: A safe starting point is 0.40 mm density for standard 40wt thread; tighten cautiously only when coverage truly needs it.
  • Start at 0.40 mm and test-sew on scrap fabric that matches the real project.
  • Tighten slightly (for example to 0.38 mm) only if dark fabric shows through light thread—then re-test.
  • Watch for overlap zones where multiple objects stack and create excessive density.
  • Success check: The fill looks solid without excessive stiffness, and the machine runs smoothly without harsh punching.
  • If it still fails: Reduce density and review whether objects overlap too much; high density can also increase needle deflection risk.
• Q: What should be checked on an embroidery machine setup to prevent gaps, loopies, and bobbin disasters before stitching a new Floriani file?
  A: Do a fast “consumables + checks” routine before the first stitch to avoid blaming digitizing for physical setup issues.
  • Change the needle if you cannot remember the last change (a dull needle causes many “digitizing-looking” problems).
  • Open the bobbin area and ensure it is lint-free and the bobbin is nearly full before heavy satin borders.
  • Thread in the planned color sequence (example: Red → Black → Green) so stops/changes are predictable.
  • Success check: The machine sounds rhythmic (“thump-thump-thump”), and the first fill layer shows even coverage without thread loops on top.
  • If it still fails: Recheck the tension path and then consider lowering satin density if top loopies persist.
• Q: What safety steps should be followed during a test sew-out to reduce needle deflection or needle breakage when densities are high or paths overlap?
  A: Treat first stitch-outs as a controlled test—protect eyes and hands, and stop fast if the sound changes.
  • Wear safety glasses when watching a new file stitch for the first time.
  • Keep hands at least 6 inches away from the active needle bar while running.
  • Stop immediately if you hear harsh “clack-clack-clack,” which can indicate contact or abnormal impact.
  • Success check: The machine runs with a steady, normal sound and no visible needle wobble or impact marks.
  • If it still fails: Inspect for stacked/overlapping stitch areas and reduce density or simplify overlaps before running another test.
• Q: When do magnetic embroidery hoops make sense compared with standard hoops, and what is the step-up path for reducing puckering and speeding production?
  A: Upgrade in layers: first improve hooping technique, then consider magnetic hoops for repeatability, and finally consider a multi-needle machine for throughput.
  • Level 1 (Technique): Hoop “drum tight” and avoid fabric shifting during hooping; test on scrap before final garments.
  • Level 2 (Tool): Use magnetic embroidery hoops when hooping is slow, painful (arthritis), causes hoop burn, or fabric shifts while tightening.
  • Level 3 (Capacity): Move to a multi-needle machine when manual thread changes (multi-color logos) are the real time bottleneck.
  • Success check: Puckering drops and placement becomes more repeatable from item to item, with less re-hooping.
  • If it still fails: Re-evaluate stabilizer choice (cutaway for stretchy knits, tearaway for stable wovens) and run a placement trace to confirm clearance.
