Floriani FTC-U Steil Stitch Tool: Clean Satin Borders Without the Corner Bunching (and How to Fix It Fast)

If you have ever watched your embroidery machine stitch a beautiful design, only to ruin it in the final minute with a border that looks like a lumpy, distorted rope, you know the specific heartbreak of border anxiety.

Borders are the "truth serum" of embroidery. They reveal everything: your digitizing skills, your hooping tension, and your machine's calibration. In Floriani Total Control U (FTC-U), the Steil Stitch is the industry standard for creating crisp, satin-style borders—but it is notoriously unforgiving if you treat it like a generic tool.

This is not just a software tutorial. As professionals, we know that what happens on the screen is only 50% of the battle. The other 50% is physics—thread tension, fabric drag, and hoop stability. This guide rebuilds the Steil Stitch workflow from a production perspective, combining precise software inputs with the shop-floor realities of needle and thread.

We will cover exactly how to control nodes, how to avoid the dreaded "corner bunching," and how to upgrade your physical workflow so your actual stitch-outs match your digital preview.

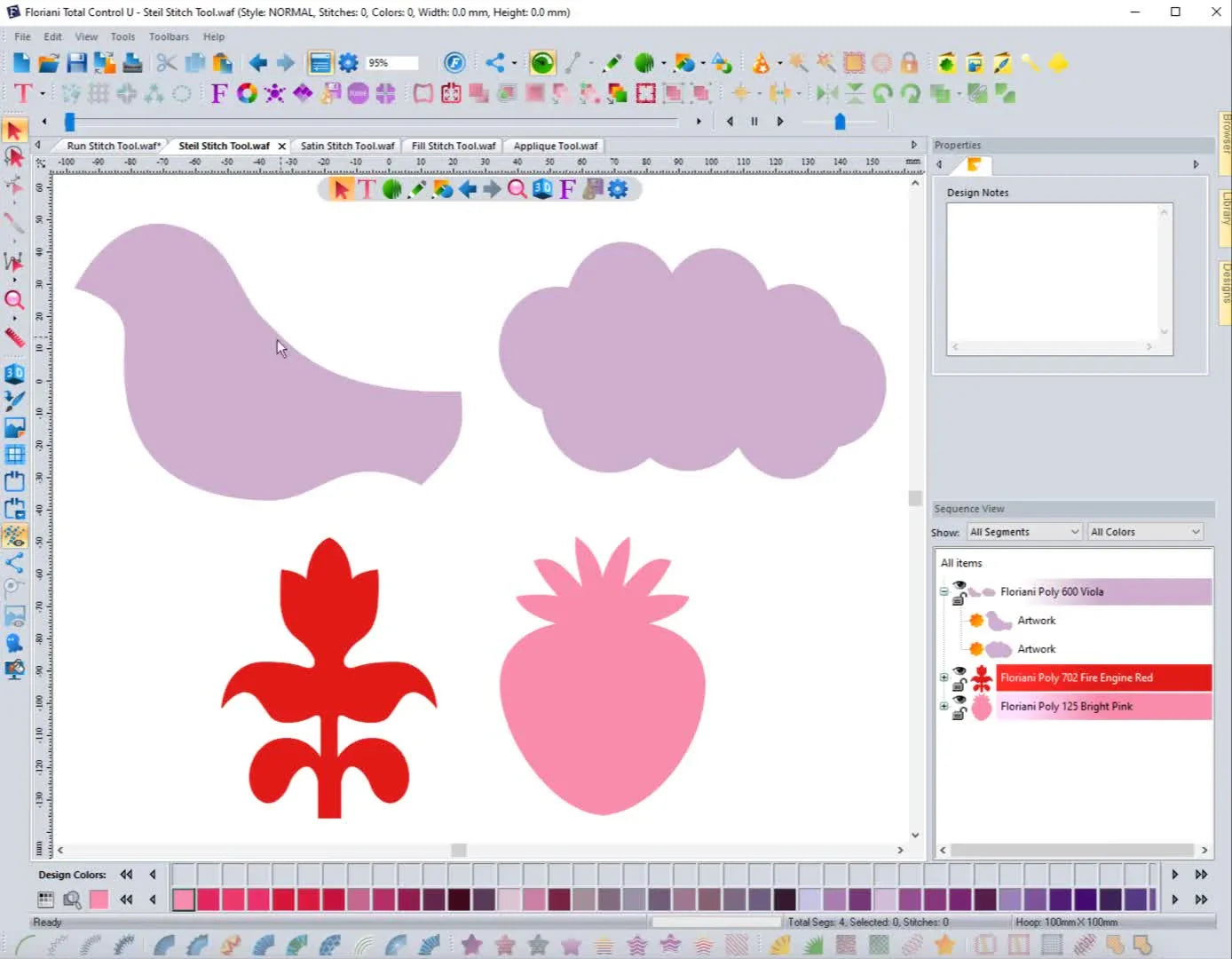

The Steil Stitch Tool in Floriani Total Control U (FTC-U): Why It’s Not “Just Another Satin”

To understand the Steil Stitch, imagine a railroad track. No matter where the track curves, turns, or twists, the distance between the two rails remains exactly the same.

The Steil Stitch allows you to click a simple path (like a Run Stitch), which the software then instantly converts into a satin column of a fixed, uniform width. This is distinct from a standard Satin Column, which can taper, widen, or bulge based on your manual inputs.

The Physics of the "Fixed Width" Problem

Why does this matter? Because while a uniform width looks geometric and professional, it creates a physical problem at sharp corners. When a 3mm wide satin stitch makes a hard 90-degree turn, the inner stitches pivot on a single point while the outer stitches travel a long distance. This creates a high density of needle penetrations in one spot.

If you don’t manage this, you get:

• The "Bulletproof" Corner: So much thread piles up that the corner becomes hard and dangerous to needles.
• Thread Breaks: The friction of stitching through existing thread snaps your top thread.
• Hoop Distortion: The intense pull allows the fabric to shift, ruining the registration.

The Steil Stitch is powerful, but it requires a disciplined hand.

The “Hidden” Prep Before You Digitize Steil Stitch Borders (So Your Test Stitch-Out Doesn’t Lie)

Before you touch the mouse, you must stabilize your environment. A border outline is the last thing stitched; if your fabric has shifted even 1mm during the main design, the border will look like it was stamped on by mistake.

The "Zero-Friction" Prep Checklist

• Stabilizer Selection Strategy:
  • Stretchy/Knit Fabrics: Must use Cutaway stabilizer. No exceptions. Tearaway will allow the fabric to "tunnel" under the border, creating gaps.
  • Woven/Stable Fabrics: Tearaway is acceptable, but two layers of medium weight are safer than one heavy layer.
• The "Drum Skin" Tactile Test:
  • Hoop your fabric. Tap it. It should sound like a dull thud, not a loose flap.
  • Self-Check: Can you pull the fabric edge? If it moves inside the hoop, your border will fail.
• Needle Freshness:
  • Borders require precision. If your needle has run for more than 8 hours, change it. A burred needle tip will cut fabric fibers on dense border edges.
• Hidden Consumables:
  • Have Temporary Spray Adhesive (like KK100 or generic) ready to bond fabric to stabilizer.
  • Keep a Water Soluble Pen handy to mark center points for alignment checks.

Warning (Safety): When stitching dense borders, always wear safety glasses. If a needle strikes a dense "bulletproof" corner (caused by poor digitizing or excessive overlap), it can shatter with significant force. Keep your face away from the needle bar area.

Your First Steil Stitch Object: The Zigzag Demo That Teaches the Whole Tool

In the video, the instructor begins with a zigzag line. This simple shape reveals the tool's primary characteristic: consistency.

1. Select the Steil Stitch Tool on the toolbar.
2. Left-click to place straight anchor points.
3. Right-click to generate.
4. Check Properties: Default is often Width: 2.5 mm.

The "Sweet Spot" Data for Beginners

While 2.5 mm is standard, experience dictates different values for different goals:

• 1.5 mm - 2.0 mm: Ideal for delicate patches or lettering outlines. Risk: If your registration is off, this is too thin to cover raw edges.
• 3.0 mm - 4.0 mm: Bold borders for heavy jackets. Risk: Requires an underlay (Center Run or Edge Run) to prevent the satin from becoming loose and snaggy.

Sensory Check: When you run this test, listen to your machine. A rhythmic, consistent hum is good. If you hear a laboring thump-thump at the turn points, your density is too high or the corner is too sharp.

The Ctrl-Key Corner Habit: How to Place Curved Nodes vs Straight Nodes Without Loops

This concept is the single biggest "Ah-ha" moment for specialized software users. Your left hand must work in rhythm with your right hand.

• Holding CTRL + Left Click: Tells the software "Curve this line."
• Releasing CTRL + Left Click: Tells the software "Stop curving. Make a sharp corner here."

The Consequence of Failure: If you forget to release CTRL at a corner, the software tries to force a curve through a sharp angle. This creates a "loop" or a "pigtail"—a small, unintentional circle of stitching.

• Visually: It looks like a knot.
• Physically: It is a thread nest waiting to happen.

Muscle Memory Drill: Repeat this phrase: "Hold to flow, release to turn."

Digitizing the Bird Shape in FTC-U: Clean Curves, Then “Drop a Stitch” at Direction Changes

Applying this to a complex shape like a bird silhouette requires focus. You are essentially tracing the "spine" of the border.

Step-by-Step Execution:

1. Long Curves (The Back): Hold CTRL. Click sparsely. Fewer nodes equals smoother curves.
2. The Beak/Tail (The Turn): Approach the tip. Release CTRL. Click the tip point.
3. Resume: Hold CTRL immediately for the next segment.

Visual Success Metric: Look at the wireframe line (the dotted line in the software). It should hug the artwork like a second skin. If you see the line floating away from the artwork like a loose rubber band, you missed a node or held CTRL too long.

The “Oops, It Curved” Moment: How to Recognize the Looping Error Before You Stitch It

The video demonstrates the error: a corner that looks rounded and sloppy because CTRL was held down.

In a production environment, we call these "soft corners." They are disastrous for logos that require crisp geometric definition (like stars or boxes).

The Diagnostic Workflow:

• Zoom In: Never digitize borders at 100%. Zoom to 400-600%.
• Scan the Nodes: Look for nodes that have "handles" (Bezier curves) where there should be squares (straight points).
• The Fix: Select the node, right-click, and change the property from Curve to Line, or simply delete and redraw the segment.


The Border Reveal: What a Finished Steil Stitch Outline Should Look Like (Before You Stitch)

Once usage of the tool is master, you see the comprehensive satin outline. But does it truly look good?

The "Production Reality" Check

A perfect screen preview is not a guarantee. You must consider the substrate (the item you are sewing on).

• Towel/Fleece: A 2.5mm border will sink and disappear (the "shaving cream effect"). You need a wider border (3.5mm+) and topping stabilizer (Solvy).
• Performance Pique: A heavy border will pucker the fabric. You need to reduce density.

If you are running a shop, consistency is key. You might research hooping for embroidery machine techniques to ensure that every time you test a border, the fabric tension is identical. If your hooping varies, you cannot tell if a wave in the border is the software's fault or your hands' fault.

The Cloud Shape Trick: Start at an Intersection, Then “Tap” the Indentations

Clouds differ from birds because they have "re-entrant corners"—places where the curve dips inward.

The Technique:

• Start at a sharp point (if one exists).
• Hold CTRL to trace the fluffy top of the cloud.
• Release CTRL exactly at the "V" where two fluff balls meet. Click.
• Hold CTRL immediately to start the next curve.

Why this matters: If you curve through the "V" indentations, the satin stitch will bridge across the gap, making the cloud look like a vague blob rather than defined billows.

Practice Shapes That Don’t Waste Your Time: Use the FTC-U Custom Shape Library on Purpose

Do not practice on expensive garments. Use the software's Custom Shape Library to generate shields, hearts, and stars.

The "Scrap Lab" Approach:

1. Use felt or denim scraps. These are stable and cheap.
2. Stitch the same shape 3 times with different settings (e.g., width 2.0mm, 3.0mm, 4.0mm).
3. Label them with a permanent marker directly on the fabric.
4. Keep this "swatch book" near your machine. Next time you need a border, touch the sewn sample to know exactly what you want.


The Wine Glass Exercise: Mixing Straight Lines and Curves Without Fighting the Tool

The wine glass shape introduces the challenge of mixing absolute straight lines (the stem) with organic curves (the bowl).

Setup Checklist (The "Pre-Flight" Scan):

1. Node Planning: Look at the art. Mentally map where your "CTRL" finger will press and lift.
2. Zoom Level: Zoom in to the connection point between the stem and the bowl. This is a high-risk area for alignment gaps.
3. Close Shape: Ensure "Close Shape" is selected in properties so the start and end points merge seamlessly.

Sensory Anchor: When stitching the straight stem, the machine sound should be fast and fluid. When it hits the transition to the curve, you will hear the X/Y pantograph motors minimize their movements.

The Fleur-de-lis Reality Check: Why Steil Stitch Corners Get “High Maintenance” Fast

The Fleur-de-lis is the "final boss" of borders. It is full of acute angles (sharp points less than 60 degrees).

The Limit of Steil Stitch: Because the width is fixed, an acute angle forces the stitches to overlap massively at the pivot point.

• Result: A hard knot of thread.
• Visual: The corner looks bulged, darker, and distorted.

This is not a mistake you made; it is a limitation of geometry. The only way to fit a 3mm wide object into a sharp point is to overlap it.

The Fast Fix for Messy Corners in FTC-U: Reduce Steil Stitch Width (Example: Down to 1.5 mm)

When geometry fights you, change the parameters.

The Adjustment:

1. Select the object.
2. In Properties, lower the Width from 2.5mm to 1.5mm.
3. Check density. Ensure it is roughly 0.40mm to 0.45mm.

Why 1.5mm Works: A thinner line produces less bulk at the pivot point. The corner becomes sharper and flatter.

The Trade-off: A 1.5mm border is very unforgiving of "gaps." If your fill stitch underneath pulls away (pull compensation issue), the thin border won't cover the gap. You must ensure your underlying fill has adequate pull compensation (usually 0.2mm - 0.4mm).

The Run-to-Steel Conversion Workflow: Get Perfect Paths First, Then Add the Satin Bulk

This is the professional's preferred workflow. Trying to edit nodes on a thick satin border is visually confusing because the stitches block your view of the line.

The "Skeleton" Strategy:

1. Digitize the entire shape using a simple Run Stitch (single line).
2. Refine every curve and corner until the "Skeleton" is perfect.
3. Select the Run Stitch -> Right Click -> Convert to Steil.

This separates the task of shaping from the task of styling.

The Strawberry Demo: What “Before Conversion” Should Look Like (Thin, Editable, Honest)

In the video, the strawberry acts as the proof of concept. As a run stitch, you can clearly see if the line wobbles or if a curve is flat.

Validation: If the run stitch looks jagged, the Steil stitch will look jagged and lumpy. Fix the skeleton first.

The Payoff: After Converting to Steil Stitch, You Get a Bold Border—But Only If the Path Was Clean

Once converted, the strawberry pops with a defined, glossy border.

Operation Checklist: The Final "Go/No-Go"

Before you press the start button on your machine for the final product:

• Bobbin Check: Is your bobbin at least 50% full? running out of bobbin thread on a border often creates a realignment nightmare.
• Speed Limit: Radical advice—Slow Down. Reduce machine speed to 600-700 SPM (Stitches Per Minute) for the border. High speed on satin columns increases the chance of thread breakage and top-tension looping.
• Hoop Security: Double-check the hoop is locked into the pantograph driver.

Warning (Magnet Safety): If you are upgrading to magnetic embroidery hoops to solve hooping distortion, handle them with extreme care. These magnets are industrial strength. Keep fingers clear of the snapping zone to avoid pinching, and keep them away from pacemakers or sensitive electronics.

A Practical Decision Tree: When Border Problems Are Digitizing vs Hooping vs Stabilizer

Use this logic flow to troubleshoot messy borders without guessing.

START: My border looks terrible.

1. Is the issue ONLY at the corners?
   • YES: It's Geometry. Reduce Steil Width (try 1.5mm - 2.0mm) or fix the "Ctrl-Key" node placement.
   • NO: Go to step 2.
2. Is the border "gapping" (white fabric showing between border and fill)?
   • YES: It's Physics. Your fabric shrank. Increase Pull Compensation on the fill stitch, OR switch to a more stable hooping method (Stick-on stabilizer or Magnetic Hoop).
   • NO: Go to step 3.
3. Is the border loopy or jagged on the straight parts?
   • YES: It's Tension/Hooping. Your fabric is loose in the hoop using the "flagging" effect.
   • ACTION: Re-hoop tighter (drum skin feel). If you struggle to get thick items tight, this is a hardware limitation.

The Upgrade Path That Actually Makes Sense: Consistent Hooping, Faster Sampling, Cleaner Borders

We have established that a good border requires perfect digitizing AND perfect fabric stability. You can learn the digitizing part, but if your physical setup is fighting you, your results will inconsistent.

Here is the brutal truth about production embroidery: Manual hooping is the biggest variable.

• The Problem: Traditional plastic hoops require significant hand strength and can leave "hoop burn" (shiny marks) on delicate fabrics. It is difficult to get the tension exactly the same twice.
• The Solution (Level 1): If you notice inconsistent tension, users often search for terms like how to use magnetic embroidery hoop correctly. The answer lies in the vertical clamping mechanism—it allows you to adjust the fabric without "unscrewing" the outer ring, reducing distortion on borders.
• The Solution (Level 2): For those doing repetitive logos where alignment is critical, a magnetic hooping station solves the alignment issue. It holds the hoop in a fixed position, ensuring your "Left Chest Logo" is in the exact same spot on Shirt #1 and Shirt #50.
• The Solution (Level 3): If you are fighting with thick garments (Carhartt jackets, canvas bags) that physically won't fit in standard hoops, magnetic embroidery hoops are often the only tool that can grip the material securely without popping open. A secure grip means the fabric doesn't flag, and your Steil Stitch borders land exactly where you digitized them.

Finally, if you find yourself spending 4 hours hooping and only 1 hour stitching, your bottleneck isn't the hoop—it's the machine. Moving from a single-needle home machine to a SEWTECH multi-needle platform isn't just about speed; it's about not having to re-thread for every color change, allowing you to focus on quality control rather than manual labor.

The Bottom Line: Steil Stitch Is a Border Workhorse—If You Respect Width, Corners, and Testing

The Steil Stitch in FTC-U is a razor-sharp tool. Used correctly, it frames your work with professional polish. Used carelessly, it cuts corners—literally and figuratively.

Review the Core Rules:

1. Prep: Stabilizer is cheaper than ruined garments. Use the right one.
2. Digitize: "Hold CTRL to Flow, Release to Turn."
3. Refine: If corners bunch, reduce width to 1.5mm.
4. Hardware: If your digitizing is perfect but the sew-out fails, stop blaming the software. Look at your hoop, your needle, and your tension.

Mastering the border is the final step in moving from "Hobbyist" to "Professional." Good luck, and watch those fingers on the sharp corners.

FAQ

• Q: In Floriani Total Control U (FTC-U) Steil Stitch borders, what causes “bulletproof” corners and needle breaks at sharp 90° turns?
  A: “Bulletproof” corners usually happen when a fixed-width Steil Stitch forces too many penetrations into a tiny pivot point, so reduce the corner stress before stitching.
  • Reduce Steil Stitch width (often try 1.5–2.0 mm for sharp corners) and re-check the path shape.
  • Redraw corner nodes using the CTRL habit: hold CTRL to flow on curves, release CTRL to make a true corner.
  • Slow the border stitching speed to about 600–700 SPM to reduce friction and impact.
  • Success check: corners stitch flat (not darker/bulged), and the machine sound stays smooth without “thump-thump” at turns.
  • If it still fails: convert a cleaned-up Run Stitch “skeleton” to Steil Stitch so the corner geometry is truly corrected.
• Q: In Floriani Total Control U (FTC-U) Steil Stitch digitizing, how does holding CTRL too long create loops (“pigtails”) and soft corners?
  A: Loops and soft corners happen when CTRL stays engaged at a corner, forcing a curve through an angle instead of a clean turn.
  • Zoom in to 400–600% and inspect corner nodes before stitching.
  • Release CTRL exactly at the corner click, then hold CTRL again only after the direction change.
  • Fix existing errors by selecting the node and changing it from Curve to Line, or delete and redraw that segment.
  • Success check: the wireframe line hugs the artwork tightly with crisp corners (no tiny circles or rounded “soft” points).
  • If it still fails: digitize the outline as a Run Stitch first, perfect the path, then convert to Steil Stitch.
• Q: For Steil Stitch borders in Floriani Total Control U (FTC-U), what stabilizer choice prevents border gapping or tunneling on stretchy knit fabrics?
  A: On stretchy/knit fabrics, use Cutaway stabilizer (not Tearaway) to stop the fabric from tunneling and pulling away under the border.
  • Choose Cutaway stabilizer for knits; reserve Tearaway for stable woven fabrics (often two medium layers are safer than one heavy).
  • Bond fabric to stabilizer with temporary spray adhesive to reduce shifting during the main design.
  • Hoop to a “drum skin” feel so the fabric cannot slide inside the hoop.
  • Success check: after stitching, the border sits tight against the fill with no white fabric showing as gaps along the edge.
  • If it still fails: increase pull compensation on the fill stitch and re-check hoop stability (fabric drag is usually the real culprit).
• Q: What is the “drum skin” hooping test for Steil Stitch border stability, and how does the “flagging” effect show up on straight border sections?
  A: A Steil Stitch border needs firm, even hoop tension; if the fabric “flags” (bounces) in the hoop, straight borders can look loopy or jagged.
  • Tap the hooped fabric: aim for a dull “thud,” not a loose flap sound.
  • Try pulling the fabric edge: if the fabric moves inside the hoop, re-hoop tighter before stitching the border.
  • Lock the hoop fully into the pantograph driver before starting the border pass.
  • Success check: straight border runs stitch clean and even, without waviness or top-thread loops forming on long lines.
  • If it still fails: treat it as tension/hooping—re-hoop, slow down, and confirm the fabric is bonded to stabilizer (spray adhesive helps).
• Q: Before running dense Steil Stitch borders, what consumables and pre-flight checks prevent last-minute failures like running out of bobbin thread?
  A: Treat borders as a “final exam” stitch—change worn consumables and confirm the bobbin and setup before the last outline run.
  • Change the needle if it has run more than 8 hours (dense borders expose burrs fast).
  • Verify the bobbin is at least 50% full before stitching the border.
  • Keep temporary spray adhesive ready to stabilize fabric-to-stabilizer, and use a water-soluble pen to mark centers for alignment checks.
  • Success check: the border completes without tension changes, thread breaks, or a visible “shift” right at the end of the design.
  • If it still fails: slow the machine to about 600–700 SPM for the border and re-check hoop lock-in and fabric stability.
• Q: What needle safety rule applies when stitching dense Steil Stitch borders that can form “bulletproof” corners?
  A: Wear safety glasses and keep your face away from the needle bar area, because a needle can shatter if it strikes an overly dense corner.
  • Stop and re-digitize if corners are visibly bulged/dark on test sew-outs (do not “power through”).
  • Reduce Steil Stitch width and/or correct corner nodes to prevent density stacking.
  • Slow down for borders (about 600–700 SPM) to reduce impact at direction changes.
  • Success check: stitching runs without repeated impacts at corners, and needles do not show deflection or sudden snapping risk.
  • If it still fails: run a test sample on scrap fabric first and adjust geometry before attempting the final garment.
• Q: When Steil Stitch borders look perfect in Floriani Total Control U (FTC-U) preview but stitch out distorted, how should embroidery operators choose between technique fixes, magnetic hoops, and a multi-needle machine upgrade?
  A: Use a tiered approach: fix digitizing first, then eliminate hooping variables with better holding methods, and only then consider machine capacity upgrades.
  • Level 1 (technique): correct CTRL corner behavior, reduce Steil width for sharp points, and stitch borders slower (about 600–700 SPM).
  • Level 2 (tooling): switch to a more stable hooping method (stick-on stabilizer workflow or magnetic hoop) if fabric shift/flagging keeps repeating.
  • Level 3 (capacity): consider a multi-needle platform if time is lost to constant re-threading and excessive hooping effort versus actual stitching.
  • Success check: repeated test sew-outs land the border in the same place with the same shape across multiple garments, not “randomly better or worse.”
  • If it still fails: treat the problem as physical stability (hoop security and fabric drag) rather than software—re-hoop and re-stabilize before changing designs.
