Floriani FTCU Faux Backstitch Preset: The Clean “Hand-Sewn” Look Without Re-Digitizing Everything

Here is the refined, “Industry White Paper” grade guide, optimized for clarity, safety, and experienced-based practical application.

If you’ve ever tried to sell (or even just gift) a “hand-stitched” look, you already know the problem: a machine-generated plain run stitch often looks too perfect. It lacks the organic soul of hand embroidery, especially on vintage-style outlines or heirloom designs.

DJ Anderson’s FTCU (Floriani Total Control U) demo reveals one of those high-leverage techniques that pays off immediately: he isn’t waiting for a native “true backstitch” tool to appear in a software update. Instead, he simulates the aesthetic by applying a Motif pattern as a preset onto a standard Run Stitch.

However, moving from a software tutorial to a physical garment introduces variables—thread tension, hoop burn, and fabric puckering. This article rebuilds the workflow into a clean, repeatable production process, including the sensory checks and safety parameters I require before letting a needle touch the fabric.

Don’t Panic: The Floriani FTCU “Backstitch” Isn’t a True Backstitch—But It Can Still Look Expensive

DJ is very direct about this distinction: this is not a mechanical backstitch stitch type (where the machine physically sews forward-backward-forward for every stitch point). It is a Motif pattern applied to a Run Stitch line. It is a visual trick designed to replicate the segmented rhythm of hand stitching.

Why does this distinction matter for your production quality? Because it changes your Success Criteria:

• Don't look for: Perfectly interlocking mechanical knots or structural strength identical to a triple run.
• Do look for: A believable, segmented outline that reads as “hand-crafted” from a normal viewing distance (arm’s length).

If you keep this goal in mind, you won’t waste hours fighting the software when you see the stitch path do something slightly irregular (like the tiny connecting stitch DJ points out). It’s part of the simulation.

The “Hidden” Prep Before You Click Anything in FTCU: Set Yourself Up for a Clean Motif Run Stitch

The video jumps directly into the software steps, but in a professional environment, I always perform a "pre-flight" check. Motif-based outlines are notorious for amplifying small digitizing or setup errors—corners can become cluttered knots, and curves can become jagged if not planned.

Here is the mental framework to use before drawing your first node:

1) Define the Aesthetic Goal

• Vintage/Handcrafted Vibe: You will want slightly "chunkier" segments (longer stitch length) to mimic thick cotton thread.
• Delicate/Heirloom Outline: You will need a smaller pattern size to mimic fine hand needlework.

2) Select a "Stress-Test" Shape DJ uses a butterfly from the Custom Shapes library. This is a smart choice because it contains both smooth curves (wings) and sharp corners (antennae). These are exactly the areas where motif behaviors break down.

3) Commit to Simulation You must run the Slow Redraw simulator. This is the only way to catch "jump stitches" or weird pathing logic that will cause your machine to trim unnecessarily.

Prep Checklist (Complete before drawing):

• Workspace Validation: Confirm you are working within the correct hoop limits (DJ’s example is approx 115.0 mm x 137.2 mm).
• Consumables Check: Ensure you have the right needle. For outline work, a 75/11 Sharp often produces cleaner line definition than a Ballpoint, provided the fabric allows it.
• Measurement: Decide on a target stitch length range (usually 3.0mm - 4.0mm for a visible hand-stitch look).
• Simulate Strategy: Commit to checking the "entry and exit" points to avoid jumps.


Build the Base: Converting a Custom Shape to a Run Stitch in Floriani Total Control U (FTCU)

DJ’s foundation is straightforward, but accuracy here prevents headaches later.

1. Select the Custom Shape

• Navigate to the Custom Shapes library.
• Choose the butterfly outline (or your desired test object).
• Left-click and drag to draw it on the workspace.
• Visual Check: You should see a solid green butterfly (Artwork/Fill) appear.

2. Convert to Run Stitch

• With the shape selected, click the Run Stitch icon in the bottom toolbar.
• Visual Check: The design must change from a solid fill to a thin, single-line outline.

Crucial Note: This base layer must be clean. If your shape has accidental crossovers or self-intersecting lines, the motif pattern applied in the next step will look messy.

The Money Click: Right-Click the Run Stitch Tool to Apply the Saved “Backstitch” Preset

This is the workflow secret that separates power users from novices. It relies on a "Right-Click" behavior that isn't visually obvious.

1. Select the Outline: Ensure your run stitch object is highlighted. 2. Access Presets: Right-click directly on the Run Stitch icon/tool in the toolbar. 3. Apply Preset: From the dropdown list, select “Backstitch” (or whatever name you saved your custom motif as).

Expected Outcome: The thin, digital-looking line transforms into a thicker, segmented line. It should look like dashes, not a continuous rail.

DJ notes that presets are easy to create and store. The takeaway for your business is Process Consistency: Once you tune the parameters (Pattern Size/Length) for a specific look—e.g., "Vintage 3mm"—save it as a preset. Do not rely on memory to rebuild settings for the next order.

Zoom In Like a Skeptic: Inspect the Motif Blocks So You Know What You’re Actually Sending to the Machine

Do not trust the 100% zoom view. After applying the preset, zoom in (at least 400-600%) to inspect the virtual needle penetrations.

What to look for (The Inspector's Eye):

• Segment Rhythm: Are the "hand stitches" spaced evenly?
• Corner Integrity: Look at the antennae or wing tips. Does the motif wrap around the corner cleanly, or does it stack stitches on top of each other?
  • Fix: If corners are messy, you may need to adjust the start/stop points or slightly reshape the vector curve.
• Density Clusters: Look for "black holes" on screen—areas where too many points congregate. These will become thread nests or needle breaks on the machine.

Sensory Anticipation: If the design looks "busy" or "knotted" on screen, it will sound like a jackhammer on the machine. You want to see clean separation between the forward-backward movements.

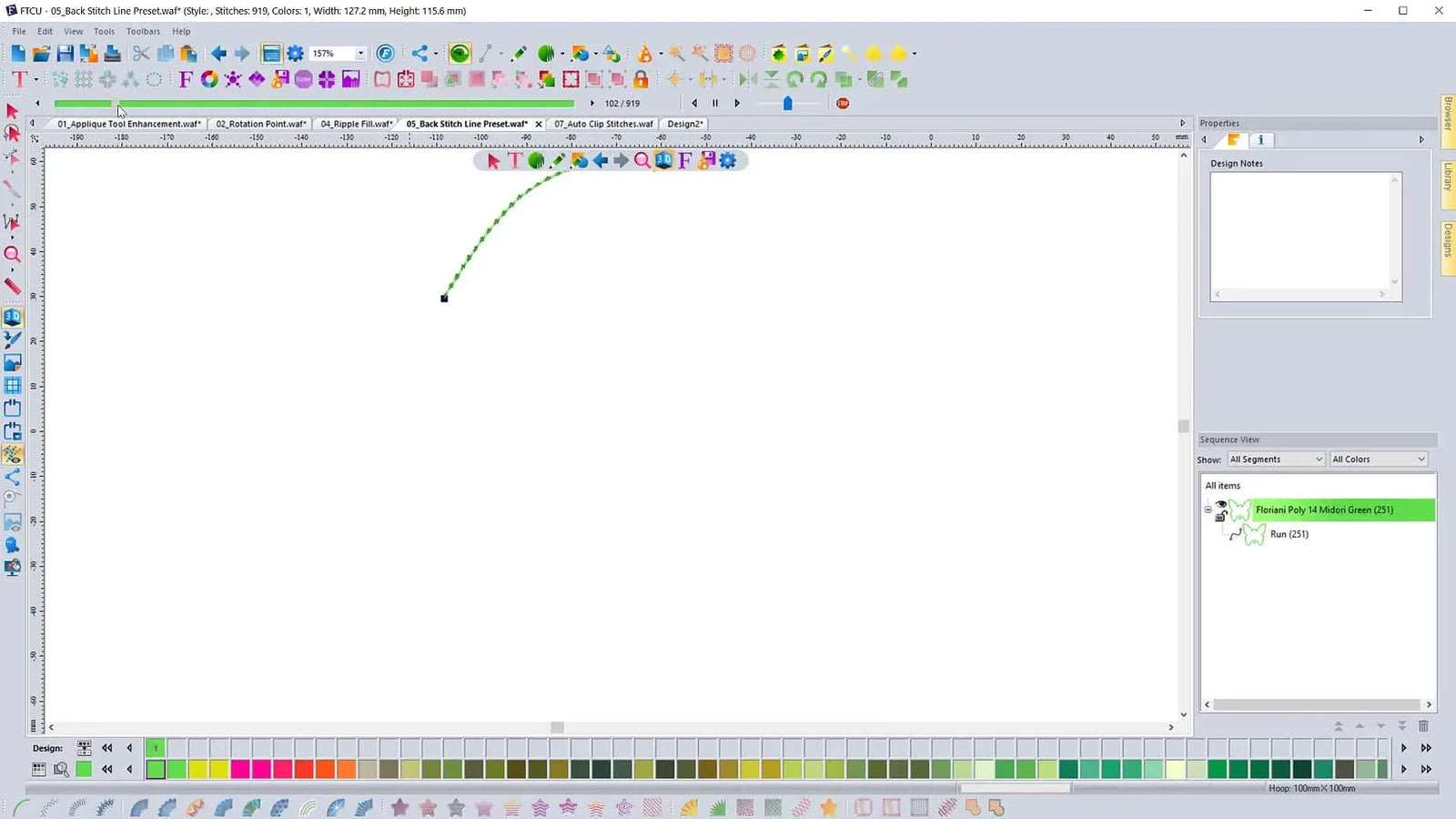

Slow Redraw Doesn’t Lie: Confirm the Forward–Back–Forward Motion Before You Waste Thread

DJ opens the Slow Redraw player to advance stitch-by-stitch. This is non-negotiable for motif work.

Verification Criteria:

1. The Motion: The virtual needle should move Forward (Space) → Backward (Stitch) → Forward (Space). This creates the visual illusion of the backstitch.
2. The Flow: Watch for unexpected jumps across the design. The stitching should flow continuously around the shape without unnecessary trims.

Why this matters: If the machine is jumping around, your "hand stitch" look will be riddled with tie-on and tie-off knots, which ruins the clean, vintage aesthetic.

The “Little Stitch” That Bugs Everyone: Why It Appears and When You Should Ignore It

DJ identifies a specific anomaly: a tiny, unwanted small stitch that appears as a connector between the backward and forward motions. He admits he isn't fond of it, but it's a byproduct of the motif entry/exit logic.

Expert Perspective:

• The Physics: That tiny stitch acts as a localized tie-in or travel stitch. It helps anchor the thread before the next long movement.
• The Risk of Removal: If you try to manually edit out every single one of these micro-stitches, you risk unraveling the motif's logic or creating tension issues where long stitches become loose loops.

Decision Guide:

• Accept It: For apparel (t-shirts, sweatshirts, caps) viewed from 3+ feet away. The thread bloom will likely hide it.
• Fix It: Only for high-end macroscopic art. You would do this by tweaking the Pattern Size or Stitch Length slightly to see if the math recalculates a cleaner path, rather than deleting points manually.


Dial the Look In: Pattern Size and Stitch Length Are Your Two Real Control Knobs

You are not stuck with the default. DJ demonstrates adjusting two primary variables. Here is how to use them to change the "personality" of the stitch:

1. Pattern Size (The "Width/Thickness")

• Effect: changes the scale of the motif block itself.
• Practice: Larger size = bolder, heavier thread look. Smaller size = delicate, fine lace look.

2. Stitch Length (The "Stride")

• Effect: Changes the distance between the motif repetitions.
• Safety Range: For 40wt thread, stay between 2.5mm and 4.0mm.
  • < 2.5mm: Risks jamming and fabric perforation (cutting the fabric).
  • 4.0mm: Can leave loose loops that snag on buttons or washing machines (unless using a thick 12wt or 30wt thread).

Expert Tip: Start with Pattern Size to set the "weight," then fine-tune Stitch Length to handle curves.

Setup Reality Check: What This Faux Backstitch Means for Real Stitch-Outs (Thread, Fabric, Stabilizer)

Software is perfect; fabric is fluid. A faux backstitch is technically a "Run" stitch, meaning it lacks the structural stability of a tatami fill or satin column. It relies entirely on the fabric staying still.

If your fabric shifts 1mm, your "perfect" hand stitch line becomes a wavy, amateur mess.

Decision Tree (Fabric → Stabilization Strategy):

• Scenario A: Stable Woven (Denim, Canvas, Twill)
  • Solution: Tearaway (Medium Weight).
  • Why: The fabric supports the stitch structure.
• Scenario B: Stretchy Knit (T-Shirts, Performance Wear)
  • Solution: Cutaway (No Mesh).
  • Why: You need absolute stability. If the knit stretches during stitching, the "backstitch" gaps will distort.
• Scenario C: Lofty/Textured (Fleece, Towel)
  • Solution: Cutaway + Water Soluble Topper (Solvy).
  • Why: without a topper, these thin outline stitches will sink into the pile and disappear. The topper floats the thread.

The Hooping Factor: Traditional hooping can be the enemy of delicate outlines. The physical force of jamming an inner ring into an outer ring often distorts the grain of the fabric ("hoop burn"). When you unhoop, the fabric relaxes, and your perfect circle becomes an oval.

If you struggle with hoop burn or hand fatigue, consider upgrading your workholding. Many professionals search for magnetic embroidery hoops to solve this exact problem. Magnetic frames hold the material flat without forcing it into a distorted shape, which is critical for maintaining the geometry of precise outlines like this faux backstitch.

Warning: Keep hands clear of the needle bar and moving pantograph during operation. When trimming threads near these delicate outlines, use curved snips and angle them away from the fabric to avoid snipping the knot—unraveling a running stitch is catastrophic.

The Preset Workflow That Scales: Save Time When You’re Doing 10 Designs a Day

DJ’s "power move" is the preset itself. In a commercial shop, "re-inventing" the settings for every order is a profit killer.

The Scalable Workflow:

1. Develop: Create "Backstitch - Cotton" and "Backstitch - Fleece" presets.
2. Deploy: Apply them instantly to new vector art.
3. Produce: Minimize testing time.

However, software efficiency is useless if physical setup is slow. If you are doing volume production, placement consistency is king. This is where physical tools complement software presets. Using an embroidery hooping station ensures that every shirt is hooped in the exact same spot, with the same tension, every time. It eliminates the "human error" variable of alignment.

Common Questions People Ask After Trying This (and the Answers That Prevent Wasted Test Runs)

Based on training hundreds of operators, here are the real-world FAQs:

Q1: “Why does my stitch line look 'wobbly' on the machine but straight on screen?”

• Answer: This is usually a stabilization issue, not a software issue. The fabric is pushing/pulling (flagging) as the needle penetrates. Increase stabilizer weight or switch to adhesive spray.

Q2: “Can I use thicker thread for a better look?”

• Answer: Yes! This technique shines with 30wt or 12wt thread (cotton or matte polyester). Note: You must use a larger needle (Topstitch 90/14 or 100/16) and bypass the tension discs slightly to accommodate thick thread.

Q3: “The machine keeps slowing down. Why?”

• Answer: If your design has many short stitches (from a small Pattern Size), the machine cannot reach full speed. This is normal. Do not force 1000 SPM; let it run at 600-700 SPM for accuracy.


Troubleshooting the Faux Backstitch in FTCU: Symptom → Cause → Fix

Use this matrix when the result isn't perfect.

The Upgrade Path (When You’re Ready): From “Cool Effect” to Reliable Production Results

Mastering the software is Level 1. Level 2 is optimizing your physical production to handle these designs efficiently.

1. The "Hoop Burn" Bottleneck

• Trigger: You notice shiny rings on dark fabrics or struggle to hoop thick hoodies.
• Criteria: If you are rejecting 1 in 20 items due to hoop marks.
• Solution: A magnetic embroidery hoop allows you to clamp thick or delicate items without fiber-crushing force. It is the industry standard for minimizing hoop damage.

2. The "Alignment" Bottleneck

• Trigger: Logos are crooked or placed inconsistently across a batch of 10 shirts.
• Criteria: If you spend more than 2 minutes hooping a single item.
• Solution: A hooping station standardizes placement. It turns "guessing" into "mechanical precision."

3. The "Capacity" Bottleneck

• Trigger: You are turning down orders because you can't stitch fast enough on a single needle.
• Criteria: If your daily stitch count exceeds 20,000 stitches consistently.
• Solution: Upgrade to a multi-needle machine (like SEWTECH or similar commercial platforms). This allows you to queue colors, run at higher sustained speeds, and handle tubular items (caps/socks) properly.

Warning: Magnetic Safety: Magnetic hoops contain powerful neodymium magnets. They can pinch fingers severely causing blood blisters. Do not use if you have a pacemaker or ICD, as the magnetic field can interfere with medical devices. Keep away from children and credit cards.

Operation Checklist: The “No-Regrets” Routine Before You Export and Stitch

Execute this sequence before pressing the green button.

Operation Checklist:

• Visual Inspect: Zoom to 600% on corners and sharp turns.
• Simulator: Run Slow Redraw to verify the Forward-Back-Forward flow.
• Bobbin Check: Ensure you have a full bobbin (motif runs consume more thread than straight runs).
• Needle Check: Is the needle straight and sharp? Run a finger over the tip to check for burrs.
• Tension Test: Pull the top thread—it should feel smooth but resistant, not loose.
• File Format: Export to the correct machine format (DST/PES) without "optimizing" (which might strip the motif data).


A Final Note on Learning FTCU Faster

DJ emphasizes learning through structured lessons, and that applies to the physical craft as well. The "Faux Backstitch" is a perfect example of how software and hardware must work together.

If you are serious about hooping for embroidery machine efficiency, remember that the best software preset in the world cannot fix a badly hooped garment.

Final Setup Checklist (The "First Stich" Protocol):

• Stabilizer: Is it heavy enough for the stitch count? (When in doubt, go heavier).
• Topping: Did you use Solvy for texture?
• Speed: Set machine to max 600-700 SPM for the first run.
• Auditory Check: Listen for a rhythmic thump-thump (good penetration). A slapping sound means loose hoop; a grinding sound means needle drag.

By treating this technique as a system—Prep, Preset, Physical Setup, and Inspection—you transform a "cool trick" into a sellable, repeatable product.

FAQ

• Q: In Floriani Total Control U (FTCU), why does the motif “Backstitch” preset create a tiny connector stitch, and when should the tiny stitch be fixed?
  A: The tiny connector stitch is a normal motif entry/exit behavior and is usually safe to ignore for most garments.
  • Accept it: Use the preset as-is for t-shirts, sweatshirts, and caps viewed from normal distance (thread bloom often hides it).
  • Fix it safely: Adjust Pattern Size or Stitch Length slightly to force a cleaner recalculation instead of deleting points.
  • Success check: At 400–600% zoom, the segmented rhythm looks consistent and the small connector stitch is not creating a visible knot cluster.
  • If it still fails: Reshape the curve slightly or adjust the start/stop point to reduce the connector visibility.
• Q: In Floriani Total Control U (FTCU), why does a motif run stitch look clean on screen but stitch out “wobbly” on a knit T-shirt?
  A: A wobbly motif run stitch on knit fabric is almost always stabilization/flagging, not an FTCU drawing problem.
  • Switch stabilizer: Use cutaway (no mesh) for stretchy knits to keep the fabric from shifting.
  • Add holding help: Increase stabilizer weight or use adhesive spray to prevent fabric push/pull during needle penetrations.
  • Success check: The outline stays the same width and spacing around curves without “wave” distortion when unhooped.
  • If it still fails: Reduce machine speed to about 600–700 SPM for the first run to improve control on short motif moves.
• Q: In Floriani Total Control U (FTCU) faux backstitch, what stitch length range is a safe starting point for 40wt thread, and what problems happen outside the range?
  A: A safe starting point for 40wt thread is 2.5–4.0 mm stitch length, then fine-tune for curves.
  • Avoid too short: Below 2.5 mm can jam and may perforate/cut fabric.
  • Avoid too long: Above 4.0 mm can create loose loops that snag (unless using thicker thread such as 12wt/30wt).
  • Success check: The stitch-out shows clean “dash” segments with no looping and no harsh, busy “jackhammer” sound at corners.
  • If it still fails: Adjust Pattern Size first (to set the visual weight), then re-check Stitch Length on tight curves.
• Q: In Floriani Total Control U (FTCU), how can operators confirm the motif faux backstitch is truly running Forward–Back–Forward before exporting to DST/PES?
  A: Use FTCU Slow Redraw and verify continuous flow—this prevents wasted thread and unnecessary trims.
  • Run Slow Redraw: Step stitch-by-stitch and watch for Forward (Space) → Backward (Stitch) → Forward (Space) motion.
  • Hunt for jumps: Look for unexpected travel moves across the design that would cause trims and extra knots.
  • Success check: The stitch path flows around the shape without random jump-outs, and corners do not stack into dense “black hole” clusters on screen.
  • If it still fails: Adjust entry/exit (start/stop) points or slightly reshape the vector to remove pathing conflicts.
• Q: During faux backstitch outline embroidery, how can operators recognize top thread tension that is too low when thread looping appears on long motif segments?
  A: Thread looping on motif outlines usually means top tension is too low or stitch length is too long.
  • Tighten top tension: Increase tension until the top thread pull feels smooth but resistant (often described like dental floss).
  • Shorten stitch length: Keep stitch length within the 2.5–4.0 mm safety range for 40wt.
  • Success check: The outline lies flat with no loose loops and no snag-prone arcs on the surface.
  • If it still fails: Re-check needle condition (straight and sharp) and confirm the motif doesn’t create dense clusters at corners.
• Q: When stitching faux backstitch outlines, what stabilizer and topper combinations prevent the outline from sinking into fleece or towel pile?
  A: Use cutaway plus a water-soluble topper to keep thin outline stitches visible on textured fabrics.
  • Stabilize: Use cutaway on fleece/towel to stop shifting and distortion.
  • Add topper: Place water-soluble topping (Solvy) to prevent the outline from sinking into the pile.
  • Success check: After removing topper, the segmented outline remains clearly visible and not swallowed by texture.
  • If it still fails: Increase stabilization or reduce speed for the first run to keep the fabric from bouncing during penetrations.
• Q: What needle-area safety steps should operators follow when trimming threads near faux backstitch run-stitch outlines on an embroidery machine?
  A: Keep hands clear of the needle bar and moving parts, and trim in a way that cannot cut the running-stitch knot.
  • Stop movement: Pause the machine and keep fingers away from the needle bar and pantograph area.
  • Use the right tool: Use curved snips and angle cuts away from the fabric to avoid cutting the knot.
  • Success check: After trimming, the outline does not start unraveling and the stitch line stays continuous when stitching resumes.
  • If it still fails: Re-stitching may be required because run stitches can unravel quickly—avoid aggressive trimming on outlines.
• Q: When hoop burn or inconsistent placement ruins faux backstitch outlines, what is the practical upgrade path from technique fixes to magnetic hoops to production capacity?
  A: Start by optimizing hooping/stabilization, then move to magnetic hoops for fabric control, and only then consider multi-needle capacity if volume demands it.
  • Level 1 (technique): Reduce hooping distortion and use correct stabilizer (tearaway for stable woven; cutaway for knits; cutaway + topper for texture).
  • Level 2 (tooling): Use magnetic hoops to clamp fabric flatter with less ring pressure when hoop burn or fabric distortion is causing geometry changes.
  • Level 3 (capacity): If daily stitch counts consistently exceed about 20,000 stitches and orders are being turned down, upgrade to a multi-needle platform for sustained throughput.
  • Success check: Outlines keep their intended shape after unhooping (circles stay circular), and batch placement stays consistent without rework.
  • If it still fails: Add a hooping station to standardize placement and reduce human alignment variation.
