Floriani Total Control U “Photo to Stitches”: The Settings That Make Photo Embroidery Look Real (and the Hooping Mistakes That Ruin It)

Photo embroidery is one of those techniques that looks like magic when it stitches out well—and looks like a mess when one small setting (or one sloppy hooping job) is off.

In this tutorial, Riva from Quality Sewing and Vacuum demonstrates how to convert a personal photograph into an embroidery file using the Photo to Stitches feature inside Floriani Total Control U. I’m going to rebuild her workflow into a shop-floor version you can actually repeat—plus I’ll add the “why it works” details that keep you from wasting stabilizer, thread, and hours of machine time.

Calm the Panic: Floriani Total Control U “Photo to Stitches” Is Easier Than You Think—If You Respect Its Rules

Riva’s big point is reassuring: you can take something meaningful (a sunflower photo, pet portrait, artwork) and turn it into stitches without the usual digitizing headache.

But here’s the veteran truth: photo stitch is unforgiving. It’s dense, it runs long, and it magnifies every weakness in stabilization and hooping. If you treat it like a normal fill design you can resize later, you’ll get distortion, rough detail, or puckering.

A few comments under the video show the real-world confusion:

• People want to “remove the background” or isolate the subject.
• People can’t find the Photo to Stitches feature in their install.
• People worry about file formats (DST/DSB) and machine compatibility.
• People test with a “simple PNG” and get a terrible result.

We’ll address all of that—without pretending the software can break physics.

The Photo Choice That Saves You Hours: High-Contrast Images Stitch Cleaner (and Fail Less)

When Riva re-runs the process, she explains why the sunflower works: it “pops.” High contrast gives the algorithm clear edges and shading transitions.

She also shows a low-contrast example (dark graduation robe against a dark background) and calls it a tougher conversion.

Pro tip (from years of stitchouts): if the subject and background are similar in value (both dark, both mid-tone, or both busy), the software has to “invent” separation using stitches. That usually turns into muddy texture and lost facial features.

If you’re the person in the comments asking “I tried an easy PNG and it worked very bad,” the issue is often not “PNG vs JPG”—it’s that the image doesn’t have clean value separation once it’s translated into thread.

One practical habit: before you import, zoom out on your photo until it’s thumbnail-sized. If the subject is still readable at thumbnail size, it usually converts better.

The “Hidden” Prep Before You Click Anything: Photo Stitch Needs a Stabilizer + Hooping Plan

The video focuses on software, but your stitchout quality is decided just as much by what happens at the machine.

Photo stitch designs are typically dense and run for a long time. That means:

• the fabric is under tension longer,
• needle penetrations are higher (creating more friction and "push" on the fabric),
• and any slack in hooping becomes visible as ripples or registration drift.

This is where investing in magnetic embroidery hoops becomes a practical upgrade path—especially when you’re doing dense photo work and you’re tired of hoop burn or inconsistent tension. In many shops, the “software settings” get blamed when the real culprit is the fabric shifting by a millimeter during a 45-minute stitch cycle. If your fabric creates a "drum skin" sound when tapped, you are safe; if it sounds dead or loose, the photo stitch will pucker.

Warning: Photo stitch designs generate significant friction heat at the needle eye due to high stitch counts. Keep fingers clear of the needle area, do not reach under the presser foot while the machine is moving, and inspect your needle for gummy residue (from stabilizer adhesive) every 10,000 stitches to prevent thread shredding.

Prep Checklist (Do this BEFORE opening the software wizard)

• Check Contrast: Squint at your source photo. Is the subject distinct from the background? If not, edit the photo first.
• Micro-Measurement: Decide your exact finished physical size. You cannot resize later.
• Fabric Selection: Choose a stable woven (canvas, denim) for your first attempt. Avoid knits until you master the technique.
• Consumables Check: Ensure you have a fresh sharp needle (Org 75/11 or Topstitch 80/12) and enough bobbin thread for a long run.
• Stabilization Strategy: Have your heavy-weight cutaway stabilizer ready.
• Hooping Hygiene: Clean the inner ring of your hoop (or the magnets of your magnetic frame) to remove lint that causes slippage.


Start the Wizard the Same Way Every Time: Clicking “Photo to Stitches” and Importing Your Image

Riva opens Floriani Total Control U and clicks the Photo to Stitches icon.

Then the file browser opens and she selects the sunflower image.

If you’re asking “How do I transfer a photo from my phone to my machine?”—the channel reply is practical: email the image to yourself, open/save it on your computer, then bring it into the software. That keeps your workflow clean and avoids phone-to-machine confusion.

Also, if you’re asking “What is the program called?” the answer in the replies is clear: it’s Floriani Total Control software.

Cropping Like a Pro: Use the Shape Tools to Control the Background (Without Overpromising ‘Background Removal’)

A common comment question is: “How do you remove the background and just convert the image itself?”

The video doesn’t show a one-click background remover. What it does show is cropping and framing tools that let you decide what part of the image becomes stitches.

Riva points out:

• There’s a default crop box.
• You can pull the crop handles to tighten around the subject.
• You can choose different crop shapes (including a star).


She also demonstrates a custom drawing tool that can trace around the sunflower petals (she doesn’t fully do it, but shows the capability).

Watch out: custom tracing can be accurate enough for many shapes, but it’s still a manual skill. If you trace too tight, you can clip important shading; if you trace too loose, you keep distracting background texture.

If your goal is “only the subject,” your best results usually come from:

• cropping tighter using the square or circle tools,
• choosing a source photo with a solid white/black background to begin with,
• and letting the stitch texture read as “art,” not as a perfect cutout sticker.

The Size Trap That Ruins Photo Stitch: Set the Final Width/Height Inside the Wizard (Don’t Resize Later)

This is the most important rule in the whole video. If you ignore this, your design will fail.

Riva shows the design coming in at a huge size (she mentions 20 inches), then emphasizes that your machine may not stitch that size.

She then demonstrates setting the width to 8.00 inches inside the wizard.

Her warning is blunt: do not resize the design after generating stitches.

Here’s the “why” in plain shop language: Photo stitch is not an outline; it is a calculated density map. If you generate stitches for an 8-inch design and then shrink it to 4 inches on your machine screen, you are jamming the same number of stitches into half the space. This creates a "bulletproof vest" density that breaks needles and jams bobbin cases.

Rule of Thumb: Pick your hoop size first. Pick your finished size second. Build the design to those exact numbers.

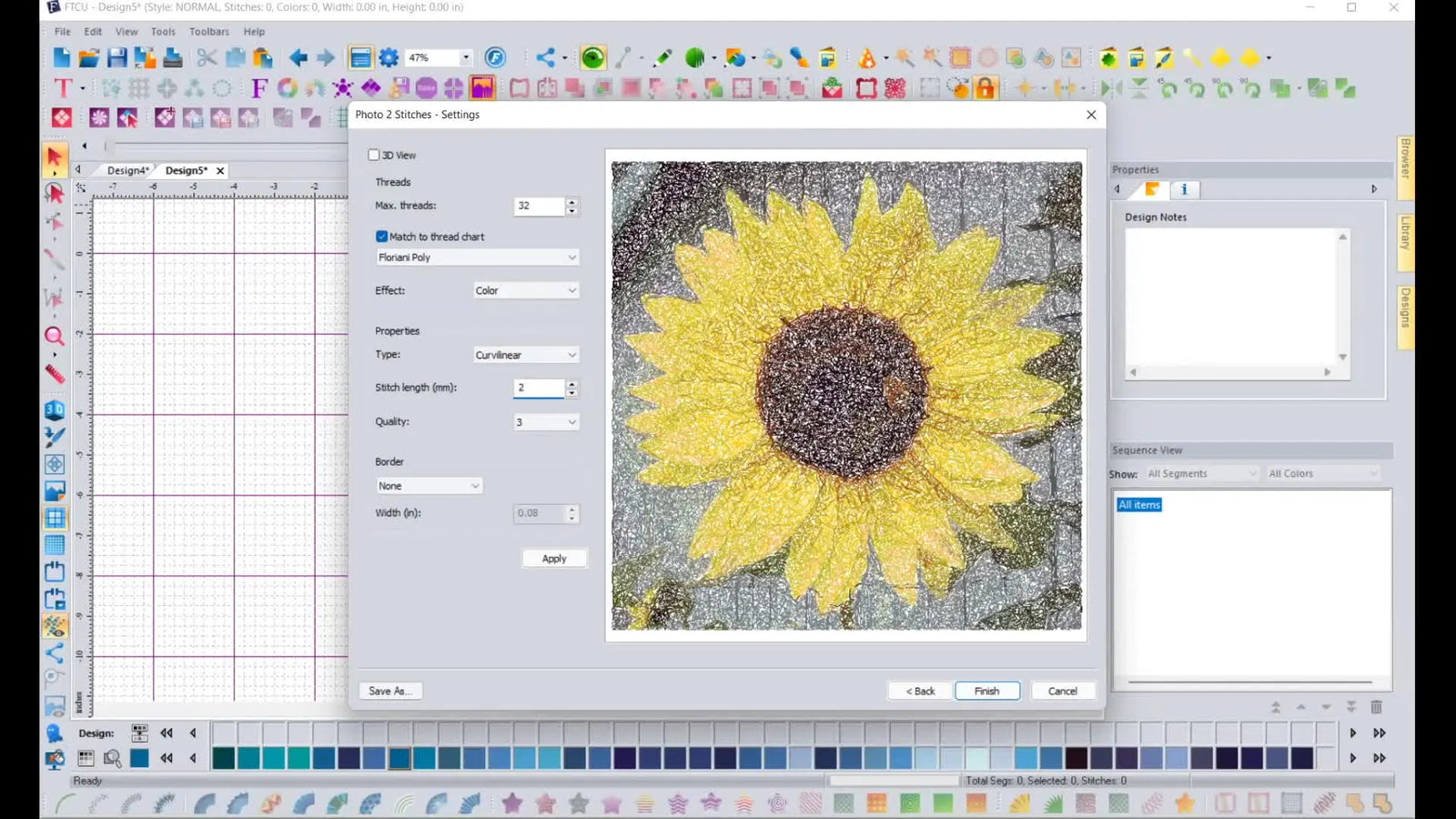

Dialing In the Look: Max Threads 32, Thread Chart Choice, and Line Type Texture

Once the wizard processes the image, Riva shows the settings panel.

She keeps Max Threads at 32 for maximum shading depth.

She also matches to a thread chart (she uses Floriani Poly in the demo).

Then she experiments with Line Type options like curved lines vs crossover lines. She notes crossover can look more scribbly/fun, but she prefers a more realistic look.

This is where you decide what you’re selling:

• If you want “sketch art,” crossover texture acts like a pencil drawing.
• If you want “photo realism,” you usually want the cleanest, most controlled linear texture.

Hidden Consumable Alert: High-thread-count photo designs consume massive amounts of thread. ensure you have full cones of your primary shading colors, not just partial spools.

The Detail Switch Nobody Believes Until They See It: Stitch Length from 3.5mm Down to 2.0mm

Riva calls stitch length “very valuable,” and she’s right. This is the difference between a "blob" and a "portrait."

She highlights the default 3.50mm stitch length and explains it’s like a long topstitch—too long to hold detail.

She changes it to 2.5mm (like many sewing machines’ default straight stitch length) and the preview looks cleaner.

Then she tests 2.0mm, and the preview becomes noticeably clearer. She concludes 2.0 is the way to go.

This is also echoed in the comments: someone asks whether smaller stitch length adds time, and the channel replies they haven’t timed it, but photo stitch takes a long time anyway—and the clarity gain is worth it.

Here’s the expert “why”: Shorter stitch length increases the “resolution” of the stitch texture. You’re giving the algorithm more stitch points per square inch to describe edges and shading transitions.

But don’t ignore the tradeoff: Shorter stitches significantly increase stitch count and runtime.

• Hobby context: It’s an afternoon of patience.
• Business context: It’s machine downtime.

If you’re running production, this is where you start thinking about workflow upgrades like a hooping station for embroidery—because when a single design runs for 90 minutes, you cannot afford to waste 15 minutes between runs struggling to hoop the next shirt straight.

Setup Checklist (Before you click 'Finish')

• Size Lock: Is the design size set to your exact final dimensions?
• Depth Check: Max Threads = 32 (unless you want a stylized, low-color look).
• Palette: Have you selected the thread chart you actually own?
• Texture: Have you tested Line Type (Crossover vs Linear)?
• Resolution: Crucial Step: Set Stitch Length to 2.0mm - 2.5mm.
• Hoop verification: Does this size fit your physical hoop's safe sewing area (usually 20mm smaller than the documented hoop size)?

Clean Edges Matter: Adding a “Steel” Satin Border (and Why It Makes the Design Look Finished)

After dialing stitch length, Riva goes to the border option and chooses Steel, which she explains is a satin stitch.

She applies it and notes it “cleans it up a lot.” She also mentions applique is an option, but she sticks with the satin border.

This is a finishing move that’s easy to underestimate. A photo stitch naturally fades out at the edges, which looks "raw" or unfinished on a garment. A satin border serves two purposes:

1. Aesthetics: Frames the image like a Polaroid.
2. Structural: Locks down the loose ends of the run-stitch fill, preventing unraveling during laundry.

Render, Preview in 3D, Then Save As the Right Machine Format (PES, DST, VIP, and More)

Riva clicks Finish to render the design into the workspace.

She toggles the 3D view to review the result.

Then she goes to File > Save As and shows the list of machine formats (PES, DST, VIP, and others).

This directly answers multiple comment questions:

• “Can you make it into a dst or dsb file?” Yes.
• “Can these files be saved for industrial embroidery machines?” Yes. Common formats like DST are standard for multi-needle machines.
• “Can I use this with the Brother 1900?” Yes.

Practical note: Always save a "working file" (Floriani's native .WAF format) before saving your machine format (.PES/.DST). You cannot edit the photo settings once it is saved as a machine file.

The Fabric-to-Stitch Decision Tree: Match Stabilizer Strategy to Photo Stitch Density

The video doesn’t prescribe stabilizers, but photo stitch density makes stabilization non-negotiable. If you skimp here, you get "bulletproof" stiff patches or puckered fabric.

Use this decision tree to plan your physical setup:

Decision Tree: Fabric → Stabilizer Strategy

1. Is the fabric a stable woven (Denim, Canvas, Twill)?
   • YES: Use Medium-weight Cutaway (2.5oz).
     • Hooping: Standard hoop or Magnetic frame. Tighten until fabric produces a dull "thump" when tapped.
   • NO: Go to step 2.
2. Is the fabric stretchy (T-shirt, Performance Knit, Pique)?
   • YES: Use Heavy-weight Cutaway (3.0oz) or two layers of Mesh Cutaway (fusible preferred).
     • Hooping: Critical Risk. Do not stretch the fabric. Use magnetic hoops for embroidery machines if possible to clamp without "pull-distortion." If using standard hoops, wrap the inner ring with grip tape.
   • NO: Go to step 3.
3. Is the fabric delicate/napped (Velvet, Minky, Terry Cloth)?
   • YES: Use Cutaway on bottom + Water Soluble Topping on top.
     • Why: The topping prevents the dense photo stitches from burying themselves in the fabric pile (disappearing detail).

Warning: When using magnetic hoops, be aware of the pinch hazard. The magnets are industrial strength. Keep them away from pacemakers, mechanical watches, and credit cards. Slide the magnets on/off rather than snapping them together directly to avoid pinching fingers.

Troubleshooting the Two Most Common “It Looks Bad” Failures (and the Fixes Riva Actually Shows)

Failures in photo stitch usually fall into two buckets: "Software Setup" or "Physical Shift." Here is how to diagnose them.

Extra shop-floor watch out: if your stitchout looks “okay” at the start but gets worse as it runs (the "drift" effect), your fabric is slowly slipping toward the center of the hoop. This is a hooping failure, not a digitizing failure.

“I Can’t Find Photo to Stitches” and Other Comment Questions—Answered Without Guessing

A few comment themes show up repeatedly. Here is the definitive clarification:

• “I have Floriani Total Control U but I can’t find photo 2 stitch.”
  The video states Photo to Stitches was added in a recent update. Updates are free for the life of the program. Go to Help > Check for Updates.
• “Does it work on Mac?”
  Floriani is Windows-native. You need Windows (or Parallels/Bootcamp on Mac) to run it.
• “Will this work for hand embroidery?”
  No. It creates digital coordinates for a mechanized pantograph.
• “Will this work with buying designs off Etsy?”
  No. You cannot turn an existing embroidery file (.PES) back into a photo to re-digitize it. You need the original image file (.JPG/.PNG).
• “Is it expensive?”
  The software is an investment. However, compared to outsourcing digitizing ($15-$30 per photo file), owning the tool pays for itself after approximately 15-20 custom jobs.

The “Upgrade Path” That Actually Makes Sense: When Better Hooping and Better Machines Pay Off

Photo stitch is a stress test for your process. If you’re doing it occasionally as a hobby, patience is your only cost. But if you are doing this for profit (Memorial pillows, Pet portraits), the bottlenecks become painful very quickly.

Here is the logical hierarchy of upgrades based on your "Pain Points":

1. Level 1: The "Hoop Burn" Pain
   • Symptom: You spend 20 minutes ironing "burn marks" out of delicate fabrics after a 2-hour stitch run.
   • Solution: brother magnetic embroidery frame (or generic equivalent). The flat clamping mechanism eliminates the "friction ring" that causes burn marks.
2. Level 2: The "Wrist Fatigue" Pain
   • Symptom: You physically struggle to tighten standard hoops enough to hold dense canvas resulting in sore wrists or carpal tunnel issues.
   • Solution: Magnetic frames allow you to "snap and go," reducing physical strain while providing superior holding force for dense designs.
3. Level 3: The "Production Speed" Pain
   • Symptom: Your single-needle machine requires a manual thread change every 4 minutes for a 32-color photo design. You are chained to the machine.
   • Solution: This is the trigger for a Multi-Needle Machine (like a SEWTECH 15-needle system). You set the 15 colors, press start, and walk away for an hour while the machine handles the complex shading automatically.

None of these are mandatory to start. But as your volume increases, tools stop being "luxuries" and start being "payroll protection."

Operation Checklist (The "Don't Waste a Whole Afternoon" Final Pass)

Before you press the green button on your machine, verify these 5 points to ensure success.

• Stabilizer Bond: Is the stabilizer firmly attached (spray/fusible) or tightly hooped? "Floating" is not recommended for photo stitch.
• Clearing the Path: Have you checked that the hoop path is clear of walls/objects? Photo stitch uses the full field.
• Bobbin Check: Do you have a full bobbin? Running out in the middle of a dense photo fill can leave a visible "scar" where you restart.
• Needle Freshness/Type: Are you using a fresh 75/11 or 80/12? (Dull needles cause skipped stitches in dense fills).
• Format Check: Did you save as .WAF (editable) AND the correct machine executable (.PES, .DST, etc.)?

If you follow Riva’s settings—especially the “size it first” rule and the 2.0mm stitch length—you’ll be shocked how quickly your results jump from ‘rough preview’ to ‘keepsake-quality embroidery.’

FAQ

• Q: In Floriani Total Control U Photo to Stitches, what stabilizer and hooping setup prevents fabric shifting during dense photo embroidery?
  A: Use a cutaway-first stabilization plan and clamp the fabric so it cannot creep during a long, dense run.
  • Choose stabilizer by fabric: stable woven → medium cutaway; stretchy knits → heavy cutaway or two layers of mesh cutaway (fusible preferred); napped fabrics → cutaway + water-soluble topping.
  • Attach stabilizer firmly (fusible or spray) and avoid “floating” for photo stitch.
  • Clean hoop inner ring or magnetic frame magnets to remove lint that causes slippage.
  • Success check: fabric sounds like a “drum skin” when tapped and stays flat with no ripples as the design progresses.
  • If it still fails: upgrade holding power (magnetic frame or better hooping technique) and re-check for slow “drift” that indicates slipping, not software.
• Q: In Floriani Total Control U Photo to Stitches, why must the final design size be set inside the wizard instead of resizing the PES/DST later?
  A: Set the exact final width/height in the Photo to Stitches wizard because resizing after stitch generation can create extreme density and sewing failures.
  • Pick the physical hoop first, then set the finished design size to fit the safe sewing area.
  • Enter the target width/height in the wizard (example shown: 8.00 inches) before generating stitches.
  • Save an editable working file first, then export the machine format.
  • Success check: the generated design fits the hoop’s safe sewing field without needing any on-machine scaling.
  • If it still fails: regenerate from the original photo at the correct size; do not “shrink to fit” on the machine screen.
• Q: In Floriani Total Control U Photo to Stitches, what stitch length should be used to avoid scratchy, low-detail “fax-like” results?
  A: Reduce stitch length from the default 3.5 mm to 2.0–2.5 mm to increase detail and clarity.
  • Open the stitch length setting in the wizard and move from 3.50 mm down to 2.50 mm, then test 2.00 mm for best clarity.
  • Accept the tradeoff: shorter stitch length increases stitch count and run time.
  • Preview the change before finishing the render.
  • Success check: the preview shows cleaner edges and more readable shading instead of long, loose “scratches.”
  • If it still fails: re-check photo contrast (low contrast images often convert muddy even with correct stitch length).
• Q: In Floriani Total Control U Photo to Stitches, how can the background be controlled without a one-click background remover?
  A: Use the crop box, alternate crop shapes, or custom drawing tools to define what area becomes stitches.
  • Tighten the default crop box around the subject to minimize background texture.
  • Switch crop shapes (square/circle/star) when a framed look is acceptable.
  • Use the custom drawing/tracing tool for manual control, but avoid tracing so tight that shading gets clipped.
  • Success check: the stitched area includes only intentional background and the subject remains readable at thumbnail-size preview.
  • If it still fails: start with a photo that already has a simple light/dark background so the conversion does not “invent” separation.
• Q: In Floriani Total Control U, what should be checked when Photo to Stitches is missing from the software menu?
  A: Run the software update because Photo to Stitches was added in a recent update and updates are stated as free for the life of the program.
  • Go to Help > Check for Updates and install the latest update.
  • Restart Floriani Total Control U after updating.
  • Verify you are running Floriani Total Control on Windows (Mac requires Windows via virtualization/dual-boot).
  • Success check: the Photo to Stitches icon appears and opens the image import browser.
  • If it still fails: confirm the correct Floriani Total Control edition is installed and retry the update process.
• Q: What needle, bobbin, and long-run consumable checks prevent thread nesting and mid-design failures during Floriani Photo to Stitches stitchouts?
  A: Treat photo stitch like a long production run: start with a fresh needle, a full bobbin, and clean threading to prevent nesting and breaks.
  • Install a fresh sharp needle (examples given: Organ 75/11 or Topstitch 80/12) and ensure enough bobbin thread for a long run.
  • Re-thread the machine with the presser foot UP and clean the bobbin case if nesting occurs.
  • Inspect the needle periodically for gummy residue from stabilizer adhesive during high stitch counts.
  • Success check: the underside shows smooth, even bobbin lines with no “bird’s nest” buildup under the throat plate.
  • If it still fails: stop immediately, remove the nest, clean the bobbin area, and re-check upper tension and threading path.
• Q: What needle and magnetic hoop safety rules should be followed during long, dense Floriani Photo to Stitches embroidery runs?
  A: Keep hands clear during operation and handle magnetic frames as pinch hazards because photo stitch runs are long, dense, and generate heat and strong clamping force.
  • Keep fingers away from the needle area and never reach under the presser foot while the machine is moving.
  • Monitor for friction heat and check the needle for adhesive residue that can contribute to shredding.
  • Slide magnetic clamps on/off instead of snapping them together, and keep magnets away from pacemakers, mechanical watches, and credit cards.
  • Success check: the machine runs without unsafe reaching, and magnets are applied/removed without sudden “snap” pinch events.
  • If it still fails: pause the job, reposition safely, and switch to a safer handling routine before continuing the run.
