Photo embroidery is one of those features that looks like pure magic right up until the first run goes sideways. You envision a perfect portrait, but you get fabric bouncing, the image landing outside the frame, or colors turning into a muddy, unrecognizable mess.

Here is the hard truth that 20 years in this industry has taught me: Photo embroidery is not printing. It is a structural engineering challenge. You are asking a machine to place thousands of tiny, high-density stitches into a flexible material that wants to distort, pucker, and shift.

If you are running a Fortever multi-needle system (or similar industrial hardware), the workflow is entirely repeatable, but only if you respect two realities:

1. The Digital Reality: The machine’s photo module is strict about file format and color order.
2. The Physical Reality: Large-format stitching punishes sloppy support and hoop setup.

This guide rebuilds the exact operation shown in the video—hardware install, Photoshop BMP prep, USB import, 4-color processing, needle mapping, and stitch-out. But more importantly, I will add the "why" behind each checkpoint so you can stop wasting expensive backing and fabric.

The Calm-Down Moment: What the "Photo Embroidery Function" Actually Does

Before we touch a screwdriver, let’s reset your mental model. The Fortever photo embroidery function converts a BMP image into a stitch pattern, stitching it using a fixed four-layer sequence: Yellow → Red → Blue → Black.

This is not full-color inkjet printing. It is dithering. The machine builds tone through high-speed stitches layered from light to dark.

• Yellow provides the base luminosity.
• Red and Blue create the mid-tones and shadows.
• Black provides the contrast and detail definition.

If you expect perfect skin tones from a low-contrast photo, you will be disappointed. Set your expectations to "artistic, photo-like texture." If you are searching for a reliable baseline for a fortever embroidery machine photo workflow, the rest of this post is the strict, repeatable routine I demand from my own production floor.

Phase 1: The "Hidden" Prep Pros Do First

Goal: Eliminate variables before the machine is even turned on.

In the video, the operator uses a flat table attachment plus a large flat embroidery frame (sash/border frame). Why? Because a photo design is typically large, creates heavy stitch density, and runs fast. Any vibration will cause "flagging" (fabric bouncing up and down), which destroys the clarity of the image.

The Hidden Consumables Checklist

Before you start, gather these specific items that novices often forget:

• Fresh Needles: Photo stitching is dense. A dull needle will deflect and cause blurry lines. Use a fresh 75/11 Sharp (not Ballpoint) for woven fabrics.
• Clean USB Drive: Capacity under 8GB, formatted to FAT32, containing only the design files you need.
• The "Right" Thread: You need four colors specifically mapped: Yellow, Red, Blue, Black. Even if your design looks "sepia," the machine builds it from these four.
• Stabilizer: For a sash frame setup on standard woven fabric, use a medium-weight Cutaway stabilizer. Tear-away is too unstable for the thousands of needle penetrations involved here.

Prep Checklist (Do Not Skip)

• Confirm you have the flat table attachment and the table support leg.
• Locate the 3mm hexagon socket wrench (Allen key) for the frame screws.
• Load the four thread colors (Y/R/B/K).
• Crucial: Clear the table area. The sash frame has a massive range of motion.

Warning: Keep hands, sleeves, and tools away from the needle area and moving frame during tracing and stitch-out. A sash frame carries significant momentum. A fast start at 800 SPM (Stitches Per Minute) can turn a "small bump" into a bent needle arm or a crushed finger.

Phase 2: Hardware Stabilization (The Table)

In the video, the operator installs the flat table first. This is not just a shelf; it is a vibration damper.

The Action:

1. Insert the table support leg into the table slot.
2. Rotate the support leg to the right to lock it.
3. Tighten the four mounting screws on the main bridge using the hex tool.

The Sensory Check: After tightening, press down firmly on the edge of the table with your palm.

• Failure: If it flexes, creaks, or dips, it is too loose.
• Success: It should feel solid, like a part of the machine chassis.

Large-format photo embroidery is where "almost tight" becomes "visible defects." If the table vibrates, the fabric vibrates. If the fabric vibrates, your photo looks blurry.

Phase 3: Mounting the Sash Frame without "Fighting It"

Next, we place the large rectangular sash frame onto the pantograph rails.

The Action:

1. Place the sash frame onto the rails.
2. Center it visually.
3. Finger-tighten the fixing screws first to ensure they aren't cross-threaded.
4. Firmly tighten using the 3mm hexagon socket tool.

The Expert Nuance: Many operators lose time here by tightening one side 100% before the other. This torques the frame, making it sit slightly crooked. Instead, snug all screws to 50%, confirm the frame sits square, then tighten them to 100%.

If you are thinking about general embroidery frame handling, remember that a sash frame acts like a rigid fixture. It has no "give." If it is crooked, your design is crooked.

Phase 4: The "No-Gap" Rule (The Physics of Stability)

This is the most important physical checkpoint in the entire video. I have seen perfectly digitized files fail because this step was ignored.

The Action:

1. Crouch down until your eyes are level with the table surface.
2. Look for light between the bottom of the embroidery frame and the top of the table.
3. The Adjustment: Rotate the foot of the support leg to raise or lower the table until it touches the frame.

Why this is non-negotiable: When the needle pulls out of the fabric, it tries to lift the fabric with it (flagging). If there is a gap between the frame and the table, the fabric acts like a trampoline.

• Gap = Bounce.
• Bounce = Looping threads and miss-hits.
• Result: A muddy photo.

So the "no-gap" rule isn't cosmetic; it is the structural floor that supports your fabric execution.

Commercial Truth: If you ever struggle with hooping for embroidery machine accuracy on garments (where you can't use a table), this instability is usually the culprit. That is why many shops upgrade to Magnetic Hoops. They clamp the fabric evenly across the entire surface, effectively reducing that "trampoline effect" even without a table support.

Phase 5: Photoshop BMP Prep (The Digital Gatekeeper)

The machine’s brain is not a high-end PC. It needs specific data to function. The video uses Adobe Photoshop to prepare the image.

Exact Requirements:

1. Open the picture in Photoshop.
2. Resize: Confirm the image pixel width is under 10,000. (I recommend 2,000–3,000 for faster processing).
3. Format: Save as BMP.
4. Bit Depth: In BMP options, set depth to 24-bit (R8 G8 B8).


Bit Depth is Not Negotiable. The transcript mentions "20 bits," but this is a verbal slip. The standard is 24-bit. If you save as 16-bit or 32-bit, the machine may simply refuse to open the file to prevent crashing.

Phase 6: USB Import and Control Panel Logic

Once the BMP is ready, the video moves to the machine interface.

The Sequence:

1. Insert the verified USB drive.
2. Tap Pattern -> USB.
3. Select the BMP file.
4. Tap OK/Copy to move it to internal memory.
5. Press ESC, then go to Pattern again to select the file from memory.


The "Clean Drive" Philosophy: Machines are built for stability, not multitasking. A USB drive cluttered with PDFs, zips, and old billing spreadsheets will slow down the machine’s processor. Dedicate one drive solely to embroidery files.

Phase 7: The 4-Color Reality Check

The machine now processes the BMP into four color layers. The Fixed Order: Yellow -> Red -> Blue -> Black.

The operator confirms the pattern and presses Storage to finalize it. At this stage, you will see a small cross symbol on the screen indicating the needle start point. You must use the direction arrows to move the frame until the design fits within your physical hoop limits.

Structure Your Workspace: This alignment step requires focus. If you do this all day, consider setting up a dedicated machine embroidery hooping station logic where the operator checks positioning before sending the file, reducing the time spent fiddling with arrows at the machine.

Phase 8: The "Trace" (Your Last Chance to Abort)

After positioning, the operator hits the Trace/Frame-Out button. The machine moves the frame around the design's perimeter without stitching.

Sensory Audit during Trace:

• Listen: Do you hear a rhythmic mechanical whir, or a "clunk"? A clunk means the frame is hitting a limit or a table screw.
• Watch: Does the frame move smoothly, or does it jitter? Jitter indicates loose belts or rail debris.
• Feel: Place a hand on the table corner. Excessive vibration means the "No-Gap" support leg needs tightening.


Phase 9: Needle Mapping (The Danger Zone)

This is where 90% of beginners fail. You must tell the machine which physical needle holds which color. The machine does not know you put Yellow on Needle 1. You have to tell it.

The Video’s Specific Mapping:

• Yellow is mapped to Needle 7
• Red is mapped to Needle 3
• Blue is mapped to Needle 4
• Black is mapped to Needle 9

So the embroidery order entered is: 7, 3, 4, 9.

The Pro Tip: Do not guess. Write it down. Stick a piece of masking tape on the machine head if you have to: 1:Y, 2:R, 3:B...

If you are running a multi thread embroidery machine in a busy shop, standardize your thread layout. For example, always keep standard colors on needles 1-5 and photo colors on 6-9. Consistency reduces scrap.

Setup Checklist (Pre-Flight)

• Machine preview shows four colors.
• Sequence is strictly Yellow -> Red -> Blue -> Black.
• Needle numbers (e.g., 7, 3, 4, 9) match the physical threads.
• Bobbin is full/fresh (you do not want to run out mid-photo).
• "Trace" was completed without collision sounds.


Phase 10: The Stitch-Out at Safe Speed

The operator starts the machine. The video shows a running speed of 800 RPM.

My "Sweet Spot" Advice: 800 SPM is fine for a verified, perfectly leveled machine. If you are new to this, or if your table setup is even slightly imperfect, slow it down to 600-650 SPM.

• Slower speed = Less vibration.
• Less vibration = Sharper photo details.
• Speed is profit, but quality is reputation. Don't chase speed until you have mastered stability.


Visual Monitoring: Watch the layering. The machine will lay the ghost-like Yellow first. It will look wrong. Then Red adds warmth. Blue adds depth. It won't look like a photo until the Black layer finishes the job. Trust the process.

Operation Checklist (First 3 Minutes)

• First Thread Check: confirm Needle 7 (Yellow) is actually moving.
• Sound Check: Listen for the "thump-thump" of the needle penetrating. A sharp "crack" or "slap" sound usually means the thread tension is too loose, or the fabric is flagging.
• Tension Check: Look at the back. You should see the bobbin thread occupying the middle 1/3 of the satin column (if visible), or a balanced knot on dotting.


Why Upgrading Tools Beats "Trying Harder"

The video shows a perfect setup on a sash frame. But what if you aren't doing flat sheets? What if you are doing hoodies, jackets, or pre-made garments?

Sash frames are terrible for garments because you can't "hoop" a finished shirt in them easily. This is where the right tool changes everything.

The Decision Tree: Which Support System Do You Need?

Warning: Magnetic Hoop Safety
If you decide to upgrade to a magnetic embroidery frame workflow, treat them with respect. The magnets are industrial strength.
* Pinch Hazard: They snap shut instantly. Watch your fingers.
* Medical Safety: Keep frames at least 6 inches away from pacemakers or insulin pumps.

The Troubleshooting Loop: "Why does my photo look muddy?"

If you follow the video but the result is blurry, do not blame the software yet. Follow this repair order (Low Cost -> High Cost):

1. Check Physical Stability (Free): Is the table gap zero? Is the frame screwed tight?
2. Check Tension (Low Cost): Is the top thread too loose, creating loops? Tighten the knob slightly.
3. Check Consumables ($): Is the needle dull? Swap it. Is the stabilizer too thin? Add a layer.
4. Check Setup (Time): Did you map Yellow to a darker color by accident?

Final Reality Check: What "Good" Looks Like

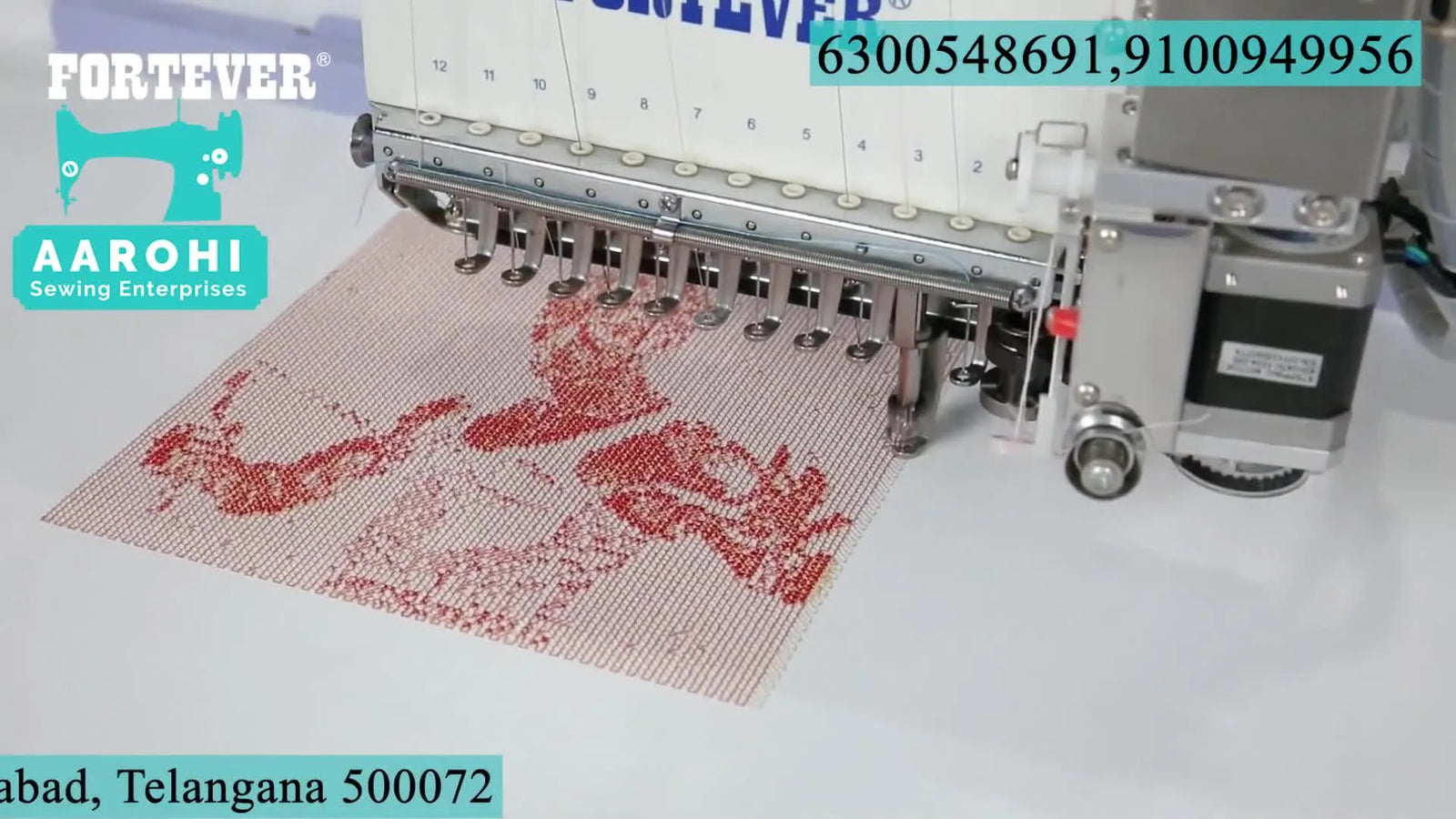

In the video, the final result is a completed Bruce Lee portrait. Up close, it looks like a Seurat painting—dots of color. From 3 feet away, the eye blends them into a smooth image.

Success Criteria:

• Clear Contrast: The blacks are black, not charcoal.
• Registration: The red lips align with the yellow face base (no "ghosting" or shifting).
• Texture: The surface feels like embroidery, but lies relatively flat without bunching.

If you hit those three markers, you have mastered the engineering. Now you can look into a commercial embroidery machine for sale to multiply that output, or explore better hooping tools to speed up your loading time. The magic isn't in the machine; it's in the setup.

FAQ

• Q: What exact BMP settings does the Fortever photo embroidery function require when saving from Adobe Photoshop?
  A: Save the image as a BMP in 24-bit (R8 G8 B8) and keep the pixel width under 10,000 to avoid file rejection.
  • Resize: Keep width under 10,000 px (a practical working range is often 2,000–3,000 px for faster processing).
  • Save: Choose BMP format, then select 24-bit (R8 G8 B8) in the BMP options.
  • Use: Copy only the needed file(s) to a small FAT32 USB drive (under 8GB) before importing.
  • Success check: The Fortever control panel can open/copy the BMP without refusing the file.
  • If it still fails: Re-save the BMP (not 16-bit/32-bit) and try a different clean FAT32 USB drive.
• Q: How do I stop Fortever photo embroidery from looking blurry due to fabric bounce when using a sash frame and flat table?
  A: Enforce the “no-gap” rule so the sash frame is physically supported by the table, eliminating trampoline-like flagging.
  • Level: Crouch to table height and look for light between the frame bottom and table top.
  • Adjust: Rotate the table support leg foot until the table touches the frame (zero visible gap).
  • Tighten: Re-check the table mounting screws so the table feels like part of the chassis.
  • Success check: During Trace/Frame-Out, the frame motion looks smooth and the table vibration feels minimal by hand.
  • If it still fails: Slow the stitch speed to about 600–650 SPM and confirm the frame fixing screws are fully tightened.
• Q: What is the correct USB import sequence on a Fortever control panel for photo embroidery BMP files?
  A: Import by copying the BMP from USB into internal memory, then select it from memory for processing and alignment.
  • Insert: Use a dedicated, clean FAT32 USB drive (under 8GB) with only the required design files.
  • Tap: Pattern → USB → select BMP → OK/Copy to internal memory.
  • Return: Press ESC → Pattern → select the file from internal memory.
  • Success check: The BMP appears in internal memory and proceeds to the 4-color processing screen.
  • If it still fails: Remove non-embroidery files from the USB and retry with a different small-capacity FAT32 drive.
• Q: How do I map needles correctly on a Fortever multi-needle machine for the fixed Yellow → Red → Blue → Black photo embroidery order?
  A: Assign the physical needles to match the fixed color order before stitching, then verify the first color actually runs.
  • Confirm: The machine preview shows exactly four layers in the order Yellow → Red → Blue → Black.
  • Map: Enter the needle numbers that hold those threads (example shown: Yellow=7, Red=3, Blue=4, Black=9, so the order entered is 7,3,4,9).
  • Label: Write the needle/color positions on tape on the head to prevent guessing mid-job.
  • Success check: At start, the first running needle is the one threaded with Yellow (not a darker color).
  • If it still fails: Stop immediately and re-check that the correct spools are physically on the mapped needles.
• Q: What thread, needle, and stabilizer setup is a safe starting point for dense Fortever photo embroidery on woven fabric?
  A: Start with fresh sharp needles, the four required thread colors (Y/R/B/K), and a medium-weight cutaway stabilizer to prevent distortion.
  • Replace: Install a fresh 75/11 Sharp needle (not ballpoint) for woven fabric.
  • Load: Thread four colors specifically as Yellow, Red, Blue, Black (the process depends on these layers).
  • Support: Use medium-weight cutaway stabilizer (tear-away is often too unstable for heavy photo stitch penetration).
  • Success check: The stitch-out stays crisp without obvious shifting/ghosting between color layers.
  • If it still fails: Add stabilizer support (another layer) and re-check physical stability (table/frame tightness).
• Q: What does “good tension” look and sound like during Fortever photo embroidery, and what should I do if loops appear?
  A: Aim for balanced stitching; if looping or a loud “slap/crack” sound appears, correct tension and reduce flagging before blaming the file.
  • Listen: Monitor for a steady penetration sound; a sharp slap/crack often points to loose top tension or fabric flagging.
  • Inspect: Check the back early; the stitch formation should look balanced rather than showing obvious top-thread loops.
  • Adjust: Tighten the top tension slightly and confirm the “no-gap” table support is still correct.
  • Success check: The back of the design looks clean and consistent, and the machine sound is rhythmic rather than sharp/slapping.
  • If it still fails: Replace the needle and confirm the stabilizer is not too thin for the design density.
• Q: What safety rules should be followed during Fortever Trace/Frame-Out and high-speed sash frame photo embroidery at 800 SPM?
  A: Keep hands, sleeves, and tools completely clear of the needle area and moving sash frame because the frame has strong momentum and can cause injury or damage.
  • Clear: Remove tools and clutter from the table so the sash frame travel path is unobstructed.
  • Stand back: Do not reach in during Trace/Frame-Out or stitch-out; stop the machine first if adjustments are needed.
  • Monitor: Watch and listen for clunks (collision risk) before committing to stitching.
  • Success check: Trace completes with smooth motion and no collision noises, and the operator never needs to “catch” the frame by hand.
  • If it still fails: Abort the run, re-position to fit hoop limits, and re-check table/frame mounting tightness before restarting.
