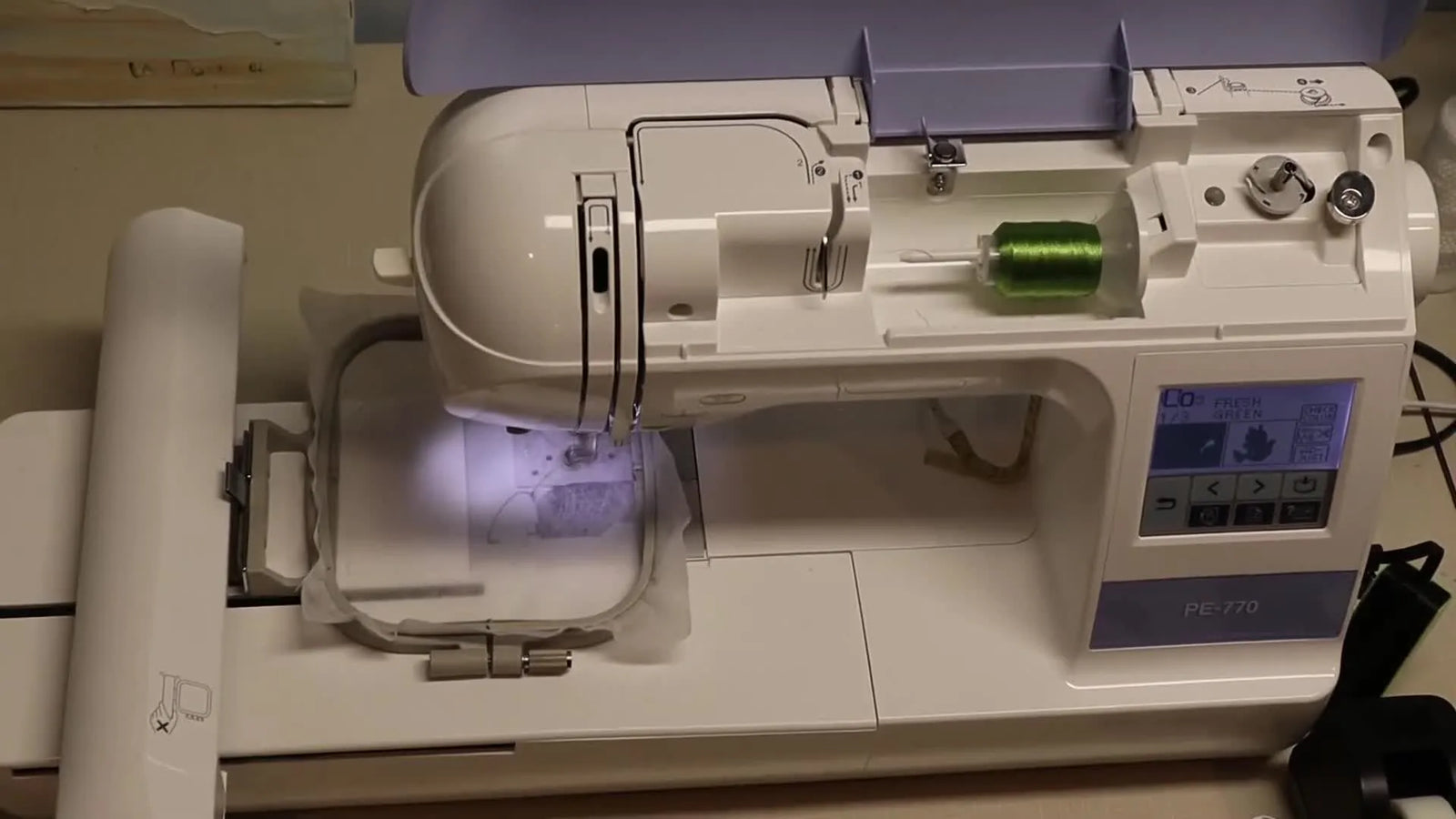

Free-Standing Lace on a Brother PE770: The Dove Ornament Workflow That Keeps Both Sides Beautiful

Free-standing lace (FSL) is widely considered the "graduation ceremony" for embroidery enthusiasts. It looks intimidatingly complex—stitched into thin air, holding its own structure, requiring perfect tension. But here is the secret that manuals don’t tell you: FSL is 20% design and 80% physical preparation.

If you are nervous because you have never stitched without fabric, pause. Your Brother PE770 is a workhorse capable of producing heirloom-quality lace ornaments, but it requires a shift in mindset. You aren't just decorating cloth; you are manufacturing textile.

The Physics of Free-Standing Lace: Why "Air Stitching" Requires Rigor

Free-Standing Lace differs from standard embroidery because the thread is the fabric. The needle builds a supporting lattice (underlay) and then covers it with satin columns.

When you stitch on a shirt, the cotton fabric supports the thread. In FSL, the stabilizer does all the heavy lifting until the thread structure locks together. This means your margin for error on stabilizer hoop tension is near zero.

Mary’s dove ornament project (using white, green, and black threads) is the perfect case study. The "Golden Rule" of FSL is visual symmetry: The back must be as beautiful as the front. Unlike a patch sewn onto a jacket, a hanging ornament spins. A messy back with bird's nests or wrong-colored bobbin thread ruins the illusion immediately.

The Stabilizer Decision: Mesh vs. Film (The Structural Foundation)

Mary makes a critical distinction here that aligns with industry best practices: she insists on fibrous, non-woven water-soluble stabilizer (WSS), often called "Vilene-type" or heavy water-soluble mesh. She explicitly avoids the shiny, plastic-wrap style "topping" film.

Why this matters (The Engineering View):

• Film (Bad for FSL base): The shiny film punctures easily. Under the assault of 15,000 dense stitches, it perforates and stretches, causing the lace outline to distort.
• Mesh (Good for FSL base): The fibrous mesh structure mimics fabric. It grips the stitches, reducing the "pull effect" (where stitches draw inward).
• Empirical Tip: For a 4x4 hoop design like this dove, use two layers of fibrous WSS if you are using a lighter weight brand. It is better to have too much support than too little.

Prep Checklist (Flight Check before Power On)

• Stabilizer: Fibrous water-soluble stabilizer (meshes), not film.
• Needle: Size 75/11 Sharp or Topstitch. (Avoid Universal needles; their rounded points can tear the stabilizer rather than piercing it cleanly).
• Bobbin: Pre-wound bobbins matching your Top Thread colors (Green and White).
• Scissors: Curved-tip embroidery snips (double-curved is best for hoop clearance).
• Machine Speed: Set your Brother PE770 to a medium speed (approx. 350-500 SPM). FSL is dense; max speed increases the risk of thread breaks.

Warning: Needle Safety. FSL generates a lot of lint and heat. If you are stitching a batch of 5+ ornaments, change your needle. A burred needle will shred the stabilizer and destroy the lace.

Hooping Technique: The "Drum Skin" Standard

Mary uses a standard 4x4 hoop. When hooping WSS, the goal is "Taunt but not Stressed."

Sensory Check: Tap the hooped stabilizer. It should sound like a dull drum—thump, thump. If it ripples, it’s too loose. If you see white stress marks near the edges, it’s too tight.

The "Hoop Burn" & Fatigue Problem: Hooping stabilizer tightly requires hand strength. If you are doing one ornament, the standard screw hoop is fine. However, if you are running a production batch for a craft fair (e.g., 50 ornaments), the repetitive wrist motion is a recipe for injury, and the constant friction can cause "hoop burn" on delicate designs.

This is where professional tools bridge the gap. Many volume-focused embroiderers switch to a magnetic hoop for brother pe770.

Why Upgrade? Magnetic hoops clamp instantly without the "screw-and-tug" battle. They maintain even tension across the stabilizer without distorting the fibers. If you find yourself avoiding embroidery because hooping hurts your hands, this tool changes the equation.

Warning (Magnetic Safety): Magnetic hoops use industrial neodymiums. They are incredibly strong. Pinch Hazard: Keep fingers clear of the snapping zone. Medical Safety: Keep magnets away from pacemakers and insulin pumps.

The "Matching Bobbin" Protocol (Visual Integrity)

Mary demonstrates a non-negotiable step for FSL: The bobbin thread must match the top thread.

On a drop-in bobbin system like the Pe770, you cannot hide the bobbin thread on the back.

• The Action: When Mary stitches the green leaves, she uses green top thread and a green bobbin.
• The Transition: When she switches to the white dove body, she swaps both to white.

Troubleshooting Tension: If you see the bobbin thread pulling to the top (creating little dots of color on the front), your top tension is too tight.

• Quick Fix: Lower your top tension by 0.5 to 1.0.
• Sensory Check: The stitch should look smooth and "sink" slightly into the stabilizer.

The First 20 Seconds: Auditory Monitoring

Mary threads the machine and locks the hoop. Once you press start, do not walk away.

The Auditory Anchor: Listen to the machine.

• Good Sound: A rhythmic, soft chug-chug-chug.
• Bad Sound: A sharp slap or high-pitched whine. This indicates the needle is struggling to penetrate the dense stabilizer or the thread path is snagged. Stop immediately.

Color Changes & production Discipline

Mary stops to change from green to white.

The Efficiency Gap: If you are making 20 doves, do not switch threads for every single bird.

• Amateur Workflow: Green -> White -> Black -> Unhoop -> Repeat.
• Pro Workflow: Hoop 10 frames. Stitch ALL Green layers on 10 hoops. Switch to White. Stitch ALL White layers.

This "Batching" method saves hours. Consistency is key here. This is why pros often invest in a hooping station for embroidery or similar alignment jig to ensure every hoop is loaded exactly the same way, allowing for assembly-line speed.

Setup Checklist (Before Pressing Start on New Color)

• Top/Bottom Match: Is the bobbin color verified?
• Clearance: Is the foot height appropriate? (If the lace is building up thick, raise the presser foot height slightly in settings).
• Tail Management: Are the previous thread tails trimmed?

The "Zero-Tail" Trim Policy

Mary identifies a green thread tail and trims it before the white stitching covers it.

Why is this critical? Once the white stitching goes over that green tail, it is trapped forever. On FSL, you cannot hide it inside the batting. It will show as a "shadow" inside the lace.

• The Tool: Use tweezers to pull the tail up and curved snips to cut it flush (1-2mm max).

Unhooping & The Structural Transition

Mary removes the hoop.

Handle with Care: At this stage, the stabilizer is perforated. The lace is heavy. Do not pop it out aggressively, or you might distort the outer satin stitch border. Cut the stabilizer away from the hoop roughly, leaving about 1 inch of excess around the design.

The Chemistry of Dissolving: Controlling Stiffness

Mary’s method involves trimming excess stabilizer and soaking the ornament.

The Variable: Time = Texture. Current water-soluble stabilizers are starch-based. The more you wash, the less starch remains.

• Warm Water: Dissolves faster.
• Cold Water: Dissolves slower, allows more control.


Structuring your Outcome:

• For Rigid Ornaments (Hanging): Dip in warm water for 30-60 seconds. It should feel slimy. Let it dry. The remaining starch will cure hard like plastic.
• For Soft Appliqué (Sewing onto clothes): Soak for 10+ minutes, rinse, soak again. Remove all starch so it drapes like fabric.

Stabilizer & Finishing Decision Tree

Follow this logic path to ensure you don't waste time or materials:

1. Is the project 100% thread (FSL)?
   • YES: Use Fibrous WSS (Mesh).
   • NO: Use Tear-away or Cut-away (Not covered here).
2. Does the ornament need to stand up/hang?
   • YES: Short Soak. Leave residue. Dry flat on a non-stick surface (glass or plastic).
   • NO: Long Soak. Rinse thoroughly.
3. Are you stitching >20 items?
   • YES: Evaluate tooling. Standard hoops cause fatigue. Consider magnetic embroidery hoops for speed and specific hoopmaster for brother systems for alignment.
   • NO: Standard hoop is sufficient.

Commercial Reality: When to Upgrade Your Tooling

If you successfully made Mary's dove and now have orders for 50 of them, you will hit a bottleneck: Hooping Time.

Hooping is the only non-automated part of the process.

• Level 1 (Hobbyist): Standard Hoop. Fine for <5 items.
• Level 2 (Side Hustle): brother 4x4 magnetic hoop. This eliminates the inner ring friction. You simply lay the stabilizer, snap the magnets, and stitch. It reduces "hoop burn" marks on the WSS and saves your wrists.
• Level 3 (Business): If you are running these 8 hours a day, look for hoop master embroidery hooping station setups to standardize placement, though this is often an investment paired with multi-needle machines later on.

Troubleshooting: The "Don't Panic" Symptom Table

Operation Checklist (The Final Quality Gate)

• Bobbins: Are they matched for every color change?
• Trim: Are all jump stitches cut before the next layer?
• Sound: Is the machine running rhythmically?
• Hoop: Is the stabilizer drum-tight/flat?
• Soak: Have you timed the soak to control stiffness?

By treating Free-Standing Lace as an engineering challenge rather than just a sewing project, you move from "hoping it works" to "knowing it will work." Your Brother PE770 is more than capable—it just needs you to provide the stability, the thread discipline, and the correct setup.

FAQ

• Q: What stabilizer should be used for Free-Standing Lace (FSL) on a Brother PE770: fibrous water-soluble mesh or shiny water-soluble film?
  A: Use fibrous, non-woven water-soluble stabilizer (mesh) as the base; avoid shiny film for FSL foundations.
  • Choose a Vilene-type/heavy water-soluble mesh for the hoop, not the plastic-wrap “topping” film.
  • Add support by hooping two layers if the mesh is lighter weight.
  • Stitch at medium speed (about 350–500 SPM) to reduce stress on the stabilizer.
  • Success check: The lace outline stays true (no stretching/distortion) and the stabilizer does not “tear-track” into a wavy shape.
  • If it still fails: Replace the needle with a fresh 75/11 Sharp/Topstitch and re-check hoop tightness.
• Q: How tight should water-soluble stabilizer be hooped for Free-Standing Lace (FSL) on a Brother PE770 4x4 hoop to prevent “bullet hole” outlines?
  A: Hoop the water-soluble stabilizer “drum tight”—taut but not stressed—so it stays flat under dense stitching.
  • Tap-test the hooped stabilizer before stitching.
  • Tighten until the stabilizer sounds like a dull drum “thump, thump,” not a loose ripple.
  • Avoid over-tightening that leaves visible white stress marks near hoop edges.
  • Success check: The satin border stitches land smoothly without a perforated “bullet hole” look around the outline.
  • If it still fails: Switch to a magnetic hoop to maintain even tension across the stabilizer.
• Q: Do Brother PE770 Free-Standing Lace (FSL) ornaments require matching bobbin thread for every color change?
  A: Yes—match bobbin thread to the top thread for each color section because the back of FSL must look as clean as the front.
  • Swap both top thread and bobbin when changing colors (example: green top + green bobbin, then white top + white bobbin).
  • Adjust if needed by lowering top tension 0.5–1.0 if bobbin dots show on the front.
  • Re-thread the top path with the presser foot UP if tension looks inconsistent.
  • Success check: No bobbin-color “specks” appear on the front, and the stitch looks smooth and slightly sunk into the stabilizer.
  • If it still fails: Clean lint from the bobbin area and re-check threading through every guide.
• Q: How do I stop “bird nest” tangles on the bottom when stitching Free-Standing Lace (FSL) on a Brother PE770?
  A: Re-thread the Brother PE770 upper thread path completely with the presser foot UP, because most bottom nesting comes from missed guides or the thread not seated in tension discs.
  • Stop immediately when nesting starts; cut thread and remove tangled thread carefully.
  • Re-thread from spool to needle with presser foot UP to open the tension discs.
  • Verify the thread passes every guide and is not snagging.
  • Success check: The machine runs with a steady, rhythmic sound and the underside shows clean stitch formation instead of a wad of loops.
  • If it still fails: Re-check upper tension settings (often too low causes looping) and confirm stabilizer is hooped drum-tight.
• Q: What needle and speed settings are a safe starting point for Brother PE770 Free-Standing Lace (FSL) to reduce thread breaks and stabilizer shredding?
  A: Use a fresh size 75/11 Sharp or Topstitch needle and run the Brother PE770 at medium speed (about 350–500 SPM) for dense FSL.
  • Install a new needle before long runs; change again when stitching batches (lint/heat can burr needles).
  • Avoid Universal needles because the rounded point may tear stabilizer rather than pierce cleanly.
  • Listen during the first 20 seconds and stop if the machine makes a sharp “slap” or high-pitched “whine.”
  • Success check: The sound is a soft, rhythmic “chug-chug,” with no repeated popping or shredding at the needle.
  • If it still fails: Slow down further and re-check thread path for snags; consult the machine manual for any model-specific limits.
• Q: What needle safety practices should be followed when batch-stitching Free-Standing Lace (FSL) ornaments on a Brother PE770?
  A: Treat FSL like high-load stitching—heat and lint build quickly—so needle condition and early monitoring are critical.
  • Stay with the machine for the first 20 seconds of each run to catch jams or penetration problems early.
  • Replace the needle when producing 5+ ornaments in a batch to avoid a burred tip shredding stabilizer.
  • Stop immediately if the sound changes to a slap/whine; do not “power through” dense sections.
  • Success check: No sudden sound spikes, no shredded stabilizer near needle entries, and no repeated thread breaks.
  • If it still fails: Clean lint around the bobbin area and re-check hoop tightness and stabilizer layering.
• Q: What magnetic hoop safety rules should be followed when using magnetic embroidery hoops on a Brother PE770 for Free-Standing Lace (FSL) production?
  A: Magnetic hoops clamp fast and strong—keep fingers clear and keep magnets away from medical devices.
  • Keep fingertips out of the snapping zone when closing the magnetic frame (pinch hazard).
  • Keep magnetic hoops away from pacemakers and insulin pumps.
  • Place stabilizer flat first, then bring magnets down in a controlled way instead of letting them “slam.”
  • Success check: The stabilizer is evenly tensioned with no edge stress marks, and loading/unloading does not strain wrists.
  • If it still fails: Return to the “drum skin” tension check and verify the stabilizer is not slipping under the clamps.
• Q: When should Brother PE770 Free-Standing Lace (FSL) production upgrade from a standard screw hoop to a magnetic embroidery hoop or more structured hooping workflow?
  A: Upgrade when hooping time, hand fatigue, or inconsistent tension becomes the bottleneck—especially for batches like 20–50 ornaments.
  • Diagnose the trigger: wrist/hand pain from screw-and-tug hooping, visible hoop-burn/friction marks, or variable lace outlines from uneven tension.
  • Try Level 1 first: standard hoop + “drum tight” tension + batching colors (stitch all green on multiple hoops, then all white).
  • Move to Level 2: magnetic hoops to clamp instantly and hold even stabilizer tension without constant re-tightening.
  • Success check: Hooping becomes fast and repeatable, and outlines stay consistent across the whole batch.
  • If it still fails: Consider an alignment/hooping station approach for consistent placement when running assembly-line quantities.
