Freehand Digitizing in Wilcom EmbroideryStudio: Turn a Photo into a Hand-Drawn Cat (Without the Usual Stitch-Out Surprises)

Freehand digitizing is one of those deceptive techniques. On screen, it looks like fluid, artistic freedom. But when you hit "Start" on the machine, it often turns into a lesson in humility—resulting in bird-nesting, bullet-proof stiffness, or thread breaks every 45 seconds.

If you are chasing that organic, hand-sketched aesthetic in Wilcom EmbroideryStudio, this workflow based on a cat portrait is your technical blueprint: photo import, boundary setting, outline tracing, "scribble" filling, and Radial Fill eyes.

However, as someone who has overseen thousands of production runs, I’m going to add the layer that software tutorials often miss: the physics of the stitch-out. I will guide you on controlling distortion, managing stitch density so your machine doesn't choke, and knowing exactly when your tools (frames and machines) need an upgrade to handle this level of complexity.

Calm the Panic: Freehand Digitizing in Wilcom EmbroideryStudio Is Supposed to Look “Imperfect”

The first barrier to entry is psychological. Novices often stare at their screen thinking, “My lines are shaky; I’m ruining it.” Let me stop you there. In freehand digitizing, perfect symmetry is the enemy. You are mimicking the kinetic energy of a charcoal sketch.

If you clean it up too much, it looks like a corporate logo. If you leave it too loose, it falls apart in the wash. We are aiming for the "Controlled Chaos" zone.

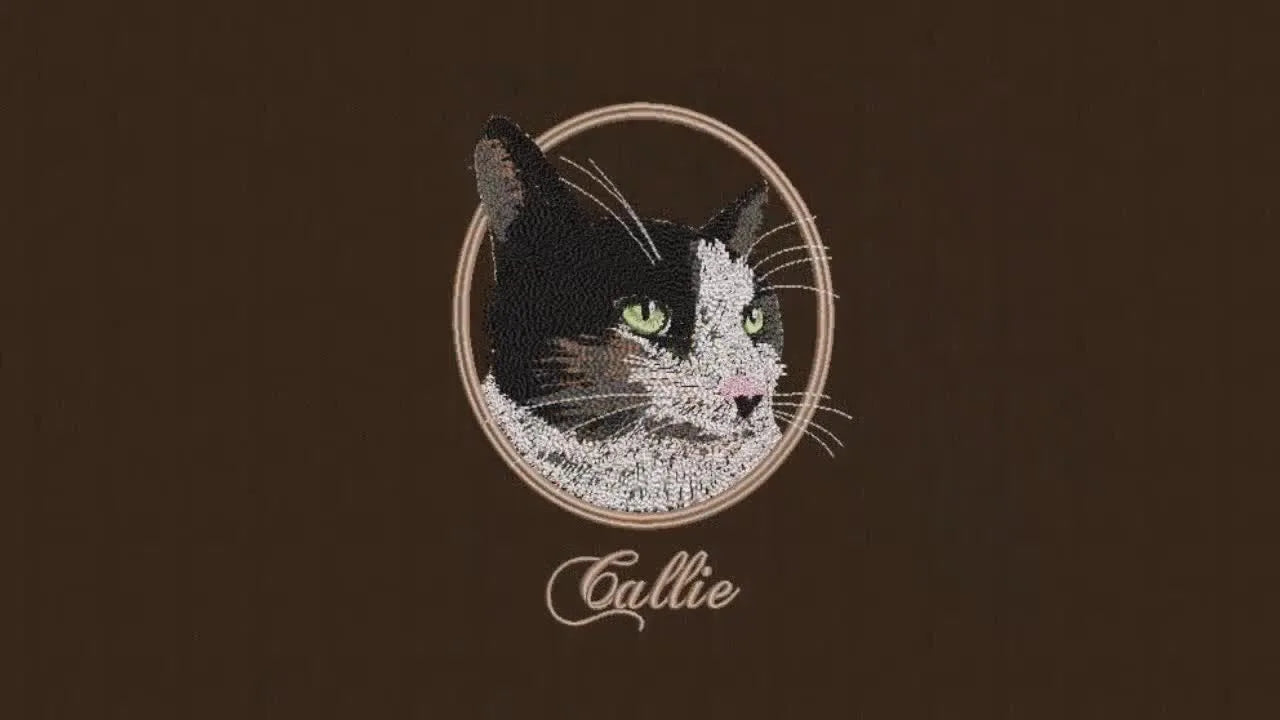

This specific video tutorial uses a cat portrait to demonstrate the workflow. While we will discuss magnetic embroidery hoops later as a solution for stabilization, the mindset starts here: You are not "coloring in the lines." You are building a structural mesh of thread that relies on movement.

The Reality Check: Freehand designs have high stitch counts in concentrated areas. This generates significant "push and pull." If your hooping is mediocre, a standard satin stitch might look okay, but a freehand sketch will distort noticeably. A "tired" looking stitch-out is rarely a software issue; it is almost always a physical stability issue.

The “Hidden” Prep Pros Don’t Skip: Photo Choice, Scale, and a Boundary That Saves You Later

The process begins by importing a reference photo (“Callie.jpg”) and resizing it. The video specific height is 181.18 mm (approx. 7.1 inches).

Why 180mm is the Beginner Sweet Spot:

• < 120mm: The "scribble" stitches become too short. Your machine will struggle to trim, and you risk thread buildup (nesting) because there isn't enough physical space for the texture to flow.
• > 250mm: You enter the "large format" danger zone where fabric shift is exponential. Unless you have industrial-grade stabilization, the eyes won't align with the face by the time the machine gets there.

The tutorial draws an oval boundary using the Ellipse tool and locks it (K key). Do not skip this. This oval is your anchored "stage." By locking it now, you guarantee that your final satin frame will perfectly encase the chaotic sketching later.

Prep Checklist (Pass/Fail criteria before digitizing)

• Contrast Check: Does your photo have distinct values? If you squint, can you separate the shadow, mid-tone, and highlight? If not, adjust levels in Photoshop/paint.net first.
• Scale Validation: Is the design height between 150mm and 200mm? (This is the safe zone for learning freehand).
• The "Anchor" Lock: Did you draw the oval boundary and press K? Verify it is unselectable.
• Needle Match: For this type of detailed work, ensure you have 75/11 Sharp needles on hand. Ballpoints may deflect too much on dense scribble layers.


Trace Like You Mean It: Freehand Open Shape + Guide Cursor for a Clean Silhouette

Next, the workflow moves to the Freehand Open Shape tool. The video toggles "Show Guides" and maxes out the Smoothing slider to 100%.

The Sensory "Why": When you draw with a mouse or tablet, your hand has micro-jitters. Without smoothing, the software interprets every jitter as a stitch node.

• Low Smoothing: The machine sounds like a machine gun (brrt-brrt-brrt) because it's trying to stitch 0.5mm jagged edges.
• High Smoothing (100%): The software averages your movement. The machine will sound smoother (hum-hum-hum) because the curves are fluid.

The "Eraser" Trick: The video highlights a massive time-saver: Hold Shift + Drag Backwards. This is crucial "muscle memory." Instead of stopping, hitting Ctrl+Z, and losing your flow, you simply back up the cursor to "erase" the bad segment and keep drawing.

Pro tip from the shop floor

When tracing the ears and cheeks, resist the urge to draw individual hairs. You are drawing the mass of the form. If you draw jagged outlines now, and then add jagged fill later, you get a "wire brush" effect that is uncomfortable to touch. Keep the outline smoother than you think it needs to be.

Build a Thread Palette That Actually Stitches: Using Thread Charts (Isacord/Madeira/Gunold/Sulky)

The tutorial opens Select Thread Charts and selects specific brands (Isacord 40, Madeira Classic 40, etc.).

The "Muddy Cat" Trap: In standard embroidery, we blend colors. In freehand, we layer them. If you pick four shades of grey that are too close in value, they will blend into a single undefined blob on the fabric. Thread reflects light; it doesn't mix like paint.

The Golden Rule of 4: Regardless of the brand (whether expensive Madeira or cost-effective SEWTECH thread), you need distinct steps:

1. The Anchor (Dark): Defines the depth.
2. The Body (Mid-tone): Covers 60% of the area.
3. The Light (Highlight): Brings it forward.
4. The Spark (Pop): Used sparingly (eyes/nose).


The Scribble That Looks Like Fur (Not a Bird’s Nest): Freehand Filling with Controlled Motion

This is the core of the technique: using the Freehand tool to "color in" the zones.

The Engineering of a Scribble: The video shows a loose, frantic motion. However, successful execution requires discipline.

• Stitch Length: Ensure your Freehand tool settings generally allow for longer stitches (3mm - 5mm). If stitches are too short (<1.5mm) and layered, your needle will heat up and shred thread.
• Density Warning: On screen, three layers of scribble look like full coverage. On the machine, that is three layers of thread piling up.

Warning: Needle Deflection & Breakage Risk. Freehand "scribble" layers build density rapidly. If the needle strikes a hardened knot of previous thread, it will deflect and break.
* Safety limit: Do not layer more than 3 colors in one spot.
* Auditory Check: If you hear a sharp "thud" or "crunch" sound, your density is too high. Reduce machine speed to 600 SPM (Stitches Per Minute) immediately to prevent needle breakage.

Setup Checklist (The "Don't Break My Machine" Review)

• Object Sequence: Are you stitching background (mid-tones) to foreground (details)?
• Underlay Check: Turn OFF standard auto-underlay for scribble sections. The scribble is the underlay and the top stitch combined. Adding Tatami underlay underneath scribbles creates bulletproof patches.
• Jump Stitch Management: Freehand creates many jumps. Ensure your machine's trimmer is active, or prepare for a lot of hand trimming.

Make Eyes Look Alive: Satin Object + Radial Fill Effect (with the Exact Settings Shown)

The eyes are the soul of the portrait. The video switches to a Satin object (Complex Fill) with Radial Fill.

The Parameters:

• Satin Spacing (Density): 0.40 mm
• Stitch Length: 3.80 mm


Expert Context: A spacing of 0.40mm is the industry standard for full coverage.

• If you go tighter (0.35mm): The eye pops more but creates more push distortion.
• If you go looser (0.45mm): The fabric might peek through.

Stick to 0.40mm. The Radial Fill causes the stitches to radiate from a center point, mimicking the curvature of an eyeball. This catches the light differently than a flat fill.

Fix the “Staring Eye” Problem: Reshape the Radial Center, Then Add the Pupil/Iris with Freehand

The default Radial Fill puts the center point (the "vanish point" of the stitches) in the middle of the object. This looks like a dead stare.

The tutorial uses the Reshape Tool to drag that center point (the 'X') to where the highlight should be (usually upper right or left). Then, the pupil and iris are added on top using Freehand.

Cognitive Tip: Humans are evolved to detect eye direction. If your radial center is Top-Right, your white reflection highlight must also be Top-Right. If they mismatch, the brain rejects the image as "wrong."

Turn Your Boundary into a Professional Frame: Convert to Satin Line + Program Split Texture

Remember the oval we locked in step one? Now we unlock it.

1. Right-click: Convert to Satin Line.
2. Object Properties: Apply Program Split.
3. Width: 3.50 mm.




The "Program Split" Secret: A standard satin stitch over 3mm wide is prone to "snagging" (loops catching on buttons or fingers). A Program Split breaks that long satin stitch into a decorative pattern.

• Durability: It anchors the thread better than a long satin float.
• Aesthetics: It looks like a braided rope or frame, adding perceived value to the finished piece.

The Stitch-Out Reality Check: Fabric + Stabilizer Choices Decide Whether Freehand Looks Premium

You can have the best digital file in the world, but if you put it on a flimsy t-shirt with tear-away stabilizer, it will pucker. Freehand designs act like a contracting net—they pull fabric inward from all directions.

Use this decision tree to match your consumables to the job.

Stabilizer Decision Tree (The "No-Pucker" Logic)

• Scenario A: Stretchy Fabric (T-shirt, Hoodie, Knit)
  • Action: MUST use Cut-Away Stabilizer (2.5oz or heavier). Tear-away will disintegrate under the chaotic needle penetrations of freehand work, leading to registration loss (the eyes won't fit the face).
• Scenario B: Woven Fabric (Denim, Canvas, Twill)
  • Action: Medium Tear-Away is acceptable, but Cut-Away is still preferred for "Framed Art" to keep the background perfectly flat.
• Scenario C: Textured Fabric (Towel, Fleece)
  • Action: Cut-Away on bottom + Water Soluble Topping (Solvy) on top. The topping prevents the scribble stitches from sinking into the pile and disappearing.

Hidden Consumable: Use temporary spray adhesive (like 505) to bond the stabilizer to the fabric. This "sandwich" structure is vital for freehand sketching.

Hooping Without Distortion: The Physics That Makes or Breaks Scribble Designs

Hooping is where 80% of beginners fail with freehand files. The instinct is to pull the fabric tight like a drum. Stop.

If you stretch a knit fabric in the hoop:

1. You stitch the design.
2. You unhoop.
3. The fabric snaps back to its original shape.
4. The embroidery (which doesn’t shrink) bubbles up. This is "Puckering."

The Tooling Solution: Traditional inner/outer ring hoops create friction and often leave "hoop burn" (shiny crushed fibers) on delicate garments. If you are struggling to get consistent tension without distortion, this is where hardware changes the game.

Tools like magnetic embroidery frames (such as the MaggieFrame) allow you to clamp the fabric without forcing it through rings. The magnet holds the material flat with vertical pressure rather than radial friction. This reduces the "tug" on the fabric grain, significantly lowering the risk of puckering on freehand designs.

Warning: High-Strength Magnet Safety. Magnetic hoops use industrial-grade magnets (Needodymium).
* Pinch Hazard: Keep fingers clear of the mating surfaces; they snap together with force.
* Electronics: Keep at least 6 inches away from pacemaker/ICD devices, credit cards, and machine screens.

“Can I Do This in Hatch?” and Other Comment Questions You’ll Run Into

Based on common user feedback, here are the quick answers to inevitable questions:

“I have Wilcom Hatch—can I do this?”

Yes, but check your "level." Freehand tools are usually reserved for the higher tiers (Digitizer level). If you have Hatch Basics, you might be limited to standard fills.

“My thread keeps breaking on the dense parts.”

This is almost always "Heat Friction."

• Solution 1: Change to a larger needle (Size 90/14) if the fabric allows.
• Solution 2: Use silicone thread lubricant.
• Solution 3: As mentioned, slow the machine down.

“How do I get the 'scribble' to look less digital?”

It’s in the wrist. Don’t just click-click-click. Drag the cursor in sweeping arcs. If you just click points, you get straight lines. You need curves.

The Production Upgrade Path: When a Great Wilcom File Deserves Faster Hooping and Better Throughput

Let’s say you master this cat portrait. You post it on Etsy or Instagram. Suddenly, you have orders for 50 custom pet portraits.

This is the "Pain Point" where hobbyist gear hits a wall.

1. The Wrist Pain: Hooping 50 shirts with screw-tightened hoops is physically exhausting.
2. The Color Changes: This design might have 12 color stops. On a single-needle machine, that is 12 manual thread changes per shirt. If each change takes 1 minute, you are losing 12 minutes of production time per unit.

The Upgrade Logic:

• Stage 1 (Hooping Speed): If you are keeping your current machine, look into a magnetic hooping station. This ensures every shirt is hooped in the exact same spot (consistent placement) and cuts hooping time by 50%.
• Stage 2 (Machine Throughput): If the color changes are killing your profit margin, it is time to look at multi-needle machines (like SEWTECH 15-needle systems). They handle the 12 colors automatically.
• Stage 3 (Consistency): Professionals often pair these. A hoopmaster hooping station or similar fixture combined with magnetic hoops creates a "factory-level" workflow where distortion is virtually eliminated.

When searching for specific efficient production methods, look for guides on how to use magnetic embroidery hoop systems specifically for your machine model (Brother, Ricoma, Tajima, etc.), as compatibility is key.

Run It Like a Pro: Final Operation Checks Before You Stitch the Cat for Real

You are ready. The file is done. The fabric is prepped. Before you commit, run this final checklist.

Operation Checklist (The "Pilot's Pre-Flight")

• Bobbin Check: Do you have a full bobbin? Running out of bobbin thread in the middle of a Freehand scribble is a nightmare to patch invisibly.
• Top Tension: Perform a quick "H" test. The top thread should be tight enough to not loop, but loose enough that you can see 1/3 white bobbin thread on the underside.
• Hoop Clearance: Trace the design boundary on the machine (Trace function). Ensure the presser foot won't hit the magnetic clips or hoop edges.
• Speed Governor: Set your machine max speed to 600-700 SPM. Speed kills quality in freehand work.

Freehand digitizing is a journey from rigid perfectionism to artistic flow. By combining the software techniques in Wilcom with specific knowledge of stabilizers, density management, and proper hooping tools, you move from "hoping it works" to "knowing it will stitch vertically."

FAQ

• Q: In Wilcom EmbroideryStudio freehand “scribble” fills, how do I stop bird-nesting caused by stitches that are too short and layered too densely?
  A: Increase freehand stitch length and reduce layering so thread has room to lay cleanly—this is a common cause of nesting.
  • Set Freehand tool stitch length to a longer range (generally 3–5 mm) instead of very short stitches (<1.5 mm) in the same area.
  • Limit layering to no more than 3 colors in one spot to avoid thread pile-up and hardened knots.
  • Turn OFF standard auto-underlay for scribble sections because the scribble already acts like underlay + top stitch.
  • Success check: The machine sound becomes smoother and the underside shows clean, flat stitches without big thread clumps.
  • If it still fails: Activate trimming (or plan hand trimming) and slow the machine to about 600 SPM to stabilize formation.
• Q: On a multi-needle embroidery machine running Wilcom freehand designs, what does the sharp “thud/crunch” sound mean and what should the operator do immediately?
  A: The “thud/crunch” sound usually indicates excessive density and needle deflection risk—slow down immediately to prevent needle breakage.
  • Reduce maximum speed to about 600 SPM as soon as the sound appears.
  • Reduce density by removing a color layer or opening spacing in the problem area (avoid stacking many scribbles in one spot).
  • Re-sequence objects so background/mid-tones stitch before foreground details to reduce repeated punching in one location.
  • Success check: The “thud/crunch” disappears and the needle runs with a steady “hum” without repeated impacts.
  • If it still fails: Stop the job and re-digitize the dense zone; continuing can snap needles and damage the stitch quality.
• Q: For Wilcom EmbroideryStudio pet portraits, why is a 150–200 mm design height a safer learning scale than 120 mm or 250 mm?
  A: Keep the design around 150–200 mm tall because it balances stitch flow and fabric stability for freehand scribble work.
  • Avoid sizes under ~120 mm because scribbles become too short, trimming gets messy, and thread builds up more easily.
  • Avoid sizes over ~250 mm because fabric shift increases and registration can drift (for example, eyes no longer align with the face).
  • Lock an oval boundary early (lock the boundary before filling) so the final satin frame still matches the sketch later.
  • Success check: The texture looks “open” (not clogged) and key features stay aligned from start to finish.
  • If it still fails: Improve stabilization and hooping method before changing digitizing settings again.
• Q: For freehand digitizing in Wilcom EmbroideryStudio, what needle should be used and why can the wrong needle increase breaks in dense scribble areas?
  A: Start with a 75/11 Sharp needle for detailed freehand work because it tracks dense penetrations more cleanly than a ballpoint in many cases.
  • Install a fresh 75/11 Sharp before starting high-stitch-count freehand portraits.
  • Avoid ballpoint needles for this specific dense scribble style if deflection is happening, because they may push aside fibers and wander.
  • Slow the machine when density increases, especially in facial features and eyes.
  • Success check: Fewer thread breaks and cleaner detail lines without “chewed” stitches in dense zones.
  • If it still fails: If the fabric allows, try a larger needle size (90/14) and reduce speed; heat/friction is often the root cause.
• Q: How can an embroidery operator verify correct top tension using the “H test” before stitching a Wilcom freehand scribble portrait?
  A: Use a quick “H test” and aim to see about 1/3 bobbin thread on the underside—this is a practical baseline for stable stitching.
  • Stitch a small “H” test and inspect the back of the sample.
  • Adjust top tension so loops do not form, but bobbin thread is still visible (about one-third showing on the underside).
  • Confirm the bobbin is full before the main run; running out mid-scribble is hard to patch invisibly.
  • Success check: The back looks balanced (not all top thread, not all bobbin thread) and the front has no looping.
  • If it still fails: Recheck needle condition and slow speed to 600–700 SPM for freehand-heavy sections.
• Q: For hooping knit T-shirts for Wilcom freehand “scribble” embroidery, how do I avoid puckering caused by stretching the fabric in a standard ring hoop?
  A: Do not drum-tight stretch knits in the hoop; stabilize correctly so the fabric stays neutral while the stitches contract the area.
  • Use cut-away stabilizer (2.5 oz or heavier) on stretchy garments; tear-away often fails under chaotic freehand penetrations.
  • Apply temporary spray adhesive to bond stabilizer and fabric into a stable “sandwich.”
  • Hoop the fabric flat (not stretched), then run a boundary trace on the machine to confirm clearance and placement.
  • Success check: After unhooping, the garment lies flat without bubbling and the design stays registered.
  • If it still fails: Consider switching from ring hoops to a magnetic embroidery hoop/frame to clamp without distorting the fabric grain.
• Q: What magnetic embroidery hoop safety rules should an operator follow when using high-strength neodymium magnetic embroidery frames?
  A: Treat magnetic embroidery frames as pinch-hazard tools and keep them away from sensitive electronics—strong magnets snap together fast.
  • Keep fingers clear of mating surfaces when closing the frame to avoid pinching.
  • Keep magnets at least 6 inches away from pacemakers/ICD devices, credit cards, and machine screens.
  • Use the machine “Trace” function to confirm the presser foot will not hit magnetic clips or frame edges.
  • Success check: The hoop closes without finger risk, and the trace run completes with no contact or near-misses.
  • If it still fails: Stop and reposition the fabric/frame; do not force a run when clearance is questionable.
• Q: For scaling Wilcom freehand pet portraits from hobby to small production, when should an operator upgrade technique vs a magnetic hooping station vs a multi-needle embroidery machine?
  A: Use a staged approach: first optimize settings, then upgrade hooping speed/consistency, then upgrade machine throughput if color changes dominate time.
  • Level 1 (Technique): Reduce density (limit layers), turn off auto-underlay for scribbles, and cap speed around 600–700 SPM for quality.
  • Level 2 (Tooling): Add a magnetic hooping station to speed hooping and repeat placement consistently when volume increases.
  • Level 3 (Capacity): Move to a multi-needle machine when many color stops (for example, 12 color changes) are consuming minutes per item.
  • Success check: Per-item cycle time drops and rework from distortion/registration issues decreases noticeably.
  • If it still fails: Re-audit stabilization (cut-away + adhesive on knits) and confirm hoop/frame clearance with a trace before every new garment style.
