From Box to Perfect Polo Hoops: Assemble the Mighty Hoop Starter Kit and Dial In the HoopMaster Station (Without the Usual Rookie Mistakes)

Setup mistakes in machine embroidery don't just waste time; they waste profit. If you have ever stared at a pile of parts and thought, "I just want to hoop one clean shirt today without fighting the equipment," you are not alone. The Mighty Hoop Starter Kit and HoopMaster station are engineered to make hooping faster and repeatable—but they are precision tools, not magic wands. They only work if you assemble them correctly and develop specific "old hand" habits that prevent puckers, hoop slip, and misalignment.

In this guide, I will walk you through the exact assembly and setup, reconstructed from the perspective of a 20-year embroidery veteran. We will move beyond basic instructions into the "why" and "how" of professional calibration, ensuring your production line—whether it's inside a garage or a warehouse—runs without friction.

Unbox Like a Pro: Inventory the Mighty Hoop Starter Kit Parts Before You Touch a Screw

Embroidery is a discipline of preparation. The video starts with an overhead layout of the kit components, and you must do the same. Clear your workbench. Group your components. This isn't just about organization; it’s about mental readiness.

The Inventory Protocol:

1. The Base: Locate the portable base and the two legs.
2. The Hardware: Separate screws and thumb nuts. Put them in a magnetic bowl if you have one—losing a screw under a commercial machine is a nightmare.
3. The Fixture: Identify the FreeStyle arm and the specific fixture brackets.

A Note on Kit Strategy: In the comments, a viewer asks about kit options. The reply correctly identifies the 5.5 mighty hoop kit as the industry standard "sweet spot."

• Why 5.5"? It is the gold standard for left-chest logos (approx. 3.5" to 4" wide designs) on adult polos (Sizes S-3XL). It provides enough magnetic grip without being so large that it hits the buttons or sleeve seams.


Prep Checklist (Do this BEFORE assembly)

• Workspace: Clear a 3x3 foot flat surface. If the table wobbles, your hooping will vary.
• Tools: Standard Phillips head screwdriver (magnetic tip recommended).
• Consumables: Have one sheet of standard 2.5oz or 3.0oz cut-away backing ready.
• Test Material: Grab a scrap polo or similar knit fabric. Never calibrate your machine or hoops on a customer’s expensive garment.
• Safety Check: Remove watches or credit cards from your wrists/pockets. We are working with powerful neodymium magnets.

Build a Rock-Solid Portable Base: Finger-Tight First, Then Final Tighten (Portable Base Assembly)

A wobbly base leads to "phantom" alignment issues where a logo is straight on the hoop but crooked on the shirt. The assembly order is critical for squaring the device.

Step-by-Step Assembly:

1. Strip down: Loosen and remove the hardware from the base plate as shown.
2. Position: Reverse the board so the flat side faces up and position the two legs underneath.
3. Align: Insert screws through the side holes. You should feel them pass through the base and bite into the leg threads.


4. The "Finger-Tight" Rule: Add the nuts and turn them until they just touch the surface. Do not tighten them yet.
   • Sensory Anchor: Shake the base gently. It should rattle slightly. This "play" allows the legs to self-level against your table.
5. The Final Torque: Press the base flat against the table with one hand. With the other, tighten the four screws with your screwdriver.
   • Sensory Anchor: Tighten until you feel firm resistance, then give it a final quarter-turn. Do not overtighten; cracking the plastic housing renders the base unstable.

Expected Outcome: When you push on the corners of the base, it should feel like a solid block of wood. No rocking.

Warning: Plastic Fatigue. Do not use power drills to tighten these screws. The torque can strip the plastic threads instantly. Hand tools only.

Lock In the FreeStyle Arm: Align the Two Pins and Secure the Thumb Nut (Fixture + FreeStyle Arm Installation)

The FreeStyle arm converts your station into a platform that mimics the "free arm" of an embroidery machine (like a robust SEWTECH multi-needle unit). This allows you to hoop bags, sleeves, and finished small items.

1. Separation: Separate the fixture brackets from the FreeStyle arm pieces.


2. Pin Alignment: Match the two guide pins on the fixture to the two receiving holes on the arm. This is a "key and lock" fit; it only goes one way.
3. Flush Fit: Inlay the FreeStyle arm into the portable base.
   • Visual Check: Look at the seam where the arm meets the base. There should be zero gap. It should look like one continuous piece.
4. Secure: Rotate and fix the black thumb nut.


Expected Outcome: The arm is rigid. If you pull up on the end of the FreeStyle arm, the entire base should lift with it exactly.

Pro Tip: The "Thumb Nut" Habit

Consistency beats speed. Get in the habit of checking this thumb nut every morning. Vibration from the shop floor or repeated snapping of magnetic hoops can loosen it over time. A loose arm causes the "drift" effect, where designs slowly migrate off-center over a production run.

Snap the Hoop the Right Way: Set the Inner Ring, Stabilizer, Fabric, Then Let the Magnet Do the Work (Portable Base Hooping)

This is where the magic happens—and where the danger lies. Magnetic hooping is fast, but it requires a different physical technique than traditional screw-tightening hoops.

1. Disassemble: Separate the inner frame (blue/magnetic) from the outer frame.
2. Load: Place the inner frame between the clips on the fixture.


3. Clip Management: Open the four clips.
4. Stabilizer First: Place one layer of stabilizer (Backing) over the hoop.
   • Crucial Detail: Close the four clips to hold the backing. It should be flat, but not "drum tight."


5. Fabric Layer: Lay the fabric over the stabilizer. Smooth it with your palms.
6. The Snap: hold the outer hoop (top magnet) by the sides. Align it visually. Let it drop.
   • Sensory Anchor: Listen for a sharp, authoritative "CLACK". If it sounds dull or muffled, fabric is bunched between the magnets.


Expected Outcome: The fabric and stabilizer are sandwiched evenly. The fabric should allow you to pinch a tiny bit up—it should not be stretched to its limit.

Warning: Pinch Hazard & Magnet Safety.
mighty Hoops contain industrial neodymium magnets. They snap together with roughly 30-50 lbs of force.
* Keep fingers clear of the contact zone.
* Pacemakers: Keep these hoops at least 6 inches away from pacemakers or insulin pumps.
* Electronics: Do not place phones or laptops directly on the hoops.

The "Why": Hooping Physics 101

Standard hoops rely on friction (inner ring vs. outer ring). Magnetic hoops rely on vertical clamping force.

• Traditional Hoop Problem: You often have to pull the fabric after hooping to get wrinkles out, which causes "hoop burn" (permanent ring marks) and fabric distortion.
• Magnetic Solution: The clamp is instantaneous. You must smooth the fabric before you let the magnet drop. This reduces hand strain significantly. If you are struggling with hoop burn on a home single-needle machine, upgrading to compatible magnetic embroidery hoops serves as an ergonomic bridge before you eventually upgrade to a multi-needle machine for higher output.

Save Your Back and Your Blanks: Adjust the HoopMaster Station Angle (Hole 1 to Hole 3)

Embroidery is a physical job. If your station is flat, you will hunch over, creating a shadow over your work area and straining your lower back.

1. Invert: Turn the station over.
2. Loosen: Loosen the red screws on both sides. Do not remove them; just loosen enough to slide.


3. Adjust: Move the pivot from Hole 1 (flat) to Hole 3 (steep).
4. Lock: Tighten the screws.

Expected Outcome: The station now sits at a roughly 30-45 degree angle. This brings the "chest" area of the shirt closer to eye level, allowing you to spot lint, stains, or wrinkles before you commit to the hoop.

Make Placement Repeatable: Set the HoopMaster T-Square on the Grid (A–H / Numbered Holes)

The grid is your map. Without it, you are guessing.

1. Unlock: Loosen the blue knobs on the T-square.
2. Grid Placement: Move the knobs into the grid holes corresponding to your garment size.
   • Rule of Thumb: For most adult polos (S-XL), center alignment is standard. The vertical height usually falls between letters C and E depending on the distance from the shoulder seam.
3. Lock Down: Tighten the blue knobs.


Expected Outcome: The T-square creates a rigid physical stop. When you pull a shirt on, the shoulder seams hit this stop, guaranteeing the logo is in the exact same spot on Shirt #1 and Shirt #50.

Setup Checklist (The "Pre-Flight" Check)

• Angle: Station is locked in the steep position (Hole 3).
• Rigidity: T-square does not wiggle.
• Consumables: Fresh needle installed in the machine (75/11 Ballpoint for knits), bobbin check complete.
• Hidden Item: Can of spray adhesive (if using tear-away) or water-soluble marking pen for center verification.
• Test: You have performed one "dry run" hoop snap on scrap fabric to feel the magnet strength today (cold magnets snap faster!).

Hoop a Polo Shirt Cleanly: Smooth the Chest, Snap the Outer Hoop, Then Flip and Inspect the Back

Now, the standardized workflow. We are using a Navy Cotton Pique Polo—the classic "tough" fabric because of its texture.

1. Fixture Setup: Place the inner hoop brackets onto the main station.


2. Stabilizer: Place one sheet of cut-away stabilizer over the inner hoop on the station.
   • Experience Note: For white polos, use "no-show" mesh stabilizer to prevent the backing from being visible through the shirt.


3. Dress the Station: Pull the polo shirt over the station/board. Ensure the shoulders hit the T-square stops evenly.
4. The "Palm Sweep": Smooth the chest area over the inner hoop.
   • Technique: Use the flat of your hands (palms), sweeping from the center outward. Do not use fingertips; fingertips create drag lines.

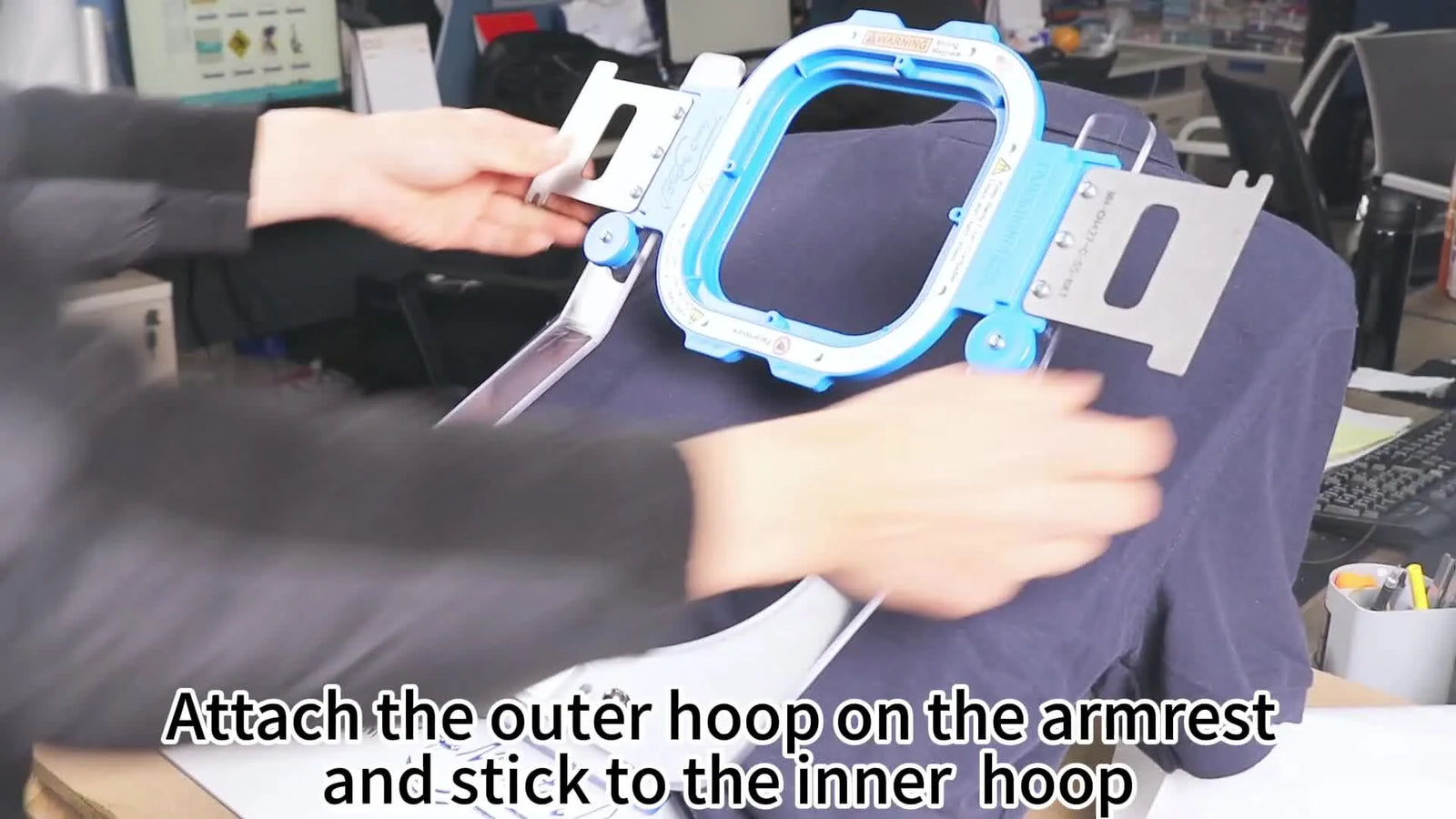

5. The Drop: Apply the outer magnetic hoop. Let the bottom edge align with the fixture tabs, then let the top drop. CLACK.
6. Extraction: Lift the hooped shirt off the station.


7. The "Safety Flip": Immediately flip the hoop over.


Expected Outcome: The back of the hoop should be flat. If you see a "tunnel" of fabric or a thick lump, you have caught the placket or a side seam. Do not stitch. Un-hoop and reset.

Insight: Reducing Decision Fatigue

Beginners often freeze at the kit selection stage. "Which size do I need?" If your business model relies on turning around corporate or school polos efficiently, the mighty hoop starter kit eliminates the guesswork. It provides the hardware ecosystem necessary to standardize your output.

The Hidden Prep That Prevents Re-Hooping: Stabilizer Choice, Fabric Behavior, and Tension Reality

The video uses cut-away stabilizer, which is the non-negotiable standard for knits.

The Physics of Stability: Knits stretch. If you hoop a knit polo tightly without support, the fabric is stretched open. You stitch your design (locking the fibers in that open state). When you un-hoop, the fabric tries to relax, but the stitches hold it open. Result: Puckering around the logo.

Stabilizer Decision Tree:

If you are using magnetic embroidery hoops, treat the stabilizer as the foundation. The magnet clamps vertical movement, but the stabilizer prevents horizontal shifting.

Troubleshooting the One Problem That Ruins Everything: “Hoop Not Sitting Flat”

The most common failure point with magnetic systems is false confidence. You hear the "click" and assume it's secure.

Symptom: Hoop rocks or tilts when placed on the machine arms.

• Diagnosis: Excess fabric bunching underneath the ring.
• The Check: Run your fingers around the underside of the hoop ring. It should be smooth.
• The Fix: Re-hoop. Ensure the shirt is pulled fully onto the station so the back of the shirt hangs freely and isn’t bunched under the platen.


Symptom: Design is slanted (crooked) despite using the T-Square.

• Diagnosis: "Operator Lean." You might be standing at an angle to the station, causing you to pull the shirt slightly left or right when dressing the board.
• The Fix: Stand directly centered in front of the hooping station. Align the placket of the shirt visually with the center line of the board.

Symptom: Thread Breaks or Birdnesting immediately after start.

• Diagnosis: Values are off or hoop is vibrating.
• The Fix:
  • Check Tension: Top thread should be 100g-130g (rayon) or 110g-150g (poly).
  • Hoop Check: Ensure the magnetic hoop arms are clicked fully into the machine's pantograph.

The Upgrade Conversation: When Tooling Becomes Profit

Once you master the assembly and the "Palm Sweep" hooping technique, your bottleneck will shift. You will hooping faster than your single-needle machine can stitch.

The Commercial Progression:

1. Level 1 (Technique): optimizing stabilizer and tension.
2. Level 2 (Workflow): Implementing a hoopmaster station to reduce setup time from 3 minutes per shirt to 30 seconds per shirt.
3. Level 3 (Capacity): When you are consistently running orders of 20+ shirts, a single-needle machine becomes the liability. This is the "Trigger Point" for upgrading to a multi-needle system.

Why Upgrade? Commercial machines, such as the SEWTECH multi-needle embroidery machines, are built to handle the weight and speed of magnetic hoop production. They allow you to queue colors, stitch at 800-1000 stitches per minute reliably, and reduce swap-over time. If you are struggling with "hoop burn" or wrist fatigue on a home machine, utilizing compatible magnetic frames is an excellent intermediate step, but true scaling requires multi-needle capability.

Operation Checklist (The Quality Gate)

• Tactile Check: Hoop is flipped, back is flat.
• Security Check: Shake the hoop gently; fabric does not slip.
• Clearance: Verify the shirt sleeves are folded back and clipped so they don’t get sewn to the chest (a classic rookie mistake).
• Trace: Always run a "Trace" or "Contour" function on your machine to ensure the needle won't hit the magnetic ring. Hitting a magnet with a needle at 800 SPM can shatter the needle and damage the timing.

One Last Habit That Saves Money: The "Dry Run" Practice

The video demonstrates the workflow perfectly, but watching is not doing. My final advice: As soon as you assemble your kit, hoop a scrap cloth five times in a row.

Don't stitch anything. Just hoop. Un-hoop. Hoop. Un-hoop.

Learn the muscle memory of the how to use mighty hoop system without the pressure of a live order. Listen for that consistent "CLACK." Feel the tension. When you can do it without thinking, you are ready for the production floor.

FAQ

• Q: What should be prepared before assembling a Mighty Hoop Starter Kit and HoopMaster Station to avoid calibration mistakes?
  A: Prepare a stable workspace, the right screwdriver, test fabric, and stabilizer before touching any screws.
  • Clear a flat 3×3 ft table and stop any wobble before assembly.
  • Use a standard Phillips screwdriver (a magnetic tip helps prevent lost hardware).
  • Calibrate on a scrap polo/knit and keep one sheet of 2.5 oz–3.0 oz cut-away backing ready.
  • Remove watches/credit cards and keep electronics away from the magnets.
  • Success check: the table does not rock, and a “dry run” hoop snap feels controlled (not rushed or misaligned).
  • If it still fails: re-check the portable base for rocking and confirm the FreeStyle arm thumb nut is tight.
• Q: How tight should the screws be when assembling the Mighty Hoop portable base to prevent rocking and “phantom” misalignment?
  A: Tighten by hand in two stages: finger-tight first, then final tighten while pressing the base flat.
  • Start all screws and nuts and stop at “finger-tight” so the legs can self-level.
  • Press the base firmly against the table, then tighten until resistance + a final quarter-turn.
  • Avoid power drills to prevent stripping plastic threads or cracking the housing.
  • Success check: pushing on any corner feels like a solid block—no rocking.
  • If it still fails: loosen, re-seat the legs, and repeat the finger-tight → press-flat → final-tight sequence.
• Q: How do you confirm the Mighty Hoop FreeStyle arm is installed correctly so the station does not drift during a production run?
  A: Seat the arm fully with correct pin alignment and keep the thumb nut snug so the arm stays rigid.
  • Align the two guide pins with the two receiving holes (it only fits one way).
  • Inlay the arm until the seam shows zero gap where the arm meets the base.
  • Tighten the black thumb nut and make it a daily check habit.
  • Success check: lifting the end of the FreeStyle arm lifts the entire base with it (no flex or wobble).
  • If it still fails: remove and re-seat the arm—any visible gap usually means the pins are not fully engaged.
• Q: What is the correct Mighty Hoop magnetic hooping order on the portable base to reduce hoop burn and prevent fabric distortion?
  A: Load inner ring first, then stabilizer, then fabric, and let the outer magnetic ring drop—do not stretch the knit.
  • Clip the inner frame into the fixture and open the four clips.
  • Place stabilizer first and close clips to hold it flat (not drum-tight).
  • Lay the fabric over the stabilizer, smooth with palms, then drop the outer hoop by holding the sides.
  • Success check: a sharp “CLACK” sound and the fabric can be pinched slightly (not stretched to the limit).
  • If it still fails: re-hoop and smooth the fabric before the magnet drops—dull/muffled contact usually means fabric is bunched.
• Q: How do you fix a Mighty Hoop magnetic hoop that rocks or does not sit flat on the embroidery machine arms?
  A: Re-hoop immediately—rocking almost always means excess fabric is bunched under the ring.
  • Run fingers around the underside of the hoop to find the lump/bunch point.
  • Pull the garment fully onto the station so the back hangs freely and is not trapped under the platen area.
  • Re-smooth the chest area and re-snap the outer hoop.
  • Success check: the underside feels smooth all the way around and the hoop sits stable on the machine arms with no tilt.
  • If it still fails: do the “Safety Flip” check every time—if a tunnel/lump is visible on the back, un-hoop and reset before stitching.
• Q: Why is a polo shirt logo still crooked on a HoopMaster station T-square even when the grid settings are correct?
  A: Correct the “operator lean” by centering your stance and aligning the shirt placket to the station centerline before snapping the hoop.
  • Stand directly centered in front of the hooping station before dressing the board.
  • Pull the polo on so both shoulders hit the T-square stops evenly.
  • Visually align the shirt placket with the board center line, then do the palm-sweep and snap.
  • Success check: the shirt lays symmetrical on the station and repeated hoopings land in the same spot across multiple blanks.
  • If it still fails: verify the station angle is locked (not drifting) and the T-square knobs are fully tightened (no wiggle).
• Q: What should be checked first when thread breaks or birdnesting starts immediately after the embroidery run begins with a Mighty Hoop magnetic frame?
  A: Check thread tension targets and confirm the magnetic hoop is fully clicked into the machine pantograph before chasing other causes.
  • Verify top tension is in the stated ranges: 100g–130g (rayon) or 110g–150g (poly).
  • Re-seat the magnetic hoop arms and ensure they are clicked fully into the machine’s pantograph.
  • Re-check the hoop for vibration sources (rocking/tilt from bunched fabric).
  • Success check: the start of the design runs smoothly without immediate nesting under the hoop area.
  • If it still fails: stop and re-hoop to confirm the back is flat, then re-check consumables from the pre-flight checklist (fresh needle and bobbin check).
• Q: What safety checks should be done before running “Trace/Contour” with a Mighty Hoop magnetic hoop to prevent needle strike and magnet injury?
  A: Always trace for clearance and treat the magnets as pinch hazards—keep fingers and sensitive devices away.
  • Run the machine “Trace/Contour” function to confirm the needle path will not hit the magnetic ring.
  • Keep fingers out of the contact zone when snapping hoops; hold the outer hoop by the sides.
  • Keep magnetic hoops at least 6 inches away from pacemakers or insulin pumps and do not rest phones/laptops on the hoops.
  • Success check: the traced path clears the ring fully, and hoop snapping is controlled with no finger exposure at the impact points.
  • If it still fails: stop the job and re-position the design/garment or re-hoop—never force a run when clearance is questionable.
