From CD to Clean Appliqué: A Beginner-Proof Workflow for Brother Luminaire XP1 + ScanNCut DX (and Stabilizer That Won’t Betray You)

The moment you pop a Kimberbell CD into your computer or download a zip file, you are often greeted by a digital avalanche. You see folders labeled ART, DST, EXP, JEF, PES, VIP, VP3, and SVG. For a beginner, this “File Salad” is the first barrier to entry. It triggers a specific type of anxiety: “If I click the wrong one, will I break my $8,000 machine?”

As someone who has navigated embroidery production floors for two decades, let me give you the "calm truth": You cannot break your machine by looking at a file. This workflow is not a minefield; it is a sequence of logic gates.

This guide acts as your master operating procedure (MOP). We will move from digital file management to the physics of fabric stabilization, culminating in the professional use of cutting systems and high-efficiency tooling. Whether you are crafting a single mug rug or a batch of fifty for a craft fair, this is how you professionalize your process.

1. Digital Mise-en-place: The File Extension Protocol

In a professional kitchen, chefs don't start cooking until every ingredient is chopped and bowled. In embroidery, we do the same with files. The video highlights a universal truth: Your machine brand dictates your file format.

The "Big Three" Extensions

Depending on your hardware, memorize your extension:

• Brother / Baby Lock: You live in the .PES folder.
• Janome: You need the .JEF folder.
• Bernina: Usually .EXP or .ART.

Your First Action: Do not work directly off the CD or Zip file. Create a folder on your desktop named "Embroidery Working Library." Copy only the specific format you need into it. This prevents the "right design, wrong format" error that often causes machines to freeze or reject the file.

Visualizing the Invisible

Windows File Explorer often treats embroidery files as generic icons. This is dangerous because Design_01.pes and Design_01b.pes might look identical in text but be vastly different in size.

The Fix:

1. Open the folder in Windows.
2. Go to the View tab.
3. Select Extra-large icons.

Creating a Visual Safety Net: If you still only see generic icons, software like Embrilliance Thumbnailer is standard industry "middleware" that forces Windows to render the stitch preview. Being able to see the design prevents the heartache of loading a 4x4 design into a 5x7 hoop setup.

2. The Software Bridge: Embrilliance & Layout Logic

The video demonstrates using Embrilliance Essentials as a bridge between the computer and the Brother Luminaire XP1. Why not just plug a USB into the machine? Because Context is King.

Locking the Hoop Size (The "No-Crash" Policy)

Before you import a design, you must define the physical boundaries.

• Action: Go to Edit > Preferences > Hoops.
• Set: 130 x 180 mm (Standard 5x7 field).
• Visual Check: The on-screen hoop acts as a "Safety Cage." If any part of your design touches or exceeds the lines, stop.

Expert Insight: In commercial shops, we call this "Constraint Verification." If you send a design that is 181mm tall to a machine with a 180mm limit, the machine will scream at you—or worse, it will try to sew and strike the frame.

Naming Conventions for Sanity

When sending via Utility > Send to Solaris/XP1, the system asks for a name.

• Bad Name: "Heart." (Which heart? You have thousands.)
• Good Name: "Kimber_MugRug_5x7_A."
• Why: When you are scrolling through the machine's small screen, precise naming saves seconds. In a production run, seconds equal dollars.


3. The Paper Trail: Strategic Printing

Do not print the entire 20-page PDF manual. Ink is expensive, and clutter destroys focus.

1. Open the PDF.
2. Identify Critical Pages: usually the Color Change Sheet and the Cutting Template.
3. Print Range: e.g., "Pages 2-6, 8".

Hidden Consumable Alert: Keep a highlighter nearby. As you complete each step of the PDF instructions, physically mark it. In the distraction-filled environment of a home studio, this "external memory" prevents skipping steps.

4. Fabric Architecting: Contrast & SVG Prep

The video showcases the "Crazy Patch Heart Mug Rug," a classic appliqué project. Appliqué is not just about sewing; it is about Stacking Tolerance.

The Contrast Rule

When selecting fabrics, rely on the "Squint Test." Lay your fabrics together and squint your eyes. If two fabrics blend into one grey blob, they will lack definition in the finished embroidery.

• High Contrast: Dark vs. Light.
• Texture Contrast: Solid vs. Swiss Dot (as seen in the video).

The "Bug" in CanvasWorkspace

When importing SVGs into Brother CanvasWorkspace, you may see an error: "Some shapes could not be converted."

• The Panic Response: "I broke it."
• The Pro Response: Click OK and ignore it. It is often a false positive regarding tiny vector nodes that do not affect the cut.


The "Scrap-Friendly" Layout

Default SVG imports often clump shapes together to save space on a large fabric sheet. However, appliqué uses scraps.

• Action: Drag the shapes apart on the digital grid.
• Goal: Create at least 1-inch buffers between shapes.
• Why: This allows you to place distinct, small scraps of fabric on the physical mat without them overlapping.


5. The ScanNCut Precision Workflow

This is the "Secret Sauce" of modern appliqué. We are replacing "Manual Trim" (scissors) with "Digital Die Cutting."

The Background Scan Technique

1. Load the Mat: Place your varied fabric scraps on the standard tack mat.
   • Sensory Check: Run your hand firmly over the fabric. It should feel cool and flat, with no bubbles. If the fabric lifts easily, your mat has lost tack. Use a brayer or tape the corners.

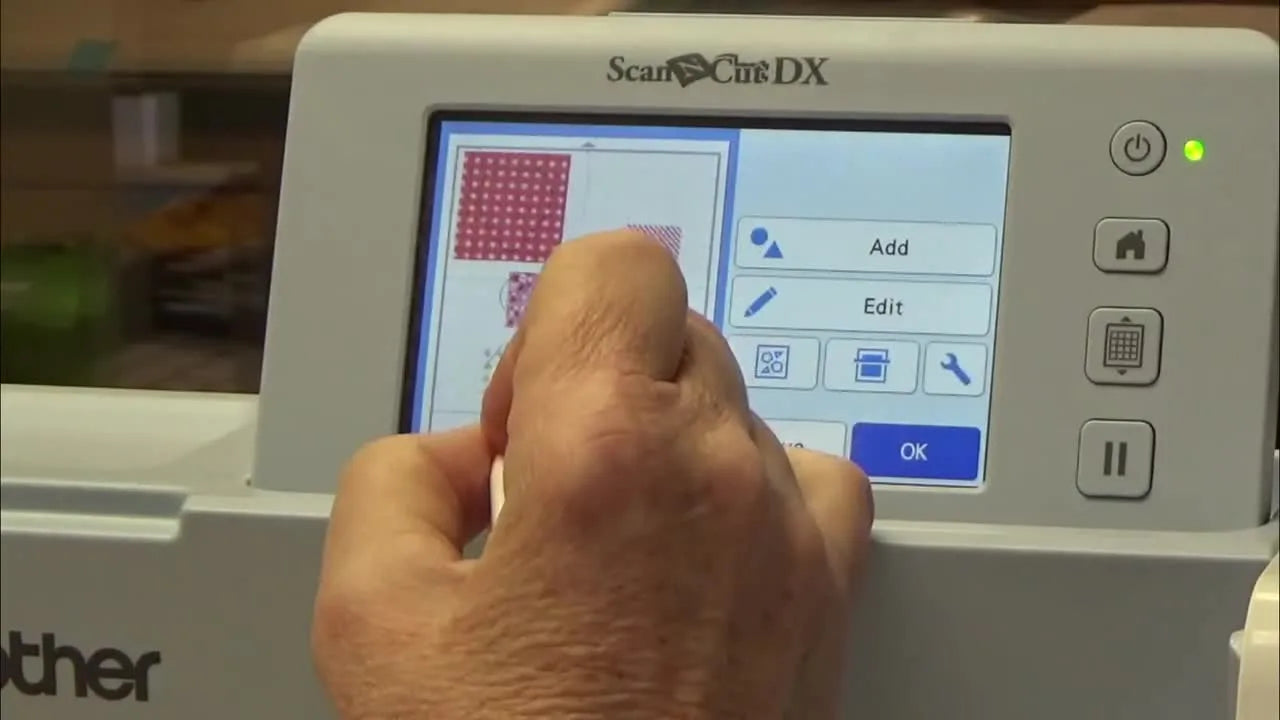

2. The Scan: Press the "Scan Background" icon.
3. The Alignment: The screen now displays a photo of your messy scraps. Drag the vector cut lines directly over the fabric images.

Precision Delta: If you intend to master brother scan n cut fabric cutting, this feature is your greatest asset. It eliminates the need for measuring tapes or precise fabric pre-cutting.

The "1/16th Inch" Insurance Policy

A crucial tip emerged from the comments: "Should I make the cut pieces bigger?"

• The Issue: Mechanical tolerances. If the fabric shifts 1mm, and the satin stitch is 3mm wide, you might see raw edges (gaps).
• The Fix: In CanvasWorkspace, add a 0.0625" (1/16") offset to your cut lines. This tiny overlap ensures the embroidery satin stitch bites firmly into the fabric, covering all raw edges.


Warning: Rotary Cutter Safety
Rotary cutters are surgical instruments. Always cut away from your body. Engage the safety lock immediately after every cut. Never leave an open blade on the table while moving between the ScanNCut and your embroidery machine.

6. The Physics of Stabilization: Cutaway vs. Tearaway

Stabilizers are the foundation of your house. If the foundation cracks, the house (embroidery) sinks.

The Stabilizer Decision Tree

Beginners often guess. Professionals use logic.

The Tear Test: Hold the stabilizer. Puncture it with your fingernail and tear.

• If it rips like paper = Tearaway.
• If it fights you and stretches = Cutaway.
• Sensory Anchor: Cutaway feels like a dryer sheet or stiff fabric. Tearaway feels like cardstock or construction paper.


Sizing the Stabilizer

Do not measure with a ruler.

1. Place your hoop on the stabilizer roll.
2. Cut a square that extends 1.5 inches past the hoop frame on all sides.
3. Why: You need "hooping leverage." If the stabilizer is flush with the frame, you cannot grip it to pull it taut.


7. The Hooping Variable: Where Quality is Lost or Won

The video uses a standard hoop. For one project, this is fine. For production, standard hoops introduce Variable Human Error.

The "Drum Tight" Myth

We often tell beginners to hoop "tight as a drum." This is slightly misleading.

• The Goal: "Neutral Tension." The fabric should be taut enough that it doesn't ripple, but not so tight that you are deforming the weave.
• Sensory Check: Tap the fabric. It should sound like a dull thud, not a high-pitched ping. If you pull the fabric and the weave looks like a distorted grid (wavy lines), you have over-tightened.

The Solution to "Hoop Burn" and Fatigue

Standard hoops use friction (inner ring pressing against outer ring) to hold fabric. This "crushing" force creates "Hoop Burn"—shiny or crushed marks on delicate fabrics like velvet or high-loft cotton. It is also brutal on the wrists.

If you are doing repeated runs, industry professionals migrate to magnetic embroidery hoops for brother.

• Mechanism: Instead of friction, they use vertical magnetic force.
• The Benefit: You lay the fabric flat and snap the magnets down. No tugging. No wrist strain. No burn marks.
• Production Speed: A magnetic hoop can reduce hooping time from 60 seconds to 10 seconds. In a 50-piece order, that is 40 minutes of labor saved.

Warning: Magnetic Force Hazard
Commercial-grade magnetic hoops (like those from SEWTECH) use Neodymium magnets. They are incredibly strong.
* Pinch Hazard: Keep fingers clear of the mating surfaces.
* Medical Safety: Keep at least 6 inches away from pacemakers.
* Electronics: Do not place phones or credit cards directly on the magnets.

8. The Stitch-out: Speed and Sound

Once the machine starts, your job changes from "Operator" to "Monitor."

• Speed (SPM): Modern machines can run at 1000 Stitches Per Minute (SPM). For complex appliqué with many stops and detailed satin stitches, slow down.
  • Sweet Spot: 600 - 700 SPM.
  • Why: High speed increases vibration. Slight vibration can cause the appliqué fabric to shift before the tack-down stitch catches it.
• Needle Choice: For cotton mug rugs, a 75/11 Universal or Embroidery Needle is your standard. If using sticky-back stabilizers or adhesives, switch to an Anti-Glue Needle to prevent skipped stitches.


9. Troubleshooting & Safety Checklists

Before you commit to the stitch, run these mental flight checks.

Phase 1: Prep Checklist (The Setup)

• File Check: Is it the correct format (.PES/.JEF) for my machine?
• Constraint Check: Is the design size strictly smaller than the hoop area (e.g., 130x180mm)?
• Consumable Check: Do I have enough bobbin thread to finish the design? (Check the visual window).
• Blade Check: Is my ScanNCut blade depth correct for this fabric thickness? (Test cut a scrap first!)

Phase 2: Operations Checklist (The Stitch)

• Hoop Check: Is the inner hoop pushed slightly past the outer hoop (on standard frames) to prevent popping?
• Clearance Check: Is the area behind the machine clear? (Embroidery arms move backward; hitting a wall causes layer shifts).
• Sound Check: Listen for a rhythmic "thump-thump." A harsh "clack-clack" usually means the needle is blunt or the top thread path is obstructed.

Troubleshooting: The Quick-Fix Table

10. The Path to Production: Scaling Up

Start with the basics shown in the video. Master the Brother Luminaire and ScanNCut workflow. But keep your eyes on the horizon.

When you transition from "making one for fun" to "making twenty for profit," your bottlenecks will shift. You will find that hooping takes too long, and changing threads on a single-needle machine kills your momentum.

This is where the industry upgrades come into play:

1. Level 1 (Tooling): hooping station for embroidery machine and magnetic frames to standardize placement.
2. Level 2 (Machinery): Moving to a multi-needle machine (like the SEWTECH solutions) effectively "buys back your time" by automating color changes.

Whatever level you are at, remember: Embroidery is 80% preparation and 20% stitching. Respect the prep, and the machine will respect you.

FAQ

• Q: Can opening the wrong Kimberbell embroidery file format (.PES/.JEF/.EXP/.ART) damage a Brother Luminaire XP1 embroidery machine?
  A: No—viewing or opening an embroidery file on a computer will not break a Brother Luminaire XP1; the real problem is sending the wrong format or size to the machine.
  • Copy only the needed format (for Brother/Baby Lock, use .PES) into a dedicated “Embroidery Working Library” folder before transferring.
  • Switch Windows File Explorer to View > Extra-large icons so the correct design is easier to identify.
  • Success check: The correct design preview/name is clearly visible and the machine accepts the file without a “wrong format/reject” behavior.
  • If it still fails: Re-download/re-copy the design and confirm the file extension matches the machine brand exactly.
• Q: How do I prevent a Brother Luminaire XP1 embroidery machine from rejecting a design that is too large for a 130 × 180 mm (5 × 7) hoop when using Embrilliance Essentials?
  A: Lock the hoop size first in Embrilliance Essentials, then stop immediately if any stitch crosses the hoop boundary.
  • Set Edit > Preferences > Hoops to 130 × 180 mm before importing the design.
  • Import the design and use the on-screen hoop as a hard “safety cage” boundary.
  • Success check: No part of the design touches or exceeds the hoop outline on-screen.
  • If it still fails: Do not send the file; choose a smaller design or a hoop that matches the design’s stitched size.
• Q: What does the Brother CanvasWorkspace message “Some shapes could not be converted” mean when importing SVG appliqué shapes?
  A: In many cases the Brother CanvasWorkspace warning is a harmless conversion note—click OK and continue if the shapes still look correct.
  • Click OK and visually inspect the imported cut lines on the CanvasWorkspace mat/grid.
  • Separate clumped shapes to create about a 1-inch buffer between pieces for scrap-friendly placement.
  • Success check: All required shapes appear and can be positioned cleanly without missing outlines.
  • If it still fails: Re-open the SVG and confirm the key shapes are present; proceed only when the needed cut paths are visible.
• Q: How do I stop gaps and raw edges in Brother appliqué when using a Brother ScanNCut cut file?
  A: Add a small offset to the cut lines—an extra 1/16 inch (0.0625") is the insurance that keeps satin stitches covering the edges.
  • Apply a 0.0625" (1/16") offset to the cut lines in CanvasWorkspace before cutting.
  • Use cutaway stabilizer for mug rugs/in-the-hoop style projects to reduce shifting.
  • Success check: After stitching, no fabric raw edge is visible beyond the satin stitch (no “peeking” gaps).
  • If it still fails: Improve fabric hold-down (often a mild fabric spray adhesive helps) and reduce stitch speed to minimize movement.
• Q: How do I choose cutaway stabilizer vs tearaway stabilizer for an in-the-hoop mug rug embroidery project?
  A: For mug rugs/in-the-hoop projects, use medium-weight cutaway unless the instructions explicitly require tearaway.
  • Choose cutaway when the project needs structure after removing the hoop (common for mug rugs).
  • Perform the “tear test”: tearaway rips like paper; cutaway resists and may stretch.
  • Success check: The embroidery stays flat and stable after unhooping, without distortion or collapse.
  • If it still fails: Increase stabilizer support (often staying with cutaway is safest) and confirm the fabric is not being overstretched during hooping.
• Q: How can I stop thread nesting (bird’s nest) on a Brother embroidery machine without changing the bobbin tension?
  A: Re-thread the top thread first—most bird’s nests start from an upper threading issue, not the bobbin.
  • Raise the presser foot to open the tension discs, then completely re-thread the upper path.
  • Verify the thread is seated correctly through guides before restarting.
  • Success check: The underside shows controlled bobbin lines rather than a tangled wad, and the stitch-out resumes smoothly.
  • If it still fails: Replace the needle (a dull needle can worsen looping) and re-check the thread path for snag points.
• Q: What are the safety risks of using commercial-grade magnetic embroidery hoops, and how can I avoid pinched fingers and pacemaker issues?
  A: Treat magnetic embroidery hoops as pinch hazards and medical/electronics hazards—keep fingers clear and keep magnets away from pacemakers and sensitive items.
  • Lower magnets straight down with fingertips away from the mating surfaces to avoid sudden snap-in pinches.
  • Keep magnetic hoops at least 6 inches away from pacemakers and similar medical devices.
  • Keep phones and credit cards off the magnets to avoid interference or damage.
  • Success check: The fabric is clamped securely with no hoop burn marks, and hooping is repeatable without finger pinches.
  • If it still fails: Switch to a slower, two-hand placement technique and re-train the “hands clear before snap” habit.
• Q: When hooping takes too long on a single-needle embroidery setup, how do I decide between technique optimization, upgrading to magnetic hoops, or upgrading to a multi-needle machine?
  A: Use a step-up plan: fix consistency first, then reduce hooping labor with magnetic hoops, then consider multi-needle when color changes become the bottleneck.
  • Level 1: Standardize setup using checklists (file format check, hoop size constraint check, bobbin/blade checks) and aim for repeatable hooping tension.
  • Level 2: Move to magnetic hoops when hoop burn, wrist fatigue, or repeated runs make manual hooping the time sink.
  • Level 3: Move to a multi-needle machine when frequent color changes on a single-needle machine are slowing production runs.
  • Success check: Hooping time and rework rate drop noticeably across a batch (fewer repeats, fewer alignment mistakes).
  • If it still fails: Track where time is actually lost (hooping vs thread changes vs re-cutting) and upgrade the bottleneck, not the newest tool.
