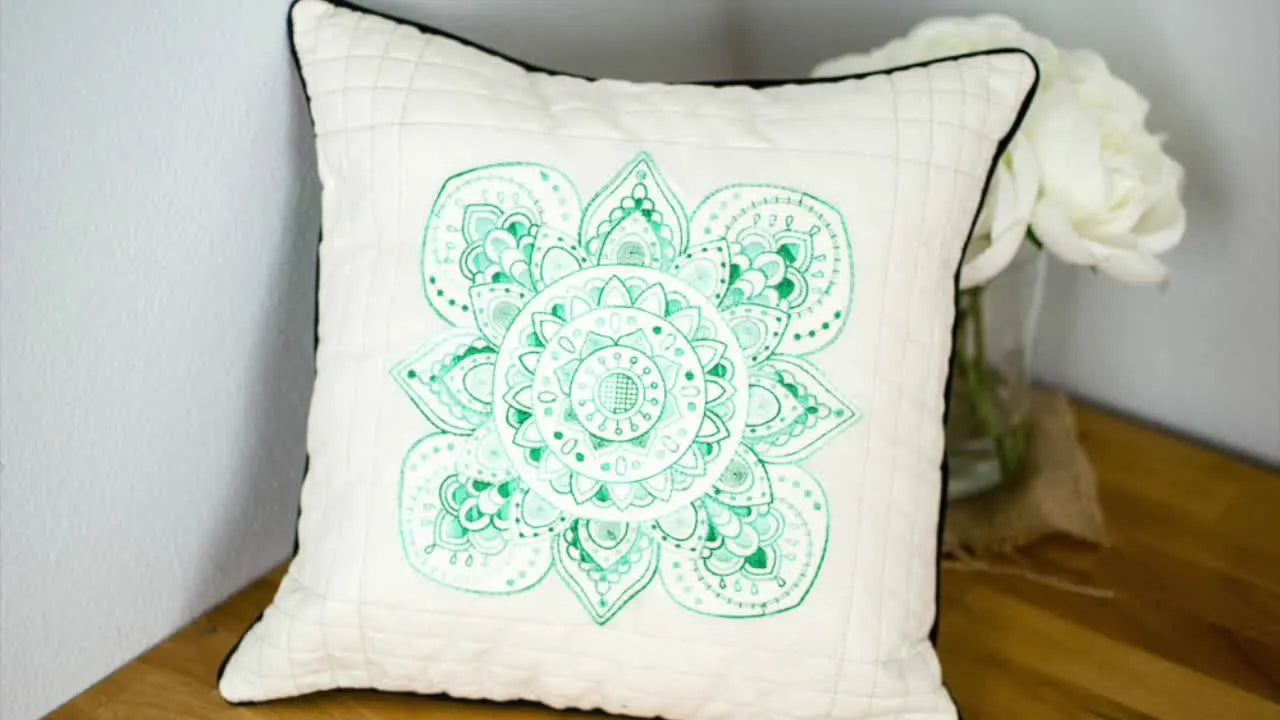

From Coloring Page to Stitch File in Hatch: A Mandala Auto-Digitize Workflow That Actually Stitches Clean

Mastering the Digital-to-Physical Workflow: Transforming Coloring Pages into Professional Embroidery

You are not alone if you have ever looked at a complex coloring page and thought, “If I could stitch that, I’d never run out of designs.” The transition from a 2D graphic to a 3D fiber art is the holy grail for many embroiderers. However, software is only half the battle. The real challenge—and where most beginners quit—is translating digital data into physical stitches without thread breaks, puckering, or frustration.

In this industry-grade walkthrough, we will reverse-engineer a mandala workflow using Hatch Embroidery Digitizer. We will cover the software steps (simplifying artwork, Click-to-Centerline, texture fills) and, crucially, the physical execution parameters required to stitch dense designs successfully.

1. The "Garbage In, Garbage Out" Rule: Prepping Artwork for Logic, Not Looks

Auto-digitizing software is not magic; it is a logic engine. It interprets high-contrast pixels as instructions. If your source image has shadows, gradients, or "fuzzy" edges, the software guesses—and usually guesses wrong.

The Expert Perspective: Treat digitizing as two distinct phases. If you skip Phase 1, Phase 2 becomes impossible.

1. Artwork Prep: Cleaning the data.
2. Digitizing: Assigning stitch physics to that data.


2. The Binary Filter: Reducing to 2 Colors for Clean Interpretation

In Hatch, the "hidden" step that separates pros from struggling hobbyists is the color reduction protocol.

When importing your mandala via Insert Artwork, immediately go to Prepare Artwork for Embroidery. Your goal is to force the image into a binary state: 2 Colors (Black and White).

Why this matters: This removes the "gray zone" (anti-aliasing) where pixels fade from black to white. By forcing a hard edge, you tell the software exactly where the needle should penetrate.

Once the image is binary, scale it on the grid to fit your specific hoop size before generating stitches. Resizing stitches later changes densities and can cause bullet-proof stiffness.

Phase 1 Checklist: Data Hygiene

• New Design confirmed: Ensure you are working in a fresh file, not overwriting a template.
• Binary Reduction: Image Color Count is set strictly to 2.
• Scale Check: The artwork fits within your target hoop's safe sewing field (leave 10mm margin).
• Contrast Check: Visual Test: If you squint, are the lines distinct? If they blur together, the software will fail.

Warning: Machine Safety
Keep fingers clear of the needle bar and moving pantograph during test stitching. Never attempt to "push" fabric while the machine is running. Let the hoop and stabilizer do the work to avoid severe finger injuries.

3. Structural Integrity: The "Triple Run" vs. Single Run

Standard "Run" stitches are the default for outlines, but they are often a mistake for coloring book art. A single thread creates a line only 0.4mm wide, which disappears into the texture of fabrics like knits or unstable cottons.

Using the Auto-Digitize toolbox -> Click-to-Centerline, you can trace the black lines instantly.

The Empirical Upgrade: Switch the outline property from Single Run to Triple Run (Bean Stitch).

• Physics: A Triple Run places three layers of thread (forward-back-forward) on the same path.
• Result: This creates a bold, "rope-like" stand that mimics hand embroidery (approx. 1mm visual width).
• Success Metric: Set your Triple Run length to 2.5mm - 3.0mm. Anything shorter than 2.0mm in a triple run can cause thread shredding on domestic machines due to needle heat.


4. Managed Density: Using Click-to-Fill without Bullet-Proofing

Next, utilizing Click-to-Fill, we inject color into the closed shapes. The software defaults to Tatami fill.

Sensory Concept: Think of fills as "fabric management systems." A solid block of Tatami adds significantly to the stitch count and push/pull distortion. To mitigate this on larger mandalas, we must use texture.

By using Ctrl+Click to select multiple petals, you can swap heavy Tatami for lighter, open textures like Motif, Ripple, or Cross Stitch.

Why texture saves your fabric:

• Ripple Fill: Follows the contour, reducing stress on the fabric grain.
• Cross Stitch: Low stitch count, providing a "vintage" look with minimal distortion risks.

5. The Physical Reality: Hooping, Physics, and Equipment Thresholds

This is where the software tutorial usually ends, and where real-world problems begin. A complex mandala design involves thousands of needle penetrations.

The "Hoop Burn" & Stability Dilemma: If you are stitching on a quilt sandwich or a delicate coloring-ready blank, standard plastic hoops present two risks:

1. Hoop Burn: The friction ring leaves permanent shiny marks or crushed fibers on the fabric.
2. Inconsistent Tension: If the fabric slips even 1mm during a 45-minute stitch-out, your outlines will not align with your fills.

The Solution Hierarchy:

• Level 1 (Technique): Wrap your inner hoop ring with bias binding or cohesive tape to increase grip and cushion the fabric.
• Level 2 (Tool Upgrade): For dense designs on sensitive fabrics, magnetic embroidery hoops are the industry standard. They use vertical clamping force rather than friction, eliminating hoop burn and allowing for easier adjustments on thick materials like quilted pillow tops.
• Level 3 (Volume): If you are producing these pillows for sale (sets of 4 or more), manual hooping becomes a bottleneck.

Warning: Magnetic Safety
High-strength magnets used in embroidery frames can pinch skin severely causing blood blisters. Do not let magnets snap together freely. Keep them away from pacemakers, credit cards, and computerized machine screens.

6. Decision Tree: Mapping Fabric to Stabilizer

Mandalas are "high-impact" designs. Using the wrong stabilizer will result in puckering (where the fabric ripples around the stitches).

Decision Tree: Stabilizer Strategy

• Scenario A: Stretchy Fabric (Knits/Jerseys)
  • Action: MUST use Cutaway stabilizer (2.5oz minimum).
  • Why: The fabric structure cannot support the stitch density.
• Scenario B: Stable Woven (Cotton/Quilting)
  • Action: Tearaway (medium weight) is usually sufficient, unless the stitch count exceeds 10,000 stitches.
  • Override: If >10k stitches, switch to Cutaway or fuse a woven interfacing (like Shape-Flex) to the back of the fabric first.
• Scenario C: High Nap (Terry Cloth/Velvet)
  • Action: Use a Water Soluble Topper (Solvy) + Tearaway Backing.
  • Why: Without the topper, your beautiful Triple Run outlines will sink and vanish.

Hidden Consumables Checklist:

• Needle: Chrome Topstitch 75/11 (sharp point for crisp lines).
• Spray: Temporary Spray Adhesive (to bond fabric to stabilizer prevents shifting).
• Bobbin: Pre-wound 60wt (confirm tension is balanced).

7. Troubleshooting: When "Auto" Fails & Manual Fixes

A common frustration is "Ghost Lines"—lines that disappear after color reduction.

Why it happens: The line in the photo was too light gray, and the binary filter read it as "White" (background) rather than "Black" (object).

The Fix:

1. Darken the Source: Use a Sharpie to thicken lines on the paper before photographing.
2. Manual Digitize: Just use the Digitize Open Shape tool to manually click three points (start, middle curve, end). It is often faster than fighting the auto-settings.




8. From Hobby to Production: Scaling Your Workflow

If you are just having fun with one pillow, standard tools work. However, if you find yourself battling hoop geometry—trying to get a design straight on a pre-made tote bag, or struggling to hoop thick towels—it signals a need to evaluate your equipment.

The "Pain Point" Indicators:

• Wrist Strain: From tightening hoop screws constantly.
• Rejection Rate: Throwing away garments because they were hooped crooked.
• Time Loss: Spending more time hooping than stitching.

Embroidery professionals solve this by decoupling the hoop from the table. A hooping station for machine embroidery allows you to use a grid system to ensure perfect placement every time. When combined with a magnetic hooping station, you can reduce setup time by 50%.

Furthermore, if you are using a high-end single-needle machine (like the janome embroidery machine mentioned in tutorials), you are limited by color changes. For multidimensional mandalas requiring 4+ colors, a multi-needle machine (like Sewtech's 15-needle options) eliminates the "babysitting" factor, allowing you to walk away while the machine handles the complexity.

9. Final Execution Checklists

Before you press the green button, run these checks to ensure success.

Setup Checklist (Physical)

• Needle Status: Brand new needle installed? (Burrs cause thread shreds).
• Bobbin Check: Is the bobbin case free of lint?
• Tension Test: Run a vivid "H" test. The top thread should show slightly on the bottom (1/3 width).
• Hoop Tension: Drum Skin Test—tap the fabric; it should sound like a dull thud, not loose paper.

Operation Checklist (Digital)

• Delete Artwork: Hide or delete the background image to ensure no stray pixels remain.
• Stitch Order: Check the "Re-sequence" list. Are all outlines stitching last? (Outlines stitched before fills will be buried).
• Speed Limit: For your first test, reduce machine speed to 600 SPM (Stitches Per Minute). High speeds (1000+) on dense mandalas increase friction and thread breaks.

By combining clean digital preparation with robust physical stabilization and hooping techniques, you transform "coloring pages" from a fun idea into a high-value textile reality.

FAQ

• Q: In Hatch Embroidery Digitizer, why does the Prepare Artwork for Embroidery step require Image Color Count = 2 (Black and White) for coloring-page mandalas?
  A: Set the artwork to strict 2-color black/white so Hatch reads clean edges instead of “guessing” from gray pixels.
  • Action: Import via Insert Artwork and immediately run Prepare Artwork for Embroidery.
  • Action: Force Image Color Count to 2 Colors (Black and White) to remove anti-aliasing/gray zones.
  • Action: Scale the artwork to the target hoop size before generating stitches.
  • Success check: Squint at the preview—lines stay clearly separated; they do not blur into the background.
  • If it still fails: Darken the original line art (thicker lines) or switch to manual digitizing for the missing areas.
• Q: In Hatch Click-to-Centerline, what Triple Run (Bean Stitch) length prevents thread shredding on domestic embroidery machines for coloring-book outlines?
  A: Use 2.5–3.0 mm Triple Run length as a safe starting point for bold outlines without excessive needle heat.
  • Action: Trace outlines using Auto-Digitize → Click-to-Centerline.
  • Action: Change the outline from Single Run to Triple Run (Bean Stitch).
  • Action: Set Triple Run length = 2.5–3.0 mm (avoid going shorter than 2.0 mm in triple run).
  • Success check: Outlines look rope-like and consistent (about ~1 mm visual width) without fuzzy edges or shredded thread.
  • If it still fails: Reduce machine speed for the test run and install a brand-new needle before adjusting more settings.
• Q: In Hatch Click-to-Fill for mandala petals, how do Ripple, Motif, or Cross Stitch fills reduce puckering compared with heavy Tatami fill?
  A: Swap dense Tatami blocks for lighter textures to lower stitch count and reduce push/pull distortion on large mandalas.
  • Action: Use Click-to-Fill for closed shapes, then Ctrl+Click to multi-select similar petals.
  • Action: Replace heavy Tatami with Ripple, Motif, or Cross Stitch textures where appropriate.
  • Action: Keep outlines scheduled to stitch last so they sit on top of the texture.
  • Success check: Fabric stays flatter around filled areas; the design does not feel “bullet-proof” stiff.
  • If it still fails: Re-check stabilizer choice and hoop stability—texture cannot compensate for slipping fabric.
• Q: How can standard plastic embroidery hoops cause hoop burn and outline misalignment on quilt sandwiches, and what are the step-by-step fixes before switching to magnetic embroidery hoops?
  A: Prevent hoop burn and slipping by improving grip and cushioning first; upgrade to magnetic hoops when sensitive or thick materials still shift.
  • Action: Wrap the inner hoop ring with bias binding or cohesive tape to increase grip and reduce friction marks.
  • Action: Re-hoop with even tension and avoid over-tightening that crushes fibers on delicate blanks.
  • Action: If the project is dense/long-running, consider magnetic embroidery hoops to clamp vertically instead of rubbing the fabric.
  • Success check: After a test stitch, the fabric shows no shiny ring marks and outlines stay registered with fills.
  • If it still fails: Reduce setup variables—use spray adhesive to bond fabric to stabilizer and confirm the hoop is not drifting during the run.
• Q: Which stabilizer should be used for a dense mandala embroidery design on knits, stable cotton wovens, and terry/velvet, and when is a topper required?
  A: Match stabilizer to fabric behavior: cutaway for stretch, tearaway for stable woven (with a stitch-count override), and add a water-soluble topper for high nap.
  • Action: For knits/jerseys, use Cutaway (2.5 oz minimum).
  • Action: For stable woven cotton/quilting, use medium Tearaway, but if the design exceeds 10,000 stitches, switch to Cutaway or fuse woven interfacing first.
  • Action: For terry cloth/velvet, add a Water Soluble Topper plus Tearaway backing so outlines do not sink.
  • Success check: After stitching, the fabric edge area remains smooth (no rippling/puckering) and Triple Run outlines remain visible on high nap.
  • If it still fails: Increase stabilization (not speed) first, and verify hoop grip—puckering often comes from movement, not software.
• Q: What is the fastest troubleshooting method for “Ghost Lines” after Hatch color reduction, when mandala lines disappear during auto-digitizing?
  A: Ghost lines usually mean the source lines were too light and got filtered to “white”; darken the original or manually digitize the missing segments.
  • Action: Thicken/darken the printed lines (for example, mark over them before photographing/scanning).
  • Action: Re-run the binary 2-color reduction and confirm the line turns solid black.
  • Action: If auto still misses it, use Digitize Open Shape and click a few control points to rebuild the line quickly.
  • Success check: The missing outline appears in the stitch preview and stitches as a continuous line during a short test run.
  • If it still fails: Re-check contrast with the squint test and verify the background artwork is hidden/deleted so stray pixels are not confusing the trace.
• Q: What are the key safety rules for preventing finger injuries around the needle bar and for handling high-strength magnetic embroidery frames during test stitching?
  A: Keep hands away from moving parts during stitching, and control magnets so they never snap together on skin or near sensitive devices.
  • Action: Keep fingers clear of the needle bar and moving mechanism during tests; never try to push fabric while the machine is running.
  • Action: Let the hoop and stabilizer control the fabric—stop the machine before making any adjustment.
  • Action: When using magnetic frames, separate and place magnets deliberately; do not let magnets snap together freely.
  • Success check: Setup adjustments happen only with the machine stopped, and magnets are placed without pinching or sudden snapping.
  • If it still fails: Pause and reset the workspace—move magnets away from pacemakers, credit cards, and computerized screens, and re-hoop more slowly and deliberately.
