From Crate to Clean Stitches: Setting Up a Fuwei 15-Needle Embroidery Machine Without the Usual Rookie Mistakes

If you have just uncrated a commercial embroidery machine, you are likely feeling a specific blend of excitement and terror. That split-second panic—“If I mess this up, I’ll break a $5,000 investment”—is something every professional digitizer and operator has felt.

The good news: The workflow demonstrated in this guide is solid. However, machines don't run on hope; they run on physics and precision. As your "Chief Embroidery Education Officer" today, I’m going to layer veteran experience over these steps. We will move beyond how to assemble it, and focus on how not to break it, using sensory checks (what it should sound and feel like) and safety protocols that usually take years to learn.

Unbox a Fuwei Embroidery Machine Crate Without Losing Parts (and Your Patience)

The process begins before you loosen a single bolt. When removing the outer cartons, you are entering a "danger zone" for lost components. Commercial machines are often packed with "side frames" (the arms that hold the hoop) and small bags of screws tucked into void spaces. They don't look important until you are halfway through assembly and realize a crucial bracket is missing.

The Golden Rule of Unboxing: Do not throw any packaging away until the machine runs its first design.

A practical habit from the production floor: As soon as the plastic bag and spare parts/toolbox come out, stage them in distinct zones on a nearby table: Stand Hardware, Frames/Attachments, Tools, and Electronics/USB. Do not place these on the floor where they can be kicked under the pallet.

Warning: (Mechanical/Pinch Hazard) Treat the machine head like a suspended load. It is top-heavy and unforgiving. Keep fingers out of pinch points—specifically between the head and the stand. Never lift the machine by the plastic tension base or thread stand; lift only by the solid metal chassis hand-holds or the designated lifting beam. Never let one person "muscle it" alone.

Prep Checklist (Unboxing & Staging)

• Inventory Check: Confirm presence of the toolbox, spare parts, and the specific side frames (shims/brackets) required for the table installation.
• Workspace Clearance: Clear a flat 4x4 foot area. If the floor isn't level, assembly will be a nightmare.
• Hardware Containment: Use a magnetic bowl or plastic container for bolts immediately regarding unboxing.
• Caster Identification: Locate the locking casters (usually 2 of the 4) and plan to install them at the front of the stand for easy access.
• Hidden Consumables Plan: Do you have machine oil, a seemingly small pair of snips/tweezers, and adhesive spray? If not, order them now.

Build the Steel Stand With Locking Casters—Because Wobble Becomes Bad Stitching

The stand assembly is mechanically straightforward: join the two standards using hexagon screws, fix the bottom tray, then secure the stand to the tabletop. However, the "old tech" detail that matters here is: Tight and Square beats Fast.

If you rush this and the stand "racks" (twists) even by a few millimeters, you will chase vibration issues forever. At 1,000+ stitches per minute (SPM), a wobbly stand acts like a harmonic amplifier. This causes the needle bar to vibrate more than necessary, leading to "shredding" (thread fraying) that no tension adjustment can fix.

The "Drop Test" for Stand Stability

Before putting the heavy machine on top:

1. Tighten bolts evenly (alternate sides like changing a car tire).
2. Install the bottom tray fully; it acts as a shear wall for rigidity.
3. Lift one corner of the stand 2 inches and drop it. It should land with a solid "thud," not a rattle. If it rattles, tighten it again.

Warning: (Stability Safety) The video calls it out for a reason: engage the caster brakes before mounting the machine. If the stand rolls six inches while you are lowering a 200lb head, you can shear a mounting bolt, drop the chassis, or pinch a hand.

Mount and Level the Fuwei Machine Head Using the Four Leveling Feet (Skip This, Pay Later)

Once the head is lifted onto the stand, install the four leveling feet. Do not just spin them until they touch the table.

Why Leveling is Non-Negotiable: Commercial heads tolerate a lot, but a twisted chassis changes the geometry of how the rotary hook meets the needle key. If your machine is not level, the heavy steel frame can flex microscopically. This misalignment shows up as intermittent thread breaks that feel "random" or needle strikes on the needle plate.

The Sensory Check: After leveling, gently press down on each of the four corners of the machine table. If you feel any movement or hear a "click-clack," one foot is floating. Adjust until the machine feels like it is bolted to the concrete.

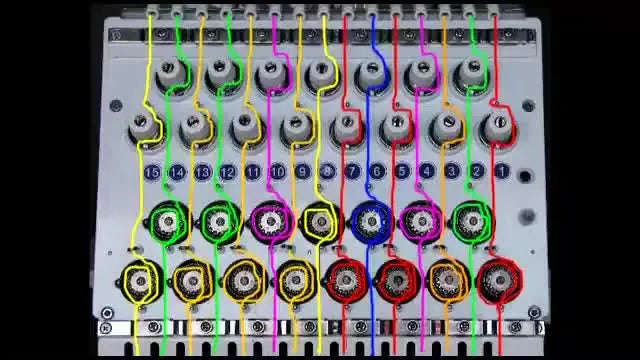

Thread a 15-Needle Embroidery Machine the Video’s Way (and Avoid the Two Most Common Feed Errors)

Threading is where 90% of new operators fail. It is not just about putting string through holes; it is about creating a consistent "drag" on the thread. The video’s path is standard:

1. Thread cone → Overhead mast eyelets (Front to Back).
2. Through the white guide tubes (use the threading wire tool—it’s faster).
3. Top eyelet → Top tensioner (Pre-tension).
4. Thread Break Sensor Wheel (Vital Step).
5. Bottom eyelet.
6. Manual Tension Knob (Main Tension).
7. Check Spring (The Take-up Spring).
8. Take-up Lever (The arm that moves up and down).
9. Lower ceramic eyelets.
10. Needle eye (Front to Back).

If you are setting up a 15 needle embroidery machine, thread discipline separates "it runs" from "it makes money." Do not cross threads on the rack. A crossed thread creates drag, which pulls the needle slightly backward, causing it to hit the throat plate.

Two Veteran Checkpoints ( The "Silent Killers")

1. Tube Routing: The usage of guide tubes prevents tangling. Ensure the tube is seated fully in the slot. A tube that is half-seated pinches the thread.
2. Check Spring Engagement: You must physically pull the thread up and over into the check spring disk detailed in the video.
   • Sensory Check: When you pull the thread near the needle, you should see the small check spring wire bounce up and down. If it doesn't move, you missed it. This will cause "looping" on top of your embroidery.

Tension "Sweet Spot" (Sensory Check)

Pull the thread through the needle eye. It should not feel loose, nor should it bend the needle. It should feel like pulling dental floss out of its container—a smooth, consistent resistance. If using a tension gauge (highly recommended), aim for 100gf - 130gf for the top thread on standard polyester.

Tune the Tension Return Spring Lever for Heavy vs Light Fabric (Small Lever, Big Consequences)

The video explains using the lever to adjust the spring's travel range.

• Low Position (Heavy/Thick Materials): Increases the tension/stroke for caps or canvas.
• High Position (Light Materials): Decreases the impact for delicate knits.

Expert Context: Many beginners blame "tension knobs" when the issue is actually the check spring. If you are running a thick structured cap and getting loops, lower this lever before tightening your knobs.

Use the Control Panel to Trim Specific Needles (and Stop Pulling Thread by Hand)

The video demonstrates commanding the machine to trim thread for selected needles via the panel:

• Press Needle Number (e.g., 1) → Press Scissor/Trim Icon.
• For Needle 10+: Press "10+" then digit (e.g., 0) → Scissor.


Why this matters: Never yank thread tails by hand to clear them. This can bend the needle bar or damage the presser foot alignment. Use the machine’s trim function to ensure the blade cuts clean and the wiper tucks the tail away.

Clamp a Cap on the Cap Gauge the Right Way (Centering, Sweatband, and Clip Discipline)

Cap embroidery is the ultimate test of patience. The workflow is:

1. Attach gauge to table.
2. Place cap, flipping the sweatband out and under.
3. Center the cap seam with the gauge's red line.
4. Pull the strap tight and latch.
5. Smooth the panels.
6. Clip the back with binder clips.

If you are shopping for a hooping station for machine embroidery, you quickly realize that the station is only as good as the operator's hands. The goal is centering.

Pro Tip: The "Sweatband Gap"

The most common error is the sweatband bunching up underneath the front panel. This creates a "hump" that the needle cannot penetrate, causing broken needles.

• Tactile Check: Run your finger along the inside of the cap frame before loading. It should feel perfectly flat.

Snap the Cap Frame Into the Rotary Driver Without Fighting the Clips

The video suggests switching the machine on first to utilize the motor's holding torque (optional, but helpful).

To load: Rotate the cap frame until the three spring-clips align with the driver bar. Snap it in. You should hear a distinct, triple "Click-Click-Click."

To remove: Press the three release tabs simultaneously.

Warning: Cap Tension is Physics, Not Brute Force

Do not over-tighten the cap strap to the point where the cap visor warps. If you stretch the cap too much, the fabric will snap back after unhooping, distorting your logo.

Switch From Cap Driver to Flat Table Extension Without Stripping Screws

Changing from caps to flats involves removing the rotary driver (two screws usually) and installing the flat table top.

• Storage Tip: Keep a specific magnetic tray or Ziploc bag labeled "Cap Driver Screws." These screws are often a specific metric thread and length. If you lose them or strip them by using the wrong screwdriver, your machine is down.


Hoop a T-Shirt With Green Tubular Hoops Without Wrinkles, Hoop Burn, or Hidden Fabric Catches

The video demonstrates the standard tubular hooping method:

1. Flat surface.
2. Outer hoop inside the garment.
3. Inner hoop pressed down.
4. Tighten the screw.


This is the classic hooping for embroidery machine technique. However, traditional hoops rely on friction and high pressure. This often leads to "Hoop Burn"—permanent rings crushed into delicate fabrics like performance polo shirts.

The Solution: If you struggle with hoop burn or wrist pain from repetitive hooping, consider upgrading to Magnetic Hoops. Unlike the screw-tighten method, magnetic hoops use vertical force to hold fabric without crushing the fibers.

• SEWTECH Magnetic Hoops are compatible with most commercial machines and are a massive quality-of-life upgrade for production runs.

Decision Tree: Fabric → Stabilizer Choice

Wrong stabilizer = Puckering. Use this quick guide.

Set Frame Holders and Frame Orientation So the Hoop Doesn’t Crash the Machine

The video notes specifically fitting the frame holder into the correct slots (A through F marks). Critical Safety: The machine does not "know" what hoop is attached. It only knows what you tell it on the screen. If you tell it you have a 300x300 hoop, but you attach a pocket hoop, the machine will ram the needle bar into the plastic hoop ring. This creates a "bird's nest" and can shatter the reciprocating drive.

If you are managing multiple embroidery machine hoops, color-code the arms with tape roughly matching the screen settings to prevent mix-ups.

Load Designs by USB and Set Color Order on the Fuwei Control Panel (No Guessing)

Commercial machines imply a specific logic: Input → Parameter → Stitch.

1. Management Status: Insert USB. Output design to memory.
2. Color Order: You must map the digital file colors (Layer 1, 2, 3) to physical needles (Needle 4, 1, 9).
   • Example: If your design has Red (1), White (2), Blue (3), and your machine has Red on Needle 5, you must program sequence: 5 - ...




Setup Checklist (Software & Pre-Flight)

• Design loaded to internal memory (do not run directly from USB; if the stick vibrates loose, the machine stops).
• Orientation checked: Is the design right-side up? (F key implies rotation).
• Color sequence mapped: Visually verify needle 1 matches the thread cone color involved.
• Needle Clearance: Ensure the needle currently over the throat plate is NOT the one about to move if the frame travels far.

Run “Design Range Check” Like a Pro—It’s Your Cheapest Crash Prevention

The video demonstrates the "Design Range Check" or "Trace" function. The hoop moves around the outermost square of the design area.

Why you must do this every time: This confirms the design fits inside the cap hoop for embroidery machine or tubular hoop physically. If the laser/needle gets within 5mm of the hoop edge, stop. Resize the design or use a larger hoop. Do not risk it.

Fix Needle Breakage and Thread Breakage the Video’s Way (and Know When It’s Not “Tension”)

Troubleshooting Matrix

Note on Needles: Needles are cheap. Garments are expensive. Change your needle every 8–10 hours of running time, or immediately after a bird's nest.

Load the Bobbin Case Cleanly (and Respect the 3-Inch Tail Rule)

• Direction matters: The bobbin should spin so the thread feeds against the tension slot (usually distinct "Clockwise" or "Counter-Clockwise" depending on brand—check the specific Fuwei manual).
• The Tail Rule: Cut the tail to 3 inches. If it is too long (6 inches+), it wraps around the shaft during the first spin. If too short (<1 inch), it fails to catch.

Oil and Clean on the Video’s Schedule—Because Downtime Is Always More Expensive Than Oil

Oil is the lifeblood of these high-speed machines. Friction generates heat, and heat expands metal, seizing the machine.

The Schedule:

• Daily (Pre-Shift): One drop on the Rotary Hook race (the basket part). One drop on the needle bars.
• Weekly: Blow out lint from the bobbin area. Lint absorbs oil, turning it into abrasive sludge.
• Monthly/Yearly: Grease the X/Y rails and internal cams as per the specific manual.




Operation Checklist (The "Go" Button Protocol)

• Physical: Caster brakes locked? Table stable?
• Path: Needle threaded through the eye? Bobbin case clicked in?
• Safety: Hands clear of the frame?
• Trace: Design Range Check completed successfully?
• Speed: Start at 600 SPM. Once the layout is confirmed, ramp up to 800-1000 SPM. Running at max speed (1200) often reduces quality on satin stitches.

The Upgrade Path: When Hooping Time and Consistency Become Your Real Bottleneck

Embroidery is a business of efficiency. If you find yourself spending more time hooping shirts than the machine spends stitching them, your "bottleneck" is the human element.

Level Up Your Toolset

1. For Wrist Health & Hoop Burn: If you struggle with framing thick hoodies or find traditional hoops leave distinct "burn" marks, Magnetic Hoops are the industry standard upgrade. They clamp instantly without adjusting screws.

Warning: (Magnetic Safety) Commercial magnetic hoops use N52 Neodymium magnets. They possess extreme clamping force. Keep fingers clear of the mating surfaces. Do not use if you have a pacemaker. Keep away from credit cards and hard drives.

1. For Production Speed: If you are using a hoopmaster style station to aid alignment, ensure your hoops are compatible.
2. For Scaling Up: As your volume increases, one head is rarely enough. SEWTECH offers multi-needle solutions and accessories that bridge the gap from "garage hobbyist" to "production house," ensuring that your tools grow with your skill set.

Remember: The machine is just a tool. Your process—clean threading, careful hooping, and disciplined maintenance—is what creates the art. Happy stitching.

FAQ

• Q: What hidden consumables should be ready before unboxing and staging a Fuwei commercial embroidery machine crate?
  A: Prepare the small consumables before the first bolt so the first test run is not delayed.
  • Stage machine oil, snips/tweezers, and adhesive spray next to the stand hardware and tools.
  • Use a magnetic bowl or small container immediately for bolts and small screws during unboxing.
  • Keep all packaging until the first design stitches successfully, because side frames/brackets and screw bags can be hidden in void spaces.
  • Success check: All parts are sorted into zones (Stand Hardware / Frames-Attachments / Tools / Electronics-USB) and nothing is on the floor to get kicked away.
  • If it still fails… Stop and re-check the crate foam/cardboard cavities for missing side frames or small hardware bags before assembling further.
• Q: How can a Fuwei multi-needle embroidery machine operator verify the steel stand is stable enough to prevent wobble-related thread shredding?
  A: Use the stand “drop test” and square-tighten the bolts before mounting the heavy head.
  • Tighten bolts evenly by alternating sides (like changing a car tire), not one side fully at a time.
  • Install the bottom tray fully because it increases rigidity like a shear wall.
  • Lift one corner about 2 inches and drop it.
  • Success check: The stand lands with a solid “thud” (no rattle); locking casters are installed and the brakes engage firmly.
  • If it still fails… Re-seat the tray and re-tighten all joints; an out-of-square stand will keep amplifying vibration at high SPM.
• Q: How does a Fuwei 15-needle embroidery machine operator confirm the upper thread path is correct to avoid looping on top caused by a missed check spring?
  A: Re-thread and force the thread into the check spring, then confirm the spring moves during a pull test.
  • Thread through the path in order and do not skip the thread break sensor wheel and check spring.
  • Pull the thread up and over into the check spring disk (do not assume it “fell in”).
  • Pull the thread at the needle to verify consistent drag; a safe starting point given is 100gf–130gf with a tension gauge on standard polyester.
  • Success check: The check spring wire visibly “bounces” up and down when pulling thread near the needle, and the pull feels like smooth dental floss resistance (not slack, not bending the needle).
  • If it still fails… Inspect guide tube seating; a half-seated tube can pinch thread and mimic tension problems.
• Q: What is the safest way to prevent hoop crashes on a Fuwei commercial embroidery machine when switching between different embroidery machine hoops and frame holder slots?
  A: Match the physical hoop and the on-screen hoop setting every time, then run a Design Range Check before stitching.
  • Install the frame holders in the correct marked slots (A–F) and keep a consistent system (often color-coding the arms helps prevent mix-ups).
  • Verify the machine screen selection matches the hoop actually attached; the machine will not “know” the hoop type unless set correctly.
  • Run the Design Range Check/Trace so the hoop moves around the design boundary before pressing start.
  • Success check: During Trace, the needle/laser path stays clearly inside the hoop; if it gets within about 5mm of the hoop edge, stop and correct before sewing.
  • If it still fails… Resize the design or move to a larger hoop; do not risk a strike that can create bird’s nests or damage the drive.
• Q: What safety rules should be followed when mounting a top-heavy Fuwei embroidery machine head onto the stand to avoid pinch hazards and dropped chassis?
  A: Treat the machine head like a suspended load and lock the stand before lifting.
  • Engage caster brakes before mounting so the stand cannot roll while lowering the head.
  • Lift only by the solid metal chassis hand-holds or designated lifting beam; do not lift by the plastic tension base or thread stand.
  • Keep fingers out of pinch points between the head and the stand while aligning bolts.
  • Success check: The head sits fully seated on the stand with bolts aligned without forcing, and no corner “click-clack” movement is felt after leveling feet adjustment.
  • If it still fails… Stop and re-position with help; do not let one person “muscle it” alone because misalignment increases drop and pinch risk.
• Q: How can a Fuwei embroidery machine operator reduce hoop burn and wrist strain when hooping T-shirts with traditional tubular hoops, and when should magnetic hoops be considered?
  A: Start by optimizing hooping pressure and stabilizer choice, then move to magnetic hoops if hoop burn or repetitive strain continues.
  • Use the stabilizer decision guide: unstable knits like T-shirts generally need cutaway (2.5oz or 3.0oz noted), and performance stretch often needs cutaway plus Solvy topping to prevent stitches sinking.
  • Hoop on a flat surface and avoid over-tightening the screw; excessive friction pressure is what commonly crushes fibers into hoop rings.
  • Upgrade option: Magnetic hoops clamp with vertical force and can reduce crushing and repetitive screw-tightening.
  • Success check: After unhooping, the garment shows minimal to no permanent ring marks and the fabric surface recovers without visible crushed circles.
  • If it still fails… Move from Level 1 technique tweaks to Level 2 tooling (magnetic hoops) for consistency; if hooping time becomes the bottleneck across volume, consider a Level 3 capacity upgrade to a multi-needle production setup.
• Q: What magnetic hoop safety precautions should be followed when using SEWTECH magnetic hoops on commercial embroidery machines?
  A: Keep fingers clear and treat commercial magnetic hoops as high-clamp-force tools.
  • Keep fingers away from the mating surfaces when closing the hoop because strong magnets can pinch hard.
  • Do not use magnetic hoops if the operator has a pacemaker.
  • Keep magnetic hoops away from credit cards and hard drives.
  • Success check: The hoop closes without finger pinch incidents, and operators can open/close consistently without “fighting” the magnets.
  • If it still fails… Switch to a safer handling routine (two-handed placement, controlled closing) or revert to screw hoops for specific operators/situations where magnetic handling risk is unacceptable.
