From Etsy Font to a Clean 4x4 Monogram: Embrilliance Essentials Layout Tricks for a Brother PE50 (and How to Avoid the Rookie Traps)

Calm the Panic: A Pilot’s Guide to Your First Monogram on the Brother PE50

You’re not alone if your first night with Embrilliance Essentials feels like: “I can see it on the screen… but how do I make it stitch without breaking a needle?” The good news is the video you watched is exactly what most beginners need first—proof that you can build a monogram layout from purchased stitch files and get something that looks right before you ever touch fabric.

However, moving from screen to machine is where the "Newbie Fear" kicks in. The fear of the bird's nest (that tangled mess of thread under the plate), the fear of the needle hitting the hoop, and the frustration of a design that looked perfect digitally but puckers on physical cloth.

This post rebuilds that same Day 1 napkin monogram project using "The Aviator’s Method": a checklist-driven, safety-first approach. We will move beyond just "clicking buttons" to understanding the physics of stitch files, ensuring your first project isn't just luck—it’s engineering.

1. The Compatibility Check: Why Your Brother PE50 Demands .PES

The video is working with a Brother PE50 and shows the key compatibility reality: when you buy a font bundle that includes multiple machine formats, you must pick the one your machine reads—in this case, .PES.

Think of stitch files like language cassettes. Your Brother machine speaks "PES." If you try to feed it "DST" (Tajima) or "EXP" (Bernina) without conversion, it simply won't understand.

The "Essentials" vs. "Express" Confusion: If you are shopping for software, here is the distinction:

• Embrilliance Express (Free): Only allows you to type using installed .bx fonts. It cannot merge individual stitch files easily.
• Embrilliance Essentials (Paid): Allows you to "Merge" stitch files (like the separate letters in the video). This is the tool for total control.

Pro-Tip: Always check your machine manual. While most Brother machines use .PES, some commercial multi-needle machines prefer .DST for better trim command handling. For the PE50/PE800 series, stick to .PES to be safe.

2. The “Hidden” Prep: Folder Hygiene and The Consumables You Forgot

The video jumps right into merging files, but the prep is what keeps beginners from spiraling. Before you open software, you need your physical and digital workspace ready.

The "Hidden Consumables" List

Beginners often have the machine and thread, but miss the stabilizers and tools that prevent disaster. Ensure you have:

• 75/11 Embroidery Needles: The universal standard. If your needle is old, change it. A dull needle pushes fabric into the throat plate, causing jams.
• Bobbin Thread (60wt or 90wt): Do not use top thread in the bobbin unless you want a bulky mess.
• Spray Adhesive (Temporary): Crucial for "floating" napkins (more on this later).
• Precision Tweezers: For grabbing those short thread tails.

Digital Prep Level 1: File Isolation

1. Unzip your purchase immediately. Machines cannot read .zip files.
2. Isolate the .PES. Delete or move the other formats (VIP, JEF, HUS) to a "Archive" folder so you don't accidentally click them.
3. Segregate Case: Create two subfolders: Uppercase and Lowercase. This prevents the "p" file from getting lost among 52 other files.

Prep Checklist (Do this BEFORE opening software)

1. [ ] Hoop Validation: Open Embrilliance -> Preferences -> Hoops. Select "Brother 100x100mm (4x4)".
2. [ ] Grid Check: Ensure the visual grid matches your physical hoop.
3. [ ] File Access: Confirm you have the unzipped .PES files in a known folder.


3. The One Click That Starts Everything: “Merge Stitch File”

In the video, the narrator clicks the toolbar icon for “Merge Stitch File.” This is the correct starting point for this project because you’re not typing text—you’re importing pre-made stitch files (digital Lego blocks).

The Cognitive Rule:

• Merging: You are bringing in a static image of stitches. You cannot change the density easily.
• Lettering Tool (The 'A' Icon): You are using a dynamic font engine. You can change size and density automatically recalculates.

Since we are using purchased stitch files, we Merge.

4. Pick the Right File: The .PES Safety Protocol

The video shows a folder full of formats. This is a minefield. For the Brother PE50, select the .PES version.

Why does this matter? If you accidentally import a .DST file, the colors may look wrong on screen (DST files don't save color information reliably), and the machine might strip out your jump-stitch trims.

SEO & Shopping Note: When you eventually look to upgrade your equipment, remember that the PE50’s working area is restricted. Many professionals search for a brother 4x4 embroidery hoop replacement or upgrade immediately because 4x4 inches (100mm) is quite small for modern standards. Knowing your limit now saves frustration later.

5. The "Container" Method: Place the Uppercase Letter First

The video imports the large uppercase “P” first. This is crucial for spatial planning.

The Physics of Resizing: The narrator shows resizing the letter using handles.

Warning (Physical Safety): Do not resize a stitch file more than 10-15% up or down.
* Scaling Up > 20%: The stitches become too long (long satins), which can snag on toes or fingers or break the loop.
* Scaling Down > 20%: The stitches become too dense. The needle will strike the same spot repeatedly, potentially cutting the fabric or breaking the needle.

Sensory Check: If you scale down a design and it looks like a solid block of color on screen, it is too dense.

6. The "Deck of Cards" Problem: Handling The Pile

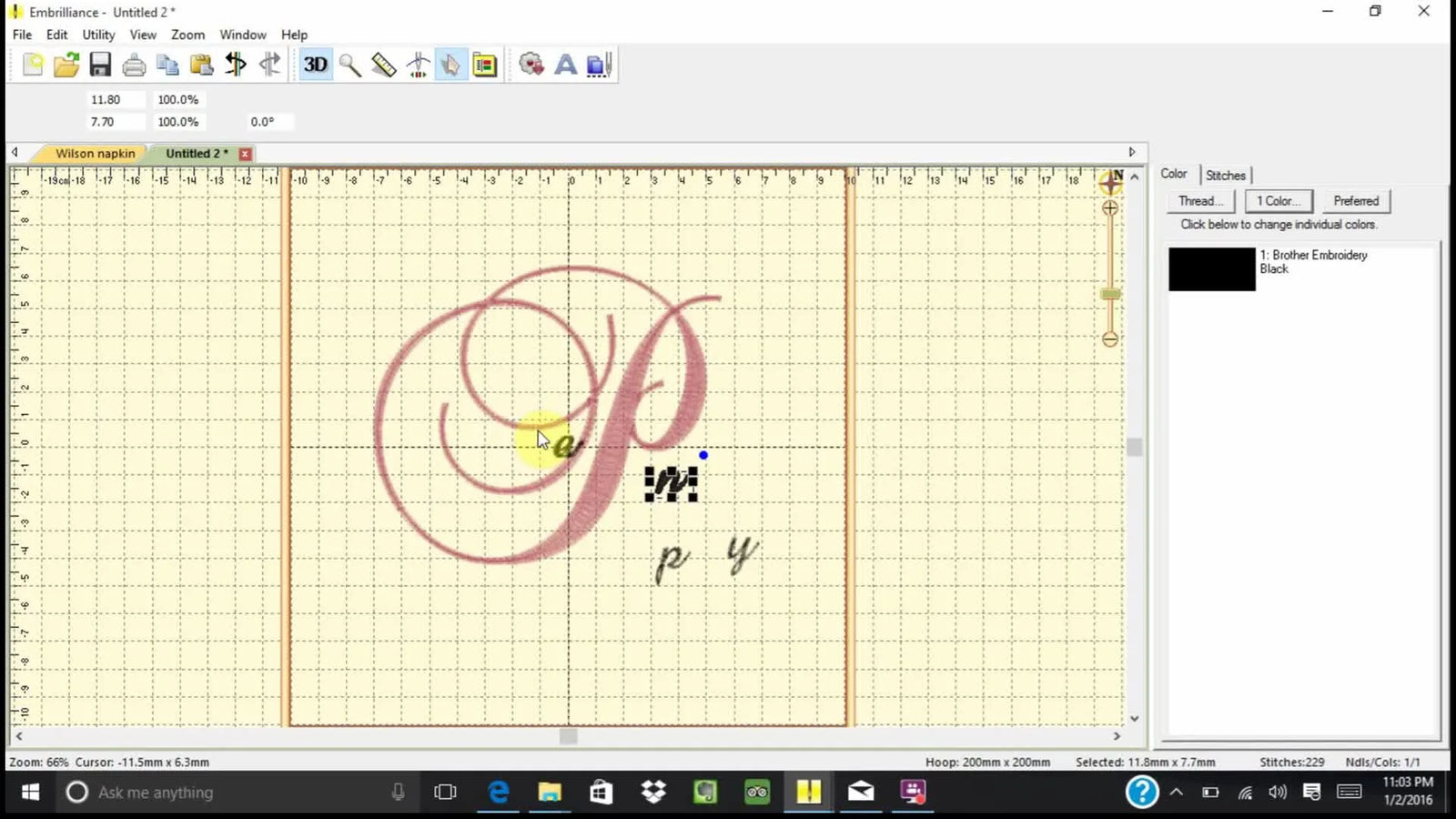

Next, the video merges the lowercase letters (p, a, y, n, e). Beginners often panic here because the software stacks every new file directly in the center, on top of the previous one.

The Sort Strategy:

1. Import your first lowercase letter.
2. Immediately drag it to the right.
3. Import the next. Drag it.
4. Do not try to align them yet. Just get them out of the "pile."

This reduces cognitive load. You aren't trying to design yet; you are just unpacking the box.

7. Visual Alignment: The "Arm's Length" Rule

The video shows the "stacked mess" and then the manual separation. The concern about proportion ("Isn’t it far too disproportionated?") is valid.

Expert Proportion Guide:

• The Baseline: The bottom of the lowercase letters (a, n, e) should sit on a consistent imaginary line.
• The Descenders: Letters like 'p', 'y', 'g' must drop below that line.
• The Breathing Room: Ensure the lowercase letters do not touch the satin stitches of the large Uppercase letter. If satin stitches overlap, the needle will try to force thread through an already hardened area, leading to thread breakage (hear for a "shredding" sound).


8. Alignment Precision: Using the Grid as a Ruler

In the video, the narrator uses the horizontal grid lines to align the bottoms of the lowercase letters.

Sensory Visual Anchor: Zoom in on your screen. Look at the "nodes" (the little dots representing needletips). Ensure the bottom-most nodes of your 'a' and 'n' touch the same grid line exactly. This difference is invisible on screen but glaringly obvious on a finished napkin.

For those considering a hooping for embroidery machine upgrade later, knowing how to align digitally is the prerequisite to using physical station jigs.

9. Color & Contrast: The Brother Palette

The video shows changing thread colors to a "Brother Embroidery" palette.

The "Real World" Check: Colors on screen are made of light (RGB). Colors on thread are made of dye and reflection.

• Black Thread: High contrast, but zero forgiveness. Every mistake shows.
• Charcoal/Dark Gray: Softer, "richer" look, hides microscopic alignment errors better.

Recommendation: For your first project, avoid white thread on white napkins. Use a color so you can clearly see tension issues.

10. The Missing Link: Setup and Hooping (Where Most Fail)

The video ends before the transfer. This is the "Danger Zone." A perfect design can be ruined by bad hooping.

The Napkin Challenge: Hoop Burn

Linen napkins are delicate. If you clamp them into a standard hoop tightly described as "drum tight," you crush the fibers. This leaves a permanent ring called "Hoop Burn."

The Decision Tree: Fabric vs. Strategy

The "Floating" Technique (The Fix for Burn)

Instead of clamping the napkin:

1. Hoop only the stabilizer (drum tight).
2. Spray the stabilizer with temporary adhesive.
3. Lay the napkin on top.
4. Use the machine's "Basting Box" function (if available) or pins (kept far from the center) to secure it.

The Tool Upgrade: Magnetic Hoops

If you struggle with wrist pain from tightening screws, or if "hoop burn" is destroying your napkins, this is the trigger point to upgrade tools. A magnetic embroidery hoop uses magnets to hold the fabric rather than friction and force.

• Benefit: Zero hoop burn.
• Speed: 5x faster to re-hoop.
• Compatibility: You must find magnetic embroidery hoops for brother specifically designed for the PE series arm clearance.

Warning (Magnet Safety): Commercial magnetic hoops are extremely powerful.
* Pinch Hazard: They can crush fingers instantly. Handle by the edges.
* Medical: Keep away from pacemakers.
* Electronics: Keep away from phones and credit cards.

11. The Transfer: Getting It To The Machine

1. Format: Ensure you save as .PES.
2. Media: Use a USB drive (under 4GB is safest for older machines).
3. Naming: Keep filenames short (e.g., Napkin1.pes). Avoid special characters like &, *, #.

12. Operation: The "Sensory Pilot" Checklist

Now you are at the machine. Do not just press "Go."

Setup Checklist

1. [ ] Needle Check: Is it new? Is the flat side facing back?
2. [ ] Thread Path: Re-thread the top thread. Action: Pull the thread through the needle eye. It should feel like flossing a tooth—slight, smooth resistance. If it jerks, re-thread.
3. [ ] Bobbin: Listen for the "Click" when inserting. Ensure the thread follows the tension track.
4. [ ] Clearance: Rotate the handwheel manually for one full rotation to ensure the needle doesn't hit the hoop frame.

The Stitch-Out (Sweet Spot Speed)

Start your PE50 at a moderate speed.

• Beginner Speed: 350 - 600 stitches per minute (SPM).
• Why? High speed (650+) causes vibration. On a single-needle machine, vibration leads to fabric shifting.

Troubleshooting: What the Machine Is Telling You

Moving From Hobby to Production

In the beginning, creating one monogram napkin takes an hour. That is fine for learning. But if you plan to do a set of 12 for a dinner party, the standard hooping process becomes a nightmare.

This is the natural evolution of an embroiderer:

1. Level 1 (Skill): Mastering the "Float" method to avoid hoop burn.
2. Level 2 (Tool): Using a hooping station for embroidery to guarantee placement is identical on every napkin.
3. Level 3 (Speed): Upgrading to a magnetic hooping station and frame to remove the physical strain of clamping.
4. Level 4 (Scale): If you start getting orders for 50+ shirts or napkins, a single-needle machine becomes the bottleneck. This is when professionals look at multi-needle solutions like SEWTECH systems or similar commercial gear, which allow you to queue colors without manual thread changes.

Final Takeaway: Your software design is just the blueprint. The quality of the "building" comes from the foundation: clean files, a new needle, and the right stabilizer strategy. Follow the checklists, respect the machine's physics, and you will turn that digital image into a physical reality you can be proud of.

FAQ

• Q: Why must a Brother PE50 embroidery machine use a .PES file instead of .DST or other formats?
  A: Use .PES for the Brother PE50 because the machine is designed to read PES correctly and other formats can import with missing/incorrect color and trim behavior.
  • Confirm the download is unzipped before transferring; the Brother PE50 cannot read .zip files.
  • Isolate the .PES version in its own folder so the wrong format is not selected by accident.
  • Save/export the final layout back to .PES before writing to USB.
  • Success check: the design loads on the Brother PE50 without “file not recognized” behavior and shows expected color blocks.
  • If it still fails: try a smaller/older USB drive (under 4GB is safest for older machines) and shorten the filename (e.g., Napkin1.pes, no special characters).
• Q: What “hidden consumables” should a Brother PE50 beginner prepare to prevent bird’s nests and jams on a first monogram?
  A: Start with the correct needle, true bobbin thread, and a stabilizer plan—most first-night failures are missing basics, not software mistakes.
  • Replace with a fresh 75/11 embroidery needle if the current needle is unknown or used.
  • Load proper bobbin thread (60wt or 90wt) rather than top thread in the bobbin.
  • Keep temporary spray adhesive and tweezers ready for floating fabric and grabbing short tails.
  • Success check: stitching starts smoothly without thread “balling up” under the fabric in the first 10–20 seconds.
  • If it still fails: re-thread the top thread with the presser foot raised so the thread seats into the tension disks.
• Q: How can Embrilliance Essentials users prevent the “stacked pile” problem after using “Merge Stitch File” for multiple monogram letters?
  A: Unstack letters immediately after each import—do not try to align while everything is piled in the center.
  • Merge the first lowercase letter, then drag it away to the side right away.
  • Repeat: merge next letter, drag it away; keep going until all letters are visible and separated.
  • Align only after the “pile” is cleared, using the grid as a ruler for baselines and spacing.
  • Success check: each letter can be clicked and moved without accidentally selecting a hidden letter underneath.
  • If it still fails: zoom in and move letters farther apart first, then bring them back for final spacing.
• Q: How much can a Brother PE50 user safely resize a purchased stitch-file letter in Embrilliance without causing density problems or needle breaks?
  A: Keep stitch-file resizing within about 10–15% up or down to avoid overly long stitches or overly dense punching.
  • Avoid scaling up more than ~20% because long satin stitches can snag and stress thread.
  • Avoid scaling down more than ~20% because density increases and the needle can strike the same spot repeatedly.
  • Stop resizing if the letter starts looking like a solid block on screen.
  • Success check: the preview still shows distinct stitch structure (not “filled solid”), and the machine sews without shredding sounds.
  • If it still fails: use a size-appropriate version of the purchased files instead of forcing scale changes.
• Q: How can Brother PE50 users prevent hoop burn on linen napkins when making a monogram?
  A: Float the napkin and hoop only the stabilizer—tight clamping on delicate linen can leave a permanent hoop ring.
  • Hoop stabilizer “drum tight,” then spray with temporary adhesive.
  • Lay the napkin on top (do not clamp the napkin in the hoop).
  • Secure with a basting box function if available, or pin far from the stitch area.
  • Success check: after stitching, the napkin shows no crushed ring and the fabric surface recovers without a visible hoop mark.
  • If it still fails: reduce handling, avoid over-tightening any clamping method, and reassess stabilizer choice for the fabric type.
• Q: What is the safest way to confirm Brother PE50 needle-to-hoop clearance before pressing Start to avoid hitting the hoop frame?
  A: Hand-turn the machine through a full rotation before stitching—this is the fastest way to catch a hoop strike risk.
  • Re-check hoop selection and placement so the design sits inside the Brother 100x100mm (4x4) boundary.
  • Rotate the handwheel manually one full turn and watch the needle path near the hoop edge.
  • Start at moderate speed (about 350–600 SPM) to reduce vibration and shifting on a single-needle setup.
  • Success check: the needle completes the manual rotation without contacting the hoop and the first stitches sound smooth (no “thump thump”).
  • If it still fails: stop immediately, re-center the design, and verify the correct hoop is selected in software.
• Q: What magnetic embroidery hoop safety rules should be followed when upgrading from a screw hoop to reduce hoop burn and wrist strain?
  A: Treat magnetic hoops as high-force tools—handle by the edges and keep them away from medical devices and sensitive electronics.
  • Grip magnets from the sides to avoid pinch injuries; never place fingers between magnet and frame.
  • Keep magnetic hoops away from pacemakers and similar medical devices.
  • Store magnets away from phones, credit cards, and other electronics.
  • Success check: hooping feels fast and controlled, with fabric held firmly without over-tightening or visible hoop burn.
  • If it still fails: verify the magnetic hoop is specifically designed to fit the Brother PE-series arm clearance before forcing it onto the machine.
