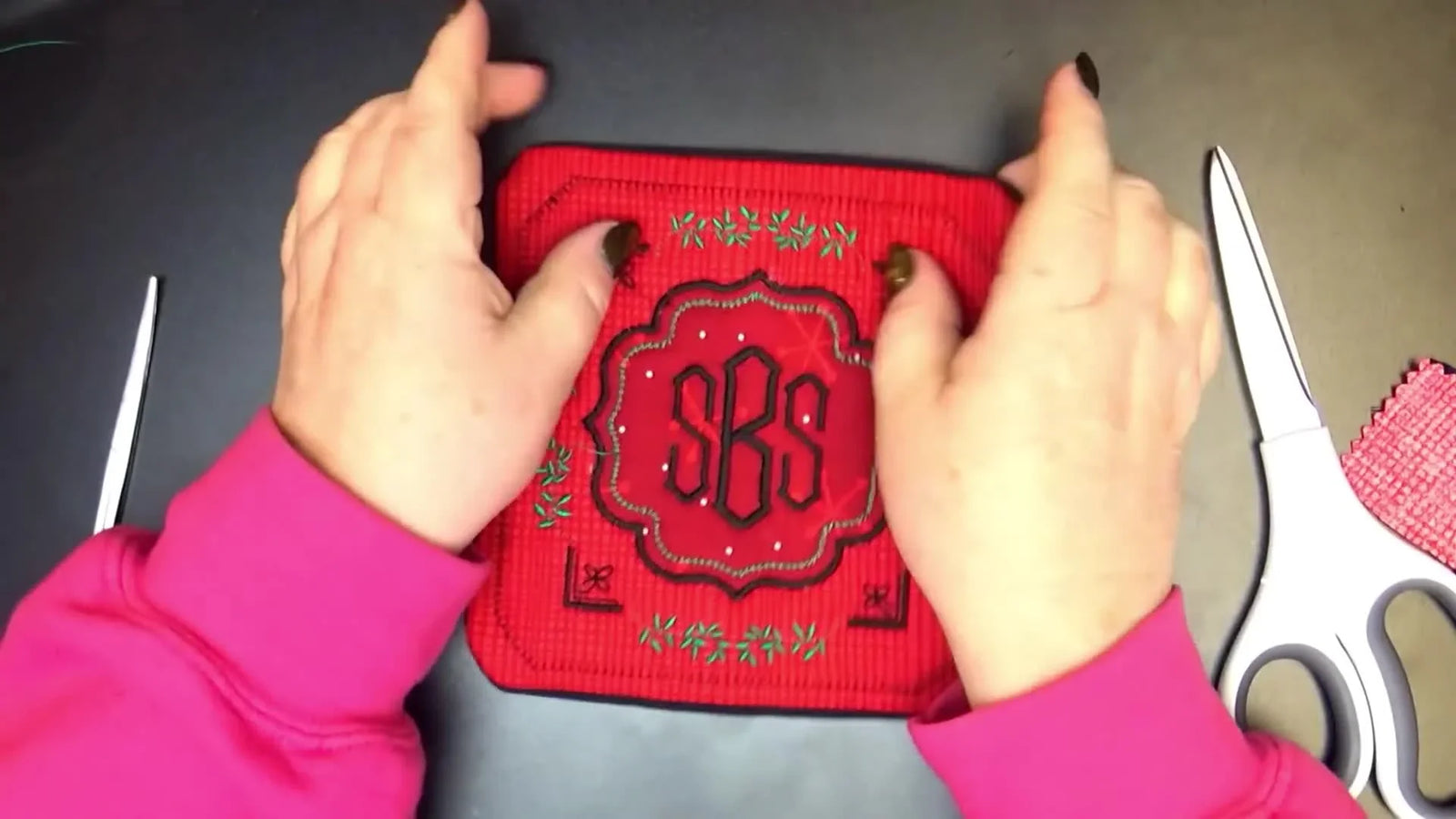

From Hatch to Hoop: Stitch a No-Sew In-the-Hoop Mug Rug on a Brother Dream Machine (Without Appliqué “Boo-Boos”)

If you’ve ever watched an In-The-Hoop (ITH) project stitch beautifully… and then felt your stomach drop when it’s time to trim appliqué or float the backing, you’re not alone. This anxiety is a standard part of the learning curve. The good news: this mug rug project is genuinely forgiving if you respect the physics of your machine and keep your layers stable.

Sue (OML Embroidery) stitches this project on a Brother Dream Machine, building the mug rug completely in the hoop—placement line, batting, top fabric, decorative motif runs, raw-edge appliqué, satin coverage, monogram, and a no-sew envelope-style backing.

As we walk through this, I will act as your "embroidery copilot," flagging the hidden risks and giving you the exact sensory cues—what to hear, feel, and see—to ensure a production-quality finish, whether you are using a standard hoop or upgrading your workflow.

The “Don’t Panic” Primer: What an ITH Mug Rug Is Really Doing Inside Your Brother Dream Machine

To master ITH, you must understand the mechanics, not just the steps. An ITH mug rug is basically a controlled sandwich: stabilizer is your concrete foundation, batting gives body, top fabric is your showpiece, and the backing gets attached last for a "turn-and-burn" clean finish.

The reason beginners fail here isn’t the stitching quality—it’s kinetic movement. The embroidery machine exerts force (push and pull) on the fabric. Any tiny shift between layers shows up later as:

• Registration Errors: Satin stitches missing the raw edge of the appliqué.
• Hoop Burn: Ugly rings impressed into your fabric from tightening the hoop too much.
• Distortion: Appliqué shapes looking "wobbly" or egg-shaped instead of circular.
• Backing Creep: The underside fabric getting caught or folded under the needle.

If you’re already thinking, “My hooping is never perfect,” you’re thinking like a production embroiderer. Perfection is impossible; stability is the goal. Your job is to prevent the layers from sliding against each other.

The “Hidden” Prep That Saves the Whole Stitch-Out: Tearaway Stabilizer, Batting, Thread Plan, and Scissors

Before you press Start, we need to eliminate variables. In professional shops, 90% of failures are caused by poor prep, not the machine.

The "Golden Ratio" Material Stack:

• Stabilizer: Medium-weight Tearaway (1.5 - 2.0 oz). Do not use flimsy tearaway; it must support thousands of needle penetrations.
• Needle: 75/11 Sharp or Ballpoint (depending on fabric). If your needle is dull, it pushes fabric down rather than piercing it, causing shifts.
• Thread: 40wt Polyester or Rayon (high sheen).
• Batting: Cotton or poly-blend batting (low loft). High-loft batting creates drag under the foot.
• Adhesion: Temporary adhesive spray (like Odif 505) or paper tape.

A note on efficiency: Sue uses Layer Cake squares (10" x 10") to minimize waste. This is smart economics. However, ensure your stabilizer is large enough to be fully gripped by the hoop on all four sides. "Floating" stabilizer makes sense for the fabric, but the foundation must be hooped tight.

Prep Checklist (Do this before you even look at the machine)

• Stabilizer Tensor Check: Cut tearaway stabilizer 2 inches larger than the hoop. Hoop it tight (it should sound like a drum when tapped).
• Batting Clearance: Pre-cut batting slightly larger than the placement outline (about 0.5" margin) to avoid bulk in the hoop edges.
• Fabric Pressing: Iron everything. Wrinkles in the appliqué fabric become permanent creases once satin stitches land.
• Thread Staging: Line up your cones (Sue uses SEWTECH style thread colors: black, red, and green).
• Tool Safety: Have your curved appliqué scissors (like Gunold or similar double-curved shears) within reach.

Warning: When you remove the hoop to trim appliqué later, keep your fingers clear of the needle bar area. Never "test spin" the handwheel with scissors or tools near the presser foot—one slip can bend a needle (cost: $1) or nick the rotary hook (cost: $200+ repair).

Lock the Foundation First: Stitching the Placement Line on Tearaway Stabilizer (and Why It Matters)

Sue starts by stitching a single run placement line directly onto the tearaway stabilizer. This line is your architectural blueprint.

Action Plan:

1. Hoop the foundation: Securely hoop only the tearaway stabilizer.
2. Load the design: Ensure the orientation matches your hoop.
3. Stitch Step 1: Run the placement line.

Sensory Check (The "Auditory" Test): Listen to your machine. At this stage, stitching on paper/stabilizer only, it should sound crisp and snappy. A dull "thud-thud-thud" indicates a dull needle or poor tension.

Checkpoint: The placement line must be clearly visible and continuous. If there are skipped stitches, re-thread your machine immediately. Do not proceed until this line is perfect—it guides every subsequent layer.

Build the “Sandwich” Without Bulk: Batting + Top Fabric Tack-Down That Doesn’t Shift

Now we add the body. After the placement line is stitched, lay the batting down, followed by the top fabric.

Action Plan:

1. Spray & Place: Lightly mist the back of your batting with temporary adhesive spray (spraying away from the machine). Place it inside the stitch line.
2. Float the Top: Smooth the "Introduction Fabric" (the red textured fabric) over the batting.
3. Tack-Down: Run the tack-down stitch (usually a long running stitch).

The Physics of "Drumming": Pro tip: Novices often pull the top fabric tight like a drum skin. Don't do this. If you stretch the fabric now, it will snap back (retract) when you unhoop, causing the mug rug to curl like a potato chip. Aim for "neutral tension"—flat, smooth, and supported, but not stretched.

Checkpoint: Run your hand over the fabric. It should feel flat with no bubbles. Ensure the batting isn't peeking out beyond the future satin border area.

Add the “Fanciness” Cleanly: Motif Run Frames and Leaf Embellishments Without Thread Drama

Sue adds a decorative motif run frame and leaf embellishments. This is high-stitch-count territory.

Action Plan:

1. Reduce Speed: Drop your machine speed to 600 SPM (Stitches Per Minute). Detailed motifs often suffer at high speeds.
2. Stitch the Frame: Execute the motif run.
3. Color Change: Swap to green thread for the leaves.

Troubleshooting "Flagging": Watch the fabric as the needle lifts. If the fabric bounces up and down with the needle (Flagging), your stabilizer is too loose or the hoop isn't gripping. This destroys registration.

Checkpoint: Look at the corners of the motif. Are they crisp? If they look rounded or sloppy, your thread tension is likely too loose (top thread looping).

Commercial Insight: If you plan to make 50 of these for a craft fair, stopping to change from red to green thread every 4 minutes kills your profit. This is the exact scenario where a multi-needle machine becomes an investment in time; allowing you to set the colors once and walk away.

Nail the Appliqué Placement Line: Floating the Center Fabric So It Stays Flat

The machine now stitches the outline for the center appliqué (the monogram background). Sue floats a contrasting fabric (red snowflakes) face up.

Action Plan:

1. Stitch Placement: Run the outline.
2. Float Appliqué: Place the fabric face up, covering the outline completely by at least 0.5 inches on all sides.
3. Secure: Sue floats it, but I highly recommend a shot of spray adhesive or two strips of paper tape at the edges (outside the stitch zone) to prevent the presser foot from snagging the raw edge.
4. Tack-Down: Run the stitch sequence.

Why "Float"? Sue didn't use adhesive, which works for experienced hands. However, floating relies on gravity and friction. If you're learning hooping for embroidery machine protocols, understand that "floating" is faster but riskier than hooping. If the fabric ripples here, the monogram will look distorted later.

The Make-or-Break Moment: Trimming Raw-Edge Appliqué with Gunold Scissors (Curves, Corners, and “Extra Stitches”)

This is the step that scares people. Sue removes the hoop from the machine to trim.

Crucial Rule: DO NOT UNHOOP. Leave the project in the hoop; just remove the hoop mechanism from the machine arm.

Action Plan:

1. Table It: Place the hoop on a flat, hard surface. Do not trim on your lap (stability issue).
2. Lift & Snip: Gently lift the raw edge of the appliqué fabric. Slide the curved blade of your Gunold scissors flat against the stabilizer.
3. The Cut: Trim as close to the stitch line as possible (1-2mm) without cutting the thread.

The "Extra Stitch" Anomaly: Sue notes an "extra stitch" or jump stitch (a digitizing artifact). This is common. simply snip it.

Checkpoint: Your cut needs to be clean. "Whiskers" or long threads left behind will poke through the satin stitch later, looking unprofessional.

Expected Outcome: A clean geometric shape with a tiny margin of fabric remaining.

Make Satin Stitches Forgiving: Underlay + Wider Coverage to Hide Appliqué “Boo-Boos”

Satin stitches are the "eraser" of embroidery—they hide the raw edges. Sue’s design uses a zig-zag underlay followed by a dense satin top stitch.

Action Plan:

1. Verify Bobbin: Check your bobbin level. Running out of bobbin thread in the middle of a satin column is a nightmare to fix invisibly.
2. Stitch: Run the zig-zag hold-down, then the satin border.
3. Detail: Switch to green for the internal decorative line.

Density Physics: Standard satin density is around 0.4mm. For ITH appliqué, a slightly denser setting (0.35mm) or a slightly wider column (3.5mm - 4.0mm) provides better coverage for raw edges.

Checkpoint: Look closely at the satin stitch. You should not see any raw fabric peeking out ("busting out"). If you do, your trimming wasn't close enough, or the column is too narrow.

If you are fighting with a traditional hoop that leaves marks ("Hoop Burn") on delicate fabrics, this is where tool selection matters. A magnetic embroidery hoop clamps the fabric without the friction-twist motion of standard hoops, eliminating hoop burn and keeping layers from creeping during these intense satin stitch phases.

Monogram Like a Human, Not a Rulebook: Stitching Initials That Actually Look Good

Sue stitches "SBS." Monogramming is personal.

Action Plan:

1. Center: Ensure your machine is centered on the appliqué field.
2. Stitch: Run the font.

Typography Tip: If your letters look "squished" into the fabric, you need a water-soluble topping (like Solvy) on top of the monogram area to keep the stitches sitting high and proud on the textured fabric.

The No-Sew Finish That Feels Like Magic: Taping Backing Fabric to the Hoop (Without Jams)

Now, the magic trick. We attach the backing fabric to hide the back of the embroidery stitches.

Action Plan:

1. Flip: Turn the hoop upside down.
2. Position: Place the backing fabric Face Down (Right Side against the stabilizer).
3. Secure: This is critical. You must tape all four corners and the mid-points securely to the stabilizer/hoop frame.

The Risk: Gravity wants to pull this fabric down into the feed dogs or the machine bed. Friction wants to drag it. Tape is your only defense here unless you have specialized tools.

A Note on Magnets: If you are running a Brother machine and want faster, safer backing control than tape, using magnetic embroidery hoops for brother allows you to snap the backing into place. The magnets hold the floating backing layer firm against the hoop frame, significantly reducing the "saggy bottom" effect that causes puckering.

Warning: Magnetic Safety. Keep high-strength embroidery magnets away from pacemakers, ICDs, and implanted medical devices. Be cautious with fingers—these industrial magnets can pinch skin painfully. Keep them away from credit cards and phones.

Setup Checklist (Right Before the Final Backing Stitch)

• Hoop Integrity: Is the hoop still tight? (You never unhooped, right?)
• Tape Security: Is the tape outside the stitch path? (Stitching through tape gums up needles).
• Clearance: Check under the hoop. Is the backing fabric taut? Is there any slack that could fold over?
• Speed: Reduce speed to 500 SPM to punch through the 4+ layers (Stabilizer + Batting + Top + Appliqué + Backing).


Clean Removal Without Heartbreak: Tearing Stabilizer, Trimming the Perimeter, and Turning Crisp Corners

The stitching is done. Now we reveal the product.

Action Plan:

1. Unhoop: Remove the project from the hoop.
2. Tear: Remove the tearaway stabilizer. Support the stitches with your thumb while tearing to prevent distorting the satin border.
3. Trim: Cut around the entire mug rug, leaving a 1/4 inch seam allowance.
4. Clip Corners: Snip the corners at a 45-degree angle (don't cut the stitch!) to reduce bulk.
5. Turn: Turn inside out through the envelope gap.
6. Poke: Use a chopstick or point turner to push corners out.
7. Press: Iron firmly (steam is okay) to set the shape.

Checkpoint: The mug rug should lay flat on the table. If it curls up, either the tension was too high during stitching, or the batting was stretched.

Decision Tree: Pick the Right Backing + Stabilizer Combo Before You Waste a Stitch-Out

Use this logic flow to avoid the shifting issues implied in Sue's video.

Q1: What is your Backing Fabric?

• Option A: Quilting Cotton (Stable/Woven)
  • Risk: Low.
  • Solution: Medium Tearaway stabilizer. Tape corners lightly.
  • Best For: Beginners and crisp edges.
• Option B: Silky, Minky, or Stretchy (Unstable)
  • Risk: High. Fabric will "crawl" under the foot.
  • Solution: Use Cutaway stabilizer for the base. Use fusible web (HeatnBond) on the backing fabric to stabilize it before tape-floating.
  • Best For: Luxe feel, but requires experience.
• Option C: High Volume Production (Batching 20+ units)
  • Risk: Fatigue errors.
  • Solution: Use pre-wound bobbins and magnetic hoops to speed up the "hoop-float-turn" cycle.

If you are building a small shop workflow, a hooping station for embroidery is a valuable addition to ensure your placement lines land in the exact same spot on every single item, reducing the mental load of alignment.

Troubleshooting the Two Most Common “Scary Moments”: Extra Stitches and Backing Fabric That Misbehaves

The Upgrade Path That Actually Makes Sense: When Tape Is Fine—and When It’s Time for Magnetic Hoops or a Multi-Needle Machine

Tape works. Sue proves it. But if you are making sets for sale, "it works" isn't the same as "it's profitable." Here is how to judge when to upgrade your toolkit.

Scenario A: You get "Hoop Burn" or struggle with joint pain

The Pain: Tightening screws and forcing rings together hurts your wrists and marks the velvet/fabric. The Solution: A generic or brand-specific magnetic hoop. For example, many users search specifically for a brother 5x7 magnetic hoop to fit their mid-range machines. The magnets snap closed, saving your wrists and the fabric nap.

Scenario B: You spend more time changing thread than stitching

The Pain: This mug rug has 4-5 color stops. On a single needle, that’s 4-5 manual interventions per rug. 20 rugs = 100 thread changes. The Solution: SEWTECH Multi-Needle Machines. These machines hold 10-20 colors at once. You press strict start, and the machine handles the swaps automatically.

Scenario C: Your floating layers keep shifting 1-2mm

The Pain: Rejects pile up because the border doesn't cover the raw edge. The Solution: hoop master embroidery hooping station systems. These fixtures hold the hoop and stabilizer perfectly rigid while you align fabrics, ensuring consistent placement every single time.

Final Operation Checklist (The "Quality Control" Pass)

1. Satin Integrity: Is the raw edge fully covered?
2. Backing Catch: Run your finger along the back seam. Is it sealed shut?
3. Tape Gone: Ensure no tape remains inside the sew line (it gets crunchy).
4. Pressing: A final press with starch makes the difference between "homemade" and "hand-crafted."

If you stitch this once and master the layering, you’ll likely stitch a dozen. Mug rugs are the perfect gateway drug to ITH mastery—fast, functional, and deeply satisfying when the physics works in your favor.

FAQ

• Q: How do I hoop tearaway stabilizer correctly for an In-The-Hoop (ITH) mug rug on a Brother Dream Machine to prevent registration errors?
  A: Hoop only the medium-weight tearaway stabilizer drum-tight before stitching anything, because the stabilizer is the foundation that controls layer movement.
  • Cut stabilizer at least 2 inches larger than the hoop and clamp it evenly on all sides.
  • Tap the hooped stabilizer and re-tighten until it feels firm and evenly tensioned.
  • Stitch the placement line first and stop immediately if the line is broken or skipping.
  • Success check: the stabilizer “sounds like a drum” when tapped and the placement line is continuous and clearly visible.
  • If it still fails, re-thread the machine and change to a fresh 75/11 needle before re-running Step 1.
• Q: What does the “auditory test” sound like when stitching the placement line on tearaway stabilizer with a Brother Dream Machine?
  A: The placement-line run on stabilizer should sound crisp and snappy; a dull “thud-thud” often indicates a needle or setup issue.
  • Start with stabilizer-only stitching (no fabric) and listen closely during the first seconds.
  • Replace a dull needle if the sound is heavy or the stabilizer looks punched instead of cleanly pierced.
  • Re-thread the top path completely if you see any skipped stitches on the placement line.
  • Success check: the machine sound is sharp/consistent and the placement line has no gaps.
  • If it still fails, pause and verify top thread path and bobbin seating per the machine manual.
• Q: How do I keep batting and top fabric from shifting or curling (“potato chip” mug rug) during an ITH mug rug stitch-out on a Brother Dream Machine?
  A: Use light adhesion and keep the top fabric in neutral tension—flat and supported, not stretched—so it won’t retract after unhooping.
  • Lightly spray the back of the batting with temporary adhesive away from the machine, then place it inside the placement line.
  • Smooth the top fabric over the batting without pulling it tight like a drum skin.
  • Run the tack-down stitch and stop if you see bubbles forming or batting drifting into the border area.
  • Success check: the surface feels flat under your hand with no ripples, and batting is not peeking into the future satin border zone.
  • If it still fails, reduce handling between steps and re-check hoop tightness; loose stabilizer often causes layer creep.
• Q: How do I trim raw-edge appliqué safely on an ITH mug rug without losing alignment on a Brother Dream Machine hoop?
  A: Remove the hoop from the machine arm for trimming, but do not unhoop the project—keeping the fabric clamped preserves registration.
  • Place the hooped project on a flat, hard table (not on your lap) before trimming.
  • Use double-curved appliqué scissors and slide the lower blade flat against the stabilizer while trimming 1–2 mm from the stitch line.
  • Snip any small “extra stitch” or jump stitch carefully instead of pulling it.
  • Success check: the appliqué edge is clean with no long “whiskers” that could poke through the satin later.
  • If it still fails, slow down and trim in short bites; if you accidentally cut stitches, it’s usually faster to restart that piece than to chase coverage later.
• Q: What should I do if the ITH mug rug backing fabric folds under the needle during the final “no-sew” backing stitch on a Brother Dream Machine?
  A: Stop immediately and re-secure the backing fabric, because a fold will get stitched permanently and can jam the stitch path.
  • Flip the hoop, place backing fabric face down (right side against the stabilizer), and tape all four corners plus mid-points securely.
  • Confirm tape sits outside the stitch path so the needle will not sew through adhesive.
  • Reduce speed (a slower setting is safer through 4+ layers) and check clearance under the hoop before restarting.
  • Success check: when you look under the hoop, the backing is taut with no sagging that could flip into the stitching area.
  • If it still fails, use wider painter’s tape for more grip or consider a magnetic hoop to clamp the perimeter instead of relying on tape tension.
• Q: What is the safest way to handle scissors and the needle area when trimming an ITH appliqué mug rug on a Brother Dream Machine?
  A: Keep hands and tools clear of the needle bar area and never turn the handwheel with scissors near the presser foot to avoid bent needles or hook damage.
  • Power down or keep the machine stopped while your hands are inside the needle area.
  • Move the hoop to a table for trimming rather than trimming at the machine throat space.
  • Store scissors away from the needle path before resuming stitching.
  • Success check: the hoop goes back onto the machine arm without any tool interference and the needle area is completely clear before pressing Start.
  • If it still fails, inspect the needle for bending and listen for unusual sounds that may indicate a needle strike.
• Q: When should an ITH mug rug workflow move from tape-floating to a magnetic embroidery hoop or to a multi-needle machine for production efficiency?
  A: Upgrade when the problem is repeatable and measurable—hoop burn or wrist pain (tool issue), frequent layer shifting (holding issue), or too many manual color changes (time issue).
  • Level 1 (technique): slow down detailed steps (e.g., motifs), tape backing securely, and verify bobbin level before satin borders.
  • Level 2 (tool): switch to a magnetic embroidery hoop if hoop burn, fabric marking, or backing control failures keep happening.
  • Level 3 (capacity): move to a multi-needle machine if thread changes dominate the workflow and you are batching dozens of mug rugs.
  • Success check: rejects drop (better coverage/less shifting) and total time per mug rug becomes consistent from the first unit to the last.
  • If it still fails, standardize materials (stable woven backing + appropriate stabilizer) and add a hooping station to reduce alignment variability.
