From Image to Appliqué Letter B in Brother PE-Design: Clean Holes, Smooth Nodes, and a File That Actually Sews

Mastering the "Hole" Truth in Brother PE-Design: A Digitizer’s Guide to Perfect Appliqué

If you’ve ever traced a letter like B, thought you defined a perfect "hole," and then watched your software quietly fill it back into a solid block—take a deep breath. You aren't failing; you are simply bumping into the logic of how Brother PE-Design handles positive versus negative space.

In this masterclass, we will digitize an appliqué letter B from a background image. We will move beyond simple tracing to understanding the physics of the stitch, using the Modify Overlap → Set Hole Sewing command to punch true negative space. We will also bridge the gap between digital clicks and physical stitching, ensuring your machine doesn't eat your fabric.

The Calm-Down Moment: Why "Holes" Fight You

When digitizing letters with counters (the enclosed spaces in B, A, O, P, R), beginners often think visually: "I drew a circle inside, so it should be empty." The software thinks mathematically: "You drew a shape on top of another shape. I will stitch both unless told otherwise."

In the accompanying workflow, Terry demonstrates the reliable "Anchor Method": trace the outer hull, trace the inner voids, and then distinctively command the software to calculate the difference.

A viewer recently asked: “Can we just delete the inner sequence instead of turning it off?” Do not do this. If you delete the region fill of the inner shape, you destroy the boundary that defines the hole. The software loses the reference coordinates, and the "hole" refills with stitches. You must set the region to No Sew or use the Hole Sewing command, keeping the geometry alive but the stitches silent.

Phase 1: The "Hidden" Prep (The Foundation)

Terry begins by clearing the screen and importing a background image. Most beginners rush this.

Expert Insight: Your background image is a template, not a law. If you download a low-resolution image, do not trace the pixelation. Trace the intent of the line.

Hidden Consumables: Before you start, ensure you have:

• A decent mouse (trackpads cause fatigue and "node jitter").
• Screen wipes (tracing dust specks is a common rookie mistake).

You must also decide your Accuracy Tolerance:

• Personal Monogram: "Close enough" acts better on fabric because it flows.
• Client Logo: Must match brand guidelines exactly.


Prep Checklist: The "Pre-Flight" Safety Protocol

• Rights Check: Confirm the background image is cleared for commercial use if selling.
• Image Import: Use Image tab → Open → From File.
• Scale Check: Resize the image now. Resizing a finished stitch file changes density and can cause thread breakage later.
• Node Strategy: Plan to place nodes on "High Ground" (corners and peaks of curves), not in the valleys.
• Visual Check: Ensure your screen grid matches your physical hoop size choice.


Phase 2: Tracing the Outer Hull (The Z/X Rhythm)

Terry selects the Shapes tab and utilizes the two most powerful tools in a digitizer's arsenal:

• Closed Straight Line (Shortcut: Z)
• Closed Curve (Shortcut: X)

She alternates between them: clicking straight points for the spine of the 'B' and curve points for the loops.

The Sensory Anchor: When placing nodes, listen to the rhythm. Click (straight), Click (straight), Click-Click (curve). If you are clicking frantically like a machine gun, you are Over-Nodeing.

• Too many nodes = Jagged edges in the software = Machine vibration and loud "thumping" sounds during stitch-out.
• Fewer nodes = Smooth arcs = Quiet, fluid machine movement.

Physical Reality Check: If you look at your screen and the line looks perfect, but your physical stitch-out is wavy, the issue is rarely the nodes—it is your stabilization. This is where hooping for embroidery machine becomes critical. If your fabric isn't drum-tight (but not stretched), the clean lines you digitized will distort as the needle pushes the fabric.

Phase 3: Sculpting with Reshape Nodes

Once the shape is closed (double-click), Terry switches to Reshape Nodes. This is the distinction between an amateur and a pro: Trace rough, Sculpt smooth.

Expert Parameter: When zooming in, look for the "handle bars" on your curved nodes.

• Keep handles balanced.
• Avoid crossing handles (this creates a "fishtail" loop that will break needles).


Phase 4: The Visibility Trick & Inner Counters

Triggers "blindness": Once the outer B is filled, it covers your background image. You cannot guess where the holes go. Terry toggles the "Eye" icon in the sewing order panel to hide the outer fill, revealing the template again.

She then traces the inner loops using the same Z/X technique.

Phase 5: Straightening the Lines (The Professional Polish)

Terry demonstrates a detail that separates "homemade" from "shop quality." The top of the inner 'B' hole should be perfectly flat. She drags a horizontal guideline from the ruler and snaps the nodes to it.

Why this matters: The human eye is incredibly sensitive to horizontal and vertical deviation. A curve that is supposed to be flat looks like a mistake. A curve that is meant to be a curve looks intentional.

Phase 6: The "Hole Sewing" Command (The Boolean Operation)

This is the moment of truth.

1. Unhide the outer shape (Eye icon).
2. Select All (The Outer B + The Two Inner Shapes).
3. Navigate to Modify Overlap → Set Hole Sewing.

The Logic: This command tells PE-Design: "The inner shapes are Negative Space." The stitch count in those areas drops to zero.

Troubleshooting the "Non-Hole": If you click this and nothing happens, your shapes likely do not overlap completely, or you have not selected all layers.

Warning: Needle Safety
When testing appliqué files, keep hands clear of the needle bar. If you failed to create the hole correctly and the machine attempts to stitch a triple-layer satin column (Double Density), the needle can deflect and shatter. Always wear eye protection when testing new files.

Phase 7: Appliqué Wizard (The Transformation)

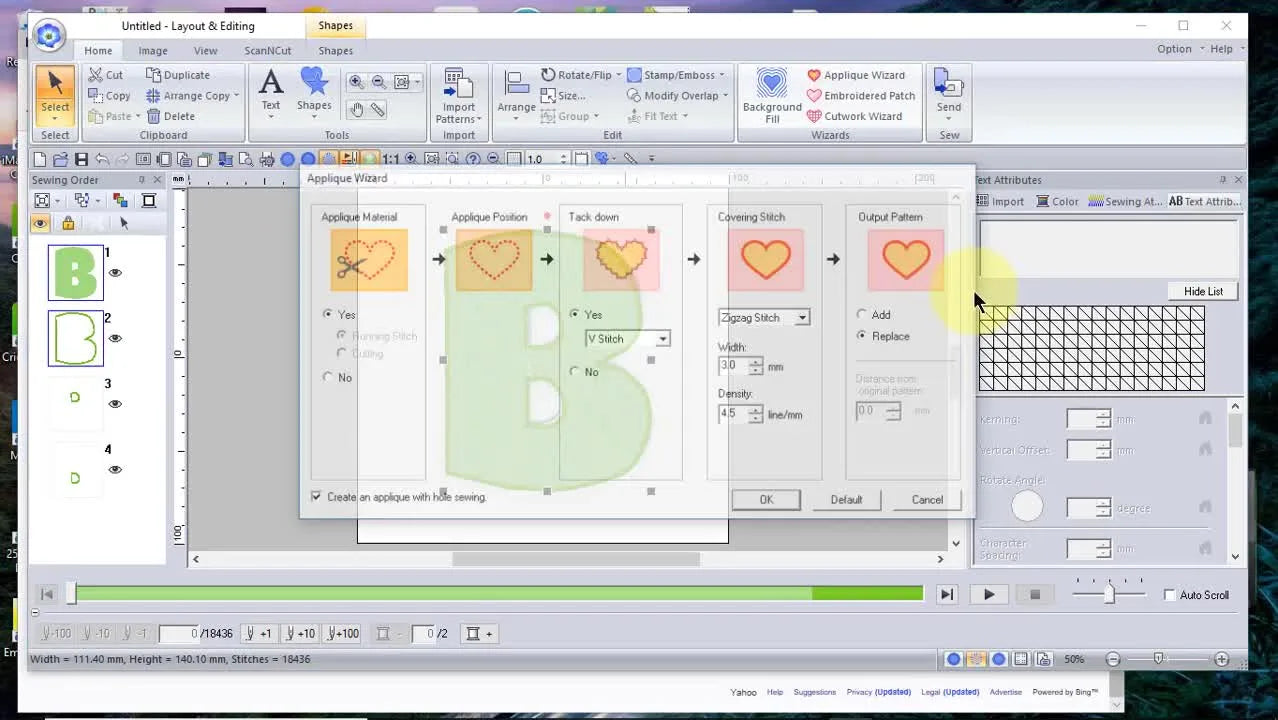

With the hole defined, Terry clicks the Applique Wizard. She selects:

• Applique Material (Placement Line)
• Tack Stitch (Zig-zag or Running stitch to hold fabric)
• Covering Stitch (The final Satin finish)
• Replace = Yes

Empirical Data (The Sweet Spot): The default settings are often too narrow for fluffy fabrics like hoodies.

• Width: Increase to 3.5mm - 4.0mm for cotton; 4.5mm+ for fleece/towels.
• Density: Aim for 4.5 lines/mm (or 0.45mm spacing). Too dense (0.3mm) cuts the fabric; too loose (0.6mm) shows raw edges.

Using the wizard correctly implies you are laying down extra fabric. This introduces the risk of the applique patch shifting. Professionals often search for how to use magnetic embroidery hoop techniques here, because magnetic frames allow you to adjust the fabric patch without un-hooping the main garment, preventing the dreaded "misaligned border."

Phase 8: Workspace Hygiene

Terry deletes the background image via Modify Image → Delete. Always do this. Sending a file to a machine with stray vector data or image data can sometimes confuse older machine processors or simply bloat the file size.

The Physical Bridge: Fabric, Stabilizer, and Hooping Logic

You have a perfect file. Now you need to stitch it. 80% of "digitizing errors" are actually "hooping errors."

Decision Tree: Fabric & Stabilizer Selection

1. Is your Base Fabric Stretchy (T-Shirt, Performance Wear)?
   • YES: Cutaway Stabilizer (2.5oz+) + spray adhesive. Why? Tearaway will result in gap-toothed satin stitches.
   • NO: Proceed to step 2.
2. Is the Fabric Textured (Pique Polo, Towel, Fleece)?
   • YES: Use Water Soluble Topper (Solvy) + Cutaway/Tearaway backing. The topper prevents the satin stitch from sinking into the pile.
   • NO: Proceed to step 3.
3. Are you using a Standard Hoop or Magnetic Hoop?
   • Standard: Watch for "Hoop Burn" (shiny ring marks). loosen the screw slightly.
   • Magnetic: verify magnets are snapped flat to ensure even tension.

Hidden Consumables for Appliqué:

• Duckbill Scissors: Essential for trimming the applique fabric close to the tack stitch without cutting the base garment.
• Temporary Spray Adhesive (e.g., KK100): Holds the applique fabric flat before the tack stitch.

If you are struggling with placement—for example, centering this 'B' on a pocket—a hooping station for machine embroidery is the tool that ensures your physical placement matches your digital screen layout.

Troubleshooting: Why Good Files Fail

Even with the "Set Hole Sewing" command, things go wrong.

The Software-Hardware Connection

We discussed digitizing, but we must acknowledge hardware. The "B" design requires the machine to jump from the outer ring to the inner holes.

• Single-Needle Machines: You manually trim jump stitches.
• Multi-Needle Machines: Automatically trim jumps, saving hours on bulk orders.

If you find yourself spending more time fighting the hoop than designing the file, consider your tooling. Are you using a generic hoop that slips? Many users upgrading to a brother pe800 magnetic hoop report immediate improvements in outline alignment simply because the fabric doesn't "flag" (bounce) during the stitch cycle.

Upgrade Path: Moving from Hobby to Production

When your digitizing is perfect but your profitability is low, the bottleneck is usually Turnaround Time.

1. Level 1 (Technique): Master the "Anchor Point" digitizing shown here to reduce machine travel time.
2. Level 2 (Tooling): Implement Magnetic Hoops. They reduce "hoop burn" and allow for faster re-hooping of difficult items like bags or thick jackets.
3. Level 3 (Machinery): If you are stitching 50+ of these 'B' logos a week, a SEWTECH Multi-Needle Machine allows you to stage the next garment while the first one stitches, doubling your output.

Warning: Magnetic Safety
Magnetic hoops use powerful Neodymium magnets.
* Pinch Hazard: They can snap together with enough force to bruise skin or break plastic.
* Medical Risk: Keep at least 6 inches away from pacemakers and ICDs.
* Electronics: Do not place directly on top of laptops or tablets.

Operation Checklist: The Final Countdown

• Node Integrity: Outer shape is closed; inner shapes are closed.
• Overlap Check: Inner shapes are physically inside the outer shape.
• Function Check: Modify Overlap → Set Hole Sewing is active (you can see the background through the hole).
• Wizard Parameters: Satin Width targets 3.5mm+; Density targets 0.45mm.
• Clean Up: Background image deleted.
• Test Run: Stitch on scrap fabric similar to your final garment before risking the real item.

Digitizing negative space is not just about drawing holes; it is about telling the machine where not to sew. Master this command in PE-Design, stabilize your fabric correctly, and your appliqué will look professional, crisp, and intentional.

FAQ

• Q: In Brother PE-Design, why does the inner “hole” of a letter B still stitch after tracing an inner shape?
  A: This is common—Brother PE-Design will stitch both shapes unless the inner shapes are explicitly set as negative space.
  • Re-select the outer B shape and all inner counter shapes together.
  • Run Modify Overlap → Set Hole Sewing (do not delete the inner region objects).
  • Use the sewing order Eye icon to hide/show layers while confirming the inner shapes sit fully inside the outer shape.
  • Success check: the stitch preview shows zero fill stitches inside the counters (you can “see through” the hole area).
  • If it still fails… verify every shape is a closed object and the inner shapes truly overlap inside the outer boundary before applying Hole Sewing again.
• Q: In Brother PE-Design, can the inner sequence of a letter B be deleted to create a hole for appliqué?
  A: No—do not delete the inner region fill because it removes the geometry reference that defines the hole.
  • Keep the inner shapes as objects and set them to No Sew or use Modify Overlap → Set Hole Sewing.
  • Toggle the Eye icon to confirm the inner outlines remain present even when stitches are suppressed.
  • Success check: the “hole” stays open in the preview after re-ordering or re-opening the file (it does not refill).
  • If it still fails… rebuild the inner shapes as closed outlines and repeat Hole Sewing with all layers selected.
• Q: In Brother PE-Design appliqué wizard settings, what satin width and density are a safe starting point to stop raw edges from showing?
  A: Start by widening the satin and avoiding overly loose spacing so the border can cover the fabric edge.
  • Set satin Width to 3.5–4.0 mm for cotton, and 4.5 mm+ for fleece/towels.
  • Target Density: 4.5 lines/mm (0.45 mm spacing); avoid going too dense (about 0.3 mm) because it can cut fabric.
  • Stabilize and secure the appliqué piece (spray adhesive helps) before the tack stitch runs.
  • Success check: after stitching, the satin fully covers the raw edge with no fabric fringe peeking out.
  • If it still fails… treat it as fabric shift: improve holding (adhesive and better clamping/hooping) rather than only increasing density.
• Q: During Brother PE-Design digitizing, how can over-noding cause loud “thumping” and needle stress on a satin border?
  A: Too many nodes often create jagged paths, which makes the machine jerk and hit corners hard.
  • Simplify the outline by reducing unnecessary nodes, especially along curves.
  • In Reshape Nodes, balance curve handles and avoid crossed handles that create fishtail loops.
  • Re-test the satin border after smoothing the path.
  • Success check: the stitch-out runs with smoother motion and noticeably less vibration/noise on curves.
  • If it still fails… inspect for any remaining handle crossings and confirm the outline is truly smooth at normal viewing zoom.
• Q: When stitching Brother PE-Design appliqué files, what stabilizer setup prevents wavy outlines on stretchy shirts versus textured fleece or towels?
  A: Match stabilizer to fabric type—most “digitizing problems” here are actually stabilization problems.
  • For stretchy T-shirts/performance wear: use 2.5 oz+ cutaway stabilizer plus spray adhesive (tearing away can lead to gappy satin).
  • For textured fabrics (pique, towel, fleece): add a water-soluble topper plus cutaway/tearaway backing to prevent stitches sinking.
  • Hoop firmly “drum-tight but not stretched” to prevent distortion.
  • Success check: the stitched outline matches the on-screen shape without rippling or sinking into pile.
  • If it still fails… reassess hoop tension and fabric flagging during stitching before editing nodes again.
• Q: What needle safety steps should be followed when test-stitching a Brother PE-Design appliqué border that might become double-density?
  A: Treat every first test as a potential needle-deflection event and keep hands and eyes protected.
  • Keep hands clear of the needle bar during test runs, especially on satin columns.
  • Wear eye protection when testing new files.
  • Stop immediately if the design starts stacking stitches where a hole should be (sign of failed Hole Sewing).
  • Success check: the machine runs the border without needle strike sounds, deflection, or sudden thread/needle failure.
  • If it still fails… return to the file and confirm Hole Sewing is applied correctly and density is not excessively tight for the fabric.
• Q: What magnetic hoop safety rules apply when using neodymium magnetic embroidery hoops for appliqué positioning?
  A: Magnetic hoops are powerful—use controlled handling and respect medical/electronics risks.
  • Separate and close magnets slowly to avoid pinch injuries and cracked components.
  • Keep magnetic hoops at least 6 inches away from pacemakers/ICDs.
  • Do not place magnets directly on laptops or tablets.
  • Success check: magnets sit snapped flat and even, with stable fabric tension and no sudden “slam” closures during handling.
  • If it still fails… re-seat the magnets so they clamp evenly; uneven seating can cause inconsistent tension and fabric shift.
• Q: If appliqué borders keep misaligning from fabric shift on hoodies and thick garments, what is the best upgrade path: technique, magnetic hoop, or multi-needle machine?
  A: Start with technique, then improve clamping, then scale production—this is common and fixable step-by-step.
  • Level 1 (Technique): add spray adhesive to hold the appliqué patch and verify hooping is firm without stretching.
  • Level 2 (Tooling): switch to a magnetic hoop to clamp thick or awkward items more evenly and reduce re-hooping errors.
  • Level 3 (Production): move to a multi-needle machine if frequent color changes and jump trimming time are limiting output.
  • Success check: borders consistently land centered on the placement/tack line with fewer re-hoops and less manual correction.
  • If it still fails… treat it as a placement workflow issue: use more controlled alignment methods (for example, consistent layout/positioning aids) before changing digitizing settings again.
