From JPEG to Production-Ready Stitches in IDS: A ZSK Digitizer’s Workflow for Clean Wireframes, No Voids, and Zero “Blob” Embroidery

Title: The “One-Click” Trap: A Production Manual for Mastering IDS Auto-Digitizing Author: Chief Embroidery Education Officer Published Date: 2025-10-15 URL: https://www.sewtech.cn/blog/mastering-ids-auto-digitizing-zsk Text:

If you have ever stared at the "Go" button in your digitizing software with a mix of hope and dread, thinking, "I am one click away from either a miracle or a birdnest," you are not alone. Auto-digitizing is the industry's most seductive tool. It promises speed, but without the right "pilot," it delivers bulletproof vests when you wanted breathable t-shirts.

As someone who has spent two decades listening to the rhythm of embroidery machines—from single-needle home units to industrial multi-heads—I can tell you that embroidery is a physics problem, not just a graphic design task. Software sees pixels; machines feel tension, friction, and fabric stretch.

This guide rebuilds the workflow demonstrated in the ZSK Intelligent Digitizing System (IDS), but we are going to add the layer they usually leave out: The Production Reality. We will cover how to prevent the dreaded "registration drift," avoid the low-res "blob," and know exactly when to upgrade your tools to match your ambition.

The Mental Model: What IDS Is Actually Doing vs. What Your Machine Needs

IDS is designed to ingest flat images—scans, JPEGs, vectors—and interpret them into stitch data. It offers fully automatic, semi-automatic, and manual punch workflows. For valid reasons, beginners love the automatic route.

However, to move from "hobbyist" to "professional," you must shift your mindset:

1. Software is an Interpreter: It traces contrast boundaries. It does not know that jersey knit stretches 30% more than denim.
2. The Machine is a Stress Tester: Every needle penetration pushes fabric. A design with 10,000 stitches distorts the fabric 10,000 times.
3. Your Job is Control: You must intervene to tell the software how to compensate for that physical stress.

If you are operating heavy-duty equipment—perhaps you are researching an embroidery machine zsk or upgrading to a SEWTECH multi-needle workhorse—this mental model is the difference between a profitable run and a bin full of ruined garments.

The "Import + Resize" Habit: Solving Density Issues Before They Start

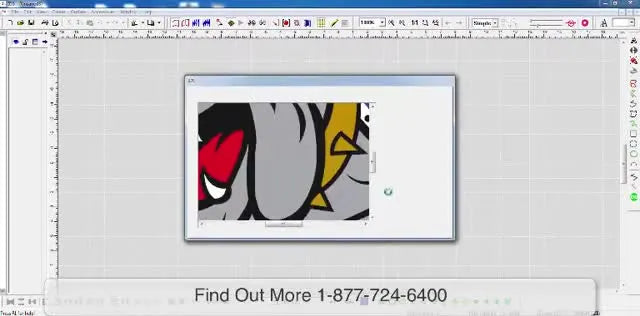

The video workflow begins simply:

1. Select image.
2. Confirm import.
3. The Resize Box appears.

Experience Warning: Do not glaze over this step. Resizing a vector is safe; resizing a stitch file later is dangerous.

If you digitize a logo at 10cm wide and later shrink it to 5cm on the machine, your density doubles. The result? Bulletproof embroidery. The fabric will pucker, the needle will heat up, and your thread will shred.

The Golden Rule: Resize during import to the exact dimensions of your hoop.

• Visual Check: Zoom out to 100%. Does it look legible?
• Physical Check: Grab a ruler. Is that 3mm text actually stitchable? (Standard minimum for clear text is usually 4-5mm).




Prep Checklist: The "Pre-Flight" Safety Protocol

Before you import a single pixel, ensure you have these physical assets ready.

• Source Art Audit: Is the image at least 300 DPI? (If you zoom in and see stairs/pixels, the software will stitch those stairs).
• Measurement Check: Measure the actual available space on the garment (e.g., Left Chest usually maxes at 3.5" - 4.0" wide).
• Consumable Check: Do you have a fresh needle (75/11 is the sweet spot for general work)?
• Hidden Consumable: Have temporary adhesive spray (like 505) or a water-soluble topping ready for textured fabrics.
• Hoop Selection: Choose the smallest hoop that fits the design to maximize tension.

The "Go" Button: Speed vs. Physics

After import, the presenter hits Go. IDS calculates areas, assigns stitch angles, and generates pathing.

In a perfect world, you are done. In the real world, this is just the rough draft. Auto-digitizing tends to be "optimistic"—it assumes your fabric is as hard as wood.

The "Sinking" Feeling: If you run a raw auto-digitized file on a polo shirt without adjustment, you will likely see stitches sinking into the fabric or gaps appearing between colors. Why? Because the software didn't add Pull Compensation (making stitches slightly longer to account for thread tension pulling them tight).

• Adjustment: Locate the "Pull Comp" or "Compensation" setting.
• Beginner Sweet Spot: Set absolute compensation to 0.2mm - 0.4mm for standard knits. This slightly over-stitches the boundaries so when the thread tightens, it snaps perfectly into place.

The Worksheet: Note-Reading for Needlework

The presenter opens the Print Preview. Do not skip this. This is your sheet music.

Look at the Stitch Count.

• Rule of Thumb: A standard left chest logo is usually 4,000 – 7,000 stitches.
• Red Flag: If your 3-inch logo reads 15,000 stitches, the auto-digitizer has layered too much fill. This will cause "birdnesting" (a knot of thread under the throat plate) or cut a hole in your shirt.

Expert Tip: Check the color sequence. Auto-digitizers often jump irrationally (Blue -> Red -> Blue). Reorder them to minimize color changes. On a single-needle machine, this saves you 10 minutes of re-threading. On a multi-needle SEWTECH, it saves trims and production time.

Wireframe Cleanup: Managing the "Swiss Cheese" Effect

The video demonstrates turning off the background image to reveal the Wireframe. This is the skeleton of your design.

The presenter deletes tiny "white slivers"—artifacts from the image background.

Here is the danger zone. When you delete a background object, you often leave a Hole.

• The Risk: If you have a black circle with a white center, and you delete the white center, you have a donut.
• The Physics: As the machine stitches the outer ring of the donut, the fabric in the center is pushed around unanchored. When the machine tries to fill the center later, the registration will be off—often by millimeters. You will see a gap of fabric smiling at you between the outline and the fill.

The Solution: You need "Trapping" or overlaps. You want shapes to slightly overlap so no fabric shows through.

Closing the Gaps: Fill Voids + Adjust with Arc

The presenter uses Fill Voids and Adjust with Arc to close open shapes.

Why this matters: An open shape (like a "C") is treated differently than a closed shape (like an "O") by the stitch engine. Closing shapes allows the software to calculate a proper Tatami or Satin fill.

Setup Checklist: The "Digital Hygiene" Audit

• Background Off: Hide the source image. Look ONLY at the wireframes.
• Speckle Removal: Delete any object smaller than 1mm (unless crucial). These become "thread knots" that break needles.
• Closure Check: Are your fills fully closed shapes? Use the "Close Shape" tool if in doubt.
• Overlap Strategy: If Shape A borders Shape B, ensure they overlap by at least 1-2mm to prevent gaps during stitching.

Advanced Textures: Verify Before You Verify

The video shows using Complex Fill settings to add texture (waffle/scroll patterns).

Textures look amazing on screen but add significant stress to the fabric.

• Sensory Check: Run your hand over a textured embroidery. It should feel flexible, not like a piece of plywood glued to the shirt.
• Safety limits: If adding texture, lower your density slightly. If the standard density is 0.40mm, open it up to 0.45mm or 0.50mm to make room for the pattern.

Stamp Patterns: The Premium Look (and Its Risks)

The presenter stamps a custom "M" motif inside a fill.

This is a premium technique, often used for security marking or aesthetic depth. However, this dramatically increases stitch count.

• The Hoop Burn Factor: High stitch counts require tight hooping. If you use traditional plastic hoops, you must crank that screw tight—often leaving permanent "hoop burn" rings on delicate fabrics.
• The Fix: This is a classic trigger point for upgrading to Magnetic Hoops. Whether for a home machine or a commercial SEWTECH, magnetic frames allow the fabric to slide slightly under extreme stress without crushing the fibers, often saving the garment.

The "Blob" Crisis: Handling Low-Res Art

We then see a pixelated, blurry logo. The auto-digitizer panics and creates a mess.

The Fix: Manually limit the colors and change the Graphic Type during import. This forces the software to make hard decisions about where an edge is, rather than guessing.

Pro Tip: If a customer sends you a 20KB JPEG from a website footer, charge a "Redraw Fee" or use this manual color limiting method. Do not trust the pure auto-mode on bad art.

Warning: Physical Safety
When testing files, keep hands clear of the moving pantograph. A needle moving at 800 stitches per minute (SPM) does not stop for fingers. If a needle breaks, fragments can fly. Always wear safety glasses when running new, untested dense designs.

Decision Tree: Fabric, Stabilizer, and Hooping Logic

Your file is ready. Now, how do you put it on the machine? Use this logic flow to ensure success.

1. Identify Fabric Elasticity

• Is it Woven (Denim/Canvas)? stable.
  • Stabilizer: Medium Tearaway (1.5oz - 2.0oz).
  • Hooping: Traditional or Magnetic.
• Is it Knit (Polo/T-shirt)? unstable/stretchy.
  • Stabilizer: Cutaway is mandatory (2.5oz). Tearaway will cause the design to distort over time.
  • Hooping: Magnetic hoops are superior here to prevent stretching the knit during the hooping process.

2. Identify Design Density

• Low Density (Outlines/Text):
  • Speed: High (800-1000 SPM on Pro machines, 600 on Home).
• High Density (Complex Fills/Stamps):
  • Speed: Slow Down. Drop to 600-700 SPM.
  • Auditory Check: Listen to the machine. A rhythmic "thump-thump" is good. A harsh "clack-clack" means speed is too high or tension is too tight.

Warning: Magnet Safety
If you upgrade to magnetic embroidery hoops, be aware they use industrial-strength Neodymium magnets. They can pinch fingers severely and should be kept away from pacemakers and sensitive electronics.

Troubleshooting: Symptoms & Cures

When things go wrong, novices blame the machine. Pros check the variables.

If you are searching for zsk embroidery machine troubleshooting or general fixes, start with the physical path (Thread -> Needle -> hoop) before changing software settings.

Scaling Up: When to Move Beyond the "Go" Button

Mastering IDS software is step one. But as your skills improve, you will hit physical bottlenecks.

• Pain Point: "I spend more time hooping than stitching."
  • Solution: This is where Magnetic Hoops transform your workflow. They allow you to hoop a garment in 5 seconds without adjusting screws, reducing wrist strain and hoop burn.
• Pain Point: "Changing thread colors takes forever."
  • Solution: If you are producing team uniforms or multicolor logos, a single-needle machine is costing you money. Moving to a SEWTECH multi-needle machine (which holds 10-15 colors simultaneously) allows the machine to run uninterrupted while you prep the next hoop.
• Pain Point: "My expensive German machine is sitting idle."
  • Solution: Even if using top-tier gear like zsk machines germany, efficiency comes from workflow. Pre-cut stabilizers, organized heavy-duty thread racks, and ergonomic hooping stations are the investments that double your output.

Operation Checklist: The "Green Light" Protocol

Do not press START until these are true.

• Print Preview Verified: Color order is logical.
• Bobbin Check: Is there enough bobbin thread for the whole design? (Visual: is the bobbin full?)
• Path Clear: Rotate the handwheel or use "Trace" function to ensure the needle won't hit the hoop frame.
• Speed Set: Speed reduced to 600 SPM for the first test run.
• Observation: Watch the first 100 stitches. If the "tail" doesn't catch, or the sound is wrong, HIT STOP immediately.






FAQ

• Q: In ZSK Intelligent Digitizing System (IDS) auto-digitizing, how do I prevent “bulletproof” embroidery when resizing a logo for a left-chest hoop?
  A: Resize to the final hoop size during IDS import and avoid shrinking a finished stitch file later.
  • Set the exact target width/height in the IDS Resize Box at import.
  • Measure the real garment area (typical left chest max is about 3.5"–4.0" wide) before committing.
  • Check tiny text size early; generally 4–5 mm is a safer starting point for readable stitched text.
  • Success check: The test stitch feels flexible (not stiff like armor) and the fabric edge does not pucker.
  • If it still fails: Reduce density/spacing in IDS before changing thread tension.
• Q: In ZSK IDS auto-digitizing on knit polos and T-shirts, what pull compensation setting helps stop gaps between outline and fill?
  A: Use pull compensation as a safe starting correction; 0.2–0.4 mm often closes gaps on standard knits.
  • Locate the IDS “Pull Comp/Compensation” setting and start around 0.2–0.4 mm for knits.
  • Add overlap (“trapping”) between bordering shapes by about 1–2 mm to prevent fabric showing through.
  • Use cutaway stabilizer (about 2.5 oz is a common baseline) on knits; tearaway can distort over time.
  • Success check: After stitching, the outline and fill meet cleanly with no fabric “smiling” between colors.
  • If it still fails: Improve hooping stability (magnetic hooping often helps) and slow the machine down on dense areas.
• Q: When ZSK IDS Print Preview shows 15,000 stitches for a 3-inch left-chest logo, how do I reduce birdnesting and puckering risk?
  A: Treat the stitch count as a red flag and simplify density/fill before sewing the first sample.
  • Open Print Preview and compare against a typical left-chest range (often 4,000–7,000 stitches).
  • Reduce layered fills or open density slightly in IDS (especially if textures/stamps were applied).
  • Reorder thread colors to avoid irrational jumps (e.g., Blue → Red → Blue) to reduce trims and handling.
  • Success check: The first test run sounds smooth and rhythmic (not harsh “clack-clack”) and the fabric stays flat.
  • If it still fails: Slow speed to roughly 600–700 SPM for dense designs and re-check stabilizer weight/layers.
• Q: On an embroidery machine, what is the fastest fix for birdnesting (thread clump under the fabric) when running an IDS auto-digitized file?
  A: Rethread the upper thread completely and make sure the presser foot is UP so the thread seats in the tension discs.
  • Raise the presser foot, then rethread from spool to needle in the correct path.
  • Verify the needle is fresh and appropriate (75/11 is a common general-use starting point).
  • Run a short test and watch the first 100 stitches closely.
  • Success check: No thread “rope” forms under the fabric and the stitch formation locks cleanly from the start.
  • If it still fails: Stop immediately and re-check bobbin installation and top tension (avoid compensating in software first).
• Q: On an embroidery machine, how do I fix white bobbin thread showing on top during a dense IDS auto-digitized design?
  A: Loosen the top tension first because white bobbin on top usually means top tension is too tight (or bobbin is too loose).
  • Turn the top tension dial down (lower number) in small steps and re-test.
  • Confirm the bobbin is correctly inserted and feeding smoothly before changing more settings.
  • Consider consistent consumables (high-quality pre-wound bobbins often reduce variability).
  • Success check: The top surface shows mostly top thread color, with no white bobbin “sparkles” along satin edges.
  • If it still fails: Inspect for threading mistakes (thread not in tension discs) and needle condition before adjusting digitizing.
• Q: What needle and “hidden consumables” should be prepared before running ZSK IDS auto-digitizing on textured fabrics like polos?
  A: Prepare the physical setup first: a fresh needle plus adhesion/topping tools prevents movement and sinking.
  • Install a fresh needle (75/11 is a common general baseline for many jobs; follow machine manual for exceptions).
  • Use temporary adhesive spray (e.g., 505) to stabilize tricky garments, and add water-soluble topping for textured knits.
  • Choose the smallest hoop that fits the design to maximize fabric tension and control.
  • Success check: The fabric stays flat in the hoop, stitches sit on the surface (not sinking), and the design stays registered.
  • If it still fails: Switch to cutaway stabilizer on knits and reduce speed for the first test run.
• Q: What safety rules should be followed when test-running a new dense IDS auto-digitized embroidery file at 600–800 SPM?
  A: Treat every first run as a hazard test: keep hands clear and wear safety glasses because needles can break and fragments can fly.
  • Keep hands away from the moving pantograph and never reach in while stitching.
  • Start slower for first tests (about 600 SPM is a safer starting point for dense designs) and watch the first 100 stitches.
  • Use trace/handwheel checks to confirm the needle will not strike the hoop frame.
  • Success check: The machine runs without abnormal impact sounds and no thread tailing or sudden deflection appears.
  • If it still fails: Hit STOP immediately, then diagnose thread path, needle, hoop clearance, and density before restarting.
• Q: What are the safety precautions for using neodymium magnetic embroidery hoops on home or multi-needle embroidery machines?
  A: Handle magnetic hoops like industrial tools: neodymium magnets can pinch fingers and must be kept away from pacemakers and sensitive electronics.
  • Keep fingers out of the closing zone and separate magnetic parts slowly and deliberately.
  • Store magnetic hoops away from electronics and keep them clearly labeled in the work area.
  • Brief operators on pinch risk before production runs, especially during fast hoop changes.
  • Success check: Hooping is fast and controlled with no fabric crushing and no near-miss pinches during frame closure.
  • If it still fails: Switch to a smaller hoop size for better control and review operator handling technique before scaling up.
