From JPEG to Quilt Block on the Brother Stellaire XJ1: The My Design Center Workflow That Actually Clicks

If you’ve ever bought a powerful embroidery machine like the Stellaire XJ1 and then felt stuck because the manual only gives you a few pages on the “good stuff,” you’re not alone. I’ve spent two decades in this industry, and I see it constantly: owners have a machine that can do incredible on-screen digitizing, but the sequence of buttons is what trips people up. Because embroidery is an experience-based science, missing one setting in that sequence doesn't just give you a bad design—it gives you a nest of thread and a ruined project.

Gary’s video proves a vital point: you can go from a simple line-art JPEG to a stitch-ready quilt block directly on the Brother Stellaire XJ1—no laptop, no expensive external software—fast. But let's be clear: speed isn’t the real win here. The real win is possessing a repeatable workflow you can execute slowly, confidently, and without the fear of ruining a quilt sandwich.

The “3-Minute Challenge” on the Brother Stellaire XJ1 (and why you should ignore the timer)

One viewer asked the perfect question: why rush? The timer is entertainment; your results come from accuracy and understanding the physics of how the machine lays thread. If you’re learning, pause the screen, replay steps, and take notes. In my workshops, I tell students: "Fast is slow, and smooth is fast." Rushing leads to wrong taps, and one wrong tap in My Design Center (MDC) sends you into a submenu that is hard to back out of without losing work.

Another common comment theme was, “I’ve had my Stellaire for months and still don’t feel confident in My Design Center.” That’s not a talent issue—it’s a cognitive workflow issue. Once you understand the machine's internal logic (import → clean crop → size → stitch type → boundary → background fill → convert), the fear disappears. It becomes as predictable as following a recipe.

The “Hidden” Prep Before My Design Center: set yourself up so the JPEG behaves

Gary starts with a printed image and the same artwork saved as a JPEG on a USB stick. That’s enough to follow the exact method shown. However, experienced operators know that success is determined before you touch the LCD screen. This is the "Pre-Flight" phase that saves you 80% of the frustration later.

Here is what you need to do to ensure the digital file behaves physically:

• Choose "Machine-Readable" Art: The scanner needs high contrast. Choose clean line art with minimal shading. My Design Center struggles with gradients; it likes crisp black-and-white edges.
• Pre-determine Target Stitch Size: In the video, the design is resized to about 150 mm. Knowing this number beforehand prevents you from guessing on the fly.
• Pre-determine Hoop Size: The background is built for a 240 x 240 mm hoop. This is crucial because your final stitch boundary relies on this physical limit.
• The Stylus is Non-Negotiable: While finger taps work, fingers contain oil and lack precision. Using a stylus reduces "fat finger" errors when you are trying to select a specific 2mm line segment.

If you’re planning to stitch this as a quilt block, your hooping matters as much as your digitizing. For quilt sandwiches (Top + Batting + Backing), the fastest way to reduce distortion is consistent, even tension across the whole hooping area. If you struggle with keeping layers aligned, using a dedicated hooping station for embroidery can pay for itself by ensuring your block is square before the hoop ever closes. It eliminates the "why is my block skewed?" surprise.

Prep Checklist (do this before you start the timer):

• USB Hygiene: Ensure the USB stick is 32GB or smaller (machines often struggle with massive drives) and the JPEG is in a root folder.
• Physical Tools: Stylus is in hand; screen is wiped clean of fingerprints.
• Consumables: Have temporary adhesive spray (like 505) ready to bond your quilt sandwich layers—this prevents shifting better than pins alone.
• Thread Plan: Gary uses red for line work and purple for preview. Ensure you have high-sheen polyester or rayon (40wt) for the final block.
• Needle Check: Install a fresh Topstitch 90/14 needle. Quilt sandwiches are thick; a standard 75/11 embroidery needle may deflect and cause skipped stitches.


Importing a JPEG from USB in My Design Center: crop tight, but don’t amputate the art

Gary opens My Design Center and imports the line design from the USB stick. On-screen, he uses the red arrow sliders to crop the bounding box closer to the artwork.

This crop step looks simple, but experienced digitizers treat it with caution. It is a balancing act:

• Crop too loose: The machine interprets dust specs or paper artifacts as "data," creating stray jump stitches that you'll have to trim later.
• Crop too tight: You inadvertently cut off the tips of leaves or corners of geometric shapes. The machine will "close" these open shapes with straight lines, making your stitch file look broken.

The Golden Rule: Don’t cut anything off. Leave a 2mm–3mm "breathing room" margin around the art. It is easier to erase a stray background dot later than it is to redraw a missing petal.

Resizing the design to ~150 mm on the Brother Stellaire screen (and why “close enough” is fine)

After the machine interprets the image, Gary resizes the design down until the display reads approximately 150 mm. He also turns off the background image visibility.

That "turn the background off" move is a quiet pro habit that you should adopt immediately.

• Why? When the original JPEG background is visible, it acts like camouflage.
• The visual check: By hiding the background, you see only what the machine sees. You can instantly spot gaps in lines (which cause spills later) or "doubled lines" (where the scanner picked up a thick marker line as two separate outlines).

For quilt blocks, precision is relative. Since you are likely piecing this into a larger project, hitting exactly 150.00mm isn't required. "About 150mm" allows you enough negative space in a 240mm hoop for the quilting connection.

Converting Satin to Double Run Stitch in My Design Center: the setting that makes line art look clean

This is the moment where the design stops being "a picture" and becomes "a stitch plan." Gary links all pieces together (chain/link icon), opens the line property tool, and changes the stitch type from Satin to Double Run Stitch. He sets the line color to red and previews.

Why does this specific settings change matter?

1. Physics: A Satin stitch is a column of thread back-and-forth. On detailed line art, wide satin stitches crowd each other and create "bulletproof" stiff nodes at corners.
2. Aesthetics: A Double Run stitch (forward, back, forward) creates a bold, hand-embroidery look that defines the shape without adding bulk.
3. Fabric Integrity: When mastering hooping for embroidery machine technique on thick quilt sandwiches, wide satin stitches pull the fabric aggressively, causing gaps. A run stitch sits on top of the sandwich with minimal pull compensation needed.

Warning: Mechanical Safety Risk. Keep your hands clear of the needle area. When test-stitching a new on-screen digitized file, always keep one hand near the "Stop/Start" button. If the machine calculates a path you didn't expect (like slamming the needle bar into the hard plastic hoop frame), you must be ready to stop immediately to prevent broken gears or flying needle shrapnel.

The “No-Sew Zone” trick: creating a 3.0 mm Stamp Pattern boundary so quilting doesn’t invade your design

Gary saves the converted line design, then goes into Edit and chooses the Stamp Pattern option. He expands the outline outward until the distance reads 3.0 mm.

This is the single most important "avoid the ugly surprise" step in the whole workflow. In professional digitizing software, we call this an "offset" or "keep-out zone."

Why 3.0 mm? It’s not a random number.

• Thread Displacement: Quilting stitches push fabric. If your background fill comes right up to the 0.0mm edge of your line art, the fabric push will bury your outline stitches.
• Visual Breathing Room: A 3mm gap creates a "trapunto" effects, making the main design pop visually against the flattened background.
• The "Landlocked" Issue: A 3mm gap mimics the width of a standard presser foot. It prevents the machine form trying to inject tiny, messy fill stitches into small gaps where they don't belong (like the inside of a small flower loop).

Watch out (from the video’s own hiccup): Gary taps the wrong menu item briefly and cancels to recover. This is normal! If you select the wrong tool, hit Cancel immediately. Do not try to overwrite a mistake; back out and re-enter the menu.

Building the quilting background inside a 240 x 240 hoop: load the stamp, then set the frame size

Next, Gary adds the background quilting by loading the stamp/frame he just created. Then he sets the stitching area to 240 x 240 mm.

The Order of Operations is Critical:

1. Load the Stamp (The Shield): This tells the computer "Do not stitch here."
2. Define the Hoop (The Arena): This tells the computer "Stitch everywhere else up to this line."

If you reverse this, or if you forget the Stamp step, the machine will flood-fill your beautiful floral design with a heavy basket weave pattern, ruining the visual.

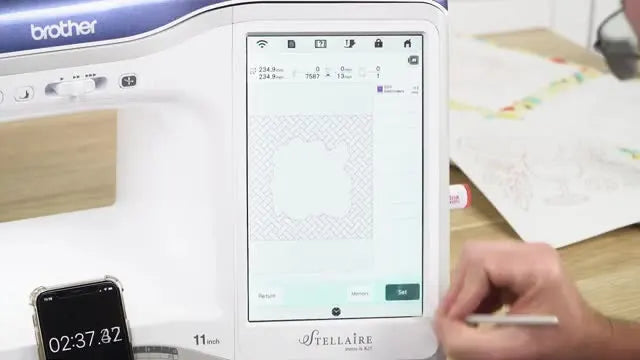

Basket Weave quilting fill at 140%: how to flood-fill the background without making it stiff

Gary selects the Fill Bucket, chooses Quilting Patterns (Q-01 usually), and picks Basket Weave. He sets the color to purple, clicks outside the design boundary to flood-fill the background, and scales the pattern to 140%.

This section requires a deep dive into Stitch Density Physics.

1. The Click Target: You must click in the negative space. Visually verify the fill is only in the background. If the inside of your flower turns purple, you tapped the wrong zone. Undo and retry.
2. The 140% Size Logic: Standard quilting patterns (100% scale) are often too dense for a quilt sandwich. They create a stiff, "cardboard-like" patch.
   • At 100%: The block is stiff; high thread count; risk of needle breakage on thick batting.
   • At 140%: The pattern opens up; the block remains soft (drapeable); the machine runs quieter because there is less resistance.
   • Pro Tip: For thicker batting (like wool), go even higher to 150% or 160%.

Final render: converting to embroidery mode and getting stitch-ready

Gary hits Set to convert the data to embroidery mode, then hits Embroidery to finalize. The machine transitions to the standard embroidery interface.

At this point, the file is ready. The cognitive load shifts from "Software Architect" to "Machine Operator." The only thing between you and a clean quilt block is your physical setup.

The stabilizer decision tree for quilt blocks: stop guessing and match the sandwich to the stitch plan

The video focuses on on-screen digitizing, but the stitch-out quality lives or dies on stabilization. Beginners often ask "Do I need stabilizer if I have batting?" The answer is almost always yes, but it depends on the density.

Use this decision tree to make your choice:

Decision Tree: Quilt Block Fabric → Stabilizer/Backing Choice

• Scenario A: True Quilt Sandwich (Cotton Top + Batting + Cotton Backing)
  • Question: Is the fill density high (100-120%)?
  • Yes: Float a layer of Tearaway under the hoop for extra rigidity during the outline stitch.
  • No (140%+ open fill): The batting itself acts as the stabilizer. Ensure the hoop is tight.
• Scenario B: Single Layer (Cotton Top Only - creating a patch)
  • Question: Is the fabric standard quilting cotton?
  • Action: You MUST use a Fusible No-Show Mesh (Poly Mesh). Why? Because the Basket Weave fill exerts multi-directional pull. Tearaway alone will crack and allow the block to warp into a diamond shape.
• Scenario C: Unstable Fabric (Linen, Loose Weave)
  • Action: Use Fusible Cutaway stabilizer. The open weave cannot support the run stitches of the outline without a permanent backing to grip the thread.

Hooping physics for quilt blocks: why flat and even beats “drum tight” every time

Quilt sandwiches behave differently than a single layer of t-shirt cotton. Because they are spongy, if you clamp them too aggressively using standard screw hoops, you compress the batting unevenly. This creates a "muffin top" effect at the hoop edge.

The Sensory Check:

• Wrong: You have to use a screwdriver to force the inner hoop into the outer hoop. You hear a "crunching" sound.
• Right: The inner hoop seats firmly with hand pressure. The surface feels taut/flat, but not stretched to the point of distorting the weave.

This is exactly where magnetic embroidery hoops act as a massive workflow upgrade. Unlike screw hoops that rely on friction and compression of the inner ring, magnetic hoops clamp from the top down. This allows the quilt sandwich to sit flat without being "forced" into a distorted shape. It eliminates "hoop burn" (those shiny crush marks on fabric) and makes re-hooping for the next block 3x faster.

Warning: Magnetic Safety. If you choose to use magnetic hoops, be aware they use industrial-strength magnets. Keep them away from pacemakers, implanted medical devices, and sensitive electronics. Be mindful of Pinch Hazards—these magnets snap together instantly and can pinch fingers severely if handled carelessly.

“Can I use the Dynamic Walking Foot on the Brother Luminaire?”—yes, but don’t mix up sewing vs embroidery tasks

A commenter asked whether the Dynamic Walking Foot can be used on the Luminaire/Stellaire. The channel replied yes, but let's clarify the workflow.

The Walking Foot is for Sewing Mode. The Embroidery Unit is for My Design Center.

• Don't mix them: You cannot use a walking foot while the embroidery arm is attached and active.
• Workflow: Do all your MDC embroidery first. Remove the unit. Then attach your walking foot to bind the quilt or add manual stitch-in-the-ditch details.

Setup habits that prevent the most common My Design Center disappointments

Most "My Design Center didn't work" stories come down to skipping the boring setup steps. If you want the calm version of Gary’s speed run, use this pre-digitizing routine.

Setup Checklist (right before you hit "Set"):

• Crop Check: Look closely at the corners. Did you accidentally crop off a line tip?
• Stitch Type: Confirm you selected Double Run (not Satin) for the outlines.
• Boundary Check: Did you create the 3.0mm stamp boundary? (If not, your fill will touch the outline).
• Hoop Check: Did you select the 240x240 frame setting? If you selected 100x100 but plan to use a large hoop, the fill won't cover the block.
• Consumables: Is the bobbin full? Basket weave fills eat bobbin thread. Don't start with a 1/4 bobbin.

Operation: stitching the block like a pro (even though the video stops at “ready to sew”)

Gary ends at the stitch-ready screen. This is where the video ends, but your work begins. Here is how to navigate the physical stitch-out safely:

1. Speed Kills (Quality): The Stellaire can stitch fast (1,050 spm). Don't do it. For a quilt sandwich, lower the speed to 600-700 spm. High speeds cause the thick sandwich to bounce (flagging), which leads to skipped stitches and birds nests.
2. The "Audition": Watch the first outline stitch. If the needle makes a thudding sound (like a dull hammer), your needle is too small or dull for the layers. Stop and change to a size 90/14 or 100/16.
3. Floating the Sandwich: If you are struggling to hoop thick batting, hoop just your stabilizer, spray it with 505 adhesive, and "float" the quilt sandwich on top. Use the machine's "Basting Stitch" function to lock it down before the design starts.

If you are doing this for volume (e.g., a 20-block quilt), the biggest time sink is re-hooping. Many production shops move toward a magnetic hoop for brother stellaire setup specifically for quilting blocks. The magnetic "snap-and-go" mechanism ensures that Block #1 and Block #20 have the exact same tension, keeping your finished quilt square.

Operation Checklist (during the stitch-out):

• Auditory Check: Listen for smooth, rhythmic stitching. A "clack-clack-clack" means the top thread path is obstructed or tension is too tight.
• Visual Check: monitor the outline. Is it sinking into the batting? (If yes, use water-soluble topper film on the next one).
• Stability: Watch the edges of the fabric. If they start to "creep" inward comfortably, stop immediately and re-hoop tighter.
• Aftercare: Remove form hoop immediately to prevent permanent creases.

The upgrade path that makes sense: when hoops and machines become a productivity decision

If you’re making one quilt block for fun, the stock hoop and standard workflow are perfectly fine. But if you are making 20 blocks for a king-size quilt, or you’re selling quilted panels on Etsy, the math changes. You need to value your time and your wrists.

Here is a practical, tiered way to think about your toolset:

• Level 1: The Comfort Upgrade. If standard hooping hurts your wrists or you constantly get "hoop burn" marks on delicate fabrics, look into brother stellaire hoops that use magnetic systems. They reduce physical strain and protect the fabric surface.
• Level 2: The Compatibility Check. If you run a mixed studio (e.g., a Luminaire and a Stellaire), buying universal tools helps. Many pros search for magnetic hoops for brother luminaire or magnetic hoop for brother dream machine—just ensure the specific magnets/brackets are compatible with the XJ1 attachment arm before buying (always check the mm spacing).
• Level 3: The Production Leap. If you find yourself waiting 30 minutes for a block to finish just so you can change threads, or if you need to produce 50+ blocks a week, a single-needle machine becomes the bottleneck. This is when moving to a multi-needle platform (like the Brother PR series or SEWTECH multi-needle solutions) makes financial sense. They offer faster speeds, fewer thread changes, and industrial-grade stability for heavy quilting tasks.

Final Thought: My Design Center is a superpower, but it obeys the laws of physics. Use the 3.0mm stamp boundary as your insurance policy, invest in the right needles, and never be afraid to slow the machine down to get a perfect stitch.

FAQ

• Q: How do I stop Brother Stellaire XJ1 My Design Center JPEG imports from creating stray jump stitches after cropping?
  A: Crop tighter, but always leave a 2–3 mm breathing-room margin so the scanner doesn’t “invent” stitches or close cut-off shapes.
  • Re-import and re-crop the JPEG with a small margin around every line tip and corner.
  • Choose high-contrast, clean line art (minimal shading) so the scanner reads edges cleanly.
  • Hide the background image after import so only the traced lines are visible for inspection.
  • Success check: No random dots/lines appear outside the artwork when the background is hidden.
  • If it still fails: Re-scan/re-save a cleaner black-and-white version of the art and repeat the crop step.
• Q: Why does Brother Stellaire XJ1 My Design Center close my line art with straight lines or “break” petals after I crop?
  A: The crop box is cutting off tiny endpoints, and My Design Center tries to “complete” the open shape—re-crop without amputating any tips.
  • Zoom in and check leaf tips, corners, and small loops before confirming the crop.
  • Re-crop with 2–3 mm clearance rather than trying to crop to the exact outline.
  • Use a stylus to avoid mis-taps on small 2 mm segments when adjusting the crop arrows.
  • Success check: All outline endpoints remain intact and there are no unexpected straight “closing” stitches in preview.
  • If it still fails: Reduce background clutter (paper texture/shadows) and re-import the JPEG so edges trace cleanly.
• Q: Which My Design Center stitch type should Brother Stellaire XJ1 users choose for JPEG line art on a quilt sandwich: Satin stitch or Double Run stitch?
  A: Use Double Run stitch for line art on quilt sandwiches because it stays clean without bulky, fabric-pulling satin corners.
  • Link/select the outline segments, open the line property tool, and switch stitch type from Satin to Double Run.
  • Preview with the background image turned off to spot gaps or doubled outlines before converting.
  • Plan a fresh Topstitch 90/14 needle for thick quilt layers to reduce deflection and skips.
  • Success check: Corners look defined (not “bulletproof” thick), and the outline sits on top of the sandwich without aggressive puckering.
  • If it still fails: Slow the stitch-out and re-check that Satin was not left on by accident.
• Q: How do I keep Brother Stellaire XJ1 basket weave quilting fill from invading the main design in My Design Center?
  A: Create a 3.0 mm Stamp Pattern boundary (a no-sew zone) before flood-filling the background, then click only in the negative space.
  • Build the Stamp Pattern offset and expand it outward until the distance reads 3.0 mm.
  • Load the stamp boundary first, then set the stitching area to the 240 × 240 mm frame size.
  • Flood-fill by clicking outside the design boundary, not inside petals or small loops.
  • Success check: The purple fill appears only in the background, and the main outline area stays clear.
  • If it still fails: Undo, re-click the fill target in a larger open area, and confirm the 3.0 mm boundary exists before filling.
• Q: Why does Brother Stellaire XJ1 quilt block quilting feel stiff when using My Design Center Basket Weave, and what setting helps?
  A: Increase the Basket Weave scale to 140% to open the pattern so the quilt block stays softer and less dense.
  • Select Quilting Patterns and choose Basket Weave, then set the pattern scale to 140%.
  • Verify bobbin capacity before starting because fills consume bobbin thread quickly.
  • Reduce stitch speed to about 600–700 spm for thick quilt sandwiches to prevent flagging and nests.
  • Success check: The stitched block remains drapeable (not cardboard-stiff) and the machine runs smoothly with less resistance noise.
  • If it still fails: Increase pattern scale further on thicker batting and confirm the fill is not accidentally layered twice.
• Q: What stabilizer should Brother Stellaire XJ1 users choose for My Design Center quilt blocks when stitching Basket Weave fill?
  A: Most quilt blocks still need stabilization—match stabilizer to the fabric layers and fill density instead of guessing.
  • Use batting alone as stabilizer only when the fill is open (140%+); add Tearaway underneath if the fill is denser (about 100–120%).
  • Use Fusible No-Show Mesh (Poly Mesh) when stitching on a single cotton layer (patch-style) to prevent warping.
  • Use Fusible Cutaway for unstable fabrics (linen/loose weave) so the outline stitches stay supported.
  • Success check: The block stays square (not diamond-shaped) after stitching and the outline remains crisp without rippling.
  • If it still fails: Re-hoop for flatter, more even tension and consider floating the sandwich with temporary adhesive spray plus basting.
• Q: What safety steps should Brother Stellaire XJ1 users follow when test-stitching a new My Design Center on-screen digitized design?
  A: Keep hands clear and be ready to stop immediately because a new stitch path can unexpectedly hit the hoop and cause needle/gear damage.
  • Keep one hand near the Stop/Start button during the first run of any newly converted design.
  • Watch the first outline closely before committing to the full fill sequence.
  • Reduce speed (about 600–700 spm for quilt sandwiches) to limit impact if something goes wrong.
  • Success check: The needle path clears the hoop frame and stitches smoothly without sudden deflection or thudding.
  • If it still fails: Stop immediately, re-check hoop size selection (240 × 240 if that is the plan) and re-verify the boundary/preview before restarting.
• Q: When should Brother Stellaire XJ1 users upgrade from standard screw hoops to magnetic embroidery hoops, or upgrade to a multi-needle machine for quilt block production?
  A: Upgrade in layers: first fix hooping technique, then consider magnetic hoops for repeatability and comfort, and consider a multi-needle machine only when thread-change time becomes the bottleneck.
  • Level 1 (Technique): Aim for flat, even hooping—do not force the inner hoop with a crunching feel.
  • Level 2 (Tool): Use magnetic hoops when hoop burn, wrist strain, or inconsistent re-hooping tension keeps causing distortion across multiple blocks.
  • Level 3 (Capacity): Move to a multi-needle platform when frequent thread changes and long runtimes limit weekly output.
  • Success check: Block #1 and Block #20 match in size and tension, and re-hooping time drops without fabric crush marks.
  • If it still fails: Float the sandwich on hooped stabilizer with temporary adhesive spray and use basting stitches to lock alignment before the design starts.
