From Logo Proof to a Client-Ready Appliqué Patch on a Brother PE-770 (Without the Clumpy Backing)

It creates a sinking feeling in your gut: you’ve spent 40 minutes changing threads and trimming appliqué, only to remove the hoop and realize the patch is stiff, bulletproof, and practically unwearable. Or worse, the border missed the edge of the fabric entirely.

If this sounds familiar, take a deep breath. Start over.

The workflow presented here is based on a real-world demonstration by Nate Matthews, but I have rebuilt it with the safeguards of a production floor manager. We will transform "guessing" into "engineering." Below is a repeatable, shop-style method to produce custom appliqué patches on a Brother PE-770 (or similar single-needle machines) without the beginner traps.

Start Calm: The Brother PE-770 Patch Workflow Is Simple—The Mistakes Are What Get Expensive

The PE-770 is perfectly capable of producing commercial-grade patches. However, unlike stitching on a towel, patches are unforgiving structures. A loose hoop or a density error will distort the shape, ruining the circle geometry instantly.

Two mindsets will keep you out of trouble and save you money:

1. Patches are "Architecture," not just "Art." Your stabilizer choice, hoop tension, and digitizing density determine whether the patch is a flexible accessory or a hockey puck.
2. Appliqué is a Game of "Stop and Go." You are intentionally interrupting the machine's momentum to place fabric, tack it down, remove the hoop, trim, and continue.

The "Rhythm" Check: When your machine is running well, it should sound like a rhythmic, confident sewing machine—a steady thump-thump-thump. If you hear a sharp metallic clank or a struggling grind, stop immediately. Your audio cues are your first line of defense.

The “Hidden” Prep: Stabilizer, Thread, and a Hooping Routine That Doesn’t Shift Mid-Tack

Nate starts with a 4" x 4" hoop loaded with cutaway stabilizer. This is the non-negotiable foundation. Tearaway stabilizer is too weak for the high stitch count of a patch; it will perforate and separate, causing the iconic "patch ovaling" distortion.

If you’re still building confidence with hooping for embroidery machine, treat hooping like a drum tuning session. You want the stabilizer "drum-tight" but not stretched to the point of warping.

The "Hidden Consumables" List (What beginners forget)

Beyond the obvious, ensure you have:

• 75/11 Embroidery Needles: A fresh needle prevents "flagging" (fabric bouncing).
• Spray Adhesive (i.e., KK100): For floating fabric if you struggle with shifting.
• Curved Tweezers: For grabbing jump stitches without your fingers entering the danger zone.

Prep checklist (Do this BEFORE you press Start)

• Confirm hoop + design fit: The design is 3 inches; the hoop is 4" x 4". Ensure the embroidery arm has clear clearance.
• Stabilizer choice: Use Cutaway (2.5oz or 3.0oz). Do not float it; hoop it securely.
• Aural Tension Check: Tap the hooped stabilizer. It should sound like a taut drum skin. If it sounds like loose paper, re-hoop.
• Thread Inventory: Ensure you have full spools of Black and White (your primary structure colors). Running out of bobbin thread mid-border is a nightmare on single-needle machines.
• Scissors Ready: Duckbill scissors for appliqué, straight snips for threads.


The Placement Stitch Circle on the Brother PE-770: Fast, Easy, and Not a “Walk Away” Moment

Nate runs a simple running stitch circle directly on the stabilizer. This is your architectural blueprint.

Beginner Sweet Spot: If your machine allows speed adjustment, run this step at 350-400 SPM (Stitches Per Minute). It stitches fast, and you need to be ready to stop.

Checkpoint: When the machine stops, look at the stabilizer.

• Visual: Is the circle round? If it looks like an egg, your stabilizer is too loose.
• Tactile: Run your finger over the line. It should be flat.

Expected outcome: A clear, visible outline that tells you exactly where your fabric needs to live.

Fabric Placement & Tack-Down: The “Hold It for 3 Seconds” Habit That Saves the Whole Patch

This is the most critical physical interaction in the process. Nate places a square of black fabric over the stitched circle. Crucially, he holds it flat near the needle bar as the machine begins the tack-down.

Why? As the presser foot descends, it creates friction that pushes the fabric forward (this is called "flagging" or "push"). Without your finger anchoring it, the fabric will slide 2mm forward, and your circle will be off-center.

Warning: Needle Safety Zone. Keep fingers at least 2 inches away from the active needle shaft. Do not "chase" the needle. Hold the fabric at the edge of the hoop, letting the tension keep it flat. If the fabric ripples, hits STOP immediately.

Checkpoint: Watch the first 5-10 stitches.

• Visual: Is the fabric bubbling?
• Correction: If yes, stop, lift the presser foot, smooth the fabric, and restart.

Expected outcome: Fabric is secured evenly effectively "laminating" the fabric to the stabilizer.

The Black Background Fill: Dense Stitching Is Fine—If the Digitizing Matches the Patch Size

After tack-down, the machine executes the fill. Patches usually require high density to look professional, but this creates stress on the fabric.

Speed Recommendation: For dense fills on a single-needle machine, cap your speed at 600 SPM. Going full throttle (which is often only ~700-800 on these units) increases vibration and the risk of thread breakage on dense fills.

Checkpoint: Listen for the "purr."

• Auditory: A rhythmic, soft sound is good. A harsh "slapping" sound means the thread tension is too loose, or the needle is dull.

If you produce these in batches, the physical strain of tightening standard hoops can lead to wrist fatigue and "hoop burn" (permanent ring marks on fabric). This is a common trigger point where professionals upgrade to a hooping station for machine embroidery or magnetic systems to ensure every patch starts with the exact same tension, without the physical struggle.

Trimming the Appliqué with Duckbill Scissors: Remove the Hoop—But Don’t Unhoop the Work

Nate removes the hoop mechanism from the machine arm. Do not un-hoop the fabric.

He uses duckbill appliqué scissors. These are shaped like a pelican's beak. The wide "bill" sits flat against your stabilizer, pushing the good fabric down and lifting the excess fabric up to the blade.

Technique:

1. Place the "bill" side down against the black background fill.
2. Cut smoothly, keeping the scissors strictly parallel to the floor.
3. Listen to the cut: it should be a crisp slicing sound, not a "gnawing" crunch.

Checkpoint:

• Visual: The fabric edge should be 1-2mm from the stitch line.
• Fail State: If you cut the stabilizer stitches, you have lost your registration. Apply a small amount of fray check or careful tape, but know that the patch might be compromised.

Expected outcome: A clean, raised fabric plateau ready for the border.

Color Change Threading on the Brother PE-770: Cut at the Spool First (Yes, It Matters)

Nate highlights a "Shop 101" rule: Change thread by cutting at the spool, not pulling backwards.

The Physics: Thread has microscopic lint. Pulling it backward (against the flow) scrapes that lint into your tension discs. Over time, this packs the discs, ruining your tension.

• Correct Step: Snip the thread at the spool pin inside the cassette. Pull the loose tail out through the needle.

Checkpoint: After threading the new color (Red), pull the tail gently.

• Sensory: You should feel a slight, consistent drag—like flossing your teeth. If it pulls with zero resistance, you missed the tension disc.

This is the bottleneck of single-needle machines. If you are shopping for accessories, you might search for a brother se600 hoop thinking it will speed you up. In reality, the hoop saves setup time, but only a multi-needle machine (like the SEWTECH commercial series) solves the "stop-start-rethread" bottleneck.

Stitching the Text (“GOALS & SUCCESS”): Trim Jump Stitches Before They Get Buried

Nate pauses to trim the "jump stitches" (the connectors between letters) before the machine moves on.

Why trim now? Once the border stitches or nearby elements are sewn, those tiny jump threads get trapped underneath. Digging them out later risks cutting the good stitches.

Tool: Use curved micro-tips or tweezers.

Checkpoint: Look inside the "counters" (the holes in letters like O, A, P).

• Action: Snip the entry and exit points close to the fabric.

Expected outcome: Crisp text with no "spiderwebs" connecting the letters.

Setup checklist (Mid-Production)

• Clear the deck: Ensure no trimmed thread tails are lying in the hoop area (they can get sewn into the patch).
• Bobbin check: Do you have enough bobbin left for the heavy border? If you are below 20%, change it now. It is better to waste 20 cents of thread than ruin a $5 patch.


The “Tiny Face Detail” Reality Check: At 3 Inches, Some Features Just Won’t Read

Nate notes that the tiny facial features might not translate perfectly at 3 inches. This is a resolution limit relative to thread thickness. Standard 40wt thread is approximately 0.4mm wide. If a detail is smaller than 1mm, it is essentially just two thread widths.

The "Squint Test": Print your design on paper at 100% scale. Place it on the floor. Stand up and look at it. If you can't see the detail from standing height, the needle probably can't stitch it cleanly.

Practical takeaway: If the client insists on micro-details, you have two options:

1. Simplification: Remove the pupils/nostrils in the digitizing software.
2. Tool Upgrade: Use a thinner 60wt thread and a smaller 65/9 needle (advanced).

If you’re evaluating faster throughput, this is where hoopmaster hooping station setups help by standardizing placement, allowing you to focus your mental energy on these detail limits rather than fighting to get the patch straight.

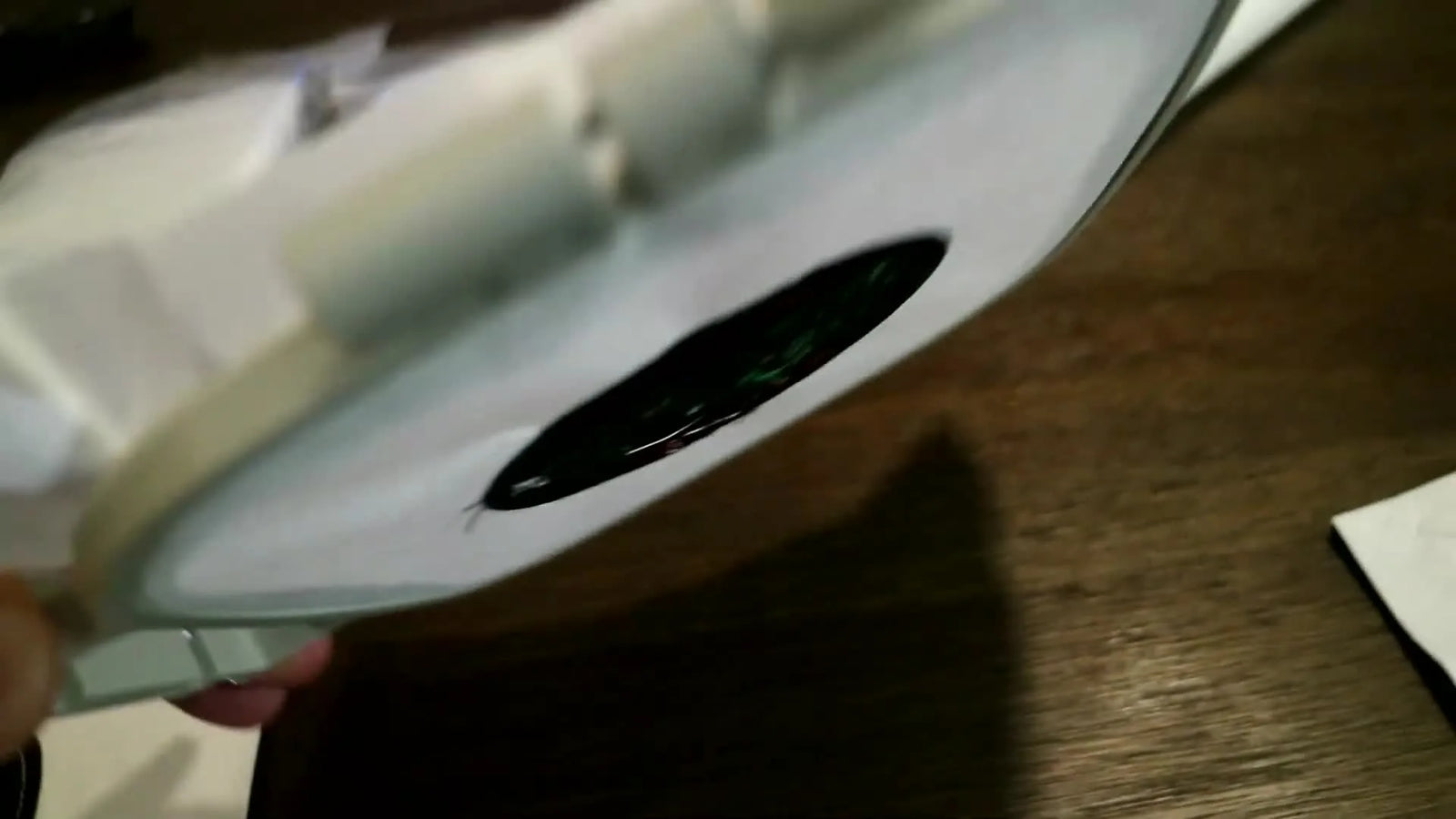

The Back-of-Patch Test: “Flush” vs “Clumpy” Is a Digitizing Density Problem (Not a Luck Problem)

Nate compares a "bad" stiff patch to a good flexible one. The culprit is almost always Density Overload.

When you shrink a design from 5 inches to 3 inches without re-digitizing, the stitch count remains the same, but the area reduces. The stitches pile up like a traffic jam, creating a "bulletproof" knot.

Checkpoint:

• Tactile: Bend the patch gently. It should flex like thin leather, not crack like hard plastic.
• Visual: Turn the patch over. A "Bird's Nest" (huge wad of thread) means your tension is zero, or your machine wasn't threaded through the take-up lever.


Bobbin Thread Color & Coverage: Why White Bobbin Can Still Stay Invisible on Top

Nate uses a white bobbin effectively. In a perfectly balanced machine, the top thread pulls slightly to the back.

The "I" Test: Look at the back of a satin column.

• Visual: You should see 1/3 top thread color, 1/3 bobbin thread (center), and 1/3 top thread color.
• Failure: If you see white bobbin thread on the front (top) of the patch, your top tension is too tight, or your bobbin tension is too loose.

If you are chasing cleaner coverage and less hoop burn, many makers look into magnetic embroidery hoops for brother. The advantage here is the "float" effect—the magnet holds the fabric without crushing fibers, often resulting in slightly better loft and tension balance.

Finishing Like You Mean It: Iron-On Adhesive, Final Inspection, and Packaging for Clients

Nate finishes by applying an iron-on backing (like HeatnBond UltraHold) to the back of the patch. This not only makes it iron-on ready but seals the back stitches, preventing them from unraveling.

Warning: Magnetic Safety. If you upgrade to high-strength magnetic hoops for production efficiency, be aware: these magnets are industrial strength. They are a serious pinch hazard for fingers and can interfere with pacemakers. Keep them 6 inches away from electronic medical devices.

Final Quality Check (The "Client Eye"):

1. Edge Check: Is any white stabilizer peeking out from the satin border? (Use a permanent fabric marker to touch up tiny errors).
2. Jump Check: Any skipped threads?
3. Burn Check: Are there hoop rings? (Steam them out now).

If you are doing repeat orders, a standard brother 4x4 embroidery hoop works, but magnetic frames significantly reduce wrist strain for batching 50+ items.

The Upgrade Path: When to Stick with the Standard Hoop vs. Move to Magnetic Hoops (Time Is Money)

Here is the honest rule I use in professional studios to determine when to upgrade tools. Use this to audit your own workflow.

The "Cost of Frustration" Matrix

If you are specifically searching for magnetic embroidery hoops for brother pe770, treat it as a workflow upgrade. It won't fix bad digitizing, but it will make the process faster and physically easier.

Decision Tree: Fabric → Stabilizer → Patch Feel

• Scenario A: Dense Patch (Typical Shield/Logo)
  • Recipe: Cutaway Stabilizer (2.5oz) + Twill Fabric.
  • Result: Stiff, durable, classic patch feel.
• Scenario B: Soft Vintage Patch
  • Recipe: Poly-mesh (Soft) Cutaway + Felt Fabric.
  • Result: Flexible, soft drape, moves with a jacket.
• Scenario C: High Detail / Small Text
  • Recipe: Two layers of Cutaway + Water Soluble Topping (Solvy).
  • Result: Topping prevents thread sinking; crisp text definition.


Troubleshooting the Problems Viewers Actually Run Into (Symptoms → Causes → Fixes)

This section addresses the most common failures using a logic-based approach (Cheapest fix first).

1) Symptom: "My patch is structurally distorted (Oval instead of Circle)."

• Likely Cause: Stabilizer was too loose in the hoop (drum skin test failed).
• Quick Fix: Re-hoop tight. Ensure you are using Cutaway, not Tearaway.
• Pro Fix: Use a Magnetic Hoop to ensure even clamping pressure around the ring.

2) Symptom: "Thread is shredding or breaking frequently."

• Likely Cause: Needle is dull or has a burr.
• Quick Fix: Change the needle (Cost: $0.50).
• Secondary Cause: Top tension is too tight. Lower it by 1 point.

3) Symptom: "White bobbin thread is showing on top."

• Likely Cause: Top thread not seated in tension discs.
• Quick Fix: Rethread the top thread completely. Ensure the presser foot is UP when threading (opens the discs), and DOWN when stitching (closes them).

4) Symptom: "The border missed the fabric edge."

• Likely Cause: Fabric shifted during the "Tack-Down" phase.
• Quick Fix: Use the "3-second hold" technique or light spray adhesive for the next patch.

5) Symptom: "My Brother SE625 / SE600 / Inno-vis won't load the file."

• Likely Cause: The file size exceeds the physical hoop limit (even by 1mm).
• Fix: Resize the design in software to 98% of the hoop's max area.


Operation checklist: The repeatable patch routine

• Setup: Load Cutaway stabilizer. Tap test for tension.
• Placement: Stitch the placement circle.
• Position: Place fabric. HOLD fabric gently for the first 5 stitches of tack-down to prevent slipping.
• Fill: Stitch the background fill. Listen for smooth rhythm (no banging/grinding).
• Trim: Remove hoop mechanism (DO NOT Un-hoop fabric). Trim with Duckbill scissors. Re-attach hoop.
• Detail: Stitch details. Change colors by cutting at the spool.
• Hygiene: Trim jump stitches immediately after text is sewn.
• Inspection: Check the back for density knots. Check the front for border registration.
• Finish: Apply iron-on backing, steam out hoop marks, and package.

FAQ

• Q: What stabilizer should be hooped on a Brother PE-770 for 3-inch appliqué patches to prevent patch ovaling distortion?
  A: Hoop cutaway stabilizer (2.5oz or 3.0oz) drum-tight; do not use tearaway for patch stitch counts.
  • Hoop: Clamp the cutaway stabilizer securely in the 4" x 4" hoop (do not “float” it).
  • Test: Tap the hooped stabilizer like a drum before pressing Start and re-hoop if it sounds like loose paper.
  • Stitch: Run the placement circle and inspect it before placing fabric.
  • Success check: The placement circle looks truly round (not egg-shaped) and the running stitch feels flat to the touch.
  • If it still fails: Re-hoop tighter first; if consistency is hard to repeat batch-to-batch, consider a magnetic hoop for more even clamping pressure.
• Q: How do I keep appliqué fabric from shifting during the tack-down step on a Brother PE-770 so the border does not miss the fabric edge?
  A: Anchor the fabric for the first few stitches and stop immediately if bubbling starts.
  • Place: Cover the stitched placement circle with the fabric piece (oversize square is fine).
  • Hold: Hold the fabric flat near the needle bar area for the first 5–10 stitches (keep fingers at least 2 inches from the active needle).
  • Correct: Hit STOP if the fabric ripples, lift the presser foot, smooth the fabric, and restart.
  • Success check: The tack-down line lands evenly with no bubbles and the fabric stays centered over the placement stitch.
  • If it still fails: Add light spray adhesive as a helper so the fabric stays put while tack-down begins.
• Q: What Brother PE-770 top threading method prevents lint from packing into the tension discs during frequent color changes?
  A: Cut thread at the spool first, then pull the loose tail out through the needle—do not pull thread backward.
  • Snip: Cut the thread at the spool pin before removing the old color.
  • Pull: Pull the thread tail forward and out through the needle path (in the normal direction).
  • Feel: After rethreading, gently pull the thread tail to confirm consistent, slight drag.
  • Success check: The thread “feels like flossing” (steady resistance); if it pulls with zero resistance, the thread likely missed the tension discs.
  • If it still fails: Rethread completely with the presser foot UP during threading (to open the tension discs), then stitch with the presser foot DOWN.
• Q: What does the “I test” mean for bobbin coverage on a Brother PE-770 patch, and how do I fix white bobbin thread showing on the front?
  A: Use the “I test” to confirm balanced tension; if white bobbin shows on top, rethread the top thread and confirm proper tension-disc seating.
  • Inspect: Look at the back of a satin column for the “1/3 top color – 1/3 bobbin – 1/3 top color” balance.
  • Rethread: Completely rethread the top thread if bobbin thread shows on the front.
  • Check: Make sure the presser foot is UP while threading and DOWN while stitching.
  • Success check: The front shows clean top-thread coverage while the back shows the balanced “I test” distribution.
  • If it still fails: Adjust tension cautiously (often top tension is too tight or bobbin tension too loose) and retest on a sample.
• Q: How do I stop a Brother PE-770 appliqué patch from becoming stiff and “bulletproof” after shrinking a design from 5 inches to 3 inches?
  A: Treat stiffness as density overload—do not simply shrink without re-digitizing for the smaller size.
  • Test: Bend the finished patch gently to assess flexibility instead of guessing by appearance.
  • Compare: Turn the patch over and look for heavy thread buildup that suggests excessive density for the reduced area.
  • Correct: Revisit the design size choice and digitizing so stitch density matches the final 3-inch patch size.
  • Success check: The patch flexes like thin leather rather than cracking like hard plastic.
  • If it still fails: Confirm the machine was threaded correctly (including take-up lever) if you see extreme thread wadding (“bird’s nest”) on the back.
• Q: What needle and tool “hidden consumables” should be ready before running appliqué patches on a Brother PE-770 to reduce flagging and trimming mistakes?
  A: Start with a fresh 75/11 embroidery needle and have the correct cutting and handling tools within reach.
  • Replace: Install a fresh 75/11 embroidery needle to reduce fabric bounce (“flagging”).
  • Prepare: Keep duckbill appliqué scissors for trimming fabric and straight snips for thread trims.
  • Add: Use curved tweezers or micro-tips to grab and trim jump stitches safely and cleanly.
  • Success check: The fabric stays stable during stitching and jump stitches can be removed cleanly before they get buried.
  • If it still fails: If thread starts shredding or breaking, change the needle first (dull/burred needles are a common cause) before chasing other settings.
• Q: What are the key safety rules for fingers, needles, and magnetic embroidery hoops when making Brother PE-770 appliqué patches?
  A: Keep hands out of the needle’s danger zone during tack-down, and treat magnetic hoops as industrial pinch hazards.
  • Position: Hold fabric only at the hoop edge during tack-down; keep fingers at least 2 inches from the active needle shaft.
  • Stop: Hit STOP immediately if fabric ripples or you feel tempted to “chase” the needle with your fingers.
  • Handle: Keep high-strength magnetic hoops away from fingers when closing and away from pacemakers/electronic medical devices (minimum 6 inches).
  • Success check: Tack-down starts cleanly without any finger repositioning near the needle, and hooping can be done without pinching incidents.
  • If it still fails: Slow down and re-run the tack-down step as a controlled “stop-and-go” operation rather than trying to correct mid-stitch.
