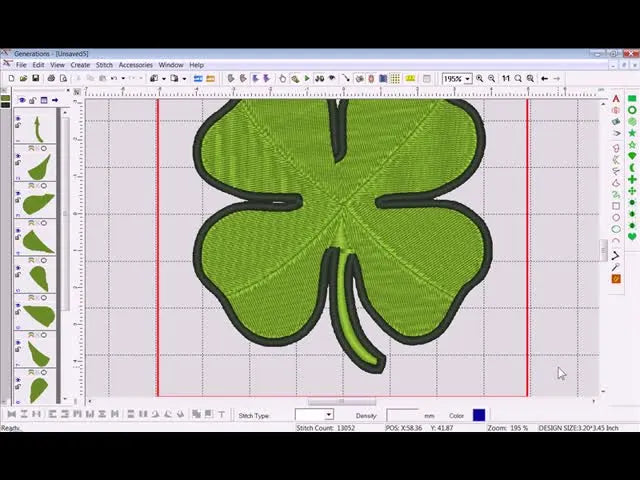

From Screen to Stitch: Make a Clover Design Sew Cleaner in Generations Embroidery Software (and Avoid the Usual Production Traps)

Mastering the Clover: From Flat Digitizing to Flawless 3D Stitch-outs

If you’ve ever opened a design, thought “it’s almost good,” and then watched it stitch out flat, jagged, or painfully slow—this is the exact kind of cleanup that separates a hobby file from a production-ready master.

In this "White Paper" style tutorial, we are refining a four-leaf clover inside Generations Embroidery Software. However, we aren't just clicking buttons; we are applying 20 years of shop-floor physics to digital nodes. We will transform flat fills into light-reflecting textures, smooth jagged outlines into fluid arcs, and optimize color changes so your machine—whether a single-needle workhorse or a SEWTECH multi-needle commercial unit—runs at peak efficiency.

One quick mindset shift before we start: software edits are cheap; stitch-outs are expensive. The goal is to make several smart edits, then regenerate once—so you’re not wasting time watching the software recalculate stitches after every tiny move.

The “Calm Down, It’s Fixable” Moment: Stitch Angles That Add Real Dimension

Flat fill stitches are the #1 reason a simple shape looks like “clip-art” in thread. Thread essentially acts like a microscopic prism; it reflects light based on the angle it lies on the fabric. To create the illusion of 3D depth without using foam, we must manipulate these angles.

The Expert Workflow:

1. Right-click the fill area of the clover.
2. Select the Stitch Angle Tool.
3. Visual Anchor: Look for the green dot (your angle handle). Hover until the cursor transforms into a four-way cross.
4. Action: Click and drag the angle indicators.
5. The Logic: Set each leaf’s angle to radiate outward from the center stem, mirroring each other. One leaf might flow at 45°, its opposite at 135°.
6. Efficiency Rule: Do not regenerate after every change. Make all angle edits first, then regenerate once.


Sensory Check (so you know you’re doing it right)

• Visual: When you drag the angle handles, the red angle line visibly changes direction on screen.
• Texture: After regeneration, the virtual preview should show a "grain" similar to a mowed lawn—light hits one leaf differently than the next.
• Outcome: The clover reads as separate, organic petals rather than a single green blob.

The Physics of “Why”

In a physical stitch-out, consistent angle logic reduces "push and pull" distortion. If all stitches run horizontally, your fabric will shrink vertically and expand horizontally, turning your clover into an oval. By varying angles (radiating them), you distribute stress evenly across the substrate.

Pro Tip: If you plan to stitch this on stretchy performance wear (generically referred to as "Dri-Fit"), conflicting angles can sometimes cause gaps. Using a stable Cutaway Stabilizer is non-negotiable here to support these multi-directional forces.

Kill the “Hand-Drawn Jagged” Look: Using Adjust with an Arc

Jagged outlines usually stem from "node noise"—too many small, uneven segments defined by the digitization software. You can fight it node-by-node, or you can use the mathematics of curves.

The Expert Workflow:

1. Switch to Outline View (via the View Outline icon on the toolbar) to see the skeleton of your design.
2. Right-click the rough/jagged area.
3. Choose Outline > Adjust with an Arc.
4. The 3-Click Method:
   • Left-click your Start Point.
   • Left-click your End Point (isolating the bad segment).
   • Left-click the segment itself to select it.
5. Tactile Control: Drag the mouse to “bow” the line into a smooth curve. It should feel like bending a flexible wire.
6. Press Escape to exit.
7. Regenerate only after fixing all segments.




The "Gap" Anomaly (Don't Panic)

• Visual Warning: After regeneration, you may see a gap or hole between the fill and your new outline.
• Root Cause: You moved the border, but the fill stitches haven't caught up yet.
• The Fix: This is normal. Continue refining the outline. Once you regenerate the entire object group at the end, the software will recalculate the fill to reach your new, smooth border.


Warning: The "Balloon Effect"

Be careful not to bow the arc so far out that you inflate the clover petals. "Smooth" does not mean "Swollen." Keep the arc tight to the original silhouette intent.

The Stem Makeover: Node Control Without the Blob Factor

This is where intermediate digitizers either level up or fail. Moving a node recklessly can turn a delicate stem into a blocky trunk.

The Expert Workflow:

1. Go to Outline > Edit Outline Mode.
2. Add Control: Hover over the red outline segment. Left-click, hold, and drag to create a new node.
3. Curve Control: Right-click, hold, and drag on the line itself to curve the segment between nodes.
4. Regenerate when the taper looks natural.




Sensory Check

• Visual: Small square nodes appear. The line between them should flow like liquid, not zigzag like a staircase.
• Outcome: The stem tapers upward, vanishing behind the leaves.

Warning: Physical Safety & Machine Health
Creating extremely sharp angles or clusters of nodes can force the machine to drop needle penetrations into the exact same spot repeatedly. This builds up heat and resistance.
* Risk: Needle deflection (hitting the throat plate) or snapping a needle.
* Prevention: Ensure your nodes are spaced at least 1-2mm apart. If you hear a "thud-thud-thud" sound in one spot, hit Stop immediately.

Color Logic: Multi-Select & Custom Definitions

Color on screen is for planning; color on the machine is for separating elements.

The Expert Workflow:

1. Hold Ctrl and right-click multiple leaves to multi-select.
2. Click the color chip on the quick toolbar -> Define Custom Colors.
3. Select a lighter green for visual contrast.




Commercial Reality: Your .PES file doesn't know you bought Isacord or Madeira thread. It only knows "Stop" signals. The worksheet you print later is your actual contract for thread setup.

Optimization: Stop Wasting Minutes on Thread Changes

If your object list is: Dark Stem -> Light Leaf -> Dark Leaf -> Light Leaf, typically a single-needle machine will stop three times. A multi-needle machine will trim three times. Both are inefficient.

The Expert Workflow:

1. Go to Accessories > Optimize Stitching Order. This automatically groups identical colors.
2. Logic Check: Check the object list. Did the machine accidentally put the Stem (background) on top of the Leaves?
3. Manual Override: Select the stem object -> Right-click -> Move to Top (in the list, which means it stitches first in time).






The "Why" for Profitability

Every thread trim and jump takes about 6-10 seconds of machine time and increases the risk of the thread pulling out of the needle eye. Grouping colors maximizes "Run Time" and minimizes "Downtime."

The Export: GEN vs. PES

Never overwrite your source file.

1. Save as .GEN: This is your "Editable Master." You can change nodes and density here.
2. Export as .PES: This is your "Machine Code." It is coordinates only. You cannot easily edit nodes here.
3. Print Worksheet: Essential for knowing which color stops correspond to which part of the design.






The "Hidden" Prep: Physical Implementation Guide

The software is done, but 80% of embroidery failures happen due to physical variables. If you’re researching hooping for embroidery machine best practices, realize that hooping is not just holding fabric; it is stabilizing geometry.

Stabilizer Decision Tree: The "Or Else" Logic

Use this logic gate to prevent puckering before you take a single stitch.

Phase 1: Fabric Elasticity

• Is the fabric stretchy (Jersey knit, Spandex, Pique)?
  • YES: You MUST use Cutaway Stabilizer. No exceptions for beginners. Tearaway will disintegrate under the needle, causing the outline to misalign.
  • NO: Proceed to Phase 2.

Phase 2: Fabric Weight

• Is it heavy/stable (Denim, Canvas, Twill)?
  • YES: Tearaway Stabilizer is sufficient.
  • NO: (e.g., thin cotton shirt): Use a medium-weight Cutaway or a fused Poly-mesh to prevent "hoop burn" and tunneling.

Phase 3: Surface Texture

• Is it fluffy (Towel, Fleece)?
  • YES: Add a water-soluble Topper (Solvy) on top to prevent stitches from sinking.

Consumables Upgrade

• Needles: Discard the needle if it has run for over 8 hours. Use Ballpoint (75/11) for knits to avoid cutting fibers; use Sharp (75/11) for woven fabrics.
• Spray Adhesive: Use a light mist of 505 Temporary Spray to bond the fabric to the stabilizer—this creates a "plywood" effect that is stronger than the two layers alone.

Setup That Saves Your Wrists: Hooping Speed & Tools

If you are doing production runs of 50+ shirts, traditional screw hoops become a liability. They cause repetitive strain injury (RSI) and leave "hoop burn" marks that require steaming to remove. This is the transition point from hobbyist to semi-pro.

Professionals often research hooping station for embroidery machine setups to standardize placement, ensuring every logo lands 4 inches down from the collar. However, the game-changer for speed and fabric safety is the frame itself.

The Case for upgrading to Magnetic Hoops

When standard hoops struggle to grid thick items (like Carhartt jackets) or delicate performance wear, a magnetic embroidery hoop becomes the superior engineering choice.

• Mechanism: Instead of friction/wedging (which crushes fibers), magnets clamp vertically.
• Benefit: Zero "hoop burn," faster changes, and automatic adjustment to fabric thickness.
• Compatibility: Always check the specific bracket width. A hoop for brother embroidery machine will have different attachment clips than one for a Tajima or Ricoma.

Warning: Magnetic Force Safety
Magnetic frames are industrial tools. They snap together with immense force.
* Pinch Hazard: Keep fingers clear of the mating surfaces. The snap can cause blood blisters or broken nails.
* Interference: Keep these magnets away from pacemakers, insulin pumps, and magnetic storage media (credit cards/hard drives).

Setup Checklist (Pre-Flight)

• Orientation: Verify your design is not upside down on the screen.
• Bobbin: Is there enough bobbin thread? (Rule of thumb: Change it if it looks less than 1/4 full for a large run).
• Clearance: Ensure the hoop arms won’t hit the wall or other clutter during the stitch-out.
• Hoop Tension: Sensory Check: Tap the fabric. It should sound like a tambourine (taut but with a slight resonance), NOT a high-pitched snare drum (too tight, stretches fabric) and NOT a dull thud (too loose, causes loopiness).

Operation: The First Run

1. Reduce Speed: For the first clover, lower your machine speed to 600-700 SPM (Stitches Per Minute). High speeds (1000+) increase vibration and thread breakage risks on untested files.
2. Watch the "Walk": Watch the outline stitch. If it lands outside the fill, your fabric is shifting (flagging).
   • Immediate Fix: Stop, un-hoop, add a second layer of stabilizer, re-hoop tighter.

Pro Tip on Consistency: If you are learning how to use magnetic embroidery hoop systems, mark your hooping table with masking tape. Place the magnetic bottom frame in the exact same spot every time. This creates a "poor man's" hooping station for repeatability.

Troubleshooting: The Structured Guide

When things go wrong, do not guess. Follow this low-cost-to-high-cost check sequence.

The Commercial Upgrade Path

Once you master this clover, you will hit a new ceiling. It won't be your digitizing skill—it will be your hardware workflow.

• Bottleneck 1: Color Changes. If you are waiting 60 seconds for a single-needle to change thread 5 times, you are losing profit. This is the trigger to look at SEWTECH Multi-Needle Machines or similar commercial platforms that automate this.
• Bottleneck 2: Hooping Pain. If your wrists hurt, move to Magnetic Frames.
• Bottleneck 3: Thread Breaks. If your design is perfect but thread snaps, upgrade to high-tenacity Polyester thread (e.g., Simthread or Isacord).

Keep your .GEN master file safe. As you upgrade your machine and tools, you can reopen that file, increase the density slightly for your more stable commercial setup, and produce results that look like retail-grade embroidery.

FAQ

• Q: In Generations Embroidery Software, how can the Stitch Angle Tool stop a four-leaf clover fill from stitching out flat and “clip-art” on a SEWTECH multi-needle embroidery machine?
  A: Set stitch angles to radiate from the clover center and regenerate once, not after every tiny change.
  • Right-click the clover fill area and select Stitch Angle Tool.
  • Drag the green dot angle handle so each leaf’s angle mirrors its opposite (for example, one leaf at ~45° and the opposite at ~135°).
  • Make all angle edits first, then regenerate one time at the end.
  • Success check: In preview, each leaf shows a different “grain” direction (like mowed grass), not one uniform flat sheen.
  • If it still fails: On stretchy performance wear, switch to cutaway stabilizer to prevent gaps from multi-directional push/pull.
• Q: In Generations Embroidery Software, how do I fix jagged satin/outline segments on a clover border using “Outline > Adjust with an Arc” without creating a ballooned shape?
  A: Use the 3-click arc method to replace node noise with a controlled curve, and keep the bow tight to the original silhouette.
  • Switch to Outline View, then right-click the rough area and choose Outline > Adjust with an Arc.
  • Click Start Point, click End Point, then click the segment and drag to “bow” into a smooth curve.
  • Press Escape to exit, and regenerate after you finish multiple segments (not after each one).
  • Success check: The outline looks fluid (no staircase edges) and the clover petal does not look swollen compared to the original shape.
  • If it still fails: If a fill/outline gap appears after regen, keep refining and then regenerate the whole object group so the fill recalculates to the new border.
• Q: In Generations Embroidery Software, how can “Outline > Edit Outline Mode” adjust a clover stem taper without turning the stem into a blocky trunk?
  A: Add nodes deliberately and curve between nodes instead of dragging one node too far.
  • Enter Outline > Edit Outline Mode.
  • Left-click/hold/drag on the red outline segment to create a new node where control is needed.
  • Right-click/hold/drag on the line to curve the segment between nodes for a natural taper.
  • Success check: The node line flows like liquid (not a zigzag staircase), and the stem visibly tapers and disappears behind the leaves.
  • If it still fails: Reduce extreme micro-movements—overly sharp angles often come from too many tight nodes in one small area.
• Q: What needle safety rule should a SEWTECH multi-needle embroidery machine operator follow when digitizing sharp corners and tight node clusters in Generations Embroidery Software?
  A: Avoid ultra-tight node clusters because repeated needle hits in one spot can overheat and deflect or snap the needle—stop immediately if the machine “thud-thud-thuds” in one location.
  • Keep nodes spaced about 1–2 mm apart to prevent needle penetrations stacking on the same point.
  • Watch for extremely sharp angles or dense point clusters before exporting the stitch file.
  • Stop the machine immediately if you hear repeated heavy impacts in one spot and inspect the design section.
  • Success check: The design stitches smoothly without a repetitive impact sound and without needle bending/snapping.
  • If it still fails: Simplify that corner/segment (fewer nodes, smoother path) and re-run at reduced speed for the first test.
• Q: What is the safest way to handle industrial magnetic embroidery hoops/frames to avoid pinch injuries and device interference during hooping?
  A: Treat magnetic frames as high-force tools—keep fingers clear during mating and keep magnets away from medical implants and magnetic storage.
  • Separate and join the magnetic halves slowly with hands positioned away from the snap surfaces.
  • Keep magnetic hoops away from pacemakers/insulin pumps and away from credit cards/hard drives.
  • Organize the work area so the frame cannot jump onto metal tools unexpectedly.
  • Success check: The frame closes without finger pinches and stays controlled on the table (no sudden snapping onto nearby metal).
  • If it still fails: Switch to a slower, two-hand closing technique and clear the tabletop of metal objects before hooping.
• Q: How can I tell if embroidery hoop tension is correct during hooping for an embroidery machine before running a clover design (to prevent shifting, birdnesting, and outline gaps)?
  A: Use the “tambourine tap” test—fabric should be taut with slight resonance, not overstretched or slack.
  • Tap the hooped fabric and listen/feel for a tambourine-like tone (taut, slight resonance).
  • Avoid a high-pitched “snare drum” feel (too tight, stretches fabric) and avoid a dull thud (too loose, invites loopiness and shifting).
  • Verify clearance so hoop arms won’t hit walls/clutter during stitching.
  • Success check: The outline lands where expected relative to the fill during the first minute of stitching (no visible “walk” outward).
  • If it still fails: Stop, un-hoop, add stabilizer (or a second layer) and re-hoop with better support.
• Q: How do I troubleshoot birdnesting underneath the fabric on a SEWTECH multi-needle embroidery machine when the machine sounds like grinding?
  A: Re-thread completely with the presser foot UP, because the upper thread often jumped out of the tension discs.
  • Raise the presser foot before threading so the tension discs open.
  • Re-thread the entire upper path from spool to needle (don’t “patch thread” mid-path).
  • Restart and watch the first stitches to confirm smooth feed.
  • Success check: No knot forms underneath and the stitch line forms cleanly without a grinding sound.
  • If it still fails: Cut away the nest, check the thread path for snags (spool cap/hook points), and re-test at reduced speed (about 600–700 SPM) on the first run.
• Q: When embroidery production is slowed by frequent thread changes and hooping pain, what is a practical upgrade path from technique fixes to magnetic embroidery hoops to a SEWTECH multi-needle embroidery machine?
  A: Fix workflow first, then upgrade hooping tools for speed/fabric safety, and move to a multi-needle machine when color-change downtime becomes the bottleneck.
  • Level 1 (technique): Run Optimize Stitching Order to group identical colors and reduce trims/jumps; then verify the stem/background did not get reordered on top of the leaves.
  • Level 2 (tool): Use magnetic hoops when standard screw hoops cause hoop burn, slow changes, or wrist strain—especially on thick or delicate fabrics.
  • Level 3 (capacity): Upgrade to a SEWTECH multi-needle when waiting on manual thread changes repeatedly is costing real production time.
  • Success check: Fewer stops/trims and faster, consistent hooping (less handling time per garment).
  • If it still fails: Re-check stabilizer choice (cutaway for stretch, topper for fleece/towel) and slow the first test run to 600–700 SPM to validate the file before scaling production.
