From Sketchy Lines to Clean Satin: Digitizing a Beehive in Embird Studio That Actually Fits the Brother 130×180 Hoop

From the Screen to the Needle: The Professional Workflow for Digitizing in Embird Studio

When a design looks "fine on screen" but stitches out wavy, bulky, or cramped in the hoop, it is rarely bad luck—it is usually a few small digitizing decisions stacking up against the laws of physics.

In Donna’s Embird Studio session, she builds a simple beehive from a background image, experiments with sketch/satin looks, converts one element to a fill, and then does the move that saves real money: she verifies everything against a specific hoop size (Brother 130×180 mm) before calling it done.

This guide upgrades that casual screen session into a clean, repeatable workflow. We will bridge the gap between "clicking buttons" and "production-quality embroidery," adding the sensory checks and physical parameters necessary to avoid thread breaks, stiff satin, or a design that "mysteriously" won't fit your hoop.

Calm the Panic: What “Looks Wrong” in Embird Studio Usually Means (and Why It’s Fixable)

If you are staring at a beehive outline that suddenly looks sketchy, chunky, or just plain off after stitch generation, take a breath. In Embird Studio, that moment is normal—because you are switching from geometry (perfect mathematical vectors) to stitch physics (needle penetrations, thread path, and fabric distortion).

Donna hits two very real pain points:

1. She deletes a stitch object because she dislikes the "sketch" aesthetic.
2. She admits Getting lost finding buttons when bouncing between digitizing programs.

That is not user error—that is the software telling you, "Your parameters do not match your intended look yet." The fix is a controlled loop: Shape → Generate → Evaluate → Adjust → Regenerate.

The Mindset Shift: Treat your first stitch generation as a draft proof, not a final output. On screen, a line is just pixels. On fabric, that line has thickness (0.4mm for standard 40wt thread) and pull. We must design for the thread, not the screen.

The “Hidden” Prep Before You Touch a Single Node: Set Yourself Up for Fewer Redos in Embird Studio

Before you start dragging nodes, decide what you are optimizing for. Is this a light sketch for a t-shirt (low density) or a patch (high density)?

Donna is working over a background image and building the beehive contours manually. This is a solid approach for simple motifs—if you prep your workspace so you don't fight it later.

Phase 1: The "Pre-Flight" Prep Checklist

Do this once per design to prevent "File fatigue."

• Software Mode Check: Confirm you are in Embird Studio (Digitizing Mode), not Embird Manager. You must be able to right-click and see "Generate Stitches."
• Hoop Target: Write down your target hoop size immediately (e.g., Brother 5x7" / 130x180mm). Designing without a target hoop causes scaling issues later that ruin stitch density.
• Image Visibility: Keep your background image visible, but plan to hide it before the final view.
• Consumable Check: Do you have the right needle? For this satin work on standard fabric, a 75/11 Sharp (for wovens) or 75/11 Ballpoint (for knits) is your baseline.
• Interface Map: If you hop between programs, locate your three critical buttons now: Node Edit, Generate Stitches, and 3D Preview.

Shape the Beehive Cleanly: Node Editing That Produces Smooth Satin Later

Donna starts by manually dragging vector nodes to shape the beehive contours over the background image. You can see the yellow vector shape on the grid, and she smooths curves by adjusting curvature handles.

Here is the "Physics-First" way to do what she is doing. Remember: Every node is a potential hesitation point for the machine.

1. Select the beehive outline object and enter node editing (Edit Mode).
2. Drag nodes to match the background but ignore tiny jitters in the artwork.
3. Smooth the Arcs: Use curvature handles for the dome.
4. The "Less is More" Rule: Resist adding extra nodes. If a curve can be made with 3 nodes, do not use 5.

Why this matters: When vectors convert to satin, the software calculates stitch angles based on these nodes. Too many nodes creates "choppy" satin that reflects light unevenly and makes the embroidery look dull.

Sensory Check: Your vector outline should look flowing, like a path you could skate on without tripping. If it looks jagged on screen, it will sound loud/rough on the machine.

Pick Thread Colors Like a Pro: Floriani Polyester in Embird Studio Without Guesswork

Donna opens the thread catalog, selects Floriani Polyester, and chooses a blue tone before generating stitches.

This is more than aesthetics; it is quality control. Assigning realistic thread colors early helps you spot density issues:

• Contrast Check: High-contrast colors (like Blue on White) reveal gaps in satin borders that might be hidden if you design in default colors.
• Weight Visualization: Catalog colors are textured in 3D preview, helping you see if a fill is too heavy.

Shop Floor Tip: If you run a production shop, document the specific catalog number (e.g., Floriani PF123) in the file notes. "Blue" is an opinion; "PF123" is a standard. This prevents the "Which blue did we use last year?" panic.

Generate Stitches, Then Judge the Draft: The Right-Click Moment That Changes Everything

Donna right-clicks and chooses Generate Stitches to convert the vector into stitch data.

Here is the exact loop to follow for professional results:

1. Right-click the vector object.
2. Choose 'Generate Stitches'.
3. Zoom in to 400%.
4. Inspect standard specific failure points:
   • The Pinch: Are satin stitches bunching up in tight corners? (Risk of thread breaks).
   • The Gap: Is the underlay peeking out from the edge?
   • The Flow: Do the stitches change angle smoothly?

Expected outcome: You should see specific stitch lines appear (Donna’s blue lines over yellow artwork). If you don’t like it, delete the stitch object—not the vector object—and adjust the parameters.

Warning: The Layering Trap
Never "fix" a bad stitch object by stacking another object on top of it. This creates a "bulletproof vest" of thread (high density) that will break needles and jam your bobbin case. If the base is wrong, delete it and fix the parameters.
Safety Rule: Maximum recommended thickness is usually 3 overlapping layers (Fill + Detail + Outline).

Bulk-Edit Satin Behavior: Why Donna Sets Max Length to 4.0 mm (and When You Shouldn’t)

Donna multi-selects several layers, opens properties, and increases Max Length to 4.0 mm.

This is a critical technical decision. Let's decode the numbers so you can use them safely.

What is "Max Length"? Machine embroidery satin stitches are zig-zags. If a curve is wide, the machine has to jump from one side to the other.

• Too Short (<3mm): The satin looks like a "worm"—very round, stiff, and bulletproof.
• Too Long (>7-8mm): The loops become loose and can snag on buttons or jewelry (technically called "long floats").
• The Sweet Spot (3.5mm - 5.5mm): This range allows the thread to reflect light beautifully (shine) without being loose enough to snag.

Donna sets hers to 4.0 mm. This is a safe, conservative setting for borders. It ensures the satin lies flat and glossy.

Action: When you make this change, check the corners. If 4.0mm makes the corners look sparse, you may need to enable "Short Stitches" or "Cornering" in Embird parameters to help the machine negotiate the turn.

Build the Top Curve Cleanly: Using the Connection/Outline Tool Without Creating a “Goofy” Border

Donna uses a connection tool to draw a curve at the top of the hive, creating a new object for the satin stitch border.

Then she tests increasing stitch width—she sets Stitch Width to 3.0 mm at one point.

Design Reality Check: Standard satin borders usually look best between 2.5mm and 4.0mm.

• < 1.5mm: Too thin, often sinks into fabric (especially terry cloth or fleece).
• > 5.0mm: Becomes a "fill" and looks heavy unless split.

Donna's Impulse Control: She mentions a little "hoop" element in the artwork she considers removing because it might look "goofy." Listen to this instinct. Tiny details (under 2mm) in vectors often turn into unrecognizable thread blobs in reality. If an element is smaller than the tip of a ballpoint pen, remove it or scale it up.

Convert the Center from Outline to Fill: The Fast Experiment That Saves a Full Redigitize

Donna selects the center circle and converts it from an outline/applique style to a fill stitch pattern.

Fills provide stability that outlines cannot. If your center element is feeling "floppy" or the fabric is puffing up inside the ring, converting to a Fill (Tatami) is the engineering fix.

The Physics of the Conversion:

• Outlines push fabric outward.
• Fills pull fabric inward.
• The Fix: When you convert to fill, you must ensure your stabilization is sufficient to handle the "pull." A simple tear-away might suffice for an outline, but a dense fill often demands a Cutaway stabilizer to prevent the "hourglass" distortion effect.

The Hoop Boundary Reality Check: Lock the Design to Brother 130×180 mm Before You Export

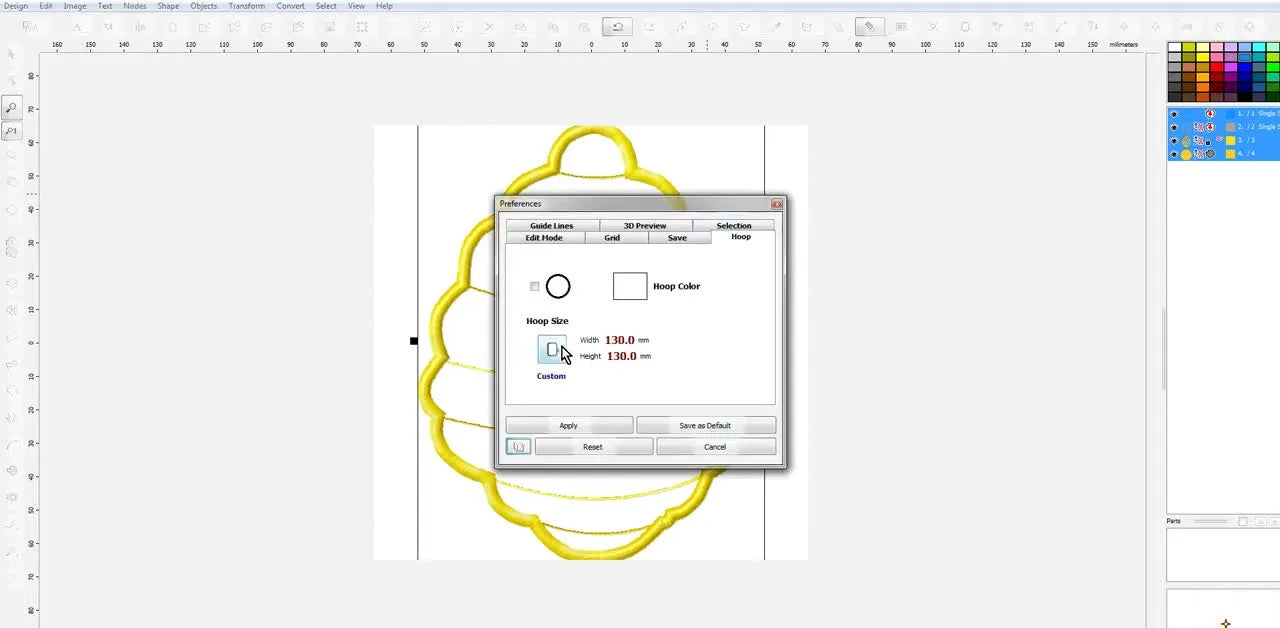

Donna opens Preferences/Hoop Size and selects Brother 130 × 180 mm, then centers the design and confirms it fits.

This step prevents the "Hoop Burn of Shame"—where you force a design so close to the edge that the presser foot hits the plastic hoop frame.

The Safety Procedure:

1. Select Hoop: Choose Brother 130 × 180 mm (or your specific machine's limit).
2. Visual Check: Ensure there is at least a 5-10mm safety margin between your design and the hoop boundary line.
3. Why? The machine's physical printable area is often 1-2mm smaller than the software claims, and bulky seams on garments eat up space.

Pro Tip: Center the design (Alignment > Center). Never manually drag to the center; let the math do it to ensure perfect alignment with your machine's origin point.

Fabric-to-Stabilizer Decision Tree: Prevent Puckering Before You Blame the Digitizing

Your file is ready. Now you must choose the right physical "sandwich" to support it. Use this decision tree before hooping.

Decision Tree: Select Your Support System

Hidden Consumable Alert: Keep Temporary Spray Adhesive (like KK100) or a glue stick handy to float fabric if it is too thick to hoop easily.

The Two Most Common “Scary” Problems: Fixes for Ugly Sketch Stitches and Lost Commands

Donna’s troubleshooting moments are exactly what intermediate digitizers run into.

Symptom 1: "The Sketch Stitch looks messy/broken."

• Diagnosis: Sketch stitches often lack underlay, making them sink into the fabric pile.
• The Fix: Delete and try a standard "running stitch" with a higher repetition (Beam or Triple run) for a cleaner line, or increase the density.
• Visual Check: Zoom out. Does the line disappear? If so, thicken it.


Symptom 2: "I can't find 'Generate Stitches' / The Interface changed."

• Diagnosis: You clicked into "Manager" or "Editor" instead of "Studio."
• The Fix: Look at the top bar. You must be in the Digitizing/Studio module to create stitches.


The Upgrade Path That Actually Matches This Workflow: When Better Hooping and Faster Machines Start Paying You Back

You have digitized a perfect file. Now comes the physical reality. If you are making one gift, a standard plastic hoop is fine. But if you are doing 50 of these beehive patches for a local club, the "Hoop → Screw → Tug → Repeat" cycle will become your bottleneck (and the source of Carpal Tunnel pain).

Pain Point Analysis:

• The Struggle: Traditional plastic hoops often leave "hoop burn" (shiny crushed fabric marks) and make it difficult to hoop thick items like hoodies.
• The Level-Up: This is where professionals search for a hooping station for embroidery. These devices fix the hoop in place, allowing you to use both hands to align the garment perfectly.

For Brother Machine Owners: If you own a Brother single-needle machine, consistent placement is your biggest challenge.

• Level 1 (Consistency): A hooping station for brother embroidery machine ensures every logo lands in the exact same spot on the chest.
• Level 2 (Speed & Safety): Standard hoops require hand strength. Many users upgrade to Magnetic Hoops. They simply "snap" onto the fabric—no screws, no twisting, no hoop burn.
• Search Intent: Users often look for terms like hoop master embroidery hooping station or generic alternatives to solve alignment issues. Even a simple hooping for embroidery machine technique upgrade can save minutes per garment.

Warning: Magnetic Field Safety
Magnetic Hoops contain powerful neodymium magnets.
* Pinch Hazard: Keep fingers clear of the snapping zone.
* Medical Devices: Maintain a safe distance (usually 6+ inches) from pacemakers or insulin pumps.
* Electronics: Do not place directly on laptops or magnetized cards.

When to Scale Up: If you find yourself waiting 5 minutes for a color change, or if re-threading a single needle is eating your profit margin, you have outgrown the hobby tools. This is the trigger point for looking at SEWTECH multi-needle embroidery machines. The transition from "1 needle, flatbed" to "15 needles, free-arm" is not just about speed—it's about the ability to embroider caps, bags, and finished garments without taking them apart.

Whether you need a specific brother 4x4 embroidery hoop replacement or are looking to organize your shop with specific brother embroidery hoops, matching the tool to your production volume is the key to profit.

Final Checklists: Your Success Roadmap

Setup Checklist (Before you look at the machine)

1. Software: Design verified inside Brother 130×180 mm boundary? (Yes/No)
2. Consistency: Are all satin borders set to similar specs (e.g., 4.0mm)? (Yes/No)
3. Thread: Is your physical thread rack matched to the file colors? (Yes/No)
4. Hoop: Is the hoop screw tension pre-adjusted for the fabric thickness? (Tactile Check: The fabric should sound like a drum when tapped, but not be stretched like a trampoline).

Operation Checklist (The Test Sew)

1. Speed: Start your test sew at 600 SPM (Stitches Per Minute). Do not run at max speed until you trust the file.
2. Listen: A rhythmic "hum" is good. A sharp "thud-thud" means the needle is dull or hitting a knot.
3. Watch: During the satin stitching, watch the bobbin thread underneath. You should see 1/3 white bobbin thread in the center of the column. IF you see color underneath, your top tension is too loose. If you see white on top, top tension is too tight.

By following this workflow—from the first vector node to the final magnetic snap of the hoop—you convert "guessing" into "engineering." Happy stitching.

FAQ

• Q: In Embird Studio digitizing mode, why does a satin outline look sketchy, chunky, or wrong right after clicking “Generate Stitches”?
  A: This is common—Embird Studio is switching from clean vector geometry to stitch physics, so treat the first stitch-out as a draft and iterate.
  • Delete the stitch object (not the vector), then adjust parameters and regenerate (Shape → Generate → Evaluate → Adjust → Regenerate).
  • Zoom to 400% and inspect tight corners for bunching (“pinch”), edges for underlay showing (“gap”), and angle transitions (“flow”).
  • Avoid “stack-fixing” by adding more objects on top; correct the base object instead to prevent high density.
  • Success check: satin columns look smooth and consistent, and corners do not show bulky knots or sudden angle jumps.
  • If it still fails: simplify the vector (fewer nodes) and re-generate to reduce choppy satin behavior.
• Q: In Embird Studio, what is the safest Max Length setting for satin borders, and why did Donna set Max Length to 4.0 mm?
  A: A safe, conservative starting point for many satin borders is 4.0 mm, because it helps stitches lay flat and glossy without creating risky long floats.
  • Set Max Length to 4.0 mm on the selected satin objects, then immediately re-check corners and tight curves.
  • Watch for two extremes: very short lengths can look stiff/bulky, and very long lengths can create snag-prone floats.
  • Turn on short-stitch/corner handling options if corners start looking sparse after the change (use the available Embird parameters).
  • Success check: satin reflects light evenly and does not form loose loops on wider spans.
  • If it still fails: reduce width or re-shape the border so the satin span is more consistent through curves.
• Q: In Embird Studio, how do you prevent a design from “mysteriously” not fitting a Brother 130×180 mm hoop after digitizing?
  A: Lock the design to the Brother 130×180 mm hoop early and verify a real safety margin before exporting.
  • Select the Brother 130×180 mm hoop in the hoop settings, then center the design using Alignment > Center (do not eyeball-drag).
  • Keep at least a 5–10 mm margin from the hoop boundary to reduce the risk of the presser foot contacting the frame.
  • Re-check the full design boundary after any scaling or converting outlines to fills, because density and pull can change behavior.
  • Success check: the entire design stays comfortably inside the hoop boundary line with clear space all around.
  • If it still fails: simplify/resize the artwork or recompose elements rather than forcing the design close to the edge.
• Q: What needle is a safe starting point for satin-heavy embroidery when following an Embird Studio workflow on woven or knit fabric?
  A: A safe starting point is a 75/11 Sharp needle for wovens or a 75/11 Ballpoint needle for knits, then adjust based on fabric behavior and your machine manual.
  • Match needle type to fabric: Sharp for stable wovens, Ballpoint for stretchy knits to reduce damage and skipped stitches.
  • Start the test sew slower (for example, 600 SPM was recommended) until the file proves stable.
  • Listen during satin: a steady hum is good; repeated “thud-thud” can indicate a dull needle or hitting a knot.
  • Success check: stitches form cleanly without harsh punching sounds or sudden thread breaks.
  • If it still fails: change to a fresh needle first, then review density/overlap (stacking layers can create needle-breaking thickness).
• Q: How do you choose stabilizer to prevent puckering when converting an outline to a fill stitch in Embird Studio?
  A: Use a fabric-to-stabilizer match, because fills pull fabric inward more than outlines and often need stronger support.
  • Use Cut-Away on stretchy knits; avoid Tear-Away on knits because the fabric can keep stretching after removal.
  • Use medium Tear-Away on stable wovens where the fabric carries most of the load.
  • Add water-soluble topping on high-pile fabrics (towel/fleece/velvet) to keep stitches from sinking.
  • Success check: the filled area stays flat (no “hourglass” distortion) and the fabric around the fill does not ripple.
  • If it still fails: reduce fill heaviness or upgrade stabilization (for example, move from tear-away to a cut-away/no-show mesh style appropriate to the garment).
• Q: During a test sew, how can you judge upper thread tension correctly by looking at bobbin thread on the underside of satin stitching?
  A: Use the “1/3 rule” as a practical check: on the underside of satin, about one-third of the column should show bobbin thread centered.
  • Run a controlled test sew at a moderate speed (the workflow recommends starting around 600 SPM).
  • Inspect the underside during satin: if top color shows underneath, upper tension is likely too loose; if white bobbin shows on top, upper tension is likely too tight.
  • Make one tension change at a time, then re-test a short section.
  • Success check: underside shows a centered bobbin strip (about 1/3), and the top satin looks smooth without pinholes.
  • If it still fails: re-check hooping/stabilizer choice and confirm the design is not overly layered (excess thickness can mimic tension problems).
• Q: What safety rules should users follow when using magnetic embroidery hoops to avoid finger pinches and interference with medical devices?
  A: Treat magnetic hoops as high-force tools: keep fingers out of the snap zone, and keep magnets away from pacemakers/insulin pumps and sensitive electronics.
  • Keep hands clear when closing the magnetic frame; let the magnets “find” the seat without guiding fingertips between parts.
  • Maintain a safe distance from medical devices (a commonly advised minimum is 6+ inches) and follow the device manufacturer guidance.
  • Do not place magnetic hoops directly on laptops, phones, or magnetic-strip cards.
  • Success check: the hoop closes cleanly without finger contact, and the fabric is held securely without needing excessive force.
  • If it still fails: slow down the closing motion and reposition fabric first—never “fight” the magnets while fingers are in the closing gap.
• Q: When hooping becomes slow and causes hoop burn on garment runs, what is the practical upgrade path from technique to magnetic hoops to a SEWTECH multi-needle embroidery machine?
  A: Use a staged approach: fix consistency first, then remove hooping friction with magnetic hoops, then scale production with a multi-needle machine if threading/color changes become the bottleneck.
  • Level 1 (Technique): use a hooping station for repeatable placement and to reduce re-hooping and alignment errors.
  • Level 2 (Tool upgrade): switch to magnetic hoops to reduce screw/tug cycles and minimize hoop burn on sensitive fabrics.
  • Level 3 (Capacity upgrade): consider a SEWTECH multi-needle embroidery machine when single-needle re-threading and color changes are consistently eating profit time.
  • Success check: cycle time per garment drops and placement repeatability improves across a batch (less rework, fewer crushed marks).
  • If it still fails: document where time is lost (placement vs trims vs color changes) and upgrade the specific bottleneck instead of changing multiple variables at once.
