FUWEI BF-1500 Hook Motor Replacement: The Calm, Correct Way to Swap the Thread Trimmer Stepper Motor (and Avoid a Costly Misalignment)

The Definitive Guide to Resurrecting Your FUWEI BF-1500: Hook Motor Replacement & Master Calibration

When your FUWEI BF-1500 hook motor starts acting up—grinding, stalling, or failing to trim—it triggers a very specific type of panic in the pit of your stomach. I know that feeling. It’s the sound of production stopping and deadlines slipping.

But here is the truth derived from 20 years on the shop floor: The machine is not mysterious; it is just nuts, bolts, and logic.

Replacing the hook motor is a "Level 2" repair. It requires patience, but it does not require an engineering degree. However, the difference between a repair that lasts a week and one that lasts five years lies in the calibration.

In this guide, we are going to walk through the hook motor replacement procedure. But I am not just going to tell you which screws to turn. I am going to teach you the sensory cues—what it should feel like, sound like, and look like—so you can close up the machine with absolute confidence.

1. Anatomy of a Crisis: Understanding the Hook Motor System

Before we pick up a screwdriver, we must align our mental model. On the FUWEI BF-1500, the hook motor (often a Minebea stepper) is the muscle behind your trimming system.

When you press the "Scissors" icon on your screen, this motor drives a linkage arm that pushes the hook into the thread clip.

• If it works: Clean trims, no birdnests, smooth color changes.
• If it fails: The machine might make a "chugging" noise, the trimmer knife won't engage, or—worst case—the hook gets stuck halfway, causing needle collisions.

From a technician’s perspective, the risk isn’t just the motor dying. The real risk is misalignment during installation. If the hook doesn't land perfectly in the center of the thread clip, you will face intermittent thread breaks that will drive you crazy for months.

Warning (Mechanical Safety): Embroidery machines are high-torque devices. Even when powered down, internal capacitors can hold charge, and mechanical springs can snap back. Always unplug the machine completely before opening the head. Never put your fingers near the trimming knives while the machine is powered on.

2. The "Surgeon's Prep": Setting the Stage

Most beginners fail because they start unscrewing things immediately. We are going to do this like professionals. The goal is zero cognitive friction—you shouldn't have to hunt for tools while holding a heavy motor.

The video guide begins with a crucial step: selecting Needle No. 15.

Why? The BF-1500 head moves. By selecting Needle 15, you physically shift the needle case to the far side, exposing the maintenance port for the hook motor. If you skip this, you will be fighting the chassis the entire time.

Even if you are used to maintaining large-scale commercial embroidery machines, do not skip this specific positioning step. It is the only way to get a straight line of sight to the mounting bracket.

Prep Checklist (The "Do Not Ski" List):

• Power Isolation: Machine turned off AND unplugged from the wall.
• Positioning: Head shifted to Needle No. 15 (do this before powering down).
• Surface: Clear a 2x2 foot space. Lay down a white towel or magnetic mat (black screws disappear on dark tables).
• Lighting: Use a focused headlamp or directed task light. You need to see into deep recesses.
• Documentation: Take a photo of the wire routing and linkage orientation now.
• Consumables: Have a small cup for screws and a burst of compressed air to clean dust while you're in there.


3. Tool Selection: Precision Over Force

You are working with aluminum castings and small steel screws. If you strip a screw head here, a 20-minute job becomes a 4-hour nightmare.

You need:

1. Orange-handled Hex Driver (Metric): For the main bracket screws. This gives you torque control.
2. Small Allen Key Set: For the delicate linkage screws.
3. Long-Reach Allen Key: Essential for the final calibration deep inside the mechanism.

Sensory Tip: When loosening these screws, you should feel a sharp "crack" as the threadlock breaks. If it feels mushy, your tool is slipping. Stop immediately and check your tool size.

4. Extraction: Removing the Motor Assembly

In the procedure, we loosen the two main mounting screws holding the motor bracket to the machine frame.

The "Cable First" Rule: Notice the white 4-pin connector.

• Amateur move: Unscrew the motor, let it drop, and let it hang by the wires. This strains the crimps.
• Pro move: Support the motor with one hand. Loosen the screws. Gently detach the bracket. Then unplug the connector by squeezing the plastic tab/body. Never pull the wires.

Labeling Discipline: Inside the head of a multiple needle embroidery machine - 1, you will see a spaghetti bowl of wires. You will face connectors for the "Color Change Motor," "Jump Motor," and "Hook Motor." They often look identical. Action: Use a piece of masking tape to tag the cable you just unplugged as "HOOK." Don't trust your memory.

5. The Linkage Transfer: The Heart of the Repair

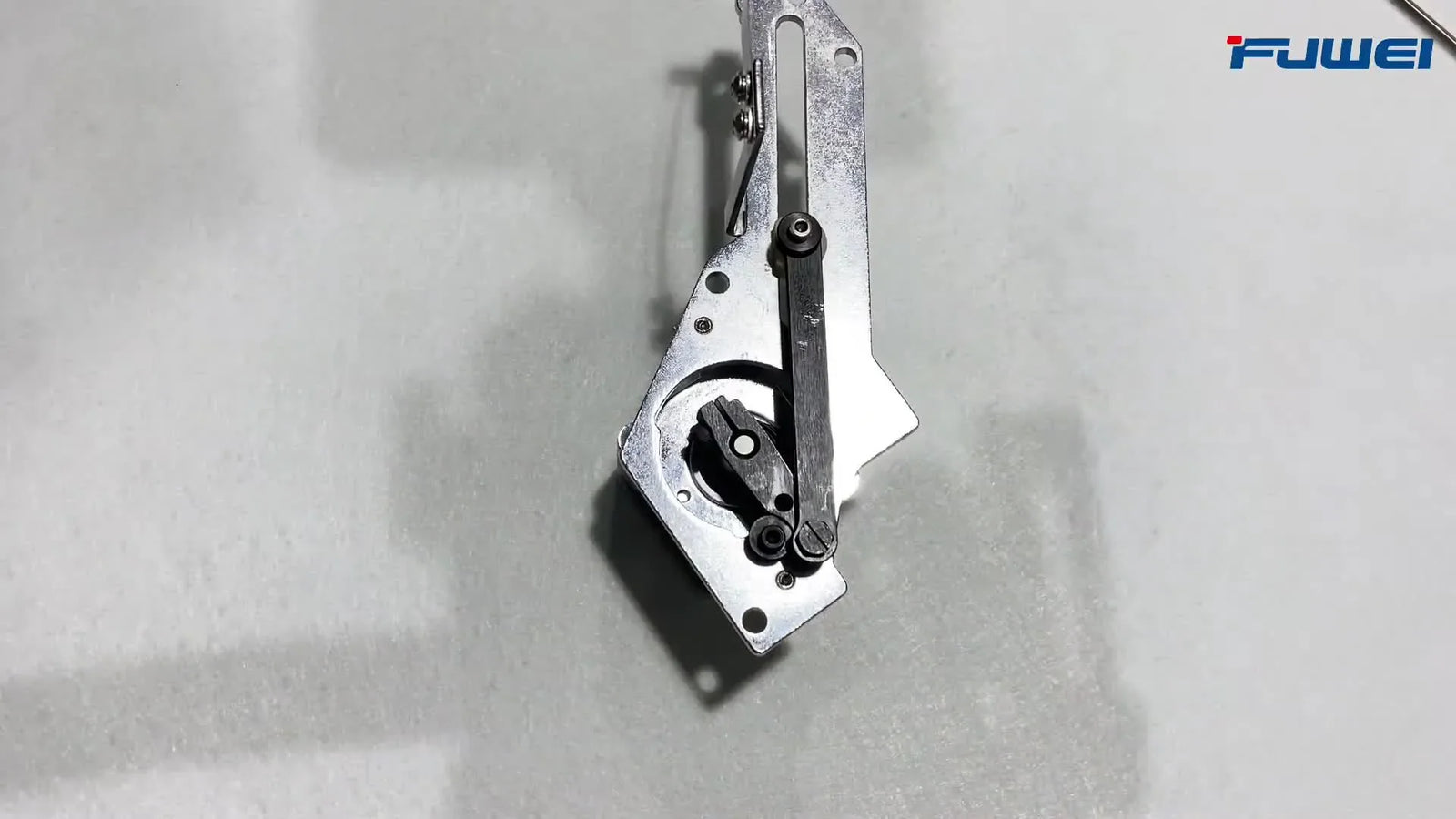

Now the assembly is on your bench. You must separate the motor from the mechanical linkage arm. This is where the magic (or the mistake) happens.

As you unscrew the linkage form the motor shaft using the small Allen key, pay attention to the washers.

• Physics: These washers are not just fasteners; they are spacers. They create a microscopic air gap that allows the arm to pivot without grinding against the motor face.
• The Mistake: Losing a washer or putting it on the wrong side of the arm.
• The Result: The linkage binds. The motor stalls.

Sensory Check: When you reassemble the linkage onto the new motor, tighten the screw, then move the arm with your finger. It should swing like a pendulum—zero resistance, but zero wobble. If it feels "gritty" or stiff, you have overtightened it or missed a spacer.

6. Installing the New Minebea Motor

The replacement unit shown is a Minebea 17PM-K049BN02CN. This is an industry-standard stepper motor known for precision.

Mounting Strategy:

1. Place the new motor against the bracket.
2. Insert the four black screws.
3. Do not tighten them in a circle. Tighten them in a Criss-Cross Pattern (Top-Left, Bottom-Right, Top-Right, Bottom-Left).
   • Why? This ensures the motor face sits perfectly flat against the bracket. If it's tilted even 0.5 degrees, the shaft will be misaligned, leading to premature wear.


Once the motor is secure, reattach the linkage arm. Refer to the photo you took in the Prep phase to ensure the arm is facing the correct direction (L-shape usually pointing down/out).

7. Reinstallation: The "Tactile" Click

Bring the rebuilt assembly back to the machine.

1. The Connection: Plug the white 4-pin connector back in.
   • Sensory Check: Listen for a distinct "Click." Give the wire a tiny tug (the "dental floss" test). It should not back out.
   • Verification: Check your masking tape label. Are you 100% sure this is the Hook Motor cable and not the Jump Motor cable?
2. Seating the Bracket:
   Slide the bracket into place. Finger-tighten the two mounting screws first. Then, use the orange driver to lock them down.

Pro Tip for Shop Owners: If you manage a fleet, perhaps a 15 needle embroidery machine lineup, standardize this step. Ensure all technicians route the cable behind the bracket so it doesn't rub against the moving belts. Cable abrasion is the #1 killer of stepper motors in high-vibration environments.

Setup Checklist (The "Pre-Flight"):

• Connection: 4-pin connector seated and clicked.
• Routing: Cable is clear of belts and moving gears.
• Hardware: Bracket screws are torqued down tight.
• Clearance: No tools left inside the head.


8. The "Smoke Test": Verification via Control Panel

Power the machine on. It will do its initialization dance. If it homes successfully, you are 80% there.

Now, we test the logic:

1. Go to the Control Panel.
2. Locate the "Trimmer" (Scissors) icon.
3. Press it.
   • Visual: The arm should cycle out and back.
   • Auditory: It should sound like a crisp "Snip-Snap." No grinding.
4. The Stress Test: Switch from Needle 15 to Needle 6 (as shown in the guide). This forces the head to move, changing the tension on the cables. Press Trim again. Does it still work?

If you are running a multi thread embroidery machine, this consistency across different needle positions is non-negotiable. A motor that only works on Needle 1 is a failed repair.

9. The Master Class: Calibration (Alignment)

This is the most critical section of this entire guide. A working motor is useless if the hook misses the target.

The Target: The "Thread Clip." This is the small metal finger that holds the thread tail after a trim. The Projectile: The "Hook" (driven by our new motor).

The Alignment Rule: When the trimmer is activated and holding the thread, the hook must sit dead center in the thread clip.

The Adjusting Procedure (The "Art"):

1. Locate the adjustment screw on the linkage collar (using the Long Allen Key).
2. Loosen it slightly—just enough so you can nudge the arm, but tight enough that it holds its position.
3. Manually move the hook until it entering the clip.
4. Visual Check: Look at the overlay in [FIG-12] and [FIG-13]. Is it too high? Too low?
   • Too High: The thread will slip out.
   • Too Low: The hook will crash into the clip, bending the metal.
5. Nudge it to the Sweet Spot (Center).
6. Tighten the locking screw firmly.






10. Troubleshooting: The Decision Matrix

Things don't always go according to plan. Use this logic flow to diagnose issues immediately.

Decision Tree: Symptom $\rightarrow$ Action

11. Beyond the Repair: Optimizing for Profit

If you have read this far, you are likely a business owner or a serious operator. You are fixing this machine because downtime is the enemy.

While the BF-1500 is a workhorse, frequent maintenance issues on a single head embroidery machine can indicate you are outgrowing your equipment.

The "Pain Point" Analysis

Are you spending more time fixing and hooping than stitching?

• The Hooping Bottleneck: Traditional hoops cause "hoop burn" and wrist strain. This slows down your loading time.
  • Level 1 Solution: Better stabilizers.
  • Level 2 Solution: Upgrade to Magnetic Hoops. They snap on instantly, hold thick garments without force, and reduce the vibration that loosens motor screws in the first place.
• The Capacity Bottleneck: If you are rejecting large orders because your single-needle machine can't keep up, no amount of motor repairs will solve that.
  • The Strategic Shift: Consider scaling to SEWTECH Multi-Needle Machines. These are built for the rigor of multi colour embroidery machine production, designed with redundant systems to minimize the very failure you just fixed.

Warning (Magnet Safety): If you upgrade to Magnetic Hoops, be aware they use high-power Neodymium magnets. Keep them away from pacemakers, credit cards, and machine screens. They can pinch fingers severely if handled carelessly.

12. Final Operation Checklist

Before you put a client's jacket on this machine, you must certify it.

Operation Checklist (The "Go/No-Go"):

• Actuation: Trimmer button produces a clean cycle.
• Range: Tested on Needle 1 and Needle 15 successfully.
• Visual: Hook lands perfectly center in the thread clip (use a flashlight).
• Sound: No grinding, just smooth mechanical clicks.
• Safety: All covers replaced, tools removed from the table.

You have now done more than swap a part. You have restored the mechanical integrity of your machine. Happy stitching.

FAQ

• Q: Why does the FUWEI BF-1500 hook motor replacement procedure start by selecting Needle No. 15?
  A: Selecting Needle No. 15 repositions the moving head to expose the hook motor access area, making the removal and installation physically possible.
  • Select Needle 15 while the machine is still powered on, then power off and unplug.
  • Clear workspace and take a photo of wire routing and linkage orientation before touching screws.
  • Use focused lighting so the bracket, connector, and linkage screws are fully visible.
  • Success check: You have a straight line of sight and tool access to the hook motor bracket without fighting the chassis.
  • If it still fails: If access is still blocked, re-check that the head actually moved to Needle 15 before shutdown.
• Q: What safety steps should be followed before opening the FUWEI BF-1500 head to replace the hook motor and work near the trimming knives?
  A: Unplug the FUWEI BF-1500 completely and keep hands clear of the trimming knives; do not rely on the power switch alone.
  • Turn the machine off and unplug from the wall before removing any covers.
  • Keep fingers away from the trimmer knife area during any powered testing.
  • Prepare a screw cup/mat and lighting so you are not reaching blindly inside the head.
  • Success check: The machine is physically unplugged and the head area is stable with no accidental movement while you work.
  • If it still fails: If anything must be tested, reinstall covers as needed and keep hands out of the knife path during the trim cycle.
• Q: How do I prevent damaging the FUWEI BF-1500 hook motor wiring when removing the hook motor bracket?
  A: Support the hook motor assembly and unplug the white 4-pin connector correctly—never let the motor hang by its wires.
  • Hold the motor with one hand while loosening the two main bracket screws.
  • Detach the bracket, then unplug the connector by pressing the plastic tab/body (do not pull wires).
  • Tag the connector/cable with masking tape labeled “HOOK” to avoid mixing it with similar connectors.
  • Success check: The connector releases cleanly and the cable insulation/crimps show no strain or stretching.
  • If it still fails: If the connector seems stuck, stop and re-check the latch/tab position rather than pulling harder.
• Q: Why does the FUWEI BF-1500 trimmer make a grinding or chugging sound after installing a new Minebea hook motor?
  A: Grinding/chugging usually means mechanical binding from linkage assembly errors (often washers/spacers) or a crooked bracket/motor face.
  • Re-check the linkage arm washers/spacers and confirm none are missing or swapped.
  • Loosen and re-tighten the motor mounting screws in a criss-cross pattern so the motor sits flat.
  • Move the linkage arm by finger to confirm it swings freely before reinstalling.
  • Success check: The arm swings like a pendulum—free movement with no gritty feel—and the trim cycle sounds like clean mechanical clicks, not grinding.
  • If it still fails: Reopen and verify the linkage screw is not overtightened and the bracket is not forcing the shaft out of alignment.
• Q: Why does the FUWEI BF-1500 trimmer show “click-click” but not actually trim after hook motor replacement?
  A: “Click-click” usually means the motor is moving but the hook-to-thread-clip alignment is off, so recalibration is required.
  • Locate the linkage collar adjustment screw and loosen it slightly (just enough to nudge position).
  • Manually position the hook so it enters the thread clip correctly, then lock the screw firmly.
  • Check whether the hook is too high (thread slips) or too low (hook crashes/bends clip) and nudge to center.
  • Success check: During trimmer activation, the hook sits dead center in the thread clip and the trim action is consistent.
  • If it still fails: Repeat calibration with better lighting and confirm the linkage arm orientation matches your pre-disassembly photo.
• Q: Why does the FUWEI BF-1500 trimmer work on Needle 15 but fail on Needle 1 after hook motor installation?
  A: This is commonly cable tension—when the head moves, the hook motor cable gets pulled tight and the connection becomes unreliable.
  • Reroute the hook motor cable to provide more slack across the full needle range.
  • Ensure the cable is routed behind the bracket and clear of belts/gears to avoid rubbing and abrasion.
  • Retest trimming at Needle 15 and Needle 1 to confirm consistent operation.
  • Success check: The trimmer cycles cleanly on both Needle 1 and Needle 15 with no intermittent stops.
  • If it still fails: Re-check the 4-pin connector seating “click” and confirm it is the hook motor connector, not a look-alike port.
• Q: What is a safe way to reduce hooping time and hoop burn before upgrading from a FUWEI BF-1500 to a multi-needle SEWTECH embroidery machine?
  A: Treat it as a tiered fix: optimize stabilizers first, then consider magnetic hoops for faster loading and less distortion; upgrade machines only if capacity is the true bottleneck.
  • Level 1 (Technique): Improve stabilizer choices and hooping habits to reduce hoop burn and rehoops.
  • Level 2 (Tool): Use magnetic hoops to speed loading and hold thick garments with less force (this often reduces operator strain).
  • Level 3 (Capacity): Move to a SEWTECH multi-needle setup when order volume is limited by changeovers and single-head throughput.
  • Success check: You can load garments faster with fewer hoop marks and fewer restarts, and production time shifts from “setup/fixing” to “stitching.”
  • If it still fails: If hooping is no longer the bottleneck but deadlines still slip, capacity—not technique—is likely the constraint.
  • Magnet safety note: Keep high-power magnetic hoops away from pacemakers, credit cards, and sensitive screens, and handle carefully to avoid finger pinches.
