Fuwei FW-1501 Potentiometer Replacement: The Calm, Precise Fix for “Wrong Needle Position” (and How to Verify Needle #15 Is Truly Centered)

Mastering the Fuwei FW-1501 Needle Position Error: A Step-by-Step Sensor Repair Guide

When a commercial head suddenly “doesn’t know” what needle it’s on, it feels like the machine has a mind of its own. It grabs the wrong color, hits the hoop frame, or refuses to trim. On the Fuwei FW-1501, that panic often points to one small part with a massive responsibility: the needle-position potentiometer (often called the color change sensor).

This isn't just about swapping a part; it's about teaching the machine's "brain" where its "body" is. This guide rebuilds the standard repair flow into a shop-floor protocol designed to keep you from doing the job twice.

The 60-Second Reality Check: What the Error Really Means

A “needle position error” typically means the control system is receiving garbage data. It thinks the head is between needles when it’s actually locked on one.

The symptoms are visceral:

• Visual: The screen shows a needle number flickering (e.g., jumping between 8 and 9).
• Auditory: The machine makes a “searching” sound, trying to find a center that doesn’t exist.
• Tactile: The head might feel locked or drift during color changes.

If you run a single head embroidery machine in a small shop, mastering this sensor calibration is a survival skill. It saves you the cost of a technician visit and gets you back to production in under 30 minutes.

Tools Required (The "Don’t Start Without These" List)

Gather everything first. There is nothing worse than holding a delicate sensor with one hand while hunting for a wrench with the other.

The Essential Kit:

• Phillips Screwdriver: For the white protective cover.
• Small Flathead Screwdriver: For the shaft coupler set screw.
• 10mm or Adjustable Wrench: To lock the potentiometer mounting nut.
• Replacement Potentiometer: Specific to the FW-1501 model.
• Masking Tape (Hidden Consumable): Stick the screws you remove directly to the table so they don't roll under the machine.

Warning: Mechanical Safety. Keep fingers, loose sleeves, and hair away from the color change cam and drive shafts. Even when rotating by hand, the gears have high torque and can pinch severely. Ensure the machine is powered OFF during disassembly.

Prep Checklist: Is the Machine Ready?

• Power Check: Machine is powered OFF for the mechanical teardown.
• Access Check: You have identified the white plastic protective box on the right side of the head.
• Part Check: You have the new potentiometer in hand (compare the connector pin count—usually 3 pins).
• Visibility: You have clear lighting on the needle plate to verify centering later.

Step 1: Establish "Physical Truth" (Move to Needle 15)

You cannot calibrate a sensor based on a guess. You must anchor the machine to a known physical reality.

1. Locate the Knob: Find the black color change knob behind the head.
2. Rotate Manually: Turn the knob until the needle bar case moves all the way to Needle No. 15 (the furthest right position).
3. Feel the Lock: Confirm the head is physically "clicked" into position 15 and isn't floating between needles.

Why Needle 15? On a 15 needle embroidery machine, the last needle is a hard stop. It provides the most reliable physical reference point for calibration.

Step 2: Surgical Disassembly

Access the sensor without damaging the delicate wiring harness.

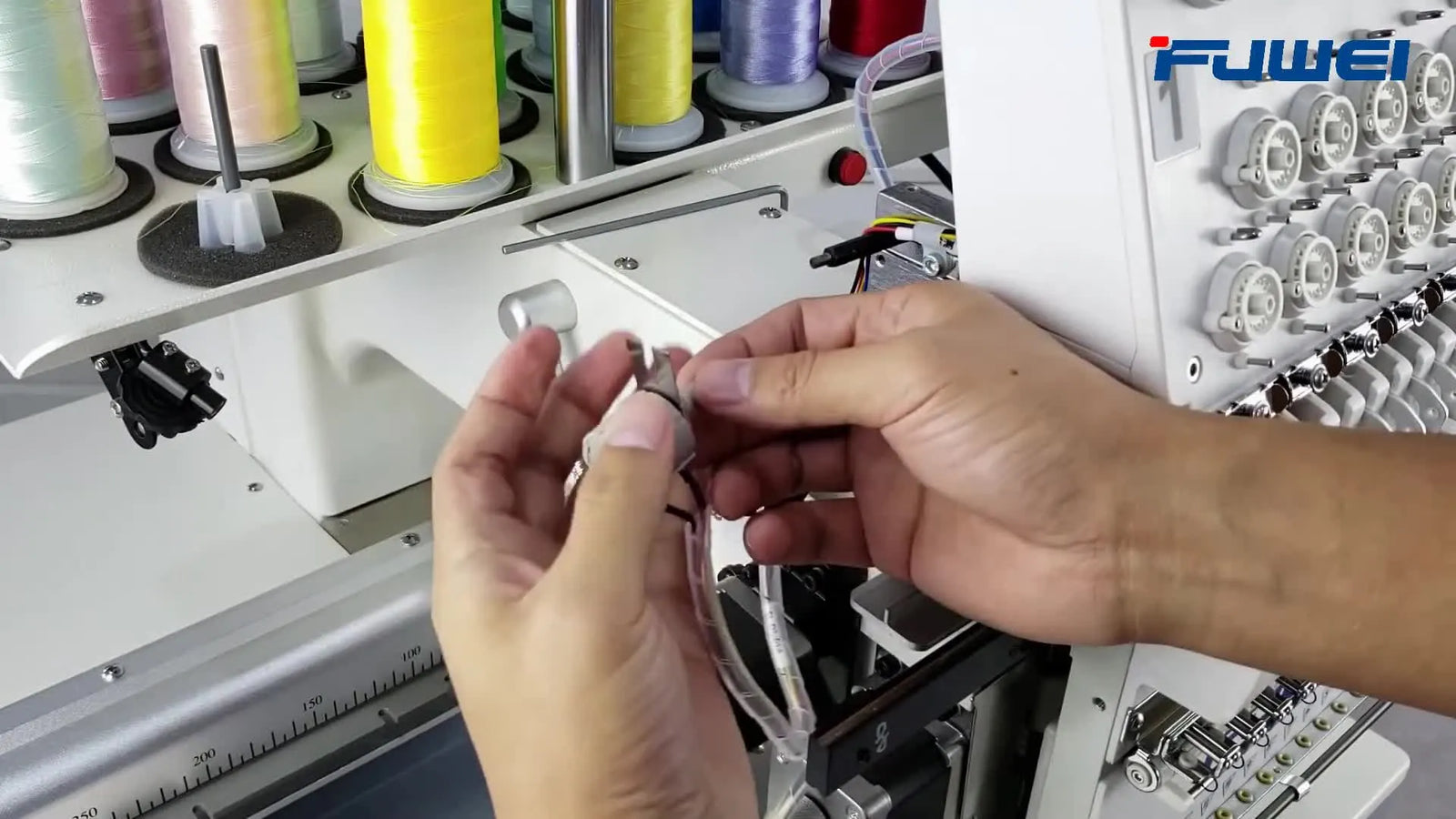

1. Remove Cover: Unscrew the white plastic protective cover on the right side. Set it aside.
2. Disconnect: Unplug the white 3-pin connector. Tactile tip: Grip the plastic plug, never pull by the wires.
3. Loosen Coupler: Use your small screwdriver to loosen the set screw on the metal shaft coupler (the cylinder connecting the sensor to the machine shaft).
4. Remove: Unscrew the mounting nut/bracket and slide the old potentiometer out.




Step 3: Installation & The "Loose Fit" Technique

Critical Rule: Do not tighten the new sensor yet.

1. Connect First: Plug the new potentiometer into the machine’s wire harness. Listen for a click.
2. Insert Shaft: Slide the potentiometer shaft into the coupler.
3. Mount Loosely: Thread the mounting nut/bracket just enough to hold the sensor in place, but leave it loose enough that you can rotate the body of the sensor with your fingers.




Setup Checklist: Pre-Calibration Verification

• Connection: 3-Pin connector is fully seated.
• Physical Position: The head is still physically located at Needle 15.
• Sensor State: The potentiometer body can be rotated by hand (friction fit, not locked).
• Coupler: The shaft is inside the coupler, but the set screw is loose.

Step 4: calibration (The Digital Handshake)

Now we teach the brain (screen) to match the body (Needle 15).

1. Power On: Turn the machine on. Navigate to the needle position monitoring screen (usually shows a color bar or number).
2. The "Safe Cracker" Move: Slowly rotate the body of the potentiometer with your fingers. Watch the screen.
3. Find the Sweet Spot:
   • You will see numbers scrolling. Stop when you hit 15.
   • Pro Tip: Determine the "edges" of 15. Rotate left until it flickers to 14. Rotate right until it flickers to 1 (or stops). Position the sensor exactly in the middle of that range.
4. Verify Stability: The screen must read a solid "15"—no flickering.






Step 5: Lock It Down (Without Driifting)

This is where most beginners fail. As you tighten the nut, the sensor wants to twist, ruining your calibration.

1. Hold Fast: Hold the potentiometer body completely still with one hand.
2. Tighten Bracket: Use your wrench to tighten the mounting nut. Watch the screen—if the number flickers, you moved. Loosen and reset.
3. Tighten Coupler: Once the body is locked, tighten the small set screw on the shaft coupler.


Step 6: The "Drop Test" (Verification)

Never trust the screen alone. Physics doesn't lie.

1. Disengage Lock: Ensure the machine is in a state where you can manually lower the needle (often involves turning the main shaft knob/red wheel to 100 degrees).
2. Drop Needle 15: Manually lower the needle bar.
3. The Target: Look at the needle tip entering the needle plate hole.
   • Success: The needle is dead center.
   • Fail: The needle is rubbing the left or right side of the hole. (If this happens, loosen the coupler, nudge the head physically to center, and retighten).






Warning: Do Not Force the Wheel. When performing the manual drop test, if you feel resistance as the needle approaches the plate, STOP. Forcing it will bend the needle bar or shatter the needle plate. Reverse direction and check your alignment.

Operation Checklist: The Final "Go/No-Go"

• Screen: Reads "15" consistently without flickering.
• Hardware: Potentiometer body is tight; coupler screw is tight.
• Physical: Needle 15 drops exactly into the center of the plate hole.
• Clearance: No tools or screws left inside the housing.

Step 7: Close Up

Reinstall the white protective cover. You are ready to run.

Troubleshooting: When It Doesn't Go Perfectly

Decision Tree: Repair vs. Upgrade

Calibration is part of the job, but if you are doing this weekly, something else is wrong. Use this logic to diagnose your shop's health.

1. Is the machine crashing frequently?
   • Yes: Check your hooping. Poorly hooped garments cause flag-waving, needle deflection, and hoop strikes that knock sensors out of alignment.
   • Solution: Re-train on hooping technique or upgrade to magnetic embroidery hoops which self-align and hold fabric tighter without "fighting" the operator.
2. Are you spending more time repairing than stitching?
   • Yes: Your equipment may be under-gunned for your volume.
   • Solution: If you are running 50+ item orders, commercial embroidery machines with servo-driven color changes (rather than mechanical cam systems) offer higher durability.
3. Is operator fatigue causing errors?
   • Yes: Wrist strain leads to bad hooping, which leads to machine crashes.
   • Option: Look into a hooping station for machine embroidery. Consistency protects the machine.

The Hidden Link: Workflow & Machine Health

Experienced technicians know that 50% of machine errors start at the hoop. If an operator has to wrestle a thick jacket into a standard plastic hoop, they often bang the frame against the machine or force the pantograph. This physical trauma is what kills potentiometers.

Consider the "Physics of Upgrading":

• Hooping Stations: Many shops us a workflow similar to the hoop master embroidery hooping station to ensure every garment is centered before it ever touches the machine.
• Magnetic Hoops: By switching to high-quality machine embroidery hoops that use magnetic force, you eliminate the "pry and push" stress on the machine arms.

Warning: Magnetic Field Safety. Magnetic hoops are powerful industrial tools.
* Pinch Hazard: Keep fingers clear when snapping frames shut.
* Medical Devices: Operators with pacemakers must maintain a safe distance.
* Electronics: Keep magnets away from the machine's control panel and screens.

By fixing the sensor today and improving your hooping workflow tomorrow, you stop the cycle of repairs and get back to profitable stitching.

FAQ

• Q: What causes a Fuwei FW-1501 needle position error when the needle number flickers on the screen (for example jumping between 8 and 9)?
  A: The Fuwei FW-1501 controller is receiving unstable needle-position potentiometer (color change sensor) data, so the displayed needle number cannot “lock” to one position.
  • Power OFF and manually rotate the color change knob to a hard reference position (Needle 15) before touching the sensor.
  • Inspect the 3-pin connector and ensure the plug is seated by gripping the plastic housing (do not pull wires).
  • Re-calibrate by rotating the potentiometer body slowly until the screen shows a solid “15,” then lock the bracket and coupler.
  • Success check: the monitor shows a steady needle number with no flicker and the head stops “searching.”
  • If it still fails: re-check that the sensor body did not twist while tightening the mounting nut.
• Q: Why does a Fuwei FW-1501 needle position calibration start by moving the head to Needle No. 15?
  A: On a Fuwei FW-1501 15-needle head, Needle 15 is the most reliable physical hard-stop reference for aligning the sensor to a known position.
  • Rotate the black color change knob by hand until the needle bar case is all the way at Needle 15.
  • Confirm the head is “clicked” into position and not floating between needles.
  • Keep the head parked at Needle 15 throughout sensor installation and calibration.
  • Success check: the head feels mechanically locked at the far-right position and does not drift when you release the knob.
  • If it still fails: do not proceed with calibration until the head can repeatedly return to Needle 15 consistently.
• Q: How do I install a new needle-position potentiometer on a Fuwei FW-1501 without losing the calibration while tightening?
  A: Use the “loose fit” method on the Fuwei FW-1501: keep the potentiometer body rotatable until the screen is stable on “15,” then tighten while holding the body perfectly still.
  • Connect the 3-pin plug first, then insert the shaft into the coupler with the coupler set screw still loose.
  • Thread the mounting nut/bracket only finger-tight so the sensor body can still rotate.
  • Power ON and rotate the potentiometer body to the middle of the “15” range (find both edges, then center).
  • Success check: after tightening the mounting nut, the screen still reads “15” with zero flicker.
  • If it still fails: loosen and redo the lock-down step—most drift happens because the sensor twists during tightening.
• Q: How do I fix a Fuwei FW-1501 screen that keeps flickering between 14 and 15 after potentiometer calibration?
  A: The Fuwei FW-1501 potentiometer is sitting on the electronic “edge” of the 15 value, so it needs to be re-centered within the 15 zone.
  • Loosen the potentiometer mounting nut just enough to rotate the sensor body again.
  • Rotate left until the display just flickers to 14, then rotate right until it just leaves 15, and set the sensor in the middle of that window.
  • Re-tighten the mounting nut while watching the screen for any flicker.
  • Success check: the display holds a solid “15” without bouncing to 14.
  • If it still fails: verify the coupler set screw is not shifting the shaft position as you tighten.
• Q: What should I do if Needle 15 hits or rubs the needle plate hole on a Fuwei FW-1501 after the screen shows “15”?
  A: Treat this as a mechanical-to-electronic mismatch on the Fuwei FW-1501: center the needle physically first, then calibrate the potentiometer to match that true center.
  • Perform the manual “drop test” and watch the needle tip entering the needle plate hole.
  • If the needle rubs, loosen the coupler, nudge the head position to true center, and re-tighten.
  • Re-calibrate the potentiometer body so the screen’s “15” matches the physically centered Needle 15 position.
  • Success check: Needle 15 drops dead-center into the plate hole with no rubbing sensation.
  • If it still fails: stop forcing rotation immediately and re-check alignment before attempting another drop.
• Q: What is the safest way to perform the manual drop test on a Fuwei FW-1501 needle position repair without bending parts?
  A: Move slowly and never force the handwheel on the Fuwei FW-1501—resistance near the needle plate is a stop signal, not something to push through.
  • Ensure the machine is in a state that allows manual needle lowering (often by turning the main shaft knob/red wheel to the correct position).
  • Lower Needle 15 by hand while watching and feeling for any resistance as the needle approaches the plate.
  • Stop immediately if resistance is felt, reverse direction, and re-check alignment before trying again.
  • Success check: the needle passes into the plate hole smoothly and centers without scraping.
  • If it still fails: do not continue—revisit coupler tightness and head centering before repeating the test.
• Q: If a Fuwei FW-1501 needle position potentiometer keeps drifting after about one hour, what is the most likely cause and fix?
  A: On a Fuwei FW-1501, hour-later drift is commonly a coupler set screw that was not tightened securely, allowing vibration to slip the shaft position.
  • Power OFF and access the potentiometer coupler.
  • Re-seat the shaft in the coupler and tighten the set screw firmly (make sure it bites properly into the shaft surface/flat spot if present).
  • Re-check the screen stability at “15” after tightening.
  • Success check: the needle number stays stable during repeated color changes and does not “walk” over time.
  • If it still fails: inspect for repeated hoop strikes or handling impact that may be knocking the mechanism out of alignment and address the hooping workflow (often improving hooping technique or using magnetic hoops reduces crashes).
