Glow-in-the-Dark Embroidery on a Canvas Tote: Dialing In Ricoma MT-2001 Tension + Fast Magnetic Hooping That Won’t Scar Fabric

The Science of Glow: A Master’s Guide to Specialty Thread & Production Hooping

Glow-in-the-dark thread often sits in a drawer, unused. It’s the "gimmick" product that many embroiderers fear because it has a reputation for shredding, snapping, and looking sparse when the lights go out.

But when you understand the physics of the material, "the gimmick" becomes a high-profit margin add-on.

The failure points are predictable: (1) Digitizing density that treats thin filament like standard rayon, and (2) Physical tension that snaps the delicate core.

In this guide, we will deconstruct a successful tote bag project—originally demonstrated on a Ricoma MT-2001—and rebuild it into a fail-safe Standard Operating Procedure (SOP). We will cover the specific digitizing math, the "sweet spot" tension settings, and why magnetic hooping is the secret weapon for heavy canvas production.

1. The Physics of "Good Glow": Why Your Previous Attempts Failed

Start with this mental shift: Glow intensity is a function of surface area and accumulation.

A single run of stitches will barely glow. To get that radioactive-green "pop," you need to pack more physical material into the space without breaking the thread.

• The Material Constraint: Glow thread (like the Simthread shown) is often slightly thinner or more brittle than standard 40wt polyester. It cannot withstand high tension.
• The Digitizing Solution: You must lay down more thread (higher density) but with less tension.

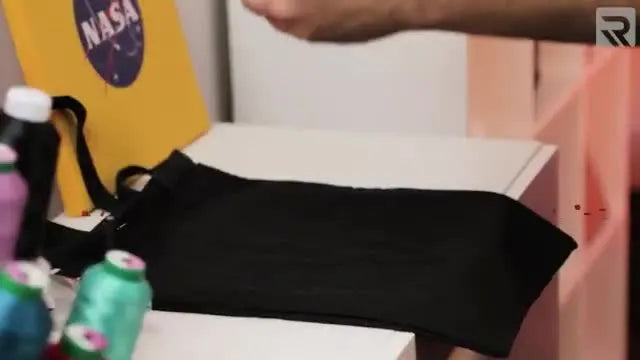

• The Contrast Rule: The video uses a black canvas tote. The high contrast between the dark substrate and the pale thread maximizes the perceived glow.


2. Preparation: The "Hidden Consumables" & Pre-Flight Checks

Before opening your software, you must gather the physical assets. Novices often skip "consumables," leading to mid-project panic.

The "Must-Have" Consumables List

• Needles: Size 75/11 or 80/12 Topstitch or Metallic needles. Why? They have larger eyes, reducing friction on the abrasive glow thread.
• Thread Netting: Mandatory for glow thread. Why? This thread is slippery and prone to "puddling" off the spool, which causes tangles.
• Stabilizer (Maybe): See the Decision Tree below.
• Adhesive Spray: If floating fabric or adding stability.

The Business Reality: The Cost of a Mistake

If you are customizing a $15 wholesale tote bag, a single birdnest ruins the profit of five sold bags. This is where hooping for embroidery machine accuracy transitions from a "skill" to a "financial necessity." If you cannot hoop thick canvas without struggle, your rejection rate will eat your margins.

Prep Checklist (Verify OR Fail):

• Substrate: Is the canvas thick enough to support stitches? (Test: Can it stand up on its own?)
• Thread Path: Is the glow thread passing through the least resistant path? (Bypass extra pretension guides if possible).
• Bobbin: Is the bobbin case clean? (Blow out lint; glow thread hates friction).
• Needle: Is the needle brand new? (A burred needle shreds specialty thread instantly).


3. Digitizing Strategy (Chroma Luxe): The "0.3 Density" Rule

Standard digitizing defaults (usually 0.4mm density) are intended for 40wt thread. For glow thread on dark fabric, we need to tighten the gap to 0.3mm.

Step A: The Hat (Complex Fill)

The Action:

1. Select Complex Fill tool.
2. Trace the Witch Hat. (Hold Ctrl for curves, release for straight lines).
3. Crucial Adjustment: Set Density to 0.3.
4. Support Structure: Change Underlay Density from 2.0 to 4.0 (Tatami underlay).
5. Set stitch direction to stitch from bottom-to-top (approx 90 degrees).

The Expert "Why": Changing density to 0.3 increases the thread count by 25%. Creating a denser Underlay (4.0) lifts the top stitches off the rough canvas texture, preventing them from sinking and disappearing in the dark.

Step B: The Wrinkles (Steil Stitch + Trims)

The Action:

1. Select Steil Stitch (Column stitch).
2. Narrow the width to mimic a thin satin line.
3. Insert Command: Go to Commands → End Command → Select Trim.

Why add Trims manually? On a multi-needle machine, jump stitches between tiny details (like wrinkles) leave mess. By forcing a specific Trim command, you ensure the machine cuts the thread, saving you 10 minutes of hand-trimming later.

Warning: Mechanical Safety. When testing stitch-outs on high-speed industrial machines (running 1000+ SPM), never reach into the needle bar area to remove a thread tail while the machine is "Live." A needle moving at 1200 stitches per minute is invisible to the eye and will cause severe injury.

Step C: The Bat (Magic Wand Caution)

The Action:

1. Select Complex Fill.
2. Use the Magic Wand to click the bat shape.
3. Audit instantly: Check the angle lines. Auto-digitizing often creates chaotic stitch angles. Verify the density matches the Hat (0.3).


Step D: The Stars (Satin Control)

The Action:

1. Magic Wand the star shape → Convert to Satin.
2. Delete Auto-Angles: Remove the computer-generated angle lines.
3. Manual Angles: Add simple horizontal angle lines to prevent "twisting" stitches.
4. Pull Compensation: Set to 110%.
5. Underlay: Set to 120%.

The Expert "Why": "Pull Compensation" creates a trap for the fabric. Canvas eats stitches. By over-sizing the satin stitch (110%), you ensure the star actually looks like the size you designed, rather than shrinking due to thread tension.

Step E: The "BOO" Text (The Anti-Satin Rule)

The Golden Rule: Do NOT use Satin stitches for wide lettering with Glow Thread.

The Action: Use Tatami/Fill Stitch for the large "BOO" text.

The Sensory Check: If you use wide satin with glow thread, you will see "Railroading"—gaps that look like train tracks where the fabric shows through. This happens because we lowered the tension (explained in Section 6). Loose tension + Wide Satin = Sloppy loops. Tatami fill utilizes shorter, structural stitches that hold their shape even under low tension.

4. The Hooping Revolution: Solving the "Canvas Fight"

Hooping thick canvas totes with traditional round hoops is a nightmare. It requires immense hand strength to tighten the screw, and you risk "Hoop Burn" (crushing the fabric fibers permanently).

The Solution: The video utilizes a Mighty Hoop magnetic frame.

The Process (Action-First):

1. Separate the top and bottom magnetic frames.
2. Slide the tote bag fully over the bottom frame.
3. Align the bag visually (use the handle straps as a center guide).
4. Snap the top frame down. Use the warning tabs to guide your hands.
5. Touch Check: Pull gently on the fabric corners. It should feel taut, like a drum skin, but not distorted.

The "Tool Upgrade" Logic: If you are doing one tote, struggle with the plastic hoop. If you are doing 50, the time lost to re-hooping (and the pain in your wrists) costs more than the equipment. Professionals use terms like magnetic embroidery hoop to describe this class of tool—they aren't just accessories; they are production standardizers.

Warning: Magnet Safety. Magnetic hoops like the Mighty Hoop contain high-powered neodymium magnets. They snap together with enough force to crush fingers. Never place fingers between the rings. Keep pace-makers, credit cards, and phones at least 12 inches away.

5. The Decision Tree: Do You Need Stabilizer?

The video shows the host stitching without stabilizer. This is a "Pro Move" that carries risk. Use this logic flow to decide what you should do.

Decision Tree: Fabric vs. Stability

1. Is the Fabric rigid?
   • YES (Heavy stiff canvas): Proceed to Step 2.
   • NO (Soft cotton, limp tote): STOP. You MUST use Cutaway stabilizer.
2. Is the Design dense?
   • YES (Heavy satins, >20k stitches): use Tearaway stabilizer to prevent puckering.
   • NO (Open fills, <10k stitches): You might run stabilizer-free (as shown), but only with a magnetic hoop that clamps firmly.
3. Are you selling it?
   • YES: Use stabilizer. It is cheap insurance against fabric distortion.
   • NO: Experiment freely.

For production runs, using a magnetic embroidery hoops system often allows for less adhesive/spray use, but never skip backing unless you are 100% certain of the fabric's rigidity.

6. Machine Setup: The Low-Tension Secret

The Ricoma MT-2001 is a 20-needle beast. This allows dedicated "Glow Needles."

The Setup Map:

• Needles 1-8: Standard Poly 40wt (for everyday jobs).
• Needle 20: Glow-in-the-Dark Thread.

The Tension Adjustment (The "Flossing" Test): Glow thread is weak. You must lower the tension only on the needle bar using that thread.

1. Locate the upper tension knob for Needle 20.
2. Turn it counter-clockwise (loosen) by 2-3 full turns.
3. The Tactile Check: Pull the thread through the needle.
   • Standard Thread: Feels like pulling a spiderweb (slight resistance).
   • Glow Thread: Should feel almost frictionless, barely dragging.

If you don't use a dedicated hooping station for embroidery machine or multi-needle machine, you will have to re-adjust your single tension knob every time you switch threads—a recipe for inconsistency.

Setup Checklist (Pre-Start):

• Design Orientation: Is the design rotated 180 degrees? (Totes are usually hooped upside down).
• Needle Assignment: Is the machine told to use Needle 20 for the "White" color in the design?
• Clearance: Is the back of the tote clear of the embroidery arm? (Check for "hoop entrapment").




7. Operation: Speed & Monitoring

The video host runs the machine at 1200 stitches per minute (SPM). Expert Advice: Do not do this on your first try. Friction causes heat; heat snaps glow thread.

The "Sweet Spot" Protocol:

1. Start Speed: 600 SPM. Watch the thread feed.
2. Listen: You want a rhythmic "humm," not a "slap-slap" sound.
3. Ramp Up: If stable after 1 minute, increase to 800 SPM.
4. Max Limit: For glow thread, I rarely recommend exceeding 900 SPM unless you are on a deadlined production run.

Troubleshooting Table:

8. Business Logic: When to Upgrade?

If you successfully stitched this tote, you navigated material science, tension physics, and hoop mechanics.

However, if you encountered:

• Wrist pain from tightening hoops.
• "Hoop burn" marks you had to steam out.
• Frustration changing threads on a single-needle machine.

Then you have identified the bottleneck in your business.

The Upgrade Path:

1. Level 1 (Stability): Switch to high-quality Stabilizers (Cutaway/Tearaway) to support your work.
2. Level 2 (Efficiency): If you struggle with thick items, invest in SEWTECH Magnetic Hoops. Whether for a home machine or a commercial head (like the mighty hoop 8x13 equivalent), they eliminate hoop burn and double your hooping speed.
3. Level 3 (Scale): When color changes cost you more than 1 hour a day, it is time to look at SEWTECH Multi-Needle Machines. Keeping 15-20 colors (including specialty glow threads) loaded permanently changes your workflow from "setup-heavy" to "print-on-demand."


Final Thoughts: The Glow Reveal

When the lights go out, the result should be a solid, luminescent block of light—not a scratchy, faded sketch. That result comes from the 0.3 Density, the Low Tension, and the Flat Hooping.

Master these three variables, and specialty thread stops being a gimmick and starts being your competitive advantage.

FAQ

• Q: What consumables must be prepared before stitching glow-in-the-dark thread on a Ricoma MT-2001 multi-needle embroidery machine?
  A: Use the right needle + thread netting first, because glow thread fails from friction and spool puddling more than from “bad thread.”
  • Install a new size 75/11 or 80/12 Topstitch or Metallic needle (larger eye = less abrasion).
  • Add thread netting on the glow thread spool to prevent puddling and tangles.
  • Clean the bobbin area and bobbin case (lint increases drag and triggers shredding).
  • Bypass extra pre-tension guides if the thread path has unnecessary resistance (when possible on the machine).
  • Success check: Thread pulls through the needle with very low drag and feeds smoothly off the spool without looping.
  • If it still fails: Re-check for a burred needle or thread snag points in the thread path.
• Q: How do I set upper thread tension for glow-in-the-dark thread on Needle 20 of a Ricoma MT-2001 to stop shredding and snapping?
  A: Loosen only the glow-thread needle tension by 2–3 full turns, then verify with a low-friction pull test.
  • Locate the upper tension knob assigned to Needle 20 and turn counter-clockwise 2–3 full turns.
  • Pull the thread through the needle and aim for “barely dragging” resistance.
  • Start sewing at a reduced speed (a safe starting point is 600 SPM) to limit heat and friction.
  • Success check: Stitching sounds like a steady hum (not slap-slap), and the glow thread runs without repeated breaks.
  • If it still fails: Inspect the needle for burrs and confirm the thread is not catching on guides or rough spots.
• Q: What is the correct digitizing density for glow-in-the-dark thread in Chroma Luxe to avoid weak glow on dark canvas?
  A: Set fill density to 0.3 mm (instead of typical 0.4 mm) so enough material accumulates to glow strongly.
  • Apply 0.3 mm density to complex fills so the stitched area packs more glow filament.
  • Increase tatami underlay density from 2.0 to 4.0 for filled areas on rough canvas so stitches don’t sink.
  • Verify auto-digitized areas (like Magic Wand fills) did not create chaotic angles or mismatched density.
  • Success check: The stitched fill looks visually solid in normal light with minimal fabric showing through.
  • If it still fails: Re-digitize the problem area—weak glow is usually a density issue, not a machine setting issue.
• Q: How do I hoop a thick canvas tote bag with a magnetic embroidery hoop to prevent hoop burn and stop re-hooping problems?
  A: Use a magnetic hoop to clamp evenly—aim for “drum-tight” fabric without distortion to reduce hoop burn and shifting.
  • Separate the top and bottom magnetic frames and slide the tote fully over the bottom frame.
  • Align using the tote’s handle straps or seams as a center reference.
  • Snap the top frame down using the warning tabs/edges to keep hands clear.
  • Success check: Fabric feels taut like a drum skin when tugged at the corners, with no visible warping or crushed ring marks.
  • If it still fails: Re-seat the fabric and re-snap the frame; if the tote is soft/limp, add stabilizer instead of forcing tighter hooping.
• Q: What stabilizer decision rule should be used for embroidery on tote bags when the project video shows no stabilizer?
  A: Skip stabilizer only when the canvas is truly rigid and the design is not overly dense; otherwise use backing as cheap insurance.
  • Test rigidity: If the tote cannot “stand up” on its own, use cutaway stabilizer.
  • Check design density: For dense designs or higher stitch counts, add tearaway to reduce puckering risk.
  • If the item is being sold, use stabilizer even on stiff fabric to reduce distortion returns.
  • Success check: After stitching, the tote stays flat around the design with no rippling or puckering.
  • If it still fails: Add stabilizer (or switch type) before changing machine tension further.
• Q: How do I stop birdnesting when running glow-in-the-dark thread on a Ricoma MT-2001 during tote bag embroidery?
  A: Treat birdnesting as a bobbin-path + hooping tightness problem first, then re-check thread feeding.
  • Stop the machine immediately and remove the nest cleanly (don’t pull aggressively on the thread).
  • Verify the bobbin path is correct and the bobbin case area is clean of lint buildup.
  • Re-check hooping: The tote must be firmly clamped (magnetic hoop helps) so fabric doesn’t lift into the hook area.
  • Add thread netting if the spool is puddling and feeding inconsistently.
  • Success check: Stitches form cleanly without loops accumulating under the fabric after restarting.
  • If it still fails: Slow down the machine and confirm the glow thread tension was loosened on the correct needle.
• Q: What are the key safety rules when testing high-speed embroidery (1000–1200 SPM) and when handling neodymium magnetic hoops?
  A: Keep hands out of the needle bar area when the machine is live, and never place fingers between magnetic hoop rings when snapping them together.
  • Do not reach into the needle/needle bar area to grab thread tails while the machine is running or “live.”
  • Reduce speed for first tests (a safe starting point is 600 SPM) to control thread heat and reaction time.
  • Snap magnetic hoops together using the frame edges/tabs—keep fingers completely clear of the closing gap.
  • Keep strong magnets away from pacemakers, phones, and credit cards (store and handle with space).
  • Success check: Hands never cross into moving zones, and hooping can be done without pinch risk or “surprise snap.”
  • If it still fails: Pause power fully before clearing thread, and reposition the fabric/frames so closing force is controlled.
