HappyJapan HCS3-1201 Cap Embroidery That Actually Centers: A Shop-Pro Workflow for Structured Hats (Without Wasting Caps)

Cap embroidery is the notorious "final boss" for many machine operators. It is unforgiving: one tiny alignment mistake, and the entire job looks visually "off," especially on a structured trucker cap where the stiff crown curve magnifies every millimeter of error.

This walkthrough is not just a summary of the HappyJapan tutorial; it is a reconstruction of the workflow using industry best practices. I will guide you through the exact process, adding the sensory checks and safety margins that prevent the two most common cap disasters: crooked lettering and cap shifting mid-run.

If you are currently running a happy embroidery machine in a commercial setting, or looking to scale up your production, treat this as your baseline standard operating procedure (SOP).

The “Don't Panic” Primer: Understanding the Cap Driver Physics

The cap driver system on the HappyJapan HCS3-1201 is designed to stitch on a 3D curved surface while the cap frame rotates around the sewing arm. This is mechanically different from flat embroidery. The machine isn't just moving X and Y; it is calculating rotation.

Here are two "Expert Truths" that will save you hours of frustration:

1. The Cap Gauge is the Truth; The Laser is a Lie. The metal cap gauge (hooping station) creates your mechanical center. If the cap is off-center on the gauge, the machine will faithfully stitch the design off-center, no matter what the laser says.
2. Physics Wins Over Hope. A cap pushed onto the driver under tension wants to spring back. If your hooping isn't "drum-tight," the cap will move.

A comment question that comes up constantly is: “Can I stitch the sides and back without removing the cap?” The industry answer: Yes for sides, No for the back. The HappyJapan system (and similar specialized happy japan hcs3 platforms) supports a wide 290° rotation, covering ear-to-ear. However, the back of the cap usually requires a separate clamping setup or a specialized "back-of-cap" station. Do not try to permit a 360-degree run in one go; you will break a needle.

Phase 1: The “Hidden” Prep (Sweatband & Backing)

The Goal: Create a stable, flat surface inside a curved, unstable object.

Most rookies rush this step. Don't. 90% of cap failures happen here, not at the machine.

The tutorial begins with a structured mesh/trucker-style cap. You need a specific type of stabilizer here—typically a heavyweight tear-away cap backing.

Hidden Consumable Alert: Keep a can of temporary spray adhesive nearby. A light mist helps the backing stick to the cap during hooping, preventing the "backing creep" that ruins registration.

Step 1: Fold the sweatband out

Pull the sweatband completely outward. You are exposing the "underbelly" of the cap where the embroidery actually happens.

Step 2: Insert the backing (The "Flat" Rule)

Slide the backing behind the sweatband.

• Sensory Check (Tactile & Visual): Run your fingers along the inside curve. Is the backing sitting flush against the buckram (the stiff front panel)? If you feel a ripple or a bubble, stop.
  • If it buckles: The crown won't sit evenly on the gauge.
  • If it slides: The fabric will "flag" (bounce up and down) during stitching, causing birdnesting.

Warning: Mechanical Safety
Be extremely careful when manipulating the sweatband near the spring clips of the cap frame. These are pinch points under high tension. A rushed hand position is how operators get blood on a white hat.

Prep Checklist (Pre-Flight)

Before the cap touches the metal gauge, confirm:

• Sweatband is folded outward 100%, exposing the crown interior.
• Backing is inserted behind the sweatband with zero wrinkles.
• Cap crown has been inspected for existing dents (structured caps "remember" damage).
• Hidden Consumable: Fresh needle installed? (Use a sharp 75/11 for heavy buckram).

Phase 2: The Cap Gauge “Truth Test”

This is the most critical skill in cap embroidery. We are establishing the mechanical center.

Step 1: Slide the cap onto the gauge

Place the cap onto the metal gauge (hooping station). It should slide on with some resistance.

Step 2: The Alignment (Seam to Line)

The video’s instruction is blunt but vital: The middle of the hat must align with the red indicator line.

• Visual Anchor: Look at the center seam of the cap. It must sit directly on top of the red line on the gauge. Do not rely on your eyes judging the "shape" of the hat—trust the seam.

Step 3: Tensioning (The "Drum Skin" Effect)

Pull the strap over the bill and secure it.

• Sensory Check (Tactile): When you lock the strap, the front of the cap should tighten instantly. Tap the front panel with your finger. It should sound like a dull thud, not hollow.

Step 4: The Back Strap Clip

Clip the back adjustment strap to the gauge post. This maintains the tension from the rear.

• Why this matters: If the back is loose, the cap sits "proud" (too high) on the driver. This causes the needle to deflect off the heavy center seam rather than piercing it, leading to broken needles.

Step 5: Lock the Frame

Engage the latch mechanism.

The "Pain Point" Diagnosis: If you are doing this 50 times a day, you will feel this in your wrists. Traditional cap frames require significant hand force to lock. This is where "Hoop Burn" (permanent ring marks on the fabric) happens.

• The Solution Pathway: In high-volume production, many shops evaluate upgrades like magnetic hoops for happy embroidery machine. These systems use magnetic force rather than mechanical clamps to hold the cap. They virtually eliminate hoop burn and reduce operator wrist strain, allowing for faster reloading.

Phase 3: Mounting to the Driver (The "Click")

Transport the hooped cap to the machine.

Step 1: Seat the Frame

Rotate the cap frame until the driver wheel aligns with the track.

• Sensory Check (Auditory/Tactile): You are listening for a sharp "SNAP" or "CLICK".
  • If it feels mushy: You are likely misaligned. Pull it off and try again. Never force it.
  • If you force it: You will grind the driver gears or bend the frame.

Step 2: Power Up

Turn on the machine. The cap driver will likely do a calibration move. Watch it. Does it rotate smoothly? If it stutters, check your seating.

Phase 4: Software Setup on HappyJapan OS 1.04.11

The video demonstrates onboard lettering. While convenient, digitizing software on a PC usually offers better control. However, for simple names, the onboard system is fast.

Step 1: Input Text

Navigate to the Letter menu. Type "HAPPY".

Step 2: Size & Font

• Pattern Height: 25 mm (~1 inch).
• Pattern Width: 79 mm (~3 inches).
• Expert Constraint: For a standard trucker cap, try to keep height under 2.25 inches and width under 5.5 inches until you are an expert. The curvature creates distortion near the edges.

Step 3: Spacing (The Optical Illusion Fix)

The video changes spacing from 10 to 100.

• Why? When you embroider on a curve, the letters fan out at the top but pinch together at the bottom. Increasing the spacing (kerning) counteracts this visual pinching, ensuring the text remains legible.

Step 4: Needle Assignment

The video assigns red thread to Needle 7.

• Production Tip: If you are comparing a happy voyager 12 needle embroidery machine hcs 1201 30 against single-needle machines, this acts as your efficiency multiplier. You can have white, black, gold, and red threaded permanently, saving 5-10 minutes of setup time per job.

Phase 5: The Start Button (Speed & Monitoring)

The machine is set to 850 SPM (Stitches Per Minute).

Speed Calibration: The Beginner's Sweet Spot

• Video Speed: 850 SPM.
• My Recommendation: 600-700 SPM.
• Why? Structured caps are hard objects. Running at max speed increases vibration (flagging), which causes skipped stitches or thread breaks. Slow down to speed up—you waste more time re-threading a broken needle than you save by running at 850.

The First 20 Seconds

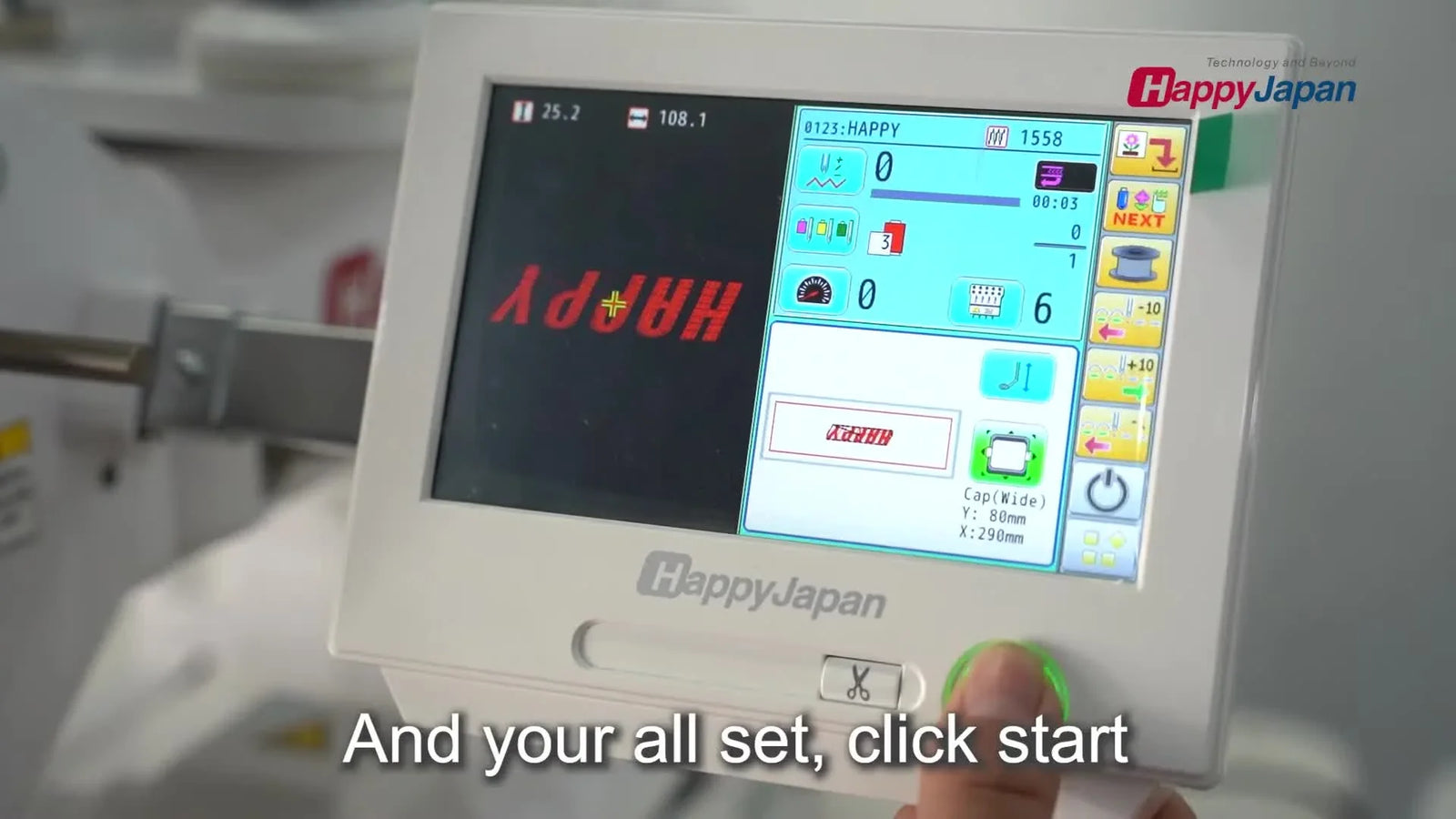

Press Start. Do not walk away.

• Visual Check: The laser crosshair is a verification tool. Does the needle start exactly where the laser promised?
• Auditory Check: Listen to the machine.
  • Rhythmic, soft thrumming: Good.
  • Loud "CLACK-CLACK": The foot is hitting the cap frame or the needle is striking the needle plate. STOP IMMEDIATELY.

Warning: Moving Parts
Never reach your hand inside the cap area while the machine is running. The cap driver rotates aggressively. If a thread breaks, stop the machine completely before reaching in.

Operation Checklist (The "Green Button" Rule)

Confirm these 5 points before pressing Start:

1. [ ] Cap frame gave a distinct "CLICK" when snapped into the driver.
2. [ ] Needle assignment on screen matches the actual thread spool.
3. [ ] Speed is lowered to 700 SPM for the first run.
4. [ ] Laser crosshair aligns with center seam.
5. [ ] Backing Check: Peek inside—is the backing still flat, or did it bunch up during mounting?

Troubleshooting: Why Caps Drift

When a cap comes out crooked, do not blame the digitizing file first. In 95% of cases, it is a physical issue.

Decision Tree: Stabilizer & method

Use this logic flow to stop guessing.

A) What kind of cap is it?

• Structured Trucker (Hard Front): Go to B.
• Unstructured "Dad Hat" (Soft Front): Go to C.

B) Structured Cap Strategy

• Stabilizer: 1 layer heavy Tear-Away.
• Hooping: Standard mechanical clamping is okay, but watch for hoop burn.
• Production: If volume is high, use magnetic frames to avoid crushing the stiff buckram.

C) Unstructured Cap Strategy

• Stabilizer: Cut-Away (Must create a false spine).
• Hooping: Must be very tight.
• Speed: Reduce to 600 SPM. Soft fabric shifts easily.

D) Production Volume Reality Check

• Doing 5 caps? Use the included plastic frames.
• Doing 500 caps? You need a workflow upgrade. Terms like magnetic embroidery hoops differ from standard hoops because they clamp instantly without screws, reducing the "setup tax" on every unit.

Warning: Magnetic Hoop Safety
If you upgrade to magnetic hoops, be aware they use powerful Neodymium magnets.
* Pinch Hazard: They can snap together with enough force to break a finger.
* Medical Safety: Keep them at least 6 inches away from pacemakers.

The Upgrade Path: From Hobby to Profit

Once you master the technique in the video, your machine isn't the limit—your hands are.

• Scenario: You start getting orders for 50+ caps.
• The Bottleneck: Your wrist hurts from clamping, and you are spending 3 minutes hooping for every 5 minutes of sewing.
• The Business Solution:
  1. Level 1 (Consumables): Use pre-cut backing and specialized cap needles (SEWTECH Titanium).
  2. Level 2 (Tooling): Invest in a specialized cap hoop for embroidery machine system, specifically magnetic variants compatible with HappyJapan. This cuts hooping time by 50%.
  3. Level 3 (Capacity): If the HCS3-1201 is running 24/7, look at multi-head solutions or additional happy japan hcs3 units to parallelize your production.

Final Inspection: What "Good" Looks Like

When you un-hoop the cap:

1. Registration: The text is perfectly centered relative to the seam (not the bill—bills can be crooked!).
2. No Distortion: The letter "H" and "Y" are at the same vertical level; the word doesn't "frown."
3. Cleanliness: No hoop marks (burn) on the brim or forehead.

Stitching caps is a game of millimeters. Follow strict prep, trust the gauge over the laser, and verify your tension physically. Do that, and you will turn cap embroidery from a nightmare into your shop's most profitable service.

FAQ

• Q: On a HappyJapan HCS3-1201 cap frame setup, why does the laser crosshair look centered but the embroidery stitches off-center on a structured trucker cap?
  A: Use the cap gauge red center line and the cap’s center seam as the true mechanical center; the laser is only a verification tool.
  • Align: Place the cap on the metal gauge and line the center seam directly over the red indicator line.
  • Tension: Lock the strap over the bill and clip the back adjustment strap so the crown stays seated at the correct height.
  • Verify: Re-check seam-to-line alignment before moving the frame to the driver.
  • Success check: The seam sits exactly on the red line with no “walk-off” when the strap is locked.
  • If it still fails: Inspect for backing wrinkles/bubbles under the sweatband that prevent the crown from sitting evenly on the gauge.
• Q: For HappyJapan HCS3-1201 cap embroidery on a structured mesh/trucker cap, what backing and prep steps prevent backing creep and registration problems?
  A: Use a heavyweight tear-away cap backing, keep it perfectly flat behind the sweatband, and lightly tack it so it cannot slide during hooping.
  • Fold: Pull the sweatband completely outward to expose the interior embroidery area.
  • Insert: Slide the backing behind the sweatband and smooth it flat against the buckram (no ripples).
  • Stabilize: Apply a light mist of temporary spray adhesive to prevent the backing from shifting while hooping.
  • Success check: Finger-sweep the inside curve and feel zero bubbles or buckling; the backing stays flush.
  • If it still fails: Stop and re-insert the backing—most cap failures start from wrinkles or a loose backing “creep.”
• Q: On a HappyJapan HCS3-1201 cap driver, how can an operator tell the cap frame is seated correctly before pressing Start?
  A: The cap frame must seat with a distinct “CLICK/SNAP” and the driver should rotate smoothly during calibration—never force a mushy fit.
  • Rotate: Align the cap frame/driver wheel with the track before pushing into place.
  • Seat: Push until a sharp click is felt/heard; remove and re-seat if it feels soft or misaligned.
  • Observe: Power on and watch the cap driver calibration move for smooth rotation without stutter.
  • Success check: Audible/ tactile “CLICK” plus smooth rotation with no grinding or hesitation.
  • If it still fails: Do not force it—re-seat again to avoid gear/frame damage.
• Q: On the HappyJapan HCS3-1201, what stitch speed is a safe starting point for structured cap embroidery to reduce thread breaks, skipped stitches, and vibration?
  A: Start at 600–700 SPM for caps, even if 850 SPM is available, because structured caps amplify vibration and flagging.
  • Set: Reduce machine speed to 700 SPM (or lower) for the first run on a new cap/style.
  • Monitor: Stay with the machine for the first 20 seconds and listen for abnormal “CLACK-CLACK.”
  • Adjust: Slow further when crossing thick areas like the center seam if needed.
  • Success check: The machine sounds like steady, soft thrumming (not loud clacking) and stitches form cleanly without breaks.
  • If it still fails: Re-check hooping tightness and backing stiffness—speed cannot compensate for a loose cap setup.
• Q: In HappyJapan HCS3-1201 cap embroidery troubleshooting, what causes crooked text on caps and what is the fastest physical check to confirm the cause?
  A: Crooked cap lettering is almost always a hooping/alignment error—confirm the cap center seam is aligned and stays parallel to the frame reference.
  • Inspect: Check whether the center seam was aligned to the gauge’s red line during hooping.
  • Compare: Look at the seam relative to the frame edge to confirm it did not twist during strapping/clipping.
  • Re-hoop: Reset on the gauge and re-tension before stitching again.
  • Success check: The finished text centers to the seam (not the bill), and the word does not visually lean.
  • If it still fails: Check for backing bunching or cap shifting due to insufficient “drum-tight” tension.
• Q: On a HappyJapan HCS3-1201 cap job, what causes birdnesting during cap embroidery and what setup change fixes cap “flagging”?
  A: Birdnesting on caps commonly comes from cap flagging (fabric bouncing) due to loose hooping or weak/shifted backing—tighten and stiffen the setup.
  • Tighten: Re-strap so the front panel feels “drum-tight,” not loose.
  • Stiffen: Use appropriate stiff backing for the cap style and ensure it stays flat behind the sweatband.
  • Check: Look for any gap behavior that suggests the cap is bouncing during stitching.
  • Success check: Stitching runs without loops piling underneath and the cap front stays stable (no visible bounce).
  • If it still fails: Slow the machine speed and re-check that the backing did not bunch up during mounting.
• Q: What safety steps prevent injuries when using a HappyJapan HCS3-1201 cap frame and when working around a rotating cap driver?
  A: Treat cap frame clips as pinch points and never reach into the cap area while the cap driver is moving—stop the machine fully first.
  • Keep hands clear: Position fingers away from spring clips when folding the sweatband and manipulating the cap frame.
  • Stop first: If thread breaks or anything looks wrong, stop the machine completely before reaching into the cap area.
  • Listen and react: Stop immediately if loud clacking indicates contact with the frame/plate.
  • Success check: Hands never enter the rotating zone while running, and setup can be done without “rushed” repositioning near clips.
  • If it still fails: Slow down the workflow—most injuries happen during hurried hooping and quick grabs near moving parts.
• Q: If a shop is running 50–500 caps on a HappyJapan HCS3-1201 and operators get wrist strain or hoop burn from clamping, what is the upgrade path from technique fixes to higher throughput?
  A: Optimize the setup first, then consider magnetic clamping to reduce hooping force/time, and only then scale machine capacity if the single head is saturated.
  • Level 1 (technique): Improve gauge alignment, drum-tight tensioning, and consistent backing prep to stop rework.
  • Level 2 (tooling): Move to magnetic-style cap holding systems to reduce clamping effort and minimize hoop burn (common in high-volume workflows).
  • Level 3 (capacity): Add capacity (additional units or multi-head solutions) when the machine is running near-continuous and hooping becomes the throughput limiter.
  • Success check: Hooping time drops and rework decreases (fewer crooked caps, fewer shifts mid-run) while operator strain reduces.
  • If it still fails: Audit the process step-by-step—most “capacity” problems are actually repeatable prep/alignment inconsistencies.
