If you’ve ever opened Hatch 3, picked something from the “font” dropdown, and then watched your lettering stitch out with weird, long jumps or messy connections… you’re not crazy. You just ran into the single biggest misunderstanding in computerized embroidery: Keyboard Design Collections (KDC) look like fonts, but they behave like raw stitch files.

As someone who has managed production floors for two decades, I see this error cost shop owners hours of rework. You type a letter, expect it to flow like a TrueType font, but instead, your machine performs a series of jarring trims and jumps that distort your fabric.

In this guide, we are moving beyond basic software clicks. We will rebuild the workflow from a shop-floor perspective: how to identify KDCs, how to predict their physical behavior on the machine, and how to upgrade your tooling (hoops and machines) when these complex designs overwhelm your current setup.

Calm the Panic: It’s "Typing Designs," Not Building Fonts

Hatch 3 introduced the ability to map embroidery files to keyboard characters—this is a Keyboard Design Collection (KDC). In plain English: you press a generic "A" key, and Hatch places a pre-made, complex stitch design onto the canvas.

The Expert Mental Model: Think of a standard embroidery font like a fountain pen—it flows, continuously connecting letters. Think of a KDC like a rubber stamp. You can place three stamps next to each other to spell a word, but they don't magically connect. They are individual islands of stitches.

This distinction explains 90% of your failures. Because KDCs are "stamps," dragging a corner handle doesn't intelligently re-calculate the density; it just stretches the stitches, often leading to gaps or bulletproof density.

Note on Custom Collections: If you see a KDC name in a tutorial (like "Amethyst") and can't find it in your software, breathe. It is likely a custom-created collection. KDC is an open system—professionals build their own.

The "Hidden" Filter: Precision Selection

You cannot simply scroll through the list and hope for the best. You must drill down to find KDCs explicitly.

The Workflow:

1. Close the Hints Docker: Clear your visual clutter.
2. Open the Lettering Docker.

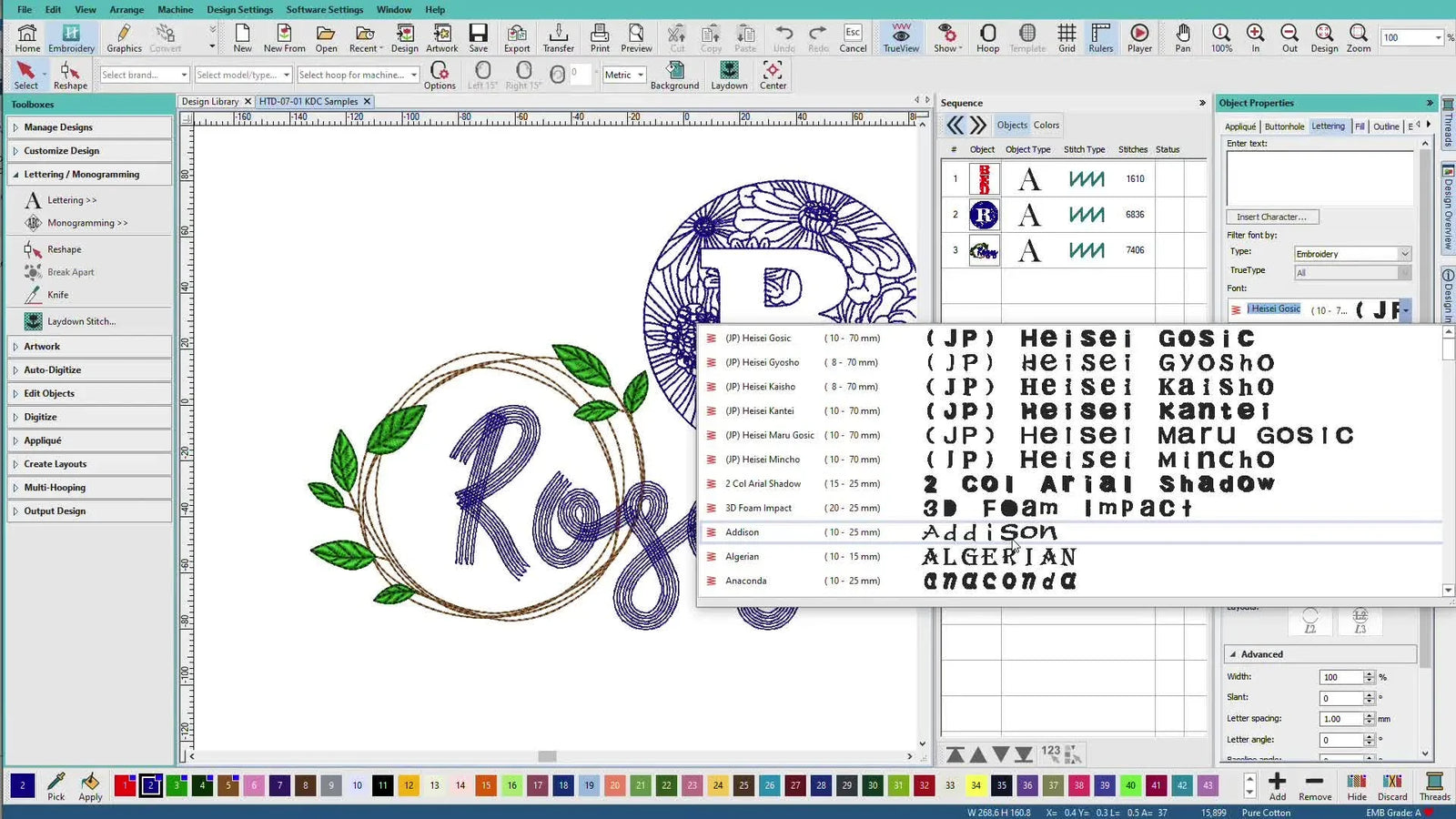

3. Force the Filter: Set Filter by type specifically to Keyboard Design Collection.

Sensory Check: When you filter correctly, the icons change. You will see symbols representing Cross Stitch, Redwork, or Twine styles. These visual styles are your first warning: This is going to be a heavy stitch-out.

From a business standpoint, recognize that while you can use KDCs in lower tiers like Personalizer, you need Digitizer level to create them. If you run a multi-machine shop, standardize your "House KDCs" on the main digitizing station before deploying them to operator terminals.

Phase 1: Preparation Checklist

Before you type a single letter, verify the following:

• Docker Verify: Are you definitely in the Lettering Docker?
• Filter Lock: Is "Filter by type" set to "Keyboard Design Collection"?
• Origin Check: Is this a stock KDC or a custom download? (Custom files carry higher risk of bad digitizing).
• Consumable Check: Do you have cutaway stabilizer ready? (KDCs are often too dense for tearaway).

The "Hidden" Identity: Verification in the Sequence Docker

Just because it looks like text doesn't mean the software treats it as a font. You need to see what the direct engine sees.

The "X-Ray" Technique:

1. Open the Sequence Docker.
2. Click the Objects tab.
3. Look for the icon: An "A" with a jagged syntax underline.

This icon is your "Truth Indicator." It tells you Hatch recognizes the object as lettering, but remember our mental model: it is still just a row of "rubber stamps."

The Physics of the Stitch: Closest Join (CJ) vs. As Digitized (AD)

This is the technical root cause of your frustration.

• Closest Join (CJ): Used by native fonts. The software calculates the shortest path from the end of "A" to the start of "B." It flows.
• As Digitized (AD): Used by KDCs. The letter "A" has a hard-coded start point (usually left) and end point (usually right).

The Shop Floor Reality: When you use KDCs, your machine is operating in AD mode. Even if you squeeze letters closer together, the machine must stitch to the hard-coded exit point of the first letter, trim (or jump), and move to the hard-coded entry point of the next.

Sensory Anchor: Listen to your machine. With Native Fonts (CJ), you hear a rhythmic, continuous hum. With KDC (AD), you will hear: Stitch-Stitch-STOP... Ker-Chunk (Trim)... Whirrr (Move)... STOP... Stitch-Stitch. That "Ker-Chunk" sound is efficiency leaving your building.

Why this reduces profit:

• Long Jumps: Require manual trimming (time).
• Auto-Trims: On a single-needle machine, consecutive trims can add 20-30 seconds per word.
• Thread Tails: Every trim allows a chance for the bobbin thread to pull up or the top thread to pull out.

Turn Off TrueView: The Pre-Flight Inspection

TrueView is a marketing filter; it makes designs look like pretty thread. You cannot digitize or approve production files in TrueView.

The Reveal: Toggle TrueView OFF. You will suddenly see dotted lines connecting your letters.

• What you see: These dotted lines represent the actual movement of the pantograph/hoop.
• The Risk: If that dotted line crosses an open area of fabric, and your machine doesn't trim, you will have a jump stitch to cut by hand.




Phase 2: Setup Checklist

Ensure your screen reality matches the future physical stitch-out:

• X-Ray Mode: TrueView acts toggled OFF.
• Path Analysis: Identify any long jump lines (dotted lines) that cross open fabric.
• Connector Check: Are the jumps acceptable, or do they require a machine trim command?
• Consumable Check: Do you have a 75/11 Sharp Needle? (Ballpoints may deflect on dense KDC layers).

The "Stitch File" Rule: Why Resizing Destroys Quality

Because KDCs are stitch files ("stamps"), they lack the mathematical outline data of fonts.

The Physics of Failure: If you take a 10,000-stitch floral letter and shrink it by 50%, you are jamming 10,000 stitches into half the space.

• Result: You create a "bulletproof" patch. The needle generates so much friction it may melt synthetic thread or cut the fabric.
• The Fix: Avoid resizing KDCs more than +/- 10%. If you need it smaller, you must find a different design.

Using Lettering Art (Arcing/Warping): Bending a KDC is like bending a photograph. It distorts the pixels (stitches). Gaps open up; satin columns crush together. Use caution.

The Density Trap: When One Letter Equals 7,000 Stitches

The video shows a single floral letter with 6,929 stitches.

Context: A typical chest logo is 5,000 stitches total. This single letter is heavier than an entire corporate logo.

The Hooping Implication: When you hammer 7,000 stitches into a 2-inch square, the fabric will try to pucker (flagging).

• The Amateur Move: Tightening the hoop screw until your fingers hurt. This causes "hoop burn" (permanent glossy rings on the fabric).
• The Pro Move: upgrading your stabilization (two layers of medium cutaway) and using better hooping technology.

Here is where standard plastic hoops fail. They struggle to hold consistent tension across such a dense area without crushing the fabric fibers. This is why professionals often transition to magnetic embroidery hoops. The magnetic force provides even, firm tension that prevents the "pull-in" effect of dense KDCs, without the friction burn of plastic rings.

Troubleshooting & Critical Decisions

Don't guess. Use this logic tree to handle KDC challenges.

Symptom-Cause-Fix Protocol

Warning (Safety): When testing dense KDC letters, keep fingers away from the needle bar. High density can cause needle deflection/breakage. A broken needle tip flying at 800 SPM is a projectile hazard. wear eye protection.

Decision Tree: The "Right Tool" Algorithm

Do not force KDC if it’s the wrong tool.

1. Do you need fluid text (e.g., a name on a cuff)?
   • YES: Use Native Hatch Fonts (CJ). Stop here.
   • NO: Proceed to 2.
2. Is the text purely decorative (Monograms, Floral, Grunge)?
   • YES: KDC is the correct tool. Proceed to 3.
3. Are you stitching on unstable fabric (T-shirt/Knit)?
   • YES: Danger Zone. Is the stitch count per letter >2000?
     • If High: Must use Fusible Poly-Mesh or Cutaway stabilizer + Magnetic Hoop to prevent shifting.
     • If Low: Standard setup applies.

The Production Reality: Software Problems Become Hardware Solutions

KDCs create beautiful results, but they are physically demanding on your equipment. They require more trims, more needle penetrations, and more stability.

Scenario A: The "Hoop Burn" Bottleneck If you are running KDC monograms on delicate items (velvet, performance wear) and losing 20% of your time trying to hoop them without leaving marks, your tool is the problem.

• Solution Level 1: Use "floating" technique (precarious).
• Solution Level 2: Upgrade to magnetic embroidery hoop systems. These allow you to clamp varying thicknesses instantly without adjusting screws, eliminating the friction marks that destroy profit on high-end garments.

Scenario B: The "Single Needle" Slowdown KDCs often have multiple color changes per letter. On a single-needle machine, a 3-letter monogram might require 6 manual collisions.

• Solution Level 3: This is the trigger point to consider SEWTECH Multi-needle Machines. When a design creates friction (efficiency loss), a multi-needle machine absorbs that friction by automating the color swaps and handling the dense trims without stopping the workflow.

Warning (Hardware): magnetic embroidery hoops use powerful Neodymium magnets. Do not use if you have a pacemaker. Keep fingers clear of the "snap zone" to avoid painful pinching.

The "Do This Every Time" KDC Routine

If you adopt this routine, you can use KDCs safely and profitably.

Phase 3: Operation Checklist

• Type Filter: KDC selected via Filter by type.
• Connector Check: TrueView OFF. Logic: "If I see a line, the machine travels there."
• Density Audit: Check stitch count. If >4000 per letter, double your stabilizer.
• Hoop Integrity: Fabric is drum-tight. If using plastic hoops, check the screw. If using hooping stations or magnetic frames, verify alignment.
• Machine Config: Ensure your machine compatibility (e.g., checking specific brother embroidery hoops sizes or similar for your brand) matches the massive size of some KDC characters.


Final Thought: KDC is a power tool. Like a chainsaw, it acts differently than a handsaw (Native Fonts). Respect the stitch count, visualize the connectors, and ensure your physical hooping strategy is robust enough to handle the heavy lifting. Do this, and you turn "frustration" into "premium product."

FAQ

• Q: In Hatch 3 Lettering Docker, how do I correctly filter and select a Keyboard Design Collection (KDC) so I don’t accidentally use a regular embroidery font?
  A: Use the Lettering Docker and force “Filter by type: Keyboard Design Collection” before typing any text.
  • Open Lettering Docker and set Filter by type to Keyboard Design Collection
  • Close the Hints Docker to reduce visual clutter and prevent mis-clicks
  • Confirm the KDC-style icons (e.g., Cross Stitch/Redwork/Twine) appear in the selection list
  • Success check: the list visually changes to decorative-style icons, not standard font thumbnails
  • If it still fails: verify the object in Sequence Docker (Objects tab) to confirm Hatch is treating it as a lettering object, not a standard font
• Q: In Hatch 3, how do I verify a Keyboard Design Collection (KDC) object in Sequence Docker so I know the lettering will behave like stitch files (not Closest Join fonts)?
  A: Check the object in Sequence Docker—KDC lettering behaves like “as digitized” stitch stamps, so you must confirm what the software engine sees.
  • Open Sequence Docker and click Objects
  • Look for the lettering indicator icon (lettering shown as an “A” style icon rather than a simple font workflow)
  • Treat each letter as an individual stitched design with its own start/end points
  • Success check: you can clearly see the lettering object recognized in Objects view, and you expect trims/jumps between letters
  • If it still fails: turn TrueView OFF to visually inspect travel lines and confirm the actual stitch path
• Q: In Hatch 3, how do I preview and prevent long jump stitches between Keyboard Design Collection (KDC) letters using TrueView OFF?
  A: Turn TrueView OFF and inspect the dotted connector lines—if a line exists, the machine will travel there.
  • Toggle TrueView OFF before approving the file for production
  • Scan for dotted travel lines that cross open fabric areas where a jump stitch would be visible
  • Decide whether connectors are acceptable or whether the machine must trim instead of jumping
  • Success check: dotted lines match the travel you are willing to cut/accept on the garment (no surprise lines in open areas)
  • If it still fails: reduce spacing changes (KDC start/end points are fixed) and expect trims/jumps due to “as digitized” behavior
• Q: How much can Hatch 3 Keyboard Design Collection (KDC) lettering be resized without destroying stitch quality and causing “bulletproof” density?
  A: Keep KDC resizing within about ±10% as a safe rule—large resizing commonly crushes density and creates friction problems.
  • Avoid shrinking a dense KDC letter aggressively (stitches do not re-calculate like true fonts)
  • Choose a different KDC design if the required size change is large
  • Use extra caution with Lettering Art effects (arcing/warping) because distortion can open gaps or crush satin columns
  • Success check: the stitched sample does not feel overly stiff or “patch-like,” and the needle runs smoothly without heavy punching
  • If it still fails: select a lighter-stitch KDC style or reduce decorative complexity rather than forcing more resizing
• Q: When stitching dense Hatch 3 Keyboard Design Collection (KDC) letters (e.g., 4,000–7,000 stitches per letter), what stabilizer and needle setup prevents puckering and thread breaks?
  A: Treat dense KDC letters like heavy logos—use cutaway stabilization and a needle choice suited for dense layers.
  • Switch from tearaway to cutaway stabilizer (often two layers of medium cutaway for very dense letters)
  • Use temporary spray adhesive to control shifting during stitching
  • Install a 75/11 Sharp needle for dense KDC layers; if thread breaks persist, try a larger needle (e.g., Topstitch 90/14) and slow speed (example given: 600 SPM)
  • Success check: fabric stays flat around the letter edges (no ripples), and the machine sound remains steady without repeated snap-break cycles
  • If it still fails: reduce stitch density by choosing a lighter KDC or stop resizing/warping that is crushing stitches into too little space
• Q: On a single-needle embroidery machine, how do I stop bird nesting on the bottom of fabric when stitching Hatch 3 Keyboard Design Collection (KDC) lettering with many trims and long jumps?
  A: Control the start and connector behavior—bird nesting commonly comes from tension loss during jumps/trims.
  • Hold thread tails at the start to prevent the first stitches from pulling into the bobbin area
  • Ensure the machine uses Trim (not Jump) for connectors longer than about 2 mm (per the blog’s threshold)
  • Re-check travel lines with TrueView OFF so jumps/trims are expected, not accidental
  • Success check: the underside shows clean, controlled bobbin thread with no large loose loops forming during connectors
  • If it still fails: reduce unnecessary long travel between letters (KDC letters have fixed entry/exit points) and test a simpler KDC style
• Q: What safety precautions should be used when test-stitching very dense Hatch 3 Keyboard Design Collection (KDC) letters that may cause needle deflection or breakage at high SPM?
  A: Treat dense KDC tests as a break-risk operation—keep hands clear and use eye protection.
  • Keep fingers away from the needle bar area during dense sections (deflection can happen suddenly)
  • Slow the machine down for testing if density is extreme (the blog example mentions 600 SPM as a slowdown point)
  • Inspect for signs of excessive friction (repeated thread breaks, harsh punching sound) before running full speed
  • Success check: the needle runs without visible wobble/deflection and the stitchout progresses without repeated impact sounds
  • If it still fails: stop the run, change needle size/type as needed, and re-evaluate the design density/resizing before continuing
• Q: What safety rules apply to magnetic embroidery hoops with strong Neodymium magnets when hooping dense Hatch 3 Keyboard Design Collection (KDC) designs?
  A: Use magnetic hoops carefully—strong magnets can pinch, and they are not suitable for pacemaker users.
  • Do not use magnetic hoops if the operator has a pacemaker (magnet safety warning)
  • Keep fingers out of the “snap zone” when the magnetic ring clamps down
  • Clamp evenly to avoid shifting without over-tightening (reduces hoop burn risk compared with forcing plastic hoops)
  • Success check: fabric is held evenly and firmly without shiny hoop rings, and the hoop closes without finger pinching incidents
  • If it still fails: increase stabilization first (cutaway, additional layers) before applying more clamping force or re-hooping repeatedly
