Hatch “Digitize Holes” + “Fill Holes”: Clean Cutouts, Zero Gaps, and the Overlap Setting That Saves Your Stitch-Out

Mastering Negative Space: The Definitive Guide to Hatch ‘Digitize Holes’ & Pull Compensation

If you have ever stared at a design in Hatch Embroidery software, clicked "Digitize Holes," and watched in frustration as absolutely nothing happened, take a deep breath. You are not alone. If you have ever managed to cut the hole, only to stitch it out and find a glaring gap between your border and your fill, do not blame yourself.

Embroidery is an "experience science." It is where the perfect mathematics of software collide with the imperfect, stretchy, chaotic physics of fabric.

This guide rebuilds the workflow demonstrated by Sue from OML Embroidery, but we are going to take it a step further. We are going to apply 20 years of production floor experience to ensure that what you see on your screen is exactly what comes off your machine. We will move beyond just "clicking buttons" and master the physics of Overlap.

The “Don’t Panic” Primer: Why Hatch Holes Feel Fussy (and Why They’re Actually Fast)

First, a cognitive shift. In graphic design (like Photoshop), you often draw a black circle and place it on top of a red circle to make a "hole." In embroidery digitizing, that doesn't work. That just piles stitches on top of stitches, creating a frantic "bulletproof vest" of thread that will break needles.

In Hatch, a hole is a surgical procedure. It is a Boolean operation—something you cut out of an existing, selected object.

The frustration usually stems from two misunderstandings:

1. Selection Blindness: You cannot cut a hole in "nothing." You must explicitly tell the software which object is going under the knife.
2. The "Enter" Rhythm: Hatch requires a specific confirmation cadence. It’s not just one click; it’s a rhythmic click-click-click-ENTER-ENTER.

If you master this sequence, a 30-minute struggle turns into a 30-second fix.

The “Hidden” Prep Pros Do Before Clicking Digitize

Before you touch the mouse, you need to perform a "Pre-Flight Check." The number one reason hole cutouts fail during stitch-out is not the software—it is the setup.

The Physics of the "Gap"

When a needle penetrates fabric, it pushes fibers apart. When the thread tightens, it pulls the fabric together. This is Push and Pull. A hole you digitize as a perfect 1-inch circle will often stitch out as a 0.9-inch tall oval because the fabric creates tension. If you don't account for this before you digitize, you will have gaps.

Hidden Consumables Setup

To get a clean hole, you need a stable foundation.

• Stabilizer: For any design with cutouts (holes), Cutaway stabilizer is your safety net. Tearaway allows too much shifting, which distorts the hole shape.
• Adhesive: Use a light mist of temporary spray adhesive (like 505) to bond the fabric to the stabilizer. This prevents the "shifting sands" effect.
• Needle Check: Ensure you are using a sharp needle for wovens (75/11 Sharp) or a ballpoint for knits (75/11 Ballpoint). A burred needle will drag fabric and distort your hole geometry.

Prep Checklist (do this once per design session):

• Fabric/Stabilizer Pairing: Have you selected a stabilizer that matches your stitch density? (Rule of thumb: thicker fill = heavier stabilizer).
• Objective Definition: Is the hole a true void (negative space showing fabric) or a window for a new color?
• Visual Check Plan: Plan to use contrasting colors (high contrast) for the fill and the hole object so you can see boundaries clearly on screen.
• Machine Prep: Check your bobbin tension. A loose bobbin will cause the top thread to loop, distorting the crisp edges of your hole.


Build the Base Object: “Digitize > Close Shape”

Sue starts with a simple circle, and so should you. This is your "canvas."

The Action Sequence:

1. Navigate to the Digitize toolbox on the left.
2. Select Close Shape.
3. The Click Strategy:
   • Left Click for straight lines/corners.
   • Right Click for curves. (This is crucial. Beginners using left clicks for circles end up with jagged stop signs).
4. Press Enter immediately after placing your last point.

Sensory Check: You should hear the computer confirm, and visually, stitches should generate instantly. If you see a wireframe outline but no stitches, check that you have "Tatami" or "Satin" fill selected in the object properties, not just "Outline."

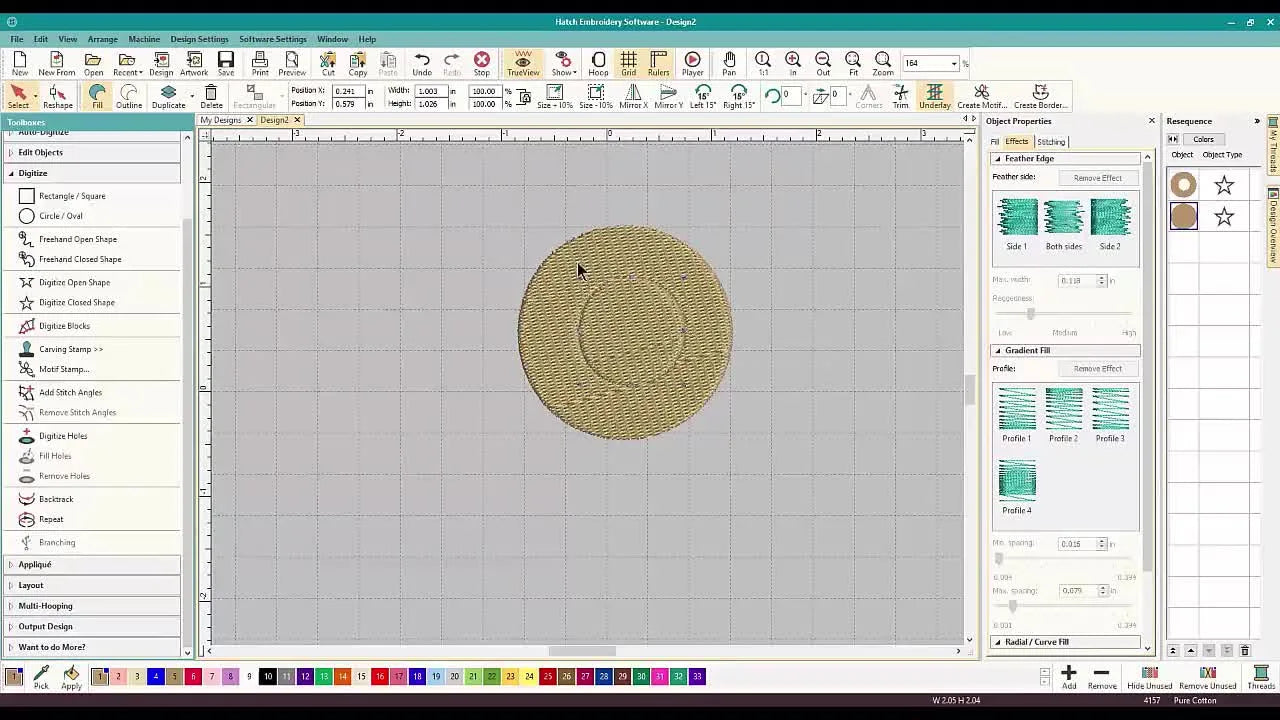

Cut a Hole the Hatch Way: “Digitize Holes”

Here is the "surgery." This is the step most people get wrong because they skip step 1.

The Exact Protocol:

1. Select the Base: Click on your filled circle. Look for the black bounding box handles. If the object is not selected, the "Digitize Holes" button will remain grayed out.
2. Engage Tool: Click Digitize Holes.
3. Define the Void: Click your points inside the shape. Remember: Right clicks for curves.
4. The Double-Tap:
   • Press Enter once (This closes the shape you just drew).
   • Press Enter again (This executes the cut).

Troubleshooting the "Off-Center" Hole: If your hole isn't perfectly centered, do not try to reshape it node by node. That is a path to madness. Sue’s advice is the production standard: Delete and Redo. It is faster to redraw a clean circle than to fix a lumpy one.

Turn the Void into a New Object: “Fill Holes”

Now you have a donut. But often, you don't want empty space; you want a "pupil" inside the "iris." Hatch automates this.

The Workflow:

1. Ensure the "Donut" object is still selected.
2. Click Fill Holes in the Edit Objects toolbar.
3. Immediate Visual feedback: Hatch fills the void with a new object.

The "Invisible" Problem: Hatch is smart, sometimes too smart. It copies the exact properties (color, stitch angle, density) of the parent object to the new center object. Visually, it looks like the hole disappeared.

The "Eyeball Test" (Crucial Step): Immediately change the color of the new center object. Make the outer ring Yellow and the center Red.

• Why? You need to confirm that you have two separate entities.
• Visual Anchor: It should look like a target or an eye. If it looks like one solid color, you won't be able to judge the Overlap in the next steps.


The Overlap Tab: The Physics of "Pull Compensation"

This is the most critical technical section of this guide.

If you digitize a plug to fit a hole perfectly mathematically (zero tolerance), it will have a gap in reality. Why?

• The outer ring stitches pull outward (expanding the hole).
• The center plug stitches pull inward (shrinking the plug).
• Result: The "Grand Canyon" gap where fabric shows through.

Sue navigates to Software Settings > Embroidery Settings > Overlap. This global setting tells Hatch how to handle the interface between cutouts and fills.

Positive Overlap (0.20): The "Safety Net"

In the video, Sue demonstrates an overlap of 0.20 inches.

Expert Calibration / Sweet Spot Adjustment: Note that 0.20 inches (approx 5mm) is a massive overlap, likely used by Sue for demonstration purposes so you can see it on the screen.

• Real World Production Value: For standard cotton or piqué knit, a safe starting point is 0.015" to 0.03" (0.4mm - 0.8mm).
• For Fleece/Towels: You might push to 0.05".

The Logic: When you set a positive overlap, Hatch makes the center object slightly larger than the hole. The underlying stitches tuck underneath the border, ensuring that even if the fabric shifts, the white gap is covered.

Application:

1. Set Overlap to Positive (e.g., 0.02").
2. Crucial: You must re-run the Fill Holes command. Changing the setting generally applies to future actions, or requires regeneration of the specific object geometry.


Negative Overlap (-0.10): The "Trapto" Artist Logic

Sometimes, you want a gap. Perhaps you are stitching a logo where the text needs a crisp separation from the background, or you are doing a quilting effect (Trapunto).

The Action: Sue enters -0.10 inches.

The Result: Hatch generates the center object smaller than the hole. This leaves a deliberate channel of un-stitched fabric.

Design Warning: If you use negative overlap, you must ensure your stabilizer is bulletproof. If the fabric is loose, that "artistically designed gap" will look like a mistake. The gap width will vary as the fabric grain distorts.

• Recommended: Use this on denim, canvas, or tight twill. Avoid on flimsy t-shirts unless heavily stabilized.


Reset to 0.00 Overlap: The Baseline

When should you use 0.00 inches? Almost never for filled shapes touching filled shapes. However, it is the correct setting for:

• Vinyl / Leather: Materials that do not shrink.
• Appliqué: Where a raw edge placement line needs to be exact.

Always return your software to a known baseline (0.00) after a project so you don't accidentally add overlap to your next design.

The 1-Inch Overlap Demo: Learning Through Exaggeration

Sue sets the overlap to 1.00 inches. The center red circle explodes outward, covering half the yellow ring.

Instructional Insight: This is not for production. This is for your brain. When learning a new tool, exaggerate the parameters.

• Don't change a setting by 1%. Change it by 100%.
• See what breaks. See what moves.
• Then, dial it back to the functional "Sweet Spot."

Setup Checklist (The Pre-Digitize Ritual):

• Selection: Is the correct base object selected?
• Verification: Did Fill Holes create a separate object? (Did you do the Eyeball Test?)
• Intent: Is your Overlap value set for Safety (Positive), Style (Negative), or Precision (Zero)?
• Regeneration: Did you re-run the tool to apply the new settings?


Advanced Workflow: Multiple Holes

You are not limited to one donut hole. You can create Swiss Cheese.

The Workflow:

1. Select Base Object.
2. Click Digitize Holes.
3. Draw Shape A -> Enter.
4. Draw Shape B -> Enter.
5. Draw Shape C -> Enter.
6. Final Enter: Cuts all shapes at once.

This is vital for digitizing letters like 'B', '8', or 'a', or for creating complex geometric patterns.

Troubleshooting Hatch Holes Like a Shop Owner

When things go wrong, do not guess. Follow this diagnostic path, moving from the cheapest fix to the most expensive.

Symptom 1: "Digitize Holes" is grayed out.

• Cause: You haven't told Hatch what to cut.
• Fix: Use the Select Tool (black arrow) to click the base object.

Symptom 2: I see the hole on screen, but it’s gone when I stitch.

• Cause: The new center object is the same color as the base, or density is too high causing the threads to merge.
• Fix: Use the "Eyeball Test" (change colors). Check if Overlap is too high.

Symptom 3: I have gaps on the left and right, but not top and bottom.

• Cause: This is "Push/Pull" in action. The fabric is stretching along the grain.
• Fix: Increase Positive Overlap slightly (0.01"). If the gap is huge, your hooping is too loose.

Warning: Mechanical Safety
When test-stitching designs with complex overlaps, keep your hands clear of the needle bar. If a needle breaks due to extreme density (a "bulletproof" overlap), the shard can fly at high velocity. Always wear safety glasses when testing new, high-density files.

Decision Tree: When "Perfect" Digitizing Fails

Use this logic flow to solve the "Gap" problem without ruining more shirts.

START: Gap visible in finished embroidery?

• NO: The file is fine. Stop worrying.
• YES: Proceed below.

Q1: Is the gap uniform (all the way around) or irregular?

• Uniform Gap:
  • Diagnosis: Incorrect Pull Compensation/Overlap.
  • Solution: Increase Overlap setting in Hatch by +0.01". Re-stitch.
• Irregular Gap (e.g., only on one side):
  • Diagnosis: Physical Stability Issue (Hooping).
  • Solution: Do not change software yet. Check your hoop tension.

Q2: Can you tighten the screw on your hoop more?

• YES: Tighten it until the fabric sounds like a drum (thump-thump) but isn't warped.
• NO (It hurts my hand / It pops out):
  • Diagnosis: Equipment Limitation. Traditional hoops struggle with thick or slippery items.
  • Solution: This is the trigger point for a tool upgrade.

The Upgrade Path: Solving the "Hardware Gap"

Software features like Overlap are designed to compensate for physics, but they cannot compensate for bad mechanics. If your fabric is slipping in the hoop, no amount of digitizing skill will save the design.

Here is the professional hierarchy of solutions ("The Upgrade Path"):

Level 1: Technique Optimization (Cost: $0)

Before buying anything, refine your hand skills. Ensure you are using the correct Stabilizer. "If you wear it, don't tear it" (Use Cutaway for wearables). Use temporary spray adhesive to bond the fabric to the stabilizer so they move as one unit.

Level 2: Tool Upgrade (Cost: Moderate)

If you are struggling to get a "drum-tight" hoop without wrist pain, or if you are leaving "hoop burn" (shiny rings) on delicate fabrics, the industry solution is magnetic embroidery hoops.

• Why: They use magnetic force to clamp fabric evenly without the friction-burn of standard rings. They automatically adjust to different fabric thicknesses.
• The Result: You spend less time fighting screw tension and more time stitching. Many professionals search for how to use magnetic embroidery hoop videos specifically to solve the "gap" issues caused by fabric slippage.

Warning: Magnetic Safety
magnetic embroidery hoops use industrial-grade neodymium magnets. They are incredibly strong.
* Pinch Hazard: Keep fingers clear of the snapping zone.
* Medical Safety: Keep frames at least 6 inches away from pacemakers or insulin pumps.

Level 3: Production Scale (Cost: High, ROI: High)

If you are doing this for profit—stitching 50+ shirts a week—setup time is your enemy.

• The Problem: A single-needle machine requires you to stop and re-thread for every color change. This breaks your flow and cools down the machine interaction.
• The Fix: A multi-needle machine (like the SEWTECH line) combined with a hooping station.
• The Logic: A hooping station for machine embroidery allows you to hoop the next garment perfectly while the machine is running the previous one. The multi-needle machine handles color changes automatically. This isn't just "buying gear"; it's buying back 50% of your time.

Operation Checklist (The Run-Sheet):

1. Digitize: Create Base -> Enter.
2. Cut: Select Base -> Digitize Holes -> Draw -> Enter -> Enter.
3. Fill: Select Base -> Fill Holes.
4. Verify: Change Color (Eyeball Test).
5. Adjust: Set Overlap (0.02" / 0.5mm for standard use) -> Re-run Fill Holes.
6. Hoop: Drum-tight (or use Magnetic Frame).
7. Stitch.

By respecting the physics of the fabric and confirming your settings with the Eyeball Test, you stop "hoping" for a good result and start engineering one.

FAQ

• Q: Why is the Hatch Embroidery “Digitize Holes” button grayed out when creating negative space cutouts?
  A: This is common—Hatch only cuts holes from a selected existing object, so the base fill must be selected first.
  • Select: Click the filled base object until black bounding box handles appear.
  • Click: Choose Digitize Holes, then draw the hole shape (right-click for curves).
  • Confirm: Press Enter to close the hole shape, then press Enter again to execute the cut.
  • Success check: The base object becomes a “donut” with a visible void, not just an outline.
  • If it still fails: Verify the base object is a filled object (Tatami/Satin), not outline-only wireframe.
• Q: What is the correct Hatch Embroidery key sequence for “Digitize Holes” when the hole outline draws but no cut happens?
  A: Use the double-Enter cadence—Hatch needs one Enter to close the hole shape and a second Enter to perform the cut.
  • Select: Click the base filled shape first (bounding box handles visible).
  • Draw: Plot the hole points inside the shape (right-click for smooth curves).
  • Execute: Press Enter once (close shape), then Enter again (cut hole).
  • Success check: The hole becomes actual empty space inside the object, not just a line/path.
  • If it still fails: Delete the attempted hole and redraw cleanly; reshaping a lumpy hole is usually slower than redoing.
• Q: Why does Hatch Embroidery “Fill Holes” look like it did nothing after converting a hole into a new object?
  A: Don’t worry—Hatch often copies the same color and properties, so the new center object can be “invisible” because it matches the parent.
  • Keep selected: Leave the donut object selected, then click Fill Holes.
  • Change: Immediately change the center object to a contrasting color (e.g., outer yellow, center red).
  • Verify: Confirm there are two separate objects before adjusting overlap.
  • Success check: The design looks like a target/eyeball with clearly separate inner and outer objects.
  • If it still fails: Re-check that the hole was truly cut (a donut exists) before running Fill Holes.
• Q: What Hatch Embroidery Overlap settings help prevent a visible gap between a border and a filled “plug” after using Digitize Holes and Fill Holes?
  A: Use a small positive overlap as a safe starting point—typically 0.015"–0.03" (0.4–0.8 mm) for standard cotton or piqué knit.
  • Set: Go to Software Settings > Embroidery Settings > Overlap and choose a positive value (e.g., 0.02").
  • Regenerate: Re-run Fill Holes so the new overlap geometry is applied.
  • Test: Stitch a sample; adjust in small steps (e.g., +0.01") if needed.
  • Success check: No “white channel” of fabric shows between the outer ring and the center fill.
  • If it still fails: Treat an irregular one-sided gap as hooping/fabric stability first, not a software overlap problem.
• Q: What stabilizer, adhesive, and needle setup is recommended for clean Hatch Embroidery hole cutouts without distortion from push/pull?
  A: Start with stability—cutaway stabilizer plus light temporary spray adhesive and the correct needle type reduces shifting that distorts hole geometry.
  • Choose: Use cutaway stabilizer for designs with holes/cutouts; tearaway may allow too much shifting.
  • Bond: Apply a light mist of temporary spray adhesive (e.g., 505) to marry fabric to stabilizer.
  • Match: Use 75/11 Sharp for wovens or 75/11 Ballpoint for knits; replace any burred needle.
  • Success check: The stitched hole stays round/consistent instead of collapsing into an oval or wandering.
  • If it still fails: Check bobbin tension—loose bobbin tension can cause looping that softens or distorts crisp edges.
• Q: How can embroidery hoop tension problems cause irregular gaps around Hatch Embroidery negative space holes, and what is the step-by-step fix?
  A: If the gap is irregular (only one side), fix hooping mechanics before changing digitizing settings.
  • Diagnose: Compare the gap—uniform gaps suggest overlap; one-sided gaps suggest hoop slip/stretch along grain.
  • Tighten: Increase hoop tension until fabric is drum-tight (“thump-thump”) without warping.
  • Stabilize: Use cutaway plus temporary spray adhesive so fabric and stabilizer move as one unit.
  • Success check: The design stitches with consistent edge coverage all around the hole.
  • If it still fails: If the hoop cannot be tightened without pain or fabric popping out, consider a magnetic hoop as the next-level tool solution.
• Q: What needle and test-stitch safety precautions should be used when experimenting with Hatch Embroidery overlap and high-density areas?
  A: Treat test sew-outs as a safety event—extreme density or overlap can break needles and send shards outward.
  • Keep clear: Keep hands away from the needle bar area during dense overlap tests.
  • Protect: Wear safety glasses when testing unfamiliar, high-density files.
  • Reduce risk: Avoid “bulletproof” stacking—if you must test extremes, do it on scrap with proper stabilization.
  • Success check: The test stitch runs without needle deflection, repeated needle strikes, or audible snapping.
  • If it still fails: Back off extreme settings and return to practical overlap ranges, then re-run Fill Holes before retesting.
• Q: What is the safest upgrade path when Hatch Embroidery overlap adjustments cannot fix gaps caused by fabric slippage and hooping limitations?
  A: Use a tiered approach: optimize technique first, then upgrade hooping tools, and only then scale production equipment if volume demands it.
  • Level 1 (Technique): Switch to cutaway for wearables, add light spray adhesive, and verify bobbin tension before editing the file.
  • Level 2 (Tool): Use a magnetic embroidery hoop if drum-tight hooping is difficult, causes hoop burn, or items keep slipping.
  • Level 3 (Scale): If production volume is high (e.g., 50+ shirts/week), a multi-needle setup reduces rethreading stops and improves workflow.
  • Success check: Gaps stop appearing without repeated re-hooping or repeated software tweaks between runs.
  • If it still fails: Re-test with a controlled sample stitch-out and confirm the “Eyeball Test” (separate objects) before changing overlap again.
