Hatch Dockers That Actually Speed You Up: My Threads, Resequence, Design Overview, and Object Properties (Plus the “Missing Panel” Fix)

Hatch Embroidery Software Guide: Mastering Dockers for Perfect Stitch-Outs

If you’ve ever opened Hatch and thought, “Where did my panels go—and why does everything feel slower than it should?” you are not alone. This is a rite of passage for every digital embroiderer.

In my 20 years of managing embroidery production floors, I’ve learned that software confusion translates directly to machine downtime. Dockers are the difference between clicking around and working with control. Once you understand what each docker is responsible for, you stop guessing, you stop redoing, and your stitch-outs become predictable, profitable, and safe.

This post rebuilds the workflow shown in the Hatch “Dockers” lesson: My Threads, Resequence, Design Overview, and Object Properties—plus the dual-monitor mistake that makes people think Hatch “lost” their tools.

Dockers in Hatch Embroidery Software: The 4 Panels That Keep You From Digitizing Blind

Hatch shows three dockers on the right side—My Threads, Resequence, and Design Overview—plus a fourth, critical one called Object Properties. In the video, the instructor calls out why these matter: dockers hold the “truth” about your design—colors, stitch settings, and sewing order.

Here’s the mindset I want you to adopt: If you can’t see the information, you are flying blind. In a physical shop, you wouldn't run a machine with the lights off. Hiding your dockers is the digital equivalent.

The “Float or Dock” Move in Hatch: Customize Your Workspace Without Losing Panels on a Second Monitor

Hatch lets you float a docker (turn it into a free window) in two ways:

1. Drag the caption bar to pull it away from the sidebar.
2. Double-click the header to instantly float it.

This is genuinely useful if you run two screens—design on one, panels on the other. However, this is also the source of the "Missing Docker" panic.

Warning: If you float dockers onto a second monitor and then unplug that monitor, you can lose access to those dockers because they are still “living” off-screen. Hatch remembers where you left them—even if that space no longer exists. Always re-dock your panels before closing the software on a laptop.

Prep Checklist: The "Zero-Friction" Start

Before you touch a single node or stitch type, run this mental flight check:

• Visibility Check: Can you see the right-side docker column (My Threads / Resequence / Design Overview)?
• Monitor Logic: Are you working single or dual monitor? If dual, ensure cables are secure.
• Object Properties Anchor: Is the Object Properties panel visible? (You will need this every 30 seconds).
• File Hygiene: Save your file immediately as [Name]_v01.EMB. Never digitize on an unsaved file.

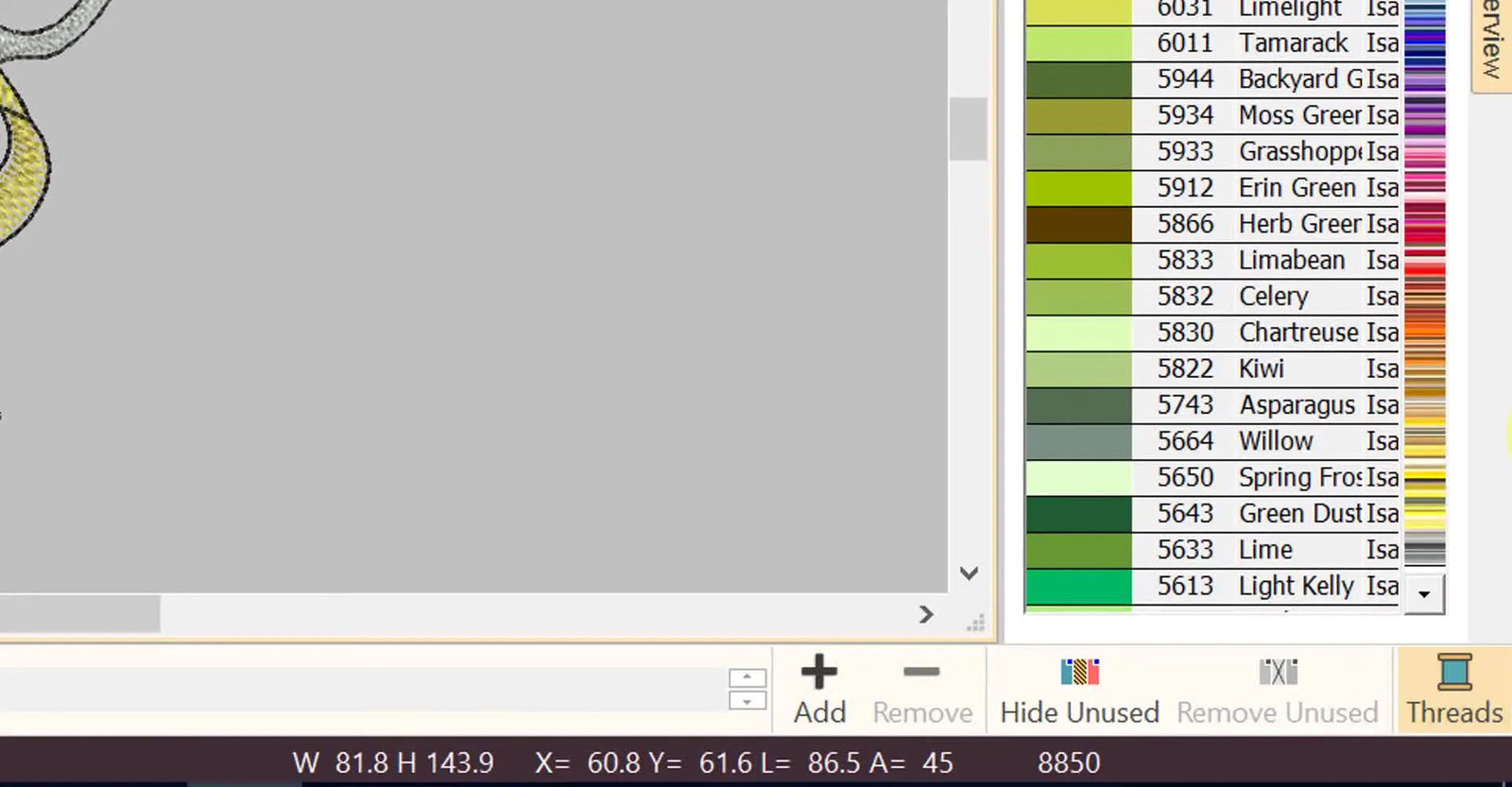

My Threads Docker in Hatch: Treat It Like Your Physical Thread Box

In the video, the instructor opens My Threads and explains it correctly: it’s your digital thread box. You navigate this by clicking the My Threads tab or the threads icon at the bottom.

The Production Reality

When the instructor scrolls through brands like Isacord (showing codes like 6156 Olive), this isn’t just for pretty colors on screen; it is your inventory management.

Why this matters: If you select a generic "Red" in software but load a "Dark Cherry" thread on the machine, you create a disconnect.

• Hobbyist Rule: Pick colors that look good.
• Pro Rule: Pick specific thread codes you own.

If you are graduating to higher-end equipment, such as bernina embroidery machines or similar semi-pro setups, the machine often reads the specific color data. Accurate thread mapping in this docker prevents the machine from prompting you for a color change that logically shouldn't happen.

Resequence Docker in Hatch: Catching the "Bird's Nest" Before It Happens

The Resequence docker controls the stitching order. The video demonstrates two vital views:

1. By Color: Shows color blocks (e.g., "All the red parts").
2. By Object: Shows individual segments (e.g., "The left eye, then the right eye").

The Sensory Check of a Bad Sequence

If you ignore this docker, you will hear it later.

• The Sound: A rhythmic thump... thump... thump is good. A frantic zip-zip-zip of the pantograph moving across the hoop constantly means your sequence is inefficient.
• The Result: Unnecessary jump stitches. Every jump is a risk for a thread trim failure or a "bird's nest" (thread tangle) under the throat plate.

Pro Tip: Use the "By Color" view to group identical colors together. If you see Red, then Blue, then Red again, you are forcing the machine to stop and demanding a manual thread change (on a single needle) or a color change (on a multi-needle). Consolidate them here.

Setup Checklist: Optimizing the Path

• Toggle View: Open Resequence and flip between Color and Objects.
• Logic Check: Does the sewing order make physical sense? (Backgrounds first, details last).
• Color Efficiency: Count your color blocks. A 12-color design with 25 color stops needs re-sequencing.
• Palette Safety: Ensure My Threads is locked to the specific threads you have on the rack.


Design Overview Docker in Hatch: The "Sniper Scope" for Detail Work

The Design Overview docker is your navigational map.

The video highlights the specific friction it removes:

• You zoom in to 600% to fix a tiny satin column.
• You need to move to the other side of the design.
• Instead of zooming out and back in (which breaks your flow), you drag the white rectangle in the Overview docker.






Why this prevents errors

When you zoom in and out constantly, your eyes get tired. You miss things like gaps in the underlay or tiny connectors that shouldn't be there. The Design Overview allows you to stay focused on the details while maintaining awareness of the whole design.

Object Properties in Hatch: The Engine Room of Embroidery

In the lesson, the instructor double-clicks an element to open Object Properties. This is the most critical panel in the entire software.

You will see tabs like:

• Fill / Outline
• Underlay (often under Stitching/Effects)
• Compensation

The video briefly touches on stitch types (Satin, Tatami/Fill, Run). Here is the "White Paper" data you need to add to that knowledge:

1. Density (The Goldilocks Zone)

Beginners often think "Standard" is safe. It usually is, but knowing the numbers gives you power.

• Standard Satin Density: Usually 0.40mm.
• Risk Zone: If you lower this to 0.30mm or less to verify coverage, you risk gaps or bulletproof embroidery (stiffness).
• Danger Zone: Below 0.25mm, you risk jamming the needle into previous stitches, causing thread breaks or broken needles.

2. Pull Compensation (The "Fabric Shrink" Factor)

Embroidery distorts fabric. Stitches pull the fabric in.

• Without Compensation: Your perfect circle stitches out as an oval; outlines don't line up with fills.
• The Fix: Increase "Pull Compensation" in this docker.
  • Wovens (Cotton/Denim): 0.2mm - 0.3mm usually suffices.
  • Knits/Stretchy: 0.35mm - 0.45mm is safer.


Warning: Physical Safety
When testing new densities or stitch types defined in Object Properties, never run your machine at max speed immediately. Stop the machine, watch the first 100 stitches at 400-600 SPM (Stitches Per Minute). Listen for the "sharp click" of a healthy stitch. A dull "thud" often indicates the needle is struggling to penetrate overly dense areas.

The "Missing Dockers" Problem: How to Recover

A viewer comment in the source video asked how to get their sequence docker back.

• Symptom: You click "Resequence" but nothing appears.
• Cause: It is "floating" on a disconnected monitor coordinate.
• Fix: Reset Workspace or re-connect the monitor, drag the panel back, and dock it.

The Habit: End every digitizing session by docking your panels. It’s like cleaning your brushes after painting.

Tooltips + F1: The Manual is Built-In

Hover over any tool to see a tooltip. While hovering, press F1 to open the specific documentation.

This is faster than Googling. If you don't know what "Trapezoid spacing" does in Object Properties—F1 it.

Decision Tree: When Software isn't the Problem

You can have the perfect Hatch file, the perfect dockers, and the perfect density, but your result can still look terrible. Why? Because embroidery is a physical interaction between software, thread, and fabric.

Use this decision logic to diagnose issues:

1. Is the design distorted (gaps between outline and fill)?
   • Software Fix: Increase Pull Compensation in Object Properties.
   • Hardware Fix: Check your stabilization. Are you using a cut-away stabilizer for stretchy fabric? (You should be).
2. Is the fabric puckering around the design?
   • Software Fix: Reduce Density (make the stitch count lower).
   • Hardware Fix: Your hooping is likely loose. Theoretically, the fabric should be "tight as a drum skin."
3. Is there "Hoop Burn" (shiny ring marks) on the fabric?
   • Trigger: This happens often on velvet, performance wear, or dark cottons.
   • Software Fix: None. This is a hardware limit.
   • Hardware Fix: This is the classic signal to upgrade to a magnetic embroidery hoop. Unlike traditional screw rings that crush fibers, magnetic hoops hold firmly without the "friction burn," preserving expensive garments.

The Production Upgrade Path

If you are moving from hobby to side-hustle, your bottleneck will shift from "Digitizing" to "Hooping."

• Level 1 (Learning): You struggle with placement.
• Level 2 (Software Mastery): You use Hatch dockers to create efficient files, but hooping takes 5 minutes per shirt.
• Level 3 (Hardware Mastery): You introduce a machine embroidery hooping station. This ensures every logo is placed in the exact same spot on every shirt, reducing setup time by 50%+.

Warning: Magnetic Field Safety
If you upgrade to magnetic hoops (like those from Sewtech), be aware they use industrial-strength magnets.
* Pinch Hazard: They can snap together with immense force—keep fingers clear.
* Medical Devices: Keep them away from pacemakers.
* Electronics: Do not place them directly on laptops or hard drives.

The "Hidden" Prep That Prevents Bad Stitch-Outs

The video focuses on the interface, but the goal is the finished product.

Before exporting your file to the machine (DST, PES, EXP), compare your Object Properties against your Fabric Choice:

• T-Shirt / Knit: Needs higher compensation + Cutaway stabilizer.
• Towel / Terry Cloth: Needs a "Knockdown Stitch" (underlay) to mat down the pile, plus water-soluble topping.

If you don't adjust the file for the fabric in Object Properties, no amount of stabilizer will fix it.

Operation Checklist: The Final 60 Seconds

Don't hit "Start" on the machine until you verify:

• Thread Match: Does the screen color match the spool on the needle bar? (Check My Threads).
• Path Logic: efficient sewing order confirmed in Resequence.
• Detail Scan: Panned through Design Overview to ensure no stray stitches exist.
• Parametric Check: Clicked key fills in Object Properties to ensure density is safe (approx 0.40mm).
• Hoop Check: Fabric is taut, hoop is secure. If using a standard hoop, check for fabric creep. If using embroidery hoops magnetic, ensure the magnets are seated evenly.




By mastering these four dockers, you move from "hoping it works" to "knowing it will work." That is the definition of a professional workflow.

FAQ

• Q: How do I recover a missing Hatch Embroidery Software Resequence Docker after unplugging a second monitor?
  A: Reset the Hatch workspace or re-connect the second monitor and re-dock the panel—this is a common “floating off-screen” issue.
  • Re-connect the external monitor (if available) so the off-screen docker becomes visible again.
  • Drag the floating Resequence window back onto the main screen and dock it to the right-side column.
  • Use Hatch “Reset Workspace” (or the closest workspace reset option) to restore default panel positions.
  • Success check: Clicking Resequence immediately shows the panel on-screen, and it docks on the right sidebar.
  • If it still fails… End the session by docking all panels before closing Hatch so the layout does not save off-screen coordinates again.
• Q: In Hatch Embroidery Software, how do I float or dock My Threads / Resequence / Design Overview Dockers without “losing” them?
  A: Float using the caption bar drag or a header double-click, but always re-dock before closing Hatch on a laptop.
  • Drag the docker caption bar away from the sidebar to float it as a separate window.
  • Double-click the docker header to instantly toggle float mode.
  • Re-dock panels back into the right-side column before closing Hatch, especially if using a temporary second monitor.
  • Success check: All dockers remain visible after restarting Hatch on a single screen.
  • If it still fails… Use a workspace reset and then re-build your preferred layout once the monitor setup is stable.
• Q: How do I use the Hatch Resequence Docker to prevent bird’s nests caused by inefficient stitch order?
  A: Re-sequence by Color (and verify by Object) to reduce jumps and unnecessary color stops before exporting the file.
  • Open Resequence and toggle By Color to group identical colors together (avoid Red → Blue → Red patterns).
  • Switch to By Object to confirm the physical sewing logic (backgrounds first, details last).
  • Reduce excessive color blocks (a design showing many more stops than expected usually needs consolidation).
  • Success check: The stitch path shows fewer long jumps, and the machine runs with a steadier “thump… thump… thump” instead of frantic travel.
  • If it still fails… Confirm trims/jumps are being handled correctly on the machine side and re-check for stray objects in the design.
• Q: What density settings in Hatch Object Properties can cause needle breaks or thread breaks during stitch-out?
  A: Treat ~0.40 mm satin density as a safe baseline, and avoid pushing density below 0.25 mm because that can drive the needle into heavy existing stitches.
  • Open Object Properties and check the stitch type (Satin vs Fill) before changing density.
  • Start from the “standard” baseline (often around 0.40 mm for satin) and only adjust in small steps.
  • Avoid the danger zone (below 0.25 mm) where thread breaks and broken needles become more likely.
  • Success check: The machine forms clean stitches without repeated thread breaks, and the needle penetrates smoothly without harsh impacts.
  • If it still fails… Slow the machine for testing (see speed guidance) and reassess whether the fabric/stabilizer choice is forcing overly dense settings.
• Q: What pull compensation values in Hatch Object Properties help stop outlines from missing fills on knits vs wovens?
  A: Increase pull compensation to match the fabric—wovens often need ~0.2–0.3 mm, while knits often need ~0.35–0.45 mm to keep shapes from pulling off-register.
  • Identify the fabric first (woven cotton/denim vs knit/stretch) before changing compensation.
  • Set Pull Compensation in Object Properties within the typical range for that fabric type.
  • Stitch a small test to confirm circles stay round and outlines land cleanly on the fill edge.
  • Success check: Outlines align with fills (no visible gap or “outline drifting” after stitch-out).
  • If it still fails… Re-check stabilization (knits usually need cut-away stabilizer) because software compensation cannot overcome poor support.
• Q: What is a safe machine-speed test method when trying new Hatch Object Properties density or stitch types?
  A: Do not start at max speed—watch the first 100 stitches at about 400–600 SPM and listen for healthy needle penetration before speeding up.
  • Set the machine to a slower test speed (around 400–600 SPM) for the first run of a new setting.
  • Stop and observe the first ~100 stitches to confirm the needle is not struggling in dense areas.
  • Listen: a sharp “click” is usually healthier than a dull “thud,” which can indicate excessive density or resistance.
  • Success check: No needle deflection, no repeated thread breaks, and stitch formation looks consistent from the start.
  • If it still fails… Revisit density/underlay choices in Hatch and verify hooping/stabilization so the fabric is not bouncing or shifting.
• Q: How do I reduce hoop burn (shiny hoop ring marks) when embroidering velvet or performance wear, and when should I switch to a magnetic embroidery hoop?
  A: Hoop burn is a hardware/friction issue—software will not fix it; reduce clamping damage and consider a magnetic embroidery hoop when standard screw hoops leave marks.
  • Identify the trigger fabrics (velvet, performance wear, dark cottons) where hoop rings show easily.
  • Avoid over-tightening traditional screw hoops that crush fibers and create friction shine.
  • Consider switching to a magnetic embroidery hoop to hold securely with less ring-style crushing of the fabric surface.
  • Success check: After embroidery, the garment shows minimal or no shiny ring marks around the hooped area.
  • If it still fails… Re-check stabilization and hooping technique, and evaluate whether a hooping station is needed for consistent placement without over-clamping.
• Q: What magnetic embroidery hoop safety rules should I follow to avoid pinch injuries and device interference?
  A: Treat magnetic hoops as industrial-strength magnets—keep fingers clear, and keep them away from pacemakers and sensitive electronics.
  • Keep fingers out of the closing path; magnets can snap together with high force (pinch hazard).
  • Keep magnetic hoops away from pacemakers and other medical devices.
  • Do not place magnetic hoops directly on laptops or hard drives.
  • Success check: The hoop closes evenly without finger contact, and the work area stays clear of at-risk devices.
  • If it still fails… Pause production and re-train the handling process so the hoop is always opened/closed with controlled, two-hand positioning.
