Master Hatch 3: The "Production-Ready" Workflow for Fleece & File Management

When you’re under the gun—holiday stocking names, hoodie logos, or a customer waiting for a proof—Hatch Embroidery 3 can feel “simple” right up until one tiny setting is hiding in a folder you didn’t know existed, or your beautiful satin lettering disappears into the fleece nap.

In my 20 years on the shop floor, I’ve learned that software skills and "hand feel" are inseparable. You can have the perfect file, but if your hooping tension is off, the machine will punish you.

This guide rebuilds a standard Q&A session into a repeatable, industrial-grade workflow. We will cover locating your mapped keyboard design collections, setting up "Fleece" physics correctly (so you don't ruin expensive garments), applying Laydown Stitches, and mastering the Sequence Docker.

1. Calm the Panic: Why Hatch Problems Feel Random (But Aren't)

If you’re thinking “SOS” (I’ve seen those exact words in user subject lines), take a breath. In embroidery, panic leads to rushing, and rushing leads to birdnests. Most Hatch issues fall into one of three buckets:

1. File location confusion (Windows hides the ProgramData folder by default).
2. Fabric physics (Fleece nap eats stitches; poor stabilization causes shifting).
3. Sequence logic (The design stitches the outline before the fill, causing gaps).

We are going to move you from "guessing" to "executing" with a checklist-driven routine. Consistency is what allows you to quote jobs confidently and scale from a hobby to a business.

2. Locate Mapped Keyboard Collections (The "Hidden" Folder)

Hatch saves keyboard design collections you mapped in a different place than the standard fonts/collections. This is a common friction point because Windows often hides this specific folder to protect system files.

The Critical Path: It is located in ProgramData, not Program Files.

Here is the navigation path: C: Drive > ProgramData > Wilcom > Hatch Embroidery > FONTS

The "Digital Hygiene" Prep

Treat this folder like a library, not a workbench. If you delete a file here, it’s gone for good.

Prep Checklist (Digital Safety)

• Unhide Folders: In Windows Explorer, go to View > check "Hidden items" to see ProgramData.
• Verify Path: Confirm you are in ProgramData, NOT Program Files.
• Backup Rule: Before editing any mapped collection, Copy/Paste the original file to a "Backup" folder on your Desktop.
• Naming Convention: Use Date_Description (e.g., 2023-11_CustomFont01) so you can identify changes later.

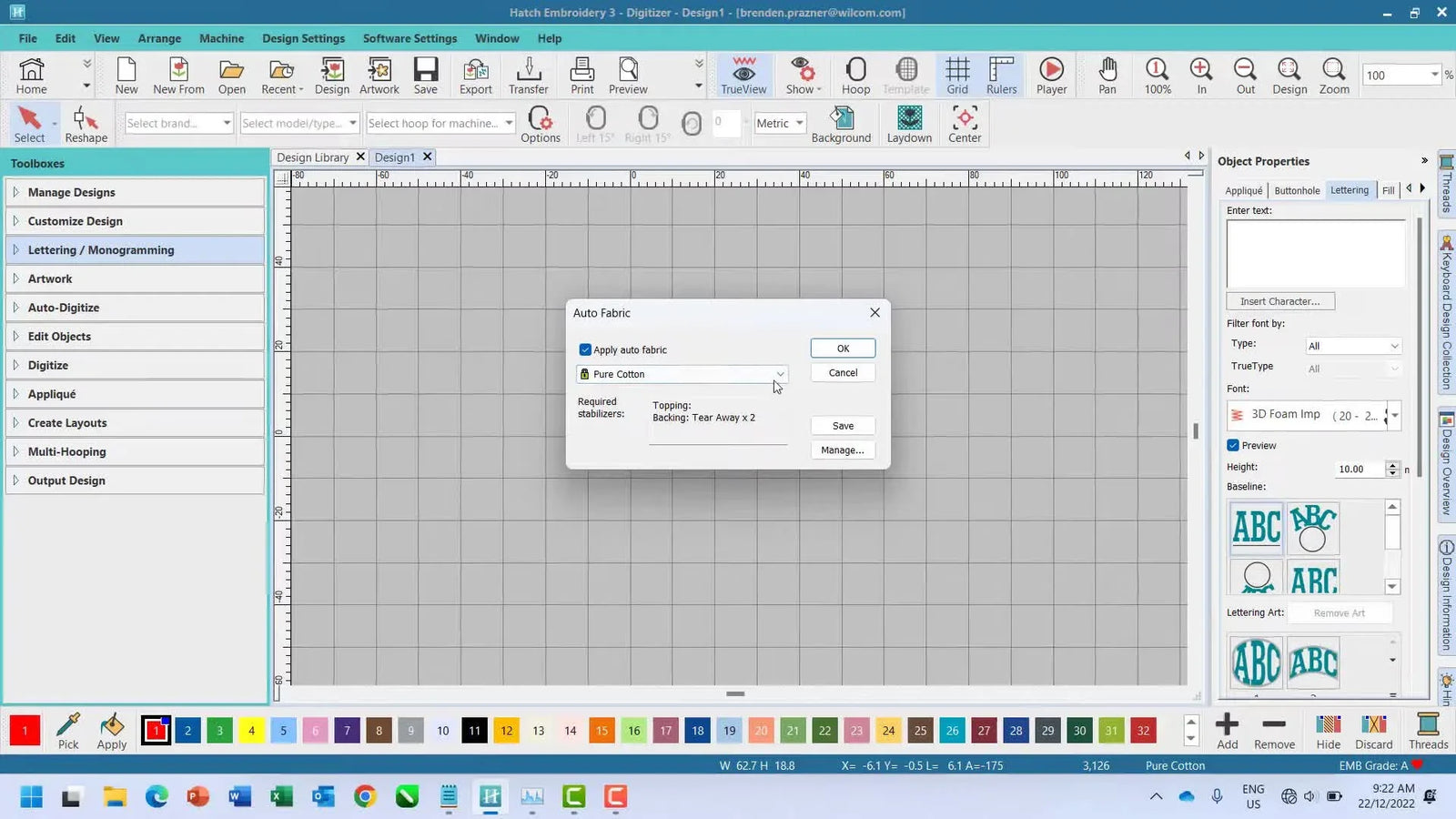

3. Mastering Fleece: "Auto Fabric" + The Physics of Stabilization

Fleece is comfortable to wear but brutal on embroidery. It is thick, stretchy, and has a "nap" (pile) that wants to swallow thin stitches.

The Software Step:

1. Go to Design Settings (top menu).
2. Choose Auto Fabric.
3. Select Fleece.
4. Click OK.










What "Auto Fabric" Actually Does (Expert Insight)

When you select "Fleece," Hatch isn't just adding a tag. It is changing the physics of your file:

• Pull Compensation: It increases (typically to 0.35mm - 0.40mm) to account for stitch shortening as the needle penetrates thick fabric.
• Underlay: It changes the foundation stitching (often to a double grid) to hold the fabric stable.

The Stabilizer Reality Check

Hatch will prompt you with: Backing: Cut Away x 2.

Do not ignore this. Many beginners try to use Tear Away because it's "cleaner." This is a trap. Fleece stretches. If you use Tear Away, the stitches will distort the fabric, and your perfect circle will turn into an oval.

Pro Tip: If you are planning high-volume production on equipment like brother multi needle embroidery machines, you must standardize your stabilizer recipe. A multi-needle machine runs faster, exerting more force on the fabric.

Decision Tree: Choose Your "Sandwich"

Use this logic flow to make the right choice every time.

fabric Surface Condition?

• High-Pile / Sherpa / Fluffy Hoodie:
  • Backing: Cut Away (2 layers). Bonded is best.
  • Topping: Water Soluble Solvy (Required to keep stitches on top).
  • Digitizing: Needs Laydown Stitch + Heavy Underlay.
• Standard Sweatshirt Fleece / Low-Pile:
  • Backing: Cut Away (1 heavy or 2 medium layers).
  • Topping: Optional (Test a letter H; if the bar disappears, use topping).
• Performance Tech Fleece (Very Stretchy):
  • Backing: No-Show Mesh (Polymesh) + 1 Layer Cut Away.
  • Warning: Do not stretch the garment while hooping!

4. The Laydown Stitch: Preventing "Sunken" Letters

The video demonstrates a specific tool to "mash down" the texture of the fleece so your letters sit on a flat surface.

Workflow:

1. Select your lettering or object.
2. Click the Laydown Stitch icon.
3. Hatch generates a light, cross-hatch fill background.




Sensory Check: Is it Right?

• Visual: It should look like a fishing net behind your letters.
• Tactile (Finished Product): Run your finger over the embroidery. The letters should feel "raised" and distinct from the hoodie texture.

The Cost of Quality: A Laydown Stitch adds stitch count—sometimes 1,000+ stitches. For a single gift, this doesn't matter. For 50 hoodies, this adds production time.

• Solution 1: Charge for the premium finish.
• Solution 2: optimize your equipment. This is where high-speed machines or magnetic embroidery hoops help you recover lost time during the hooping process.

5. Sequence Docker: The Logic of Layering

"Why is the red square under the blue circle?" This isn't a glitch; it's sequencing.

The Fix:

1. Open Sequence Docker (Right-hand tab).
2. Drag and Drop objects to change the stitch order. (Top of list = Stitches first).




The "Safety First" Sequencing Strategy

On unstable fabrics like fleece, order matters for safety, not just looks.

1. Placement Stitch / Laydown Stitch: Stabilize the area first.
2. Center Details: Stitch from the center moving outward to push fabric ripples away.
3. Outlines: Stitch these LAST.
   • Why? If you stitch the outline first, the heavy fill inside will push the fabric, and the fill will "leak" outside the outline.

6. Structured Troubleshooting & "Symptom-Fix" Chart

The comments section of the video is full of users hitting real-world walls. Let's structure this into a diagnostic table so you can fix issues fast.

7. The Physical Interface: Hooping is 80% of the Battle

You can have the perfect Hatch file, but if you hoop a hoodie poorly, it will fail. Traditional hooping on thick fleece is physically difficult and prone to "Hoop Burn" (permanent shiny rings on the fabric).

The Pivot Point: When to Upgrade Tools If you are struggling to close the hoop on a thick seam, or if your wrists hurt after doing 10 shirts, it is time to look at your hardware.

• The Problem: Standard hoops require brute force to friction-lock thick fabric.
• The Solution: Many professionals use magnetic embroidery hoops for fleece. They vertically clamp the fabric without forcing it into a ring, preventing hoop burn and saving your wrists.

Warning: Magnetic hoops often use N52 Neodymium magnets. They are incredibly strong. Keep fingers clear of the snapping zone (pinch hazard) and keep them away from pacemakers or sensitive electronics.

Commercial Scaling Logic

• Level 1 (Hobbyist): Use standard hoops + excessive stabilizer.
• Level 2 (Prosumer): Upgrade to a magnetic hoop for brother (or your machine brand) to speed up loading.
• Level 3 (Business): Create a workflow with a machine embroidery hooping station to ensure every logo is in the exact same spot on every Size L and Size XL shirt.

8. Final Checklists for Success

Setup Checklist (Pre-Flight)

• Needle Check: Use a Ballpoint 75/11 needle for fleece (protects fibers).
• Bobbin: Is it full? (Running out mid-fleece design is a nightmare).
• Design: "Auto Fabric: Fleece" applied? Laydown stitch visible?
• Stabilizer: Cut Away x 2 clamped TIGHT in the hoop.

Operation Checklist (During Stitching)

• Topping: Is the water-soluble film secure on top?
• Sound Check: Listen for a rhythmic "thump-thump." A harsh "clack-clack" means the needle is dull or hitting a knot.
• First 500 Stitches: Watch the Laydown stitch. If the fabric puckers now, stop. It will not get better.

By mastering the "hidden" file locations and respecting the physics of fleece through proper settings and sequencing, you stop fighting the machine and start producing. And remember: if the file is perfect but the sew-out fails, check your hoop—sometimes the best software upgrade is actually a better Clamp.

FAQ

• Q: Where does Wilcom Hatch Embroidery 3 save mapped keyboard design collections on Windows (ProgramData vs Program Files)?
  A: Wilcom Hatch Embroidery 3 stores mapped keyboard design collections in the hidden Windows ProgramData path, not in Program Files.
  • Enable: File Explorer > View > check Hidden items to reveal ProgramData.
  • Navigate: C:ProgramDataWilcomHatch EmbroideryFONTS.
  • Backup: Copy the original collection file to a Desktop “Backup” folder before editing.
  • Success check: The mapped keyboard collections appear after opening the correct FONTS folder, and you can see your saved naming clearly.
  • If it still fails… Confirm the folder is ProgramData (not Program Files) and re-check Hidden items is enabled.
• Q: How do I set “Auto Fabric: Fleece” in Hatch Embroidery 3 so satin lettering doesn’t sink into hoodie fleece?
  A: Use Hatch Embroidery 3 Design Settings > Auto Fabric > Fleece to apply fleece-appropriate stitch physics before stitching.
  • Open: Design Settings (top menu) > Auto Fabric > select Fleece > OK.
  • Accept: The software’s stabilizer prompt (commonly “Backing: Cut Away x 2”) as the baseline, especially for stretch fleece.
  • Success check: Satin letters look fuller and more stable, with less fabric showing through compared to a non-fleece setting.
  • If it still fails… Add water-soluble topping and/or apply a Laydown Stitch for high-pile fleece.
• Q: What stabilizer “sandwich” should be used for embroidery on high-pile sherpa or fluffy hoodie fleece to prevent sinking stitches?
  A: For high-pile/sherpa fleece, use Cut Away (2 layers) plus water-soluble topping, and plan for a Laydown Stitch when needed.
  • Back: Clamp 2 layers of Cut Away (bonded is often preferred) to control stretch.
  • Top: Add water-soluble topping (Solvy) to keep stitches sitting on the surface.
  • Digitize: Use Laydown Stitch + heavier underlay when the nap keeps swallowing details.
  • Success check: The stitches stay visible on top of the pile, and letters feel raised when you run a finger over them.
  • If it still fails… Re-check hooping tightness (fabric shifting can mimic “sinking”) and test a small sample before full production.
• Q: How do I use the Hatch Embroidery 3 Laydown Stitch tool to stop lettering from sinking into fleece nap?
  A: Apply Laydown Stitch behind the lettering/object to flatten fleece texture before the satin stitches sew.
  • Select: The lettering or object to be protected from nap.
  • Click: The Laydown Stitch icon to generate the light cross-hatch background.
  • Monitor: Stitch count increases (often 1,000+ stitches), so plan time accordingly for batches.
  • Success check: The laydown looks like a “fishing net” under the letters, and the finished letters feel distinct and raised above the fleece texture.
  • If it still fails… Add water-soluble topping and verify the design is stabilized with the recommended Cut Away layers.
• Q: How do I reorder stitch objects in Wilcom Hatch Embroidery 3 Sequence Docker so outlines stitch last and gaps don’t appear on fleece?
  A: Use Sequence Docker and drag-and-drop objects so stabilizing stitches run first and outlines run last.
  • Open: Sequence Docker on the right panel.
  • Drag: Objects to the correct order (top of list stitches first).
  • Follow: Laydown/placement first → center details → outlines last (to avoid fill pushing past outlines).
  • Success check: Outlines cleanly cover the edge of the fill with fewer visible gaps or “leak” lines.
  • If it still fails… Re-check hooping tension and consider increasing pull compensation if the fabric is still pulling.
• Q: What should I do when an embroidery machine shows a “stuck pattern” symptom (humming but not moving, screen frozen) after exporting a Hatch Embroidery 3 file?
  A: Treat it as a file/path issue first: re-export to USB, then inspect the design for problematic commands.
  • Re-export: Save/export the file again and try a different USB if available.
  • Inspect: Look for trim commands too close together, which can cause execution problems.
  • Retry: Load the freshly exported file and start again.
  • Success check: The machine progresses through the first stitches normally (no freeze, no endless hum without movement).
  • If it still fails… Export a simplified version (remove suspicious trims) to confirm whether the original file is corrupted.
• Q: What safety precautions are required when using magnetic embroidery hoops with strong N52 neodymium magnets on fleece garments?
  A: Magnetic embroidery hoops can snap shut with high force, so protect fingers and keep magnets away from sensitive medical/electronic devices.
  • Keep clear: Avoid the “snapping zone” when closing the magnetic frame (pinch hazard).
  • Control: Lower the magnet/clamp carefully instead of letting it slam.
  • Separate: Keep magnets away from pacemakers and sensitive electronics.
  • Success check: The hoop closes without finger pinches, and the fabric is clamped evenly without forced distortion.
  • If it still fails… Stop and reposition—do not fight the magnets; confirm the hoop is the correct size and seating flat before clamping.
