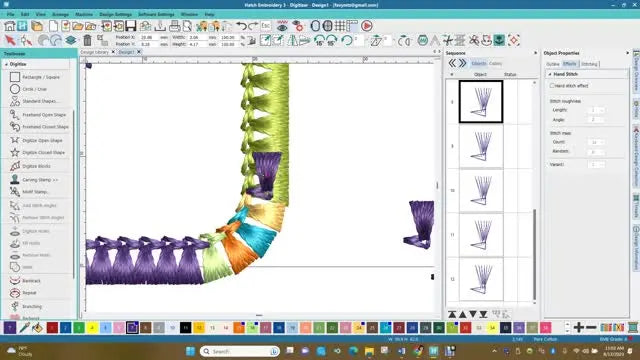

Hatch Embroidery Marrow Stitch Rounded Corners: The Pivot-Point Trick That Makes Patch Borders Look Pro

The "Impossible" Marrow Corner: How to Digitize a Perfect Round Edge in Hatch (Without the Headache)

If you have ever digitized a patch border using the "Marrow" stitch—that beautiful, dense, satin-like edge used on professional emblems—you know the specific heartbreak of the corners.

On a straight line, the software is a genius. It lays down a perfect, rhythmic edge. But the moment you ask for a rounded 90-degree turn, the "Auto-Generate" feature often falls apart. It might give you a sharp, boxy kink. It might overlap the stitches so heavily that your needle generates smoke. Or worse, it breaks the curve into ten separate objects, causing your machine to cut, trim, and tie-off ten times in one inch.

This separates "Homemade" from "Commercial Grade."

In this guide, we are not just going to "fix a corner." We are going to rebuild your understanding of how Marrow motifs behave physically. We will use a manual method in Hatch Embroidery (the "Stamp" method) that gives you absolute control.

The Physics of the Corner: Why "Auto" Fails and You Must Take Control

Before we click a mouse, you need to understand the physical forces at play.

A Marrow motif is not a continuous fluid line like a running stitch. It is a series of small, discrete "stamps"—imagine tiling a floor. When you hit a corner, the software has to decide: Do I stretch the tiles? Do I overlap them? Do I leave a gap?

Usually, it chooses wrong.

The method we are using today changes the pivot point of these stamps. We are going to fan them out like a dealer fanning a deck of cards. The "Card Deck" visualization is crucial:

• The Hub (Inner Edge): The cards touch tightly.
• The Fan (Outer Edge): The cards spread out smoothly to create the curve.

If you master this, you eliminate "bird nesting" (thread tangles) underneath the patch, because you control the density at the hub.

Phase 1: The "Hidden" Prep (Do This Before You Digitizing)

Most beginners rush to the corner. This is a mistake. A good corner is defined by the straight lines leading into it.

The video source for this guide starts with the vertical and horizontal lines already drawn. This is the correct workflow. You need a "landing zone" and a "takeoff zone."

The "Gap" Strategy

You must leave a 90-degree gap between your vertical and horizontal lines.

• Visual Check: Zoom out. Does it look like a broken picture frame? Good.
• Measurement: The gap doesn't need to be mathematically perfect, but the inner edges of your borders should technically intersect if you extended them with an imaginary line.

Hidden Consumables Setup

Before you even open the software, check your physical inventory. Developing a patch border requires specific supplies:

• Needles: Marrow edges are dense. A standard Universal 75/11 might deflect. Upgrade to: A Topstitch 80/12 or a Titanium-coated needle to resist the heat of friction.
• Bobbin: Ensure your bobbin is at least 50% full. Running out of bobbin thread mid-corner is a disaster that is hard to repair invisibly.

Warning: Mechanical Safety
When testing dense corners, wear safety glasses. If a needle hits a dense knot of thread at 800 stitches per minute (SPM), it can shatter. The tip can fly with significant velocity. Never put your face close to the needle bar to "see better" while the machine is running.

Prep Checklist (The "Pre-Flight" Check)

• Structure: I have one vertical and one horizontal marrow line placed, with a clean gap for the corner.
• Direction: I know which side is the "Inside" (touching the patch fabric) and which is the "Outside" (the edge).
• Orientation: I have identified the End Node of the first line and the Start Node of the second line.
• Visual Aid: I have turned on "TrueView" (or 3D view) to see the actual thickness of the stitch, not just the wireframe line.

Phase 2: The Tooling – Setting Up the Motif Stamp

In Hatch Embroidery, we aren't using a standard drawing tool. We are using a specific stamper.

1. Open the Digitize toolbox.
2. Select Motif Stamp.
3. In the library dialog, you must be precise. Select:
   • Category: Applique Edge
   • Motif Type: Marrow1

Why Marrow1? This specific pattern is engineered to wrap over the edge of the fabric (if you are making an applique) or bind the edge (if you are making a patch). It has a "spine" and a "cover" stitch.

Phase 3: The "Parts Bin" Technique

Here is a workflow secret from production digitizers: Don't build in place.

If you try to stamp, rotate, and place one object at a time directly in the corner, you will get frustrated by the snapping tools.

Instead, create a "Parts Bin."

1. Click in empty white space on your canvas.
2. Stamp out five individual Marrow1 motifs.
3. Press Esc to stop stamping.

Now you have your raw materials—five little "bricks" ready to be laid.

Why Five? Experience shows that a standard 90-degree patch corner usually takes between 3 to 6 motif repetitions to turn the corner smoothly without checking or gapping. Five is your safe starting number.

Phase 4: The Critical Move – Moving the Pivot Point

This is the most important section of this guide. If you skip this, your corner will fail.

By default, when you rotate an object in embroidery software, it spins around its Center of Gravity.

• If you rotate a Marrow stamp around its center: It will swing wildy out of position. You will have to drag it back every time.

The Fix:

1. Select your first stamp from the "Parts Bin."
2. Drag it so it roughly touches the end of your vertical border line.
3. Click the object a second time. You will see the Black Rotation Squares appear at the corners.
4. Look for the Pivot Point. It is usually a small circle or crosshair in the middle.
5. Click and Drag that pivot point to the Inner Start Node of the motif (the corner that touches the inside of the patch).

Sensory Check:

• Visual: The pivot point should "snap" to the node.
• Action: When you rotate the handle now, the object should swing like a door on a hinge, not like a wheel.


Phase 5: The "Fan" – Building the Curve

Now that your pivot point is anchored to the inside corner:

1. Grab a rotation handle.
2. Rotate the stamp until it overlaps the previous stitch slightly.
3. Repeat this for the next stamp: Drag it in, move the pivot point to the exact same inner coordinate, and rotate it further.

The "Sweet Spot" for Overlap: How much overlap is safe?

• Too Little: You get a "V" gap on the outside edge. The fabric will fray.
• Too Much: You get a hard lump. The needle might break.
• The Sweet Spot: Overlap the inner edge by about 0.5mm to 1.0mm. The outer edges should touch but not crowd each other.












This fanning action creates the illusion of a curve using straight segments. It is the same principle as a stone archway.

Phase 6: Sequencing – Preventing the "Trim Nightmare"

You have a beautiful corner on screen. But if you hit "Export" now, your machine might hate you.

If the software sees these 5 stamps as separate "events," the machine will: Stitch Stamp 1 -> Lock Stitch -> Cut Thread -> Jump -> Lock Stitch -> Stitch Stamp 2...

This takes forever and leaves a mess of thread tails ("bird nests") on the back.

The Logic Fix:

1. Open the Sequence Docker (the list of objects).
2. Ensure your Vertical Line is first.
3. Ensure your 5 Corner Stamps are next, in order (1, 2, 3, 4, 5).
4. Ensure your Horizontal Line is last.
5. Crucial Step: Select ALL these objects and assign them the exact same color.

When they are consecutive and the same color, the machine interprets them as one continuous flow. No cuts. No jumps. Just a smooth purr of the mechanism.

Setup Checklist (Digital Final Polish)

• Continuity: I have zoomed in 400% to ensure there are no visible white gaps between the stamps.
• Order: I ran the "Slow Redraw" / "Player" simulator. The virtual needle flows like water, without jumping around.
• Color: I confirmed that the entire border is one color code in the palette.
• Density: I do not see any "black holes" on screen where 4+ objects overlap at once. (If yes, delete one stamp and fan the others wider).

Physics & Hardware: The Real-World Variables

You cannot solve every problem in software. The physical interaction between your hoop, your stabilizer, and your thread determines the final look.

The Stabilizer Decision Tree

Corners distort because they have high "pull compensation" forces. The thread pulls the fabric inward. Use this guide to choose your foundation.

Decision Tree: Substrate vs. Stabilizer

1. Are you stitching a standalone Patch (on Twill/Felt)?
   • Yes: Use 2 layers of Water Soluble Stabilizer (Fibrous type, not film) OR 1 layer of heavy Cutaway.
   • Why: You need absolute rigidity. Tearaway is too weak for the high stitch count of marrow edges; the corners will perforate the paper and pull away.
2. Are you stitching directly onto a Garment (e.g., Hoodie)?
   • Yes: You MUST use Cutaway stabilizer.
   • Why: Knits stretch. Without cutaway, the dense corner will dig a hole in the shirt.
3. Is your machine struggling to hold the fabric tight?
   • Symptom: The fabric ripples near the corner.
   • Solution: This is often a hooping error. Traditional friction hoops can slip.

The Logic of the Tool Upgrade

If you are doing this as a hobby, you can struggle with screw-tightened hoops. But if you plan to make 50 patches, you need to look at your workflow.

Hoop burn (the ring mark left by tight hoops) can ruin a delicate patch border. This is where professionals search for a magnetic embroidery hoop. Unlike standard hoops that force fabric into a distorted shape, a magnetic embassy hoop system clamps the material flat.

Why does this matter for Corners? Because a magnetic frame holds the tension evenly around the entire perimeter. A screw hoop is often tightest at the screw and loosest opposite it. Uneven tension = distorted corners.

Warning: Magnetic Field Safety
magnetic embroidery hoops use powerful neodymium magnets.
* Pinch Hazard: They snap together with enough force to bruise blood blisters. Handle with palms open.
* Medical Device Safety: Keep these magnets at least 6 inches away from pacemakers or insulin pumps.

Troubleshooting: The "Why Does It Look Bad?" Guide

Even with the best digitizing, things go wrong. Here is your Low-Cost to High-Cost troubleshooting path.

The Efficiency Path: From "Struggling" to "Production"

Once you master the "Stamp and Fan" technique, you will want to do it faster.

1. Save Your Asset: Don't delete that corner! Save the group of 5 fanned stamps to your Hatch Library. Next time, you just drag in a "Perfect Corner" and attach it to the lines.
2. Standardize Your Hooping: If you find yourself fighting to get the patch straight in the hoop, consider a hoopmaster hooping station. It aligns your fixtures so your digital file matches your physical reality every single time.
3. Upgrade Your Grip: Using terms like embroidery hoops magnetic in your supply search isn't just about convenience; it's about consistency. If you can turn a 2-minute hooping battle into a 10-second "click," your frustration vanishes, and you can focus on the art.

Operation Checklist (Ready to Sew?)

• Needle Check: Is the needle straight and sharp? (Run a finger—carefully—over the tip to feel for burrs).
• Bobbin Check: Is the bobbin tension correct? (Do the "Yo-Yo drop test"—it should hold weight but drop slightly when jerked).
• Speed Limit: have I lowered the machine speed to ~600-700 SPM for this dense border run?
• Test Sew: Have I run this on a piece of scrap fabric first? (Never run your first file on the final garment).

Creating the perfect Marrow corner is a rite of passage. It moves you from "pressing buttons" to "engineering stitches." Take your time, respect the physics of the thread, and build your corners with intention. Happy stitching!

FAQ

• Q: In Hatch Embroidery, how can Hatch Motif Stamp (Applique Edge > Marrow1) make a smooth 90-degree rounded patch corner without boxy kinks from Auto-Generate?
  A: Use the manual “stamp and fan” method so each Marrow1 segment rotates around the inner edge instead of letting Auto-Generate guess the curve.
  • Leave a clean 90-degree gap between the straight vertical and horizontal marrow lines before building the corner.
  • Stamp 3–6 Marrow1 motifs in empty space first (5 is a safe starting point), then move them into the corner.
  • Rotate each stamp as a small segment and overlap the inner edge slightly (about 0.5–1.0 mm) while keeping the outer edge smooth.
  • Success check: In TrueView/3D view at high zoom, the outside edge looks like one continuous curve with no white “V” gaps and no bulky lump.
  • If it still fails… delete one stamp and fan the remaining stamps wider to reduce multi-layer overlap “black holes.”
• Q: In Hatch Embroidery, how do you move the rotation pivot point on a Marrow1 motif so the corner fan rotates like a hinged door instead of spinning wildly?
  A: Reposition the pivot point to the inner start node of the Marrow1 stamp before rotating.
  • Select the stamp, then click the object a second time to show the black rotation handles.
  • Drag the pivot point (small circle/crosshair) from the center to the inner node that will sit at the patch’s inside corner.
  • Rotate using the handle only after the pivot is snapped to that inner node.
  • Success check: The stamp rotates around the inner corner like a hinge, staying “anchored” instead of drifting away.
  • If it still fails… zoom in further and re-snap the pivot exactly to the node (near-misses cause unpredictable swing).
• Q: In Hatch Embroidery, how can you stop a multi-needle embroidery machine from trimming between every Marrow1 corner stamp when digitizing a patch border corner?
  A: Make the corner stamps stitch as one continuous sequence by ordering them consecutively and assigning the exact same color.
  • Open the Sequence/Objects list and order: Vertical line → corner stamp 1–5 → horizontal line.
  • Assign the vertical line, all corner stamps, and the horizontal line to the same color code so the machine doesn’t interpret them as separate stops.
  • Preview with Slow Redraw/Player to confirm the needle path flows forward without jump/cut events.
  • Success check: The simulator shows a continuous run through the corner with no trim icons or color-change pauses.
  • If it still fails… re-check for any stamp that is out of order or accidentally a different color in the palette.
• Q: For dense Marrow patch borders on twill/felt or on a hoodie, which stabilizer choice prevents corner distortion and pull-in during a Marrow1 edge run?
  A: Match stabilizer to the substrate because marrow corners generate high pull forces and weak backing allows distortion.
  • Choose for standalone patches (twill/felt): use 2 layers fibrous water-soluble stabilizer (not film) or 1 layer heavy cutaway for rigidity.
  • Choose for garments (hoodies/knits): use cutaway stabilizer so the dense corner does not chew into stretchy fabric.
  • Watch for rippling near corners as a sign the foundation is not rigid enough or hooping tension is uneven.
  • Success check: The corner stitches lay flat with no ripples, and the curve stays round instead of collapsing inward.
  • If it still fails… treat it as hooping control (fabric shifting/flagging) and improve holding power before changing digitizing.
• Q: When digitizing and testing dense Marrow corners, what needle and bobbin preparation reduces thread breaks and mid-corner failures on a home embroidery machine?
  A: Use a needle built for dense stitching and confirm bobbin capacity before testing the corner.
  • Upgrade needle choice for marrow density: often a Topstitch 80/12 or a titanium-coated needle handles heat/friction better than a standard Universal 75/11.
  • Replace the needle if there is any doubt; dense corners amplify small needle defects.
  • Load a bobbin that is at least ~50% full so you don’t run out mid-corner where repairs are visible.
  • Success check: The corner sews at reduced speed without repeated thread breaks and without a sudden bobbin run-out.
  • If it still fails… slow the machine down further (many users find ~600 SPM helps on dense borders) and re-check tension and thread path.
• Q: What mechanical safety steps should be followed when test-sewing a dense Marrow1 patch corner at high speed on an embroidery machine to avoid injury from needle breakage?
  A: Treat dense corners as a needle-break risk zone and protect eyes and hands during testing.
  • Wear safety glasses during dense corner tests because a needle can shatter when it hits a hard knot at high SPM.
  • Keep face and fingers away from the needle bar area while the machine is running; do not lean in to “see better.”
  • Reduce border speed during tests (commonly around 600–700 SPM) to lower impact and heat.
  • Success check: The corner run completes without audible “pops,” visible needle deflection, or repeated strikes in one spot.
  • If it still fails… stop immediately, inspect for thread buildup/lumps at the corner, and restart only after correcting overlap/density and installing a fresh needle.
• Q: How can magnetic embroidery hoops reduce fabric shifting, corner gaps, and hoop-burn marks when stitching dense Marrow patch borders compared with a screw-tightened hoop?
  A: Magnetic embroidery hoops can hold fabric tension more evenly around the perimeter, which often reduces corner distortion and shifting.
  • Switch to a magnetic hoop if ripples/gaps appear on fabric even when the digitized corner looks perfect on screen, indicating movement/flagging.
  • Use the even clamping to avoid over-tightening one side (a common cause of hoop burn and uneven tension with screw hoops).
  • Handle magnets safely: keep hands clear of pinch points and keep magnets away from pacemakers/insulin pumps per medical guidance.
  • Success check: The fabric stays flat through the corner run, and gaps between stamps disappear without increasing overlap aggressively.
  • If it still fails… upgrade the foundation first (cutaway or rigid patch backing) and then revisit overlap and sequencing in the file.
